JennAir
Buy 1 Save 10%; Buy 2 or 3 Save 15%
Buy 4 or more Save 20%
Save additional $250 on select units

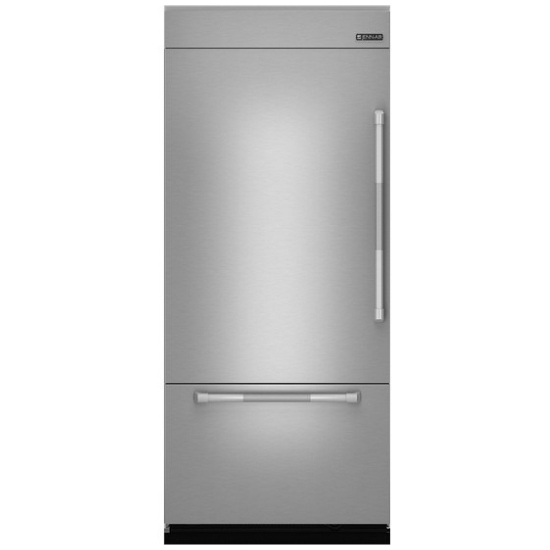

JennAir JPK36BNXWPS
Discontinued
>> View 2020 JennAir Parts & Accessories Guide << >> View 2020 JennAir Parts & Accessories Guide <<
ADKVA7
Why Buy This at CAS?
Ratings & Reviews
ADKVA7
When will I get this?

Why Buy This at CAS?
Description & Features
Overview
This Jenn-Air® luxury integrated built-in bottom-freezer refrigerator achieves a sleek, seamless look; optional custom panels allow it to blend completely into cabinetry. It also maintains an optimal environment to keep ingredients superbly fresh.

Specifications
Configuration and Overview
  • Refrigerator Type: Bottom Freezer
  • Total Capacity: 20.4 Cu. Ft.
  • Refrigerator Capacity: 15.20 Cu. Ft.
  • Freezer Capacity: 5.19 Cu. Ft.
  • Energy Star® Qualified: No
  • CEE Tier: Not Rated

Dimensions
  • Height: 83 1/8
  • Width: 35
  • Depth: 27 3/8
  • Cutout Height (in): 83 1/2
  • Cutout Width (in): 36
  • Cutout Depth (in): 25
  • Height To Top Of Cabinet: 83 1/8
  • Depth Excluding Doors: 23 1/2
  • Depth Closed Excluding Handles: 24
  • Width of Cabinet Only: 35
  • Width with Doors Closed: 35 3/4

Energy and Eco-Friendly
  • Energy Star® Qualified: No

Filtration and Dispensing
  • Ice Maker: Factory Installed
  • Dispenser Type: No Dispenser
  • Filtered Water: No
  • Measured Fill: No

Freezer Features
  • Number of Freezer Shelves: 0
  • Interior Shelves: No
  • Lower Freezer Drawer: No
  • Upper Freezer Drawer: No
  • Slide-Out Freezer Basket: Upper Plastic and Lower Metal
  • Door Bins: No

Refrigerator Features
  • Number of Interior Shelves: 5
  • Spill-Proof Glass Shelves: No
  • Conventional Shelves: 1 Fixed Full-Width Glass, 4 Adjustable Half-Width Glass
  • Temperature-Controlled Drawers: No
  • Humidity-Controlled Drawers: 1 Full-Width
  • Non Climate-Control Drawers: 1 Full-Width
  • Door Bins: 1 Adjustable Full-Width, 2 Dairy, 4 Adjustable Half-Width

Style and Extras
  • Number of Freezer Shelves: 0
  • Door Swing: Left
  • Reversible Door: No
  • Number of Interior Shelves: 5
  • LCD Touch Screen: No

  • Signature Features
  • Requires Custom Overlay Panels or Suite-Coordinating Panel Kit, Not Included
  • Precision Temperature Management™ System
  • Gallon door storage bin
  • Glass-touch electronic controls with LCD display
  • Advanced Climate Control Drawer(s)
  • Fully Integrated and Flush Design
  • Performance Features
  • Pulsed Defrost
  • Quiet Operation
  • Sabbath Mode
  • Control Features
  • Over Temp alarm
  • Door Open Alarm
  • Max Cold
  • Water Filter Indicator and Reset
  • Freezer Features
  • Automatic Ice Maker with Storage Bin
  • Glide-Out Drawer with SmoothClose™ Drawer Track System
  • Covered Light(s)
  • Grille/Exterior Design Features
  • Easy Panel Installation
  • 4-Point Front Leveling
  • Removable Base-Grille Water Filter
  • Refrigerator Features
  • Adjustable Door Bin(s)
  • Covered Light(s)
  • Adjustable Elegance Shelving
  • Crisper Drawer(s)
  • Dairy Compartment with Magnetic Sealing Gasket
  • Deli Drawer(s)

Requires Custom Overlay Panels or Suite-Coordinating Panel Kit, Not Included

Fully Integrated and Flush Design

Precision Temperature Management System

Advanced Climate Control Drawer(s)

Gallon door storage bin

Glass-touch electronic controls with LCD display

Pulsed Defrost

Quiet Operation

Sabbath Mode

Max Cold

Over Temp alarm

Door Open Alarm

Water Filter Indicator and Reset

Deli Drawer(s)

Crisper Drawer(s)

Adjustable Elegance Shelving

Dairy Compartment with Magnetic Sealing Gasket

Adjustable Door Bin(s)

Covered Light(s)

Glide-Out Drawer with SmoothClose™ Drawer Track System

Automatic Ice Maker with Storage Bin

Covered Light(s)

Removable Base-Grille Water Filter

Easy Panel Installation

4-Point Front Leveling

Manufacturer's Warranty: 2 years

Canadian model: JPK36BNXWPS

Specs



Performance
Freezer Capacity 5.2 Cu. Ft.
Refrigerator Capacity 15.2 Cu. Ft.
Total Capacity 20.4 Cu. Ft.
Filter Features
Water Filter Type Removable Water Filter - Filtered by PUR®
Water Filter Location Base Grille
Controls
Control Type Gemini Flash Capacitance
Max Cool Yes
Door Alarm Yes
Water Filter Indicator/Reset R/Y/G LED (3 LEDs)
Star K Certified Yes
On Demand Pulsed Defrost System Defrost on Demand
Temperature Controlled Drawer Advanced Climate Control™ Technology Storage Bin
Freezer Features
Number of Baskets 1
Basket 1 Description Drawer
Basket 2 Quantity 1
Basket 2 Description Drawer
Icemaker Type Automatic Ice Maker
Ice Bucket T-Line Ice Drawer
Refrigerator Features
Door Bin Description Adjustable Refrigerator Door Storage
Door Bin Quantity 4
Door Bin 2 Description Gallon Door Storage
Door Bin 2 Quantity 1
Shelf Type JA Glass
Drawer 1 Crisper Drawer
Drawer 2 Deli Drawer
Exterior
Door Style Integrated Trim
Dimensions
Cutout Depth 25 Inches
Cutout Height 83 1/2 Inches
Cutout Width 36 Inches
Height To Top Of Cabinet 83 1/8 Inches
