- LED Temperature Display
- 5 Roll-Out Racks
- DualZone System
- UV-Resistant Thermal Glass Door
- Adjustable Temperature Control
- Automatic Defrost
- Stainable Maple Rack Fronts
- 46-Bottle Capacity
- Fixed Display Rack
- 2 Temperature Zones
- Automatic Interior Light
- Black Textured Cabinet Finish
- Built-In or Freestanding Installation
- 4 Adjustable Levelers
* Interior Features
* 46-bottle capacity allows storage of a variety of wines suitable for every occasion
* Dual temperature zones and adjustable temperature control allow different wines to be stored in one convenient place
* Roll-out racks provide easy access, and the maple fronts may be stained to match surrounding cabinets
* UV-resistant thermal glass door protects wine from light and harmful rays
* LED temperature display provides constant feedback on temperatures inside the wine cellar
* 5.6 cu. ft. capacity
* 46-bottle capacity with space for 6 magnums
* DualZone system
* 5 roll-out racks with stainless steel ball bearing rollers
* Stainable maple rack fronts
* Other Features
* Brushed stainless steel handle
* Seamless edges
* Right-hand door swing
* Built-in or freestanding installation
* Wrap around stainless steel door with black cabinet
* LED temperature display for upper and lower zone
* Fahrenheit and Celsius temperature display option
* Auto defrost
* Automatic interior light
* Black interior
* UV-resistant thermal glass door
* Adjustable temperature control on base grille
* Manual light switch
*
* Installation Notes
* If your wine cellar is to be built-in, ensure proper ventilation by allowing for 1/4" space on each side and at the top.
* When installing your wine cellar next to a fixed wall and the hinge side is next to the wall, leave 2 1/2" minimum to allow for the door to swing open.
* To open the door wider, leave more space.
* Do not install wine cellar near an oven, radiator or other heat source, nor in a location where the temperature will fall below 55° (13°C).
Manufacturer's Warranty: 2 years

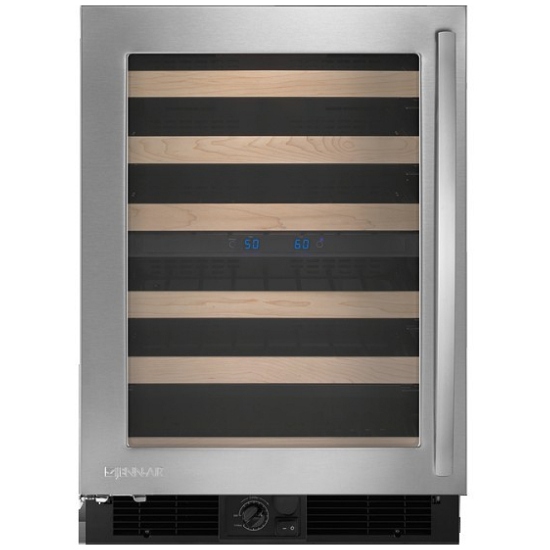

Canadian model: JUW248LWRS
| Configuration and Overview | |
| Bottle Capacity | 46 |
| Controls | |
| Control Location | Base Grille |
| Control Type | Electronic |
| Cooling On/Off | No |
| Number of Temperature Controlled Zones | 2 |
| Controls | |
| Shelf(s) Description | 2 Wine Racks |
| Temperature Divider LED Color | Blue |
| Temperature Divider LED Dimmer Switch | Yes |
| Temperature Range | 43F to 55F @ 70 Ambient |
| Zone 1 Capacity | Up to 24 Bottles |
| Zone 1 Description | White Wine |
| Zone 2 Capacity | Up to 22 Bottles |
| Zone 2 Description | Red Wine |
| Zone 2 Temperature Range | 59F to 64F @ 70F Ambient |
| Annual Energy Usage [kWh] | 441 |
| Cabinet Finish | Textured |
| Handle Location | Vertical |
| Dimensions | |
| Height | 35 1/8 |
| Width | 23 3/4 |
| Depth | 24 3/8 |
| Cutout Height (in) | 34 5/8 |
| Cutout Width (in) | 24 |
| Cutout Depth (in) | 24 |
| Depth with Door Open 90 Degrees | 47 |
| Depth Excluding Doors | 22 |
| Depth Closed Excluding Handles | 24 3/8 |
| Width of Cabinet Only | 23 3/4 |
Dimensions
Width: 23 3/4"
Depth: 24"
Depth excl. Overlay Panel: 23 5/8"
Depth excl. Door: 21"
Depth incl. Handle: 26 1/2"
Depth with Door Open 90°: 47 1/2"
Clearance Required with Door open 90°: 23 1/4"
Height - Fully Extended: 34 3/4"
Height - Fully Retracted: 34 3/8"
Cutout Width (min.): 24"
Cutout Depth (min.): 24"
Cutout Height (min.-max.): 34 3/8" - 34 3/4"
Custom Panel Dimensions
Width: 23 5/8"
Height: 29 7/8"
Interior Capacity
Total Volume: 5.6 cu. ft.
Bottle Capacity: up to 46 wine bottles
Specifications
Jenn-Air Platinum Warranty: Yes
Available in Canada: Yes
Kilowatt Hours per Year: 441
Approximate Shipping Weight: 192 lbs./87 kg
Wine Cellar Features
Adjustable Thermostat: Yes
Automatic Defrost: Yes
Temperature Zones: Dual
Temperature Range - Upper Zone: 45° - 55°F
Temperature Range - Lower Zone: 56° - 64°F
Automatic Interior Light: Yes
Roll-out Racks: 5
Fixed Rack: 1
Rack Color: Black Gloss
Rack Trim: Maple
Exterior Features
Cabinet Color: Black
Cabinet Hinge (Top/Bottom): Stainless Steel/Plated Nickel
Door Color: Stainless Steel
Handle Color: Euro-Style
Badge Location: Centered (bottom of door)
Grille Color: Black
