KitchenAid KBSN748SBE
APK758
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
MAP Price 🛈 Info

MAP Price Explanation

Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).


CAS sales staff have the ability to significantly discount most product prices below our online advertised prices especially when purchasing multiple products.

Visit one of our many Canadian showrooms or call 877-374-3439 to speak with our knowledgeable sales staff to get the best prices on your appliances




















Excludes: Whirlpool, Maytag, kitchenAid, Jennair brands
$10,995
KitchenAid Promo
Save $200 when you buy 2 items.
Save $300 when you buy 3 items.
Save $400 when you buy 4 items.
Save $500 when you buy 5 items.
* Only on eligible KitchenAid items
 Add to Cart
Call Local Showroom
Ratings & Reviews
W11777165
W11777165
Product Accessories
$795
W11777166
W11777166
Product Accessories
$795
W11777167
W11777167
Product Accessories
$795
Similar Colours and Options
KBSN748SJP
$10,995.00 CAD
APK758
Region Availability:
In Stock
When will I get this?

Description & Features

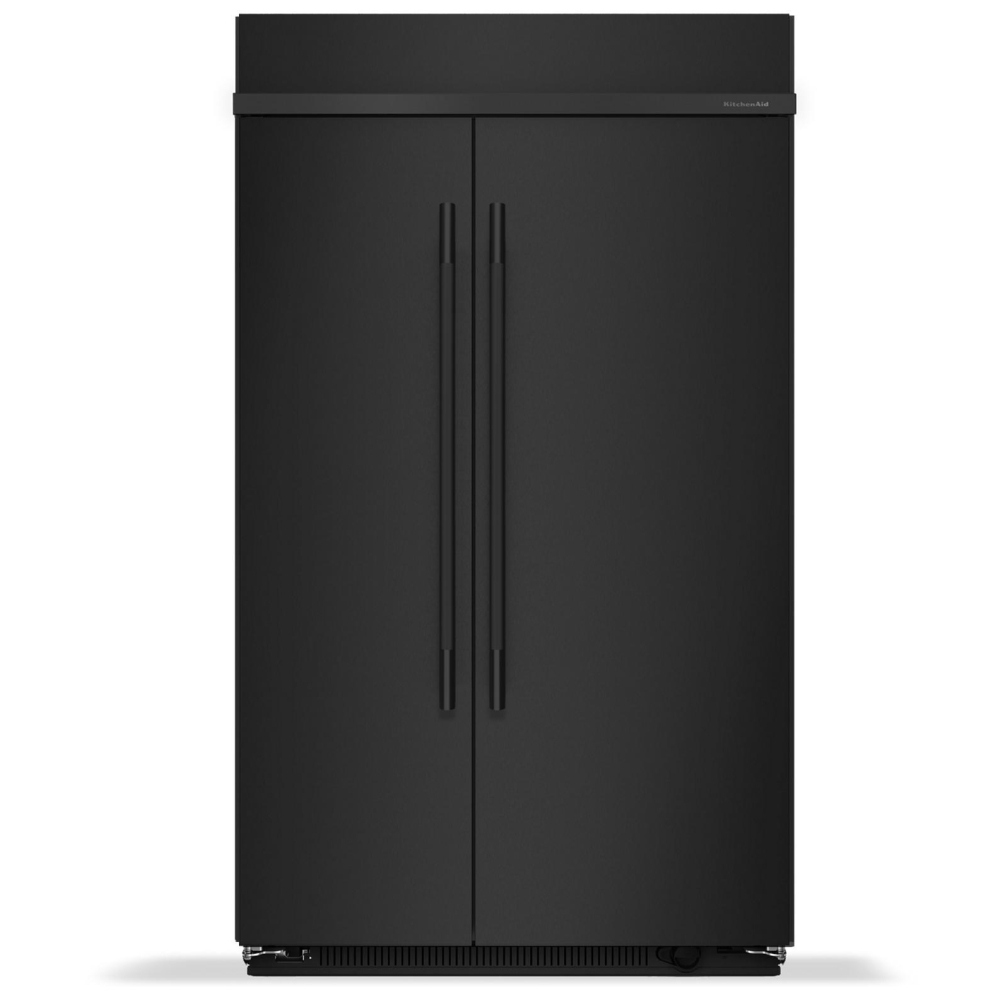

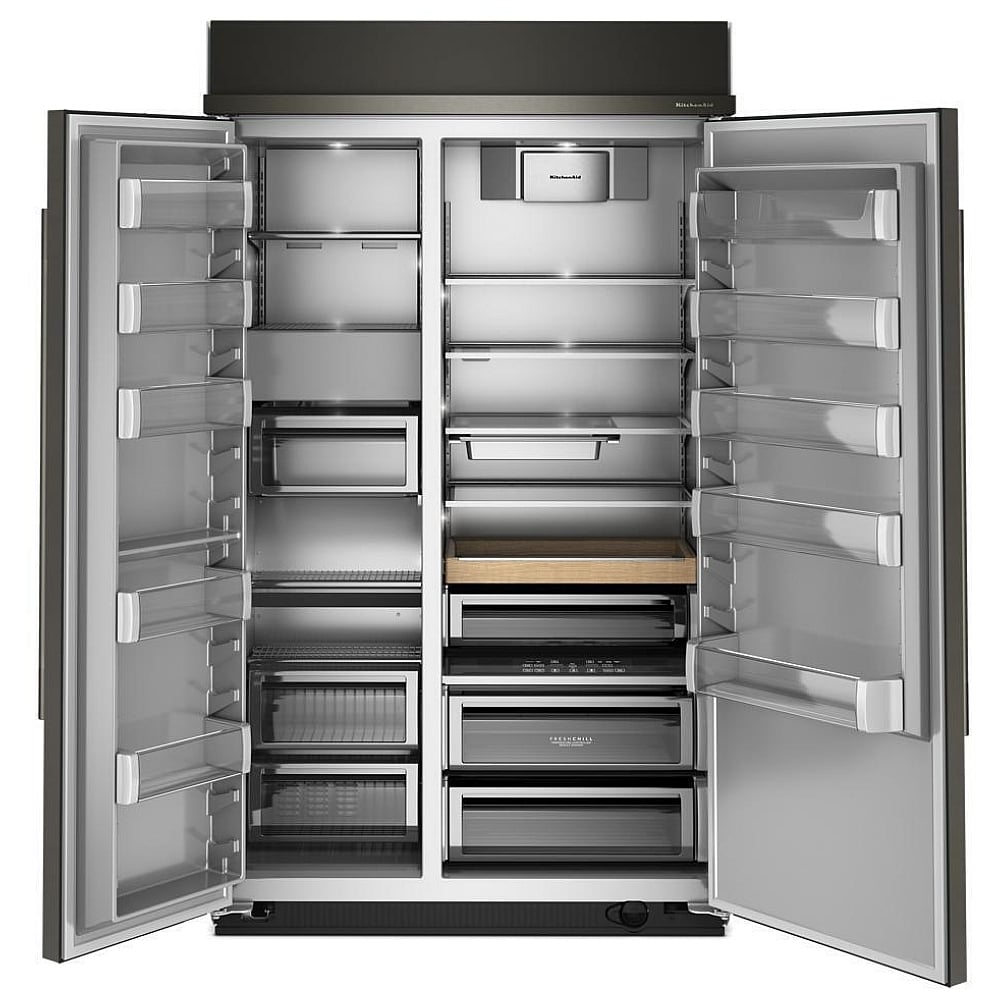

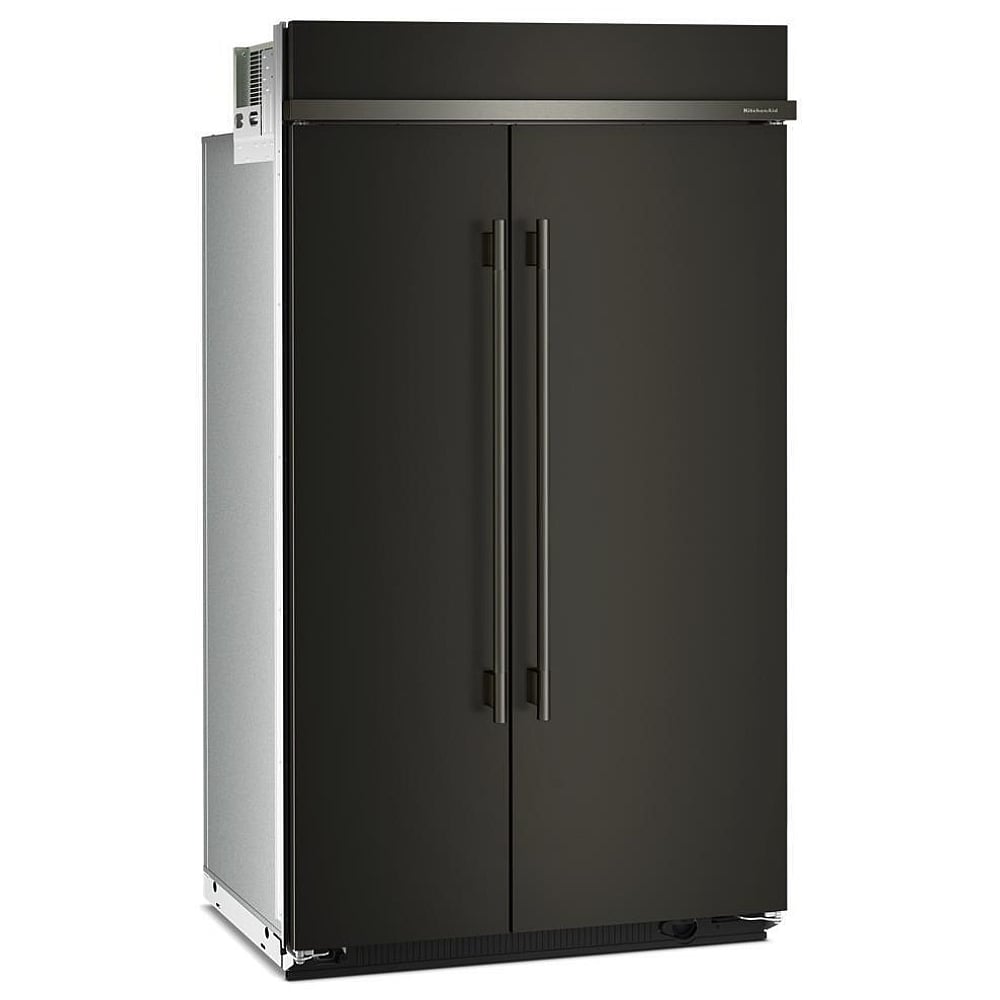

The KitchenAid® KBSN748SBE built‑in side‑by‑side refrigerator is designed for homeowners who want professional‑style presence, generous storage, and premium food care in one statement appliance. With an impressive 30 cu. ft. capacity and a commanding 48‑inch built‑in width, it becomes a true focal point in larger kitchens, offering the space and organization serious cooks need for weekly groceries, entertaining platters, and bulk ingredients without feeling cluttered. Its striking Black Ore finish and flat‑panel doors create a sleek, modern look, while the reach‑through handles and hidden hinges give it a clean, integrated appearance that pairs beautifully with high‑end cabinetry and appliances. Inside, the Signature Platinum Interior sets this model apart from many standard built‑ins, surrounding your ingredients with a sophisticated metallic‑accented liner, wood‑look trim, and ultra‑bright LED lighting that makes every shelf and bin easy to see, even when fully stocked.

Engineered for performance, the PRESERVA® Cooling System helps maintain ideal temperatures and humidity levels in both the refrigerator and freezer compartments, working to keep produce crisp, meats fresh, and frozen foods at a consistent temperature. The FRESHCHILL™ Temperature‑Controlled Drawer adds another layer of precision, offering dedicated presets for meat, produce, deli items, and assorted ingredients so you can fine‑tune conditions for what you store most often. For busy households, Max Cool and Max Freeze functions quickly drop temperatures after frequent door openings or large grocery loads, helping protect food quality.

Organization is equally thoughtful. Adjustable spill‑resistant glass shelves, full‑width gallon‑sized door bins, and a wood‑look sliding storage tray make it easy to configure the interior for everything from tall beverage bottles to wide party platters. The innovative Under‑Shelf Prep Zone takes advantage of space that often goes unused, including a 9" x 13" baking pan and sheet pan that can move seamlessly from refrigerator to oven to dishwasher, streamlining prep and cleanup. A factory‑installed automatic ice maker ensures a steady supply of filtered ice without sacrificing door storage, and soft self‑close doors add a quiet, premium touch to everyday use. With multiple installation options—flush, overlay, or proud—this KitchenAid® KBSN748SBE refrigerator offers the flexibility, capacity, and elevated design that discerning homeowners look for in a luxury built‑in refrigeration solution.

Signature Platinum Interior – premium silver-colored interior with wood-look trim, metallic accents and smoked crispers for a high-end built‑in look.

SatinGlide® Drawer System – ball‑bearing rollers provide smooth opening and closing of crisper and freezer drawers, even when fully loaded.

FreshChill™ Temperature‑Controlled Drawer – full‑width drawer with presets for Meat, Produce, Deli and assorted items to keep ingredients at ideal temperatures.

FreshFlow™ Air Filter – carbon-based filter deodorizes up to 15x better than baking soda to help keep refrigerator air fresh.

Preserva® Cooling System – advanced single‑evaporator system with sensors that monitor and adjust airflow to maintain optimal temperatures in fridge and freezer.

Max Cool function – quickly drops refrigerator temperature to the coldest setting to rapidly chill groceries, beverages or party platters.

Max Freeze function – rapidly lowers freezer temperature (down to about -8°F) to quickly freeze fresh items or restore ideal freezer temps after loading.

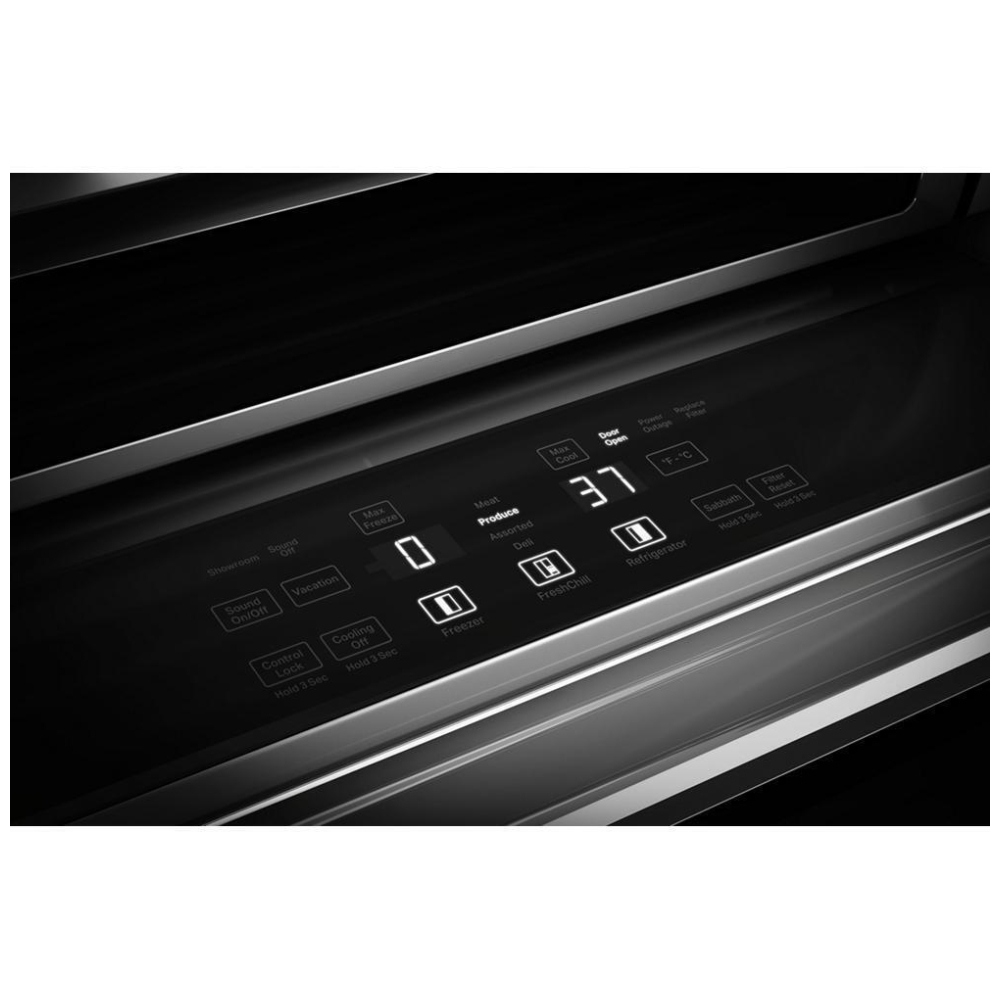

Touchscreen Controls – sleek, easy‑to‑use touch display puts temperature, modes and settings at your fingertips.

Under‑Shelf Prep Zone – utilizes space beneath a shelf with included 9" x 13" sheet pan and cake pan that can go from fridge to oven to dishwasher.

Soft Self‑Close Doors – doors close quietly and gently and will automatically pull shut when left slightly ajar to help prevent temperature loss.

Fit System Limited Guarantee – provides reimbursement (up to a set amount) toward cabinet modifications if the new 48" built‑in refrigerator doesn’t fit an existing cutout.

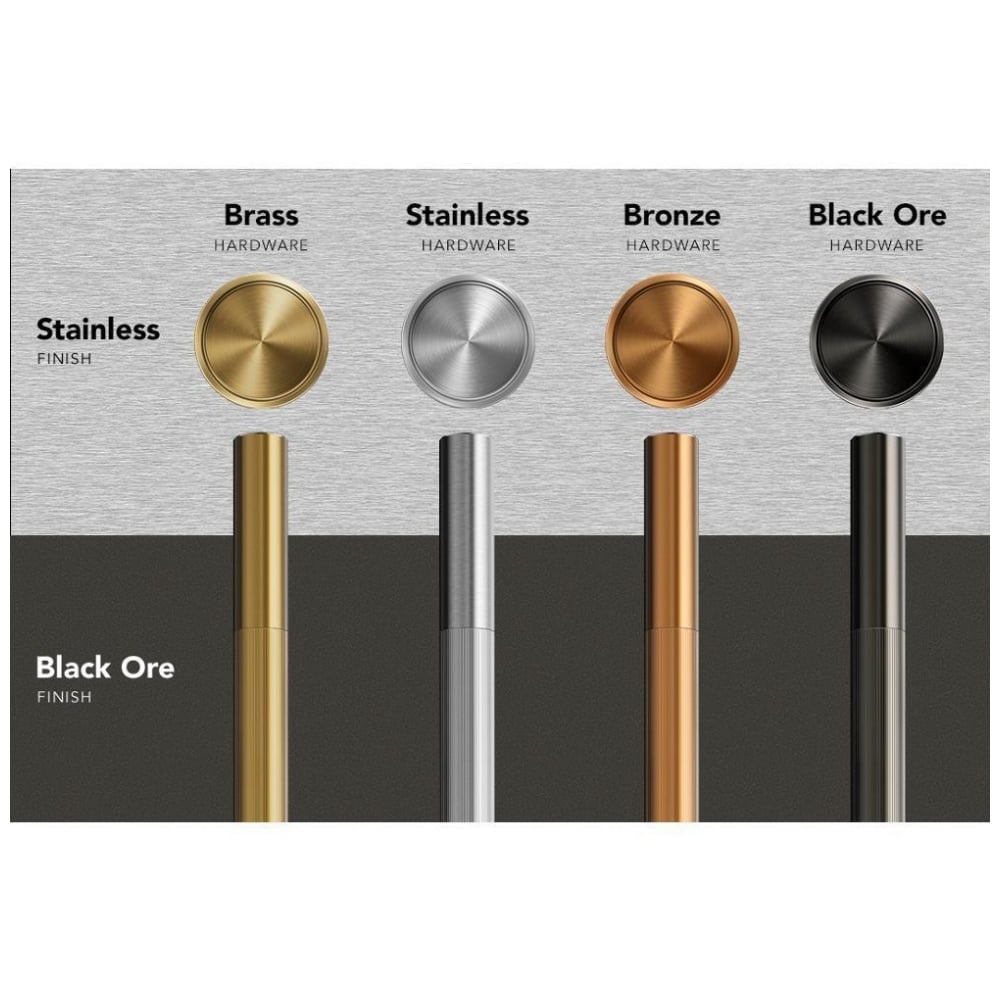

Designed to be Personalized – curated exterior finishes (including Black Ore) and compatible mixed‑metal handle kits let you coordinate with surrounding cabinetry and hardware.

Easy Access Door Bin – shallow top bin with a shorter front lip keeps small everyday items like butter or condiments within quick reach.

Gallon Door Bins – large, adjustable bins in the refrigerator door hold gallon jugs and bulky containers to free up shelf space.

Adjustable Spill‑Resistant Glass Shelves – edge‑to‑edge glass shelves with nano‑etched edges help contain spills and can be rearranged or removed for flexible storage.

Automatic Ice Maker – factory‑installed system continuously produces fresh, filtered ice for everyday use and entertaining.

Ultra‑Bright LED Lighting – multiple LEDs gradually brighten to fully illuminate both refrigerator and freezer so items are easy to see.

Wood‑Look Finish Sliding Storage Tray – stylish pull‑out tray keeps platters and ingredients accessible and removes fully for simple cleaning.

Full‑Width Temperature‑Controlled Storage – wide drawers and shelves accommodate party platters, sheet cakes and large cuts of meat.

Side‑by‑Side Built‑In Design – 48" built‑in side‑by‑side layout offers a premium, integrated appearance with matching cabinetry depth.

30.0 cu. ft. Total Capacity – generous interior space (approx. 19.1 cu. ft. fresh food / 10.9 cu. ft. freezer) for large households and frequent entertainers.

Multiple Installation Options – can be installed flush, overlay or proud to match different kitchen design preferences.

Platinum‑Finish Liner – durable interior liner in a platinum tone resists stains and enhances visibility compared with darker interiors.

LED‑Lit Freezer Compartment – dedicated LED lighting in the freezer makes it easier to find frozen foods on shelves and in baskets.

Adjustable Freezer Shelving – combination of fixed and adjustable full‑width wire shelves and baskets to organize frozen foods by size and type.

Automatic Defrost Freezer – reduces frost buildup and minimizes the need for manual defrosting.

Full‑Width Door Storage (Fridge & Freezer) – multiple full‑width bins in both doors maximize vertical storage for bottles, jars and boxed items.

Hidden Hinges – concealed door hinges contribute to a clean, built‑in aesthetic and help doors open smoothly.

Personalized Door Stop – allows you to set door swing to stop at 90°, 110° or 130° to avoid hitting adjacent cabinets or walls.

Factory‑Installed Water Filtration (for Ice) – integrated filter helps reduce impurities in water used for ice production.

Freezer Fast Cool / Quick Freeze option – dedicated control to rapidly bring freezer back to optimal temperature after adding large loads.

Multiple Crisper and Storage Drawers – separate drawers for produce and other items help organize contents and maintain appropriate humidity levels.

Door‑Open Convenience Lighting – interior lighting activates automatically when doors open so you can quickly locate items.

High‑End Black Ore Finish – warm, dark exterior color with smooth finish coordinates with modern appliance suites and contemporary cabinetry.

Metal Reach‑Through Handles – sturdy, easy‑grip handles in matching finish provide a professional look and comfortable operation.

Factory‑Installed Icemaker in Freezer Door Area – preserves shelf and basket space while still providing ample ice storage.

Platter‑Friendly Shelving – wide, unobstructed shelves and trays are designed to hold large serving dishes for entertaining.

Intuitive Temperature Readout – digital display shows current temperature settings so you can confirm performance at a glance.

Door‑Ajar & Temperature Alerts (where equipped) – audible/visual alerts help protect food by notifying you if a door is left open or temperatures rise unexpectedly.

Built‑In Look with Cabinet‑Depth Design – shallower depth aligns with cabinetry fronts for a seamless, custom‑kitchen appearance.

Durable Glass and Metal Interior Accents – premium materials inside the refrigerator enhance both longevity and visual appeal.

Manufacturer's Warranty: 1 year

Canadian model: KBSN748SBE

Similar to USA model: KBSN748SBE

Canadian UPC: 883049923383

Similar to USA UPC: 883049923383

EAN: 0883049923383

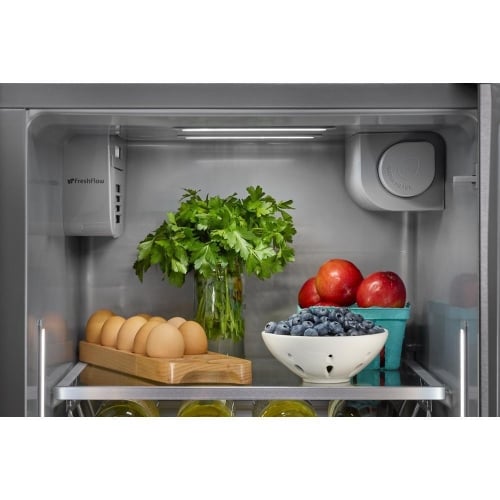

Preserva® Cooling System - KBSN748SBE
Preserva® Cooling System
KBSN748SBE - Preserva® Cooling System
helps keep ingredients fresh and flavorful. This single evaporator system uses sensors to continually monitor temperature levels in both the refrigerator and freezer and adapts the flow of cold air between them to maintain optimal temperatures throughout.

Specs
SpecificationValue
Capacity 30.0 Cu Ft
Refrigerator Capacity 19.1 Cu Ft
Freezer Capacity 10.9 Cu Ft
Refrigerator Type Side-by-Side Built-In Refrigerator
Configuration Built-In Side-by-Side
Installation Type Built-In
Installation Options Flush, Overlay, or Proud
Color Black Ore
Color Family Black
Door Style Flat
Handle Type Reach-Through Handle
Handle Color Black Ore
Cabinet Color Grey
Cabinet Finish Smooth
Door Finish Smooth
ADA Compliant Yes
Sabbath Mode Yes (Star-K Certified)
Energy Star Certified No
EnerGuide Rating 833 kWh/yr

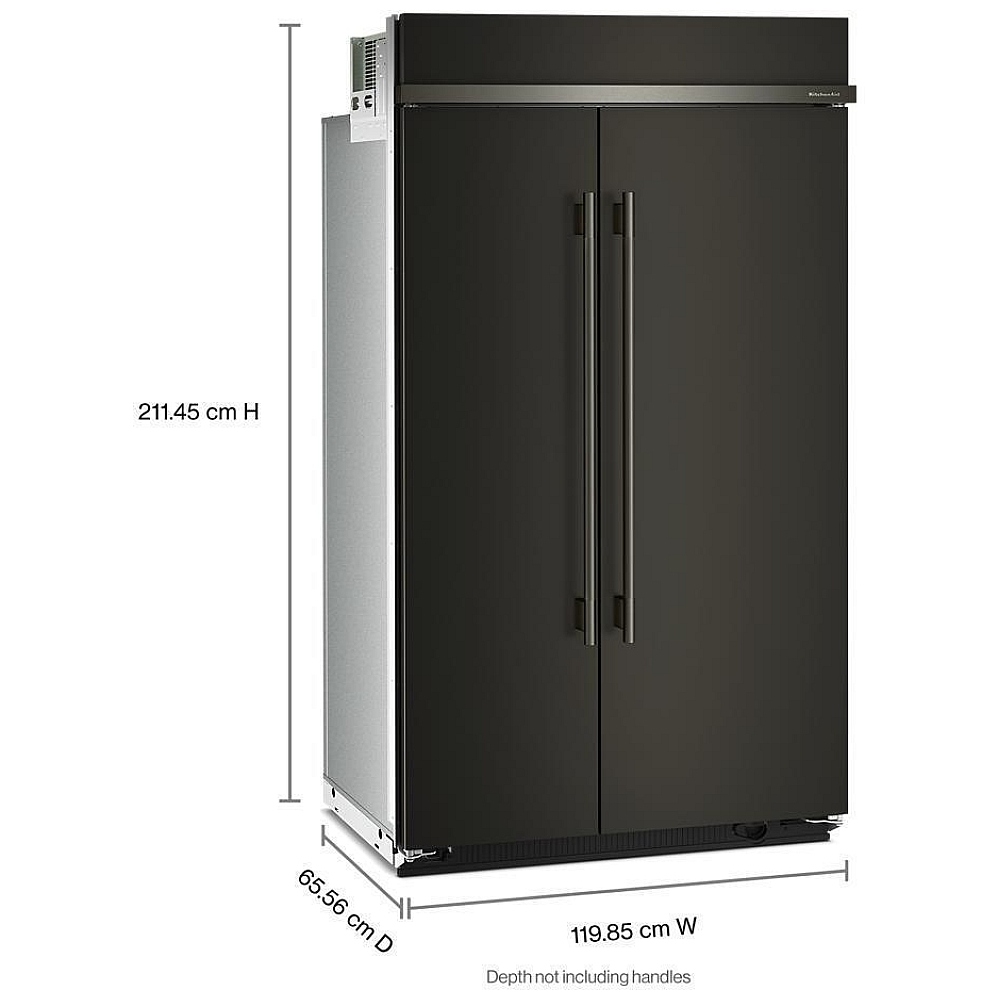

Width 47.25 inches
Height 74.5 inches
Depth 27.7 inches
Product Width 47.187 inches
Product Height 83.25 inches (to top of cabinet)
Product Depth 27.75 inches
Height to Top of Cabinet 83.25 inches
Height to Top of Door Hinge 74.5 inches
Standardized Width 48 inches
Depth Without Handle 25.81 inches
Depth With Handle 27.7 inches
Depth Excluding Doors 22.4 inches
Depth With Door 90 Degrees Open 50.69 inches
Width Doors Open 90 Degrees 50.687 inches
Width With Doors Closed 47.187 inches
Cabinet Width 47 inches
Cut-Out Width 47.5 inches
Cut-Out Height 83.5 inches
Cut-Out Depth 25 inches
Carton Width 52.04 inches
Carton Height 86.57 inches
Carton Depth 32.04 inches
Net Weight 626.24 lbs
Gross Weight 659.2 lbs
Refrigerator Style Side-by-Side
Refrigeration Configuration Refrigerator/Freezer
Cooling System Preserva Cooling System
Ice Maker Yes (factory-installed automatic ice maker)
Water Dispenser None (No exterior dispenser)
Ice Dispenser None
Dispenser Type No Dispenser
Interior Lighting Ultra-Bright LED Lighting
Interior Finish Signature Platinum Interior with wood-look trim and metallic accents
Adjustable Spill-Resistant Glass Shelves Yes
Under-Shelf Prep Zone Yes, with included baking pan and loaf pans
FreshChill Temperature-Controlled Drawer Yes, with presets for Meat, Produce, Deli, and Assorted Items
FreshFlow Air Filter Yes
SatinGlide Drawer System Yes
Wood-Look Finish Sliding Storage Tray Yes
Number of Shelves (Total) 10
Refrigerator Number of Shelves 4 (fresh food section, adjustable)
Freezer Number of Shelves 6
Freezer Shelves Detail 2 fixed full-width wire; 4 adjustable full-width wire
Freezer Door Bins 5 adjustable full-width
Freezer Drawers/Baskets 2 full-width
Freezer Door Type Swing
Freezer Defrost Type Automatic / Frost Free
Freezer Fast Cool Yes
Fruit & Vegetable Crisper None listed
Humidity Controlled Crisper No
Door Bins (Refrigerator) Adjustable door bins (Easy Access Door Bin)
Hidden Hinge Yes
Soft Self-Close Doors Yes
Control Type Electronic Touchscreen Controls
Control Location Interior, up front
Automatic Defrost Yes
Door Ajar/Open Alarm Yes
Max Cool / Fast Cool Max Cool function
Vacation Mode Yes
Water Filtration Yes

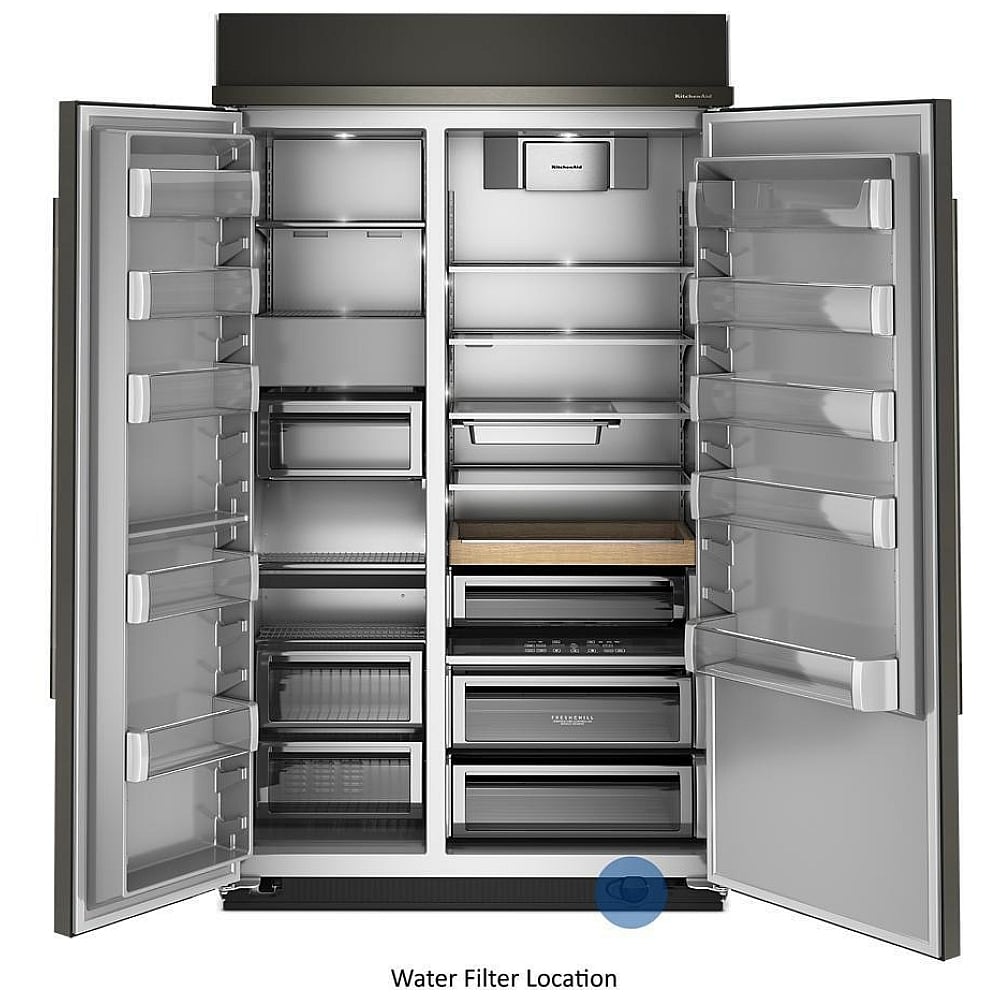

Water Filter Location Exterior
Water Filter Part Number EDR3RXD1
Air Filter Indicator/Reset No
Air Filter Part Number W10311524
Advance Foam Insulation Yes, 99.9% lower global warming potential and improved energy performance
Wi-Fi Connectivity No
App Enabled No
Voltage 115 V
Amps 15 A
Frequency 60 Hz
