MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
- provides the perfect range of cooking power from 5,000 to 17,000 BTU, so you can go from a rolling boil to a delicate simmer.

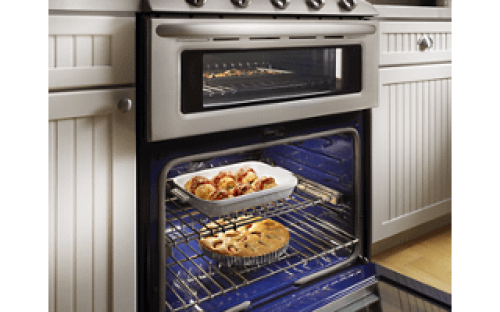

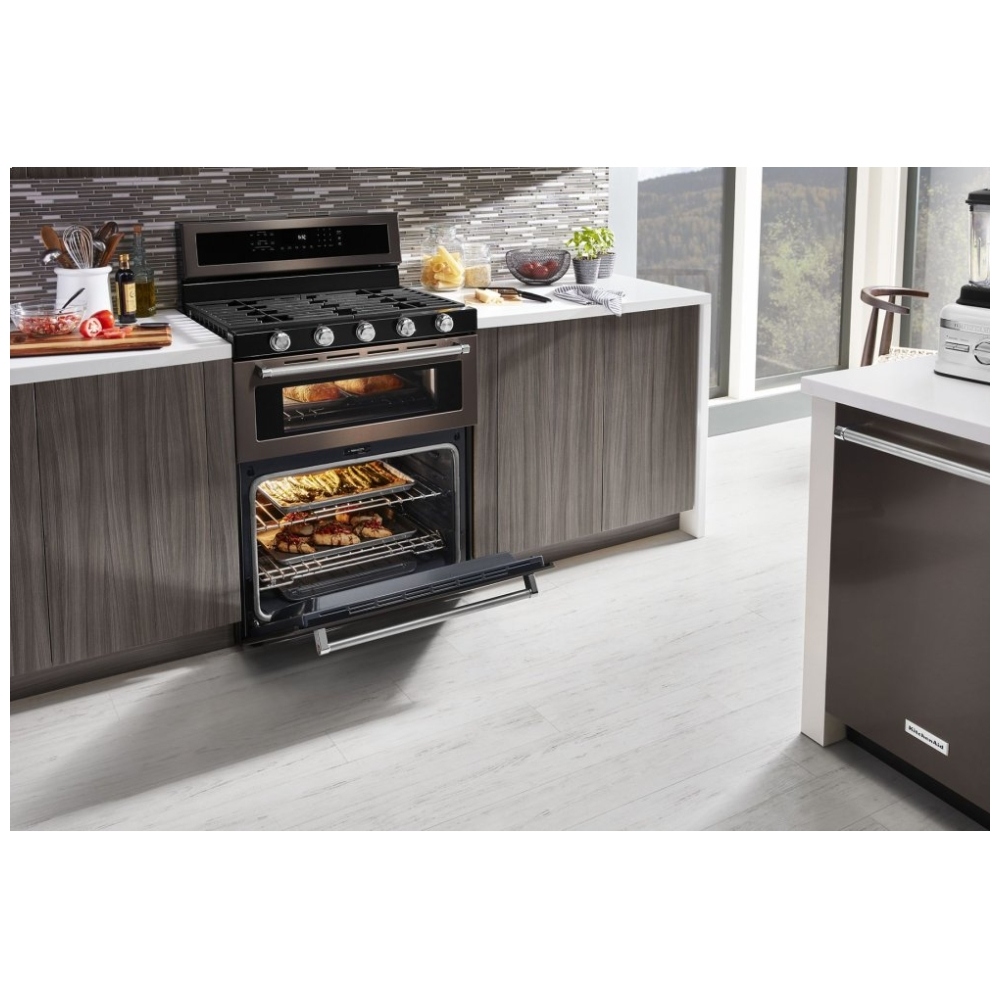

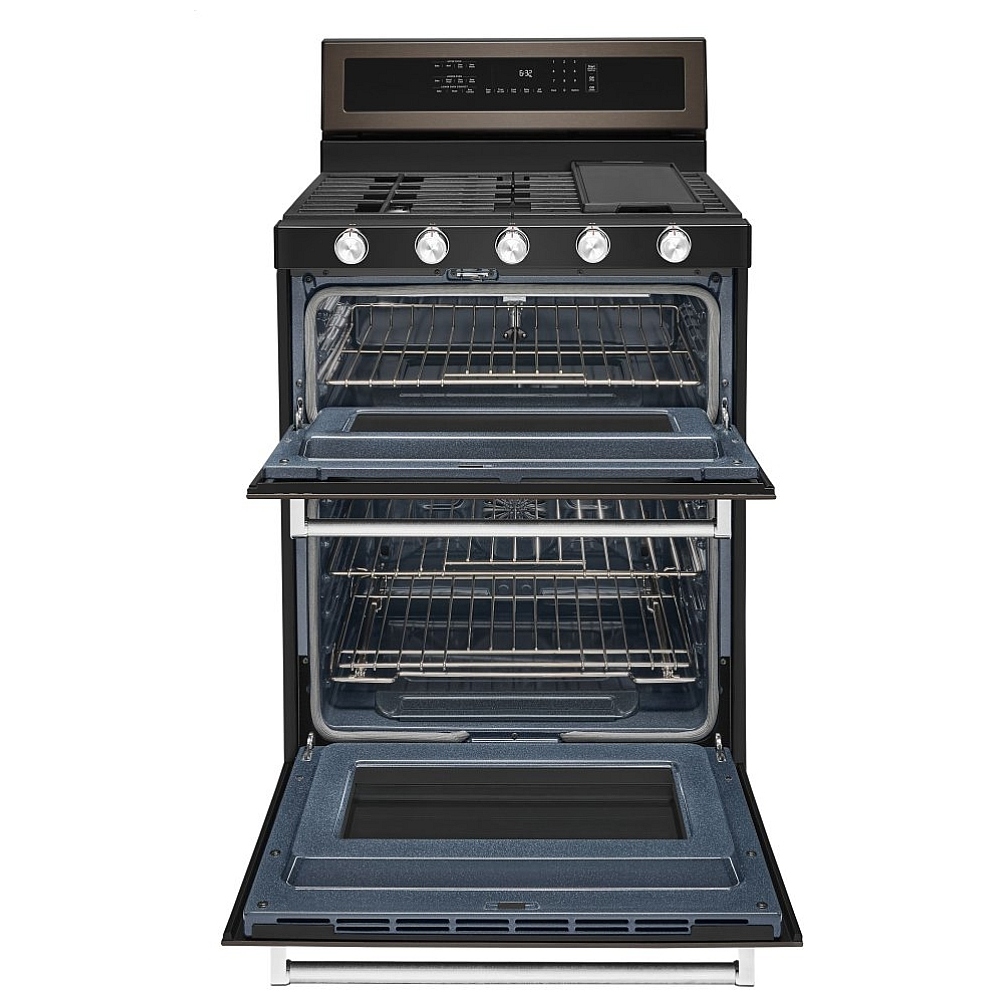

- Combined upper and lower oven capacities provide more room to cook multiple dishes at the same time.
- Takes guesswork out of convection cooking by ensuring you can get exceptional results when experimenting with new or familiar recipes.
- features a unique bow-tie design with heating element and fan that circulates hot air throughout the entire oven, providing consistent temperatures for crisp, flaky baked goods, juicy, well-browned roasts and flavorful, caramelized vegetables.

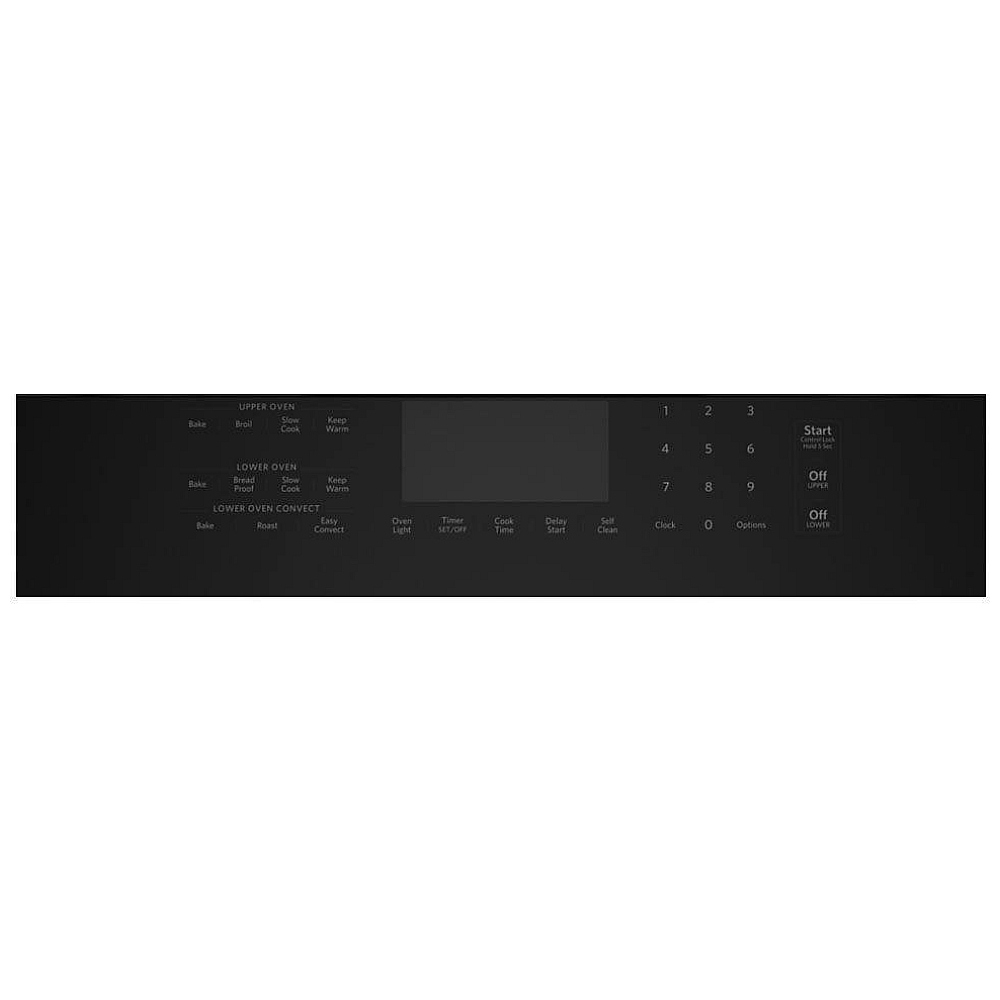

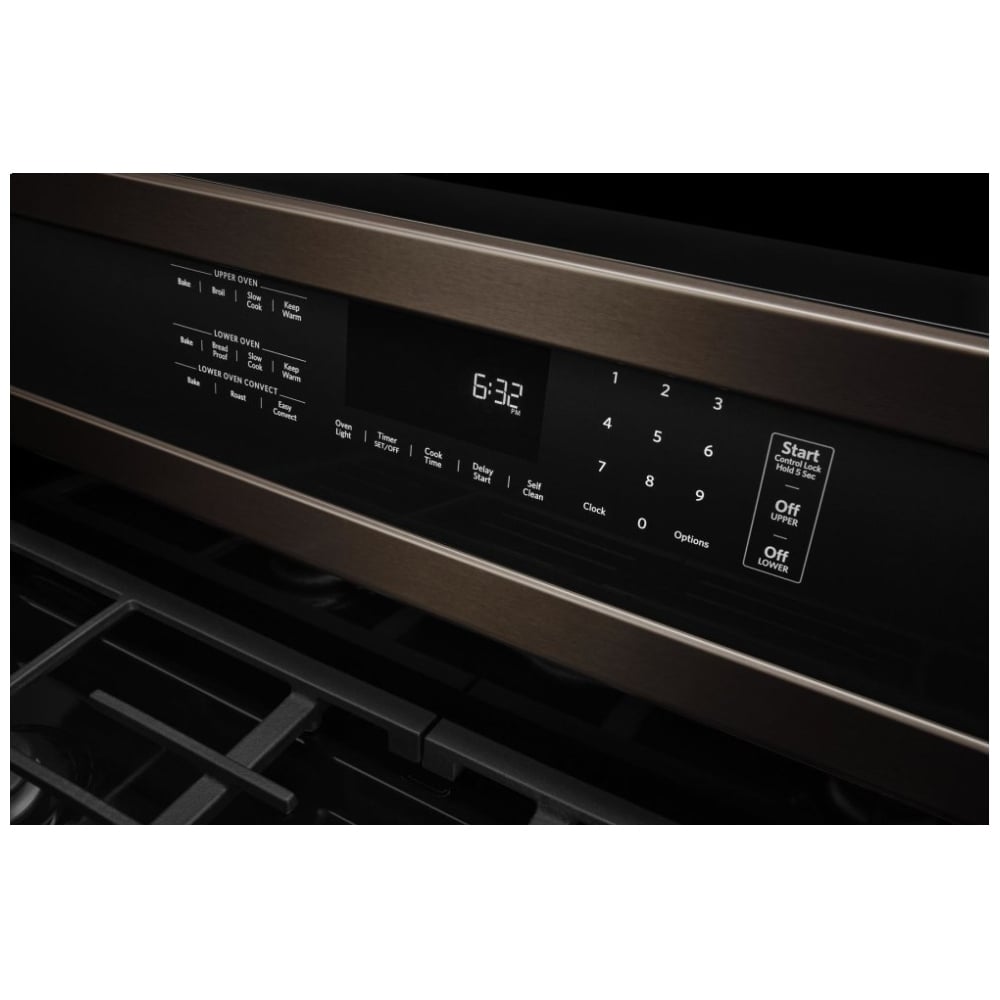

- Offer an intuitive, easy-to-use touch screen experience.

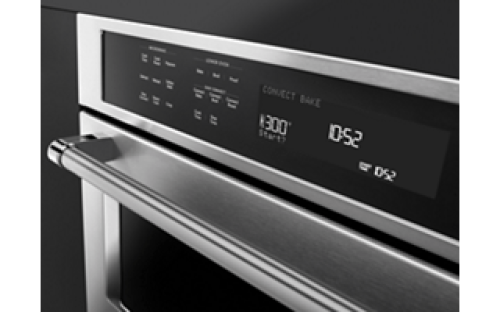

- Intuitive controls are activated by a light touch, look elegant and allow for easy cleaning.
- Covers up the baking element, making it easier to wipe away spills.

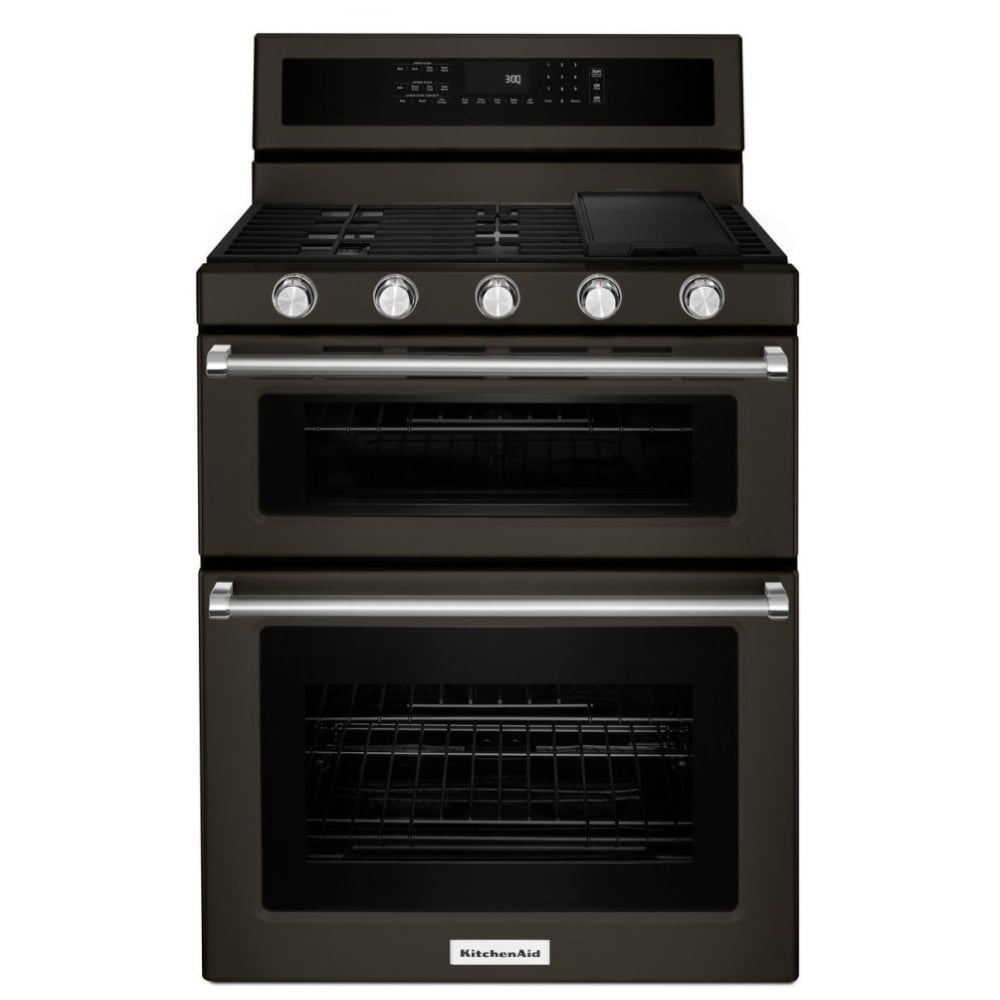

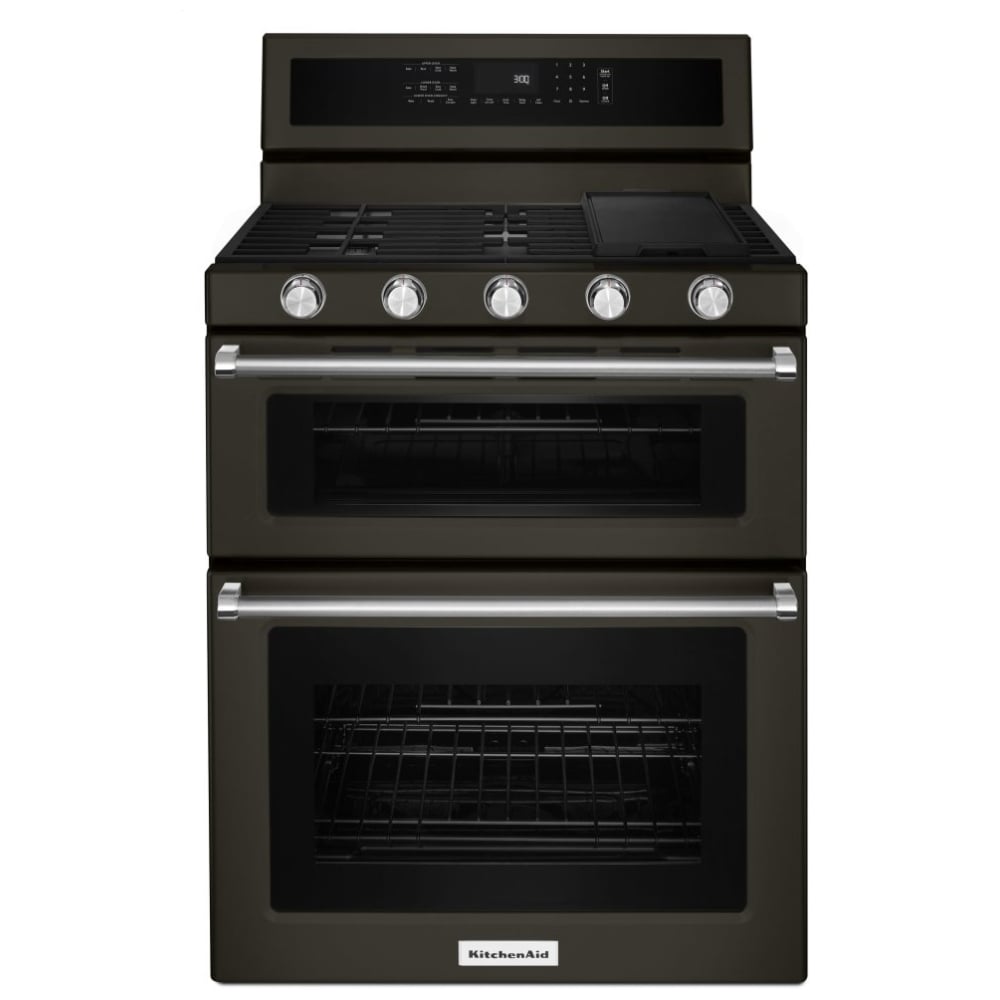

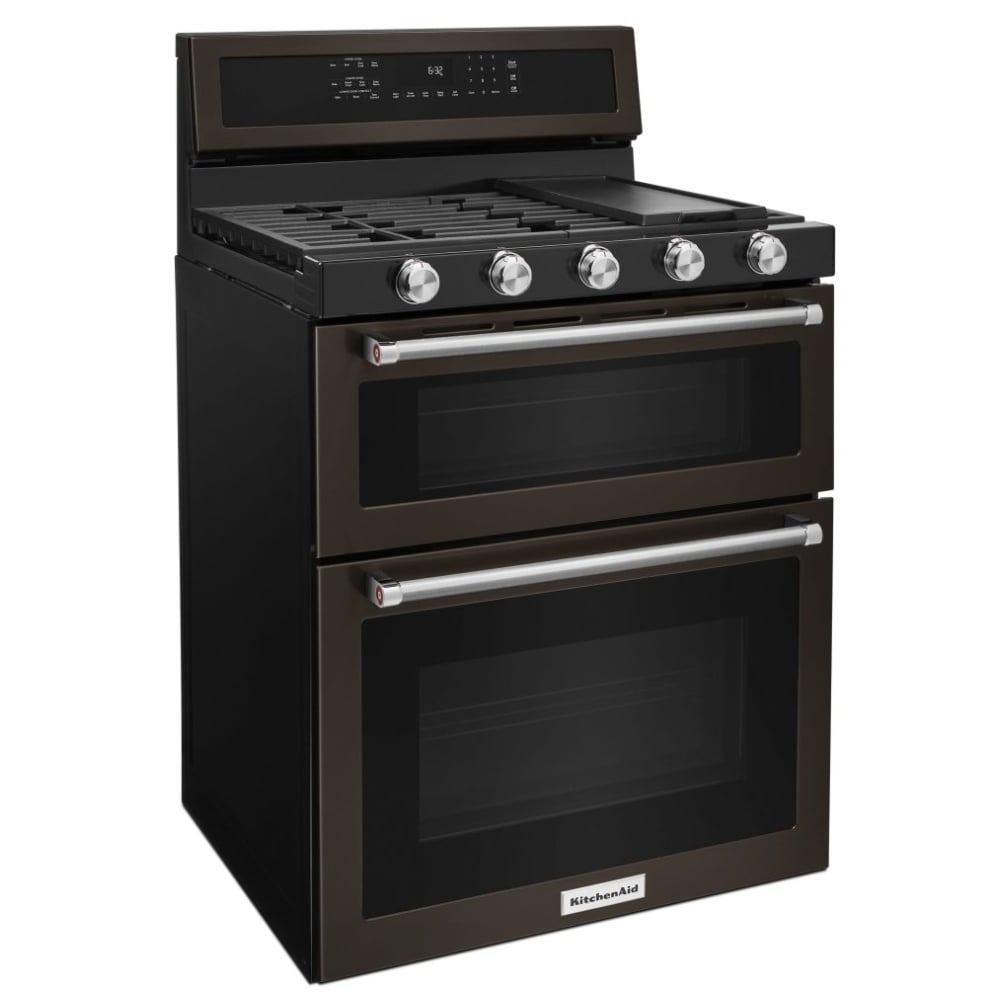

- combines a bold blend of professionally-inspired styling with sleek touches for the home. This double oven range features Satin Textured Handles and the KitchenAid® Badge, a symbol of uncompromised quality.

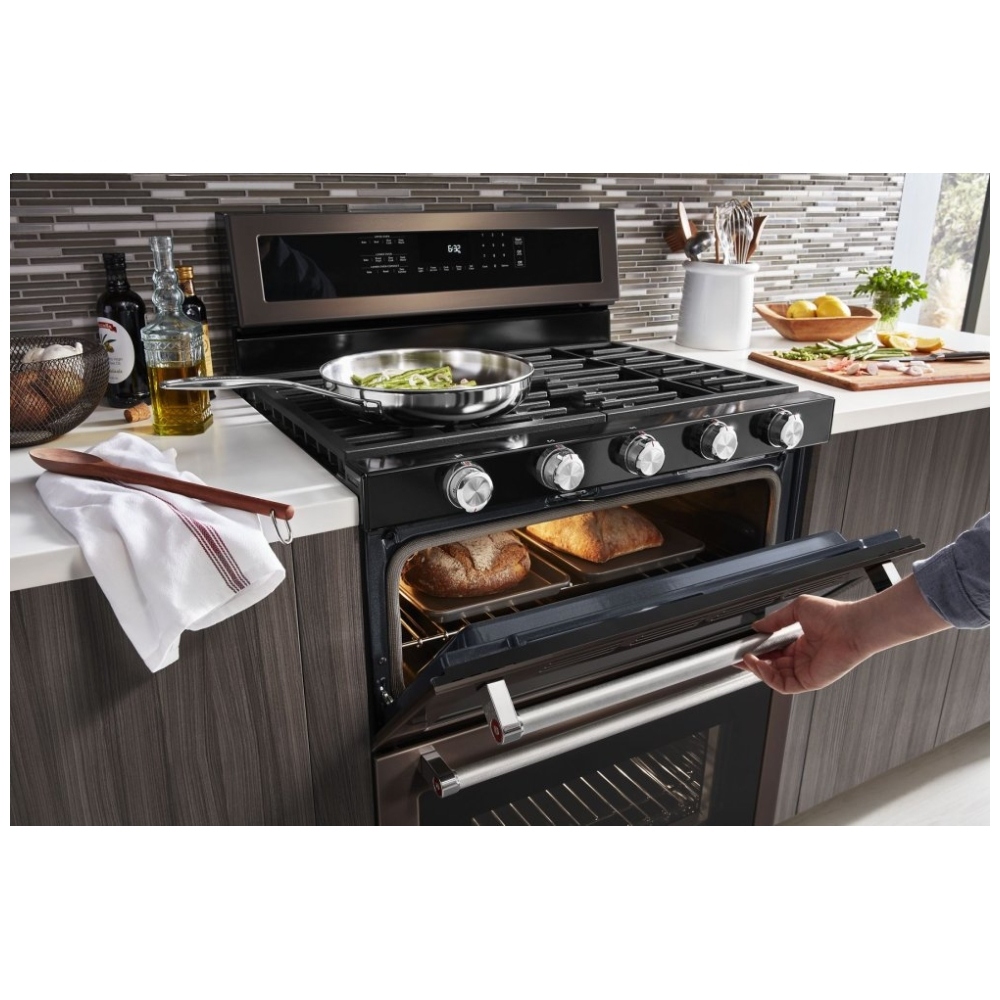

- Move smoothly in and out, allowing effortless loading and unloading, even with large or heavy dishes.
Manufacturer's Warranty: 1 year
UPC: 883049414300
EAN: 0883049414300
Certifications | |
Prop65 | Standard |
Ul | Yes |
Controls | |
Display Color | Red; White |
Electronic Display Type | Digital |
Cooktop Details | |
Cooktop Control Knob Color | Stainless Steel |
Cooktop Control Knob Type | Metal |
Cooktop Control Location | Front |
Cooktop Control Type | Knobs |
Cooktop Surface Color | Black |
Griddle Included | Included |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Details | |
Automatic Convection Conversion Temperature Adjust | Yes |
Fuel Type | Gas |
Oven Configuration | Double Oven |
Oven Selections | Control Lock; Cook Time Indicator; Delay Start; Easy Convect Conversion; Keep Warm Setting; Proofing; Sabbath Mode; Slow Cook |
Power On Indicator Light | Yes |
Power Outage Compatible | No |
Range Configuration | Double Oven |
Range Drawer Type | None |
Range Type | Freestanding Double Oven |
Dimensions | |
Carton Depth | 30.25 |
Carton Height | 49.5 |
Carton Width | 30.75 |
Depth Closed Including Handles | 28.5 |
Depth With Door Open 90 Degree | 45.5 |
Gross Weight | 275.5 |
Lower Oven Capacity | 3.9 |
Lower Oven Interior Depth | 18.75 |
Lower Oven Interior Height | 14.88 |
Lower Oven Interior Width | 25 |
Net Weight | 223.6 |
Upper Oven Capacity | 2.1 |
Upper Oven Interior Depth | 19.25 |
Upper Oven Interior Height | 7.375 |
Upper Oven Interior Width | 25 |
Electrical | |
Power Cord Included | Yes |
Element/burner Details | |
Center Rear Element-burner Power | 7,350 BTU |
Center Rear Element-burner Type | Oval Burner |
Cooktop Element Style | Sealed Burner |
Left Front Element-burner Power | 17,000 BTU |
Left Front Element-burner Type | Burner |
Left Rear Element-burner Power | 5,000 BTU |
Left Rear Element-burner Type | Burner |
Number of Cooking Element-burners | 5 |
Right Front Element-burner Power | 10,000 BTU |
Right Front Element-burner Type | Burner |
Right Rear Element-burner Power | 5,000 BTU |
Right Rear Element-burner Type | Burner |
Exterior Details | |
Door Type | Glass Window |
Handle Color | Stainless Steel |
Handle Material | Metal |
Oven Control Location | Backguard |
Oven Control Type | Electronic Touch |
Oven Window Size | Large |
Grate Details | |

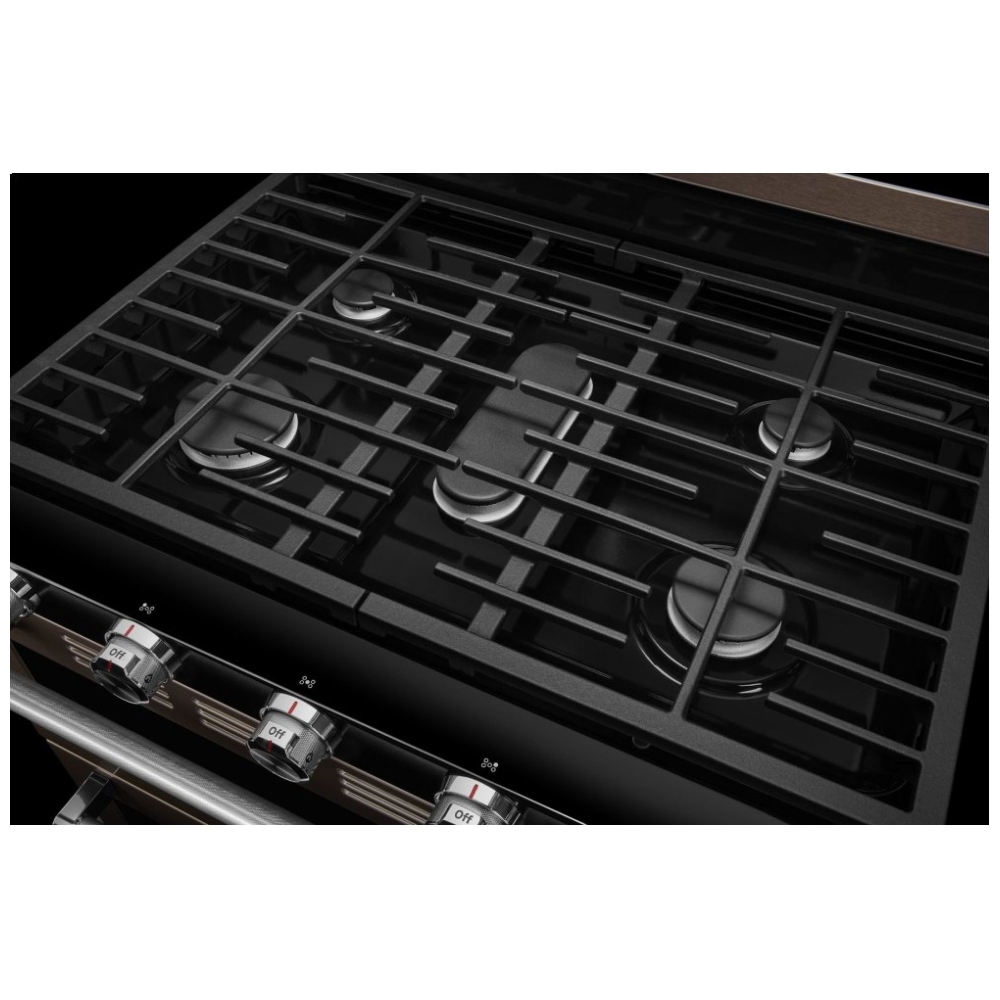

Grate Details | Cast Iron Grates; Continuous; Dishwasher Safe; Matte Finish |
Number of Grates | 2 |
Oven Details | |
Bake Element Power | 10,000 BTU Upper-16,000 BTU Lower |
Broiler Element Power | 10,000 BTU-Upper |
Broiler Location | Top of Oven |
Convection Element Power | 500 |
Convection Element Type | Fan |
Convection Functions | Bake; Roast |
Hidden Bake Element | Yes |
Interior Color | Grey |
Number of Oven Lights | 1 |
Number of Oven Racks | 1 Upper-2 Lower |
Number of Rack Guides | 2 Upper-5 Lower |
Oven Cleaning Type | Self-Cleaning |
Oven Cooking System | Thermal Upper-Convection Lower |
Oven Light Type | Incandescent |
Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Configuration and Overview | |
---|---|
Fuel Type | Gas |
Range Type | Freestanding Double Oven |
Cooktop Features | |
Cooktop Element Style | Sealed Burner |
Cooktop Surface Color | Black |
Cooktop Surface Material | Porcelain Coated Steel |
Number of Cooking Element-Burners | 5 |
Center Rear Element-Burner Power | 7350 BTU |
Center Rear Element-Burner Type | Oval Burner |
Left Front Element-Burner Power | 17,000 BTU |
Left Front Element-Burner Type | Burner |
Left Rear Element-Burner Power | 5000 BTU |
Left Rear Element-Burner Type | Burner |
Right Front Element-Burner Power | 10,000 BTU |
Right Front Element-Burner Type | Burner |
Right Rear Element-Burner Power | 5000 BTU |
Right Rear Element-Burner Type | Burner |
Number of Grates | 2 |
Oven Features | |
Number of Oven Lights | 1 |
Automatic Convection Conversion Temperature Adjust | Yes |
Heating Element On Indicator Light | No |
Hot Surface Indicator Light | No |
Power On Indicator Light | Yes |
Light Type | Incandescent |
Oven Rack Type | 1 Gliding Roll-Out, 2 Heavy Duty |
Self-Cleaning | Self-Cleaning |
Controls | |
Drawer Type | None |
Handle Material | Metal |
Selections | Keep Warm Setting, Control Lock, Slow Cook, Easy Convect Conversion, Proofing, Cook Time Indicator, Delay Start, Sabbath Mode |
UL | UL |
Dimensions | |
Height | 47 3/8 |
Width | 29 15/16 |
