KitchenAid KOED530PPS
Discontinued
Replaced by KOED730SPS
>> View & Compare KitchenAid Built In Cooking Line Up << >> View & Compare KitchenAid Built In Cooking Line Up <<
>> View & Compare KitchenAid Wall Oven Line Up << >> View & Compare KitchenAid Wall Oven Line Up <<
BOW0NJ
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Replaced by KOED730SPS
Ratings & Reviews
BOW0NJ
When will I get this?

Description & Features
Brand: KitchenAid
SKU: KOED530PPS

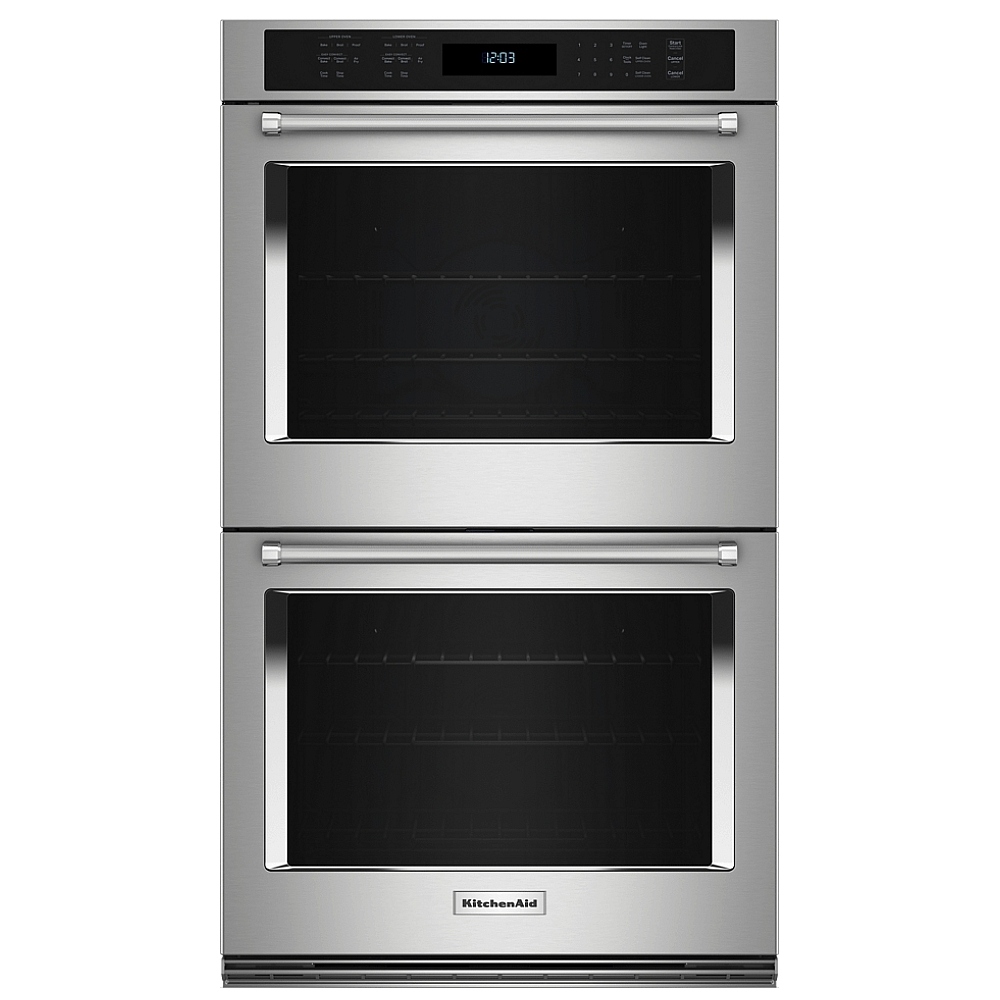

Bring elevated style and versatile performance to your kitchen with the KitchenAid KOED530PPS double wall oven, a beautifully designed 30-inch model that pairs premium craftsmanship with advanced cooking innovation. With a generous total capacity of approximately 10 cu. ft. and a 30-inch width that fits seamlessly into many built-in kitchen layouts, this oven is made for home cooks who want the flexibility to prepare multiple dishes at once without sacrificing precision or presentation. One of its standout advantages is Air Fry Mode, a feature often reserved for select premium models, which circulates hot air around the included basket to create crisp, delicious results with less oil, making everything from vegetables to appetizers more convenient and satisfying. Another distinctive highlight is the PrintShield™ Finish, which helps resist smudges and fingerprints so the stainless exterior stays looking polished with less daily upkeep, a welcome benefit in busy family kitchens. The integrated FIT System Limited Guarantee also adds extra appeal by helping simplify replacement installations in compatible spaces, something many comparable wall ovens do not emphasize. For even greater ease of use, this model includes specialized self-close doors that gently pull shut, a thoughtful premium touch that feels especially helpful when your hands are full. Inside, Even-Heat™ True Convection helps maintain consistent temperatures for dependable baking and roasting results, while the sleek electronic controls and self-cleaning convenience support a smoother everyday cooking experience. Altogether, the KitchenAid KOED530PPS delivers the upscale look, spacious capacity, and feature-rich performance expected from a premium double wall oven, making it an excellent choice for households that love to cook, entertain, and enjoy refined appliance design with practical everyday benefits.

PrintShield™ Finish – resists smudges and fingerprints on the stainless exterior, helping the oven keep a cleaner, polished look with less wiping.

Even-Heat™ True Convection – uses a bow-tie design heating element and fan to circulate hot air throughout the oven for consistent temperatures and more even baking, roasting, and vegetable cooking.

EasyConvect™ Conversion System – automatically converts conventional bake temperatures and cook times to convection equivalents, making convection cooking easier to use with everyday recipes.

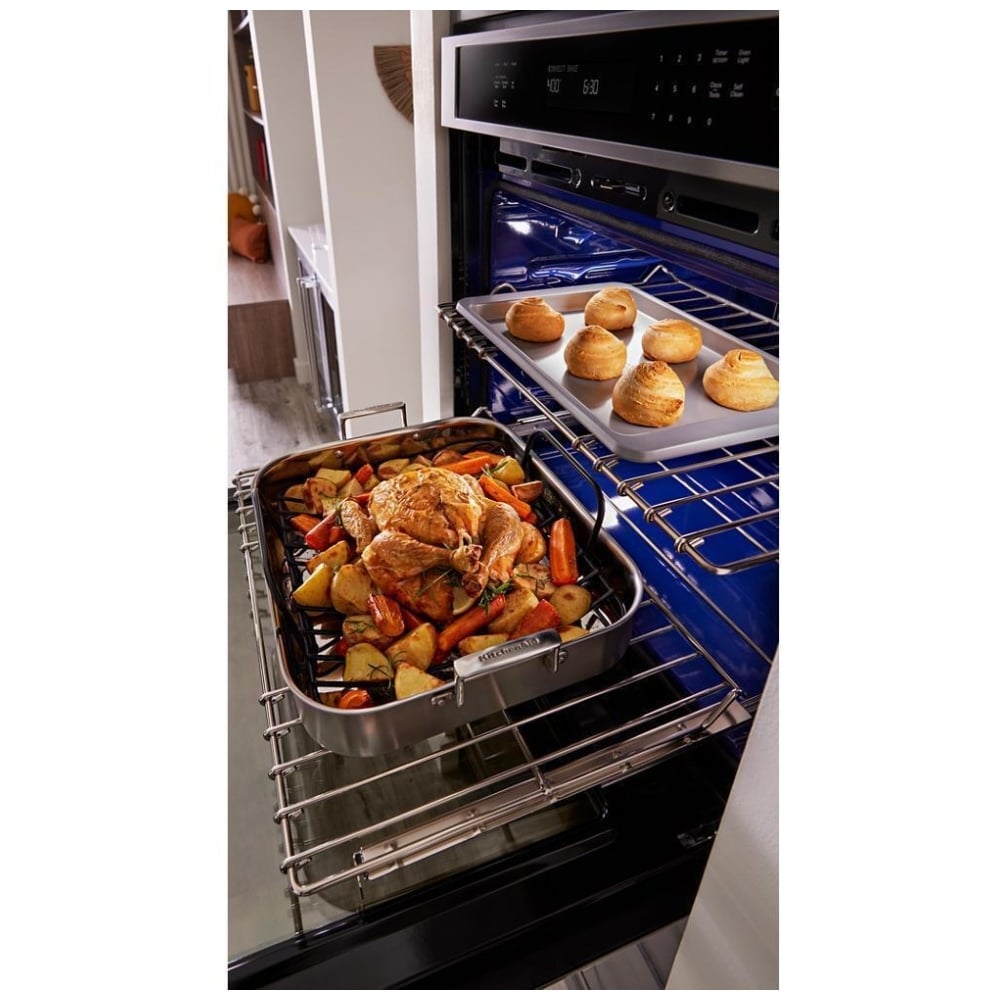

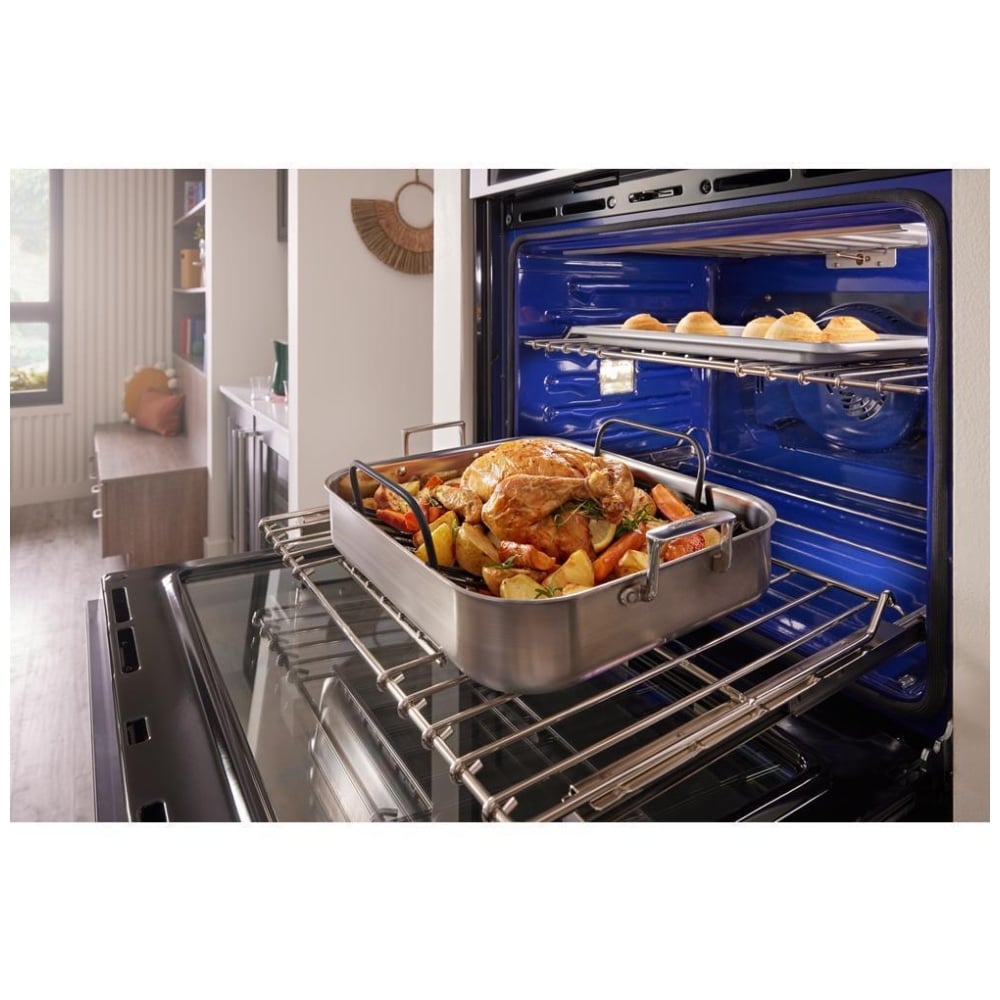

SatinGlide™ Roll-Out Extension Racks – glide smoothly for easier loading and unloading of heavy or oversized cookware, improving convenience and safety.

FIT System Limited Guarantee – supports installation in standard, short, or tall cabinet cutouts using flexible design elements to help fit existing spaces more easily.

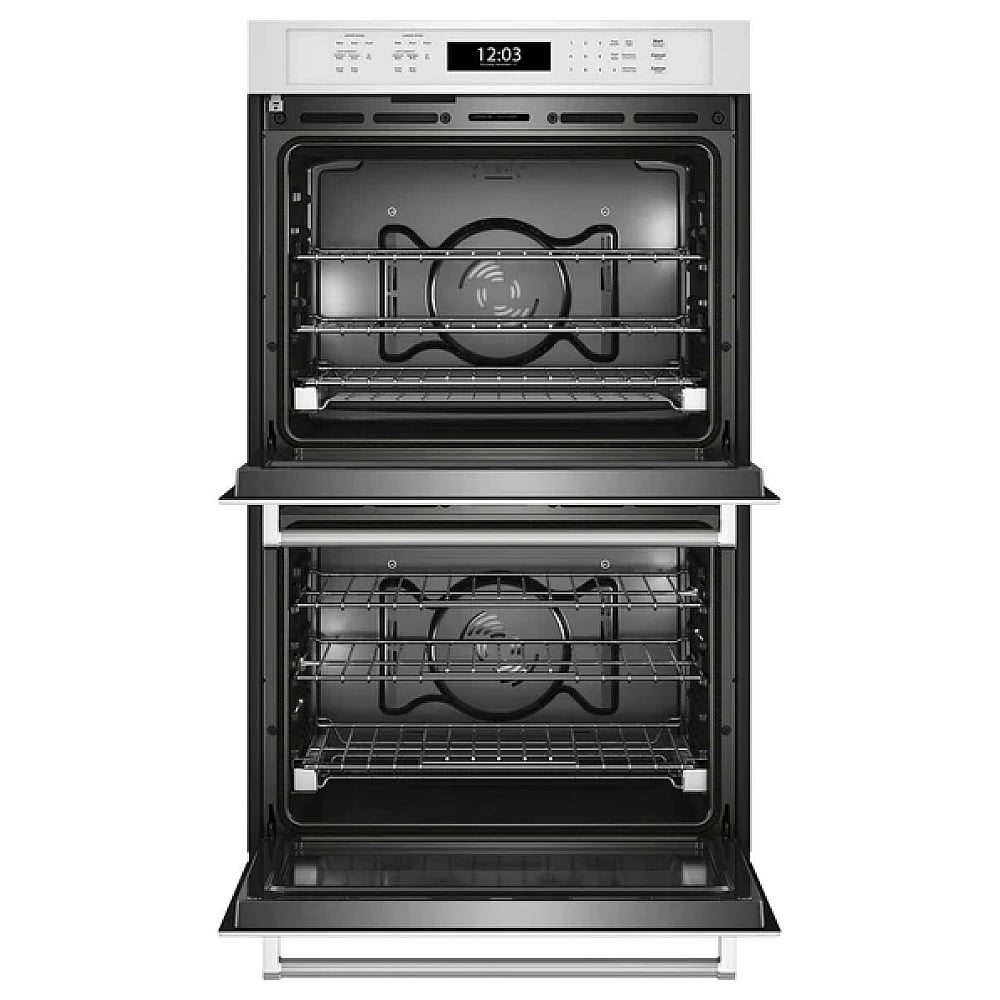

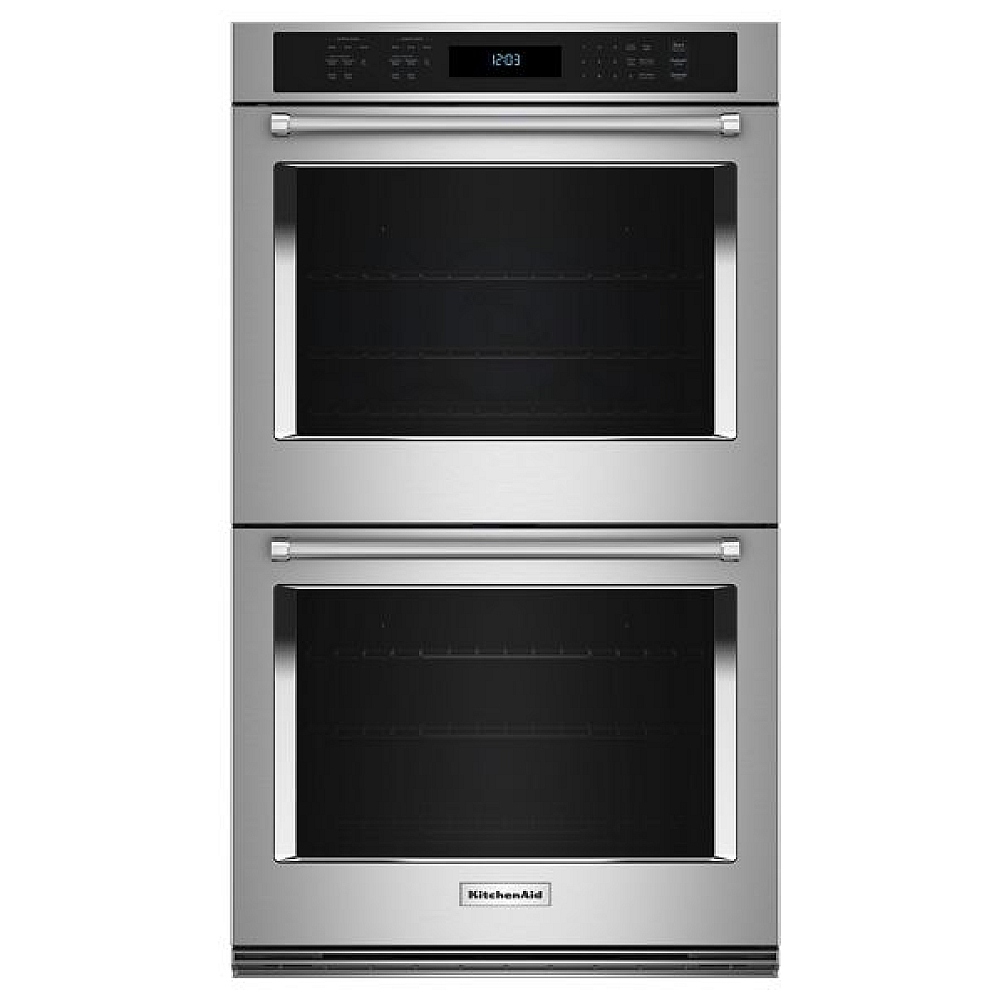

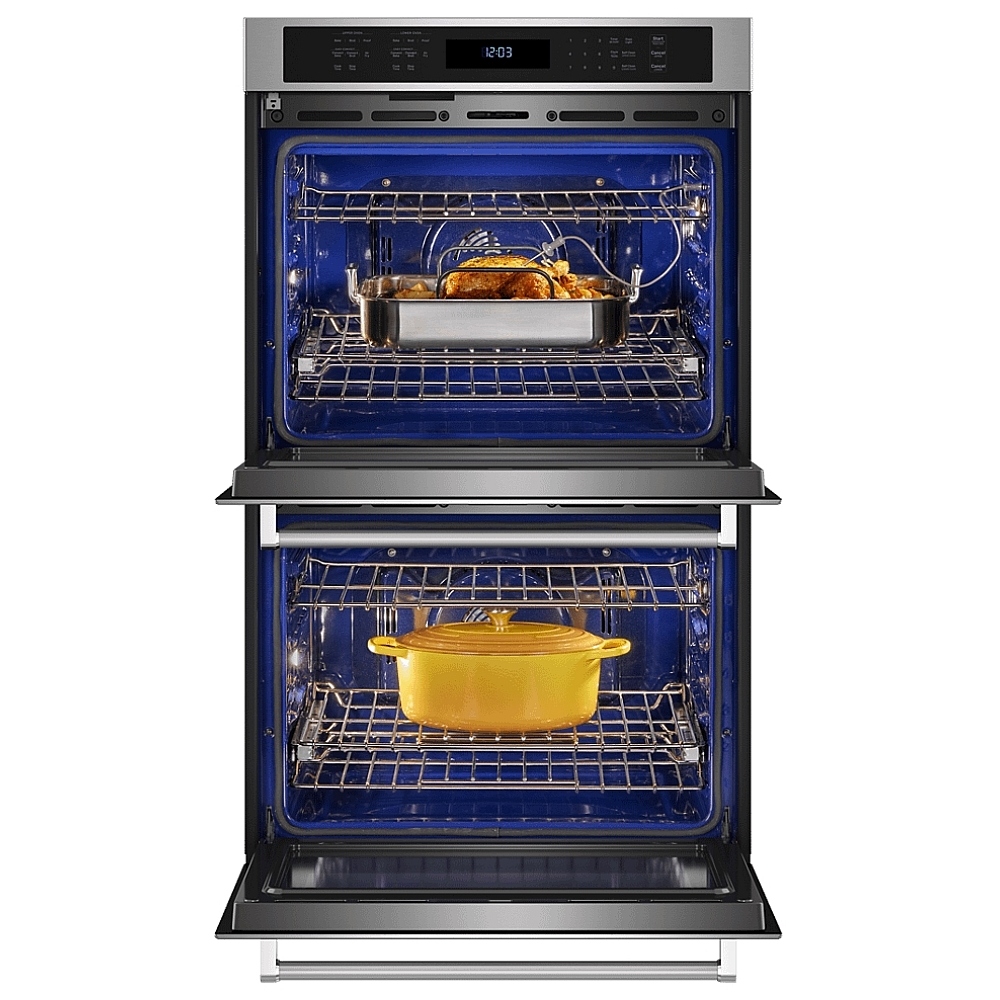

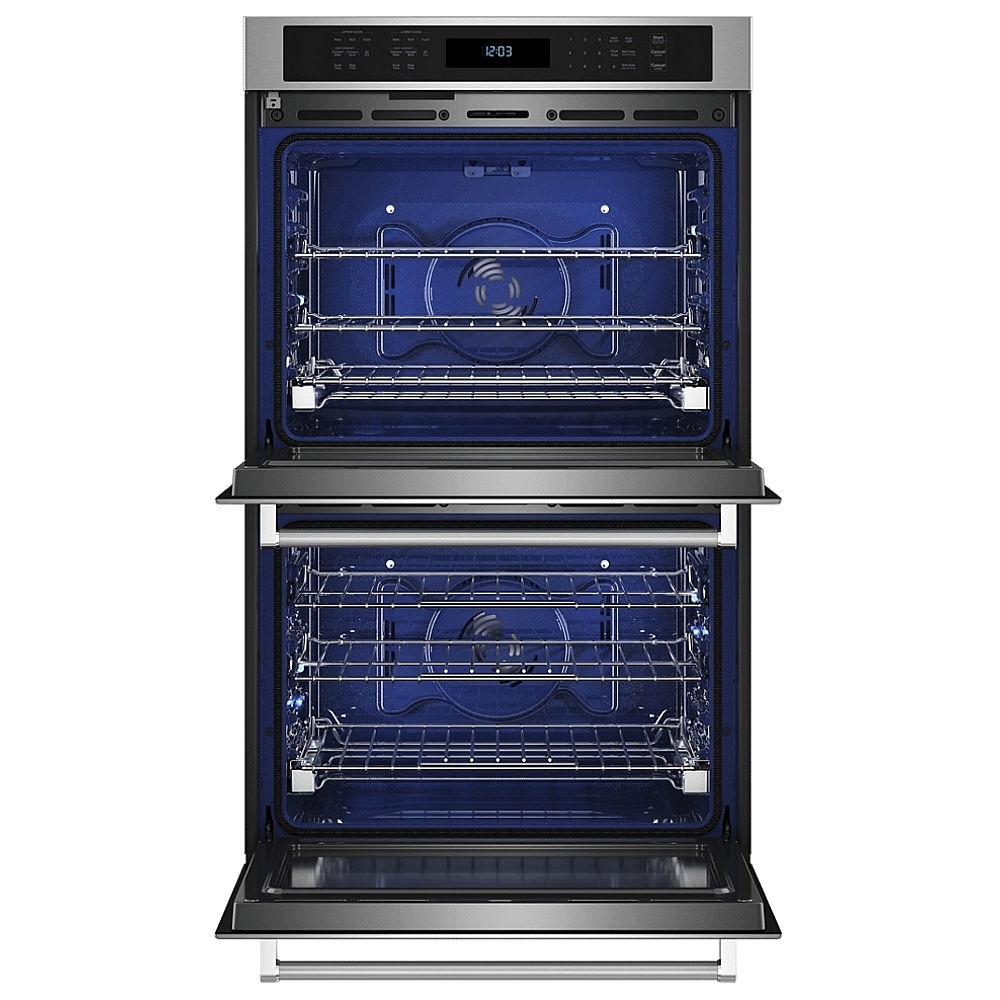

KitchenAid® 30" Double Wall Oven Configuration – provides two separate oven cavities so you can cook multiple dishes at different temperatures at the same time.

Air Fry Mode – uses triple heating elements and a fan to circulate hot air around the included basket for crisping and browning with less oil than deep frying.

Dishwasher-Safe Air Fry Basket – promotes better airflow around food for more effective crisping and browning, then cleans up easily in the dishwasher.

Integrated Meat Thermometer – continuously monitors internal food temperature and automatically turns the oven off when the desired doneness is reached.

Even-Heat™ Preheat – raises the oven temperature an extra 40°F during preheating to help maintain the set temperature when the door is opened and food is added, reducing cold spots.

4,000-Watt Broil Element – delivers intense high heat for searing meat, browning casseroles, charring vegetables, toasting bread, and melting toppings.

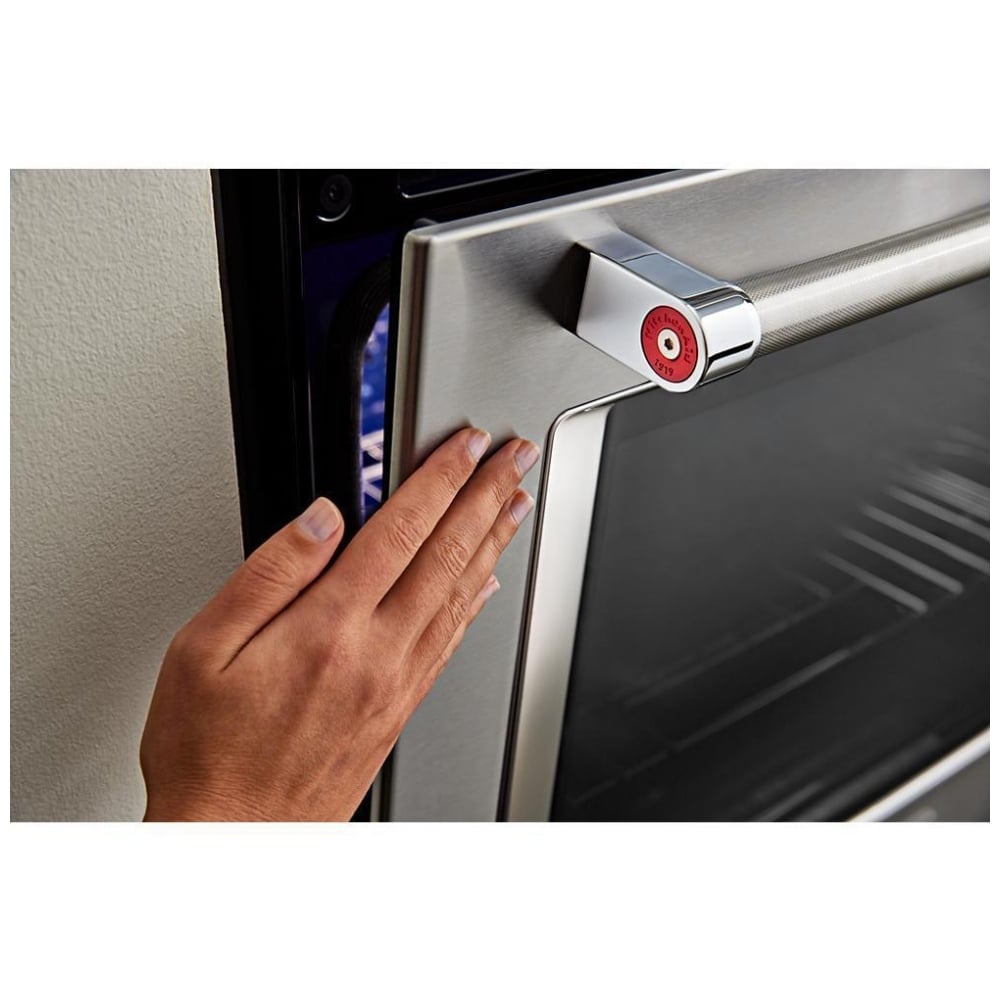

Self-Close Doors – use specialized hinges so each oven door gently closes with a light push, which is helpful when your hands are full.

Self-Cleaning Cycle – uses high heat to loosen baked-on residue, reducing the need for chemical cleaners and simplifying interior cleanup.

5.0 Cu. Ft. Capacity in Each Oven – offers generous cooking space in both upper and lower ovens for large meals, multiple dishes, or holiday cooking.

Total 10.0 Cu. Ft. Combined Capacity – gives the double wall oven substantial overall cooking volume for households that frequently bake or entertain.

Star-K Certified Sabbath Mode – allows the oven to remain in baking mode at a constant temperature with lights, displays, and tones disabled to meet kosher Sabbath and holiday requirements.

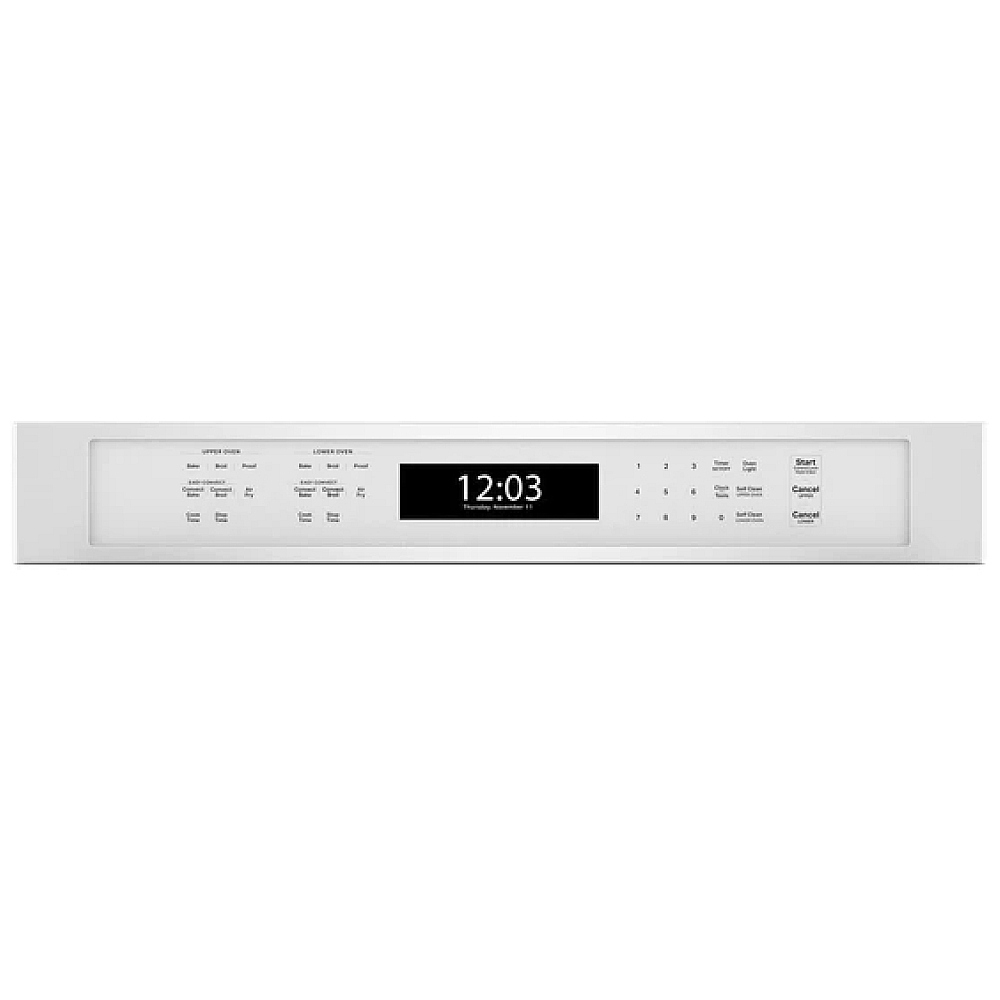

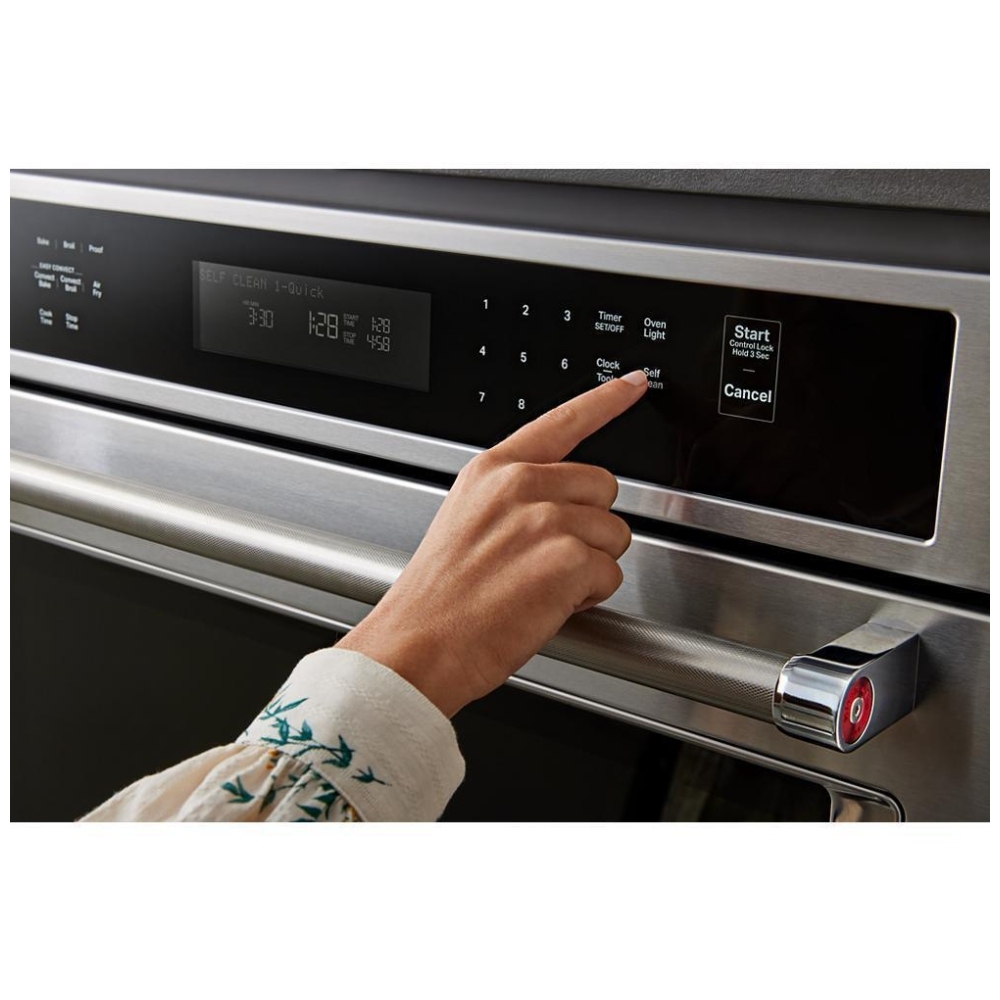

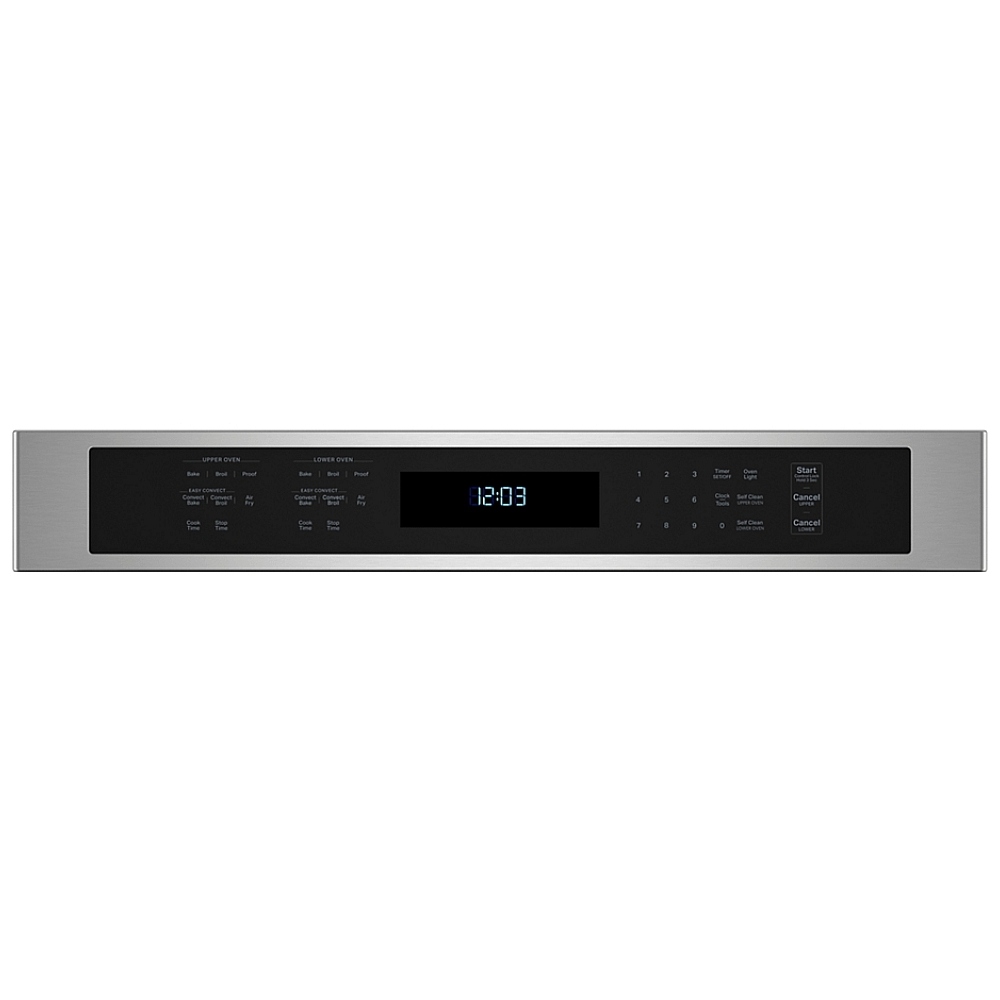

Electronic Controls – provide straightforward operation and precise cooking control for selecting oven functions and temperatures.

Power On Indicator Light – offers a visible indication that the appliance is operating for added awareness and convenience.

30-Inch Built-In Design – fits standard 30-inch wall oven installations and creates a streamlined, integrated kitchen appearance.

PrintShield Stainless Finish – combines a premium stainless look with easier exterior maintenance, making it well suited for busy family kitchens.

Large Viewing Windows – allow you to monitor cooking progress without opening the doors and releasing heat.

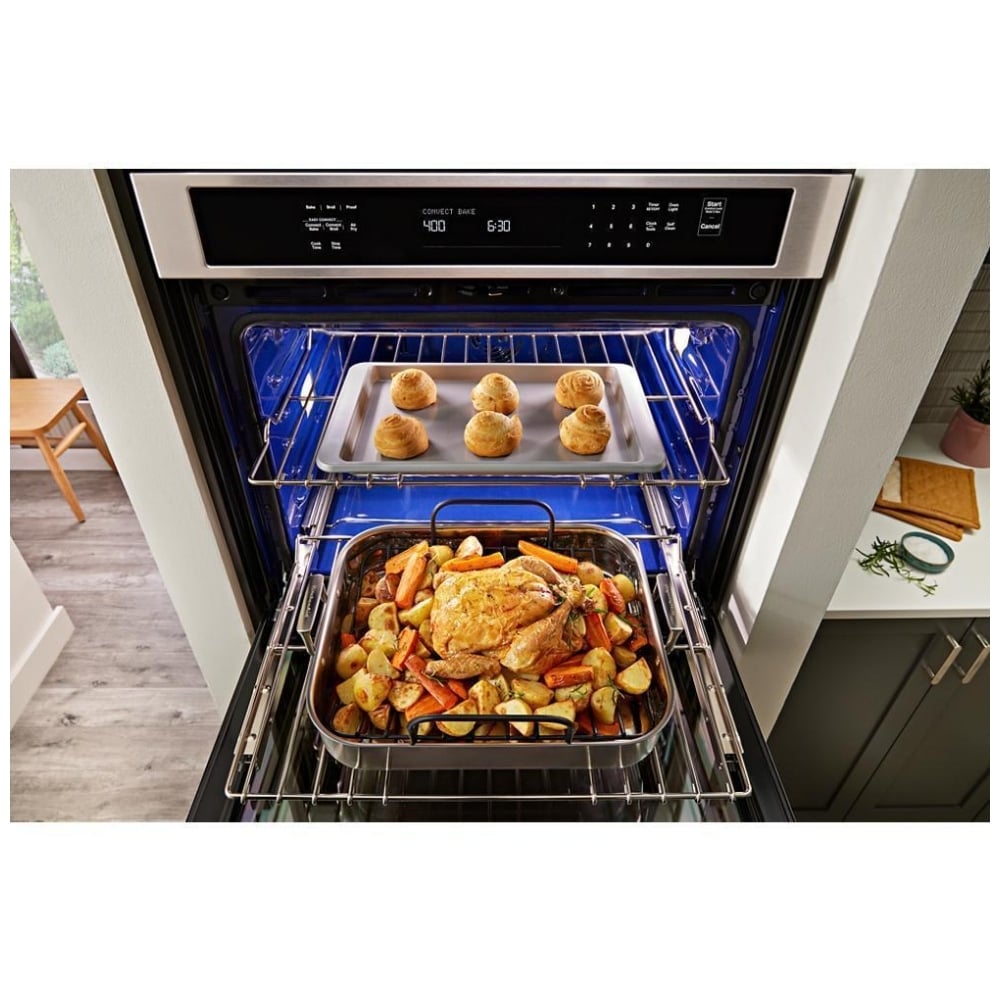

Dual-Oven Meal Flexibility – lets you roast in one oven while baking or broiling in the other, improving efficiency for everyday meals and special occasions.

Convection Cooking Performance – helps promote more even heat distribution for better baking results and more reliable roasting performance.

Included Air Fry Accessory Package – comes with the air fry basket and integrated thermometer, giving users key cooking accessories right out of the box.

Manufacturer's Warranty: 1 year

Canadian model: KOED530PPS

Canadian UPC: 883049687292

EAN: 0883049687292


Air Fry Mode - KOED530PPS
Air Fry Mode
KOED530PPS - Air Fry Mode
Uses triple heating elements and a fan to circulate hot air around the included air fry basket, crisping and browning food with less oil.*

*When compared to deep frying.

Specs
Specification Value
Brand KitchenAid
Model KOED530PPS
Product Type Double Wall Oven
Fuel Type Electric
Wall Oven Size 30 inches
Capacity 10.0 Cu Ft
Upper Oven Capacity 5.0 Cu Ft
Lower Oven Capacity 5.0 Cu Ft

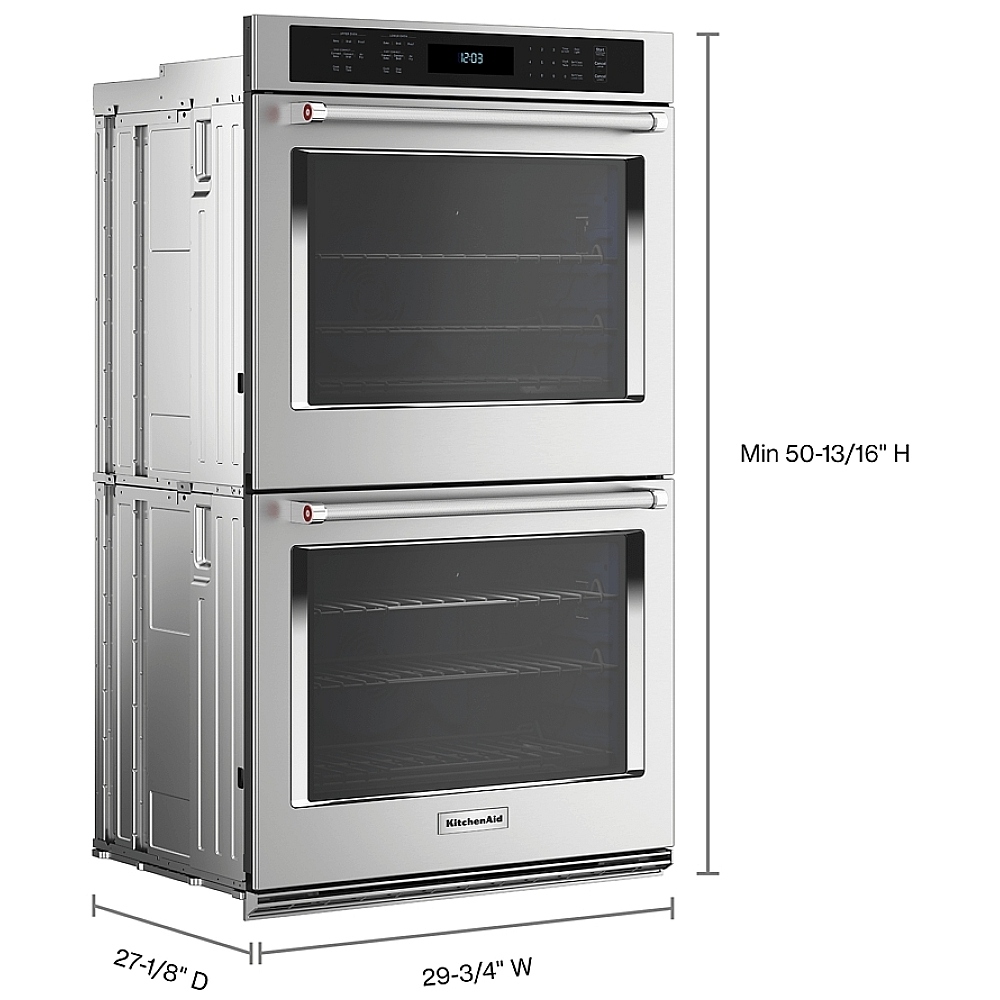

Width 29 3/4 inches
Depth Excluding Handle 24 1/2 inches
Depth Including Handle 26 15/16 inches
Depth to Back of Console 23 1/16 inches
Depth with Door Open 90° 46 3/16 inches
Maximum Height Including Console 52 5/8 inches
Minimum Height Including Console 50 7/8 inches
Maximum Height Excluding Console 50 1/2 inches
Minimum Height Excluding Console 48 3/4 inches
Maximum Overall Height 51 3/4 inches
Maximum Recessed Width 28 7/16 inches
Recessed Height 48 13/16 inches
Maximum Recessed Depth 23 1/4 inches
Depth to Handle 27 1/8 inches
Cutout Width 28 1/2 inches
Cutout Height 50 1/4 inches
Cutout Height Range 50 inches to 52 3/16 inches
Cutout Depth 24 inches
Minimum Cabinet Width 30 inches
Recommended Bottom of Cutout to Floor 14 3/4 inches
Acceptable Bottom of Cutout to Floor 7 1/2 inches to 14 3/4 inches
Top of Cutout to Bottom of Upper Cabinet Door 1 inch
Minimum Bottom of Cutout to Top of Cabinet Door 1 1/2 inches
Flush Inset Cutout Width 30 1/4 inches
Flush Opening Width 28 7/8 inches
Flush Inset Cutout Height 52 inches
Flush Recommended Cutout Height 51 1/4 inches
Flush Minimum Cutout Depth 25 inches
Spacer Depth of Cutout 25 inches
Recess from Front of Cabinet 1 3/8 inches
Top Cleat 3/4 inch
Side Cleat 11/16 inch
Recommended Foot Clearance 1/4 inch
Allowable Foot Clearance Without Foot 15/16 inch to 1 1/8 inches
Flush Bottom of Cutout to Floor 4 5/8 inches to 32 inches
Flexible Conduit Length 66 inches
Distance from Back of Control Panel to Start of Strain Relief 12 inches
Support Surface Weight Capacity 330 pounds
Door Style Drop Down Door
Color PrintShield Stainless Steel
Fingerprint Resistant Yes
Handle Finish Stainless Steel Handle
Control Type Touchpad
Viewing Window Yes
Clock Yes
Drawer None
Convection Yes
Convection Type True Convection
Even-Heat True Convection Yes
Air Fry Mode Yes
Air Fry Basket Included
Air Fry Basket Dishwasher Safe Yes
Integrated Meat Thermometer Yes
EasyConvect Yes
SatinGlide Roll-Out Extension Rack Yes
SatinGlide Roll-Out Extension Racks Both Ovens
Oven Racks 6
Upper Oven Racks 3
Lower Oven Racks 3
Digital Temperature Display Yes
Self-Cleaning Yes
Self-Cleaning Type High Heat
Self-Clean Cycle Yes
Soft-Close Doors Yes
Even-Heat Preheat Yes
Broiler Yes
Broiler Element Location Top
Broil Element Power 4,000 watts
Interior Oven Light Yes
FIT System Limited Guarantee Yes
Undercounter Installable No
Sabbath Mode Yes
Certification STAR-K Certified
WiFi No
Electrical Rating Range at 240 V 7.3 kW to 9.6 kW
Electrical Rating Range at 208 V 5.4 kW to 7.4 kW
Required Circuit 40 amps
