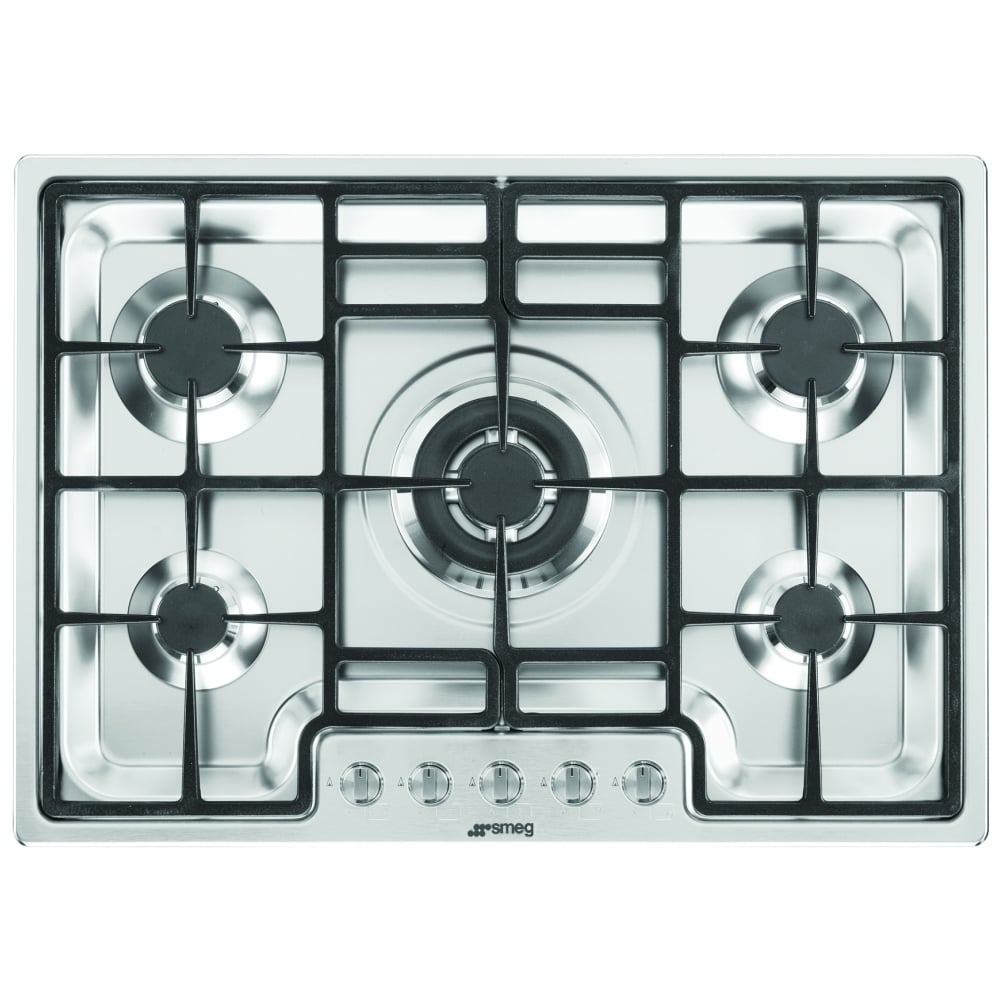

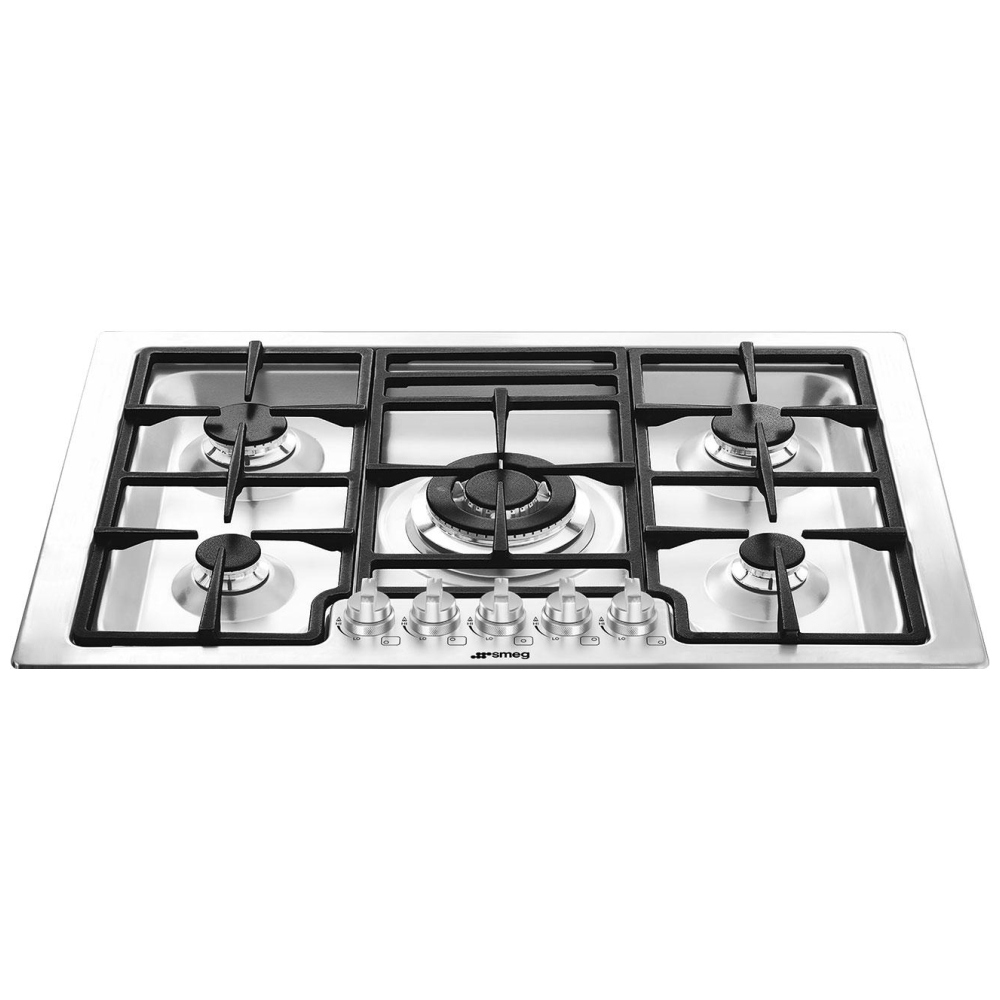

30" Classic Gas Cooktop with 5 Burners
The powerful 13,700 BTU double inset super burner can quickly boil a pot of water or heat food. Four additional burners including three rapid burners make cooking food significantly faster and easier. The continuous cast iron grates offer a heavy-duty cooking surface that can withstand high heat for years to come. An extra wide stainless steel frame provides countertop protection for your unit. The automatic electronic ignition comes equipped with safety valves.
The powerful 13,700 BTU double inset super burner can quickly boil a pot of water or heat food. Four additional burners including three rapid burners make cooking food significantly faster and easier. The continuous cast iron grates offer a heavy-duty cooking surface that can withstand high heat for years to come. An extra wide stainless steel frame provides countertop protection for your unit. The automatic electronic ignition comes equipped with safety valves.
Gas hobs
Manufacturer's Warranty: 2 years
Canadian model: PGFU30X2
Similar to USA model: PGFU30X2
Canadian UPC: 801770934744
Similar to USA UPC: 801770934744
EAN: 8017709347444
| Aesthetic | |
| Aesthetics | Classic |
| Color | Stainless steel |
| Finishing | Satin |
| Stainless steel type | Brushed |
| Material | Stainless steel |
| Controls color | Stainless steel effect |

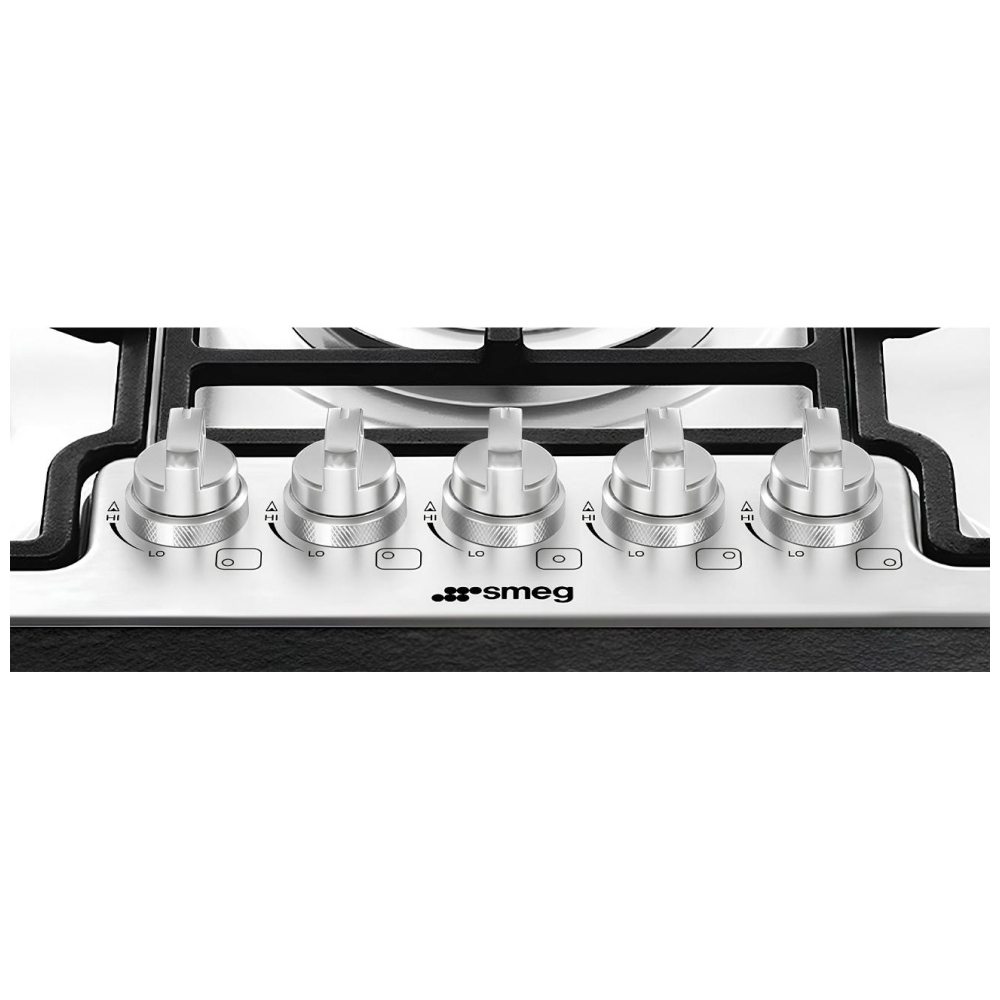

| Control setting type | Control knobs |
| Controls position | Front |
| No. of controls | 5 |
| Grates | Cast iron |
| Burners | Standard |
| Burners material | Aluminum |
| Program / Functions | |
| Cooking zones | 5 |
| Burners | 5 |
| General information | |
| Product family | Cooktop |
| Dimensions | 30" |
| Type | Gas |
| Installation | Ultra-low profile |
| Power supply | Gas |
| EAN code | 8017709347444 |
| Technical Features | |
| Gas Type | G20 Natural gas |
| Gas safety valves | Yes |
| Automatic Ignition | Yes |
| Cooking zones | |
| Zone 1 - Position | Front-left |
| Zone 2 - Position | Rear-left |
| Zone 3 - Position | Center |
| Zone 4 - Position | Rear-right |
| Zone 5 - Position | Front-right |
| Zone 1 - Type | Gas - AUX |
| Zone 2 - Type | Gas - Semi-rapid |
| Zone 3 - Type | Gas - Ultra-rapid |
| Zone 4 - Type | Gas - Semi-rapid |
| Zone 5 - Type | Gas - AUX |
| Electrical Connection | |
| Nominal power | 1 W |
| Voltage | 100-120 V |
| Frequency | 50/60 Hz |
| Electric cable type | Single phase |
| Power cord length | 47 1/4 " |
| Logistic Information | |
| Depth | 20 1/8 " |
| Width | 28 3/8 " |
| Height | 3 1/16 " |
| Net weight | 34 lbs |
| Gross weight | 40 lbs |
| Packaged width | 31 15/16 " |
| Packaged depth | 23 3/4 " |
| Packaged height | 6 9/16 " |
| Packaging | Cardboard box |
| Packaging composition - Paper | 5 lbs |
| Packaging composition - Polystyrene | 1 lbs |
| Accessories Included | |
| Cast iron wok support | 1 |
| Other gas nozzles included | G30 LPG liquid gas |
Burner Output
Features
Technical Requirements
Dimensions and Weights
Cutout Dimensions
Specification Sheet (PGFU30X2_specification-sheet.pdf)
