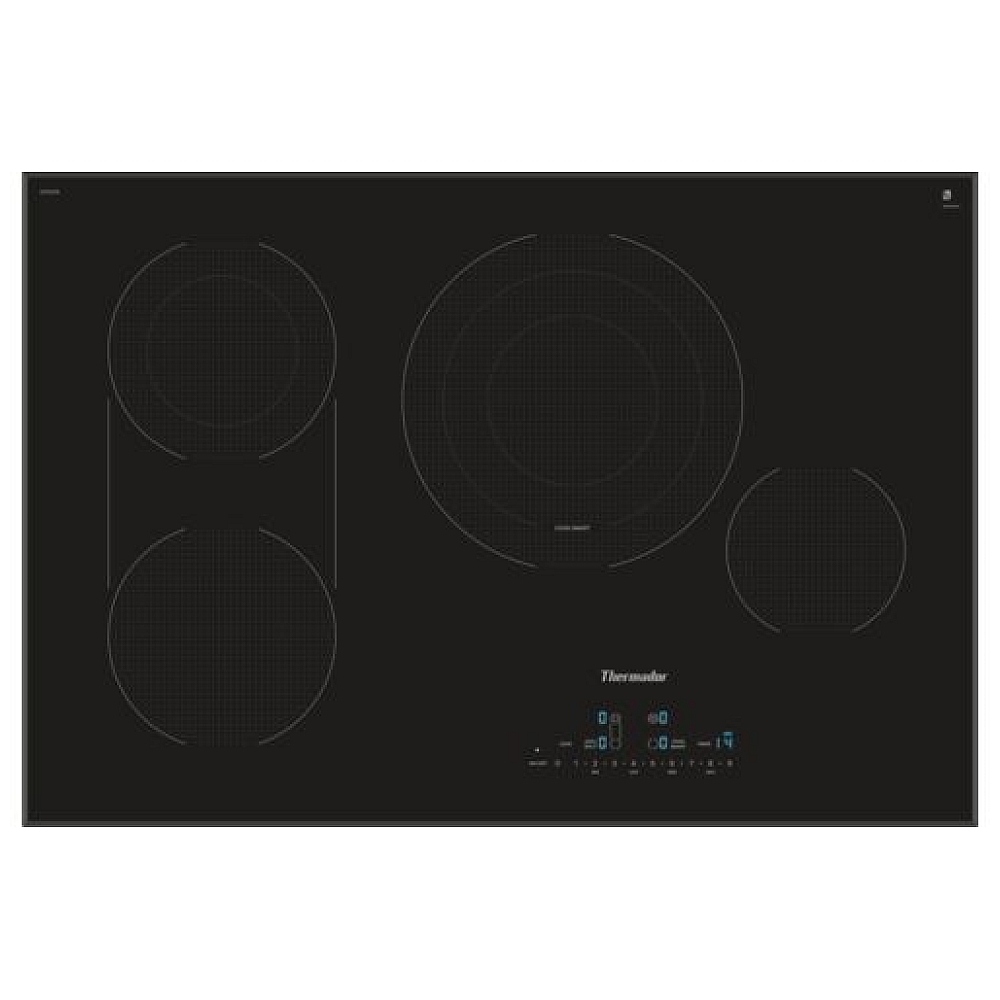

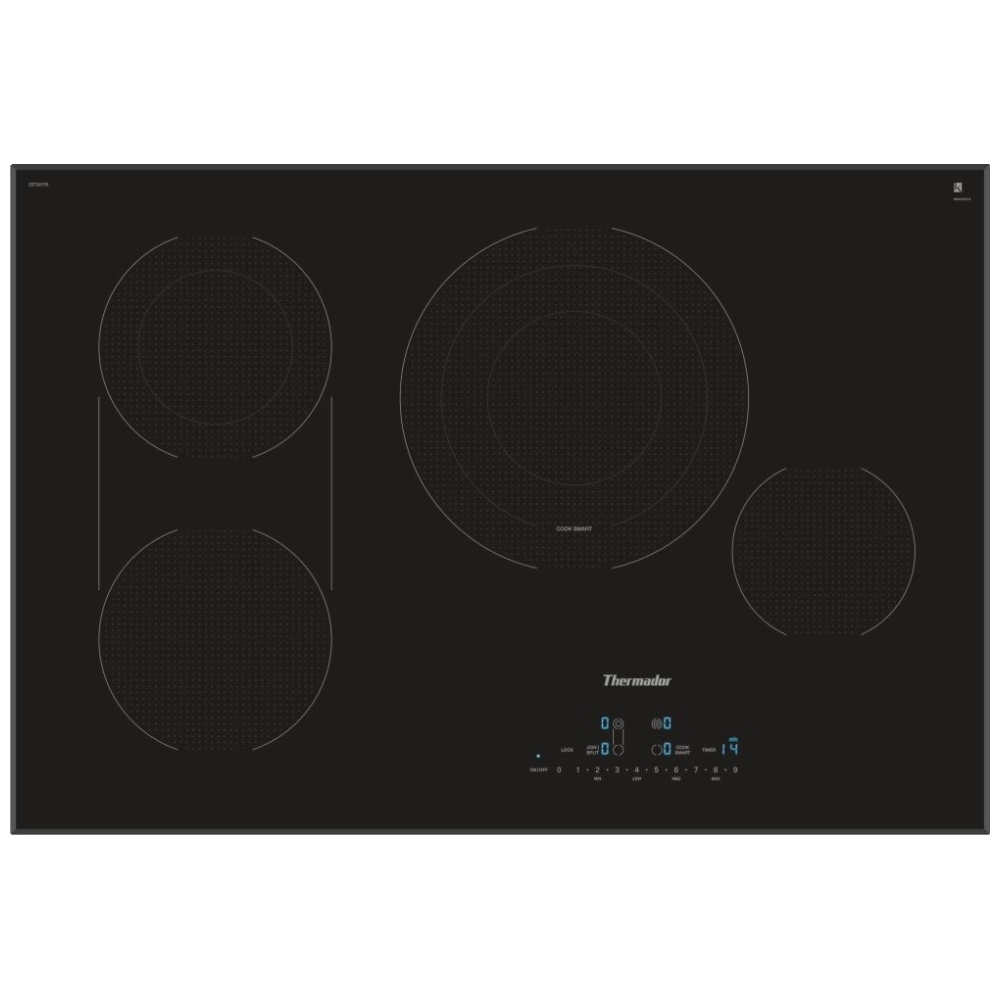

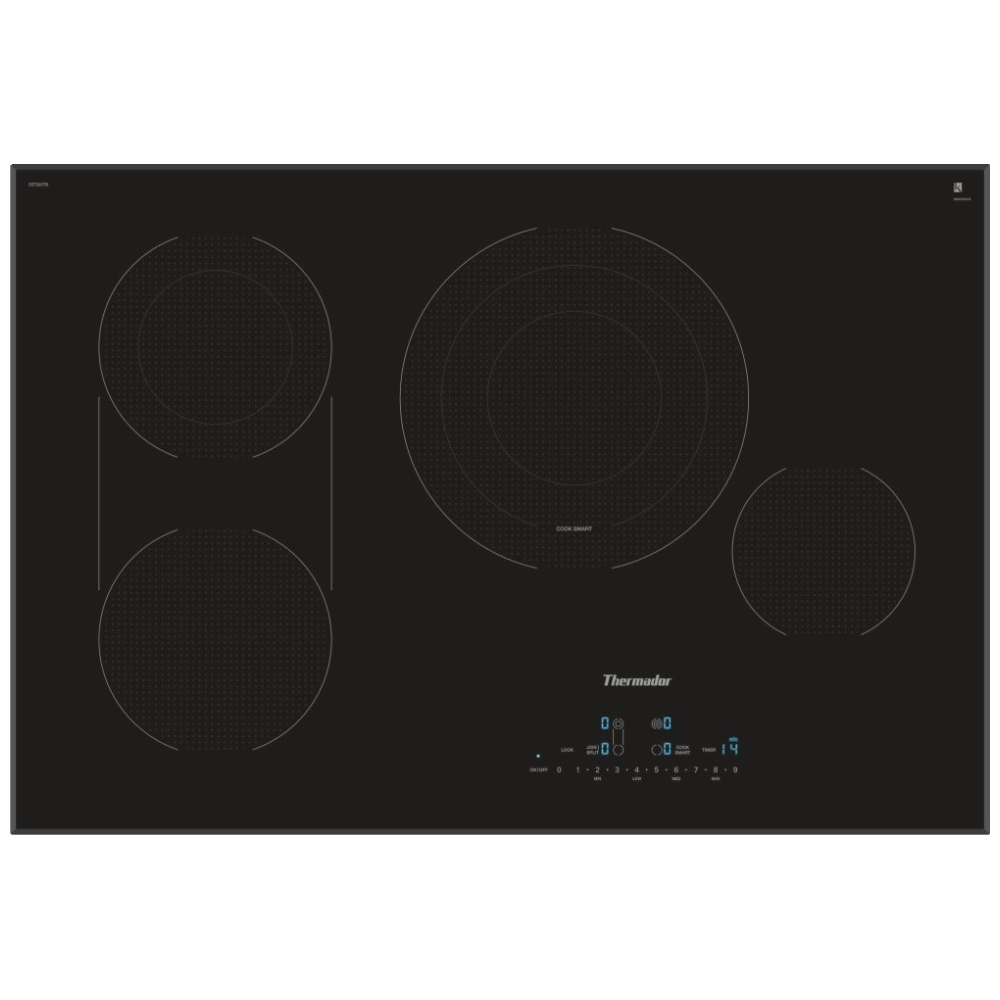

30" Electric Cooktop, Touch Control
Masterpiece® Series electric cooktops offer excellent performance, precise control and a sleek elegant profile
- Innovation
- Cooksmart feature - 4 preset frying levels controlled by a sensor
- Performance
- Four elements and eight cooking zones provides the space and power for most cookware
- Dual zone bridge element connects front and rear elements to accomodates oblong cookware and multiple diameter sizes

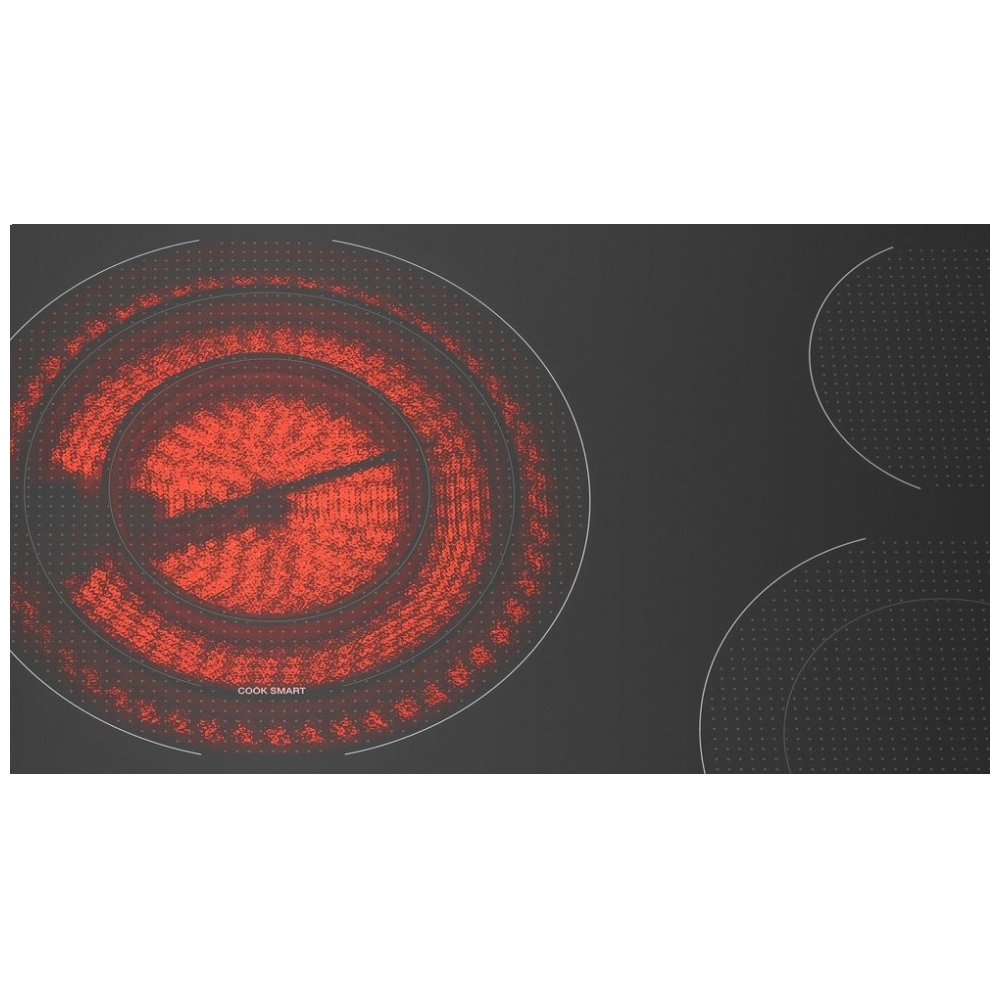

- Large triple element offers the capability to use multiple pan sizes
- Auto shut-off timer enables the user to set desired cooking time
- Residual heat indicator shows you what elements are still hot
- Wipe protection function allows user to clean the surface of the control panel without risk of changing the settings
- Design

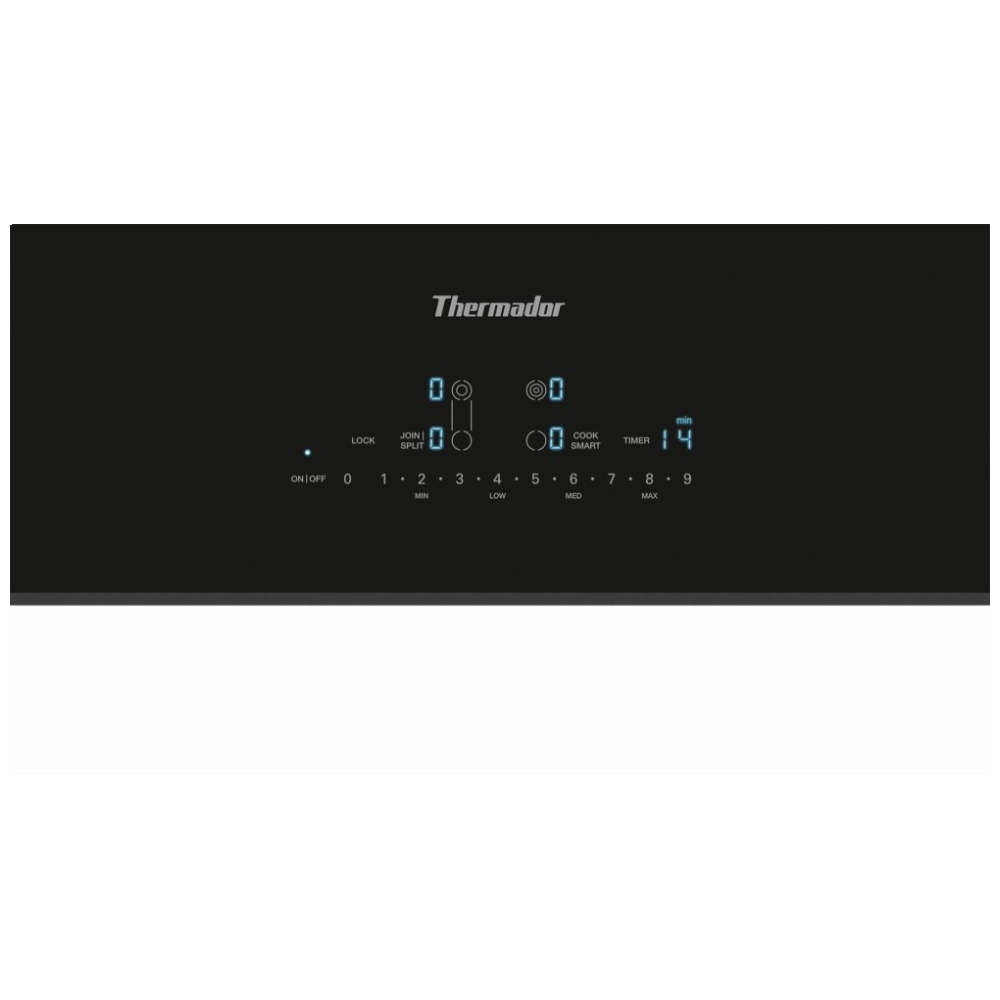

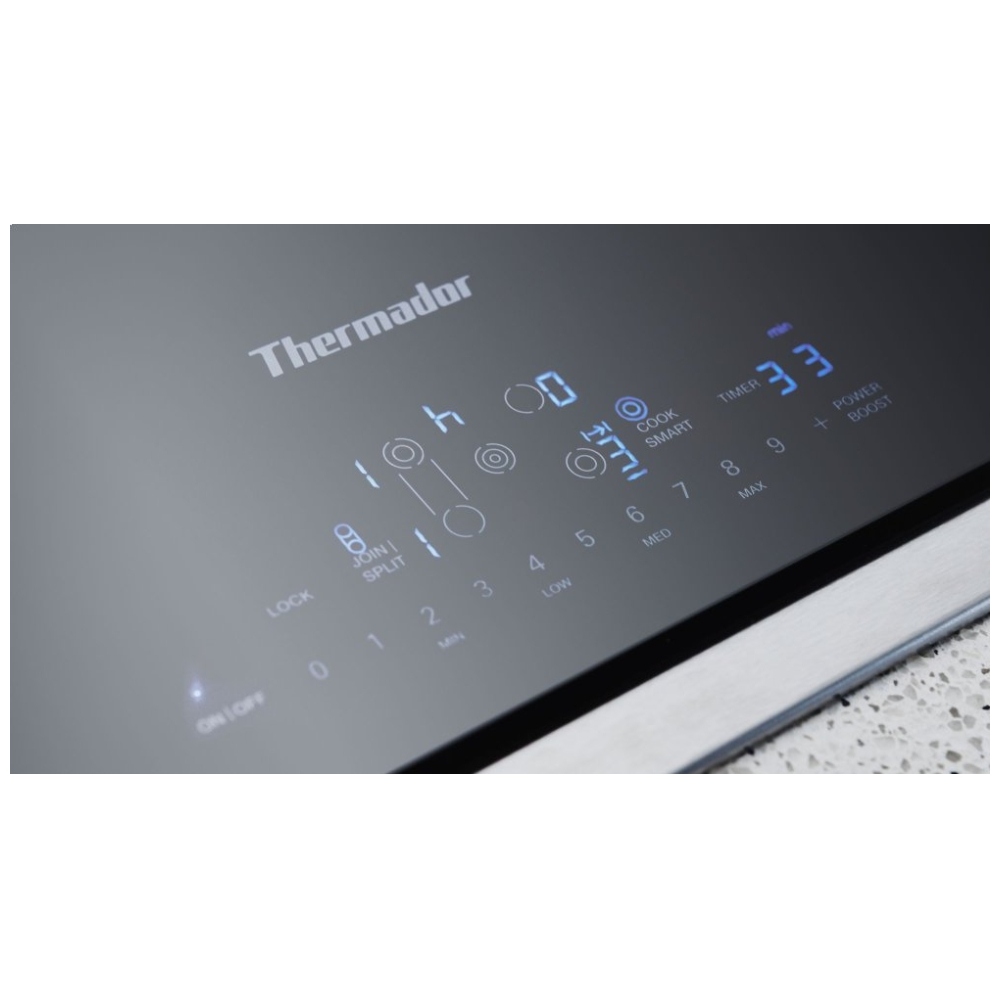

- Touch control panel with blue light illumination offers 17 power settings
Masterpiece® Series electric cooktops offer excellent performance, precise control and a sleek elegant profile
Manufacturer's Warranty: 2 years
Canadian model: CET305TB
Canadian UPC: 825225924852
EAN: 0825225924852

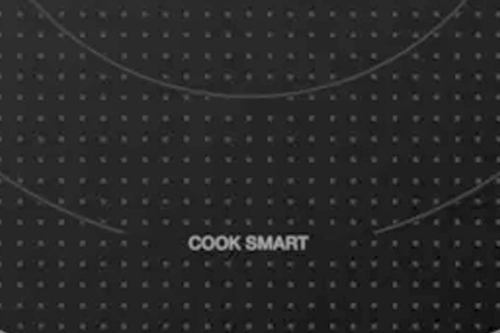

CookSmart® ensures optimal results with 4 presets
Designed to perfect a wide range of recipes with 4 preset frying levels and automatic shut-off for expert results, every time.

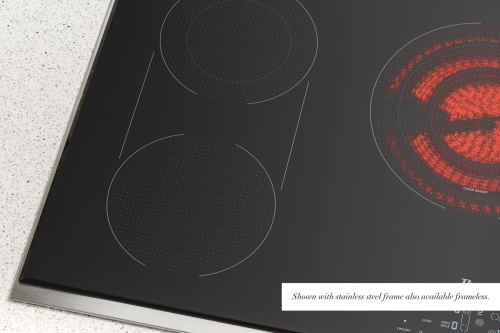

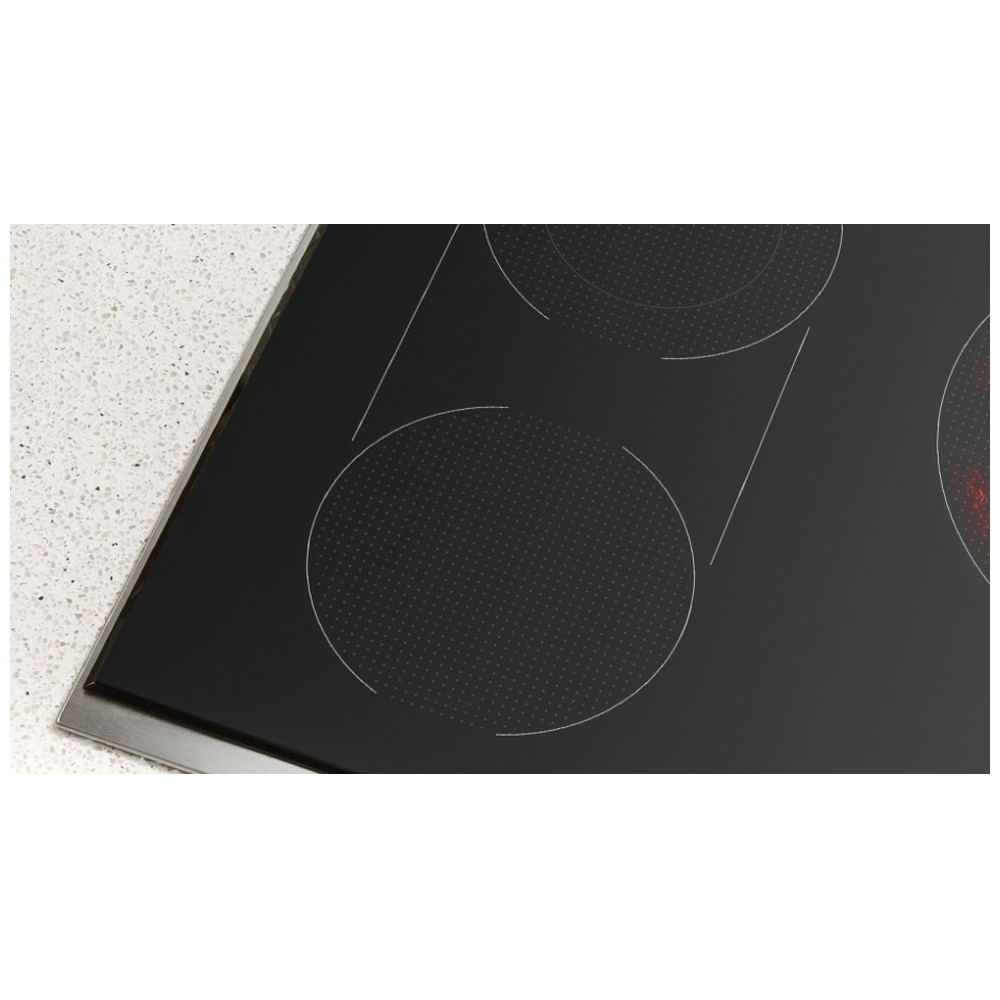

Dual Zone Bridge connects two round cooking zones
Evenly heat large pans, griddles, and oblong cookware with connecting heat bridge and dual-zone elements, exclusive to Thermador®.
| General | |
| Energy source | Electric |
| Type of control | front |
| Safety device | childproof lock, Key Lock, Safety time-switch-off |
| Highlights | 17 power levels, fryingSensor Plus |
| Construction type | |
| Color of surface | Black |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 4 |
| Type of frame | 4 Facettes |
| Number of gas burners | 0 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Total number of cooktop burners | 4 |
| Number of radiant elements | 4 |
| Number of electric warming zones | 0 |
| Size and weight | |

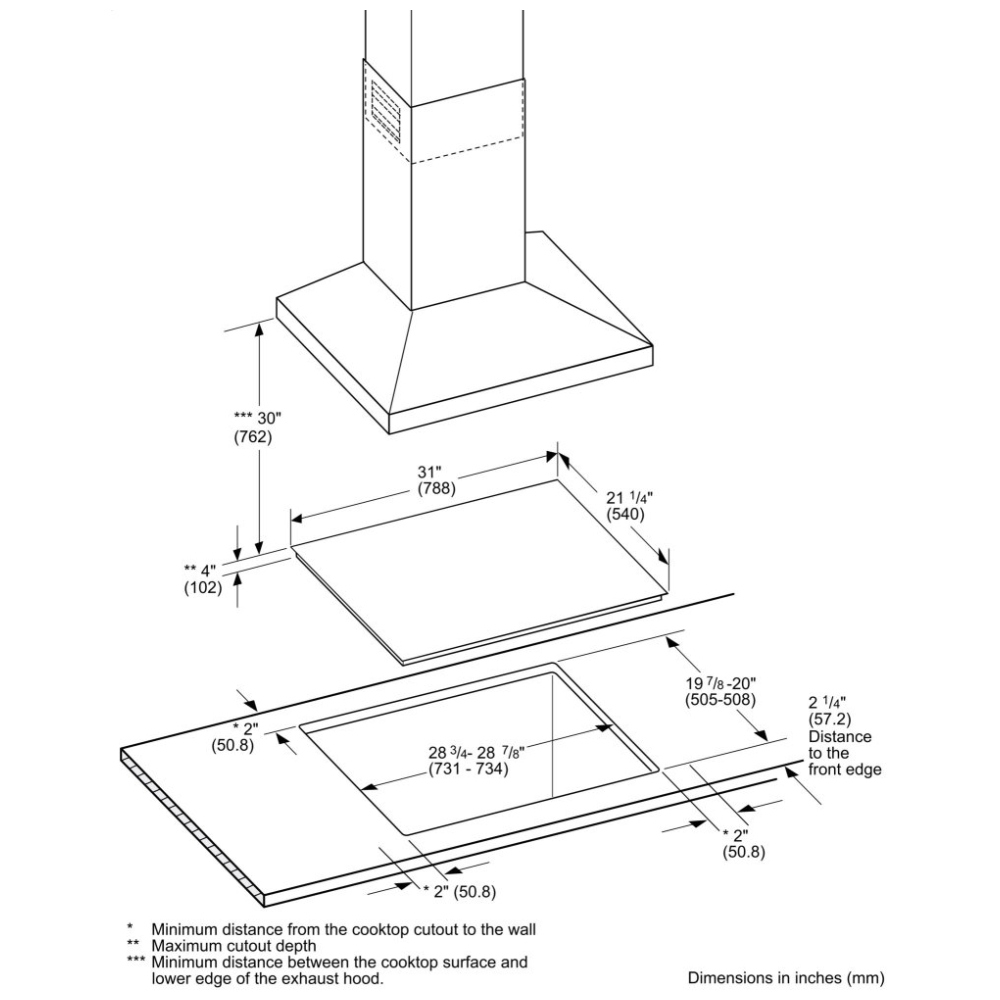

| Overall appliance dimensions (HxWxD) (in) | 7/16" + 3 15/16" x 31" x 21 1/4" |
| Net weight | 26.000 lbs |
| Minimum distance from counter front (in) | 2 1/4" |
| Minimum distance from rear wall (in) | 2 3/4" |
| Cooking zone 1 | |
| Dimension of 1st heating element (in) | 7" |
| Location of 1st heating element | front left |
| Power of heating element (kW) | 1.7 kW |
| Type of heating element | Radiant heating |
| Cooking zone 2 | |
| Location of 2nd heating element | center left |
| Cooking zone 3 | |
| Dimension of 3rd heating element (in) | 5" ; 7" |
| Location of 3rd heating element | back left |
| Power of 3rd heating element (kW) | 0.7 ; 1.7 kW |
| Type of 3rd heating element | Radiant heating |
| Cooking zone 4 | |
| Location of 4th heating element | middle back |
| Cooking zone 5 | |
| Location of 5th heating element | back right |
| Type of 5th heating element | Radiant heating |
| Cooking zone 6 | |
| Location of 6th heating element | center right |
| Cooking zone 7 | |
| Dimension of 7th heating element (in) | 6" |
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.2 kW |
| Type of 7th heating element | Radiant heating |
| Cooking zone 8 | |
| Location of 8th heating element | front middle / central |
| Cooking zone 9 | |
| Location of 9th heating element | front centre/cent |
| Safety | |
| Residual heat indicator | Separate |
| Safety device | childproof lock, Key Lock, Safety time-switch-off |
| Connection | |
| Frequency | 60 Hz |
| Energy source | Electric |
| Watts | 7,800 W |
| Accessories | |
| Included accessories | 1 x glass scraper |
INNOVATION
- Cooksmart® feature - 4 preset frying levels controlled by a sensor
PERFORMANCE
- Four elements and eight cooking zones provides the space and power for most cookware
- Dual zone bridge element connects front and rear elements to accomodates oblong cookware and multiple diameter sizes
- Large triple element offers the capability to use multiple pan sizes
- Auto shut-off timer enables the user to set desired cooking time
- Residual heat indicator shows you what elements are still hot
- Wipe protection function allows user to clean the surface of the control panel without risk of changing the settings
DESIGN
- Touch control panel with blue light illumination offers 17 power settings
Technical Specifications
General
| Energy source | Electric |
|---|---|
| Type of control | front |
| Safety device | childproof lock, Key Lock, Safety time-switch-off |
| Highlights | 17 power levels, fryingSensor Plus |
Construction type
| Color of surface | Black |
|---|---|
| Installation type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 4 |
| Type of frame | 4 Facettes |
| Number of gas burners | 0 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Total number of cooktop burners | 4 |
| Number of radiant elements | 4 |
| Number of electric warming zones | 0 |
Size and weight
| Overall appliance dimensions (HxWxD) (mm) | 102 x 788 x 540 mm |
|---|---|
| Net weight (kg) | 12.004 kg |
Cooking zone 1
| Dimension of heating element (mm) | 180 mm |
|---|---|
| Location of 1st heating element | front left |
| Power of heating element (W) | 1.7 kW |
| Type of heating element | Radiant heating |
Cooking zone 2
| Location of 2nd heating element | center left |
|---|
Cooking zone 3
| Dimension of 3rd heating element (mm) | 180 ; 120 mm |
|---|---|
| Location of 3rd heating element | back left |
| Power of 3rd heating element (W) | 0.7 ; 1.7 kW |
| Type of 3rd heating element | Radiant heating |
Cooking zone 4
| Location of 4th heating element | middle back |
|---|
Cooking zone 5
| Location of 5th heating element | back right |
|---|---|
| Type of 5th heating element | Radiant heating |
Cooking zone 6
| Location of 6th heating element | center right |
|---|
Cooking zone 7
| Dimension of 7th heating element (mm) | 140 mm |
|---|---|
| Location of 7th heating element | front right |
| Power of 7th heating element (kW) | 1.2 kW |
| Type of 7th heating element | Radiant heating |
Cooking zone 8
| Location of 8th heating element | front middle / central |
|---|
Cooking zone 9
| Location of 9th heating element | front centre/cent |
|---|
Safety
| Power on indicator | |
|---|---|
| Residual heat indicator | Separate |
| Safety device | childproof lock, Key Lock, Safety time-switch-off |
| Main on/off switch |
Connection

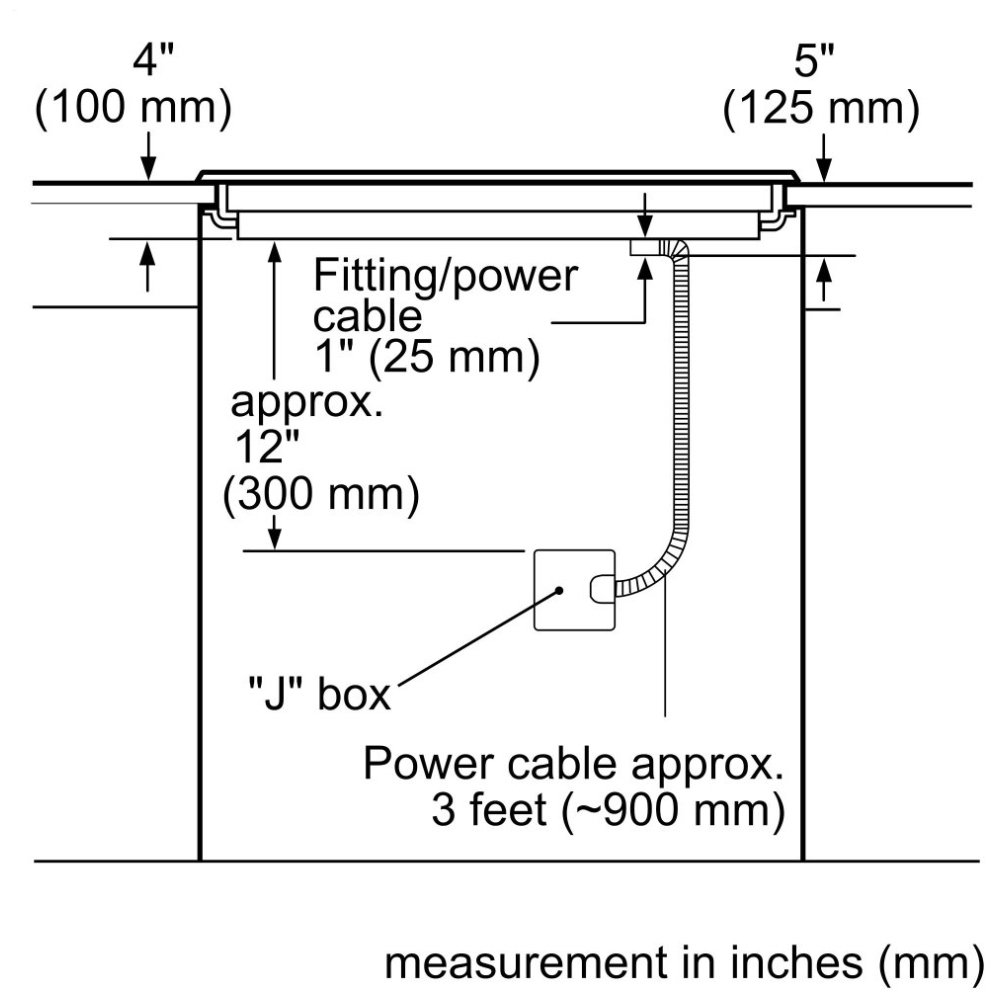

| Power cord length (cm) | 96 cm |
|---|---|
| Watts (W) | 7,800 W |
| Energy source | Electric |
| Frequency (Hz) | 60 Hz |
Accessories
| Included accessories | 1 x glass scraper |
|---|
Download Product Specs (CET305TB-product-specs-canada.pdf)
