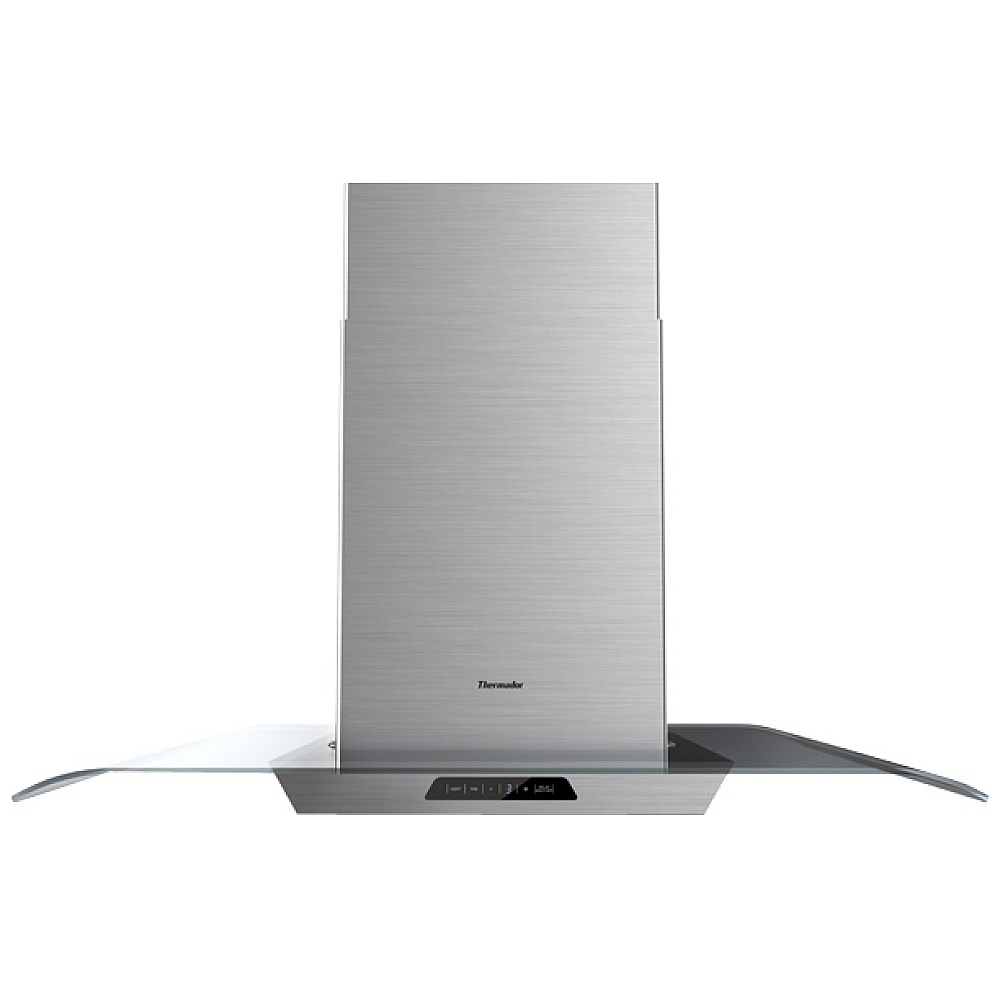

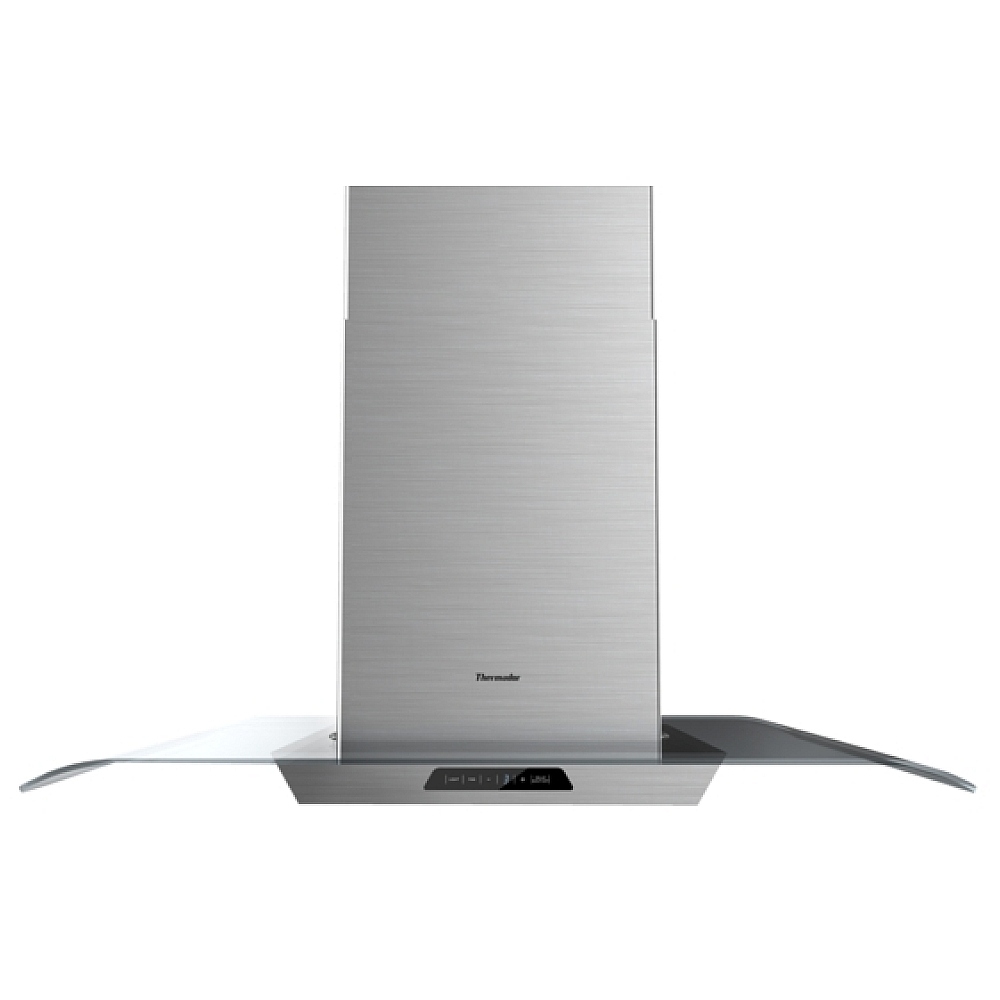

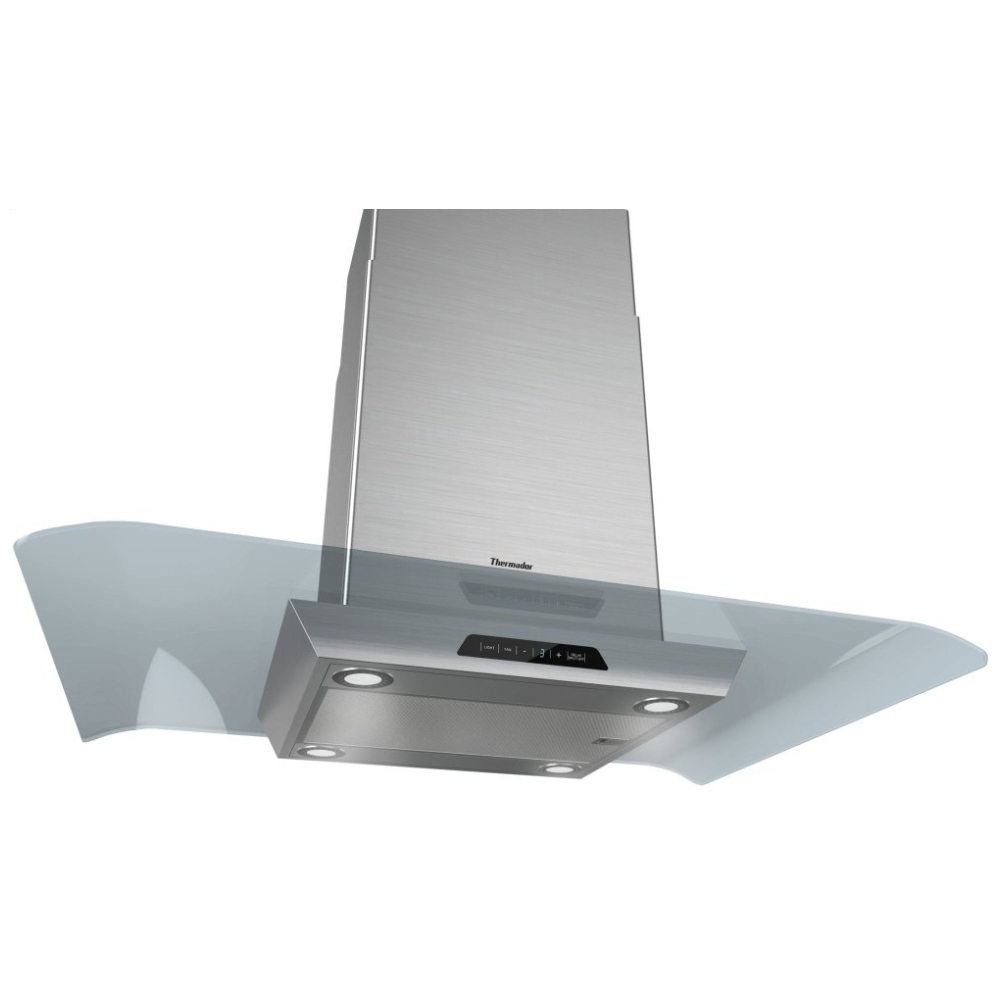

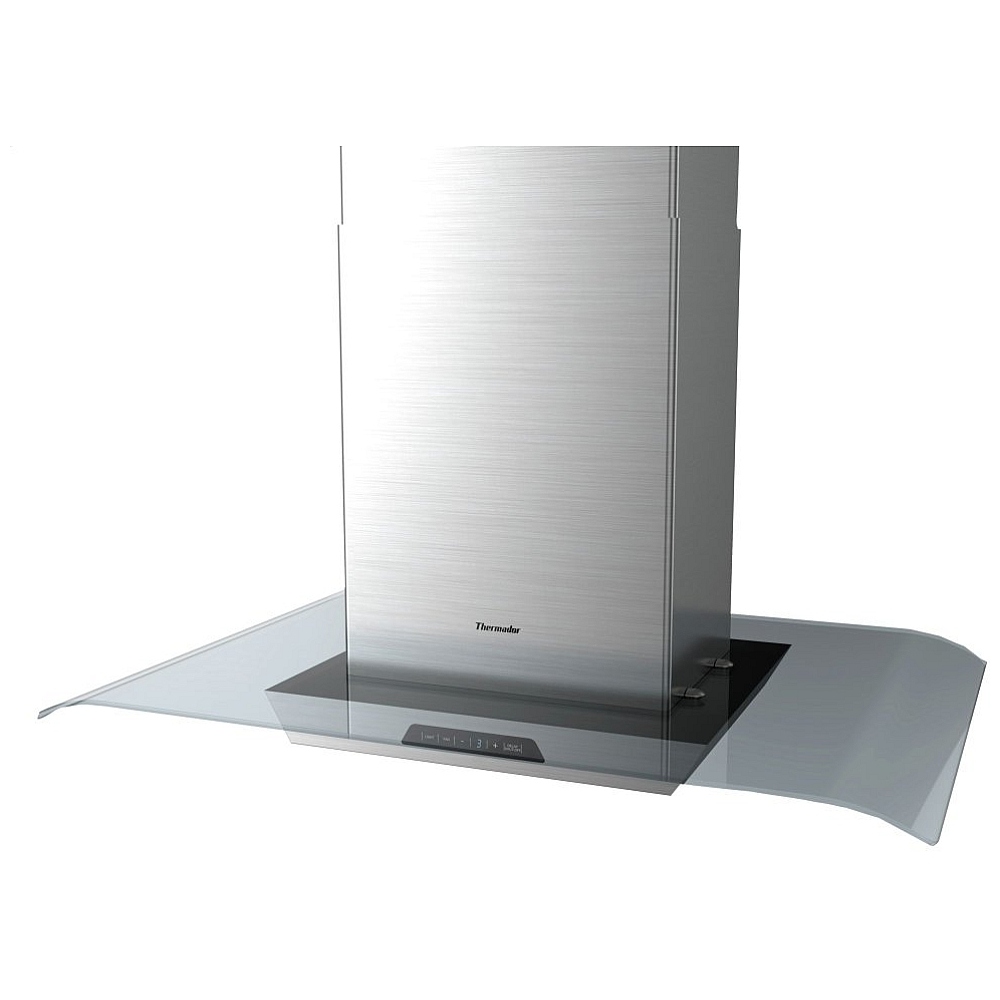

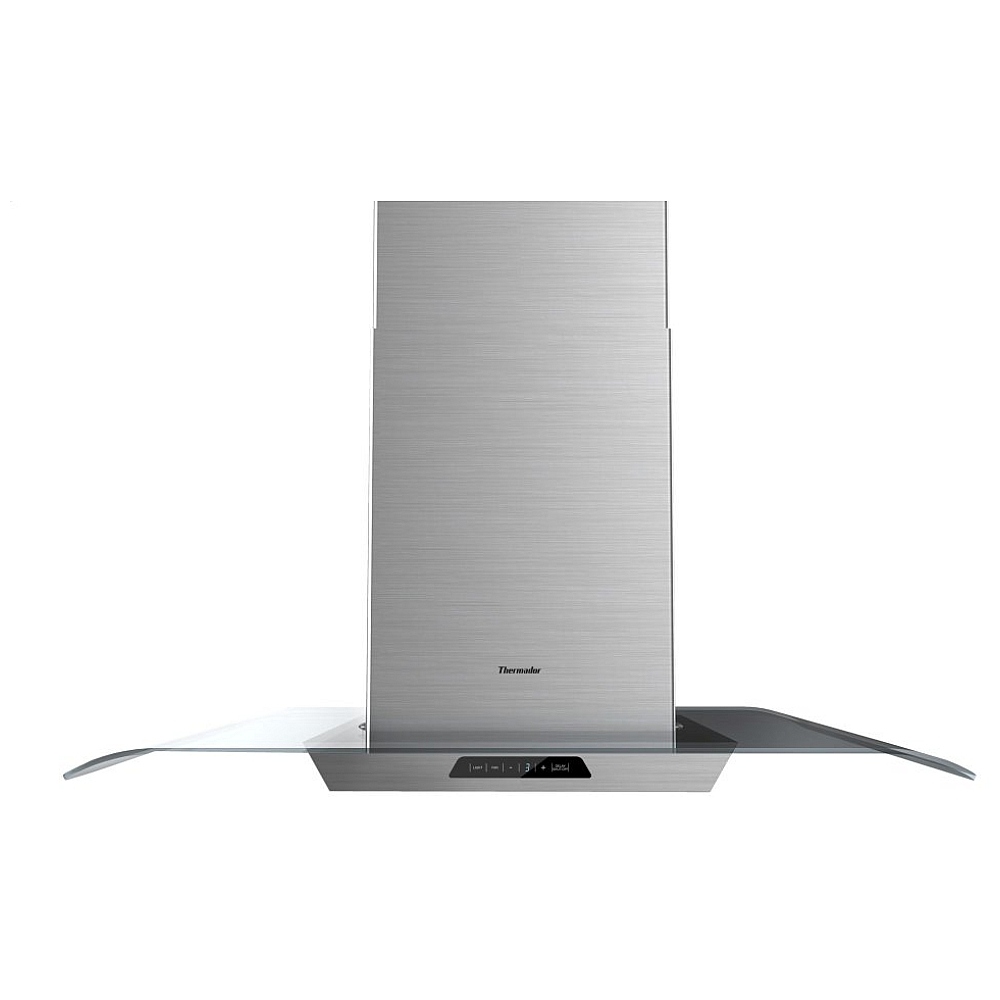

Thermador Masterpiece Series HMIB40HS Glass Island Mount Chimney Range Hood 40 in with 600 CFM Internal Blower, 4-Speed Touch Controls, 4 Halogen Lights w/ Dimmer and Convertible to Recirculating
- Performance
- 600 CFM Integrated Blower included
- An ideal solution for island cooktop installations
- Four fan speeds including one intensive level
- Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
- Delayed shut off tackles lingering odors for up to 10 minutes
- Dimmer lighting for a soft lighting effect completely adjustable by user
- Dishwasher safe stainless steel mesh filters
- Filter systems are highly efficient at capturing grease
- Easy to operate control buttons
- Powerfully Quiet ventilation systems
- Perfect fit for 30 & 36 cooktops
- 6" Round duct size
- Vertical ducting direction
- Design
- Stunning combination of glass and stainless steel with Masterpiece design elements
- Chiseled design for a seamless integration into any kitchen
- Halogen lighting spotlights your best recipes
- Brushed stainless steel finish
- Premium electronic touch controls
Performance
- Four fan speeds including one intensive level
- Filter systems are highly efficient at capturing grease
- Powerfully quiet ventilation systems
- Perfect fit for 30” & 36” cooktops
Design
- An ideal solution for island cooktop installations
- Stunning combination of glass and stainless steel with Masterpiece® design elements
- Brushed stainless steel finish
- Chiseled design for a seamless integration into any kitchen
Convenience
- Halogen lighting spotlights your best recipes
- Dimmer lighting – for a soft lighting effect completely adjustable by user
- Dishwasher safe stainless steel mesh filters
- Delayed shut off tackles lingering odors for up to 10 minutes
- Built-in 'Clean Filter' reminder light illuminates after 40 hours of operation
- Easy to operate control buttons
Capacity
- 600 CFM Integrated Blower included
- 6" Round duct size
- Vertical ducting direction
Manufacturer's Warranty: 2 years
Canadian model: HMIB40HS
Canadian UPC: 825225875505
EAN: 0825225875505
| Technical Specifications | |
| Type of appliance width (cm) | 100 cm |
| Depth of the product | 700 mm |
| Installation type | Built-in |
| Air circulation | Convertible |
| Type of control | 7-segment display, touch control |
| Construction type | |
| Diameter of air duct (mm) | 150 mm |
| Color body | Stainless steel |
| Color chimney | Stainless steel |
| Grease filter material | Washable aluminium |
| Grease filter type | Multilayer cassette |
| Installation Type | Island |
| Material | Glass |
| Material chimney | Stainless steel |
| Number of motors | 1 |
| Air circulation | Convertible |
| Typology | Chimney |
| Connection | |
| Watts (W) | 530 W |
| Power cord length (cm) | 130 cm |
| Frequency (Hz) | 60 Hz |
| Total power of the lamps (W) | 80 W |
| Total output power of the motors | 530 W |
| Volts (V) | 120 V |
|
Technical Specifications |
|
|
Amps (A) |
5 |
|
Frequency (Hz) |
60 |
|
Approval certificates |
ETL |
|
Plug type |
120V-3 prong |
|
Height of the chimney (in) |
28 3/8'' - 39 7/16'' |
|
Net weight (lbs) |
87 |
|
Gross weight (lbs) |
108 |
|
Required distance above range/rangetop/cooktop |
30''/30'' |
|
Diameter of air duct (in) top |
6 |
|
No-return airflow flap |
Yes |
|
Product Features |
|
|
Operating mode |
Convertable: Ducted / Recirculating |
|
Delay shut off modes |
10 |
|
Optional accessories |
CHFILISL, RECIRISL |
|
Number of lights |
4 |
|
Type of lamps used |
Halogen |
|
Total power of the lamps (W) |
80 |
|
Grease filter material |
Washable stainless steel |
|
Grease filter type |
Multilayer cassette |
|
Clean filter reminders |
Electronic |
