Gas Range Connection $189
(Includes Disconnecting Old Gas Unit)
Thermador PCG364WD
AE4UR5
MSP Before Promo
$8,249
 Add to Cart
Call Local Showroom
Ratings & Reviews
PA12GRILLW
PA12GRILLW
Product Accessories
$699
PA12GRILFW
PA12GRILFW
Product Accessories
$699
PAGRIDLFW
PAGRIDLFW
Product Accessories
$699
PA36WLBC
PA36WLBC
Product Accessories
$579
PA12LCVRW
PA12LCVRW
Product Accessories
$419
PAGRIDDLE
PAGRIDDLE
Product Accessories
$329
PA12CHPBLK
PA12CHPBLK
Product Accessories
$329
PAKNOBLUWR
PAKNOBLUWR
Product Accessories
$299
PWOKRINGHC
PWOKRINGHC
Product Accessories
$209
PALPKITHW
PALPKITHW
Product Accessories
$189
Similar Colours and Options
PCG364WL
Visit showroom for prices
AE4UR5
Region Availability:
2 - 4 Business Days
When will I get this?

Click here to see showrooms with this item on display to order.
  • Etobicoke
  • Winnipeg
  • Gatineau
  • Surrey
Description & Features

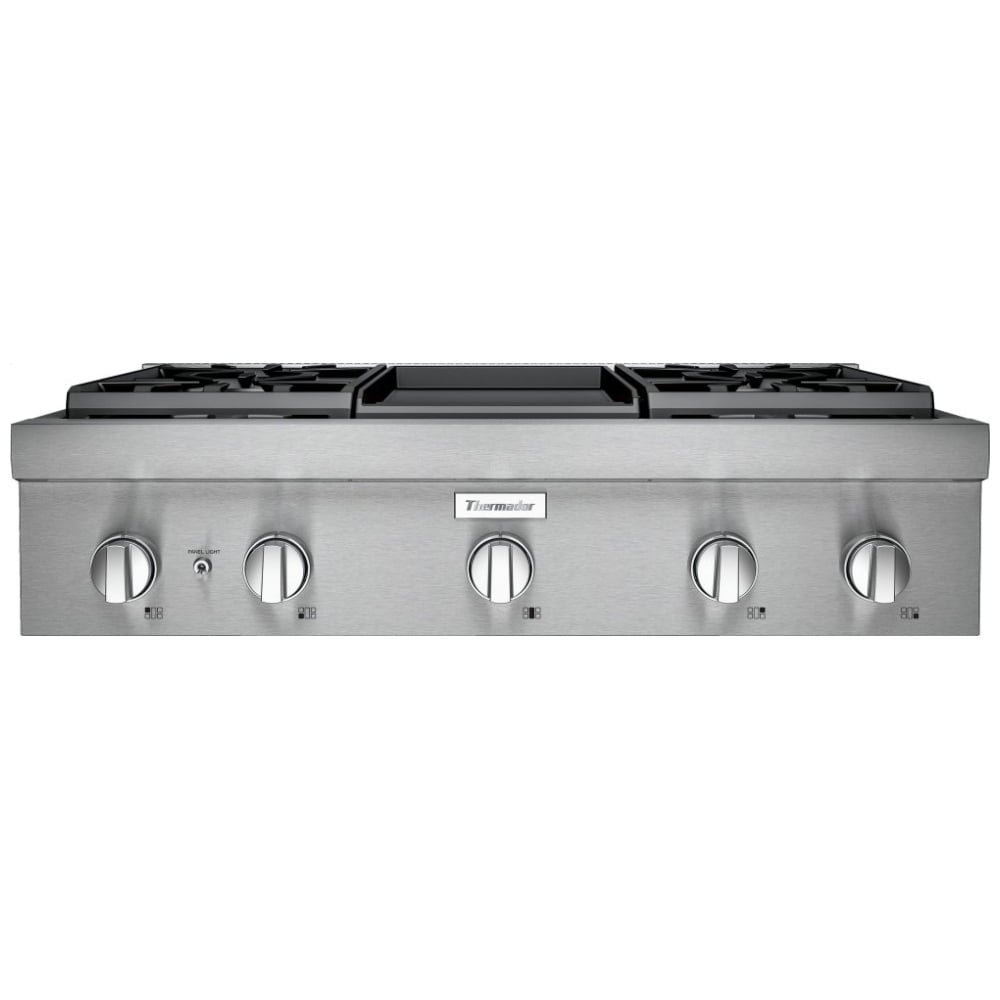

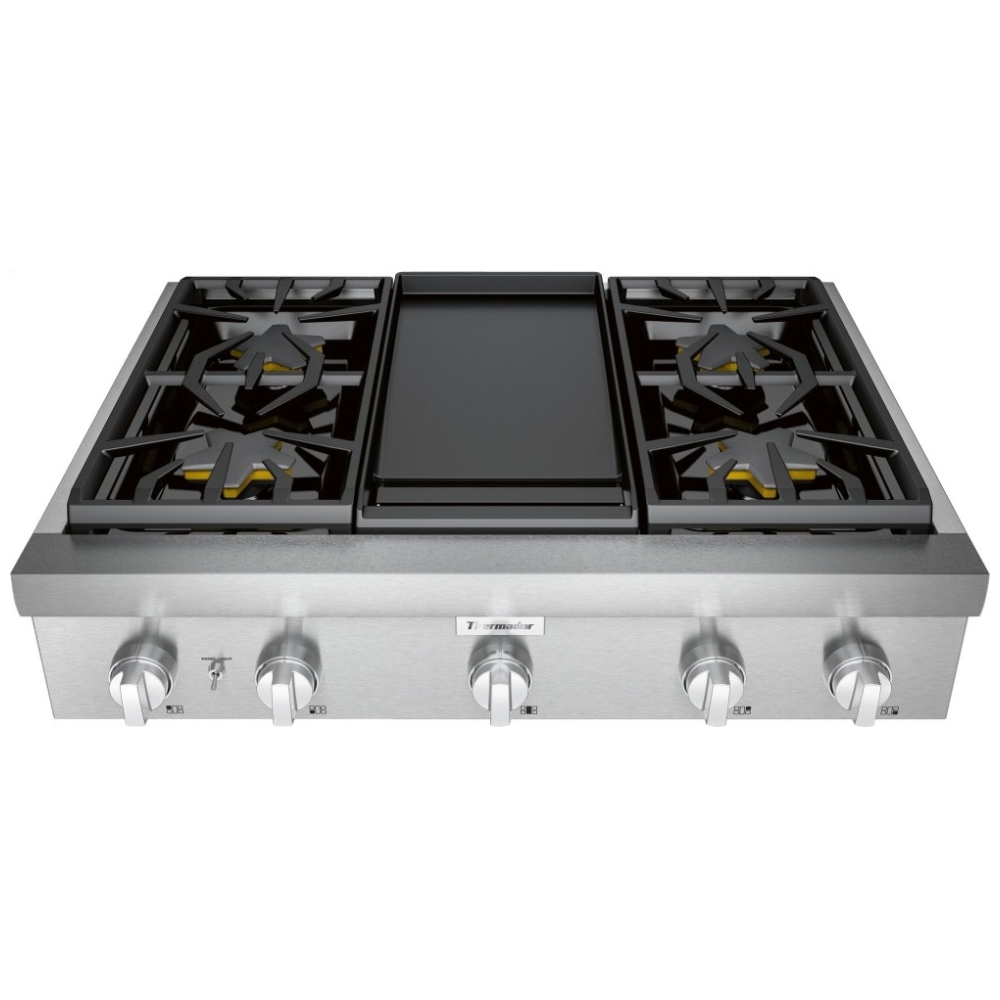

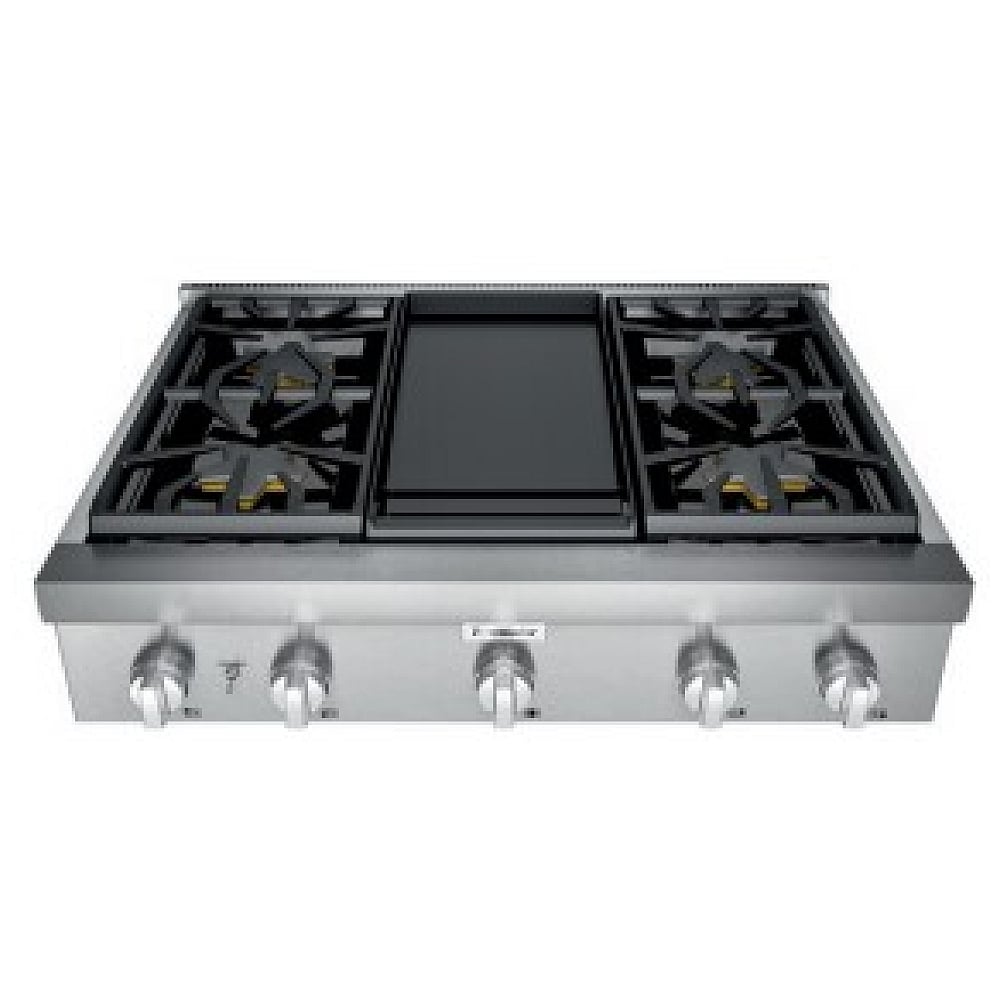

The Thermador PCG364WD gas rangetop brings professional‑grade performance and refined style to a 36‑inch cooking surface, making it an ideal centerpiece for serious home chefs who demand both power and precision. At approximately 36 inches wide, this built‑in rangetop maximizes usable cooking space with four powerful burners and an integrated griddle, all set into a durable porcelain maintop with continuous cast‑iron grates that let you slide heavy pots effortlessly from one burner to another. At the heart of the design are the exclusive Star® Burners, whose patented five‑point shape delivers more flame ports and more even heat distribution than traditional round burners, helping to eliminate cold spots and speed up boiling while providing exceptional control for everyday cooking. Two of these burners feature the signature ExtraLow® simmer technology, cycling the flame on and off to maintain ultra‑low temperatures that are perfect for delicate sauces, slow simmers, or gently melting chocolate without scorching, a level of precision many standard gas cooktops simply cannot match. For added versatility, the PCG364WD includes a removable Non‑Stick Griddle that spans a generous portion of the cooking surface, offering consistent, even heating across a large flat area so you can sear steaks, toast sandwiches, or prepare pancakes and vegetables without needing a separate pan, then lift it out easily for quick cleanup. Another standout innovation is the QuickClean Base®, which raises the burners on a pedestal and shapes the porcelain surface to minimize food buildup, allowing a sponge or cloth to reach underneath and around each burner so routine cleaning takes just moments instead of minutes. Thoughtfully integrated LED Down Lighting discreetly illuminates the front control panel, giving the rangetop a modern, high‑end look while making knob positions easy to see during evening cooking sessions. With a total output of up to 72,000 BTU and extra‑high 18,000 BTU Star® Burners across the front for rapid boiling and intense searing, the Thermador PCG364WD delivers the kind of responsive heat and flexible cooking options that transform everyday meals into restaurant‑quality results, all within a sleek, professional‑style footprint designed to elevate your entire kitchen.

Star® Burners with patented five‑point design – provide equal flame distribution and reduced cold spots for faster, more even heating across the pan.

Exclusive Pedestal Star® Burner design – raised burner configuration improves heat spread for any size pan while allowing a hand and sponge to fit underneath for easy wipe‑down cleaning.

ExtraLow® simmer burners – 2 front burners offer ultra‑low, precise settings ideal for slowly simmering delicate sauces or melting chocolate without scorching.

QuickClean Base® cooktop surface – elevated burners and a smooth porcelain maintop minimize crevices so spills can be quickly wiped away, reducing food buildup around the burner base.

Non‑Stick Griddle – large, flat cooking surface delivers consistent, even heating for pancakes, eggs, sandwiches, and more, with a non‑stick finish for easy food release and cleanup.

Thermostatically controlled electric griddle (1,630 W) – 6‑pass heating element and built‑in thermostat maintain a stable temperature across the 12" griddle for professional‑quality searing and browning.

18,000 BTU Star® Burners across the front – high‑output front burners provide intense heat for rapid boiling, wok cooking, and high‑heat searing.

Star‑K Sabbath compliant – certified for Sabbath and holiday use, allowing appropriate operation in accordance with Star‑K guidelines.

Sleek LED Down Lighting – integrated LEDs above the control panel clearly illuminate knobs and settings, enhancing visibility and adding a premium design accent.

Professional Series styling – bold, restaurant‑inspired appearance with robust metal knobs and continuous grates to complement high‑end kitchen designs.

Continuous cast‑iron grates with rubber feet – heavy‑duty grates create a stable, continuous surface so cookware can be moved from burner to burner without lifting.

Sealed gas burners – help contain spills on the cooktop surface, simplifying cleaning and protecting burner components.

Electronic re‑ignition system – automatically re‑ignites the burner if the flame is accidentally extinguished, improving safety and cooking continuity.

Electronic flame‑failure safety device – monitors burner flame and shuts off gas flow if the flame goes out and cannot be re‑ignited.

Four gas burners plus center griddle layout – versatile configuration supports simultaneous use of multiple pots and pans alongside a dedicated griddle zone.

High total output (up to 72,000 BTU NG) – delivers ample power for demanding cooking tasks, from large‑batch boiling to high‑heat sautéing.

Natural gas preset with LP conversion kit available – ships ready for natural gas and can be converted to liquid propane with an optional kit for installation flexibility.

Front‑mounted control panel – places burner and griddle controls at the front of the rangetop for easy access without reaching over hot cookware.

Stainless steel, porcelain, and steel surface materials – durable, premium finishes resist discoloration and are designed for long‑term use in busy kitchens.

Included non‑stick cast‑aluminum griddle – removable, rust‑resistant griddle accessory comes standard and can be lifted off for thorough cleaning or to free up space.

Optional grill and accessory compatibility – accepts optional 12" grill plates, cutting board, wok ring, and other accessories (sold separately) to expand cooking methods.

Standard 120V, 3‑prong power connection – plugs into a typical household outlet for griddle and ignition functions, simplifying electrical requirements.

36" built‑in rangetop format – designed to drop into a countertop cutout, pairing with separate wall ovens or under‑counter cabinetry for flexible kitchen layouts.

Manufacturer's Warranty: 2 years

Canadian model: PCG364WD

Canadian UPC: 825225934813

EAN: 0825225934813

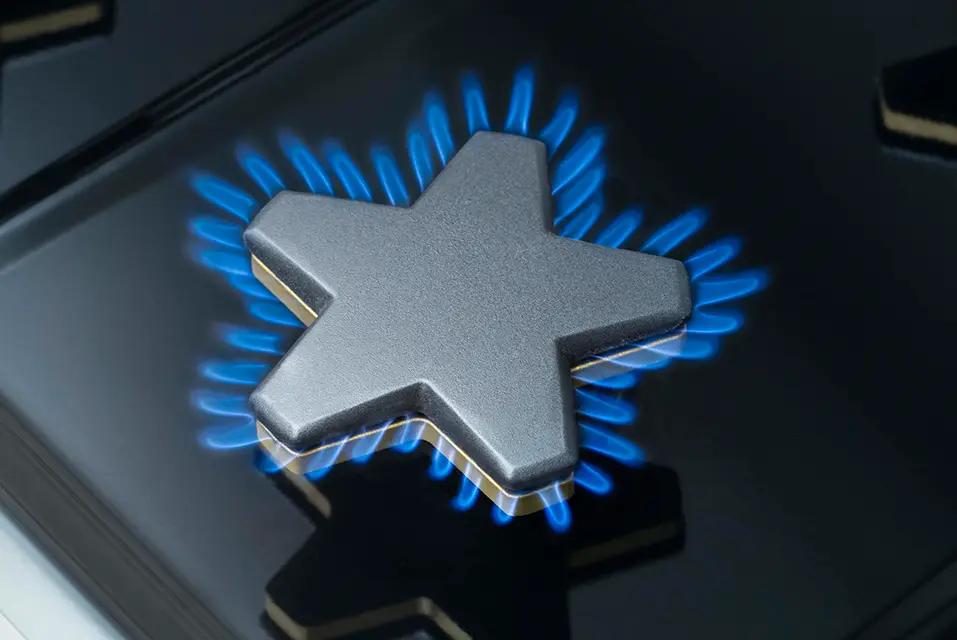

Our Star® Burner provides equal flame distribution
PCG364WD - Our Star® Burner provides equal flame distribution
Star® Burners are 56% longer than a round burner of the same size, which allows for more flame ports. The result is a burner that delivers a superior flame spread and reduced cold spots for faster and more even heating.
ExtraLow® for slowly simmering delicate recipes
PCG364WD - ExtraLow® for slowly simmering delicate recipes
ExtraLow® Burners: 2 burners offer precise settings that are perfect for simmering meals or melting chocolate without burning.

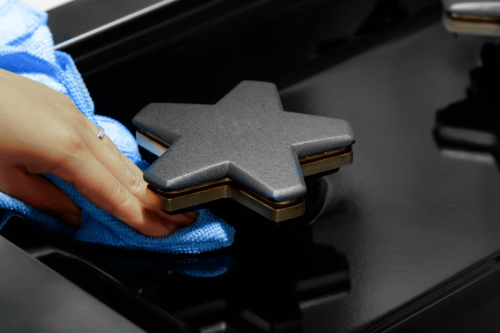

QuickClean Base® allows for easy cleaning - PCG364WD
QuickClean Base® allows for easy cleaning
PCG364WD - QuickClean Base® allows for easy cleaning
The raised, patented Pedestal Star® Burner and porcelain maintop have been crafted for perfect integration and easy cleanup.

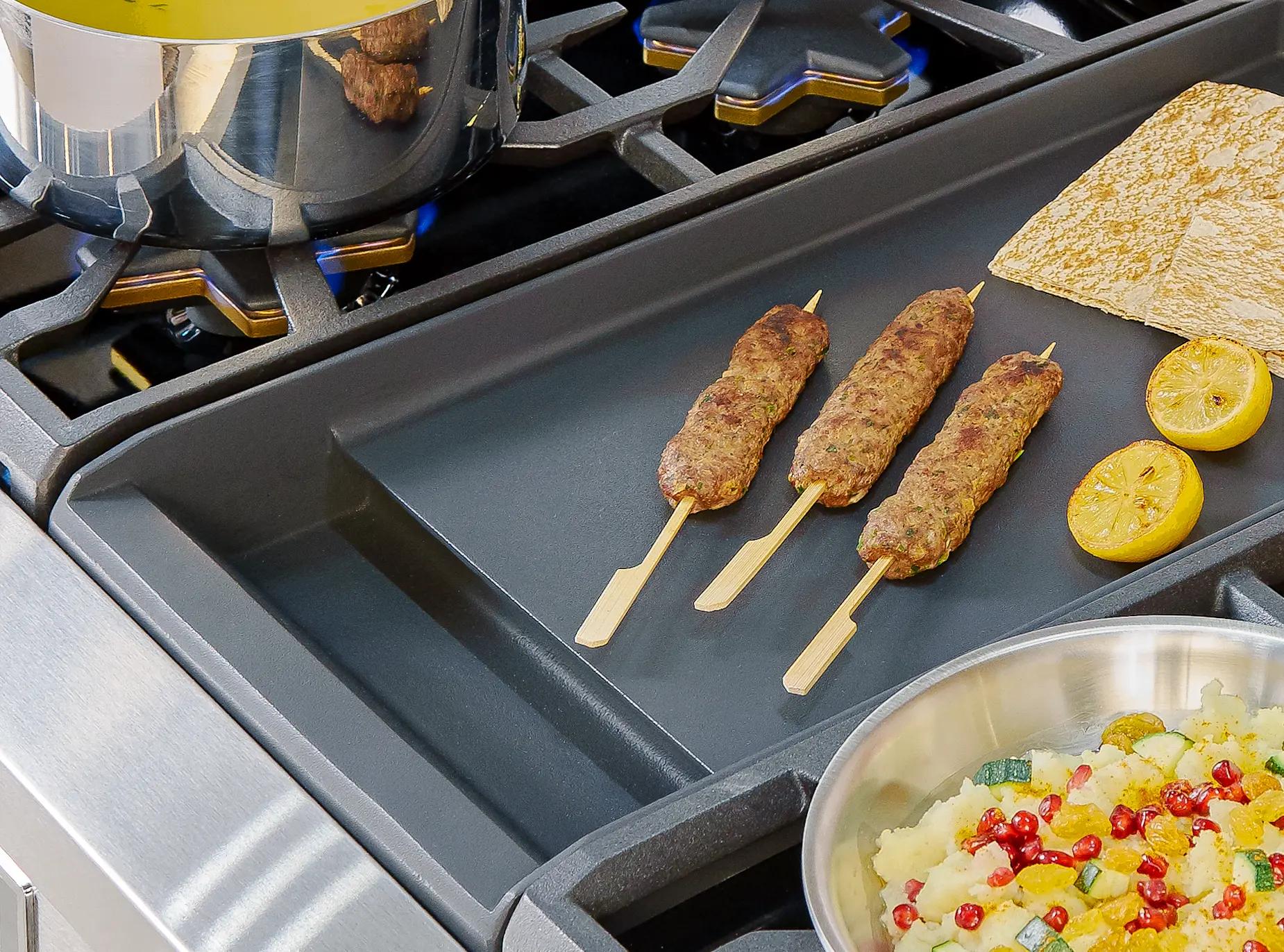

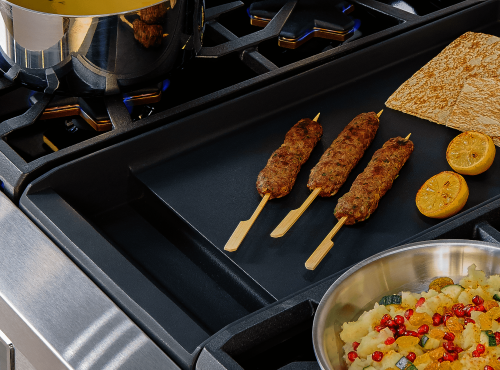

Non-Stick Griddle for cooking on a flat surface - PCG364WD
Non-Stick Griddle for cooking on a flat surface
PCG364WD - Non-Stick Griddle for cooking on a flat surface
Non-Stick Griddle Deliver consistent even heating across a flat large surface with easy removal for cleaning.

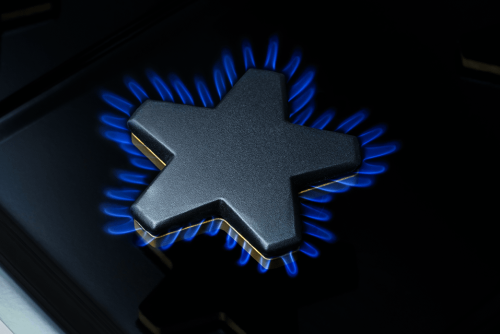

18,000 BTU Star® Burners across the front - PCG364WD
18,000 BTU Star® Burners across the front
PCG364WD - 18,000 BTU Star® Burners across the front
These extra high heat burners across the front are optimal for rapid boiling and high heat searing.

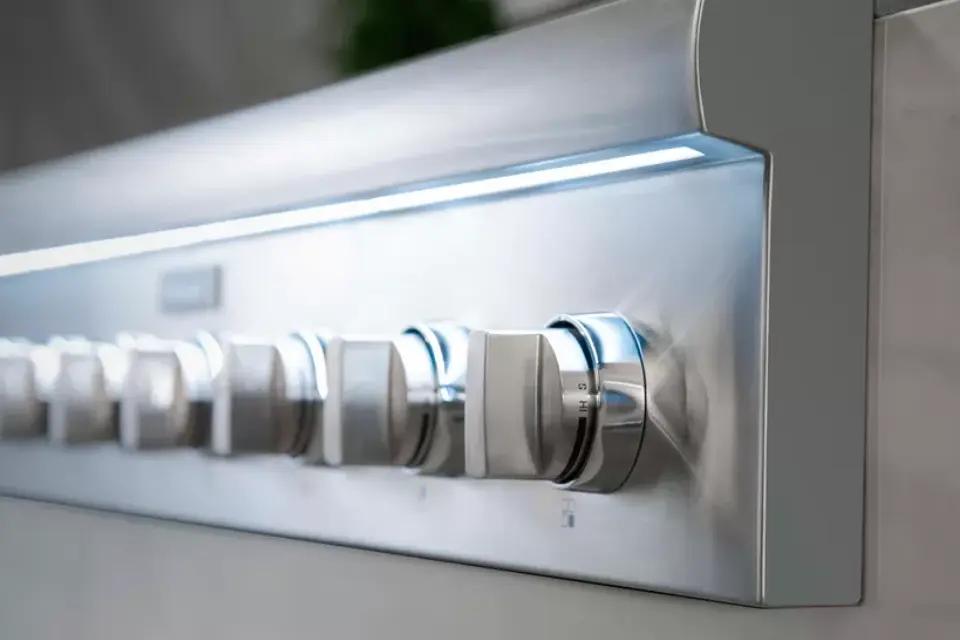

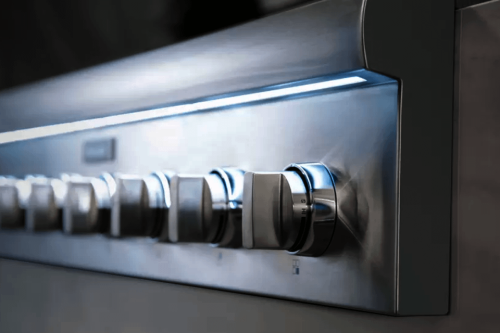

Sleek LED Down Lighting - PCG364WD
Sleek LED Down Lighting
PCG364WD - Sleek LED Down Lighting
Thoughtfully designed rangetop offers LED lighting to illuminate the control panel. Model show in photo is PCG486WD.
Star-K Sabbath Compliant - PCG364WD
Star-K Sabbath Compliant
PCG364WD - Star-K Sabbath Compliant
This cooktop is Star-K certified and may be used as Sabbath Compliant appliances, making it possible to use it on the Sabbath or the holidays.

Specs
SpecificationValue
Product Type Gas Rangetop
Series / Collection Professional
Model PCG364WD
Fuel Type Natural Gas (LP conversion kit included / alternative gas: Liquid gas 27.5 mbar USA)
Installation Type Built-in rangetop
Energy Source Gas with 120 V electric for ignition and griddle
Number of Gas Burners 4
Number of Cooking Zones (including griddle) 5
Burner Type Sealed Star® Burners
ExtraLow® Simmer Burners 2 ExtraLow® simmer burners (precision simmer as low as 100°F / 375 BTU)
Front Left Burner Power 18,000 BTU + XLO (ExtraLow®)
Back Left Burner Power 15,000 BTU + XLO (ExtraLow®)
Front Right Burner Power 18,000 BTU
Back Right Burner Power 15,000 BTU
Center Griddle Power 1,630 W (6-pass, thermostatically controlled electric griddle)
Total BTU Load (Gas) 72,000 BTU (approximate total gas load)
Total Connected Gas Load 21,080 W equivalent
Griddle Integrated non-stick, rust-proof cast-aluminum griddle; removable; convertible to grill with optional accessory
Griddle Size Approx. 12" wide griddle surface
Cooktop Surface Porcelain / porcelain-coated steel cooking surface
Grate Material Continuous cast-iron grates with rubber feet
Cooktop Surface Style Burner grate with integrated griddle
Control Type Front control, mechanical metal “sword” knobs
Knob Material Full metal
Control Panel Location Front
LED Downlighting Yes – hidden LED downlighting above control panel
Automatic Reignition Yes – automatic re-ignition safety
Power-On Indicator Yes
Hot Surface Indicator Yes
Main On/Off Switch No
LP Convertible Yes (LP conversion possible)
Downdraft Ventilation No
Smart / Wi-Fi No Wi-Fi / smart connectivity
Commercial Use Approved No
Outdoor Approved No
ADA Compliant No
ENERGY STAR Certified No
Finish / Color Stainless Steel
Frame Type Professional, standard frame
Color of Frame Stainless Steel
Collection / Series Name Professional

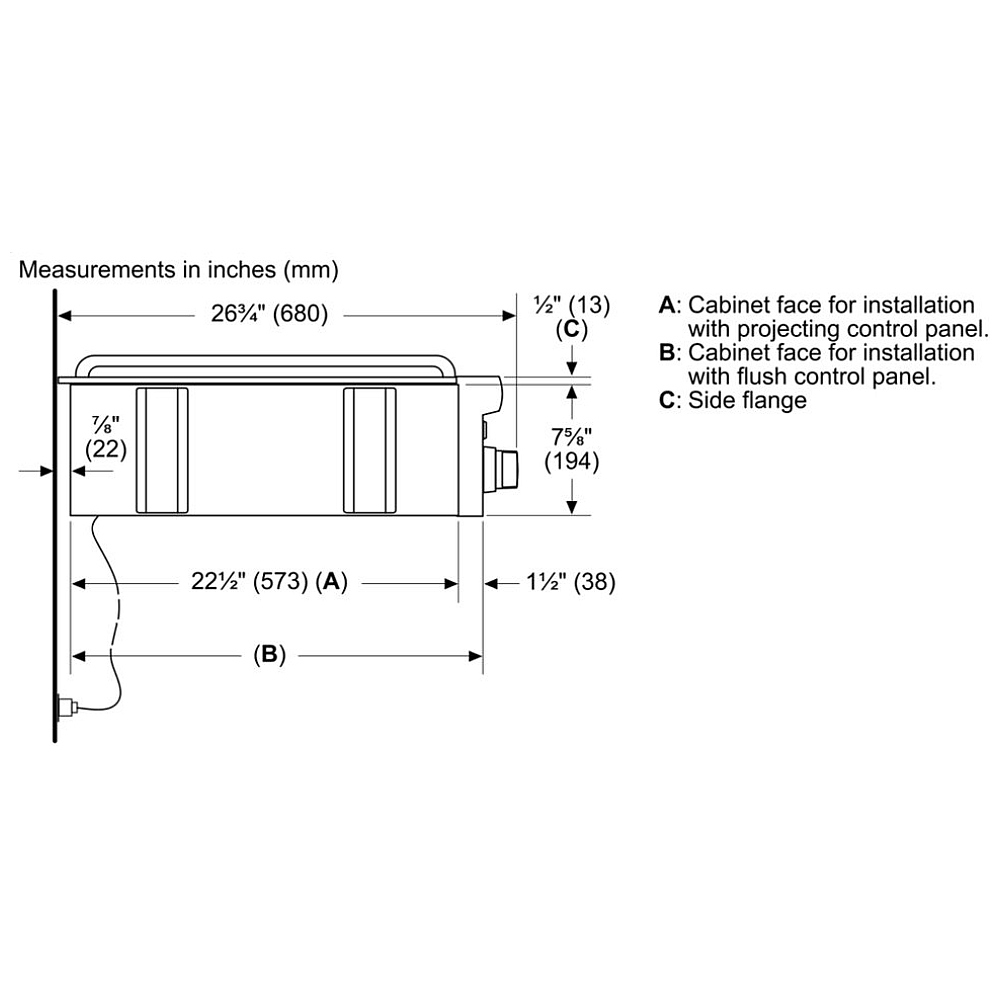

Appliance Fit Width 36 inches nominal
Width 35.94 inches (35 15/16")
Depth 25.81 inches (25 13/16")
Height (overall) 10.56 inches overall height including grates (approx. 8.13" chassis height)
Product Dimensions (H x W x D) 10 9/16" x 35 15/16" x 25 13/16"

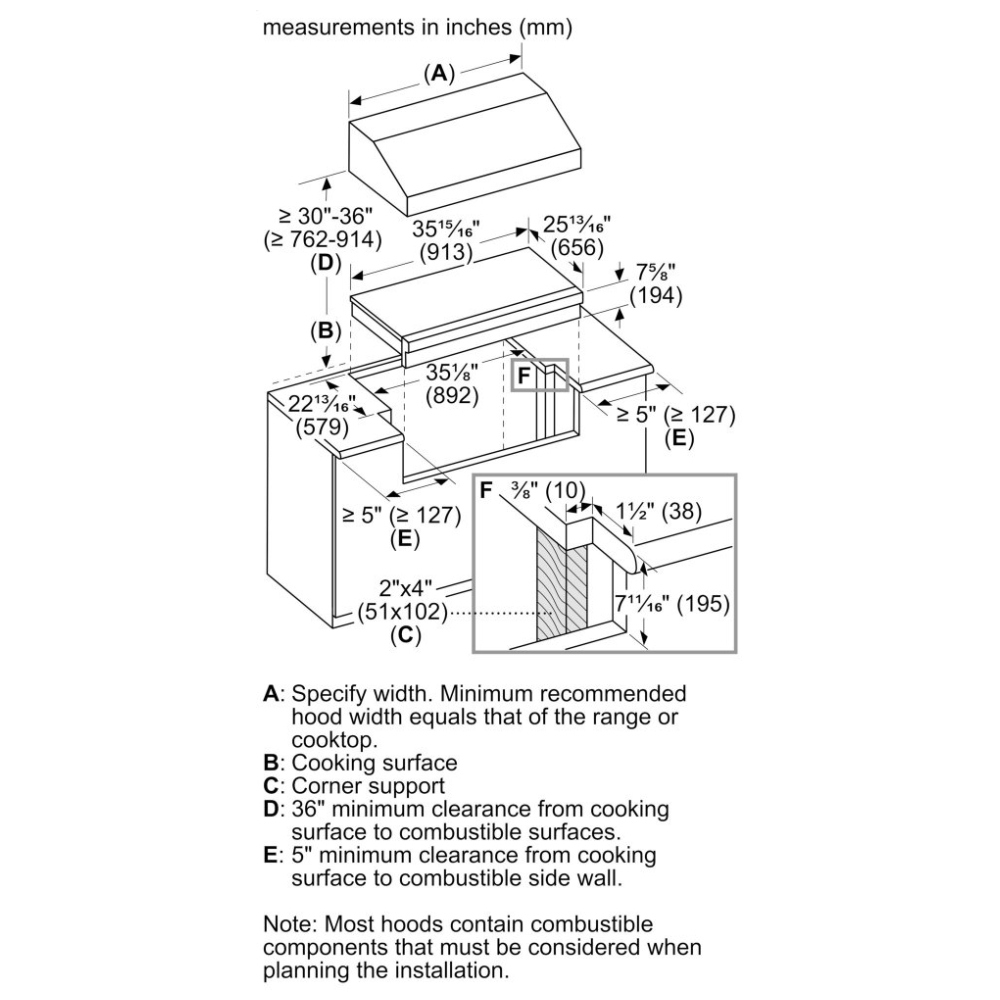

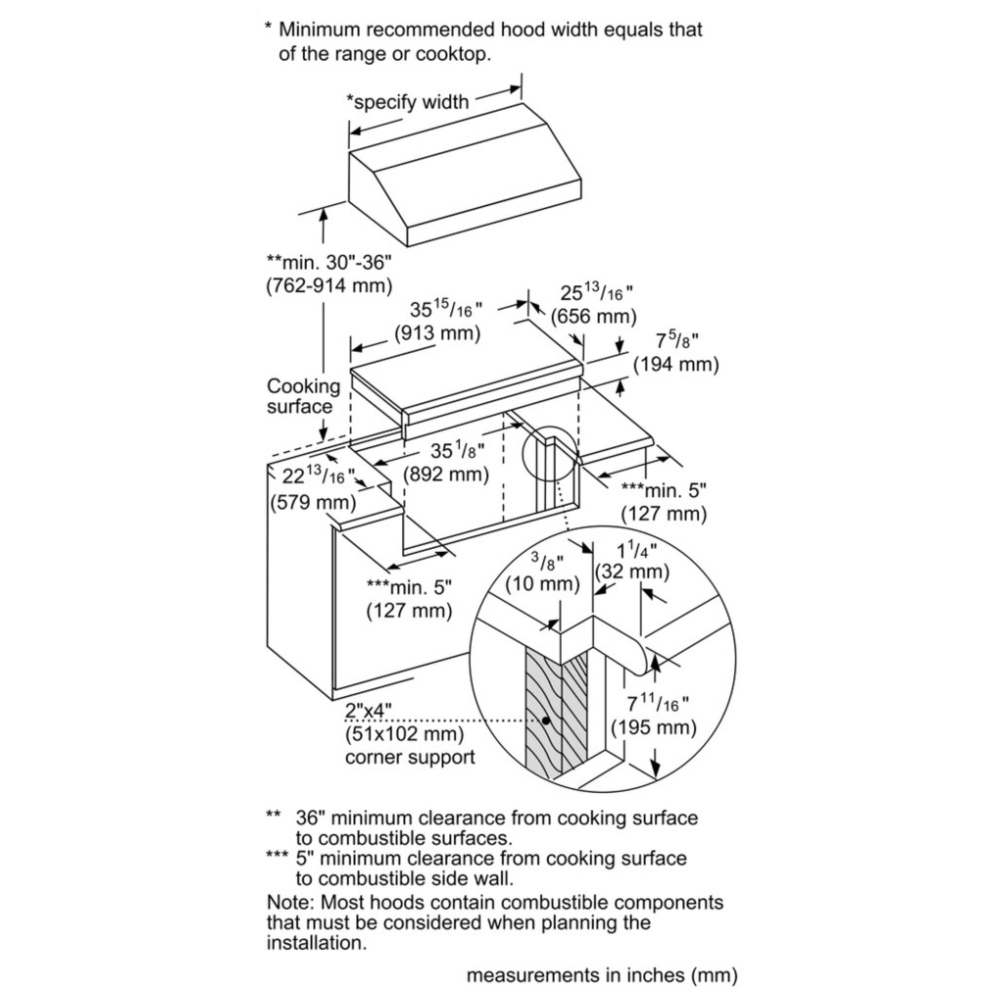

Cutout Width Approx. 35.13 inches (35 1/8")
Cutout Depth Approx. 22.81 inches (22 13/16")
Cutout Height Approx. 7.69 inches (7 11/16")
Required Cutout Size (HxWxD) 10 9/16" x 35 1/8" x 7 11/16" (per manufacturer tech data)
Product Weight Approx. 155 lb (about 55.1 kg net)
Gross Weight (Packaged) Approx. 68.5 kg
Product Packaging Dimensions (H x W x D) 20 1/2" x 43 1/2" x 40 1/2"
Voltage 120 V
Frequency 60 Hz
Amps 15 A
Plug Type 120 V, 3-prong plug
Power Cord Length 96 inches (approx. 244 cm)
Gas Type (Preset) Natural gas 15 mbar (USA)
Alternative Gas Type Liquid propane 27.5 mbar (USA) – conversion required

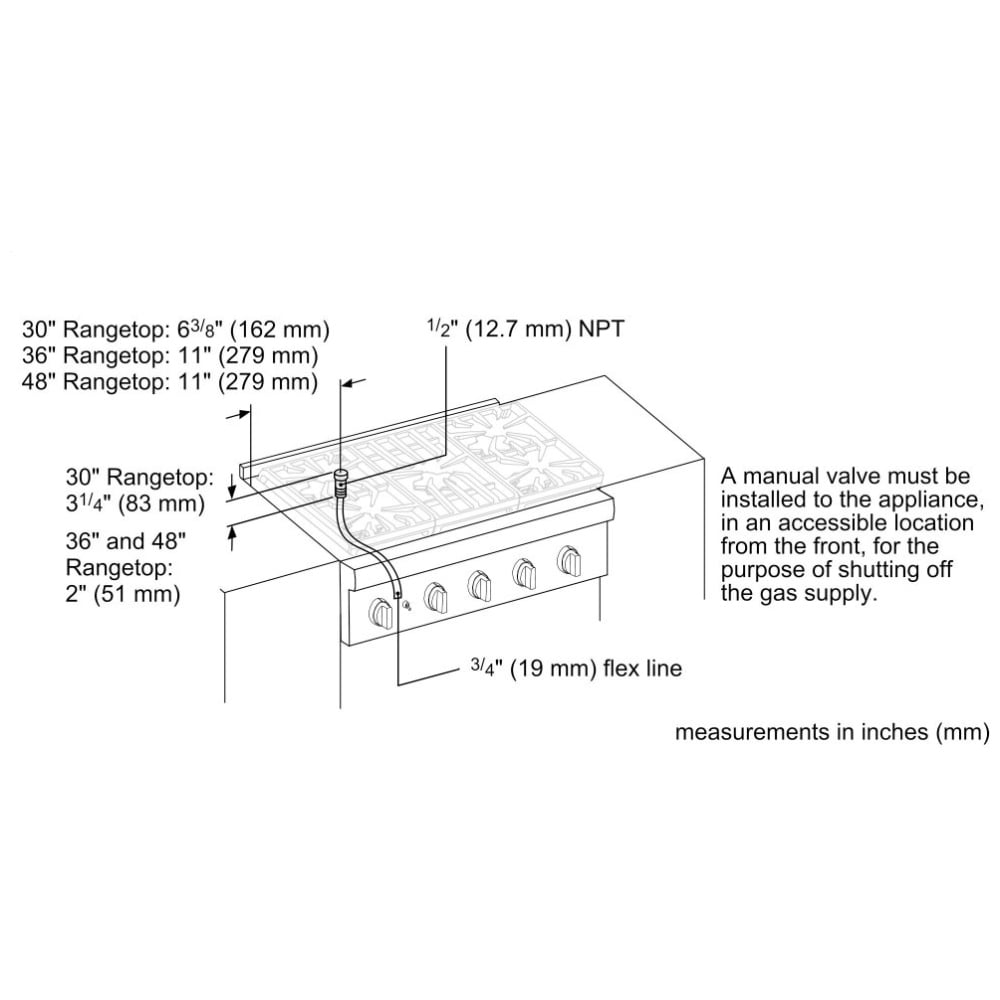

Location of Gas Connection Bottom, rear, right
Cooktop Features Continuous grates, sealed burners, LP convertible, ExtraLow® simmer, integrated griddle, automatic re-ignition
Special Features Patented Pedestal Star® Burners, QuickClean Base®, LED downlighting, ExtraLow® simmer burners, non-stick removable griddle
Dishwasher-Safe Pan Supports No
Made In Not made in Canada (per retailer listings)
Manufacturer Warranty 2-year parts and labor (typical Thermador warranty)
