Manufacturer's Warranty: 2 years

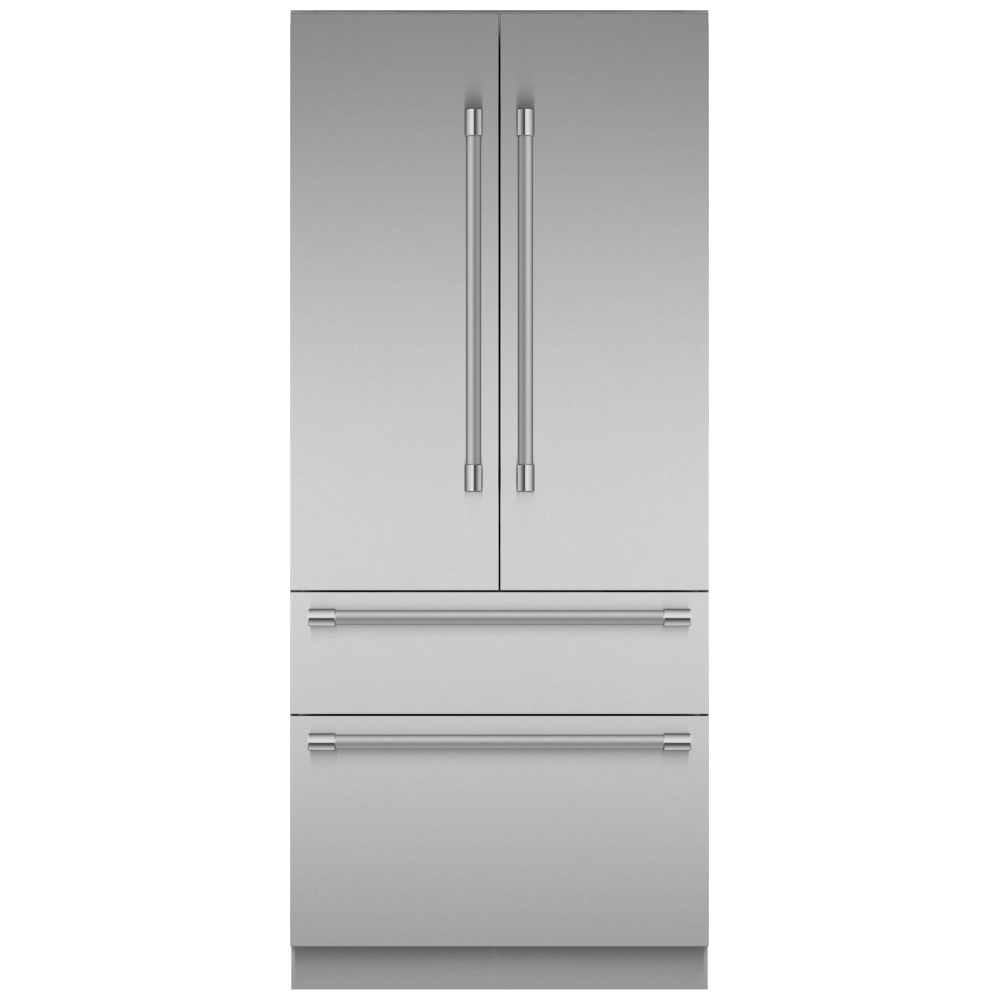

Canadian model: T36BT120NS
Canadian UPC: 825225966289
EAN: 0825225966289
| Specification | Value |
|---|---|
| Brand | Thermador |
| Model | T36BT120NS |
| Collection / Series | Freedom® / Professional Handle |

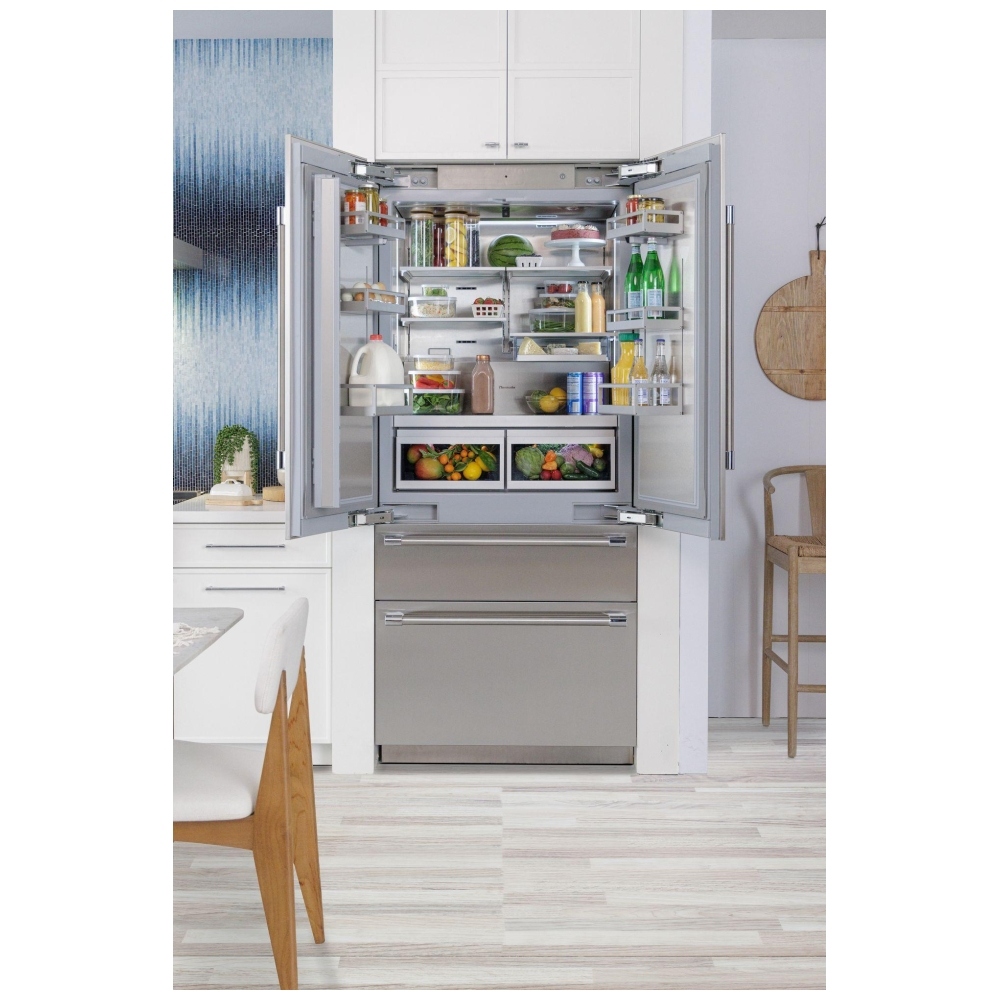

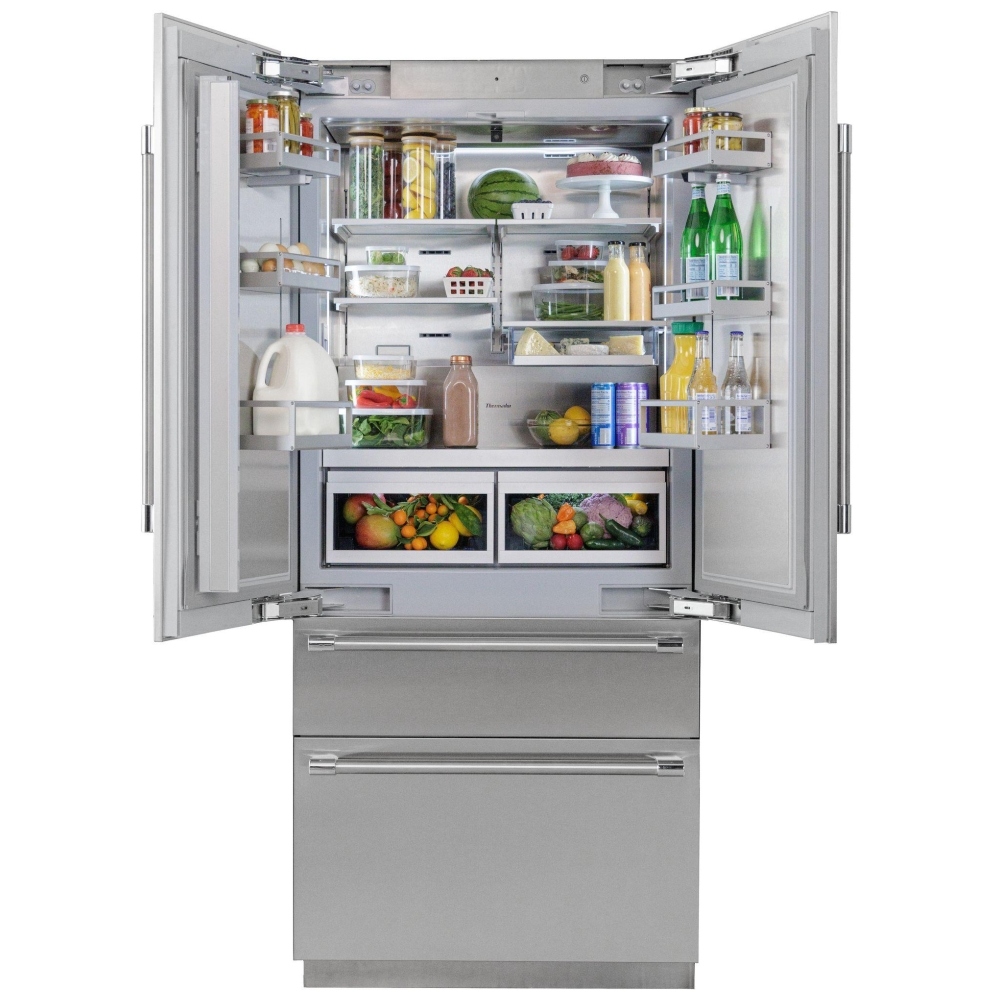

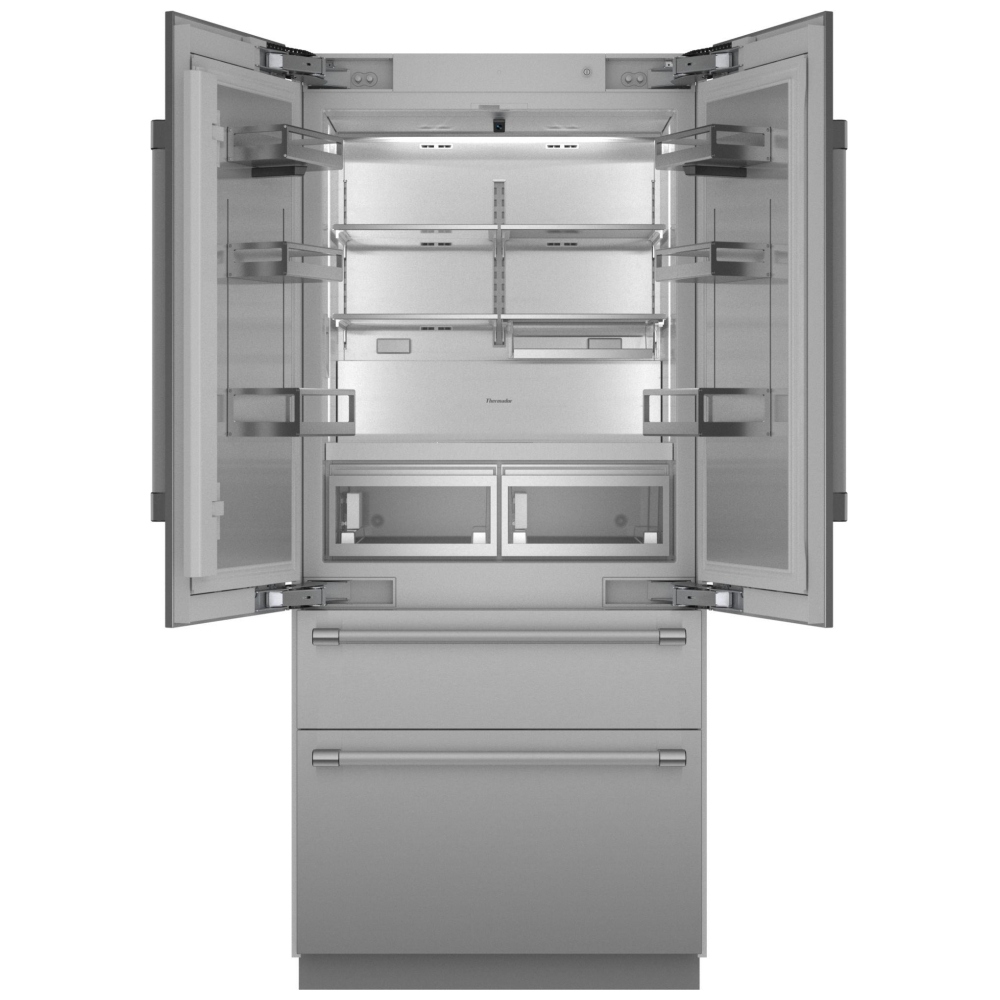

| Refrigerator Type | Built-in French Door Bottom Freezer, 4-door |

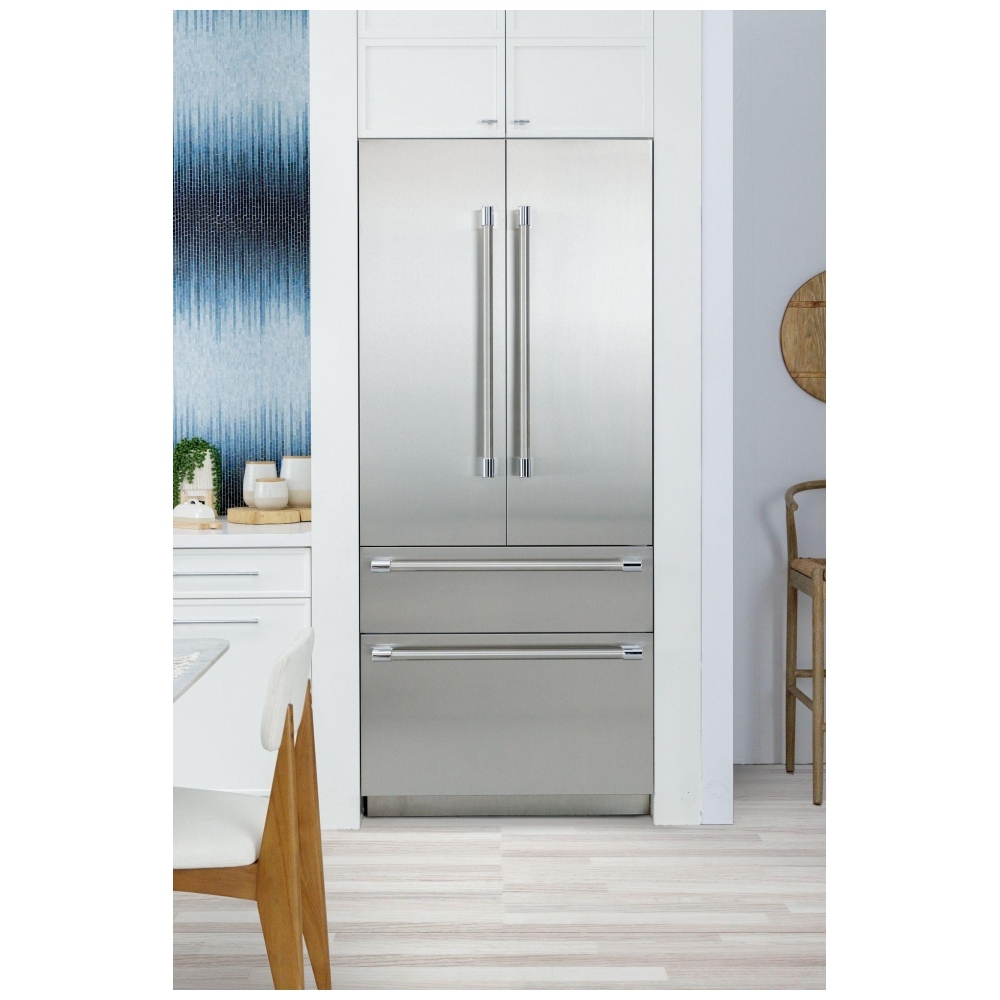

| Installation Type | Built-in, counter-depth style |
| Finish / Color | Stainless Steel |

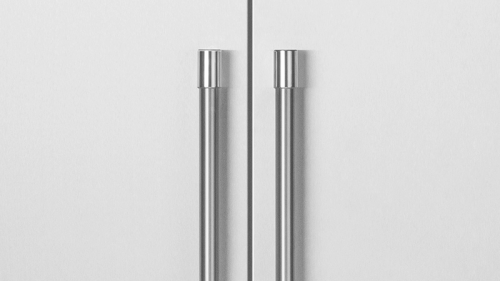

| Handle Style | Professional |
| Panel Ready | Possible and included (stainless model with panel option) |
| Door Hinge | Left and Right, soft-close flat hinge |
| Sound Level | 39 dBA |
| Capacity | |
| Total Capacity | 18.8 Cu Ft |
| Refrigerator Capacity | 12.7 Cu Ft |
| Freezer Capacity | 6.1 Cu Ft |
| Ice Storage Capacity | 0.92 Cu Ft |

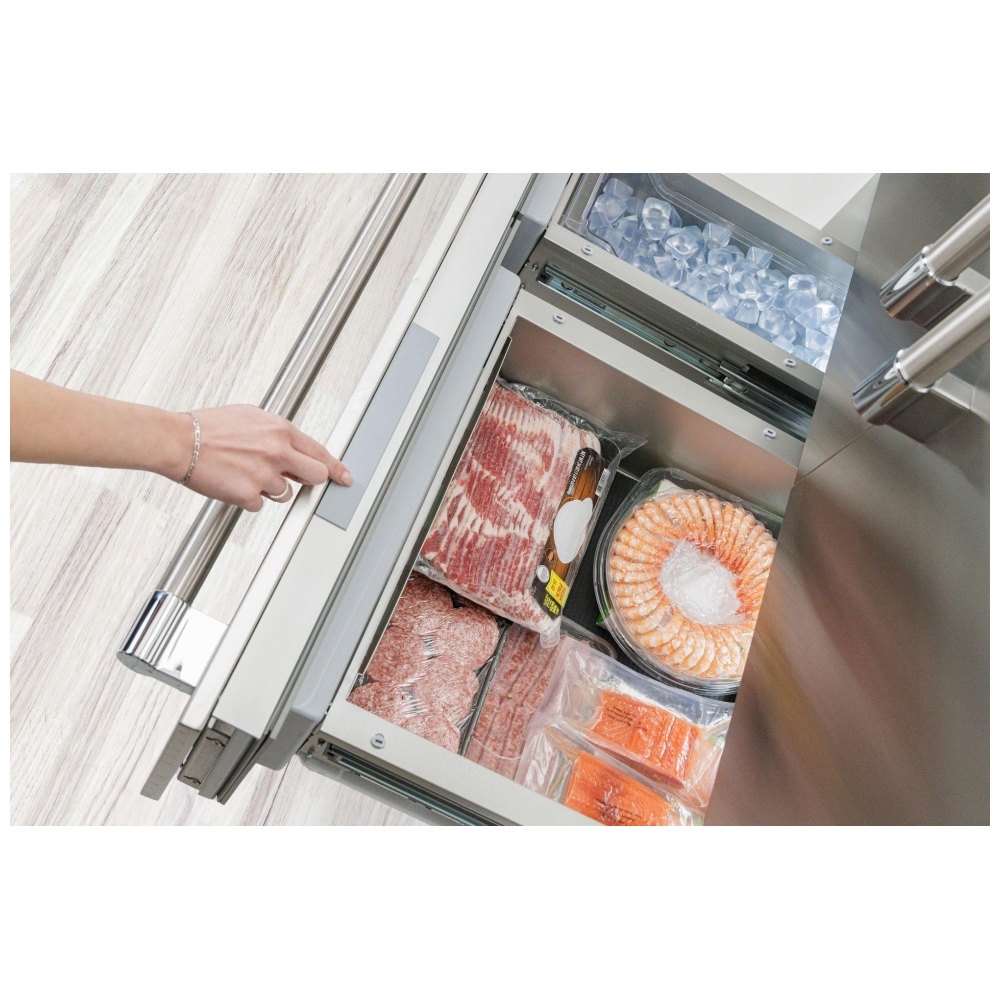

| ThermaFlex™ Convertible Drawer Capacity | 2.2 Cu Ft |
| Dimensions & Weight | |
| Width | 35 1/4 inches |
| Height (overall, min) | 83 9/16 inches |
| Height (overall, max with leveling) | Up to 85 1/2 inches |
| Depth (cabinet only, without panel or handles) | 24 inches |
| Depth (with panel, without handles) | 24 3/4 inches |
| Depth (with panel and handles) | 27 3/4 inches |
| Product Height (retail spec) | 83 7/16 inches |
| Product Width (retail spec) | 35 1/4 inches |
| Depth Without Handle (retail spec) | 24 3/4 inches |
| Depth With Handle (retail spec) | 27 1/4–27 3/4 inches (varies slightly by source; Thermador manual: 27 3/4") |
| Net Weight (approx.) | ≈ 589 lb |
| Gross Weight (shipping) | ≈ 631 lb |
| Required Cutout | |
| Required Cutout Height | 84 inches |
| Required Cutout Width | 35 1/2 – 36 inches |
| Required Cutout Depth | 24 inches |
| Performance & Features | |
| Cooling System | Dual compressor, dual evaporators with Cool Air Flow technology |
| Defrost Type | Automatic |
| ThermaFlex™ Convertible Drawer Modes | Freezer (0°F), Soft Freeze (10°F), Meat/Fish (30°F), Beverage (34°F), Deli & Cheese (34°F), Fridge (37°F), Pastry/Cake (39°F) |
| Operating Temperature Range – Refrigerator | Approx. 33°F to 43°F (1°C to 6°C) |
| SuperCool | Yes |
| SuperFreeze® / Quick Freeze | Yes |
| Eco Mode | Yes |
| Sabbath Mode | Yes |
| Vacation / Holiday Mode | Yes |
| Shopping Mode | Yes |
| Demo Mode | Yes (for showroom use) |
| Air Filter | Yes (charcoal / odor filter) |
| Ethylene Filters | 2 ethylene absorber packets (for produce preservation) |
| Water Filter | Yes, UltraClarityPro® (REPLFLTR55 replacement) |

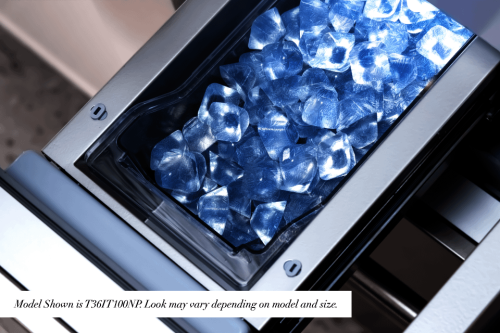

| Ice Maker | Yes, internal; dual ice makers with Diamond Ice and Cocktail Ice |
| Ice Storage Capacity | Approx. 4 lb (retail spec) / 0.92 Cu Ft (Thermador manual volume) |
| Ice Production (24 hours) | Approx. 4 lb per 24 hours (varies slightly by retailer spec) |

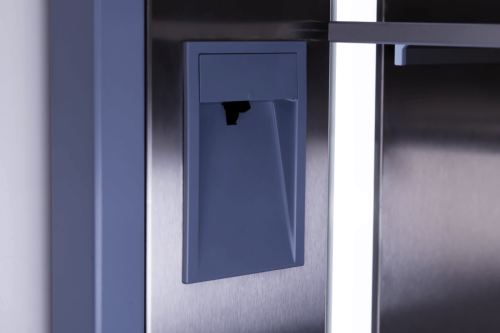

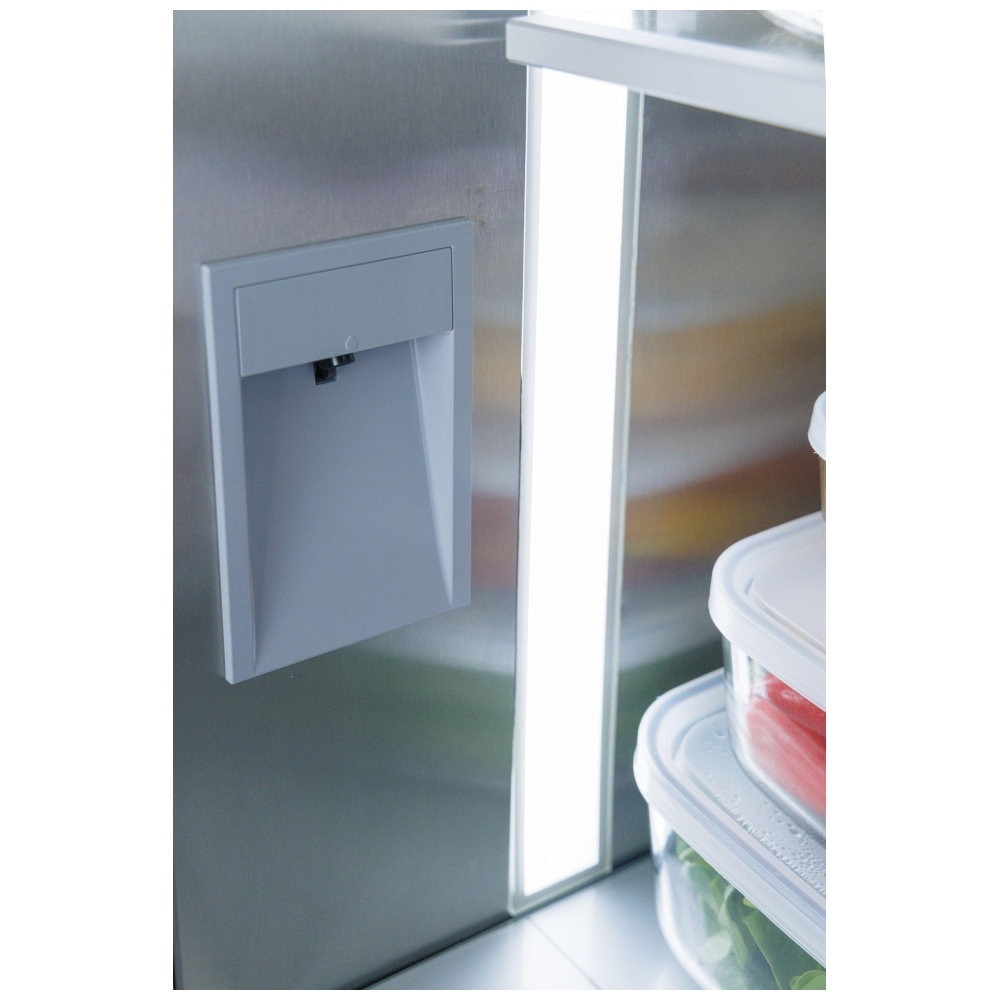

| Water Dispenser | Internal water dispenser |

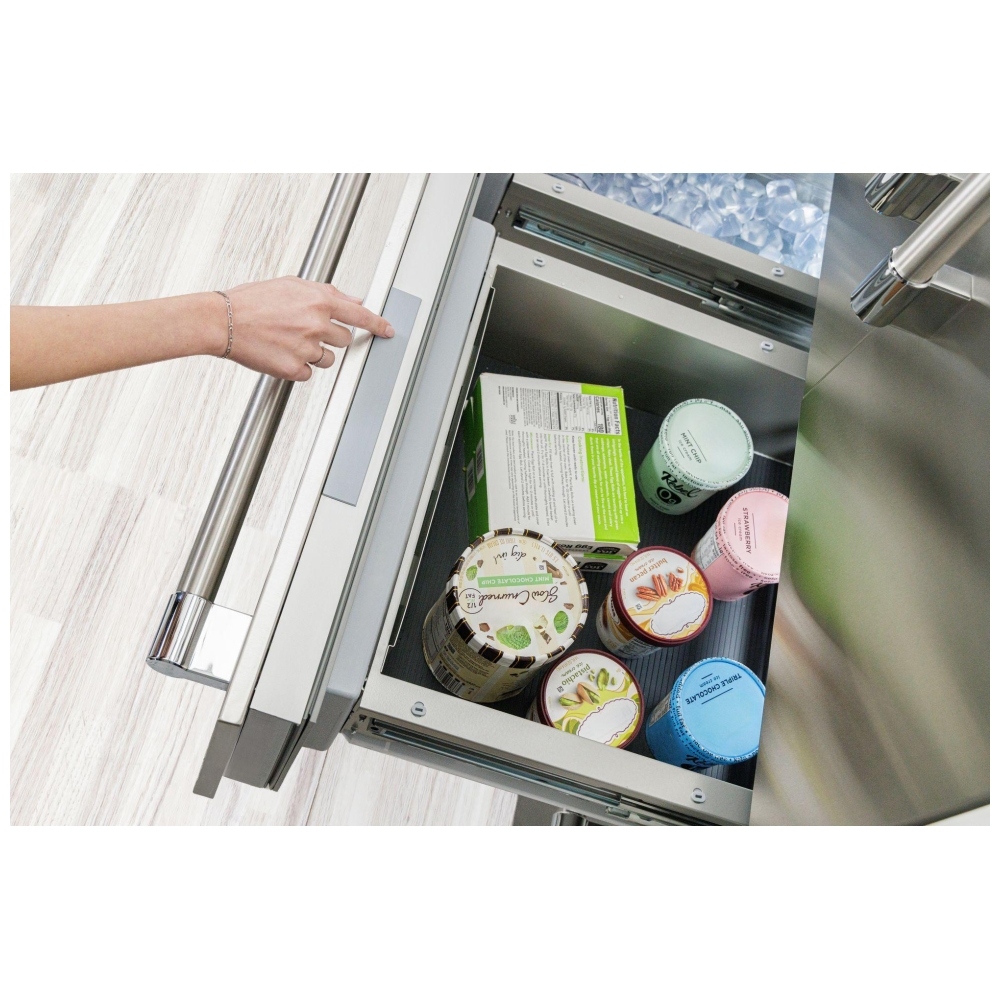

| Full-Extension Freezer Drawers | 2 |

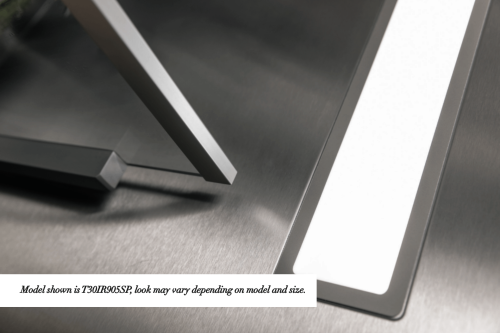

| Interior Lighting | LED theater-style lighting (superior and lateral) |
| Door Open Alarm (Fridge) | Yes |
| Wi-Fi / Connectivity | Yes, Home Connect® WiFi-enabled |
| Smart Features | Remote monitoring and control, access to recipes, interior cameras (inventory), notifications via app |
| Control Interface | Color touch screen control panel |
| Interior Configuration | |

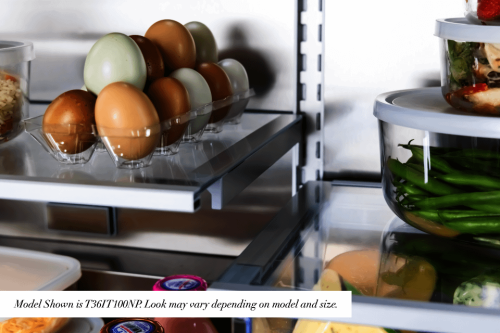

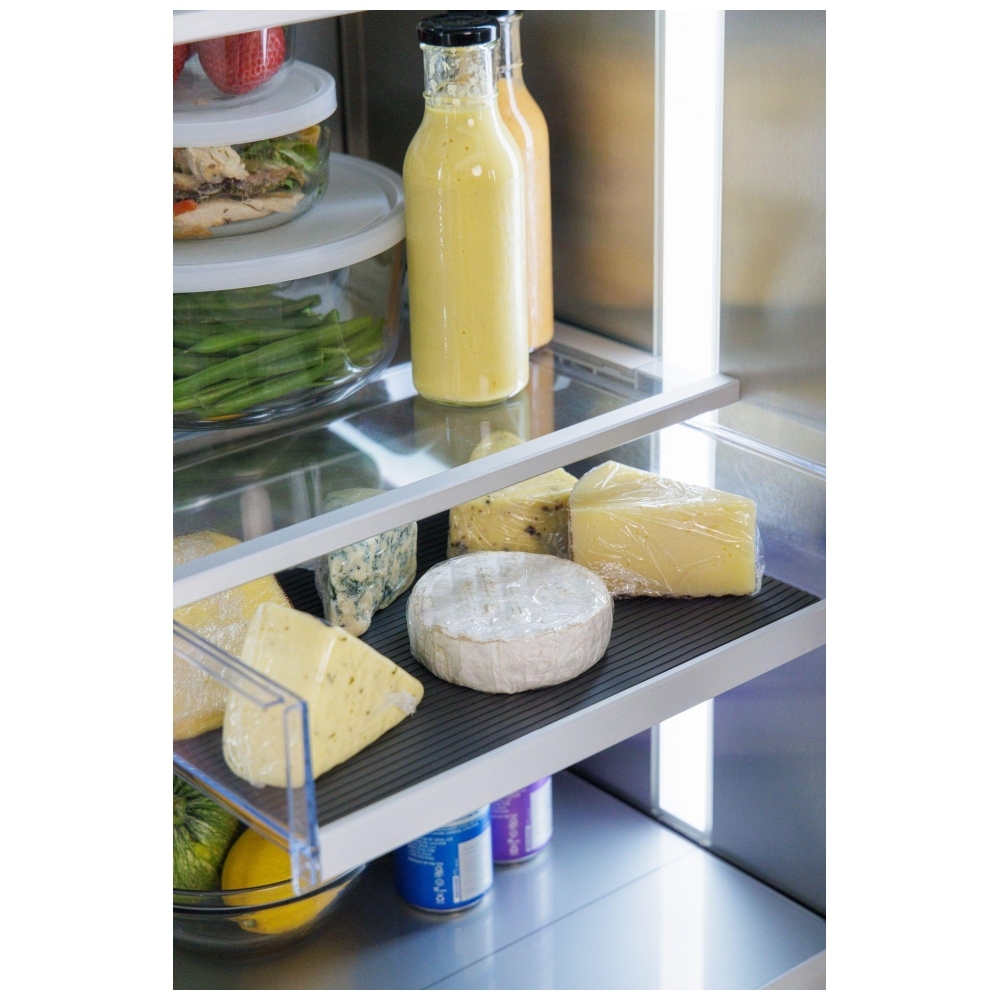

| Number of Adjustable Glass Shelves (Refrigerator) | 4 |
| Shelf Material | Glass with metal profile |
| Number of Refrigerator Door Bins | 6 |

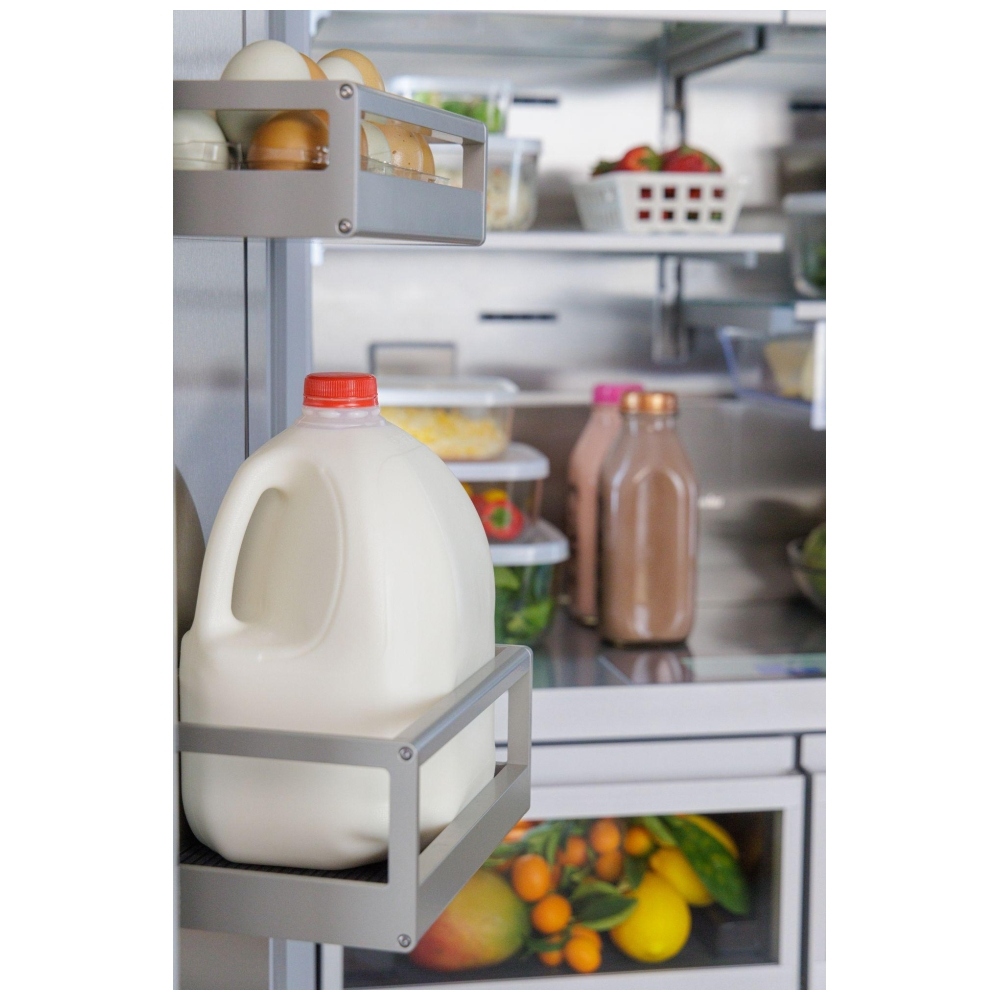

| Gallon Storage Bins | Yes, up to 2 gallon-sized bins |
| Non-slip Mats | Approx. 10 (varies by configuration) |
| Number of Doors | 4 (French doors plus ThermaFlex™ drawer and freezer drawer) |
| Energy & Electrical | |
| Energy Star Certified | Yes (United States and Canada) |
| Annual Energy Consumption | Approx. 584 kWh/yr |
| US Federal Standard (kWh/yr) | Approx. 641 kWh/yr |
| Percent Less Energy Use than US Federal Standard | Approx. 10% |
| Refrigerant Type | R-600a (low GWP) |
| Required Power Supply | 110–120 V, 60 Hz, 15 A |
| Plug Type | 3-prong |
| Power Cord Length | 118 inches |
| Certifications & Markets | |
| Markets | United States and Canada |
| ENERGY STAR® Most Efficient (select years) | Meets criteria in recent program listings |
| Accessories (Included) | |
| Included Accessories | 1 x water filter cartridge, 1 x ice scoop, 2 x ethylene absorber packets |
| Optional Accessories | |
| Replacement Water Filter | UltraClarityPro® REPLFLTR55 |
| Ethylene Starter Kit | Part No. 17006999 |
| Ethylene Filter Packets | Part No. 17007000 |
| Warranty (Typical) | |
| Manufacturer’s Warranty – Parts | Up to 2 years limited (varies by region/retailer) |
| Manufacturer’s Warranty – Labor | Up to 2 years limited (varies by region/retailer) |
