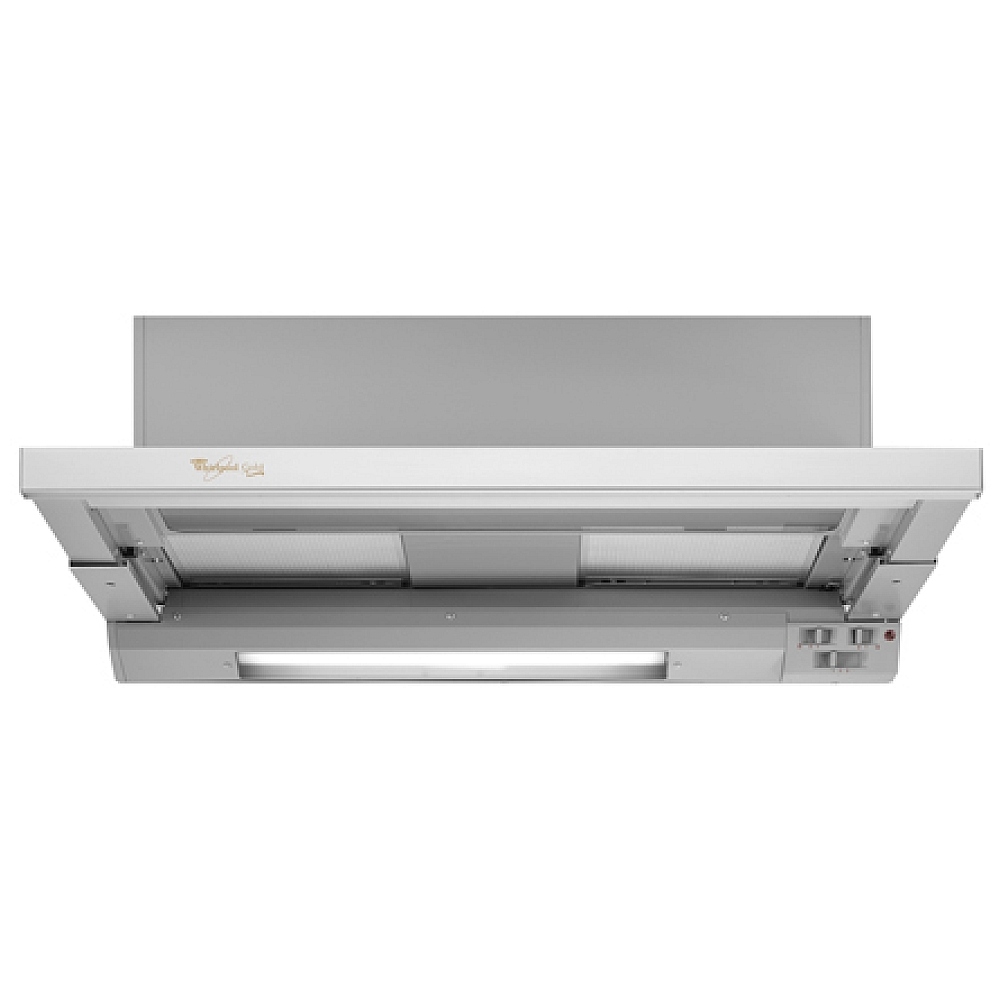

This hood fits flush under the cabinets until you need it, then it easily slides out. The automatic 3-speed fan control provides excellent ventilation by adjusting to the proper speed as needed.
This hood fits flush under the cabinets until you need it, then it easily slides out. The automatic 3-speed fan control provides excellent ventilation by adjusting to the proper speed as needed.
- Exhausts 320 CFM with 3-1/4 in. x 10 in. Rectangular Duct
- Fits Flush Under Cabinets, Slides Out Easily for Operation
- Retracts When Not in Use
- Automatic 3-Speed Fan Control
- Brushed Aluminum Control Panel
- Covered Fluorescent Light
- Optional Black, White or Custom Panels Available
Manufacturer's Warranty: 1 year
Canadian model: GZ7736XGS
| Type |
| VentilationType: Top Vented-Conv. to Recirc. |
| Performance |
| Blower Type: Dual Centrifugal |
| Duct Outlet Size: 3 1/4" X 10" |
| Sones (Vertical, Rectangular): 6.9 |
| CFM (Vertical, Rectangular): 320 |
| Lighting / Controls |
| Number of Speeds: 3 |
| # of Light Settings: 1 |
| Control Type: Slider |
| Cooktop Light Type: Fluorescent |
| # of Cooktop Lights: 2 |
| Ventilation Features |
| Grease Filter: 1 |
| Dimensions |
| Overall Height: 11 Inches |
| Overall Width: 35 7/8 Inches |
| Overall Depth: 11 Inches |
| Canopy Height: 1 7/16 Inches |
| Cutout Width (in): 32 1/8 Inches |
| Cutout Depth (in): 9 13/16 Inches |
| Dimensions | |
|---|---|
| Height: | 10 15/16" |
| Depth: | 11" |
| Duct Size: | 3-1/4 in. x 10 in. Rectangular |
| Weight: | 37 lbs. |
| Height: | 10 15/16 in. |
| Width: | 35 7/8 in. |
| Depth: | 11 in. |
| Features | |
| Convertible to Re-Circulating Installs: | Yes |
| Covered Light: | Yes |
| Duct Type: | Rectangular |
| Light Type: | Fluorescent |
| Heavy Duty Grease Filters: | Yes |
| Blower Type: | Twin |
| Type: | Slide Out |
| Venting Style: | Convertible |
| Washable Filters: | Yes |
| Duct Size: | 3-1/4 in. x 10 in. Rectangular |
| Control Type: | Automatic |
| Maximum Exhaust Capacity: | 320 CFM |
| Electrical | |
| Details: | 15 Ampere, 120 Volts, 60 Hertz (1/second), USE COPPER WIRE ONLY. GROUNDED CIRCUIT IS REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED. |
>> View & Compare Whirlpool Ventilation Line Up <<
Dimension Guide (GZ7736XGS-dimension-guide-canada.pdf)
