Whirlpool GZ8330XLS
Discontinued
>> View & Compare Whirlpool Ventilation Line Up << >> View & Compare Whirlpool Ventilation Line Up <<
1LL03K
Call Now! 877-374-3439 Or Chat For Bundle Discounts
Call Now! 877-374-3439 Or Chat For Bundle Discounts
1LL03K
When will I get this?

Reserve & Pick Up
FREE
Distribution Centres
Address
Units Available
Woodbridge, ON
27 Director Crt.
Winnipeg, MB
191 Elan Blvd
Burnaby, BC
8010 Winston St.
Ottawa, ON
55 Banton St.
Laval, QC
1340 Boul. Dagenais Ouest
Dartmouth, NS
315 Wilkinson Ave.
Calgary, AB
2777 23 Ave. NE
For more information on range hood installation services, click here.
Description & Features

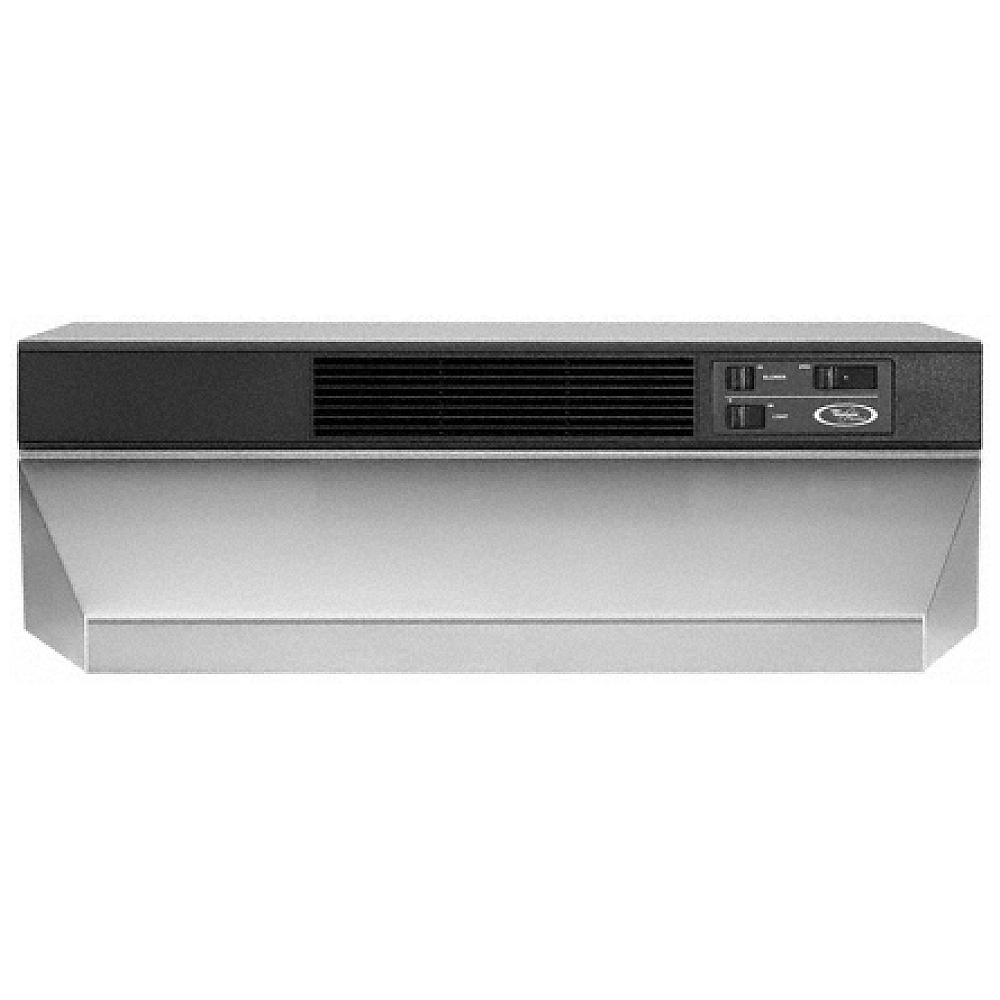

Whirlpool GZ8330XLS Range Hood, Under-Cabinet, Under-Cabinet, 30 inch Exterior Width, 360 CFM, Outside / Ducting, Incandescent, Dishwasher Safe Filters

This powerful 360 CFM dual centrifugal fan delivers high performance ventilation to the kitchen by quickly clearing smoke and odors. A removable and washable grease filter makes cleanup easy.


  • Dual Centrifugal Fan Blowerááá
  • Horizontally Exhausts 350 CFM (3-1/4 in. x 10 in.)ááá
  • Vertically Exhausts 360 CFM (3-1/4 in. x 10 in.)ááá
  • High Performance
  • Variable Slide Control w/Infinite Fan Speed Settingsáá
  • Removable/Washable Grease Filterááá
  • Convertible to Non-Vented Operation w/Optional Re-circulation Kit# 4396390ááá
Specs
Type
VentilationType: Top/Rear Vent - Opt. Recirc.
Performance
Blower Type: Dual Centrifugal
Duct Outlet Type: 3 - Way Convertible
Duct Outlet Size: 3 1/4" x 10" Rectangular
Sones (Vertical, Rectangular): 5.5
CFM (Horizontal, Rectangular): 350
CFM (Vertical, Rectangular): 360
Sones (Horizontal, Rectangular): 6.0
Lighting / Controls
Number of Speeds: Variable
# of Light Settings: 1
Control Type: Slider
Cooktop Light Type: Incandescent
# of Cooktop Lights: 2 (Bulbs Not Included)
Ventilation Features
Grease Filter: 2
Dimensions
Overall Height: 9 Inches
Overall Width: 29 7/8 Inches
Overall Depth: 20 Inches
Cutout Width (in): 29 7/8 Inches
Shipping Weight: 28 3/5 LB

Dimensions
Height: 9"
Width: 30"
Depth: 20"
Duct Size: 3-1/4 in. x 10 in. Rectangular
Weight: 32 lbs.
Height: 9 in
Width: 30 in.
Depth: 20 in.
Features
Convertible to Re-Circulating Installs: Yes
Covered Light: Yes
Duct and Vent Type: Convertible
Fan Speeds: Variable
Heavy Duty Grease Filters: Yes
Blower Type: Twin
Type: Under Cabinet
Variable Speed and ON/OFF Controls: Yes
Washable Filters: Yes
Lighting: 2-Level Incandescent
Duct Size: 3-1/4 in. x 10 in. Rectangular
Control Type: Infinite Slide
Maximum Exhaust Capacity: 360 CFM
Electrical
Details: 15 Ampere, 120 Volts, 60 Hertz (1/second), USE COPPER WIRE ONLY. GROUNDED CIRCUIT IS REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.
