Description & Features

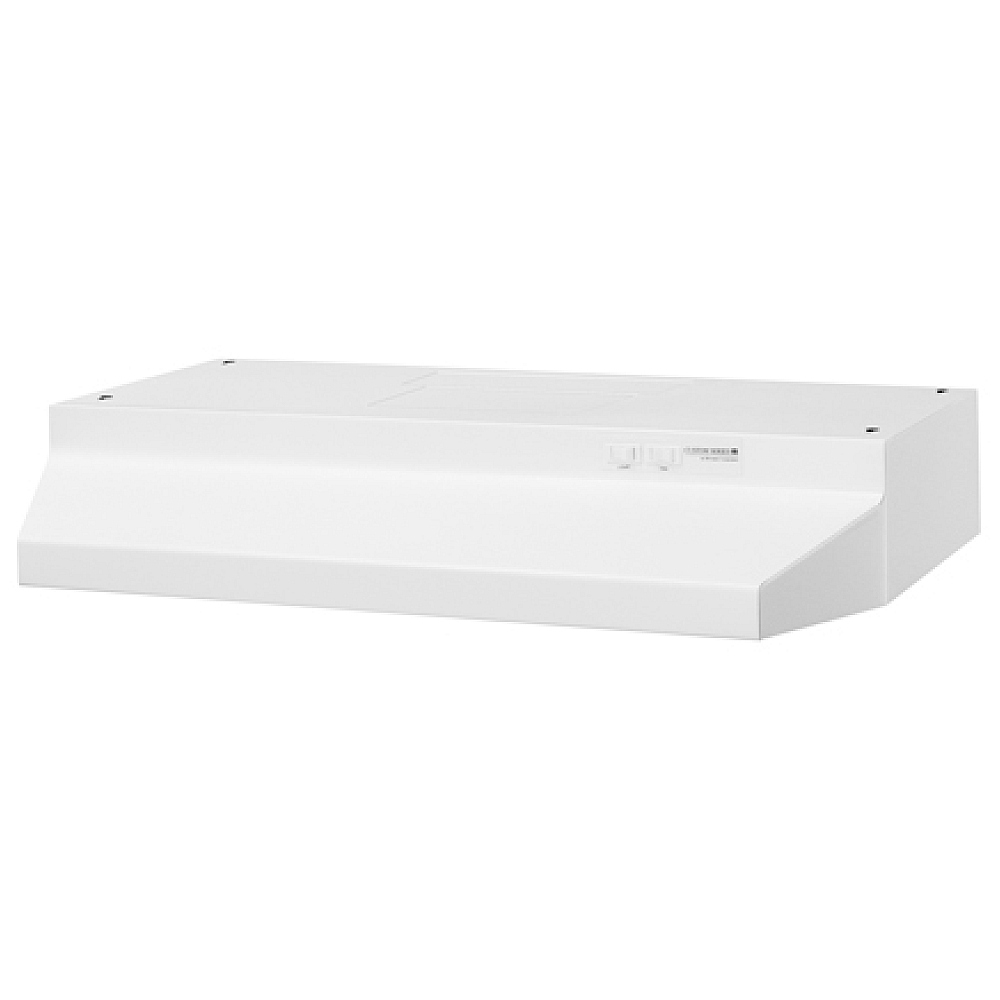

Whirlpool RH2336XJQ Range Hood, Under-Cabinet, Under-Cabinet, 36 inch Exterior Width, 200 CFM, Outside / Ducting, Incandescent, Dishwasher Safe Filters
This hood's fan exhausts vertically, quickly clearing cooking smoke and odors. It also features a light and a removable grease filter for easy cleaning and maintenance.
This hood's fan exhausts vertically or horizontally, quickly clearing cooking smoke and odors. It also features a light and a removable grease filter for easy cleaning and maintenance.


  • Axial Fan Blower
  • Exhausts 200 CFM Vertical; 170 CFM Horizontal
  • Damper
  • Two-Speed Rocker Switch Control
  • Covered Light
  • Removable/Washable Grease Filter
Specs
Type
VentilationType: Top or Rear Vented
Performance
Blower Type: Axial Fan
Duct Outlet Type: 2-Way
Duct Outlet Size: 3 1/4" x 10" Rectangular
Sones (Vertical, Rectangular): 6.5
CFM (Horizontal, Rectangular): 160
CFM (Vertical, Rectangular): 190
Sones (Horizontal, Rectangular): 6.5
Lighting / Controls
Number of Speeds: 2
# of Light Settings: 1
Control Type: Rocker
Cooktop Light Type: Incandescent
# of Cooktop Lights: 1 (Bulb Not Included)
Ventilation Features
Grease Filter: Dishwasher Safe Aluminum Mesh
Dimensions
Overall Height: 6 Inches
Overall Width: 36 Inches
Overall Depth: 17 1/2 Inches
Cutout Width (in): 35 7/8 Inches
Shipping Weight: 11 LB

Dimensions
Height: 6"
Width: 35 7/8"
Depth: 17 5/8"
Duct Size: 3-1/4 in. x 10 in. Rectangular
Weight: 25 lbs.
Height: 6 in.
Width: 35 7/8 in.
Depth: 17 5/8 in.
Features
Covered Light: Yes
Duct Type: Rectangular
Fan Speeds: 2
Heavy Duty Grease Filters: Yes
Type: Under Cabinet
Variable Speed and ON/OFF Controls: Yes
Venting Style: Vented
Washable Filters: Yes
Lighting: 2-Level Incandescent
Duct Size: 3-1/4 in. x 10 in. Rectangular
Control Type: Rocker Switch
Maximum Exhaust Capacity: 200 CFM
Electrical
Details: 15 Ampere, 115 Volts, 60 Hertz (1/second), USE COPPER WIRE ONLY. GROUNDED CIRCUIT IS REQUIRED. A TIME-DELAY FUSE OR CIRCUIT BREAKER AND SEPARATE CIRCUIT IS RECOMMENDED.
