Whirlpool WDP560HAMW
Discontinued
>> View & Compare Whirlpool Dishwasher Line Up << >> View & Compare Whirlpool Dishwasher Line Up <<
AE0X5O
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Ratings & Reviews
Similar Colours and Options
AE0X5O
When will I get this?

Description & Features
The Whirlpool WDP560HAMW built‑in dishwasher is designed to deliver powerful cleaning performance in a sleek, quiet package that fits seamlessly into today’s busy kitchens. With a standard 24"‑class width and room for up to 14 place settings, it’s ideal for families who need to handle a full day’s worth of dishes in a single load without sacrificing valuable cabinet space. One of the standout advantages of this model is its 55 dBA operating noise level, which helps keep conversations and entertainment in your kitchen and adjoining rooms undisturbed while the dishwasher runs in the background. Inside, the Adjustable Upper Rack offers flexible loading options that many basic dishwashers simply can’t match, allowing you to raise or lower the rack to accommodate tall items like water bottles, mixing bowls, or stemware, while the dedicated 11" cup shelf helps free up even more space below for plates and cookware.

Beyond capacity and flexibility, the Whirlpool WDP560HAMW is engineered to tackle tough messes with features that go beyond a typical “normal” cycle. The Boost Cycle uses increased water, time, and heat to break down baked‑on or dried‑on food, giving you the confidence to skip most pre‑rinsing and still get sparkling results. For heavily soiled dishes that need extra soaking, the Extended Soak Cycle combines a presoak and wash in one convenient program, helping stubborn residue dissolve without extra steps at the sink. To maintain water clarity and cleaning performance throughout each cycle, the Triple Filtration Wash System continuously filters out food particles using multiple stages of filtration, helping prevent redeposit on dishes and reducing the need for manual filter cleaning as often.

When it’s time to dry, the Heated Dry and Extended Dry options work together to deliver cabinet‑ready dishes, adding extra heat and time to reduce moisture on glassware, plastics, and utensils. A Sani Rinse option is available for households that want an added level of hygiene, using high‑temperature final rinsing to sanitize dishes and help eliminate food soil bacteria. Thoughtful touches like the fully integrated top controls, a blue Cycle Status Indicator light on the front panel, and a Hybrid Tub with a dark gray interior that helps mask stains give this dishwasher a clean, modern look that complements a wide range of kitchen styles while remaining easy to live with day after day.

Whirlpool® Quiet Dishwasher – 55 dBA sound level helps keep kitchen noise low so conversations and TV are not disturbed during cycles.

Sani Rinse Option – heats the final rinse to about 155°F to eliminate 99.999% of food soil bacteria and sanitize dishes for added peace of mind.

Triple Filtration Wash System – multi‑stage coarse, fine and micro‑fine filters continuously remove food particles from the wash water to help prevent redepositing on dishes.

Eco Series design – engineered to balance cleaning performance with efficient water and energy use for everyday dishwashing.

Adjustable Upper Rack – manually raises or lowers about 2" to better fit tall glasses, water bottles, or large plates and pans below.

11" Cup Shelf – folding shelf holds up to five extra cups or small bowls, freeing space on the main racks and tucking away when not needed.

Room for 14 Place Settings – accommodates up to 14 standard place settings, ideal for families or entertaining.

5 Wash Cycles – choose from Heavy, Boost, Normal, Quick Wash and Extended Soak to match soil level and time available.

Heavy Cycle – adds extra time and intensity to tackle baked‑on, heavily soiled pots, pans and casserole dishes.

Boost Cycle – uses more water, time and heat than the Normal cycle (but less than Heavy) to target tough messes without pre‑scrubbing.

Extended Soak Cycle – combines a presoak and wash in one cycle to help loosen stuck‑on food without extra manual steps.

Quick Wash Cycle – cleans lightly soiled plates, glasses and pans faster when you need dishes turned around in a hurry.

Normal Cycle – everyday cycle optimized for typical food soils from regular meals.

High Temperature Wash Option – raises wash water temperature to help break down stubborn grease and food residue.

Heated Dry Option – adds heat during the drying phase so dishes come out drier and ready to put away immediately.

Extended Dry Option – lengthens the drying time to improve drying performance on any selected wash cycle.

Cycle Memory – remembers the last cycle used so you can start the same program again quickly with a single button press.

Cycle Status Indicator Light – exterior light glows blue while the dishwasher is running and turns off when the cycle is complete, so you can see status at a glance.

Cycle Interrupt Light Signal – flashing front light alerts you if the cycle has been interrupted so you remember to restart it.

Overflow / Overfill Detection – internal float sensor monitors water level and shuts off the inlet valve if too much water is detected to help prevent leaks and flooding.

Hybrid Tub with Dark Gray Interior – stainless steel inner door and dark gray plastic tub help hide stains and wear while supporting quiet operation.

Nylon Rack Coating – durable nylon‑coated racks resist chipping and corrosion for long‑lasting use.

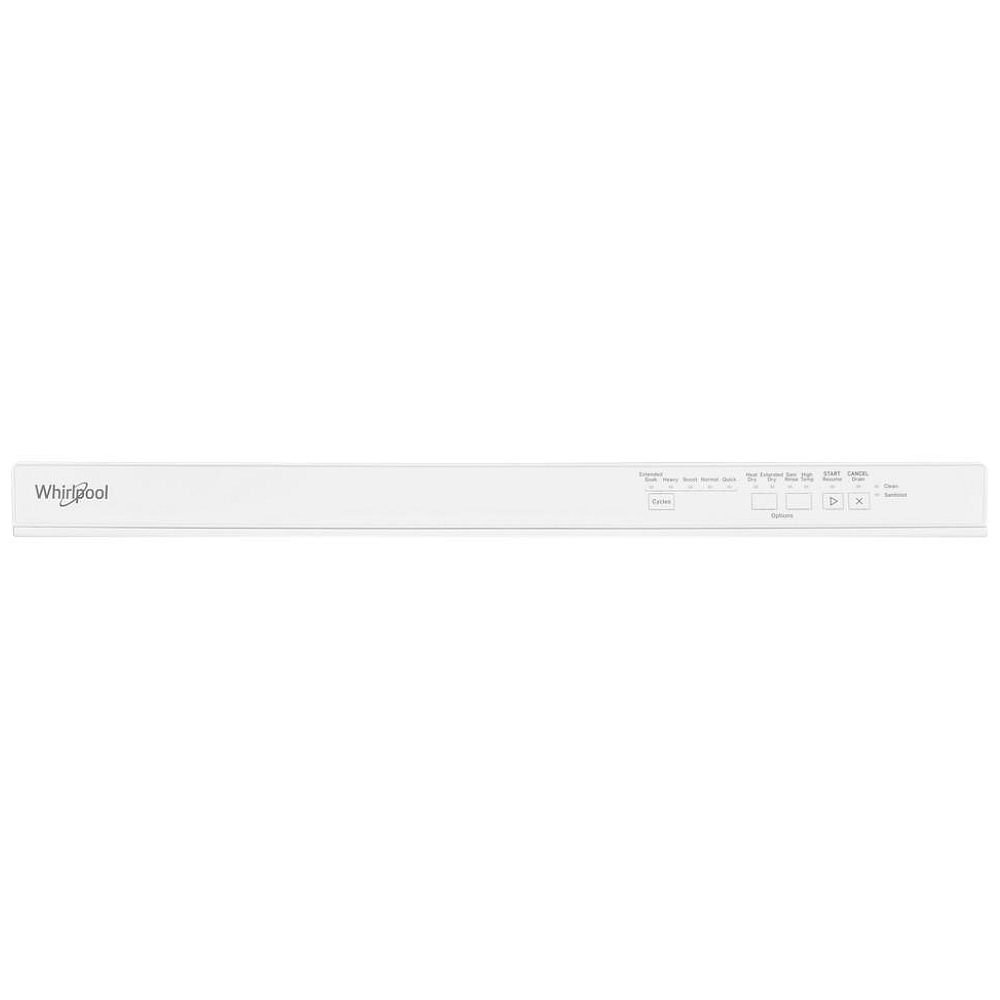

Top Control Panel with Pocket Handle – hidden controls and integrated handle create a clean, modern look that blends with cabinetry.

Detergent and Rinse Aid Dispensers – automatically release the right amount of detergent and rinse aid at the proper time in the cycle for optimal cleaning and drying.

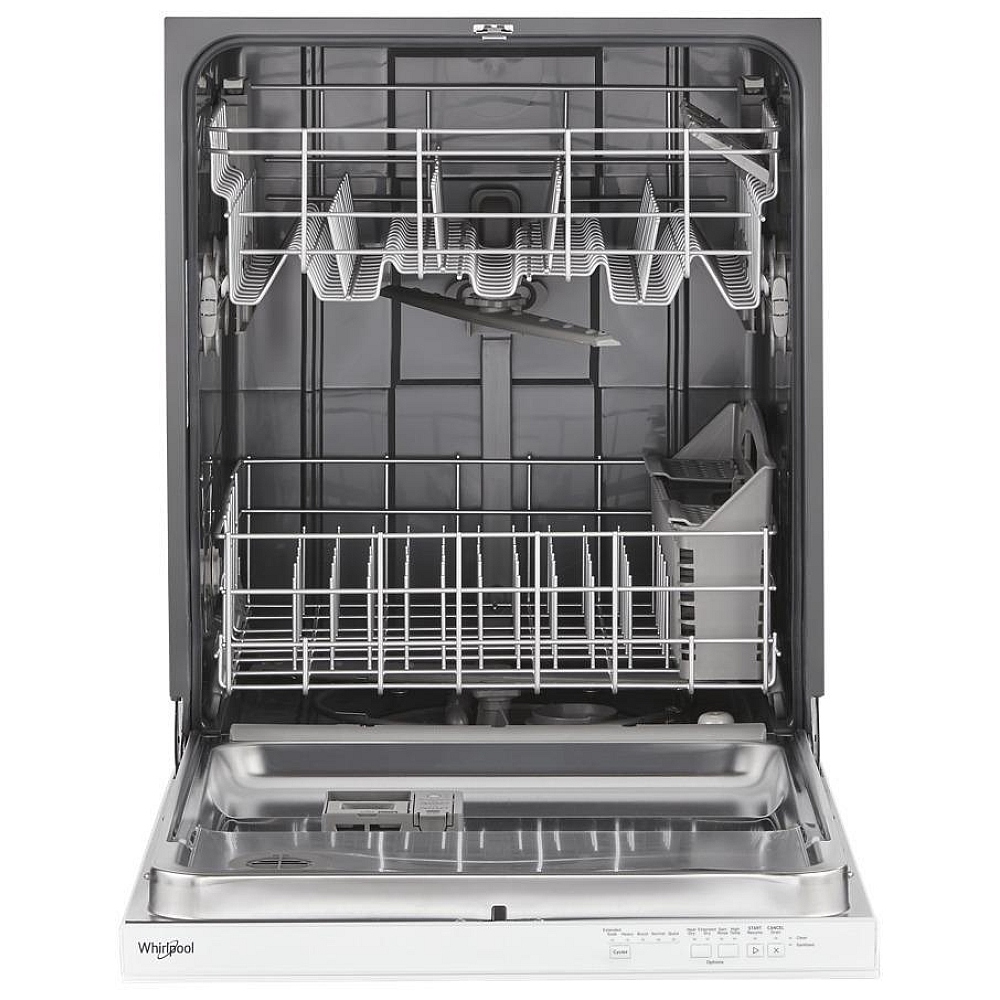

Two‑rack interior layout – full‑width lower rack and adjustable upper rack provide flexible loading for dishes, cookware and glassware.

55 dBA Quiet Operation – sound‑dampening design keeps operating noise at a comfortable level for open‑concept spaces.

Built‑in overflow protection – helps safeguard floors and cabinetry by stopping water intake if an overfill condition occurs.

American company heritage – designed and backed by Whirlpool, an American appliance manufacturer with over a century of experience.

Manufacturer's Warranty: 1 year

Canadian model: WDP560HAMW

Canadian UPC: 883049627069

EAN: 0883049627069

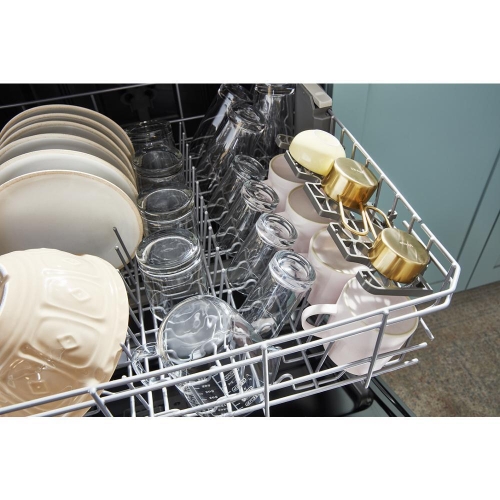

11" Cup Shelf - WDP560HAMW
11" Cup Shelf
WDP560HAMW - 11" Cup Shelf
One 11" Cup Shelf fits five additional cups or small bowls to free up extra space in the racks below and conveniently folds down to stay out of the way when not in use.

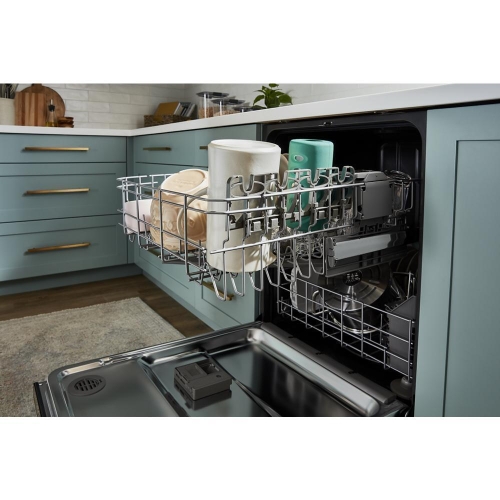

Adjustable Upper Rack - WDP560HAMW
Adjustable Upper Rack
WDP560HAMW - Adjustable Upper Rack
Manually raise or lower the upper rack two inches to better fit tall items like water bottles with the Adjustable Upper Rack.

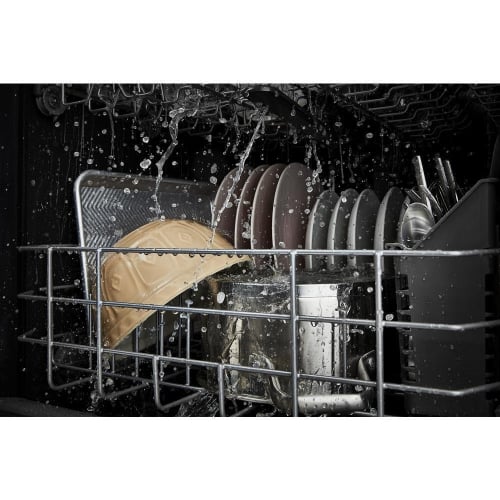

Boost Cycle - WDP560HAMW
Boost Cycle
WDP560HAMW - Boost Cycle
Skip scrubbing and pre-rinsing with the Boost Cycle. This cycle uses more water, time and heat than the Normal Cycle and takes less time than the Heavy Cycle so you can target tough messes that need a little extra effort.

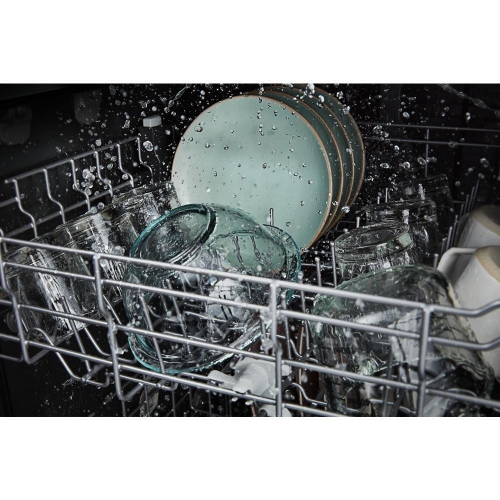

Quick Wash Cycle - WDP560HAMW
Quick Wash Cycle
WDP560HAMW - Quick Wash Cycle
Clean dishes fast with a cycle that thoroughly takes care of plates, pans and glasses when you need them done in a hurry.

Specs
SpecificationValue
Brand Whirlpool
Model WDP560HAMW
Type Built-in, top-control dishwasher
Color Finish Name White
Handle Type Long pocket handle
Door Style Flat
Window No
Capacity (Place Settings) 14 place settings
Number of Racks 2
Third Rack No
Tub Style Built-in tall tub 24 in.
Tub Material Plastic with stainless steel inner door (hybrid tank)
Rack Material Nylon
Second Level Rack Adjustable Yes (Adjustable Upper Rack, ±2 inches)
Second Level Rack Extras 1 plastic cup shelf (approx. 11" cup rack)
Silverware Basket Location Lower rack – right side
Silverware Basket Type Full length, non-splittable
Silverware Basket Covers No
Lower Rack Style Straight
Lower Rack Fold-Down Tines No
Lower Rack Cushion-Tip Tines No
Second Level Rack Fold-Down Tines No
Second Level Rack Cushion-Tip Tines No
Dishwasher Rack Material Nylon
Interior Light No
Dimensions & Weight
Width 23.88 inches (23 7/8 in)
Depth 24.5 inches
Depth Closed Excluding Handles 24.5 inches
Depth Closed Including Handles 24.5 inches
Depth with Door Open 90° 49.5 inches
Height 33.5 inches (33 1/2 in)
Product Weight 69 lb
Gross Weight (Shipping) 80 lb
Cutout Width 24 inches
Cutout Depth 24 inches
Cutout Height 34 inches
Performance & Sound
Sound Level 55 dBA
Decibel Level Range Quiet
Motor Horsepower 0.075 HP
Drying System Type Heated dry (heating element)
Dry Type Heated
Wash System Type Removable filter, triple filtration wash system
Number of Wash Levels 4
Number of Wash Arms 2
Water Filtration Yes
Built-in Water Softener No
Leak / Overflow Protection Overflow detection with float sensor
Sound Package Quiet Pack™, Yes
Controls & Display
Control Location Top (fully integrated)
Control Type Electronic touch / digital
Automatic Temperature Controls Yes
Last Cycle Recall / Cycle Memory Yes (Last Cycle Memory)
Status Light Blue cycle status light on front
Cycle Interrupt Indicator Flashing interrupt light on front
Child Lock / Control Lock Yes
End-of-Cycle Signal No audible signal (per some reseller specs)
Cycles & Options
Number of Wash Cycles 5
Dishwasher Cycle Selection Boost, Extended Soak, Heavy, Normal, Quick Wash
Heavy Cycle Yes
Quick / Express Wash Yes (Quick Wash cycle)
Extended Soak Cycle Yes (soak and wash in one cycle)
Intensive / Heavy Duty Cycle Yes (Heavy / Intensive wash)
Normal Cycle Yes
Number of Options 4
Dishwasher Option Selections Extended Dry, Heated Dry, Hi Temp Wash, Sani Rinse
High Temperature Wash Yes
Sanitize / Sani-Rinse Option Yes (Sani-Rinse, heats final rinse to sanitize)
Extended Dry Option Yes
Boost Cycle Yes (uses more water, time and heat than Normal)
Features
Adjustable Upper Rack Yes, manually adjustable by 2 inches
Cup Shelf / Cup Rack Approx. 11" cup shelf on upper rack (holds ~5 cups)
Triple Filtration Wash System Yes (coarse, fine and micro-fine filters)
Overflow Detection Yes (float sensor shuts off inlet valve)
Rinse Aid Dispenser Yes
Rinse Aid Dispenser Level Indicator Optical level indicator
Detergent Dispenser Yes (detergent and rinse aid dispensers)
Water Heating Yes (internal heater)
Leveling Legs Yes
True Hold Door No
Tall Tub Yes (24" tall tub design)
Hybrid Tank with Dark Gray Interior Yes (dark gray plastic tub with stainless inner door)
Eco Series Yes (Eco Series designation)
Certifications & Ratings
Energy Star Qualified No
CEE Tier Rating Tier I
NSF Certified Yes
Kosher Consumer Friendly No
ADA Compliant No
Star K Certified No
Prop 65 Standard (California Proposition 65 warning)
Electrical
Voltage 120 V
Frequency 60 Hz
Amps Approx. 8.1–15 A (15 A circuit commonly specified)
Power Cord Included No (typically hard-wired or separate cord kit)
Connectivity & Smart Features
Wi‑Fi No
Smart Compatible No
Sabbath Mode No
Other
Appliance Fit Width 24 inches
Dishwasher Type Built-in, fully integrated controls
Control Panel Type Top control
Decibel Level (dBA) 55
Dishwasher Features (summary) Boost Cycle, Adjustable Upper Rack, Quick Wash, Sani-Rinse, Triple Filtration, Heated Dry, Extended Soak, Eco Series
