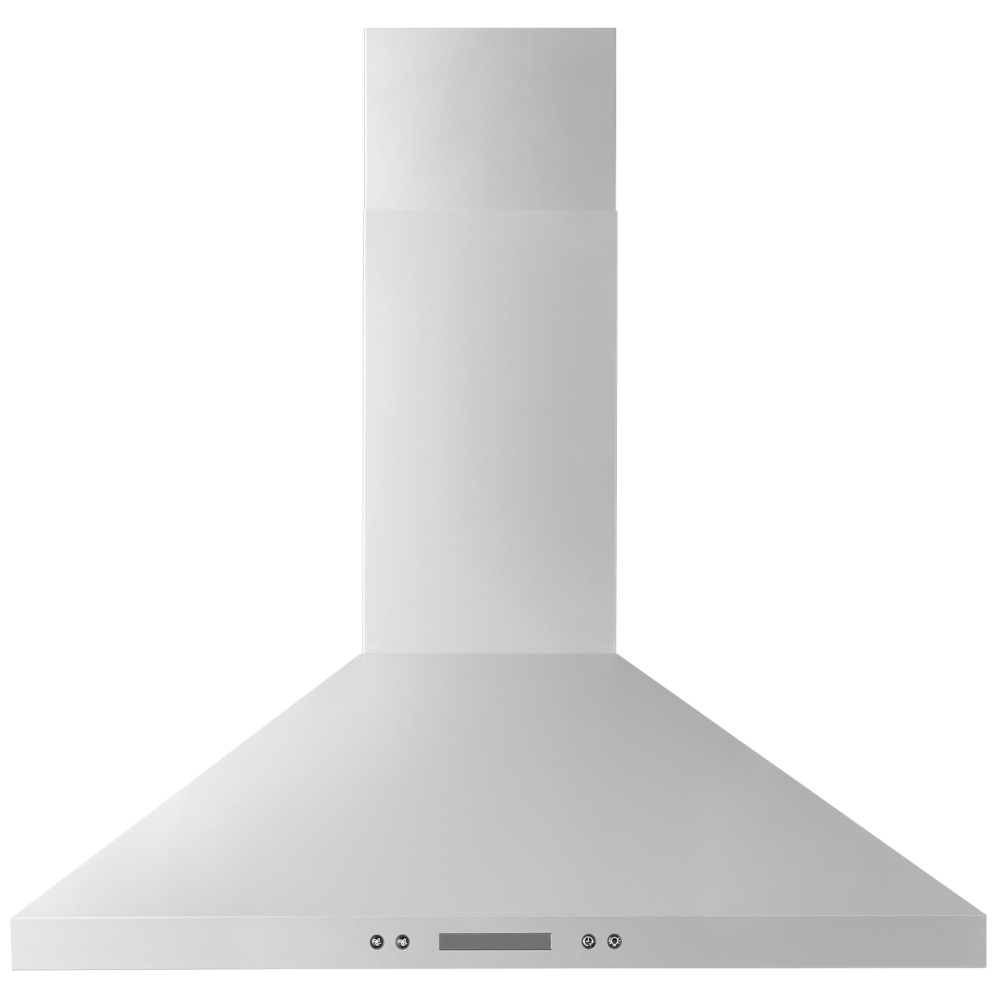

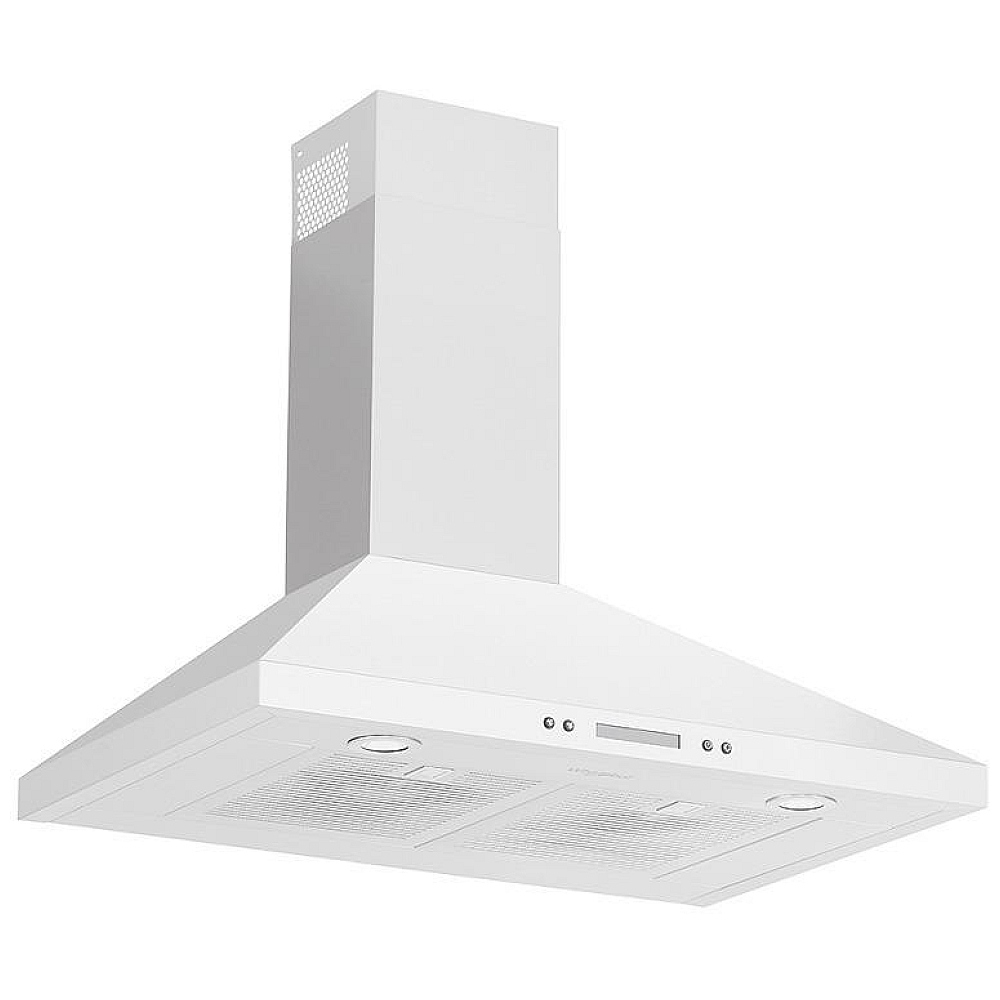

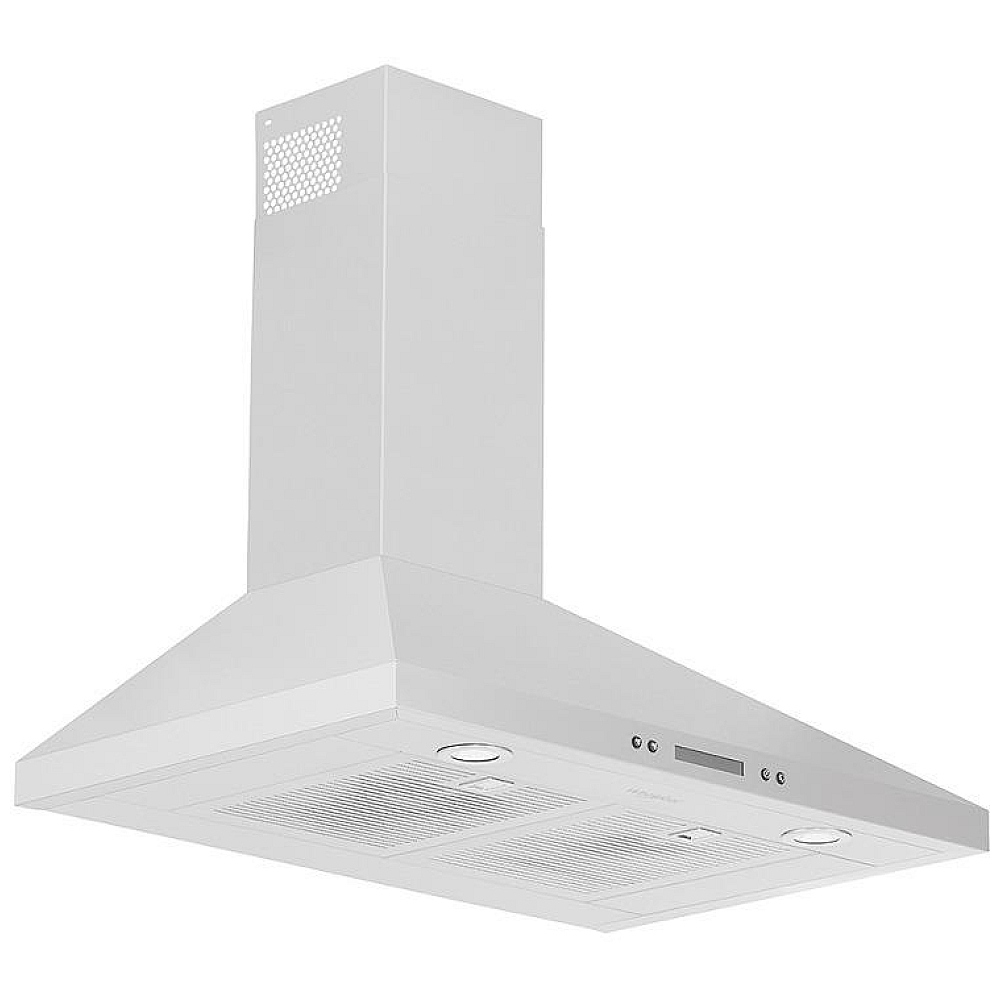

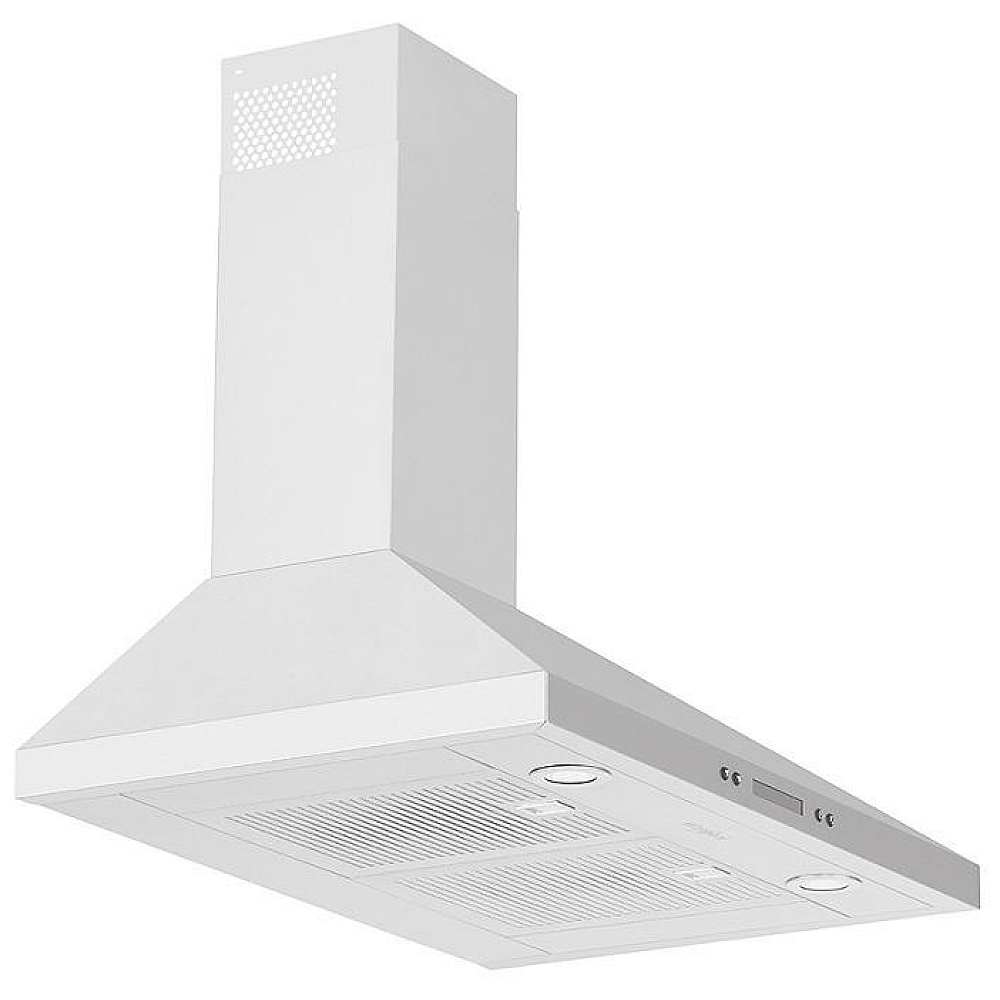

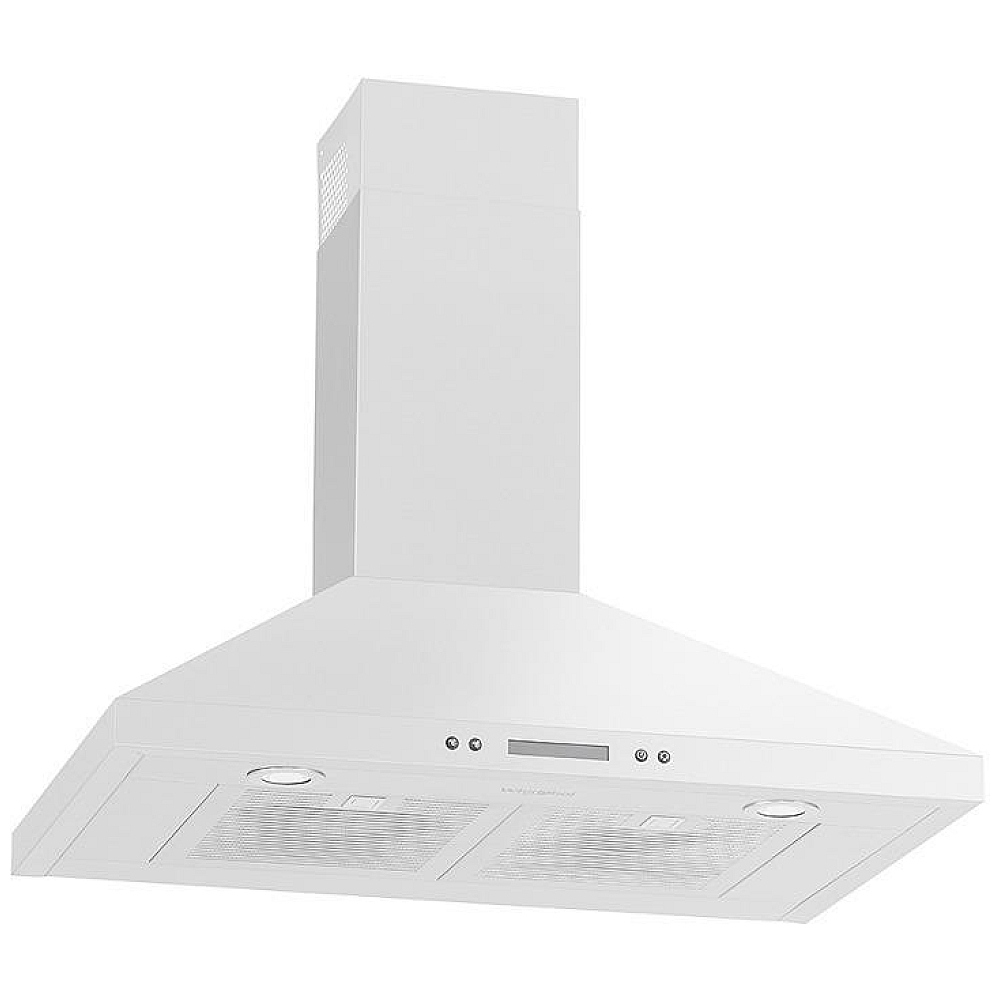

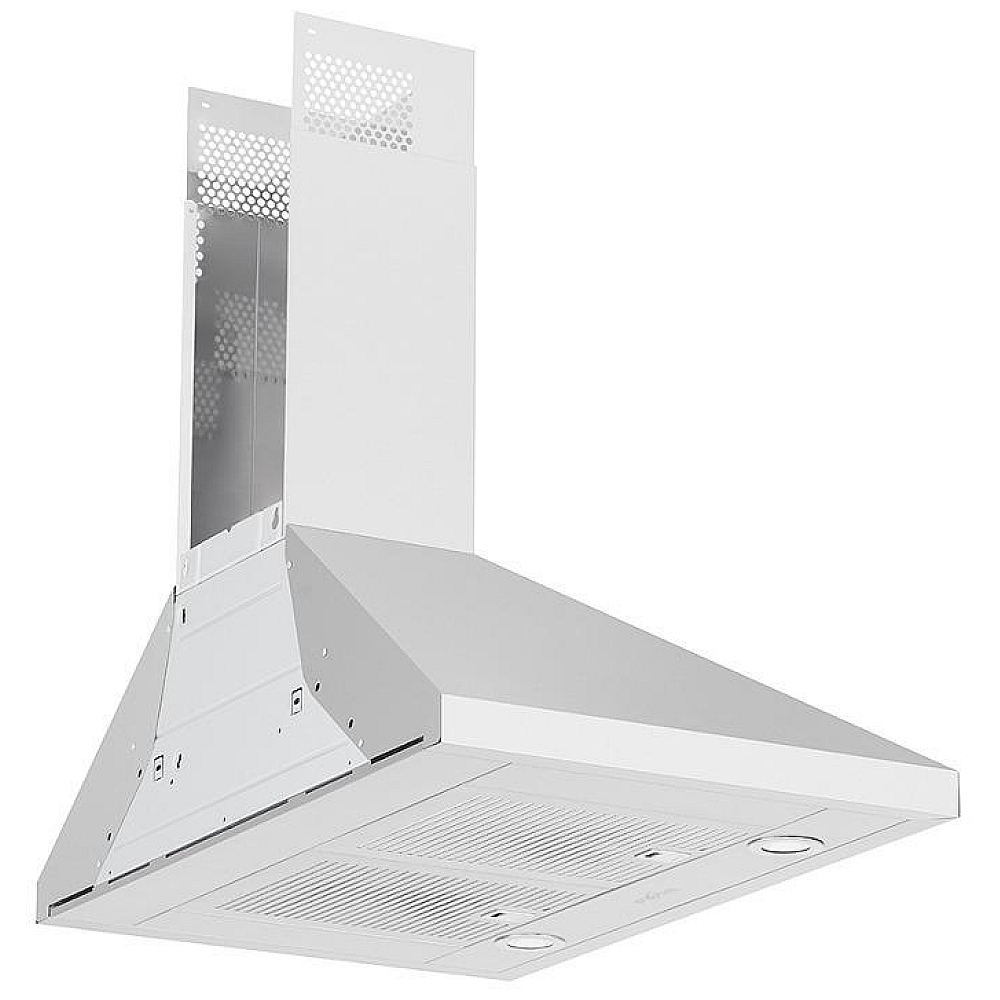

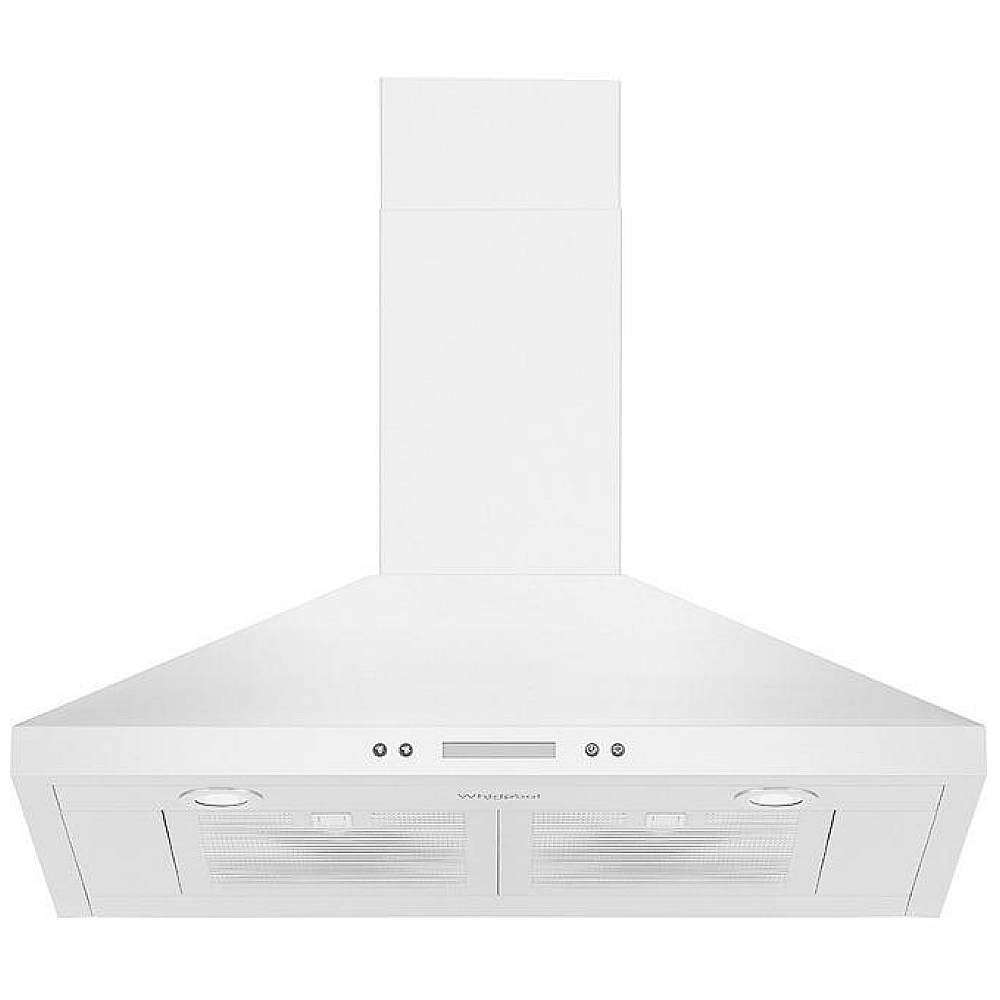

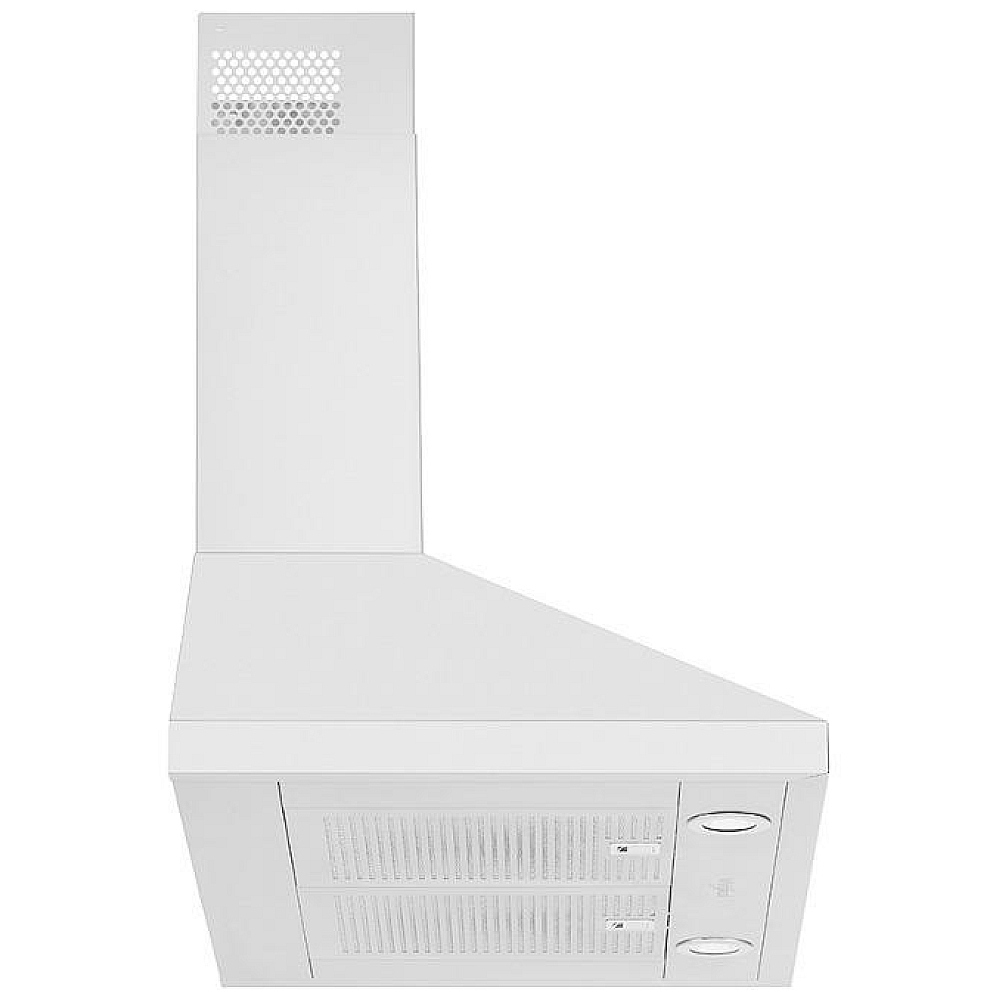

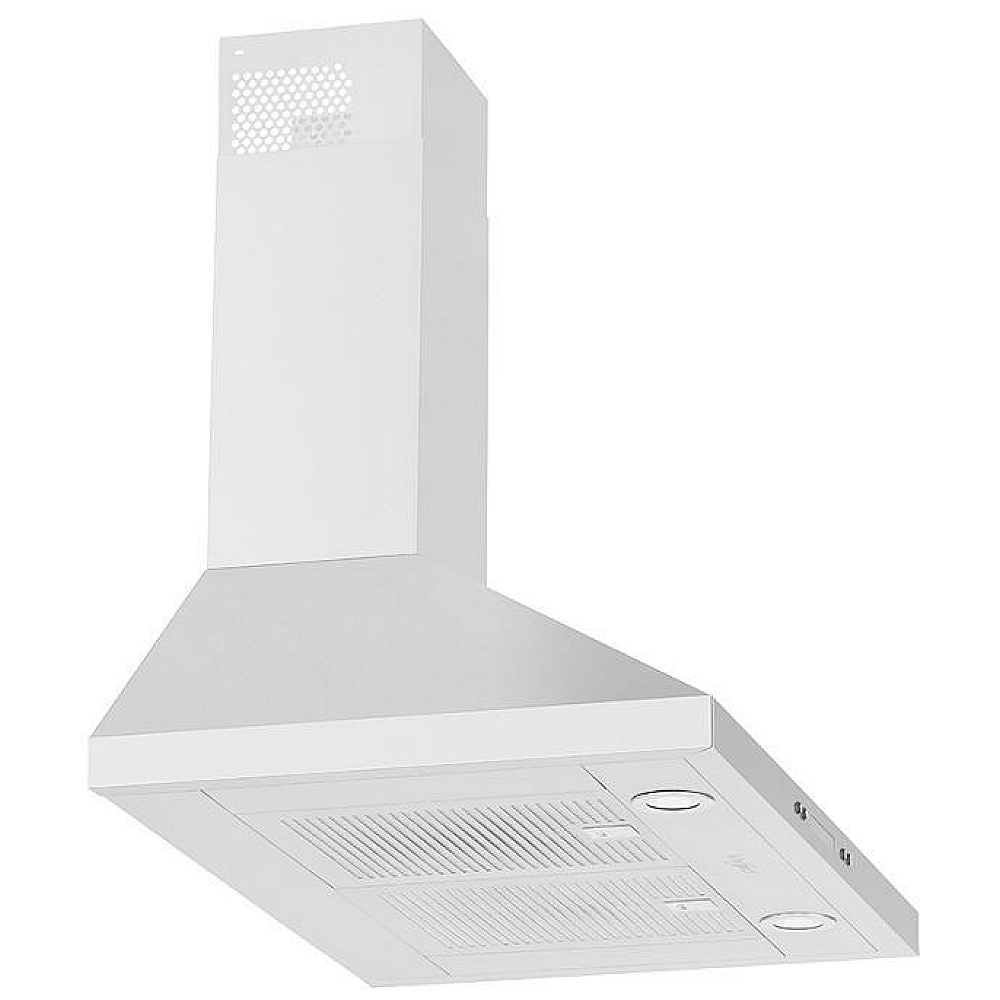

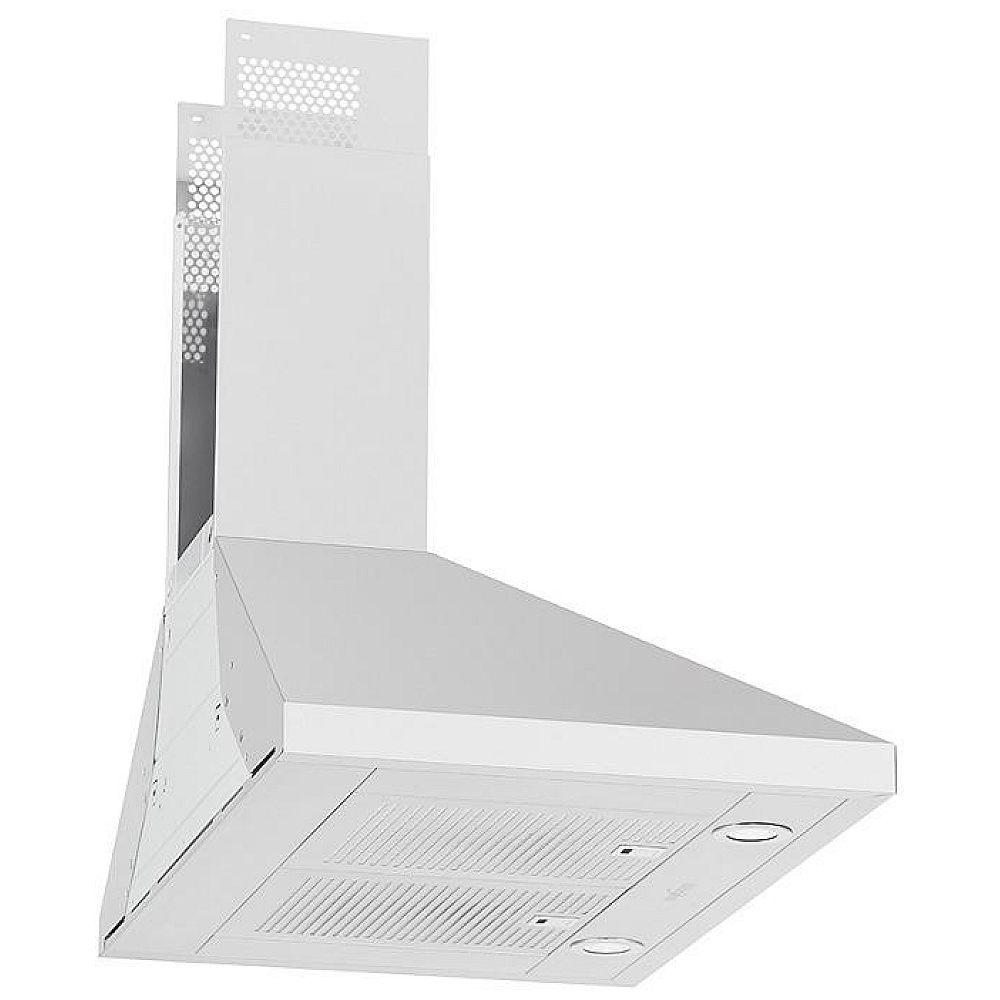

This 30" 400 CFM Motor Class* range hood delivers three speeds of powerful ventilation. This wall mount range hood also comes with a detachable grease filter that is dishwasher-safe for easy cleaning, LED range hood lights and a 65K BTU cooktop threshold. *Performance varies based on installation. Resources available at aham.org.
- 3-Speed, 400 CFM Motor Class
- Helps remove smoke, odor and moisture with 400 CFM Motor Class hood venting that helps keep your kitchen clean. Three fan speeds provide the right amount of ventilation for every meal you prepare.
- 6" Round Damper Included
- Help regulate the flow of air through the chimney with the included 6" round damper (part number W10446915).
- 65K BTU Cooktop Threshold
- Handle the heat and cooking power of a gas cooktop with up to 65K total BTUs or any electric cooktop.
- 7 Sones Sound Level at high speed (When configured for outside ventilation. As published by aham.org.)
- Stay focused on cooking and making memories in the kitchen, even when venting at the highest speed. At maximum speed, sound level is 7 Sones.
- Convertible Ventilation (recirculating or vented)
- A convertible design allows for installation that can be vented externally or internally. When venting internally a recirculation kit is required and sold separately. Air passes through charcoal filters to trap grease and odors before pushing the air back into the home.
*Recirculation kit sold separately. Part number W10272063. - Dishwasher-Safe Grease Filter
- Dishwasher-safe filters trap unwanted grease and odors and wash easily for re-use.

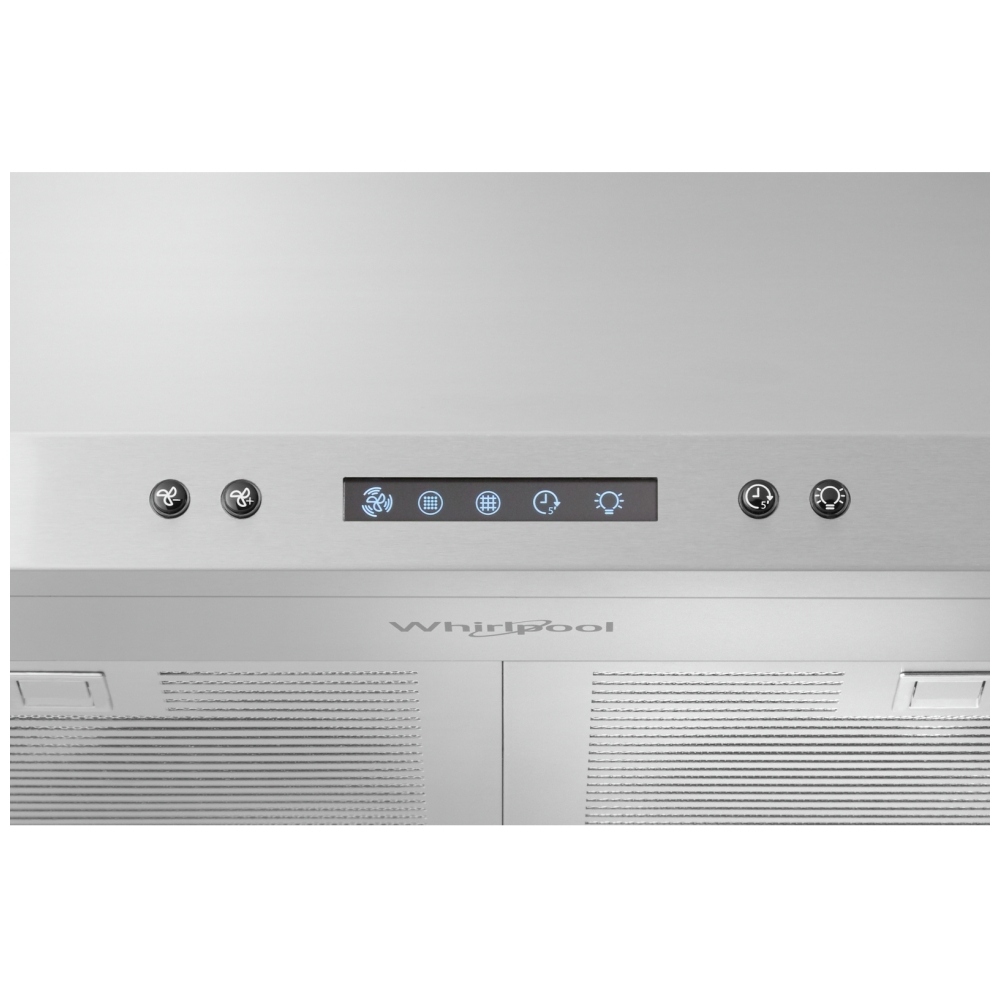

- Electronic Controls with Display
- Clean the smooth, flat surface of these controls as easily as you use them.
- Filter Replacement Reminder
- Get reminded when its time to clean your grease filter and replace your charcoal filter to keep your hood running smoothly.
- Fingerprint Resistant
- Available in black and stainless finishes that are easy to clean and resist fingerprints and smudges.
- LED Task Lighting
- Bright, long-lasting LED Task Lighting makes it easy to see what you re cooking.
- Optional Chimney Extension Kit
- Extend chimney height for ceilings over 9 feet with the optional chimney extension kit. See installation instructions for details.
- Vent Timer
- The Vent Timer automatically turns off the fan according to the timer so you can set it and forget it.
Manufacturer's Warranty: 1 year
Canadian model: WVW93UC0LZ
Canadian UPC: 883049629742
EAN: 0883049629742
| Certifications | |
| Prop65 | Standard |
| Star K Certified | No |
| Controls | |
| Control Location | Front |
| Control Type | Push Button |
| Details | |
| Damper Included | No |
| Hood Type | Wall-Mount Canopy |
| Hood and Vent Selections | Fan Off/Decrease Speed; Fan On/Decrease Speed; Lamp On/Off; Timer |
| Lighting Control Type | Push Button |
| Number of Task Light Settings | 1 |
| Number of Vent Speeds | 3 |
| Task Lighting | Yes |
| Dimensions | |
| Canopy Height | 11.6 |
| Carton Depth | 13 |
| Carton Height | 23 |
| Carton Width | 31 |
| Gross Weight | 37 |
| Net Weight | 25 |
| Electrical | |
| Power Cord Included | No |
| General | |
| Energy Star® Qualified | No |
| Ventilation Details | |
| Auto Function | No |
| BTU Threshold | 65 K |
| Blower Motor | Blower Motor Included |
| Blower Type | Centrifugal |
| Duct Direction | Vertical |
| Duct Length | 42.056 |
| Duct Outlet Size | 6 |
| Duct Type | Round |
| Exhaust Vent Location | Top |
| Filters | Dishwasher Safe Grease Filter |
| Hvi (cfm Hs Vertical) | 270 |
| Maximum Motor Cfm | 400 |
| Night Light | No |
| Night Light Type | N/A |
| Sones High Speed Vertical | 5 |
| Sound Max Speed (sones) | 5 |
| Sound Min Speed | 0.7 |
| Task Light Type | LED |
| Vent Material | Metal |
| Venting | Exterior or Recirculating |
| Dimensions | |
|---|---|

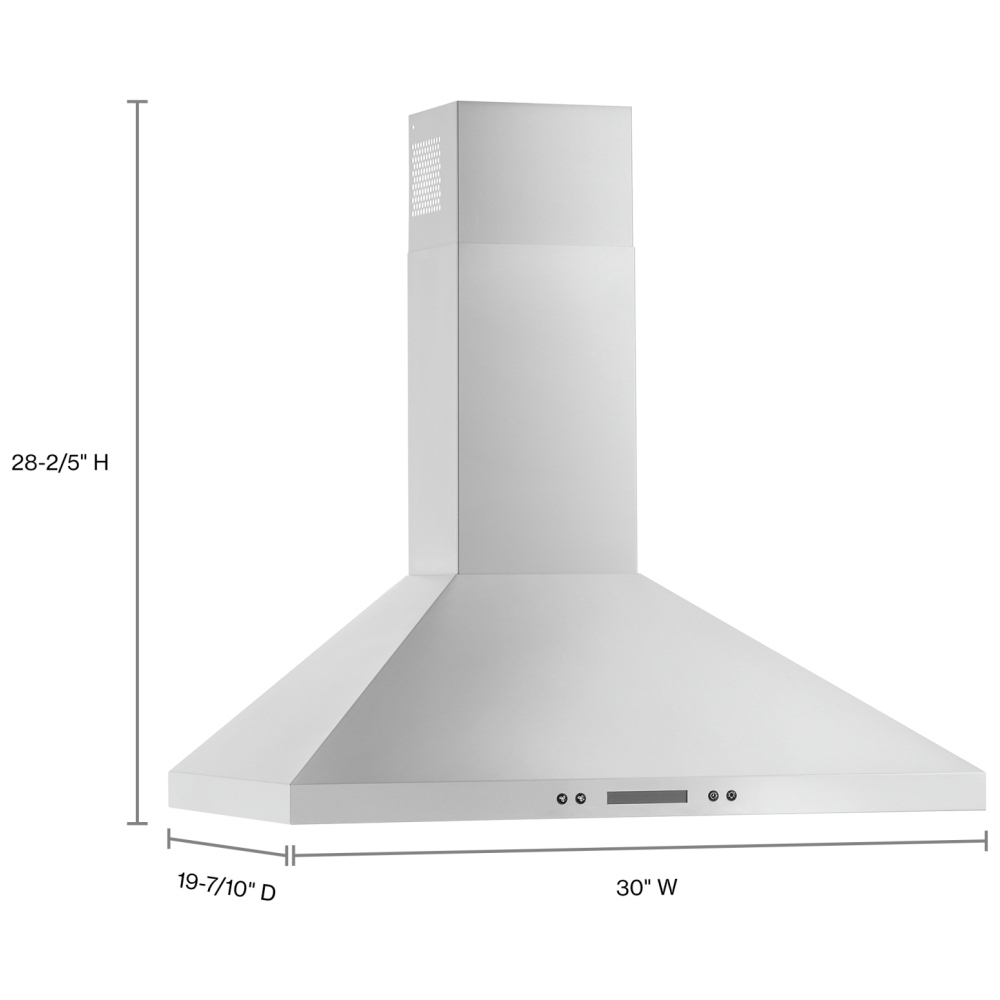

| Depth | 19.7 |
| Width | 30 |
| Carton Depth | 14 |
| Carton Height | 25 1/2 |
| Carton Width | 34 |
| Cutout Height | 11.6 |
| Cutout Width | 30 |
| Gross Weight | 37 |
| Maximum Height | 42.1 |
| Minimum Height | 28.4 |
| Net Weight | 25.0 |
| Certifications | |
| Prop 65 | Standard |
| Kosher Consumer Friendly | No |
| Energy Star® Qualified | No |
| UL | Yes |
| Configuration and Overview | |
| Hood Type | Wall-Mount Canopy |
| Controls | |
| Control Type | Push Button |
| Control Location | Front |
| Ventilation System | |
| Auto Function | No |
| Blower Type | Centrifugal |
| Duct Direction | Vertical |
| Duct Outlet Size (in.) | 6 |
| Duct Type | Round |
| Blower Motor | Blower Motor Included |
| HVI (CFM HS Vertical) | 270 |
| HVI (Sones HS Vertical) | 5 |
| Maximum Motor Exhaust Rating Cubic Feet per Minute (CFM) | 400 |
| Exhaust Vent Location | Top |
| Sound Max Speed (Sones) | 5.0 |
| Duct Length | 42.056 |
| Filters | Dishwasher Safe Grease Filter |
| Venting | Exterior or Recirculating |
| Sound Min Speed (Sones) | 0.70 |
| Vent Material | Metal |
| Number of Speeds | 3 |
| Description | |
| Size (in.) | 30 |
| Features | |
| Night Light Type | N/A |
| Lighting Control Type | Push Button |
| Task Lighting | Yes |
| Number of Task Light Settings | 1 |
| Damper Included | No |
| BTU Threshold | 65 K |
| Selection | Fan OFF/Decrease Speed,Fan ON/Increase Speed,Lamp ON/OFF,Timer |
| Night Light | No |
| Details | |
| Task Light Type | LED |
| Electrical | |
| Power Cord Included | No |
| Amps | 2.5 |
| Watts | 260 |
| Hz | 60 |
| Volts | 120 |
