Zephyr AK7648AS

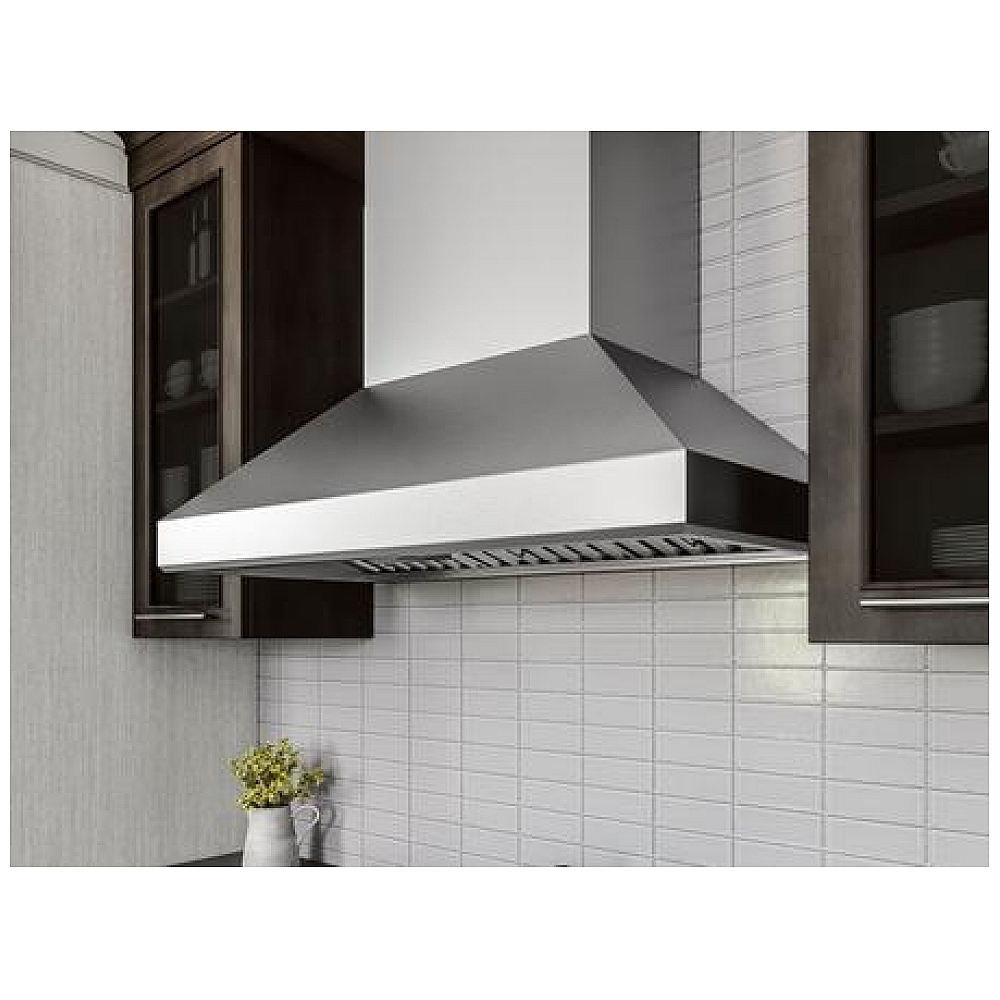

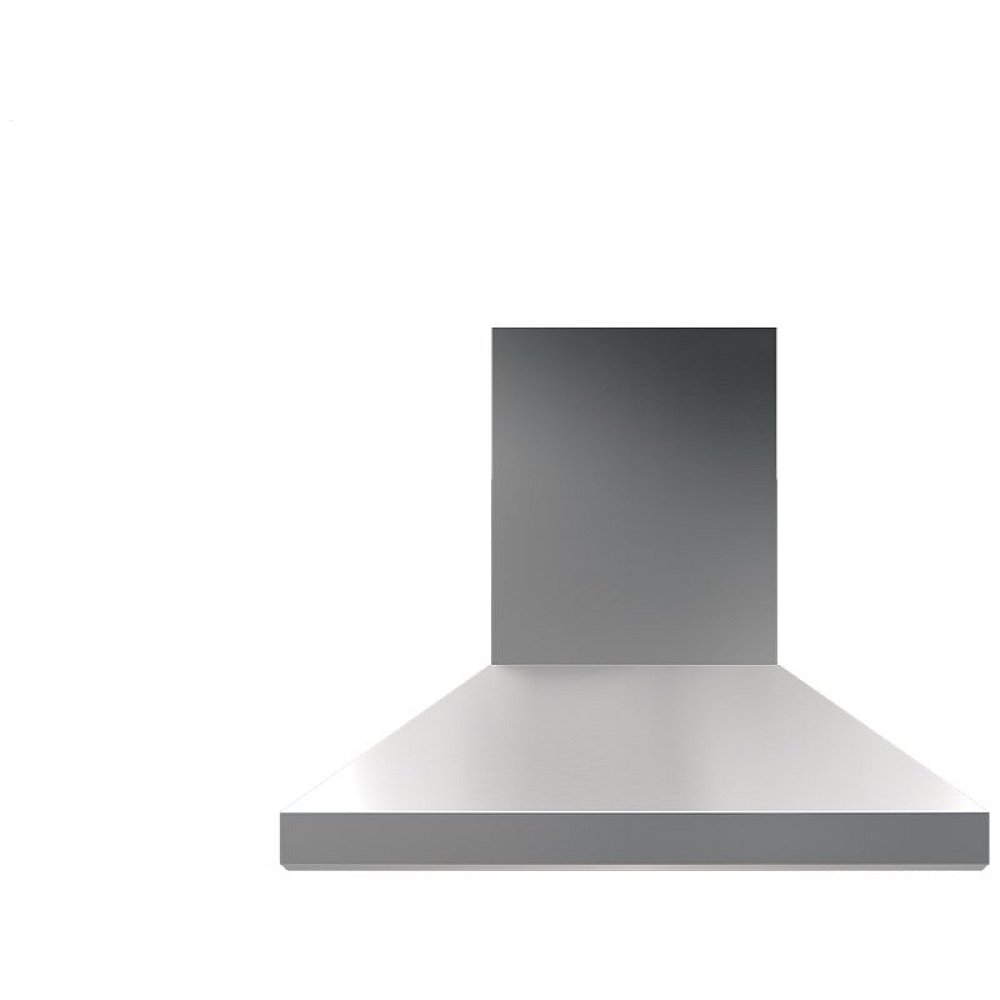

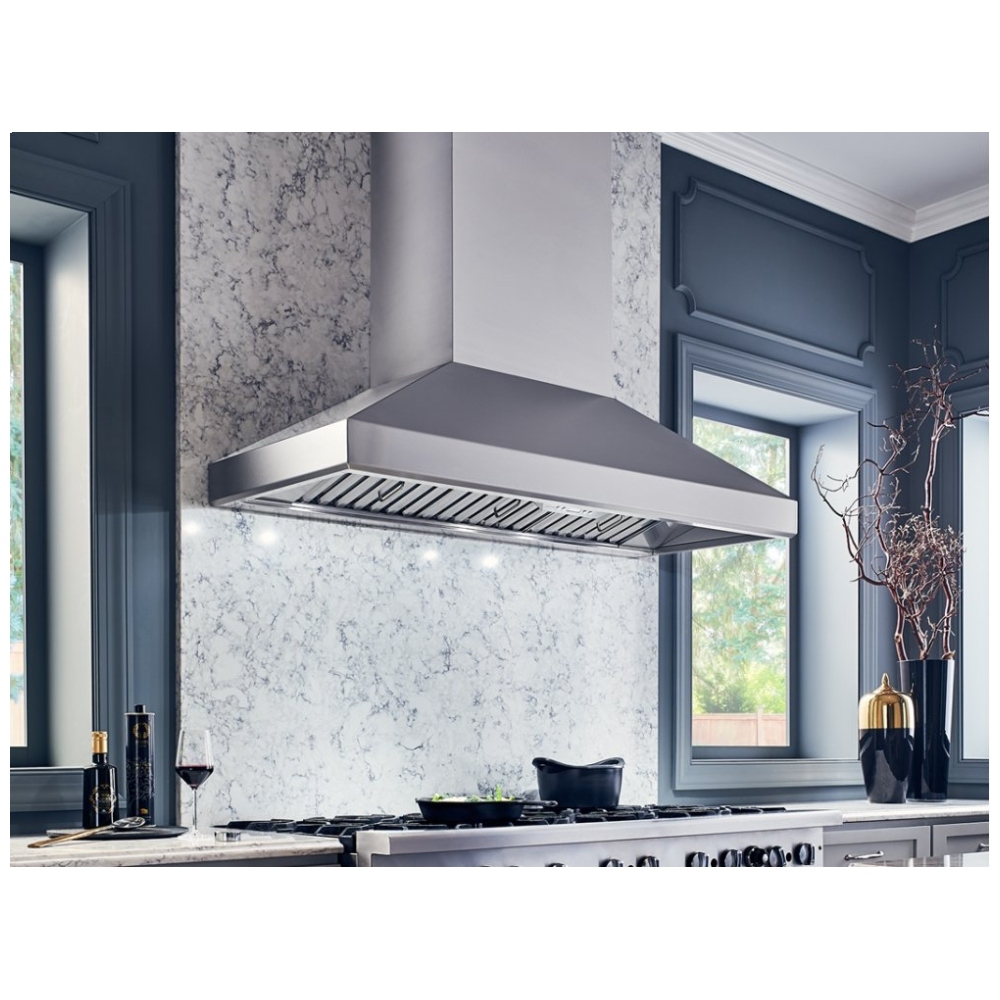

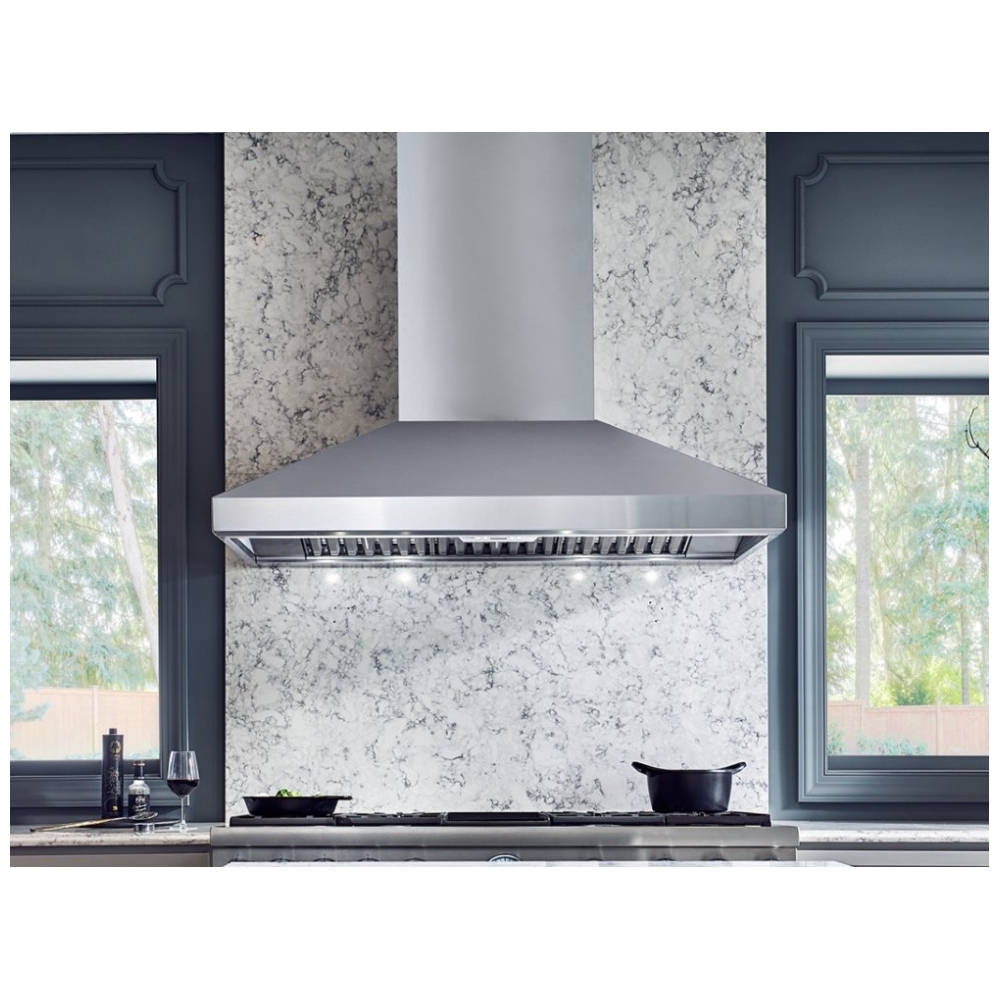

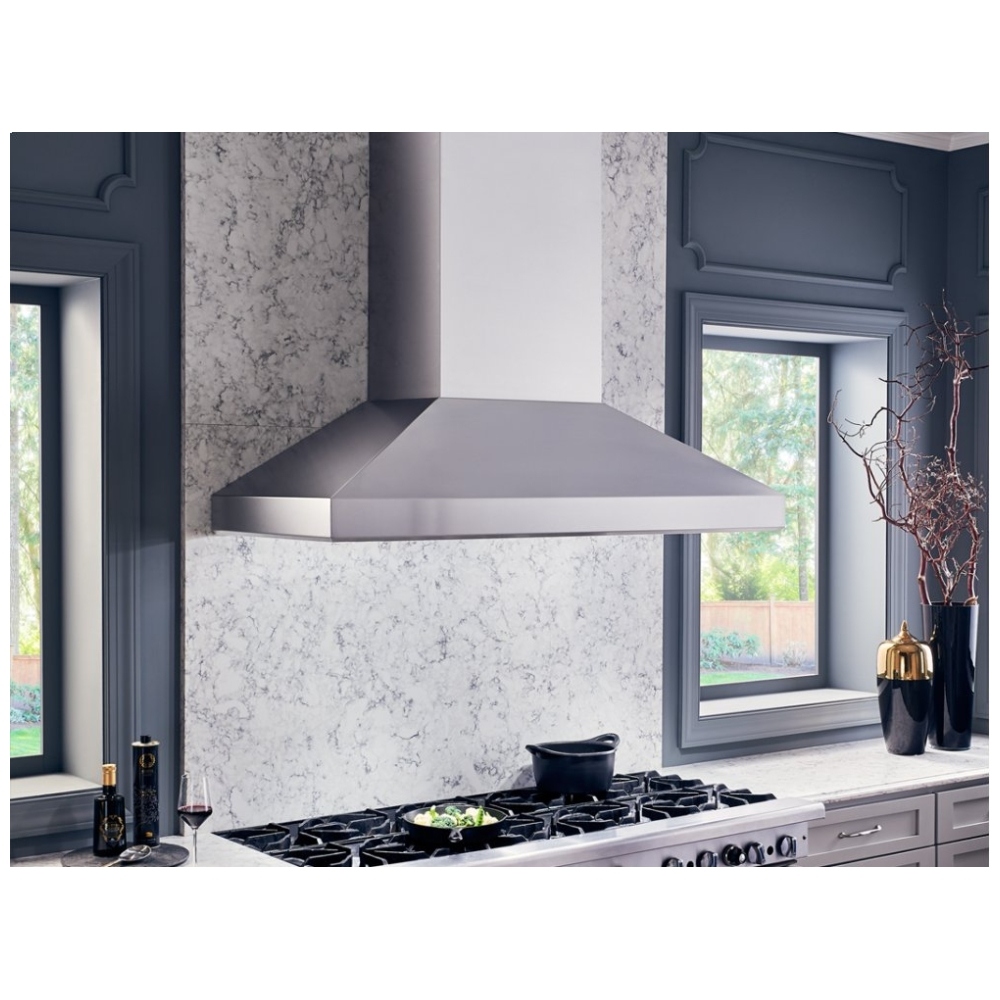

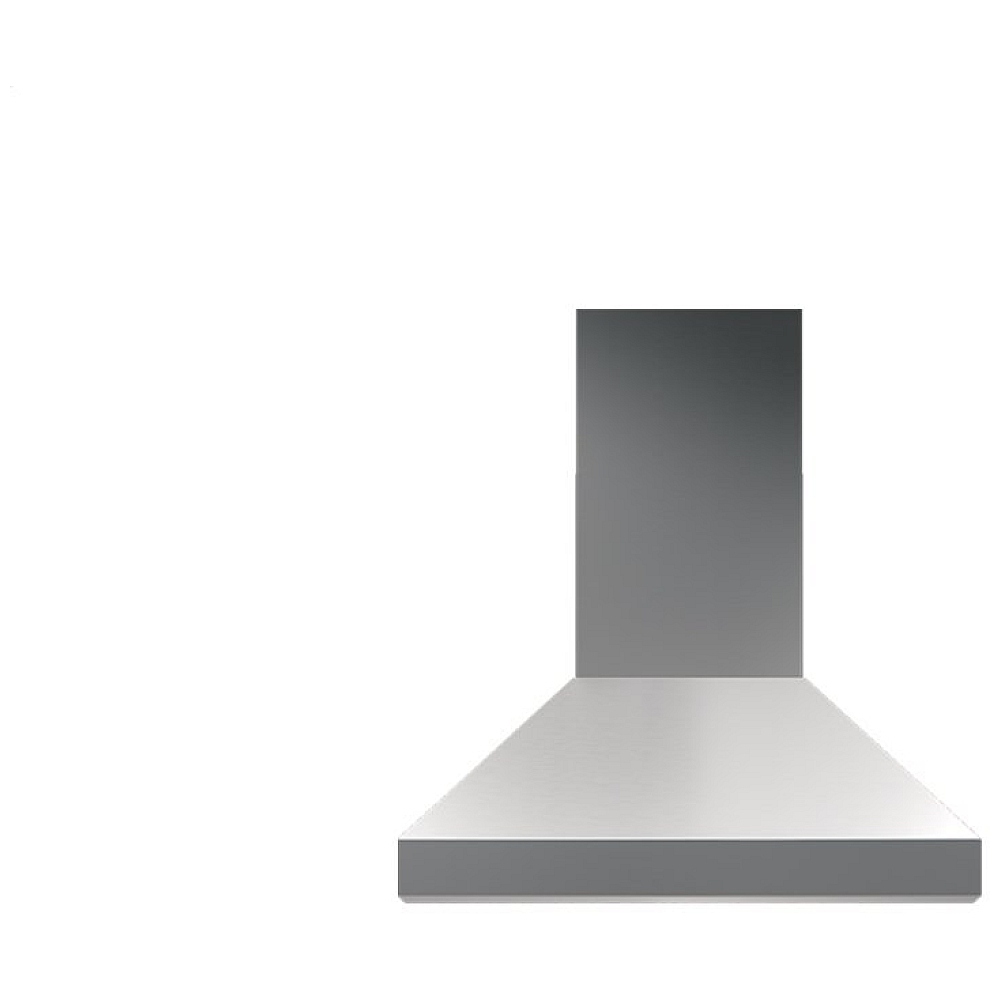

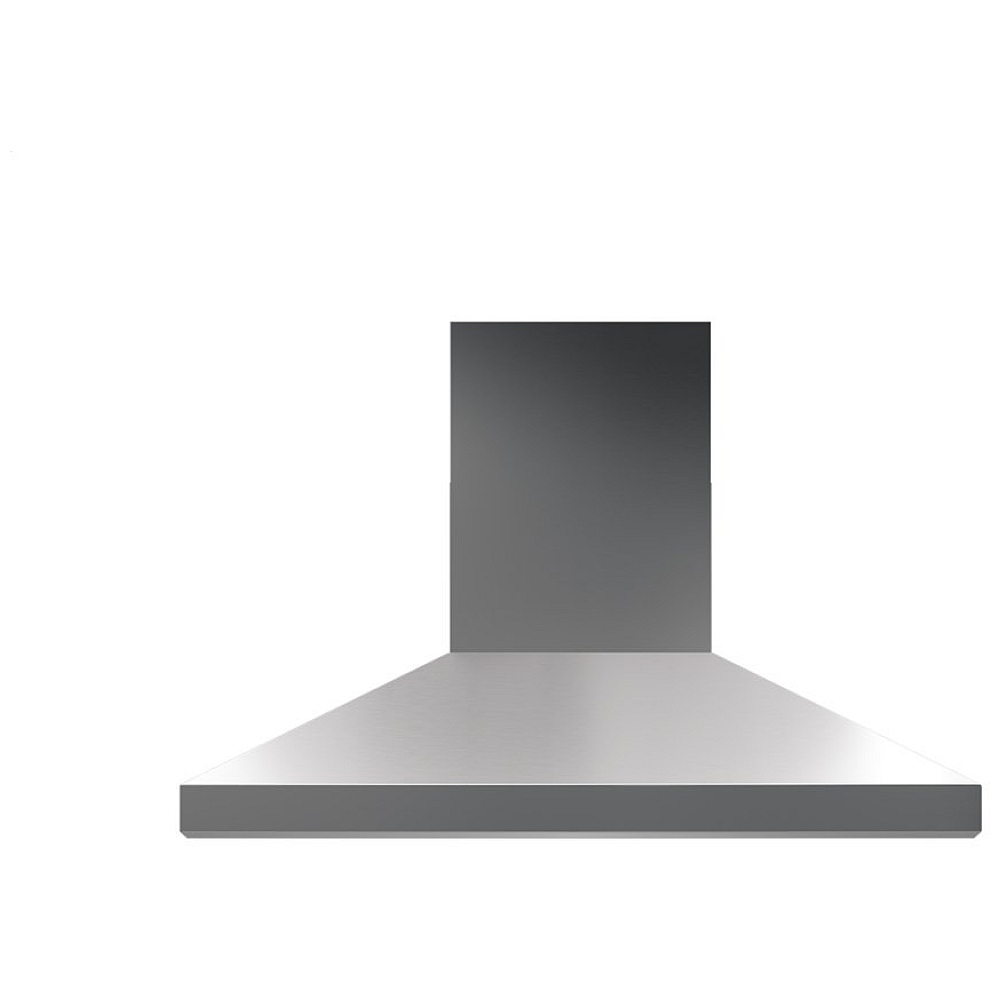

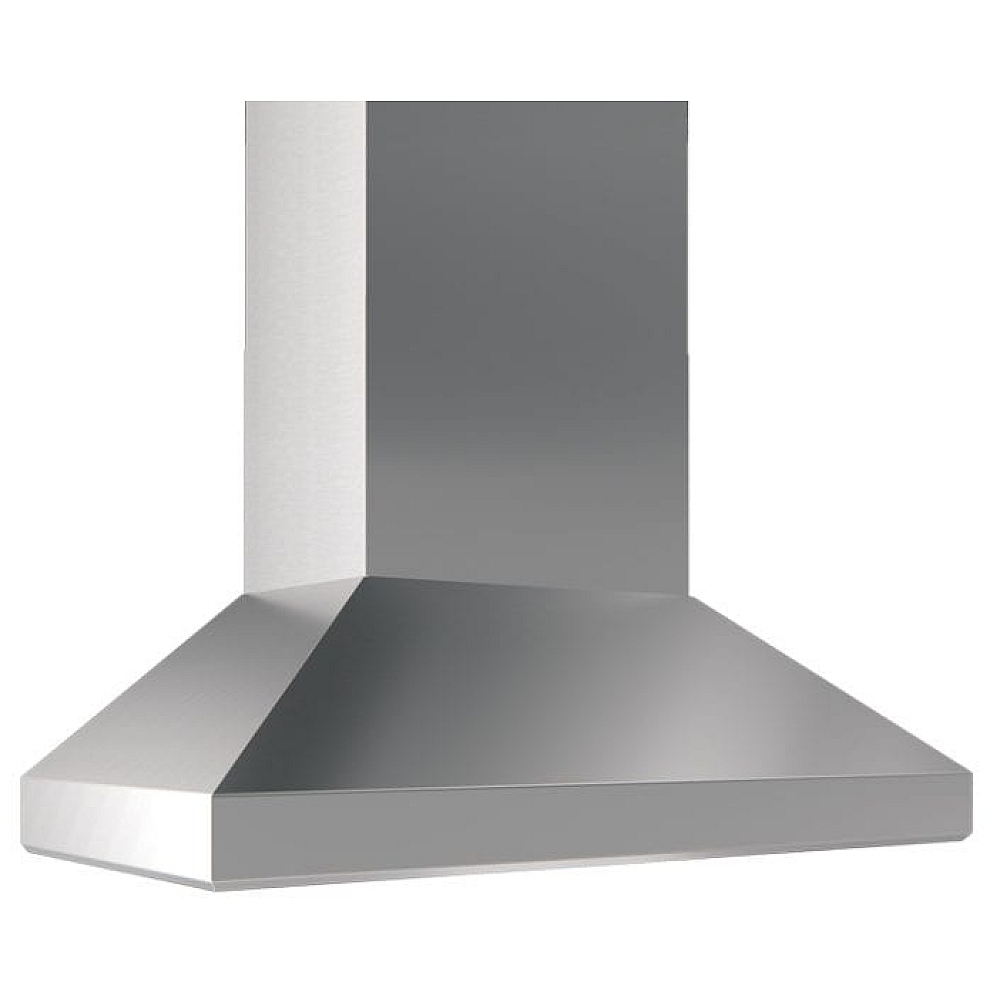

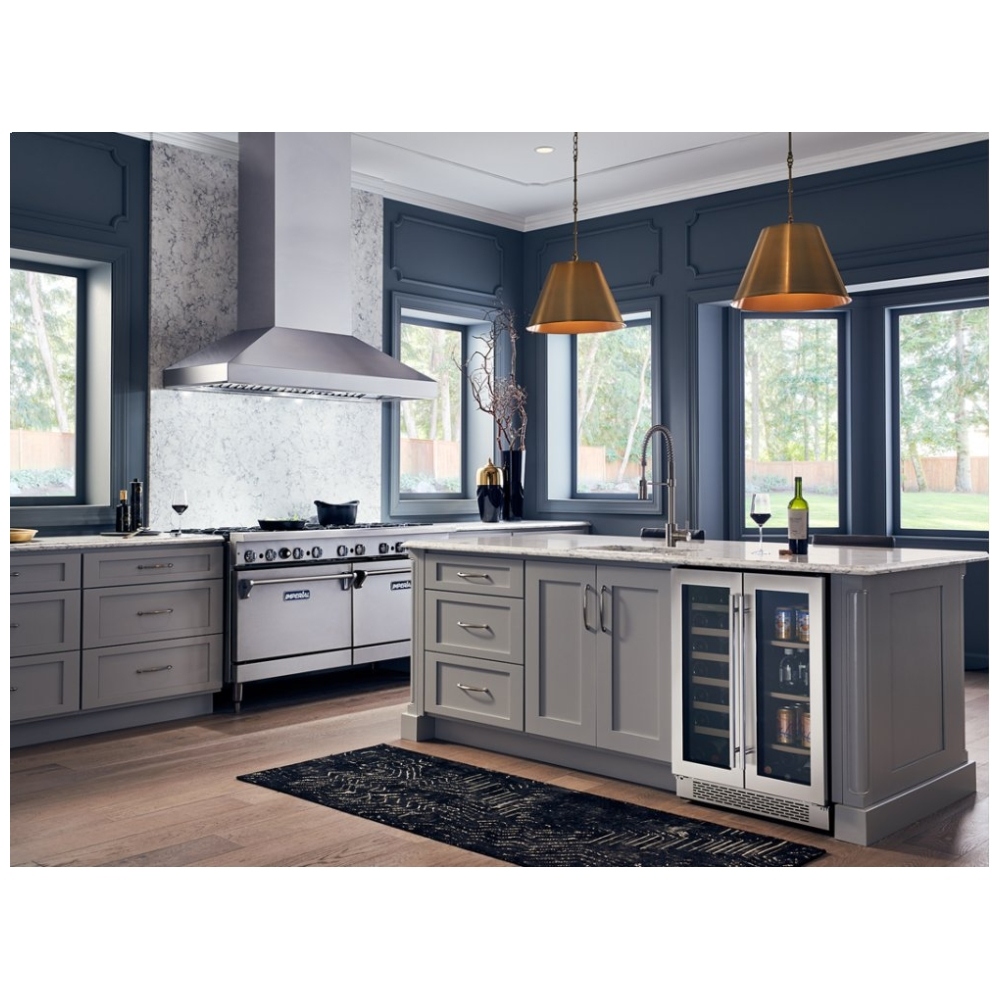

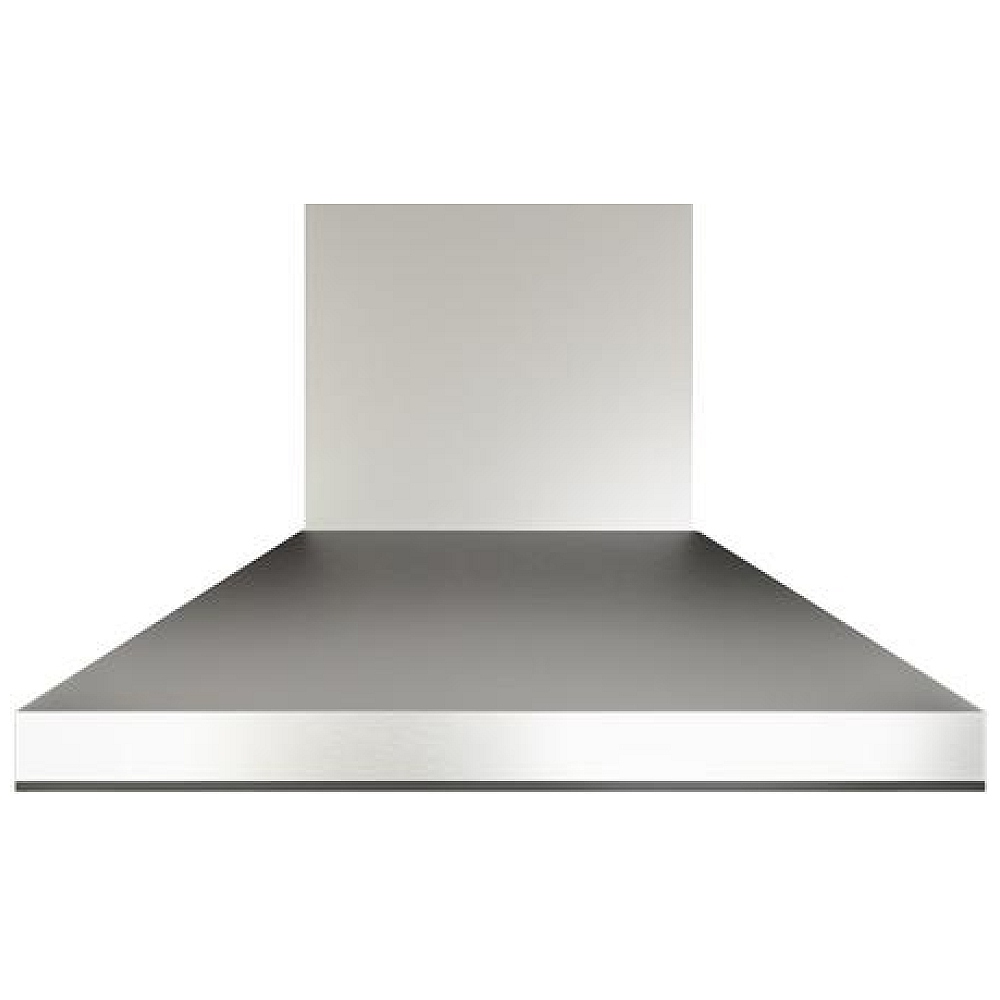

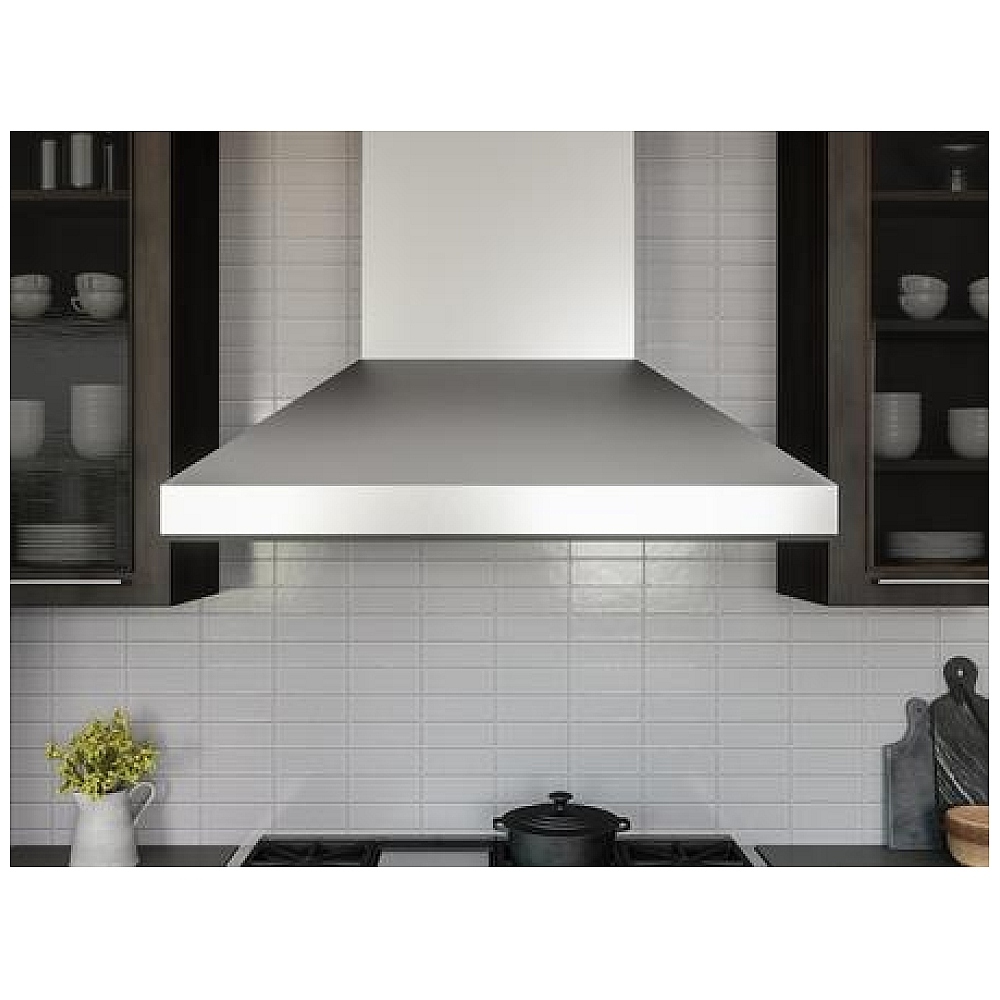

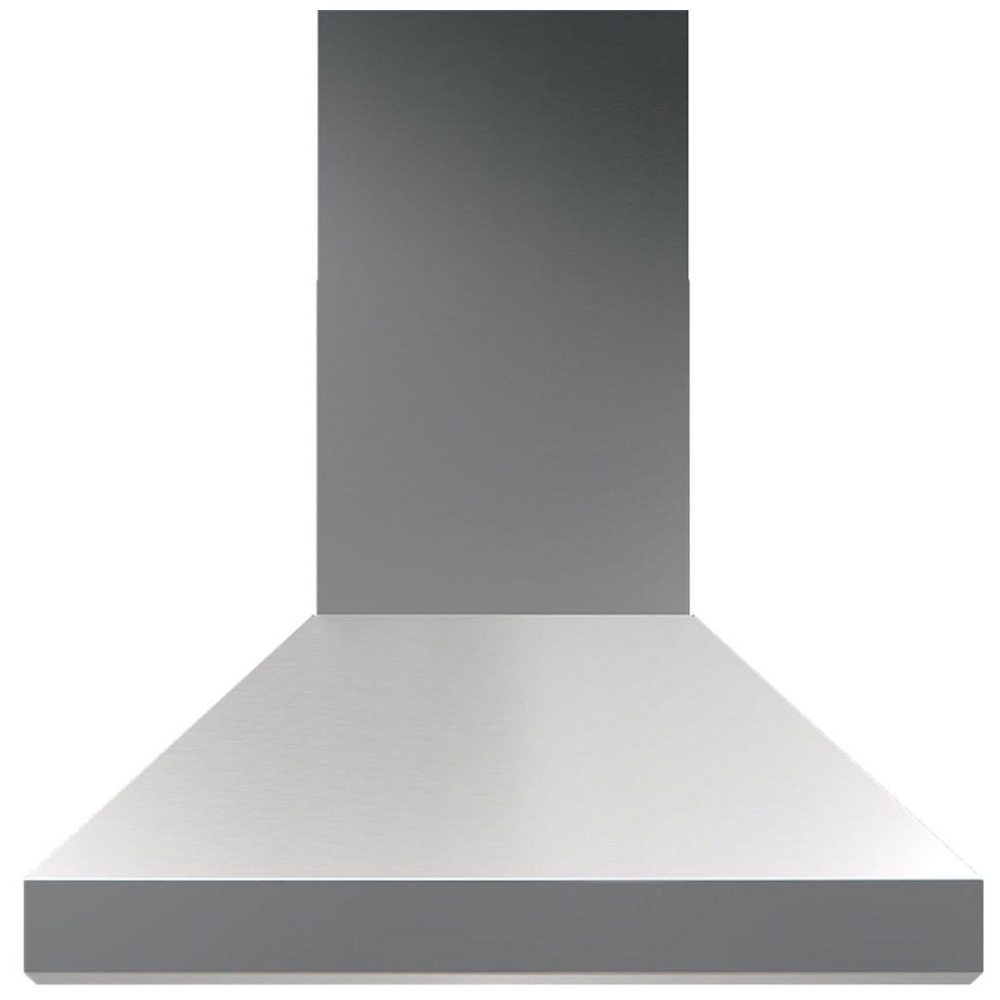

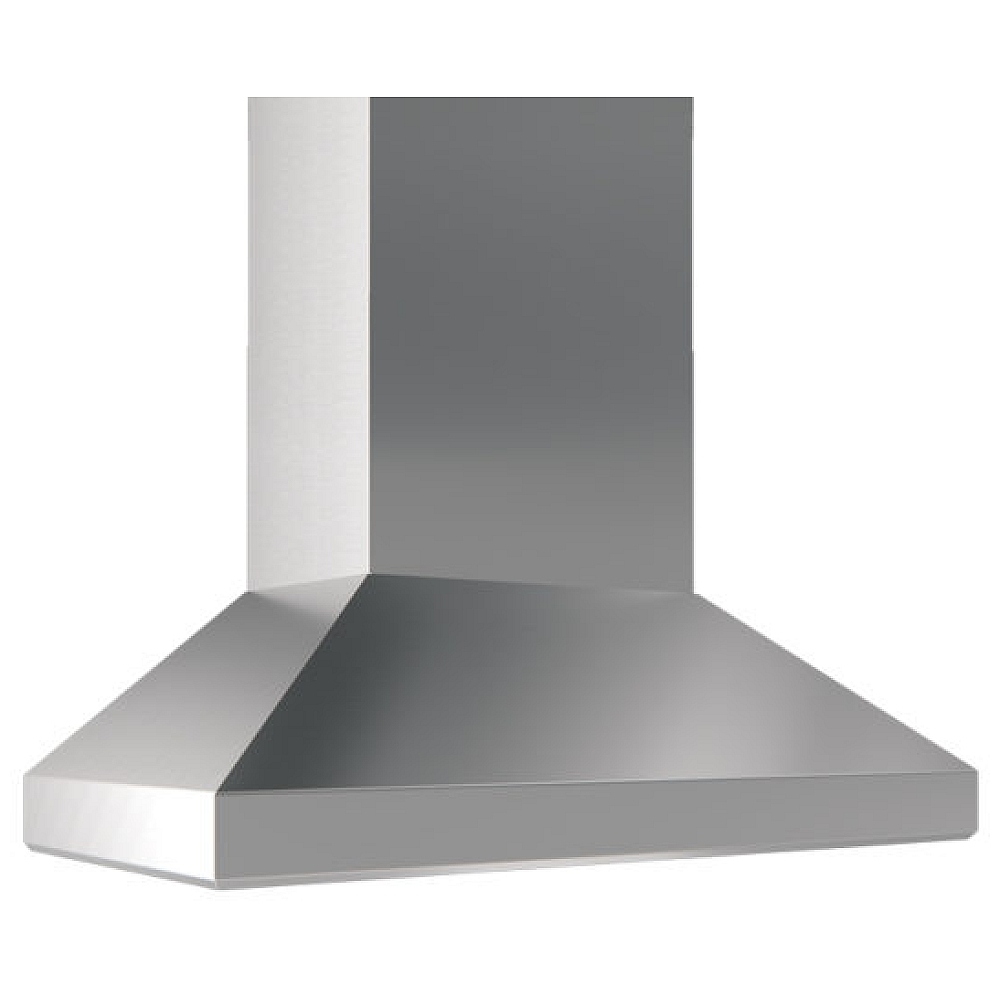

Pro Series 48 Inch Pro Style Wall Mount Ducted Hood with 750 CFM, LED Lights, in Stainless Steel
Pro Series 48 Inch Pro Style Wall Mount Ducted Hood with 750 CFM, LED Lights, in Stainless Steel
Titan, Wall, 48", SS, 750 CFM
- Airflow Control Technology™ (ACT™)
- Airflow Control Technology or ACT is an exclusive technology that gives installers the ability to set the maximum CFM levels to meet local code requirements.
- Professional Baffle Filters
- High-airflow baffle filters that are dishwasher safe and ensure a lifetime of exceptional performance.
- Directional Lighting
- Welded and polished body
- A welded and polished body ensures a high quality, seamless appearance.
- CleanAir Function
- The CleanAir Function powers the hood on every four hours for 10 minutes to refresh the cooking area.
- Optional wireless remote control
- Our wireless remote control places the hoods operations at your fingertips from anywhere in the kitchen.
- Optional Extension Duct Cover Kit
- Extension duct cover kit to accommodate ceiling heights up to 12 ft see spec sheets for more details.
Manufacturer's Warranty: 1 year
Canadian model: AK7648AS
Similar to USA model: AK7648AS
Canadian UPC: 646328006586
Similar to USA UPC: 646328006586
EAN: 0646328006586
| Brand | Zephyr |
| Manufacturer | Zephyr |
| Category | Range Hood |
| Sub-Category | Wall |
| Vent Type | Ducted |
| UPC | 646328006586 |
| GTIN | 00646328006586 |
| Country of Origin | Taiwan |
| Model Group | AK76-A |
| Model Name | Titan Wall |
| Collection | Pro Collection |
| Replacement Model | AK7648BS |
| Blower Included | Yes |
| Blower CFM w/ACT | 590, 390, 290 |
| Internal Blower 1 CFM | 750 |
| Internal Blower 1 Min. Sones | 0.5 |
| Internal Blower 1 Max Sones | 7 |
| Internal Blower 2 CFM | 1300 |
| Internal Blower 2 Max Sones | 8 |
| Minimum CFM | 200 |
| Installation Type | Wall |
| Installation Type | Wall |
| For Outdoor Use | No |
| Color | Stainless Steel |
| Controls Type | Electronic LCD |
| Blower Speeds | 6 |
| Automatic Delay-Off | Yes |
| Clean Air Function | Yes |
| Lighting Type | LED |
| Lights Quantity | 4 |
| Watts Per Bulb | 6 |
| Lights Levels | 2 |
| Grease Filter Type | Pro baffle |
| Compatible Mesh or Baffle Filter Part Number | 50210033 |
| Duct Discharge | Vertical or Horizontal |
| Duct Size; Horizontal; IN | 8, 10 |
| Duct Size; Vertical; IN | 8, 10 |
| Mounting Height Above Cooktop; IN | 24 - 36 |
| Voltage | 120 |
| Maximum Amperage | 8 |
| ADA Compliant | Yes, with optional remote |
| Warranty Parts / Labor | 3 / 1 |
| Compatible Appliances | PBD-1300A, Z1C-0176, 14000005, MUA006A, MUA008A, AK1718 |
| Bluetooth Connected | No |
| Wi-Fi Connected | No |
| Remote Included | No |
| Remote Optional | Yes |
| Energy Star Certified | No |
| Alexa & Google Home Compatible | No |
| CEC Title 20 Compliant | Yes |
| Primary Material | Stainless Steel |
| Wattage | 300 |
| Certification | UL |
| Nominal Width; IN | 48 |
| Net Width; IN | 47.9375 |
| Net Depth; IN | 24 |
| Net Height; IN | 30 - 42.5 |
| Weight; LBS | 85 |
| Ceiling Height Minimum | 8 ft. |
| Ceiling Height Maximum | 9 ft. |
| Chimney Height in. | 15.5 |
| Chimney Width in. | 22 |
| Chimney Depth in. | 13.93 |
| Shipping Length; IN | 50.39 |
| Shipping Width; IN | 22.44 |
| Shipping Height; IN | 27.56 |
| Shipping Weight; LBS | 101.9 |
| Shipping Method | LTL |
| Freight Class | 250 |
| Certification # | E127334 |
| Clean Filter Alert | Yes |
| Duct Type | Vertical |
| Duct Type | Vertical |
Model
- Brand:Zephyr
- SKU:AK7648AS
- UPC:646328006586
- Stock Id:937562
- Product Number:AK7648AS
- Series:Pro Series
- Warranty Info:
Appearance
- Type:Hood
- Glass Canopy:No
- Style:Chimney Style
- Color:Stainless Steel
Details
- Duct Type:Rectangular
- Venting Type:Ducted
- Blower Type:Internal
- Mounting Type:Wall Mount
- Commercial:No
- Vent Location:Top
- CFM:750 CFM
- Approved for Outdoor Use:No
- Make-Up Air Compliant:No
- Number of Light Bulbs:4
- Light Bulb Type:LED
- Number of Fan Speeds:3 or More
- Recirculating Kit:Sold Separately
- Pro-Style:Yes
- Filter Type:Baffle
- Fan:Yes
- Light:Yes
- Adjustable Duct Cover:Yes
Electrical Specifications
- Volts:120 Volts
- Amps:15 Amps
- Frequency:60 Hz.
Technical Details
- Warranty Terms:Limited 3 Year Parts, Limited 1 Year Labor
- Minimum Height:30"
- Weight:115.00 lbs
Certification
- Energy Star:No
- cUL:Yes
- UL:Yes
Dimensions
- Exterior Width:48"
- Duct Diameter:8"
- Duct Cover Height:15.7"
- Minimum Duct Cover Height:28.19"
- Height:42.5"
- Depth:24"
- Width:47.94"
Make-Up Air Manual (AK7648AS-make-up-air-manual-canada.pdf)
