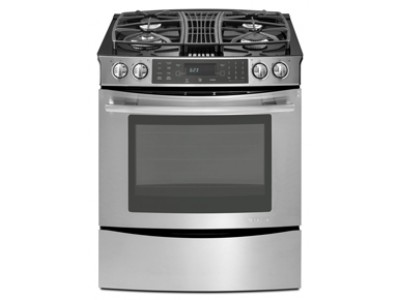

The heavy-duty 30-inch slide-in Jenn-Aid JGS9900CDS gas range is a splendid addition to any kitchen. Home chefs delight over its beautiful design, downdraft ventilation system, powerful four-burner cooktop, and high-performance convection oven. Jenn-Air took care and precision when designing this versatile range, so you can create meals to please your entire family.
This sleek range features a beautiful Ceran® glass-ceramic surface to provide your kitchen with a beautiful sheen and an easy-to-clean surface. The elegant black surface showcases four powerful gas burners.
The cooktop setup:
Right front burner: 16,000 BTU output
Right rear burner: 5,000 BTU output
Left front burner: 15,000 BTU output
Left rear burner: 9,200 BTU output
The powerful 15,000 BTU EvenThree burner is one of the most versatile burners on the market today. It precision heating power allows you go from cooking with and ultra-high heat of 15,000 BTUs all the way down to an ultra-low 650 BTU output. Making this burner perfect for high-heat cooking techniques, or achieving the perfect simmer or melt.
Its 16,000 BTU power burner was carefully crafted to provide you with a powerful heat output so you can achieve superior searing results, or flash frying results.
The left rear burner with 9,200 BTU output is ideal for everyday cooking use.
The ultra-low 5,000 BTU output burner allows you select the ideal low-heat cooking output between 5,000 BTU to a gentle 650 BTU output. This burner provides you with the ideal area for melting and simmering delicate sauces, so you can rest assured your delicate foods will not scorch or burn during meal preparation.
The Jenn-Air JGS9900CDS range features a 4.3 cubic-foot gas convection oven to achieve cooking, baking, roasting, and broiling perfection in your home kitchen. To ensure cooking perfection, this convection oven features the MultiMode® convection system with conversion system. This convection system uses a fan to circulate heated air over, under, and all around the food to achieve even cooking, browning and baking results.
This large capacity oven is equipped with three heavy-duty oven racks and five rack positions, to provide you with all the flexibility and versatility you could dream of in your home kitchen.
That is not all, this convection oven also features a self-cleaning system. Thanks to Jenn-Air you will never waste hours of your day scrubbing the inside of your oven with dangerous chemicals. This oven cleans itself through the use of high-heat temperatures to remove spills, baked-on messes, and more for the oven.
For safety and convenience, this Jenn-Air range features an electronic ignition and Flame-Sensing re-ignition. The innovative Flame-Sensing re-ignition system ensures a continuous flame by automatically re-igniting a burner if it is blown out, so harmful gas does not invade your home.
The Jenn-Aire JGS9900CDS built-in range features a downdraft ventilation with two-speed fan to capture smoke, odors, and excess heat right at the surface as you cook. You can keep the air in your kitchen air without installing a large, bulky, expensive ventilation hood!
Product description created exclusively for Canadian Appliance Source. All rights reserved.
30" Slide-In Gas Downdraft Range with Convection
OverviewThis Jenn-Air® luxury gas downdraft range features four burners, including a versatile 15,000 BTU burner, and a built-in ventilation system that captures smoke and cooking odors at the cooking surface, to efficiently clear the air without a hood. And its MultiMode® convection system distributes heat evenly for beautifully consistent results.
Specifications Configuration and Overview- Fuel Type: Gas
- Range Type : Slide-in
- Size: 30
- Capacity: 4.3
Controls- Door Type: Metal & Glass
- Handle Material: Metal
- Selections: Clock, Control Lock, Cook and Hold, Delay Start, Keep Warm Setting, Rapid Preheat, Sabbath Mode, Simmer, Temperature Probe, Timer, Warm Hold
- ADA Compliant: ADA Height and Operation Compliant
- UL: Yes
Cooktop Features- Cooktop Element Style: Sealed Burner
- Cooktop Surface Color: Color Coordinated
- Cooktop Surface Material: Ceramic Glass
- Number of Cooking Element-Burners: 4
- Left Front Element-Burner Power: 15000 BTU
- Left Front Element-Burner Type: Sealed Burner
- Left Rear Element-Burner Power: 9200 BTU
- Left Rear Element-Burner Type: Sealed Burner
- Right Front Element-Burner Power: 16000 BTU
- Right Front Element-Burner Type: Sealed Burner
- Right Rear Element-Burner Power: 5000 BTU
- Right Rear Element-Burner Type: Simmer
- Dishwasher Safe: Yes
- Grate Finish: Matte
- Grate Material: Cast Iron
- Grate Type: Continuous
- Number of Grates: 2
Dimensions- Depth: 28 7/8
- Height: 37 5/8
- Width: 30 3/4
Oven Features- Convection Bake: Yes
- Self-Cleaning : Self-Cleaning
- Automatic Convection Conversion Temperature Adjust: Yes
- Heating Element On Indicator Light: No
- Hot Surface Indicator Light: No
- Power On Indicator Light: Yes
- Broiler Location: Top of Oven
- Convection Element Type: Single-Fan
- Convection Functions: Bake, Roast
- Hidden Bake: Yes
- Light Type: Halogen
- Number of Oven Lights: 1
- Number of Oven Racks: 3
- Number of Rack Guides: 5
- Oven Cooking System: Convection
- Oven Rack Type: Heavy Duty
- Self-Cleaning : Yes
- Signature Features
- Downdraft Ventilation System with 2-Speed Fan
- EvenThree™ Burner
- Menu-Driven Electronic Oven Controls
- MultiMode® Convection System with Convection Element
- Cooking Surface Control Features
- Infinite Burner Control Settings
- Electronic Ignition and Flame-Sensing™ Re-ignition
- Cooking Surface Features
- 5,000 BTU Ultra-Low Output Burner
- Ceran® Glass-Ceramic Surface
- 16,000 BTU PowerBurner
- 4 Sealed Burners
- 9,200 BTU Burner
- Convertible to LP
- Oven Control Features
- Delay-Start Cooking & Cleaning
- Electronic Clock with Two Timers
- Favorite Setting(s) Option
- Keep Warm™ Option
- Proofing Option
- Sabbath Mode
- Rapid Preheat
- Control Lockout
- Control Setup Options
- Cook & Hold Option
- Temperature Probe
- Auto Convection Conversion
- Oven Features
- CustomClean™ Self-Cleaning with Adjustable Levels and Automatic Lock
- Temperature-Controlled Preheat
- Variable Temperature Broil
- 16,000 BTU Bake Burner
- Halogen Light
- 3 Heavy-Duty Racks
- 4.3 Cu. Ft. Oven Capacity
- 13,000 BTU Broil Burner
- Exterior Design Features
- Extra-Large Panaview™ Oven Window
- Porcelain-on-Cast-Iron Grates
- Curved Front Design
- Black Satin-Matte Grates and Burner Caps
•Downdraft Ventilation System with 2-Speed Fan
•EvenThree™ Burner
•MultiMode® Convection System with Convection Element
•Menu-Driven Electronic Oven Controls
•4 Sealed Burners
•16,000 BTU PowerBurner
•9,200 BTU Burner
•5,000 BTU Ultra-Low Output Burner
•Convertible to LP
•Electronic Ignition and Flame-Sensing™ Re-ignition
•Infinite Burner Control Settings
•4.3 Cu. Ft. Oven Capacity
•16,000 BTU Bake Burner
•13,000 BTU Broil Burner
•Variable Temperature Broil
•Temperature-Controlled Preheat
•CustomClean™ Self-Cleaning with Adjustable Levels and Automatic Lock
•3 Heavy-Duty Racks
•Halogen Light
•Electronic Clock with Two Timers
•Auto Convection Conversion
•Delay-Start Cooking & Cleaning
•Cook & Hold Option
•Proofing Option
•Keep Warm™ Option
•Favorite Setting(s) Option
•Control Setup Options
•Rapid Preheat
•Temperature Probe
•Control Lockout
•Sabbath Mode
•Curved Front Design
•Ceran® Glass-Ceramic Surface
•Porcelain-on-Cast-Iron Grates
•Black Satin-Matte Grates and Burner Caps
•Extra-Large Panaview™ Oven Window
