Certifications
Prop65	Standard
Details
This Part Is A Replacement for the Following Part Numbers	12774, W10298318, W10761316, 52774, W10298318RP
Dimensions
Carton Depth	13
Carton Height	2
Carton Width	6.5
Gross Weight	0.5
Net Weight	0.5

Specification	Details
Capacity (IEC Canada)	5.2 Cu Ft
Capacity (DOE US)	4.5 Cu Ft
Capacity (Liters, DOE US)	127.35 L
Capacity (Liters, IEC Canada)	147.16 L
Washer Capacity (pair listings)	4.5 Cu Ft
Width	27 inches
Width (cm)	68.58 cm
Height	39 inches
Height (minimum)	38-5/8 inches
Height (maximum)	42-3/4 inches
Height (cm)	99.06 cm
Depth	31-9/16 inches (31.56 in)
Depth (cm)	80.17 cm
Depth with Door Open 90°	54-7/8 inches (54.88 in)
Depth with Door Open 90° (cm)	139.38 cm
Overall Dimensions (some retailers)	27" W x 31.56" D x 38.63" H
Washer Door Opening Width	23-1/2 inches
Product Weight	222 lbs
Gross Weight	232 lbs
Product Weight (kg)	100.7 kg
Gross Weight (kg)	105.23 kg
Color	White
Finish / Color Finish Name	White
Door Panel Type	Glass
Lid/Door Finish	Glass
Lid/Door Swing	Left
Window	Yes
Slow Close Lid	N/A (front load door)
Type of Washer	Front Load
Wash Action System	Impeller
Washer Drum Material	Stainless Steel
Washer Drum Rear/Base Material	Stainless Steel
Suspension System	2 Springs, 4 Dampers
Out of Balance Sensing	Yes
High Efficiency	Yes
Internal Heater	Yes
Wash Cycles (Number)	12
Washer Cycle Selections	Bedding; Clean Washer with affresh; Cold Wash; Custom Cycle; Delicates; Drain & Spin; Dry Drum; Heavy Duty; Normal / Regular; Quick Wash; Sanitize; Whites
Programmable Cycle	Yes
Speed Wash / Quick Wash	Yes (Quick Wash)
Number of Soil Levels	4 (Extra Heavy; Heavy; Medium; Light)
Number of Spin Speeds	4
Spin Speed Selections	Fast; Medium; Slow; Off
Maximum Spin Speed	1,160 RPM
Number of Temperatures	5
Temperature Selections	Extra Hot; Hot; Warm; Cool; Cold
Number of Wash/Rinse Temperatures	5
Number of Rinse Options	2
Rinse Options	Auto; Extra Rinse
Rinse Temperature	Cold
Water Levels	Auto (Automatic Load Size Sensing)
Automatic Load Size Sensing Technology	Yes
Number of Washer Options	9
Washer Option Selections	Control Lock; Delay Wash; End of Cycle Signal; Extra Rinse; FanFresh; Presoak; Remote Enable; Soil Level; Spin Speed; Steam Clean; Temperature
Pre Soak / Presoak	Yes
Delay Start / Delay Wash	Yes
End of Cycle Signal	Yes
Control Lock	Yes
Cycle Status Indicator / Feedback Indicators	Add Garment; Control Lock; End; Estimated Time Remaining; Sensing; Washing
Electronic Display Type	Cycle Indicator Lights with Digital Time Remaining
Control Location	Front Panel
Control Type	Knobs with electronic touch / LCD interface
LCD Touch Screen	Yes
LED Color	White
Automatic Temperature Controls	Yes
Eco / Efficiency Monitor	No
Dispenser Type	Detergent, Fabric Softener & Bleach
Automated Dispenser	No (standard drawer, not bulk auto-dosing)
Fan Type	FanFresh
FreshFlow Vent System	Yes (fan-powered vent system)
FanFresh Option	Yes
Dry Drum Cycle	Yes
Antimicrobial Protection	Yes (rubber door seal)
AI Intelligent Wash	Yes (senses load size and fabric type)
Smart Features with Whirlpool App	Yes (start, pause, monitor, notifications, specialty & custom cycles)
Smart Appliance	Yes
Connectivity	Wi-Fi; works with Amazon Alexa, Google Assistant, Android, iOS
Works With	App; Remote Access; Voice Control; WiFi
Remote Enable	Yes
Family Share / Specialty Cycles via App	Supported (via Whirlpool App)
Energy Star Certified	Yes (ENERGY STAR Qualified)
CEE Tier Rating	Tier I
Energy Rating (kWh/year)	140 kWh/year (approx.)
IMEF	2.76
IWF	3.2
Water Factor	3.2
Voltage	120 V
Frequency	60 Hz
Amps	15 A
Power Cord Included	Yes
Motor Type	Inverter-driven variable speed direct drive motor
Motor Drive Type	Direct Drive
Pedestal Options	WFP2715HW; XHP1000XW
Stackable	Yes
Matching Dryer Models	WED5720RW (electric); WGD5720RW (gas)
ADA Compliant	No
UL Listed	Yes
Prop 65	Standard warning (Cancer and Reproductive Harm)
Hoses Included	4 ft 4 in drain hose included
Drain Hose Length	4.33 ft (approx.)
Adjustable Feet / Leveling Legs	Yes
Washer Features (retailer summaries)	Add Item (Pause); Front Controls; Door Window; Smart App Compatible; Wi-Fi Capable; Adjustable Legs; End of Cycle Signal; Delayed Start; Automatic Temperature Control; Spin Speed Option; Sensor Wash; Self-Cleaning; Cycle Status Indicator; Control Lock

Specification	Value
Capacity	7.4 cu. ft.
Capacity IEC Canada	7.4 cu. ft.
Capacity (Liters)	209.42 L
Width	27 in
Height	39 in
Minimum Height	38-1/8 in
Maximum Height	39 in
Depth	30-5/8 in
Depth Excluding Doors	30-5/8 in
Depth With Door Open 90°	54.313 in
Door Opening Width	25.69 in
Door Opening Height	25.69 in
Net Weight	132 lbs
Gross Weight	146 lbs
Fuel Type	Gas
Dryer Type	Front Load
Venting Type	Vented
Venting Direction	Left, Right, Bottom, Rear
Four-Way Venting	Yes
Dryer Maximum Vent Length	64 ft
Flat Back	No
Long Vent	No
Energy Star® Qualified	ENERGY STAR® Qualified
ADA Compliant	No
UL Listed	Yes
Prop 65	Standard
Color	White
Door Style	Side Swing
Door Opening Direction	Right
Reversible Door	Yes
Window	Yes
Stackable	Yes
Wi-Fi Enabled	Yes
Smart Appliance	Yes
Connectivity	Amazon Alexa, Android, Google Assistant, iOS
Smart Features	Whirlpool® App, Remote Access, Voice Control, Cycle Notifications, Family Share, Favourite/Custom Cycles
Control Type	Knob and Button
Control Location	Front
End of Cycle Signal	Yes
Feedback / Status Indicators	Check Vent, Cool Down, Damp, Sensing, Wet
Automatic Temperature Controls	Yes
Automatic Dry Control	Yes
Cycle Time Remaining Display	Yes
Dryer Drum Material	Powder Coat
Dryer Drum Baffles	4 (Quad Baffles)
Dryer Interior Light	Yes
Dryer Moisture Sensor	Yes
Moisture Sensor Technology	AI Intelligent Dry (three sensors to detect moisture and temperature)
Dryer Heating Burner	20,000 BTU (approx.)
Drying Rack	Yes (Not Included)
Lint Screen Location	Front
Dryer Lint Filter Indicator	Yes
Secondary Lint Filter	No
Hoses Included	No
LP Convertible	Yes
Sound Package	No
Steam Option	No (Wrinkle Shield™ with Steam is an option setting, not a full steam dryer)
Number of Dryer Cycles	12
Drying Cycles Selections	Air Dry, Bedding, Delicates, Heavy Duty, Jeans, Regular, Sanitize, Whites, Wrinkle Control, plus Specialty/Favourite/Custom cycles
Dryer Temperature Selections	Air Only, Extra Low, Low, Medium, High
Number of Temperatures	5
Number of Dryness Levels	3
Selection of Drying Levels	Less, Normal, More
Dryer Option Selections	Control Lock, Cycle Signal, Damp Dry Signal, EcoBoost™, Wrinkle Shield™, Wrinkle Shield™ with Steam
Number of Dryer Options	10
Wrinkle Shield™ Option	Keeps clothes tumbling up to 150 minutes after cycle ends or until door is opened
Wrinkle Control Cycle	Yes (uses lower temperatures and Wrinkle Shield™)
EcoBoost™ Option	Yes (uses less heat to save energy)
Air Dry Cycle	Yes (no added heat, for delicate items)
Quick Dry Cycle	Yes (for small loads)
Sanitize Cycle	Yes (uses high heat to eliminate 99.9% of common household bacteria on items like towels)
Regular / Normal Cycle	Yes
Heavy Duty Cycle	Yes
Jeans Cycle	Yes
Whites Cycle	Yes
Bedding Cycle	Yes
Delicates Cycle	Yes
Specialty Cycles	Yes (via app / custom programming)
Favourite / Custom Cycles	Yes (design and save custom cycles)
Quick Wash & Dry Pairing	Designed to pair with 25-minute Quick Wash on matching washer and 30-minute timed dry to finish laundry in under 1 hour (based on 10-lb load, medium heat)
Stain Guide	Yes (step-by-step instructions via app for common stains)
Cycle Notifications	Yes (to smartphone)
Family Share	Yes (add family members in Whirlpool® App for shared access)
Power Cord Included	Yes
Optional Accessories	Drying rack, gas hose kit (sold separately)
Warranty	1-Year Parts and Labor (typical)

Whirlpool Washer & Dryer Set

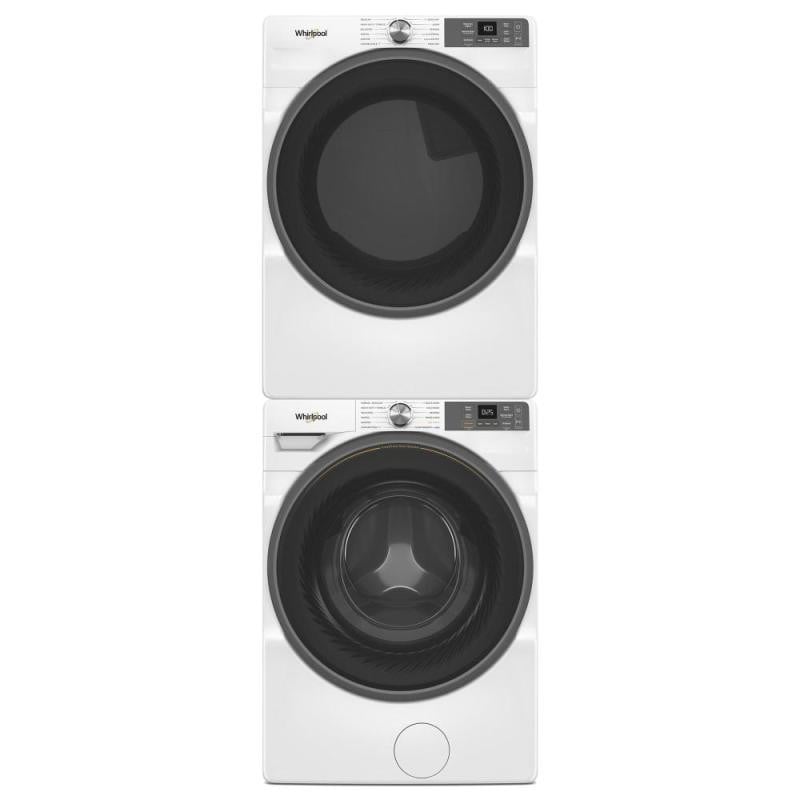

Whirlpool Stackable WFW5720RW Washer, WGD5720RW Gas Dryer, & W10869845 Stacking Kit

Whirlpool Washer & Dryer Set

Whirlpool Stackable WFW5720RW Washer, WGD5720RW Gas Dryer, & W10869845 Stacking Kit

Product Accessory W10869845

Washer WFW5720RW

Dryer WGD5720RW

Product Accessory W10869845

Washer WFW5720RW

Dryer WGD5720RW

Product Accessory W10869845

Washer WFW5720RW

Dryer WGD5720RW
