Certifications
Prop65	Standard
Details
This Part Is A Replacement for the Following Part Numbers	12774, W10298318, W10761316, 52774, W10298318RP
Dimensions
Carton Depth	13
Carton Height	2
Carton Width	6.5
Gross Weight	0.5
Net Weight	0.5

Specification	Details
Capacity (IEC Canada)	5.2 Cu Ft
Capacity (DOE US)	4.5 Cu Ft
Capacity (Liters, DOE US)	127.35 L
Capacity (Liters, IEC Canada)	147.16 L
Washer Capacity (pair listings)	4.5 Cu Ft
Width	27 inches
Width (cm)	68.58 cm
Height	39 inches
Height (minimum)	38-5/8 inches
Height (maximum)	42-3/4 inches
Height (cm)	99.06 cm
Depth	31-9/16 inches (31.56 in)
Depth (cm)	80.17 cm
Depth with Door Open 90°	54-7/8 inches (54.88 in)
Depth with Door Open 90° (cm)	139.38 cm
Overall Dimensions (some retailers)	27" W x 31.56" D x 38.63" H
Washer Door Opening Width	23-1/2 inches
Product Weight	222 lbs
Gross Weight	232 lbs
Product Weight (kg)	100.7 kg
Gross Weight (kg)	105.23 kg
Color	White
Finish / Color Finish Name	White
Door Panel Type	Glass
Lid/Door Finish	Glass
Lid/Door Swing	Left
Window	Yes
Slow Close Lid	N/A (front load door)
Type of Washer	Front Load
Wash Action System	Impeller
Washer Drum Material	Stainless Steel
Washer Drum Rear/Base Material	Stainless Steel
Suspension System	2 Springs, 4 Dampers
Out of Balance Sensing	Yes
High Efficiency	Yes
Internal Heater	Yes
Wash Cycles (Number)	12
Washer Cycle Selections	Bedding; Clean Washer with affresh; Cold Wash; Custom Cycle; Delicates; Drain & Spin; Dry Drum; Heavy Duty; Normal / Regular; Quick Wash; Sanitize; Whites
Programmable Cycle	Yes
Speed Wash / Quick Wash	Yes (Quick Wash)
Number of Soil Levels	4 (Extra Heavy; Heavy; Medium; Light)
Number of Spin Speeds	4
Spin Speed Selections	Fast; Medium; Slow; Off
Maximum Spin Speed	1,160 RPM
Number of Temperatures	5
Temperature Selections	Extra Hot; Hot; Warm; Cool; Cold
Number of Wash/Rinse Temperatures	5
Number of Rinse Options	2
Rinse Options	Auto; Extra Rinse
Rinse Temperature	Cold
Water Levels	Auto (Automatic Load Size Sensing)
Automatic Load Size Sensing Technology	Yes
Number of Washer Options	9
Washer Option Selections	Control Lock; Delay Wash; End of Cycle Signal; Extra Rinse; FanFresh; Presoak; Remote Enable; Soil Level; Spin Speed; Steam Clean; Temperature
Pre Soak / Presoak	Yes
Delay Start / Delay Wash	Yes
End of Cycle Signal	Yes
Control Lock	Yes
Cycle Status Indicator / Feedback Indicators	Add Garment; Control Lock; End; Estimated Time Remaining; Sensing; Washing
Electronic Display Type	Cycle Indicator Lights with Digital Time Remaining
Control Location	Front Panel
Control Type	Knobs with electronic touch / LCD interface
LCD Touch Screen	Yes
LED Color	White
Automatic Temperature Controls	Yes
Eco / Efficiency Monitor	No
Dispenser Type	Detergent, Fabric Softener & Bleach
Automated Dispenser	No (standard drawer, not bulk auto-dosing)
Fan Type	FanFresh
FreshFlow Vent System	Yes (fan-powered vent system)
FanFresh Option	Yes
Dry Drum Cycle	Yes
Antimicrobial Protection	Yes (rubber door seal)
AI Intelligent Wash	Yes (senses load size and fabric type)
Smart Features with Whirlpool App	Yes (start, pause, monitor, notifications, specialty & custom cycles)
Smart Appliance	Yes
Connectivity	Wi-Fi; works with Amazon Alexa, Google Assistant, Android, iOS
Works With	App; Remote Access; Voice Control; WiFi
Remote Enable	Yes
Family Share / Specialty Cycles via App	Supported (via Whirlpool App)
Energy Star Certified	Yes (ENERGY STAR Qualified)
CEE Tier Rating	Tier I
Energy Rating (kWh/year)	140 kWh/year (approx.)
IMEF	2.76
IWF	3.2
Water Factor	3.2
Voltage	120 V
Frequency	60 Hz
Amps	15 A
Power Cord Included	Yes
Motor Type	Inverter-driven variable speed direct drive motor
Motor Drive Type	Direct Drive
Pedestal Options	WFP2715HW; XHP1000XW
Stackable	Yes
Matching Dryer Models	WED5720RW (electric); WGD5720RW (gas)
ADA Compliant	No
UL Listed	Yes
Prop 65	Standard warning (Cancer and Reproductive Harm)
Hoses Included	4 ft 4 in drain hose included
Drain Hose Length	4.33 ft (approx.)
Adjustable Feet / Leveling Legs	Yes
Washer Features (retailer summaries)	Add Item (Pause); Front Controls; Door Window; Smart App Compatible; Wi-Fi Capable; Adjustable Legs; End of Cycle Signal; Delayed Start; Automatic Temperature Control; Spin Speed Option; Sensor Wash; Self-Cleaning; Cycle Status Indicator; Control Lock

Specification	Details
Capacity	7.4 cu ft
Capacity IEC Canada	7.4 cu ft
Width	27 in
Height	39 in
Minimum Height	38-1/8 in
Maximum Height	39 in
Depth	30-5/8 in (30.63 in)
Depth Excluding Doors	30-5/8 in
Depth with Door Open 90°	54.31 in
Door Opening Width	25.69 in
Door Opening Height	25.69 in
Net Weight	132 lbs (59.87 kg)
Gross / Shipping Weight	146 lbs (66.22 kg)
Carton Width	29 in
Carton Height	41 in
Carton Depth	33 in
Fuel Type	Electric
Venting Type	Vented
Venting Direction	Left, Right, Bottom, Rear
Four-Way Venting	Yes
Maximum Vent Length	64 ft
Ventless	N/A
Long Vent	No
Drum Material	Powder Coat
Tub Material	Powder Coat
Door Style	Side Swing
Door Opening Direction	Right
Reversible Door	Yes
Window	Yes
Control Location	Front Console
Control Type	Knob and Button / Electronic
End of Cycle Signal	Yes
Feedback / Status Indicators	Check Vent, Cooling Down, Damp, Sensing, Wet
Lint Screen Location	Front
Dryer Rack	Yes (Optional / Not Included)
Interior Light	Yes
Automatic Dry Control	Yes
Moisture Sensor	Yes (AI Intelligent Dry / Advanced Moisture Sensing)
Quad Baffles	Yes
Sound Package	No
LP Convertible	No
Hoses Included	No
Power Cord Included	Yes
Amps	30 A
Voltage	240 V
Frequency	60 Hz
Number of Dryer Cycles	12
Drying Cycles (How to Dry)	Normal, Wrinkle Control, Heavy Duty, Sanitize, Timed Dry, Quick
Drying Cycles (What to Dry)	Regular, Delicates, Bulky Items, Whites, Colors, Towels
Specialty / Custom / Favourite Cycles	Yes (via app / smart features)
Number of Temperature Selections	4
Temperature Selections	Air Only, Extra Low (Very Low), Low, Medium, High
Number of Dryness Levels	3
Dryness Levels	Less, Normal, More
Timed Dry Cycle	Yes (includes 30-minute Quick Dry)
Quick / Express Dry Cycle	Yes (Quick / Quick Dry)
Sanitize Cycle	Yes
Wrinkle Control / Wrinkle Prevent Cycle	Yes
Air Dry / Air Fluff Cycle	Yes
Towels Cycle	Yes
Sensor Dry Cycle	Yes
Cycle Time Remaining Display	Yes
Wrinkle Shield Option	Yes, up to 150 minutes of tumbling after cycle ends
EcoBoost Energy Saver Option	Yes
Control Lock	Yes
Cycle Signal Option	Yes
Damp Dry Signal	Yes
Number of Dryer Options	9
Dryer Option Selections	Wrinkle Shield, EcoBoost, Cycle Signal, Damp Dry Signal, Control Lock (plus additional smart options)
Smart Appliance	Yes
Connectivity	WiFi, App, Remote Access, Voice Controlled
Works With	Whirlpool App, Amazon Alexa, Google Assistant, Android, iOS
Cycle Notification	Yes (via app)
Stain Guide	Yes (via app)
Energy Star Certified	Yes
ADA Compliant	ADA Compliant with feet fully extended (per manufacturer)
UL Listed	Yes
Country of Origin	USA
Appliance Color / Finish	White
Color Finish Name	White
Size Class	Large (7.1 – 8.0 cu ft)
Stackable	Yes
Top Load Matching	No
Front Load Matching Washer	WFW5720RW
Matching Pedestal	WFP2715HW
Optional Accessories	WFP2715HW pedestal, vent kits and accessories (e.g., 4396028, W10044609A, W10322470A, W10323246, W10623830, W10869845)
Delay Start	Yes (via smart scheduling / app)
WiFi Connectivity	Yes
Warranty	1-Year Parts and Labor (typical)

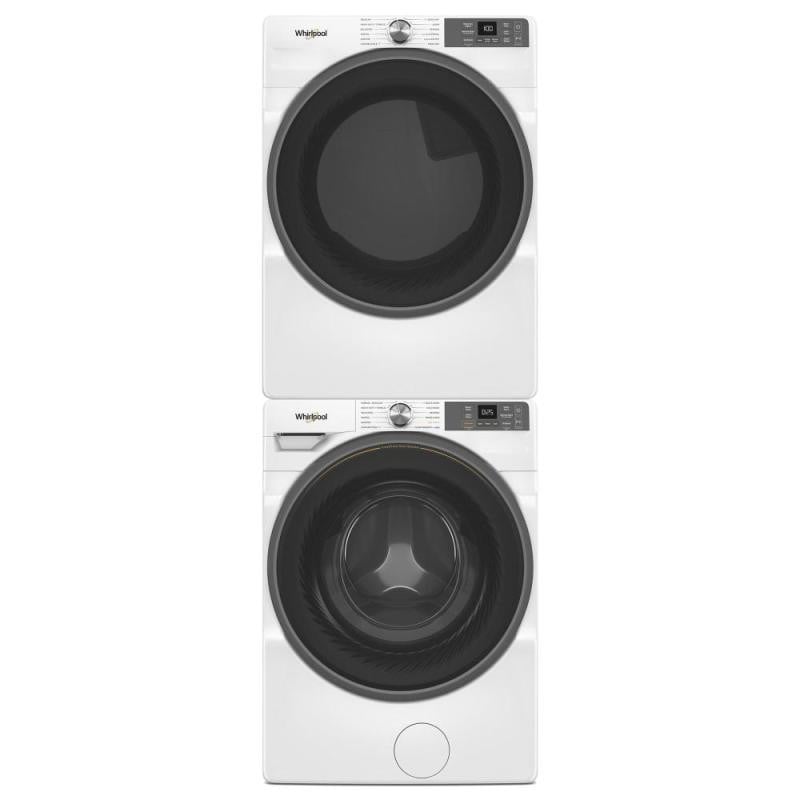

Whirlpool Washer & Dryer Set

Whirlpool Stackable WFW5720RW Washer, YWED5720RW Electric Dryer, & W10869845 Stacking Kit

Whirlpool Washer & Dryer Set

Whirlpool Stackable WFW5720RW Washer, YWED5720RW Electric Dryer, & W10869845 Stacking Kit

Product Accessory W10869845

Washer WFW5720RW

Dryer YWED5720RW

Product Accessory W10869845

Washer WFW5720RW

Dryer YWED5720RW

Product Accessory W10869845

Washer WFW5720RW

Dryer YWED5720RW
