Certifications
Prop65	Standard
Details
This Part Is A Replacement for the Following Part Numbers	12774, W10298318, W10761316, 52774, W10298318RP
Dimensions
Carton Depth	13
Carton Height	2
Carton Width	6.5
Gross Weight	0.5
Net Weight	0.5

Specification	Value
Capacity (DOE, US)	5.0 Cu Ft
Capacity (IEC, Canada)	5.8 Cu Ft
Width	27 inches
Height	39 inches
Depth	33.25 inches
Depth with Door Open 90°	56.5 inches
Minimum Height (leveling range)	38.625 inches
Maximum Height (leveling range)	42.75 inches
Net Weight	222 lbs
Gross Weight	232 lbs
Color Finish Name	Radiant Silver / Core Silver
Type of Washer	Front Load
Stackable	Yes
Pedestal Options	WFP2715RR; XHP1000XW
Matching Gas Dryer	WGD6720RR
Matching Electric Dryer	WED6720RR / WED6720RW (varies by retailer)
Energy Star	ENERGY STAR Qualified
Energy Consumption	140 kWh/year (approx.)
IMEF	2.76
IWF	3.2
Water Factor	3.2
ADA Compliant	No
Smart Appliance	Yes
Connectivity	Wi‑Fi; Amazon Alexa; Google Assistant; Android; iOS
Works With	App; Remote Access; Voice Control; Wi‑Fi
Control Location	Front
Control Type	Knob and Button / Electronic Touch with Knob
Electronic Display Type	Cycle indicator light with digital remaining time
Door Style	Side swing
Door Swing	Left
Door Finish	Glass window
Window	Yes
Adjustable Feet	Yes
Suspension System	2 springs, 4 dampers
Washer Drum Material	Stainless Steel
Washer Drum Rear/Base Material	Stainless Steel
Maximum Spin Speed	1,160 RPM
Number of Spin Speeds	4
Spin Speed Selections	Fast; Medium; Slow; Off
Number of Soil Levels	4
Soil Level Selections	Extra Heavy; Heavy; Medium; Light / Normal
Number of Temperatures	5
Temperature Selections	Extra Hot; Hot; Warm; Cool; Cold
Number of Wash Cycles	12
Number of Washer Options	10
Washer Cycle Selections	Bedding; Clean Washer with affresh; Cold Wash; Custom Cycle; Delicates; Drain & Spin; Dry Drum; Heavy Duty; Normal / Regular; Quick Wash; Sanitize; Whites
Washer Option Selections	Control Lock; Delay Wash; End of Cycle Signal; Extra Rinse; FanFresh; Presoak; Remote Enable; Soil Level; Spin Speed; Steam Clean; Temperature
Rinse Options	Auto; Extra Rinse
Rinse Temperature	Cold
Water Levels	Auto (load sensing)
Automatic Load Size Sensing	Yes
Internal Heater	Yes
Motor Drive Type	Direct Drive
Motor Horsepower	Inverter-driven variable speed direct drive motor
High Efficiency	Yes
Dispenser System	Detergent; Fabric Softener; Bleach
Automated Dispenser	No (standard dispensers)
Hoses Included	4 ft 4 in drain hose included
Drain Hose Length	4.33 feet (approx.)
FreshFlow Vent System	Yes
FanFresh Option	Yes
Dry Drum Cycle	Yes
Antimicrobial Protection	Antimicrobial rubber seal / gasket
AI Intelligent Wash	Yes
Pre Soak	Yes
Delay Start / Delay Wash	Yes
End of Cycle Signal	Yes
Cycle Time Remaining Display	Yes
Feedback / Status Indicators	Add Garment; Control Lock; End; Estimated Time Remaining; Sensing; Washing
Control Lock	Yes
Child Lock	Yes (via Control Lock)
Self-Cleaning Cycle	Clean Washer with affresh
Sanitize Option / Cycle	Yes
Steam Clean Option	Yes (Steam-enhanced cycles)
Eco / Energy-Saving Features	High-efficiency wash system; ENERGY STAR qualification
Power Cord Included	Yes
Electrical Requirements	120 Volts / 60 Hz / 15 Amps
UL Listed	Yes
Prop 65	Standard (US only)
Wi‑Fi Enabled	Yes
Smart App Compatible	Whirlpool App
Voice Control	Yes (via compatible assistants)
Out of Balance Sensing	Yes
Stacking Kit Included	No (sold separately)
Country of Origin	USA (varies by batch/retailer)
UPC	883049692869
EAN	0883049692869

Specification	Value
Capacity	7.4 cu. ft.
Capacity (IEC Canada)	7.4 cu. ft. / 209.42 L
Type	Front Load Electric Dryer
Vent Type	Vented
Fuel Type / Power Source	Electric
Color	Radiant Silver / Core Silver
Manufacturer Color	Radiant Silver
Series	6 Series
Stackable	Yes
Smart Appliance	Yes
Connectivity	Wi-Fi, App, Remote Access, Voice Controlled
Works With	Amazon Alexa, Google Assistant, Android, iOS
Energy Star Certified	Yes
ADA Compliant	ADA compliant with feet fully extended
Drum / Tub Material	Powder Coat / Porcelain-Coated
Door Style	Side Swing
Door Opening Direction	Right (reversible)
Reversible Door	Yes
Door Material	Flat Glass
Door Window	Yes
Control Type	Knob and Button
Control Location	Front
Digital Display	Yes
Automatic Temperature Controls	Yes
Automatic Dry Control	Yes
Moisture Sensor	Yes
EcoBoost Energy Saver	Yes (Eco Boost™ option)
Steam Capabilities	Yes
Steam Cycle	Yes
Steam Options	Steam Refresh, Wrinkle Shield™ with Steam, Steam Clean (where listed)
Dry Cycles (How to Dry)	Normal, Wrinkle Control, Heavy Duty, Sanitize, Timed Dry, Quick, Steam Refresh
Dry Cycles (What to Dry)	Regular, Delicates, Bulky Items, Whites, Colors, Towels
Number of Dryer Cycles (manufacturer)	37
Number of Dryer Cycles (some retailers)	12
Dryer Options	Control Lock, Cycle Signal, Damp Dry Signal, Eco Boost™, Reduce Static, Wrinkle Shield™, Wrinkle Shield™ with Steam
Number of Dryer Options	7
Number of Temperatures	5
Number of Dryness Levels	3
Dryness Levels	Less, Normal, More
Lint Screen Location	Front
Secondary Lint Filter	No
Lint Filter Indicator	No
Dryer Interior Light	Yes
Drying Rack	No
Quad Baffles	Yes
Sound Package	No
Cycle Time Remaining Indicator	Yes
End of Cycle Signal	Yes
Feedback / Status Indicators	Check Vent, Cool Down, Damp, Sensing, Wet
Special Technologies	FreshFlow™ Vent System, AI Intelligent Dry (retailer description), Smart Features with Whirlpool® App
Wrinkle Care	Wrinkle Shield™ Option, Wrinkle Shield™ Option with Steam
FanFresh® Option	Listed on some Canadian retailer sites
Antimicrobial Gasket	Yes (listed by multiple Canadian retailers)
Drive System	Direct Drive (listed by multiple Canadian retailers)
Flat Back Design	No
Four-Way Venting	Yes
Venting Directions	Left, Right, Bottom, Rear
Maximum Vent Length	64 ft / 1950.72 cm
Hoses Included	No
Steam Hose Y-Connector	No
LP Convertible	No
Width	27 in / 68.58 cm
Height	39 in / 99.06 cm
Depth (cabinet)	30-5/8 in / 77.79 cm
Depth (some retailers)	30.63–30.69 in (77.79–77.95 cm)
Depth With Door Open 90°	54.313 in / 137.96 cm
Depth Excluding Doors	30-5/8 in / 77.79 cm
Door Opening Height	25.69 in / 65.25 cm
Door Opening Width	25.69 in / 65.25 cm
Class Width	26" – 27"
Net Weight	132 lb / 59.87 kg
Gross / Shipping Weight	146 lb / 66.22 kg
Shipping Width	29 in / 73.66 cm
Shipping Height	41 in / 104.14 cm
Shipping Depth	33 in / 83.82 cm
Electrical Requirements	240 V, 60 Hz, 30 A
Power Cord Included	Yes
Certifications	ENERGY STAR® Qualified, UL Listed, Prop 65 warning (for U.S.)
Country of Origin	USA
Warranty (manufacturer standard)	1-Year Parts and Labor
Warranty (some Canadian retailers)	2 Years (retailer program)
UPC	883049693743
Model Number	YWED6720RR
Matching Washer	WFW6720RR (5.8 cu. ft. front load washer)

Whirlpool Washer & Dryer Set

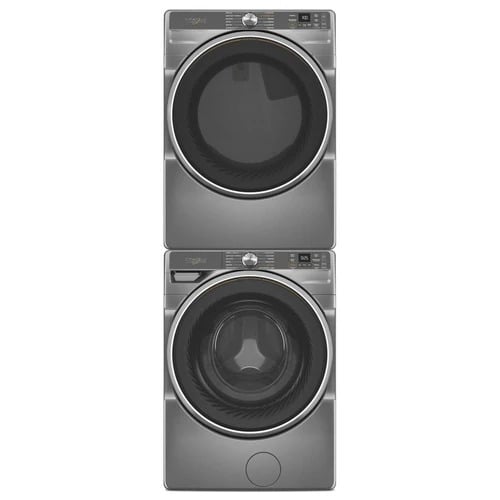

Whirlpool Stackable WFW6720RR Washer, YWED6720RR Electric Dryer, & W10869845 Stacking Kit

Whirlpool Washer & Dryer Set

Whirlpool Stackable WFW6720RR Washer, YWED6720RR Electric Dryer, & W10869845 Stacking Kit

Product Accessory W10869845

Washer WFW6720RR

Dryer YWED6720RR

Product Accessory W10869845

Washer WFW6720RR

Dryer YWED6720RR

Product Accessory W10869845

Washer WFW6720RR

Dryer YWED6720RR
