Certifications
Prop65	Standard
Details
This Part Is A Replacement for the Following Part Numbers	12774, W10298318, W10761316, 52774, W10298318RP
Dimensions
Carton Depth	13
Carton Height	2
Carton Width	6.5
Gross Weight	0.5
Net Weight	0.5

Certifications
Ada Compliant	Yes
Cee Tier Rating	Tier I
Energy Rating (kwh/year)	140
Imef	2.76
Iwf	3.2
Prop65	CA
Ul	Yes
Controls
Automatic Temperature Controls	Yes
Control Location	Front
Control Type	Knob and Button
Eco Monitor/efficiency Monitor	No
Electronic Display Type	Cycle indicator light with digital remaining time
End of Cycle Signal	Yes
Feedback-status Indicators	Add Garment; Control Lock; End; Estimated Time Remaining; Sensing; Washing
LCD Touch Screen	Yes
LED Color	White
Cycles
Number of Wash Cycles	12
Programmable Cycle	Yes
Washer Cycle Selections	Bedding; Clean Washer with affresh; Cold Wash; Custom Cycle; Delicates; Drain & Spin; Dry Drum; Heavy Duty; Normal / Regular; Quick Wash; Sanitize; Whites
Details
Drain Hose Length	4.33
Dryer Interior Light	No
Fabric Brush	No
High Efficiency	Yes
Hoses Included	4ft 4in Drain Hose Included
Internal Heater	Yes
Maximum Spin Speed	1,160
Maytag Commercial Components	No
Pedestal Options	WFP2715HW; XHP1000XW
Stackable	Yes
Water Factor	3.2
Water Faucet	No
Dimensions
Product Height	39.0
Capacity Iec Canada	5.8
Carton Height	40
Gross Weight	232
Capacity (doe) Us	5
Carton Depth	35
Carton Width	30
Product Depth	33.25
Net Weight	222
Product Width	27.0
Depth With Door Open 90 Degree	56.5
Electrical
Power Cord Included	Yes
Exterior Details
Adjustable Feet	Yes
Lid/door Finish	Glass
Lid/door Lock	Yes
Lid/door Swing	Left
Slow Close Lid	N/A
Window	Yes
Interior Details
Automated Dispenser	Yes
Automatic Load Size Sensing Technology	Yes
Dispense System	Detergent, Fabric Softener & Bleach
Fan Type	Fan Fresh®
Motor Drive Type	Direct Drive
Out of Balance Sensing	Yes
Suspension System	2 Springs 4 Dampers
Washer Drum Material	Stainless Steel
Washer Drum Rear/base Material	Stainless Steel
Modifiers
Delay Start	Yes
Number of Rinse Options	2
Number of Soil Levels	4
Number of Spin Speeds	4
Number of Temperatures	5
Number of Wash/rinse Temperatures	5
Number of Washer Options	10
Pre Soak	Yes
Rinse Options	Auto; Extra Rinse
Rinse Temperature	Cold
Spin Speed Selections	Fast; Medium; Off; Slow
Temperature Selections	Cold; Cool; Extra Hot; Hot; Warm
Washer Soil Selections	Extra Heavy; Heavy; Light; Medium
Water Levels	Auto
Options
Washer Option Selections	Control Lock; Delay Wash; End of Cycle Signal; Extra Rinse; Fan Fresh®; Presoak; Remote Enable; Soil Level; Spin Speed; Steam Clean; Temperature
Performance Details
Motor Horsepower	Inverter Driven Variable Speed Direct Drive Motor
Smart Compatibility
Connectivity	Amazon Alexa; Android; Google Assistant; iOS
Smart Appliance	Yes
Works With	App; Remote Access; Voice Controlled; WiFi

Specification	Details
Capacity	7.4 cu. ft. (IEC Canada)
Capacity (Litres)	209.42 L
Dryer Type	Electric, standard vented
Fuel Type	Electric
Vented or Ventless	Vented, four-way venting
Venting Directions	Left, Right, Bottom, Rear
Maximum Vent Length	64 ft (1950.72 cm)
Width	27 in (68.58 cm)
Height	39 in (99.06 cm)
Depth	30-5/8 in (30.63 in, 77.79 cm)
Depth Excluding Doors	30-5/8 in (77.79 cm)
Depth with Door Open 90°	54-313/1000 in (54.313 in, 137.96 cm)
Door Opening Width	25-69/100 in (65.25 cm)
Door Opening Height	25-69/100 in (65.25 cm)
Door Style	Side swing
Door Material	Flat glass
Reversible Door	Yes
Window	Yes
Product Net Weight	132 lb (59.87 kg)
Product Gross/Shipping Weight	146 lb (66.22 kg)
Carton Width	29 in (73.66 cm)
Carton Height	41 in (104.14 cm)
Carton Depth	33 in (83.82 cm)
Size Class	Large, 26"–27" width class
Drum Capacity (Energy Rating)	209.54 L (Energy Canada listing)
Drum Material	Powder coat
Dryer Interior Light	Yes
Drying Rack	No
Lint Screen Location	Front
Secondary Lint Filter	No
Lint Filter Indicator	No
Quad Baffles	Yes (four baffles)
Control Type	Knob and button
Control Location	Front console
Automatic Temperature Controls	Yes
End of Cycle Signal	Yes
Feedback / Status Indicators	Check Vent, Cool Down, Damp, Sensing, Wet
Cycle Time Remaining Display	Yes
Number of Dryer Cycles	37
Drying Cycles (How to Dry)	Normal, Wrinkle Control, Heavy Duty, Sanitize, Timed Dry, Quick, Steam Refresh
Drying Cycles (What to Dry)	Regular, Delicates, Bulky Items, Whites, Colors, Towels
Steam Cycles	Steam Refresh Cycle, Wrinkle Shield Option with Steam
Quick / Express Dry	Quick Dry cycle, 30-minute timed dry (when paired with matching washer Quick Wash)
Sanitize Cycle	Yes
Air Dry / Air Fluff Cycle	Yes (Air Dry cycle, unheated)
Delicate Cycle	Yes
Heavy Duty Cycle	Yes
Timed Dry	Yes
Automatic Dry Control	Yes
Moisture Sensor	Yes (AI Intelligent Dry with 3 sensors)
AI Intelligent Dry	Yes, adjusts dry time based on moisture and temperature
Number of Dryness Levels	3
Dryness Level Selections	Less, Normal, More
Number of Temperature Settings	5
Temperature Selections	Air Only, Extra Low, Low, Medium, High
EcoBoost / Eco Mode	EcoBoost Energy Saver option
Wrinkle Shield Options	Wrinkle Shield, Wrinkle Shield with Steam
Additional Dryer Options	Control Lock, Cycle Signal, Damp Dry Signal, EcoBoost, Reduce Static, Wrinkle Shield, Wrinkle Shield with Steam
Number of Dryer Options	7
Air Flow Detection	Yes (Check Vent indicator for restricted airflow)
Sound Package	No special sound package
Stackable	Yes (front-load matching)
Matching Washer	WFW6720RW (front load washer)
Pedestal Options	WFP2715HW (white pedestal, Canada); also listed variants by some retailers
Flat Back Design	No
Long Vent Option	No
Hoses Included	No steam hose included
Steam Hose Y-Connector	No
Smart Appliance	Yes
Connectivity	Wi-Fi, works with Whirlpool App
Smart Compatibility	Works with Amazon Alexa, Google Assistant, Android, iOS
Remote Features	App control, remote access, voice control, cycle monitoring and notifications
Electrical Requirements	240 V, 60 Hz, 30 A
Power Cord Included	Varies by region; Canadian spec sheet lists power cord included, some retailer listings show cord sold separately
Energy Star	ENERGY STAR certified (Canada and U.S.)
Combined Energy Factor (CEF)	3.93 lb/kWh (Energy Canada listing)
Estimated Annual Energy Use	Approx. 609 kWh/year (Canadian energy specification)
ADA Compliant	Yes, with feet fully extended
UL Listed	Yes
Country of Origin	USA
Color / Finish	White (model YWED6720RW)
Series / Feature Highlights	Smart Front Load, Steam Capabilities, AI Intelligent Dry, Quick Dry, EcoBoost, Air Flow Detection
UPC (Canada)	883049693743 (commonly listed for YWED6720RW)
UPC (U.S. variant WED6720RW)	883049692388 (U.S. non-Canadian model reference)

Whirlpool Washer & Dryer Set

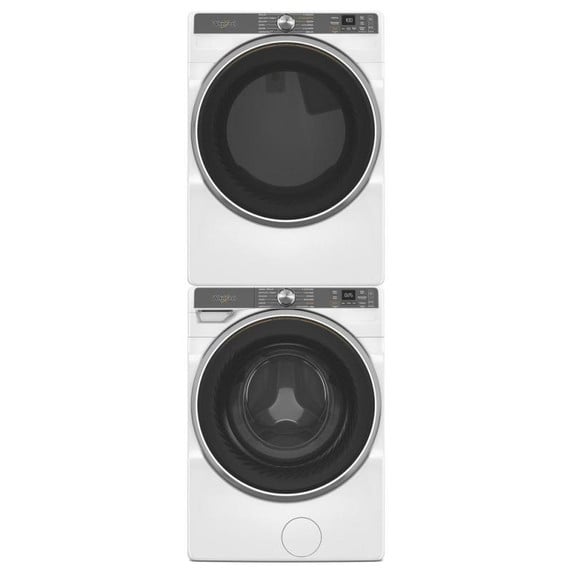

Whirlpool Stackable WFW6720RW Washer, YWED6720RW Electric Dryer, & W10869845 Stacking Kit
