Manufacturer's Warranty: 1 year
Canadian model: D49M30SB
Similar to USA model: D49M30SB
Canadian UPC: 026715234202
Similar to USA UPC: 026715234202
EAN: 0026715234202
| Specification | Value |
|---|---|
| Brand | Best |
| Series | Cattura D49M Series |
| Model | D49M30SB |
| MPN | 5810335 |
| UPC | 026715234202 |
| EAN | 0026715234202 |
| Product Type | Downdraft Ventilation |
| Style | Unique |
| Installation Type | Built-In |
| Venting Type | Convertible |
| Color | Stainless Steel |
| Manufacturer Color | Stainless Steel |
| Finish | Stainless Steel |
| Trim Color | Stainless Steel |
| Material | 304 Stainless Steel Chimney and Trim/Door |
| Housing Material | Galvanized Steel |
| Width | 30 inches |
| Depth | 2 1/4 inches |
| Visible Height | 18 inches |
| Chimney Rise | 18 inches |
| Overall Height | 47 3/8 inches |
| Class Width | 30 inches |
| Blower Included | No |
| Blower Type | Sold Separately |
| Compatible Internal Blower | PF6 FlexBlower |
| Compatible Exterior Blowers | EB6, EB9, EB12, EB15 |
| Compatible In-Line Blowers | ILB3, ILB6, ILB9, ILB11 |
| Max Blower CFM | 600 CFM with PF6 internal blower |
| Code Ready Airflow Reduction | 400 CFM with PF6 internal blower or 300 CFM with ILB3 external blower |
| Sound Level | 0.8 sones at normal setting with internal blower |
| Number of Fan Speeds | 4 |

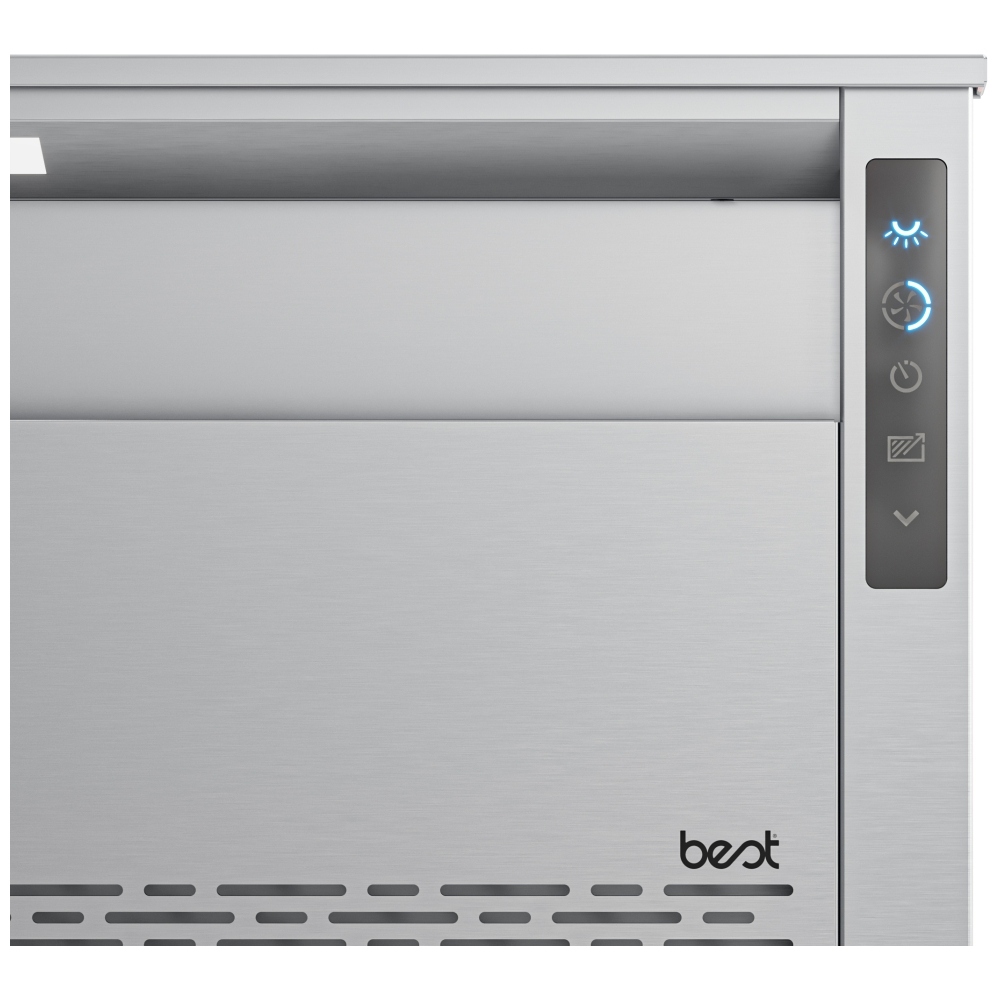

| Control Type | Capacitive Touch |
| Control Surface | Glass Touch |
| Delay Shut-Off | Yes, 10 minutes |
| Filter Maintenance Reminder | Yes |
| Heat Sentry | Yes |
| Lighting Type | LED |
| Lighting Levels | 2 |
| Light Bulbs Included | Yes |
| Lighting Wattage | 7 watts |
| Filter Type | Aluminum Mesh |
| Dishwasher-Safe Filters | Yes |
| Remote Operation Capable | Yes, optional remote sold separately |
| Remote Control | Optional |
| WiFi | No |
| Bluetooth | No |
| Alexa | No |
| Google Home | No |
| Remote Monitoring | No |
| Remote Diagnostics | No |
| Smart Accessory Required | Yes, for remote control functionality |
| AI Technology | No |
| Fingerprint Resistant | No |
| Glass Canopy | No |
| Duct Size with Internal Blower | 8 inches round |
| Duct Size with Remote Blower | 10 inches round |
| Rectangular Duct Size | 1 7/8 inches x 19 inches |
| Duct Direction | Front, Left, Right, Rear, or Down |
| Discharge Options | Left, Right, Front, Rear, or Down |
| Backdraft Damper | Not Included |
| Electrical Connection | Plug-In |
| Power Cord Length | 30 inches |
| Plug Type | 3-Pronged Plug |
| Voltage | 120 volts |
| Frequency | 60 Hz |
| Amps | 3.2 amps |
| Minimum Height Above Cooktop | Not specified |
| Recommended Cabinet Depth | 24 inches to 30 inches, depending on cooking appliance |
| Recommended Cabinet Depth for Left/Right Exhaust | 30 inches |
| Flat Countertop Required Behind Cooktop | 2 3/4 inches |
| Required Space Between Cooktop Back Edge and Cabinet Back | 2 1/2 inches |
| Indoor/Outdoor Use | Indoor Domestic Use Only |
| Approved for Outdoor Use | No |
| ENERGY STAR Certified | No |
| ADA Compliant | No |
| CEE Rating | Not Available |
| Can Be Used to Comply with LEED Requirements | Yes |
| Certification | cULus Listed |
| Capture Design | VERTEX Complete Capture Design |
| Noise Reduction Claim | Up to 35% quieter than other downdrafts |
| Non-Ducted Capability | Yes |
| Articulating Door | Yes |
| Integrated Up Button | Yes |
| Motor Features | Permanently lubricated, thermally protected motor with anti-vibration mounts |
| Warranty | Limited 1-Year Parts and Labor |
| Optional Remote Up/Down Control | ACRD |
| Optional Gas Cooktop Seal Kits | ATSKD30, ATSKD36, ATSKD48 |
| Optional Duct Transitions | MD6T, MD8T, MD10T |
| Optional Make-Up Air Dampers | 8 inch and 10 inch round compatible |
