MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).














Manufacturer's Warranty: 1 year
Canadian model: HBL57M52UC
Canadian UPC: 825225928690
EAN: 4242002970288






| Specification | Value |
|---|---|
| Brand | Bosch |
| Series | 500 Series |
| Model | HBL57M52UC |
| Product Type | 30" Built-in Combination Wall Oven (Microwave + Wall Oven) |
| Fuel Type | Electric |
| Installation Type | Built-in, flush-install capable |
| ADA Compliant | No |
| Capacity | |
| Lower Oven Capacity | 4.6 Cu Ft |
| Microwave (Upper Cavity) Capacity | 1.6 Cu Ft |
| Total Combined Capacity | 6.2 Cu Ft |
| Overall Dimensions | |
| Overall Height | 49 inches |
| Overall Width | 29 3/4 inches |
| Overall Depth (cabinet) | 23 1/2 inches |
| Overall Depth (some retailers) | 24 1/2 inches |
| Width Class | 30 inches |
| Cutout / Niche Dimensions | |
| Cutout Height | 45 5/8 inches |
| Cutout Width | 28 1/2 inches |
| Cutout Depth | 23 1/2 inches |
| Maximum Installation Height | 1,234 mm (approx. 48 5/8 inches) to cavity bottom |
| Maximum Installation Width | 724 mm (approx. 28 1/2 inches) |
| Minimum Installation Height | 1,234 mm (approx. 48 5/8 inches) |
| Installation Depth (metric) | 597 mm (approx. 23 1/2 inches) |
| Shipping / Packaging | |
| Product Packaging Dimensions (H x W x D) | 55 3/4 x 34 x 31 1/2 inches |
| Extension Width (door open, approx.) | 34 inches |
| Weights | |
| Net Weight (approx., US listings) | 259 lb |
| Net Weight (approx., Canadian listing) | ~289–296 lb (131.5–134.3 kg) |
| Gross Weight (with packaging) | Approx. 296–328 lb |
| Electrical | |
| Voltage | 208–240 V |
| Frequency | 60 Hz |
| Amperage / Fuse Protection | 40 A |
| Connection Rating (Total Load) | 7,975 W |
| Power Cord Length | Approx. 50 inches |
| Plug Type | No plug; hard-wired / fixed connection by electrician |
| Microwave (Upper Cavity) Details | |
| Microwave Capacity | 1.6 Cu Ft |
| Microwave Power (cooking) | Approx. 950–1,200 W |
| Microwave Power Levels | 10 |
| Microwave Cooking System | Microwave |
| Microwave Features | One-Touch Setting, Defrost Setting, Sensor Cook |
| Microwave Door Release | Pull handle |
| Turntable Diameter | Approx. 14 1/8 inches |
| Lower Oven Details | |
| Lower Oven Capacity | 4.6 Cu Ft |
| Cooking System (Lower Oven) | Genuine European Convection |
| Convection Element (Lower Cavity) | 2,000 W |
| Cooking / Grilling Element (Lower Cavity) | 2,400 / 3,800 W (bake / broil) |
| Temperature Range | 100°F – 450°F (Star-K certified) |

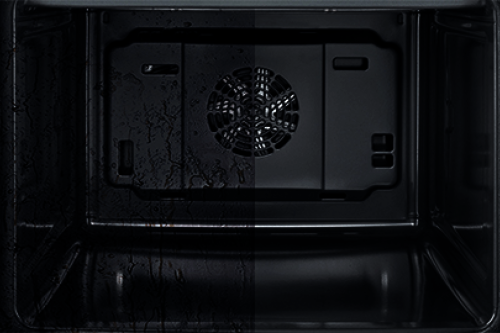

| Oven Cleaning Method | Self-cleaning (EcoClean™ 2-hour cycle options) |
| Total Number of Oven Racks | 3 (typically 2 in lower, 1 in upper; some listings: 2 x oven racks / lower) |
| Included Accessories | 2 x oven racks (lower), glass turntable (upper) |
| Cooking Modes & Features | |
| Upper Cavity Cooking Modes | Microwave, Convection, Sensor Cook, Defrost, One-Touch programs |
| Lower Cavity Cooking Modes | Bake, Broil Bake, Convection Broil, Convection Multi-Rack, Convection Roast, Half-width Broil, Pizza, Proof, Roast, Warm |

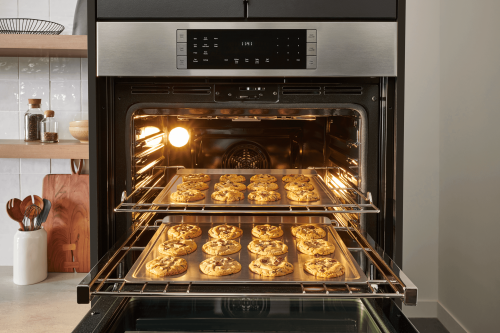

| Convection Multi-Rack | Yes (third heating element + fan for even baking on multiple racks) |
| Temperature Conversion for Convection | Yes |
| Proof Mode | Yes |
| Pizza Mode | Yes |
| Warm Mode | Yes |
| Air Fry | No |
| Controls & Display | |
| Control Type | Electronic touch controls with heavy-duty metal knobs |
| User Interface | White LED, touch control |
| Digital Clock | Yes |
| Timer | Yes |
| Control Lock / Safety Lock | Yes |
| Design & Aesthetics | |
| Color / Finish | Stainless Steel |
| Door Panel Type | Glass with stainless trim |
| Door Opening | Standard drop-down doors (upper and lower) |
| Soft Close Door | No |
| Interior Light | Yes (at least one oven light in lower cavity) |
| Viewing Window | Extra-large door window for easy monitoring |

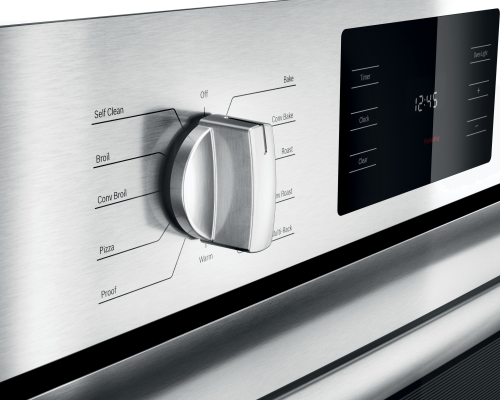

| Knobs | Heavy-duty metal knobs |
| Convenience & Safety | |
| Sabbath Mode | Yes (Star-K certified) |
| Safety Features | Door contact switch, electronic door lock, safety switch-off function |
| Self-Clean Options | 2, 3, or 4 hour self-clean cycles (lower oven) |
| Connectivity | |
| Home Connect (Wi-Fi) | No (not a connected appliance) |
| Materials & Construction | |
| Primary Cavity Material | Enamel interior |
| Exterior Material | Stainless steel front with glass doors |
| Identification | |
| Material / Part Number | HBL57M52UC |
| UPC / GTIN | 825225928690 |
