Bosch

HUI54452UC

• Bosch® 500 Series design – coordinates with other Bosch 500 Series appliances for a cohesive, premium kitchen look.

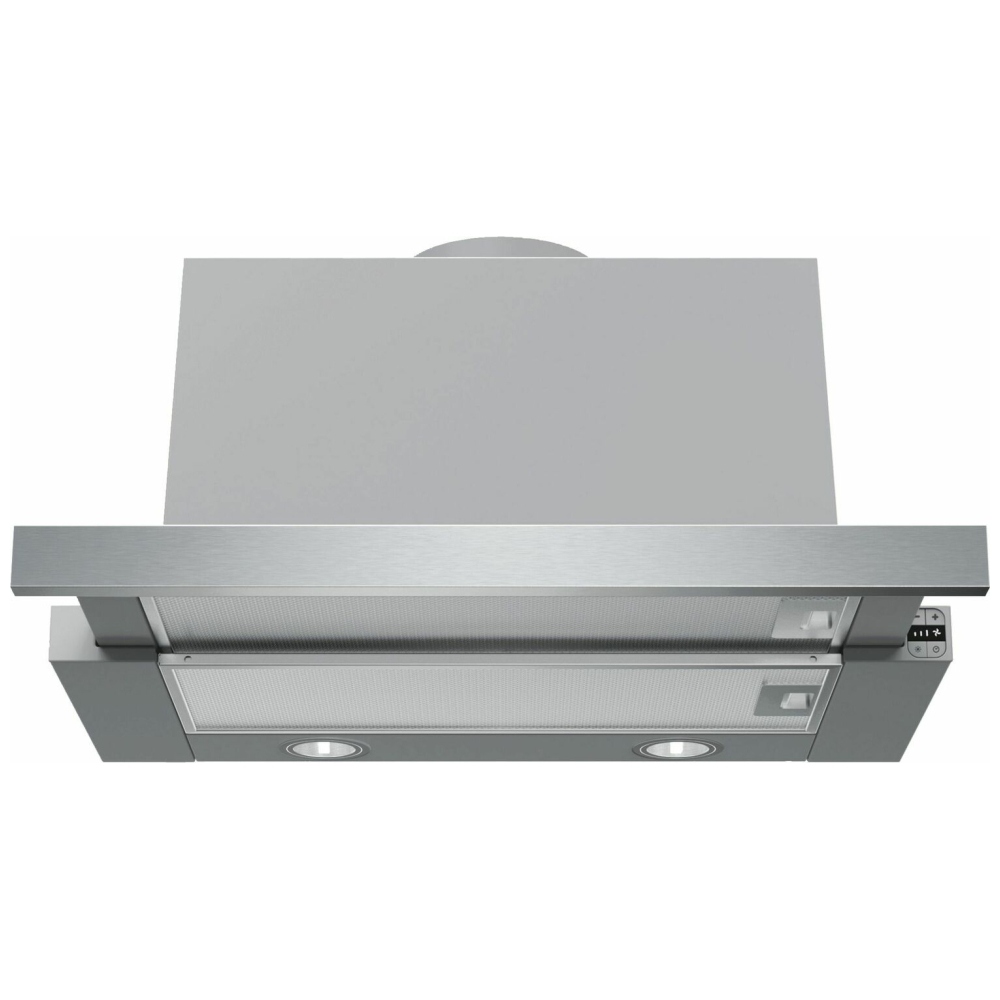

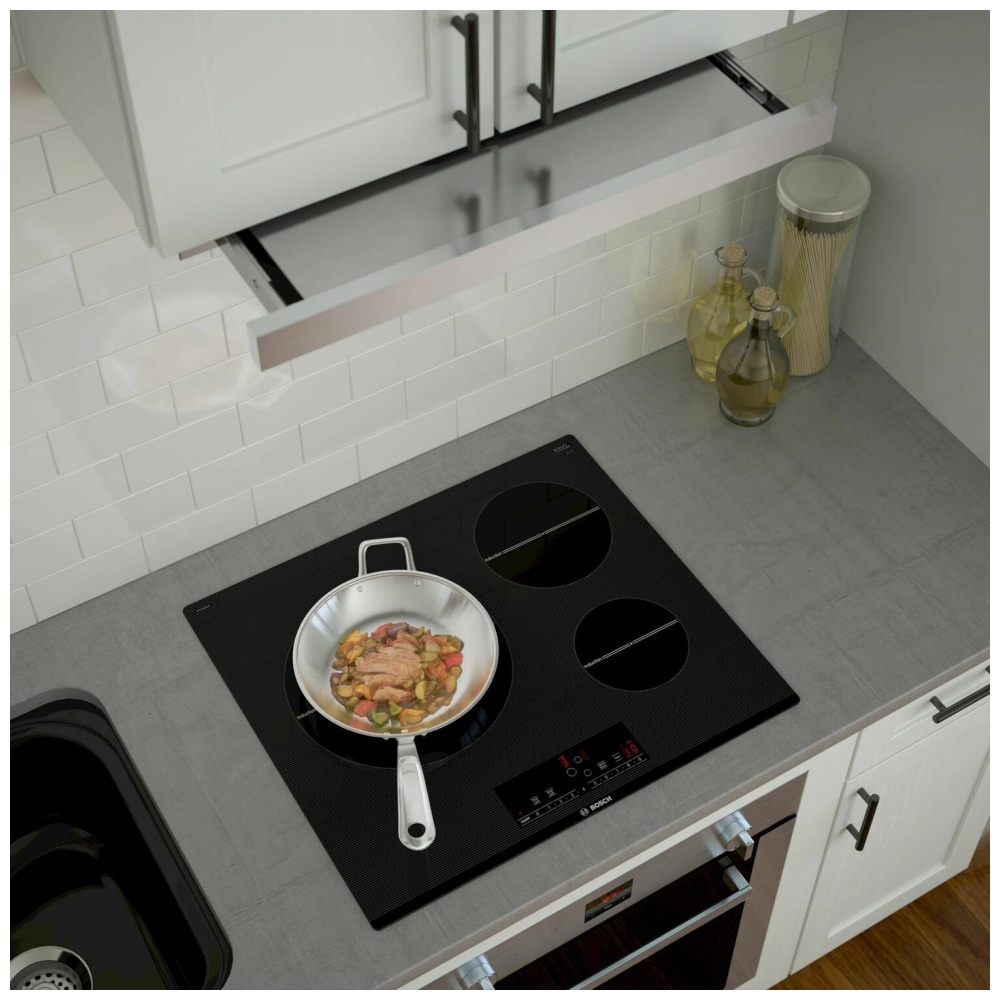

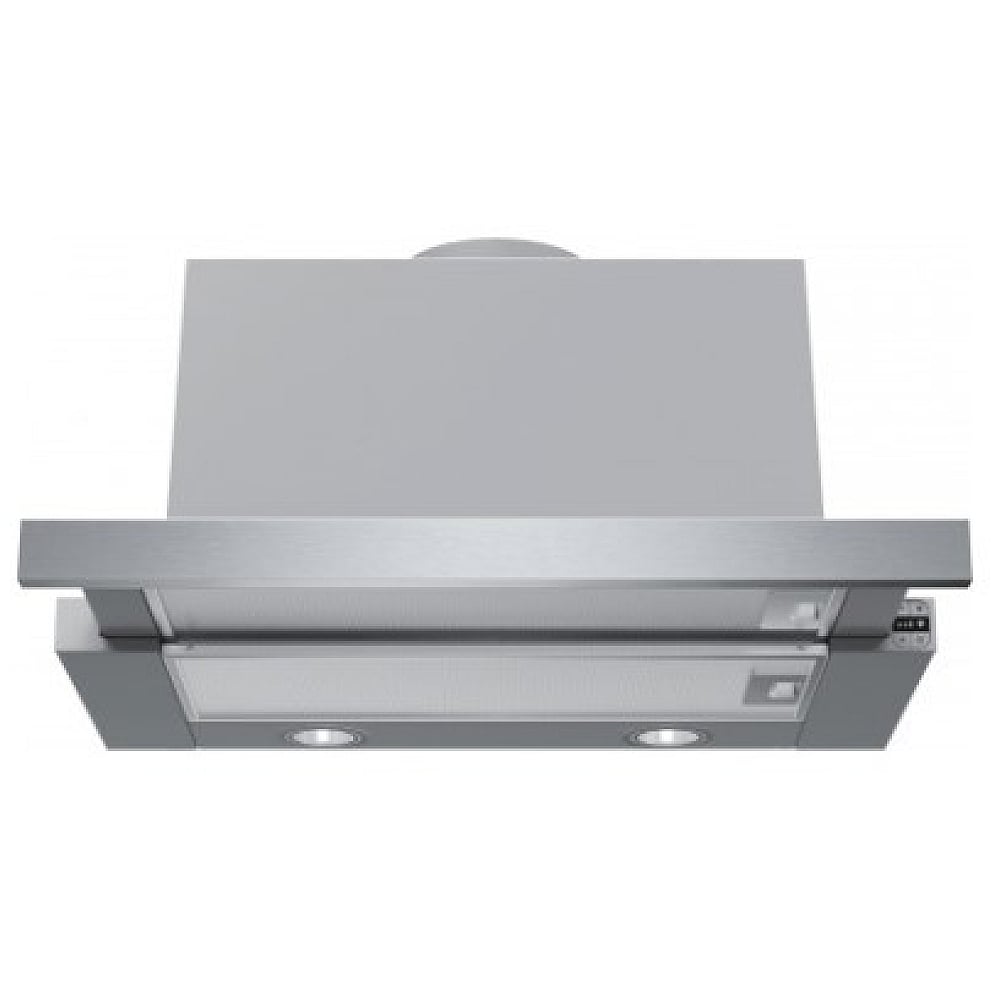

• 24" pull‑out visor hood – telescopic visor pulls out during cooking for effective capture, then slides back in for a flush, integrated appearance under the cabinet.

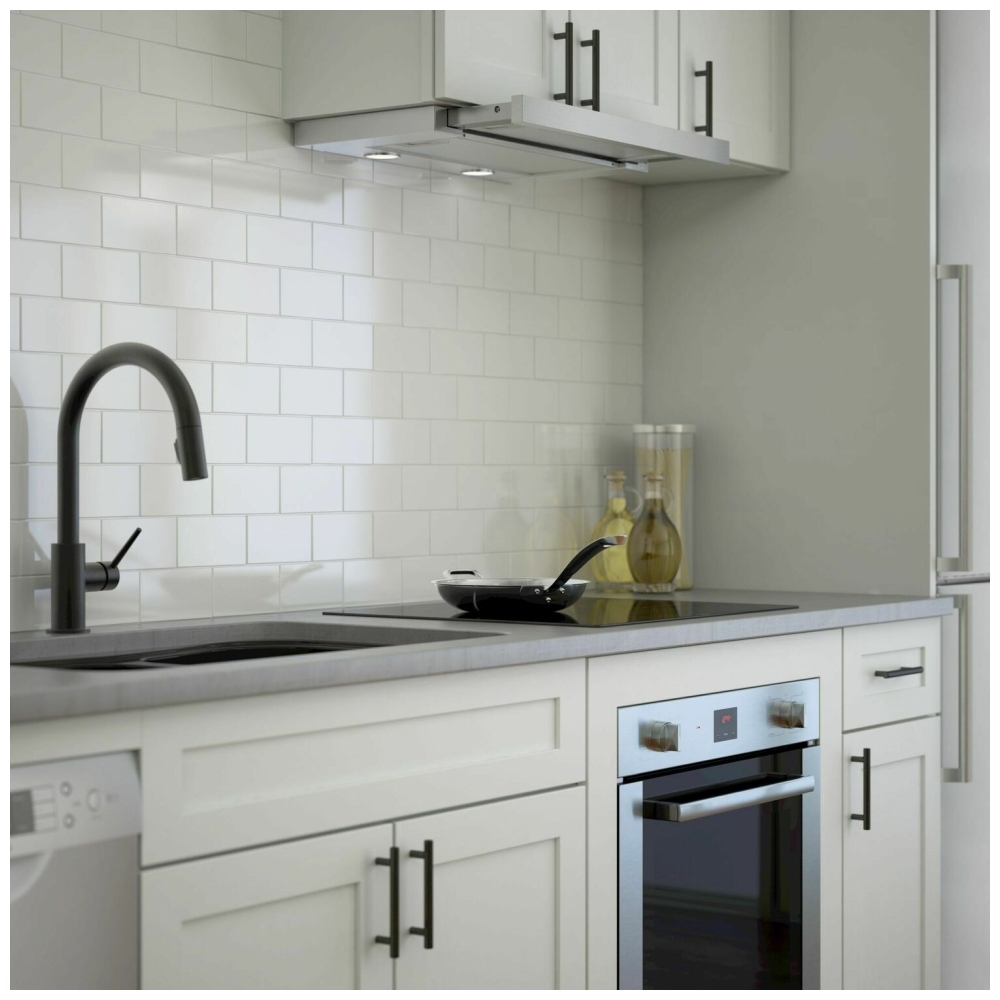

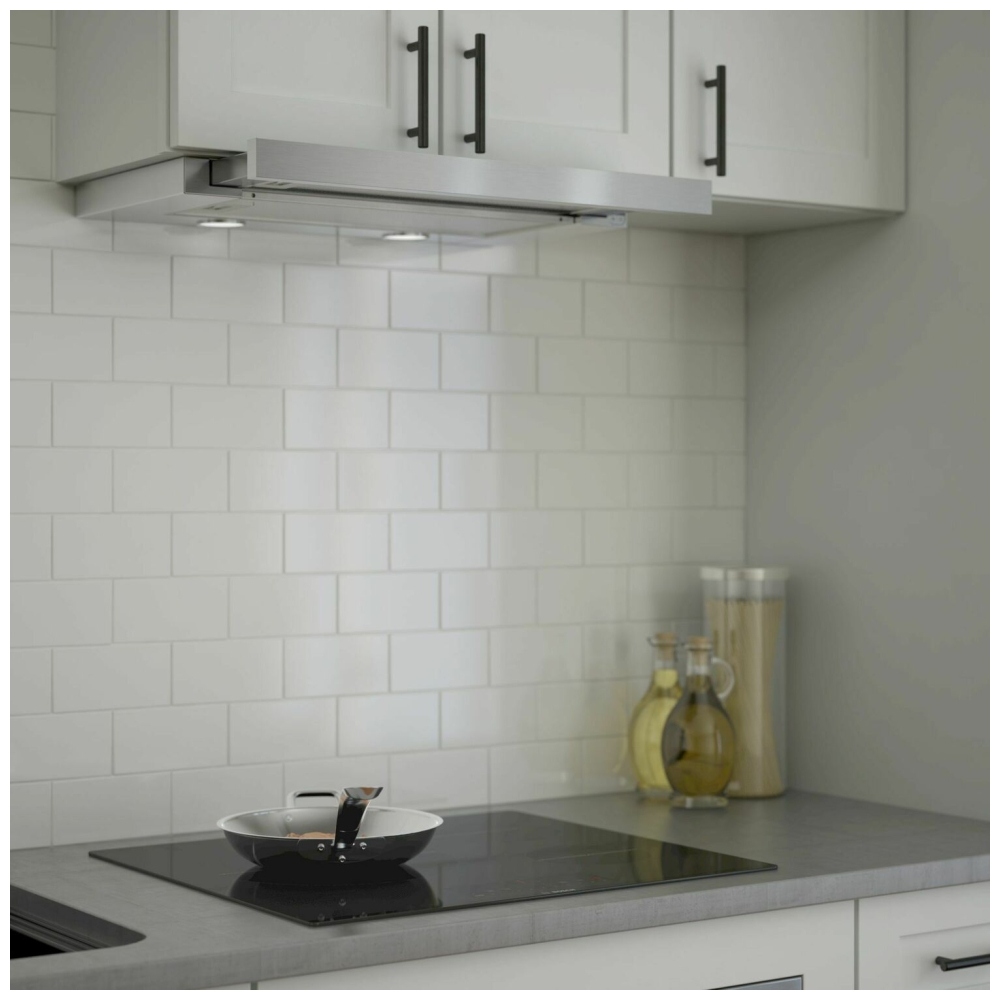

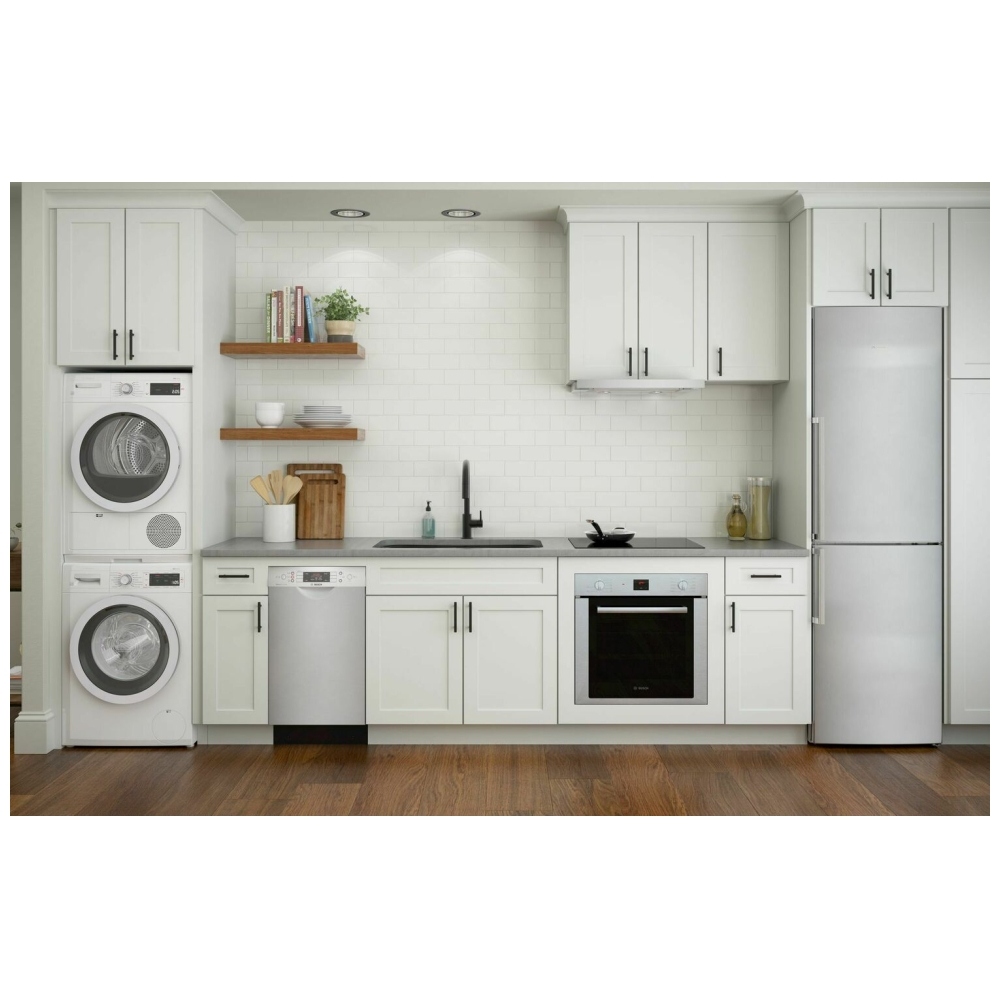

• Under‑cabinet installation – mounts neatly beneath wall cabinets, ideal for compact kitchens or where a full chimney hood is not desired.

• Stainless steel finish – durable, easy‑to‑clean surface that resists staining and matches most modern appliances.

• 400 CFM integrated blower – powerful internal fan helps quickly remove smoke, steam, grease, and cooking odors from the cooktop area.

• Four‑speed ventilation control – 3 standard speeds plus an intensive setting let you match airflow to light simmering or heavy searing.

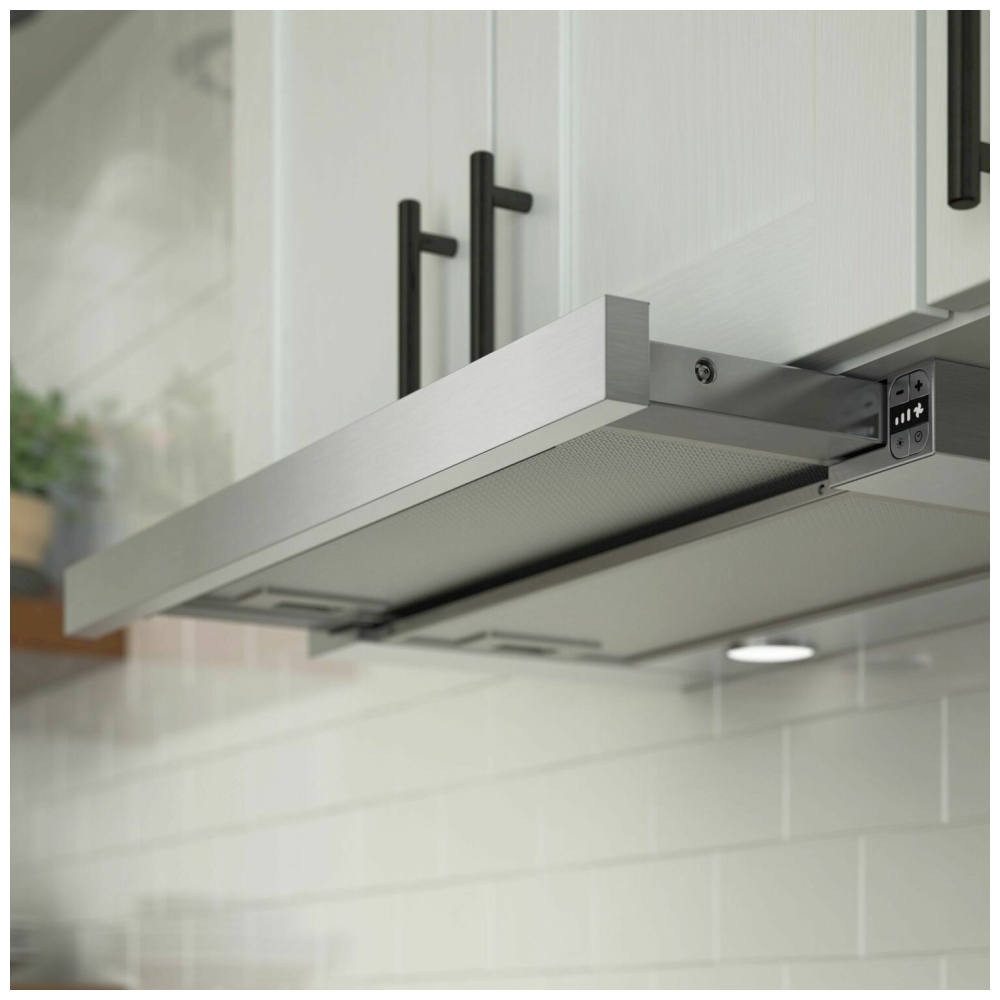

• Touch controls with LCD display – flat electronic touch panel and clear LCD screen make it simple to select fan speeds, lighting, and timer settings.

• Audible tone feedback – beeps confirm when certain controls are pressed so you know a setting has been activated or changed.

• Convertible ducted / recirculating operation – can be vented to the outside or used in recirculation mode with an optional kit when exterior ducting is not possible.

• Recirculation kit compatibility – optional accessory kit (sold separately) allows filtered air to be returned to the kitchen instead of vented outdoors.

• Charcoal odor‑absorbing filters (recirculation) – activated charcoal filters help capture and reduce cooking odors when the hood is installed in recirculating mode.

• Dishwasher‑safe aluminum mesh filters – multi‑layer cassette filters trap grease and particulates and can be removed and cleaned in a standard dishwasher.

• Clean‑filter reminder indicator – LCD display illuminates a reminder light when it’s time to check and clean the grease filters for optimal performance.

• Bright LED cooktop lighting – two integrated LED lights provide even illumination across the cooking surface while using minimal energy.

• Warm light color temperature – LEDs are tuned to a warm color (around 3000 K) for comfortable, natural‑looking task lighting.

• On/off light control – simple switchable lighting lets you use the hood as a task light even when the fan is off.

• 6" round duct connection – standard 6‑inch round discharge makes it easier to connect to common residential ductwork.

• Integrated motor in hood body – self‑contained blower simplifies installation and avoids the need for a separate in‑line or external fan.

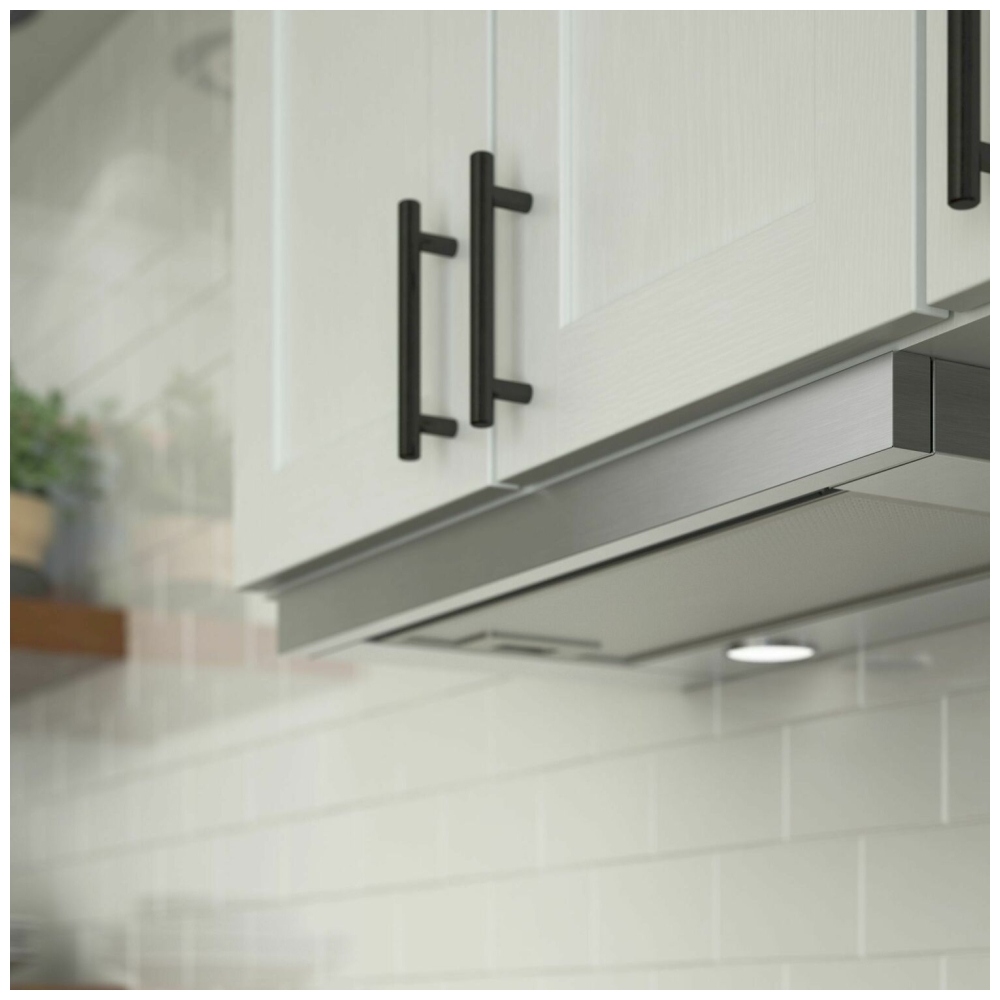

• Retractable, space‑saving profile – shallow depth and slide‑out visor maximize headroom and preserve a clean cabinet line when the hood is not in use.

• 24" appliance fit width – designed to fit 24‑inch‑wide cooking surfaces, ideal for smaller ranges and cooktops or compact kitchens.

• Electronic controls – precise digital control of fan speeds and timer settings for consistent, repeatable ventilation performance.

• 1–60 minute auto‑off timer – built‑in timer lets the hood run for a set period after cooking to clear lingering odors, then shuts off automatically.

• Quiet operation – engineered to keep noise levels relatively low for more comfortable conversation and a pleasant cooking environment.

• UL‑listed safety certification – tested to meet recognized safety standards for household electrical appliances.

• Included backdraft damper – helps prevent outside air from flowing back into the kitchen through the duct when the hood is off.

• Standard 120V, 3‑prong plug – plugs into a typical household outlet, simplifying electrical hookup.

• Approx. 45½" power cord length – provides flexibility in locating the outlet within the cabinet or nearby wall.

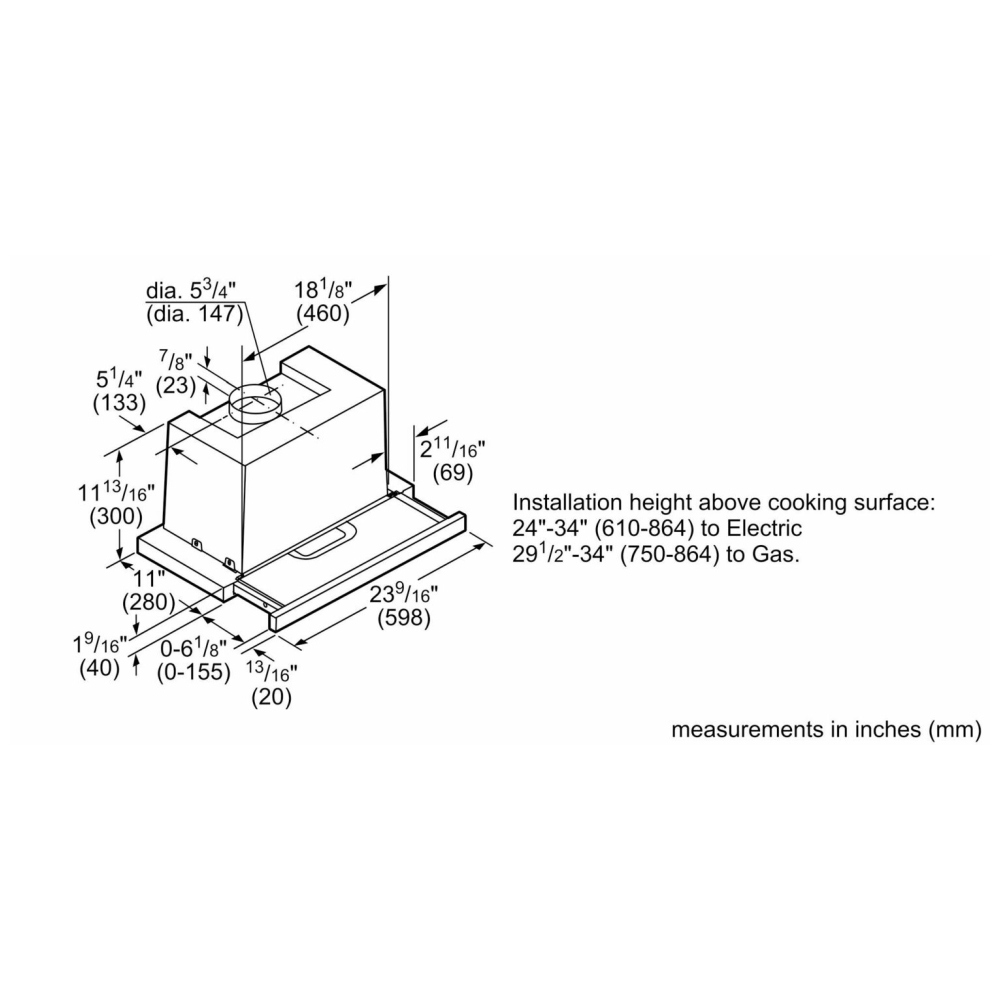

• Recommended mounting heights – designed for installation 24"–34" above electric cooktops and 29½"–34" above gas cooktops for effective capture and safety.

• Compact dimensions and light weight – roughly 23⅝" W x 11⅞" H x 11⅞" D and about 24 lb, making it easier to handle during installation.

• Proposition 65 compliant – includes required California safety warnings and labeling for consumer awareness.

• 1‑year limited parts and labor warranty – manufacturer coverage provides repair or replacement support for defects in materials or workmanship during the first year.
