Bosch

NEM5066UC

• Bosch 500 Series design – coordinates with other Bosch 500 Series ovens and ventilation for a unified kitchen look.
• Black-glass seamless design – frameless black ceramic-glass surface delivers a sleek, modern European style that blends into the countertop.
• Ceramic glass smoothtop surface – smooth, flat cooking surface makes it easy to slide pots and quickly wipe up spills.

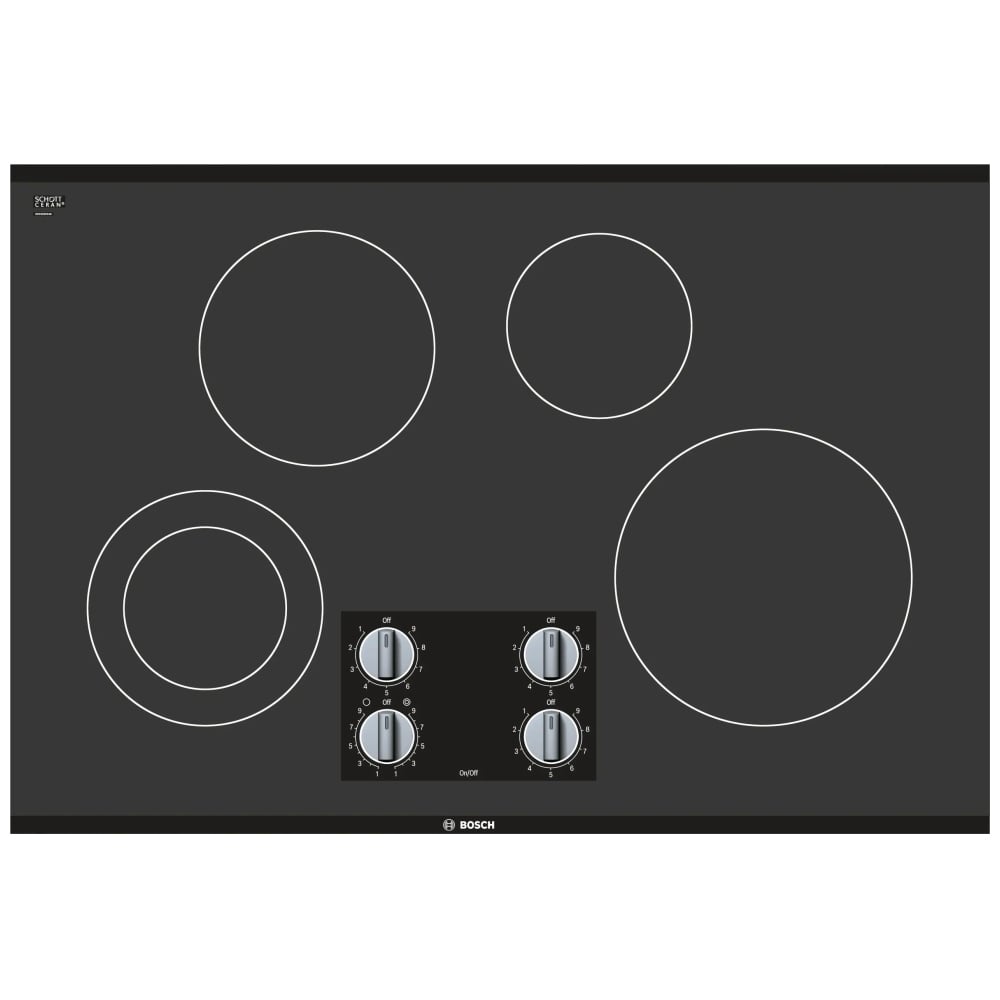

• Four radiant heating elements – provides 4 electric cooking zones to handle multiple pots and pans at once.
• Dual cooking element (front left) – 5"/7" dual-ring element (700W/1,700W) lets you match the heating area to small or large pan sizes.
• Powerful 2,500W front-right element – high-output 9" burner delivers faster boil times for large pots of water or high-heat cooking.
• Versatile element sizes – includes 6" (1,200W), 7" (1,800W), 9" (2,500W), and 5"/7" dual element to suit a wide range of cookware.
• Precise temperature control – infinite/9-stage power settings allow fine adjustment of heat from gentle simmer to full boil.

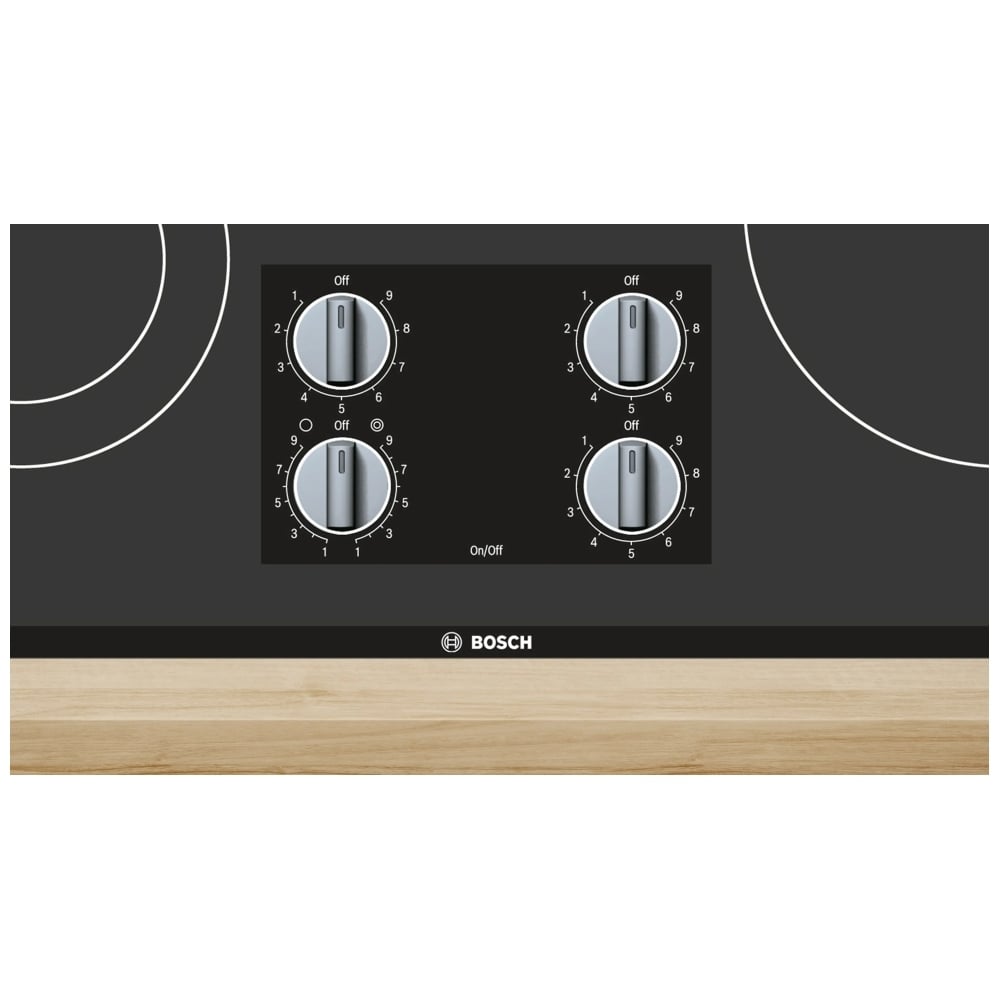

• Infinite temperature control knobs – mechanical knobs provide continuous control across the full heat range for accurate cooking results.
• Push-to-turn control knobs – knobs must be pushed in before turning, helping prevent accidental activation of a burner.
• Front-mounted control panel – controls are positioned at the front for easy reach without reaching over hot pots.
• Element-on indicator light – visual light confirms when any heating element is turned on for added awareness.
• Residual / hot-surface heat indicators – 2-level heat indicators for each zone warn when the cooktop surface is still warm or hot after use.
• Four zones usable at once – all 4 elements can be used simultaneously to support larger meals and batch cooking.
• Even radiant heating – radiant elements cycle on and off to maintain consistent temperatures across the cookware base.
• Easy-to-clean surface – flat glass-ceramic top has no grates or coils, simplifying daily cleaning and spill removal.

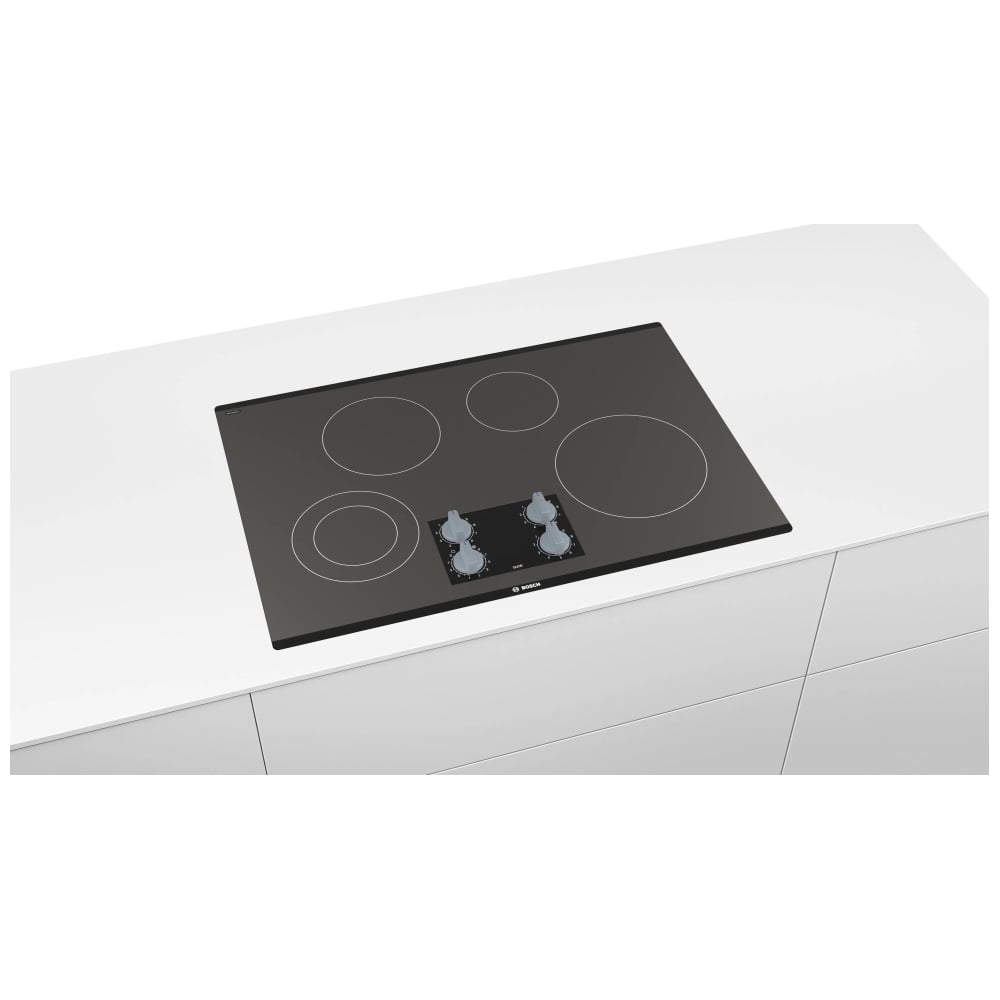

• Modern built-in installation – designed as a 30" built-in electric cooktop for a flush, integrated appearance in the countertop.
• Installs over most single wall ovens – compatible with installation above many built-in ovens to save space in the cabinet.

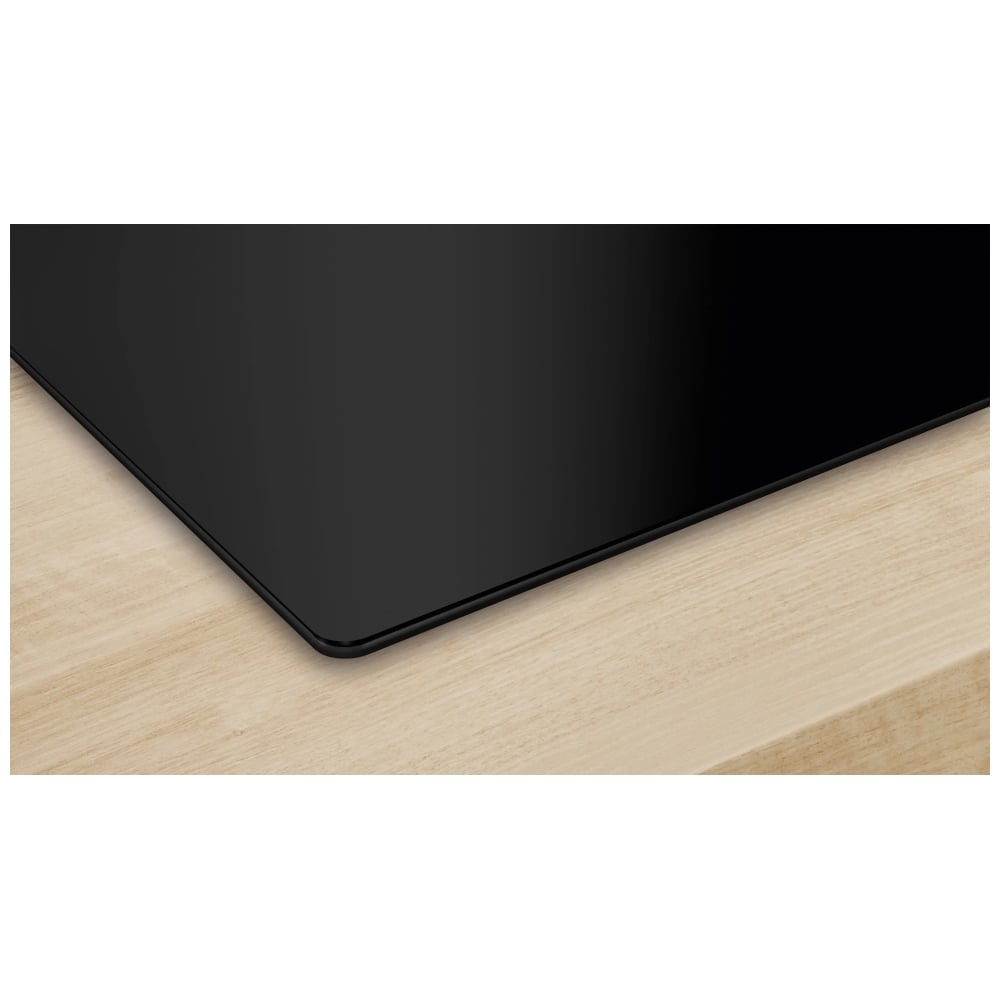

• Frameless edge profile – no raised metal frame reduces crumb-catching edges and enhances the seamless look.
• Two-ring cooking zone flexibility – dual-zone element allows you to use only the inner ring for small pans or both rings for larger cookware.
• Electric radiant technology – uses electric radiant elements under glass, avoiding open flames and simplifying ventilation needs.
• Home kitchen safety focus – combination of push-to-turn knobs, element-on light, and residual heat indicators helps reduce burn and activation risks.
• Standard 30" class width – fits most 30" cooktop cutouts, making it suitable for replacements or remodels.
• 7200W total connected load – provides ample overall power for everyday cooking tasks and high-heat applications.
• 208/240V, 30A electrical requirement – designed for typical North American electric cooktop circuits.
• No pre-attached power cord – hardwired connection by an electrician allows compatibility with various junction box setups.
• Built-in safety through cycling – elements cycle on and off at set levels to maintain temperature and help prevent overheating of food.
• Visual cooking feedback – glowing red elements under the glass show which zones are actively heating.
• Compact vertical height – low-profile body (approx. 4" height) maximizes cabinet and drawer space beneath the cooktop.
• Lightweight construction – relatively low unit weight simplifies handling during installation.
• Limited 1-year parts and labor warranty – manufacturer-backed coverage supports reliability and after-sales service.
