MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).












Manufacturer's Warranty: 1 year
Canadian model: NGMP059UC
Canadian UPC: 825225972624
EAN: 4242005455133
| Specification | Value |
|---|---|

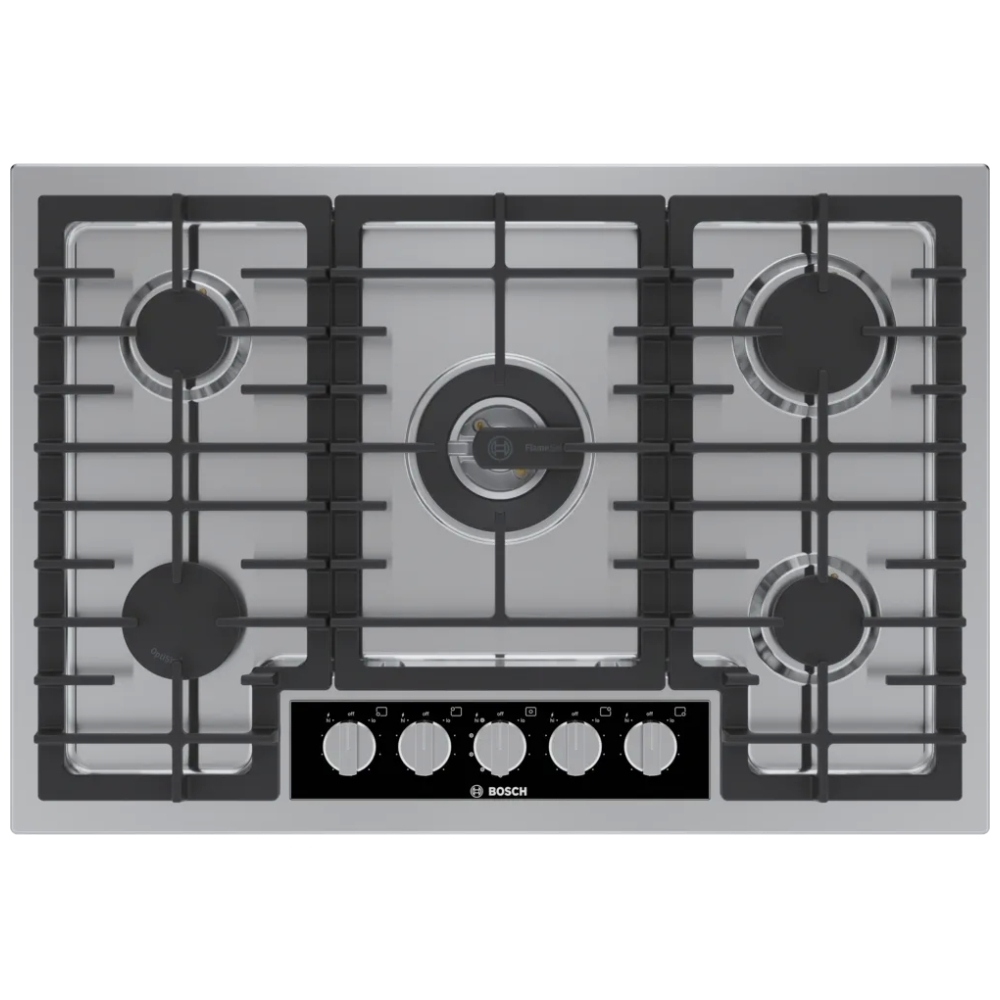

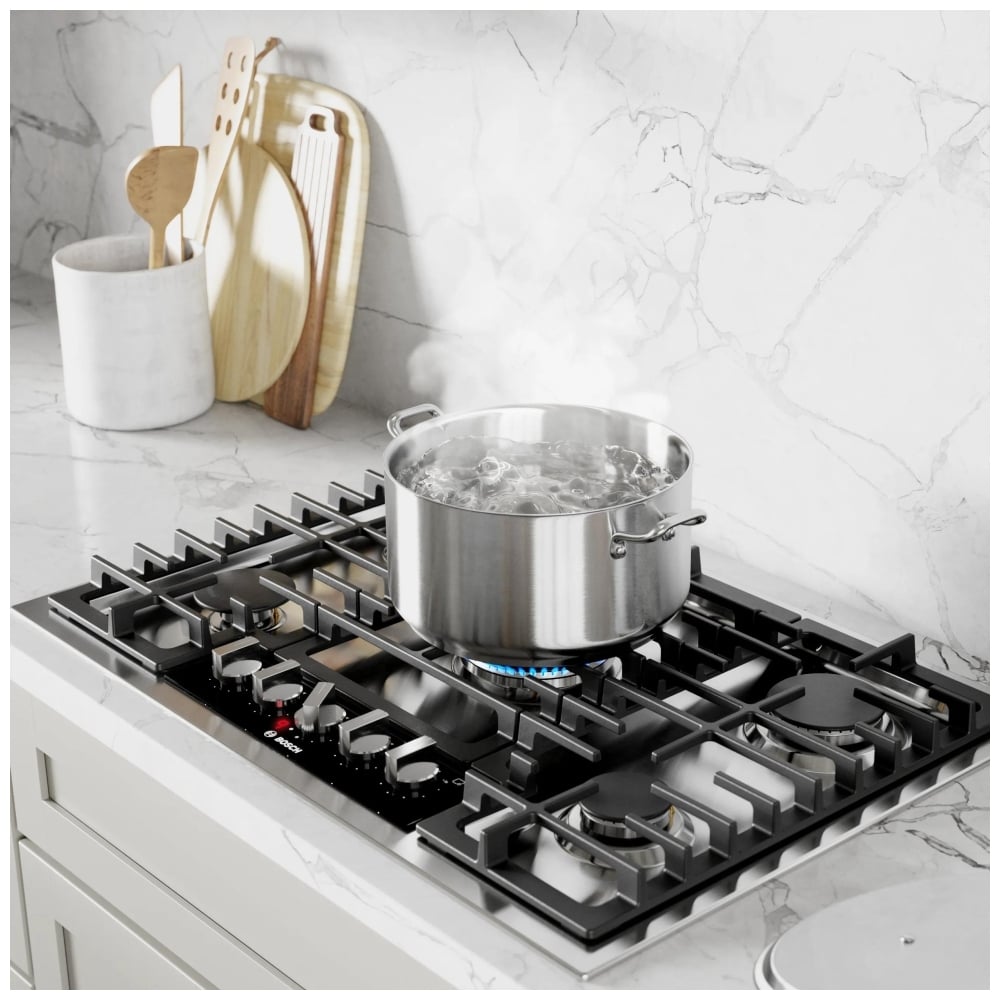

| Product | Bosch Benchmark® 30" Built-In Gas Cooktop, Stainless Steel (Model NGMP059UC) |
| Type | Cooktop |
| Style | Built In |
| Fuel | Gas (Natural Gas; LP convertible) |
| Nominal Width | 30 inches |
| Width | 31 inches |
| Height | 3 13/16 inches (approx. 3.8 inches) |
| Depth | 21 1/4 inches (21.25 inches) |
| Appliance Dimensions (H x W x D) | 3 13/16" x 31" x 21 1/4" |

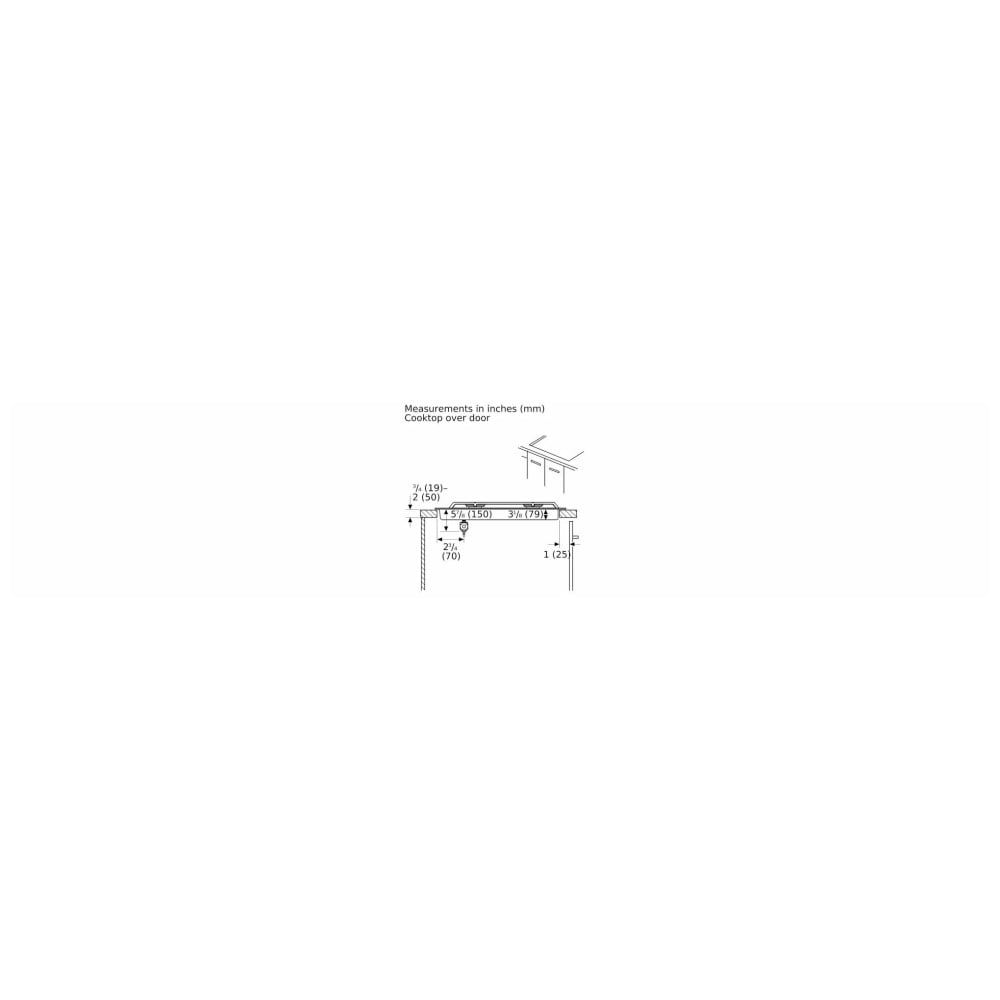

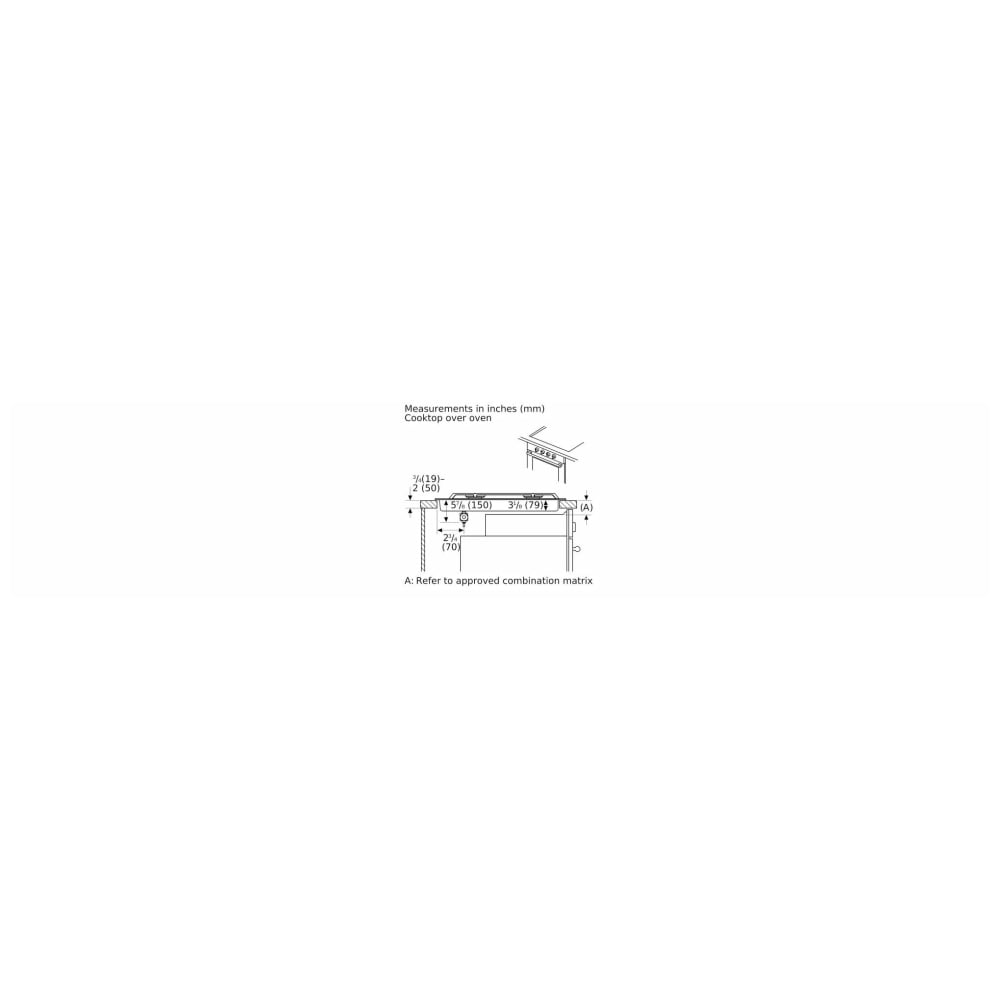

| Required Cutout / Niche Size (H x W x D) | 3 13/16" x 28 15/16" x 19 1/8" |
| Minimum Distance from Counter Front | 1 7/8 inches (approx. 1.88") |
| Minimum Distance from Rear Wall | 3 inches |
| Product Weight | Approx. 38–51 lbs (varies by listing; manufacturer spec sheet typically ~51 lbs) |
| Series | Benchmark® |
| Color / Finish | Stainless Steel |
| Cooktop Surface | Stainless Steel |
| Cooktop Surface Type / Style | Burner Grate (continuous grate design) |
| Number of Burners / Elements | 5 sealed gas burners |
| Burner Type | Sealed |
| Grate Material | Cast Iron, continuous grates |
| Number of Grates | 2 double grates, 1 single grate |
| Grate Features | Continuous, dishwasher-safe, enameled cast iron |

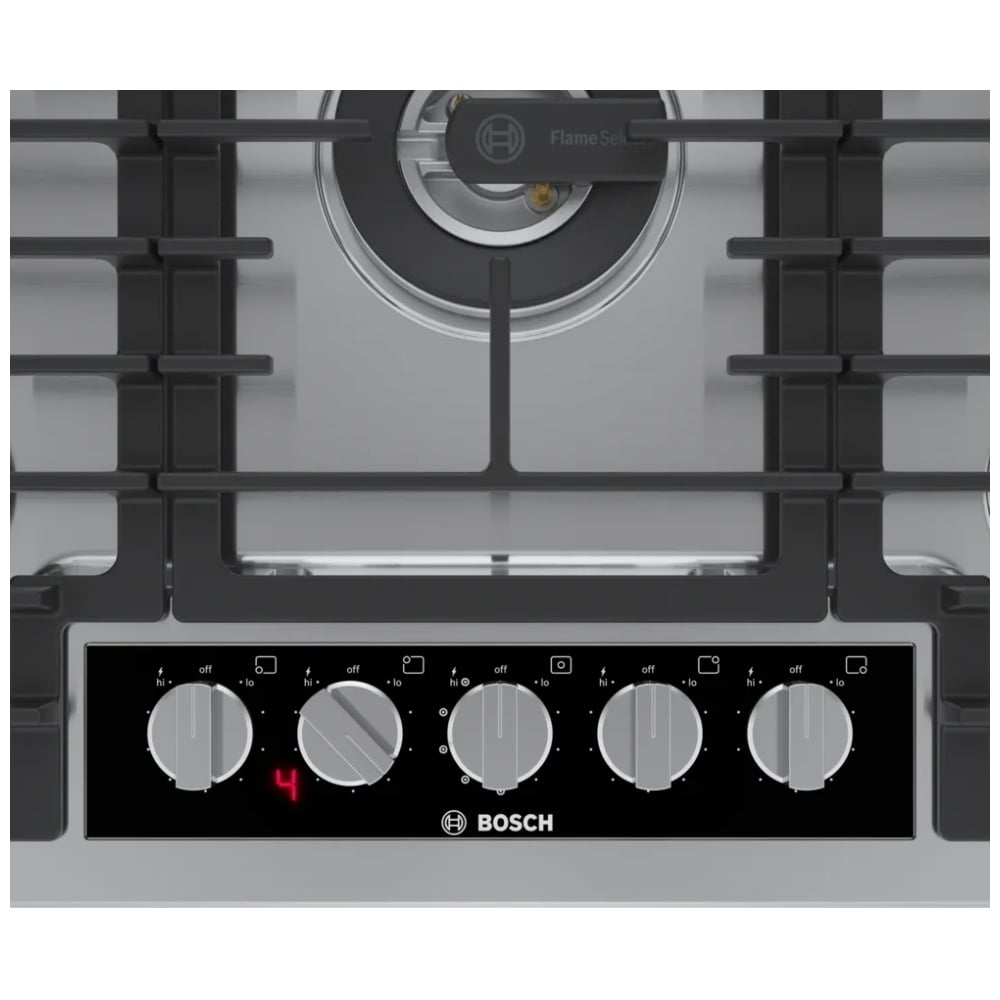

| Control Type | Mechanical, front-mounted "sword" style metal knobs |
| Control Panel | Front, black glass control panel with LED indicators |
| LED Indicators | Red LED next to each knob indicates burner on and power level |

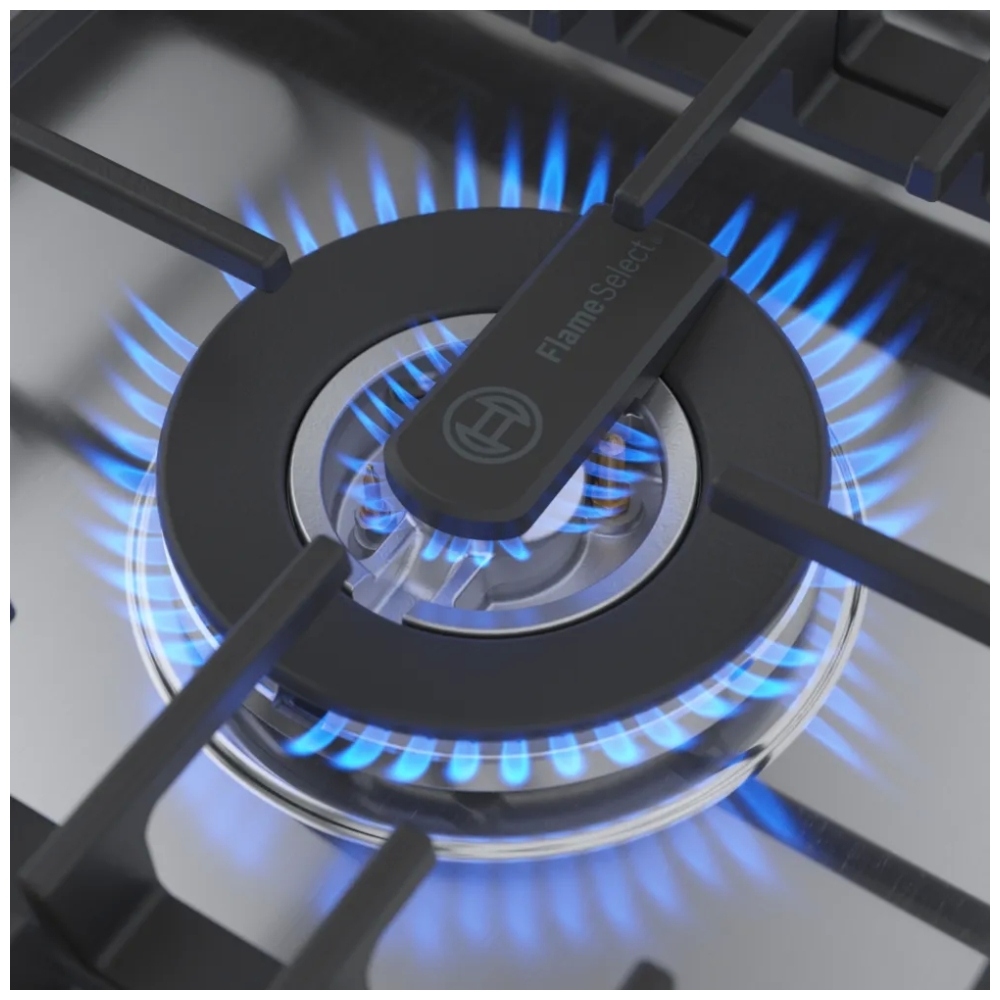

| Flame Control Technology | FlameSelect with 9 defined power levels |

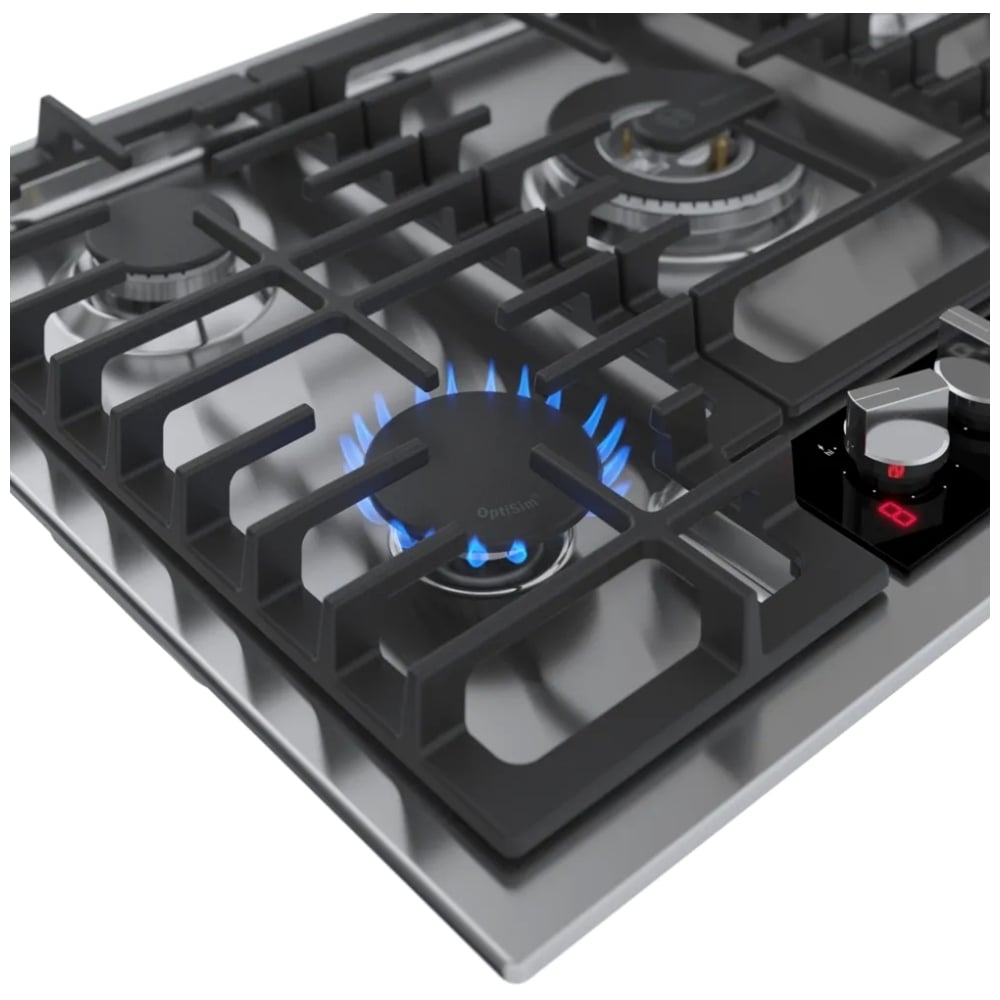

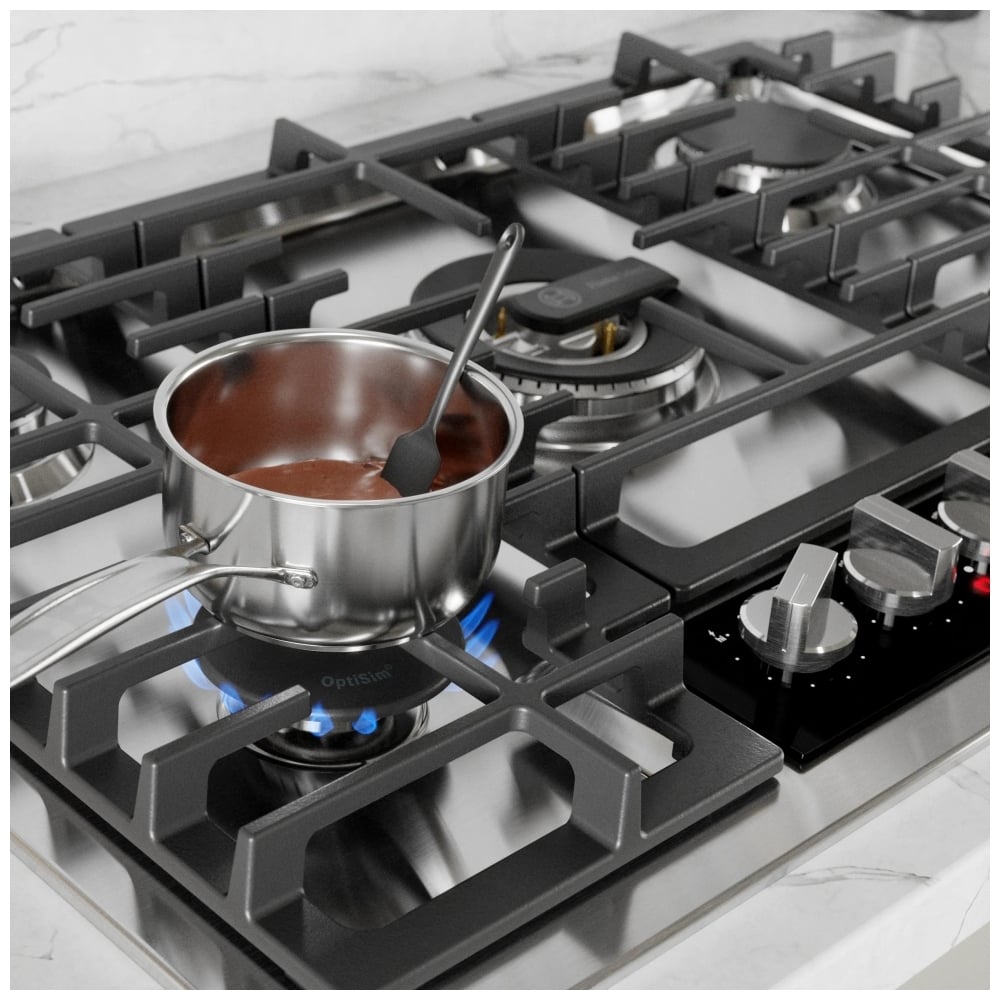

| Special Burner Features | Dual-flame power burner; OptiSim burner for gentle simmering |
| Number of Gas Burners | 5 |
| High-Power Burners | 1 high-power dual-flame burner (up to 18,000 BTU) |
| Medium-Power Burners | 1 medium burner |
| Low-Power Burners | 3 low burners (including OptiSim simmer burner) |
| Maximum Burner Output (Single Burner) | 18,000 BTU (best-in-class power burner) |
| Total Maximum BTU Rating (Natural Gas) | 43,750 BTU |
| Total Maximum BTU Rating (LP Gas) | 43,750 BTU |
| LP Gas Connection Rating | 43,750 BTU |
| Natural Gas Connection Rating | 43,750 BTU |
| Gas Connection Rating (W) | Approx. 12,800 W equivalent |
| Gas Type (Factory Set) | Natural gas 15 mbar (USA) |
| Alternative Gas Type | Liquid propane (LP) 27.5 mbar (USA) |
| Ignition Type | Automatic electronic ignition |
| Re-Ignition | Automatic electronic re-ignition if flame goes out |
| Flame Failure Safety | Flame Safe thermocouple shuts off gas if flame extinguishes |
| Number of Power Levels | 9-step FlameSelect valve |
| Residual Heat Indicator | Yes |
| Sealed Burners | Yes (helps contain spills) |
| Wok Burner | Yes (dual-flame power burner; optional wok ring accessory) |
| Simmer Capability | OptiSim burner design for low, even simmer |
| Keep Warm Function | No dedicated keep-warm function |
| Timer | No built-in timer |
| Connectivity | No Wi-Fi / no Home Connect |
| Connected Appliances with Home Connect | No |
| Energy Input | Gas |
| Electrical Connection Rating | 360 W |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Fuse Protection / Circuit Breaker | 15 A |
| Plug Type | 120 V, 3-prong plug |
| Gas Regulator Inlet Thread Size | 1/2 inch female thread |
| Installation Type | Built-in, drop-in cooktop |
| Location of Gas Connection | Bottom, rear, right |
| Installation Height (Min / Max) | Approx. 3 13/16" (fixed height) |
| Power Cord Length | Approx. 40 inches (101.6 cm) |
| Downdraft Ventilation | No |
| Hood Recommended | Yes |
| ADA Compliant | Varies by listing; manufacturer spec generally lists as not ADA compliant |
| Commercial Use Approved | No |
| Smart Compatible | No |
| Energy Star Rated | No |
| Safety Features | Automatic re-ignition, Flame Safe thermocouple, sealed burners, LED on-indicators |
| Cooktop Features (Summary) | FlameSelect, dual-flame power burner, OptiSim simmer burner, continuous dishwasher-safe grates, low-profile stainless design, LED power level display |
| Included Accessories | LP conversion nozzle set; cast iron pan support / grates |
| Optional Accessories | Wok ring (HEZ298102); griddle plate (HEZ9GR58UC) |
| UPC | 825225972624 |
| Warranty | 1-year limited parts and labor (manufacturer) |
