Manufacturer's Warranty: 1 year
Canadian model: NGMP656UC
Canadian UPC: 825225938460
EAN: 0825225938460





| Construction type | |
| Basic surface material | Stainless steel |
| Variant color | Stainless steel |
| Frame type | Frameless |
| Flushmount | No |
| Material of pan supports | Cast iron with rubber feet |
| Flat burner | No |
| Installation | |
| Gas type | Natural gas 15 mbar (USA) |
| Nozzle set included for alternative gas type | Liquid gas 27,5 mbar (USA) |
| Type of appliance width | 90 cm |

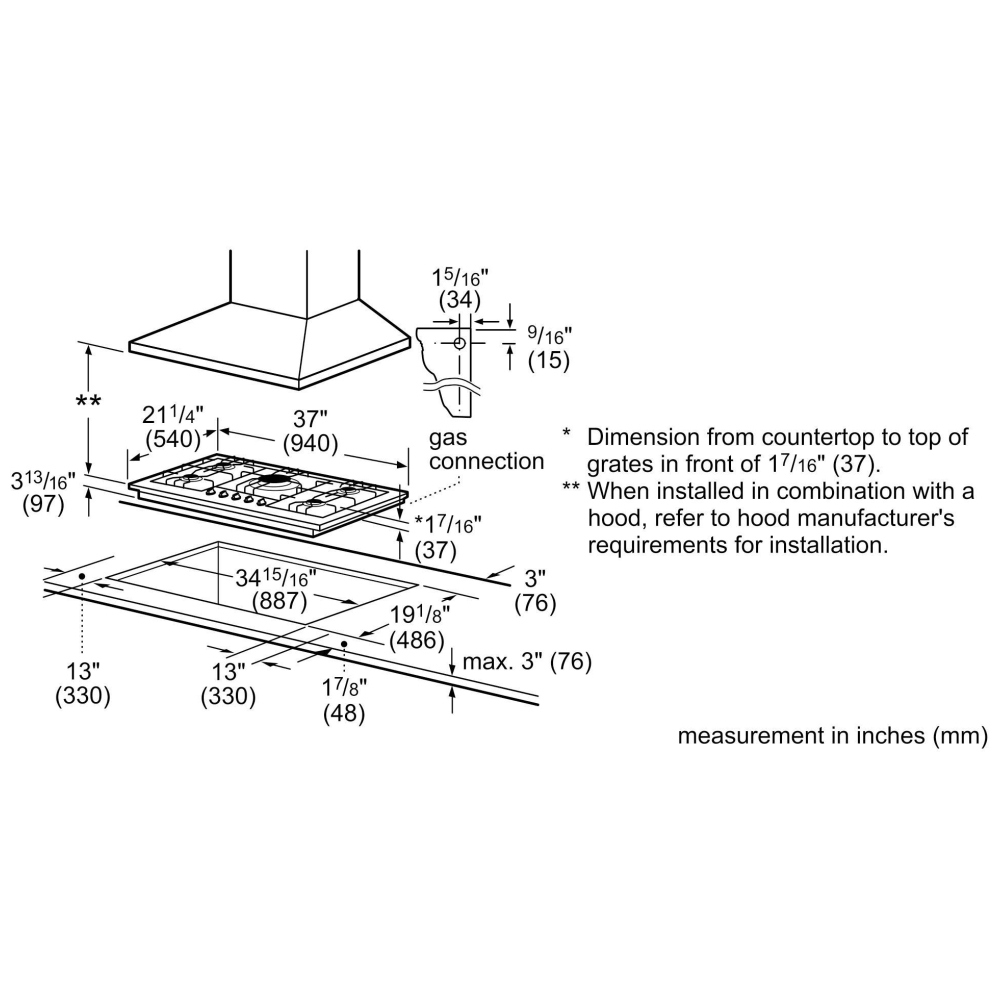

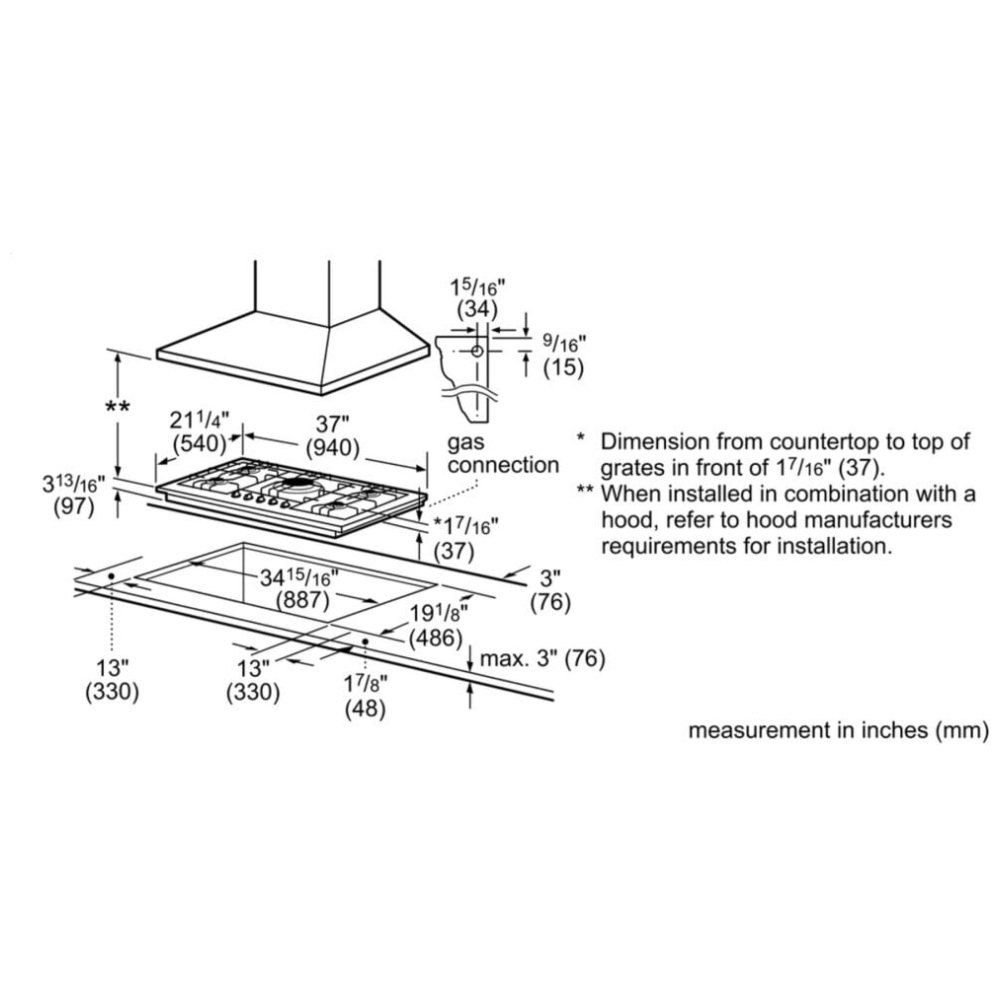

| Dimensions | 97 x 940 x 540 mm |
| Min. required cutout size (HxWxD) | 97 x 887-887 x 486-486 mm |
| Minimum worktop thickness | 19 mm |
| Power cord length | 152.4 cm |
| Plug type | 120V-3 prong |
| Gas connection rating | 17,440 W |
| Alternative gas type | Liquid gas 27,5 mbar (USA) |
| Burners and power | |
| Total number of cooktop burners | 5 |
| Dual wok burner | No |
| Power of the heating elements | 1 x 1.61 KW, 1 x 2.93 KW, 1 x 5.86 KW, 2 x 3.52 KW |
| Comfort | |
| Flame select | |
| dishwasher safe pan support | |
| Location of control panel | Front |
| Hob ignition | Knob ignition |
| One piece burner | No |
| Connectivity | |
| Home Connect | |
| Safety | |
| Safety device | Electronic |
| Residual heat indicator | without |
| Main on/off switch | No |
| Accessories | |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
| Energy source | Gas |
|---|---|

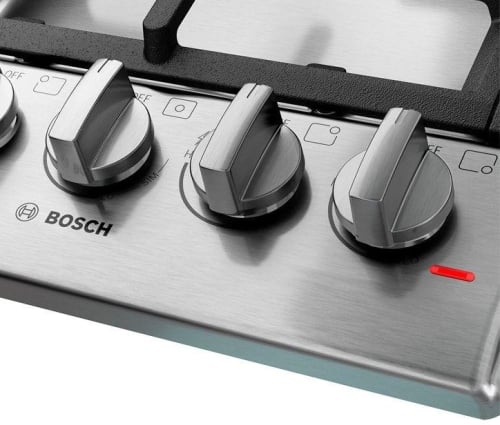

| Type of control | sword knobs |
| Safety device | automatic reignition |
| Home Connect |
|---|
| Color of frame | Stainless steel |
|---|---|
| Color of surface | Stainless steel |
| Construction type | Built-in |
| Number of electric elements | 0 |
| Number of electric cooking zones | 0 |
| Number of gas burners | 5 |
| Number of halogen elements | 0 |
| Installation Type | Built-in |
| Type of grate | Cast iron |
| Total number of cooktop burners | 5 |
| Number of radiant elements | 0 |
| Number of electric warming zones | 0 |
| Overall appliance dimensions (HxWxD) (mm) | 97 x 940 x 540 mm |
|---|---|
| Net weight (kg) | 20.933 kg |
| Location of 1st heating element | front left |
|---|---|
| Type of heating element | Gas |
| Location of 2nd heating element | center left |
|---|
| Location of 3rd heating element | back left |
|---|---|
| Type of 3rd heating element | Gas |
| Location of 4th heating element | middle back |
|---|
| Location of 5th heating element | back right |
|---|---|
| Type of 5th heating element | Gas |
| Location of 6th heating element | center right |
|---|
| Location of 7th heating element | front right |
|---|---|
| Type of 7th heating element | Gas |
| Location of 8th heating element | front middle / central |
|---|
| Location of 9th heating element | front centre/cent |
|---|
| Type of safety device for gas | Without |
|---|---|
| Power on indicator | |
| Residual heat indicator | without |
| Safety device | automatic reignition |
| Main on/off switch |
| Power cord length (cm) | 152 cm |
|---|---|
| Watts (W) | 360 W |
| Energy source | Gas |
| Frequency (Hz) | 60 Hz |
| Location of gas connection | bottom, rear, right |
| Gas connection rating (W) | 17,440 W |
| Included accessories | 1 x nozzle set for liquid gas, 1 x cast iron pan support |
|---|
