Manufacturer's Warranty: 1 year
Canadian model: SHP78CM5N
Canadian UPC: 825225965909
EAN: 4242005311668
| Specification | Value |
|---|---|
| Model | SHP78CM5N |
| Series | 800 Series |
| Type | Built-in, built-under dishwasher |
| Color / Finish | Stainless Steel / Brushed steel anti-fingerprint |
| Appliance Color/Finish | Stainless Steel Anti-fingerprint |
| Capacity: Place Settings | 16 place settings |
| Width: inches | 23 9/16 inches |
| Height: inches | 33 7/8 inches |
| Depth: inches | 23 3/4 inches |
| Depth (with handle) | 23 3/4 inches (approx. 23.75 in) |
| Depth (without handle) | 23 1/2 – 23 11/16 inches (varies slightly by listing) |
| Depth with Door Open (approx.) | 47.5 – 48 1/4 inches |
| Overall Dimensions (H x W x D) | 33 7/8 in x 23 9/16 in x 23 3/4 in |
| Required Cutout Size (H x W x D) | 33 7/8 in x 24 in x 24 in |
| Minimum Installation Height | 33 7/8 inches (860 mm) |
| Maximum Installation Height | 35 inches (approx. 890 mm with adjustable feet) |
| Maximum Adjustability of Feet | 30 mm |
| Maximum Installation Width | 618 mm |
| Installation Depth | 610 mm |
| Adjustable Feet | Yes, all adjustable from front |
| Common Dishwasher Size | 24 inch |
| Net Weight | 92 – 96 lb (varies by listing) |
| Product Weight (typical) | 96 lb |
| Gross / Shipping Weight | Approx. 101 lb |

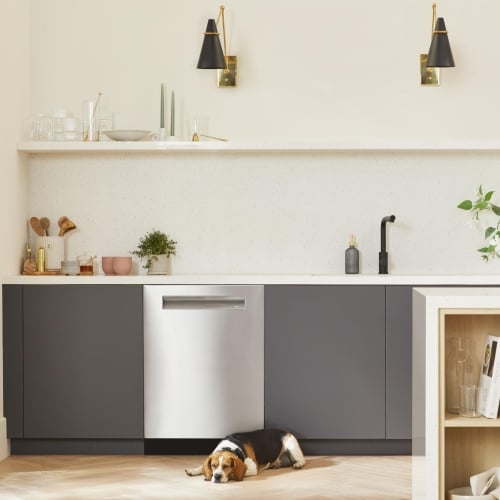

| Sound Rating | 42 dBA |
| Noise Level (Db(A) re 1 pW) | 42 |
| Energy Star Certified | Yes |
| Energy Efficiency Class | Tier 1 |
| Total Annual Energy Consumption | 240 kWh |
| Total Annual Water Consumption | 688 gallons (approx.) |
| Number of Wash Cycles / Programs | 5–8 (5 core programs; up to 8 cycles including additional options / Smart cycles) |
| List of Core Programs (manufacturer-style) | Heavy / Intensive, Auto, Normal / Eco, Speed 60 / Quick L, Favorite / Custom |
| Number of Options | 6 |
| Key Options / Special Functions | Remote Start, Sanitize / HygienePlus, CrystalDry, ZoneControl Front, ZoneControl Back, ZoneControl Custom, Flex Spray Front/Back/Custom, Zeo Dry |
| Drying System | CrystalDry with Zeolite, PureDry / condensation, inherent heat |
| Dry Type | Condensing with CrystalDry enhancement |
| Leak Protection | Single Water Protection 24h / AquaStop-style leak protection |
| Water Softener | No |
| Maximum Temperature for Water Intake | 140 °F |
| Number of Place Settings | 16 |
| Number of Racks | 3 |

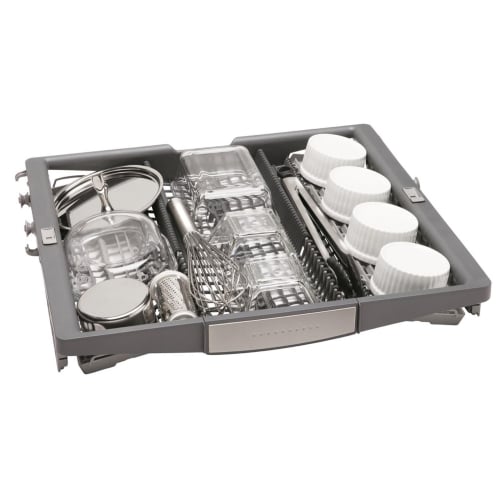

| 3rd Rack | Flexible 3rd Rack / 3rd Rack 2.0 |

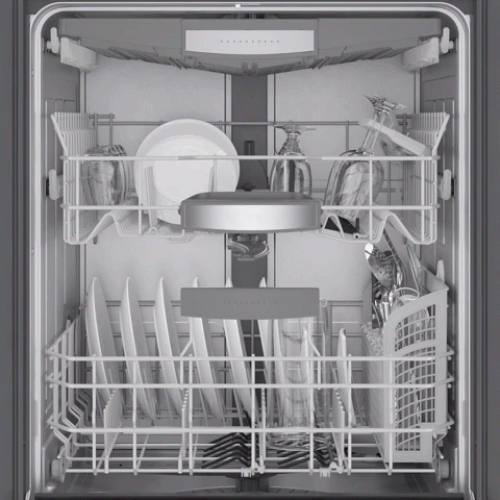

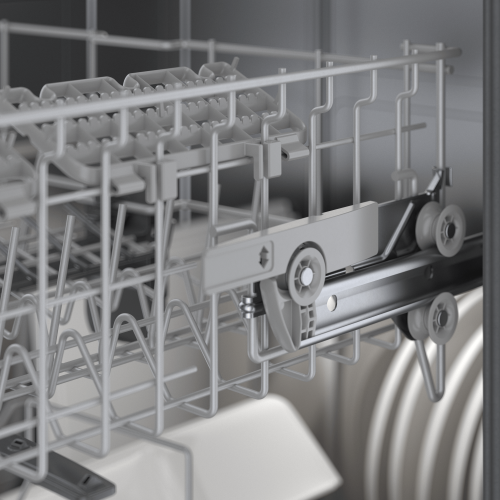

| Adjustable Upper Rack | Yes, RackMatic with 9 positions |
| Rack Material | Nylon |

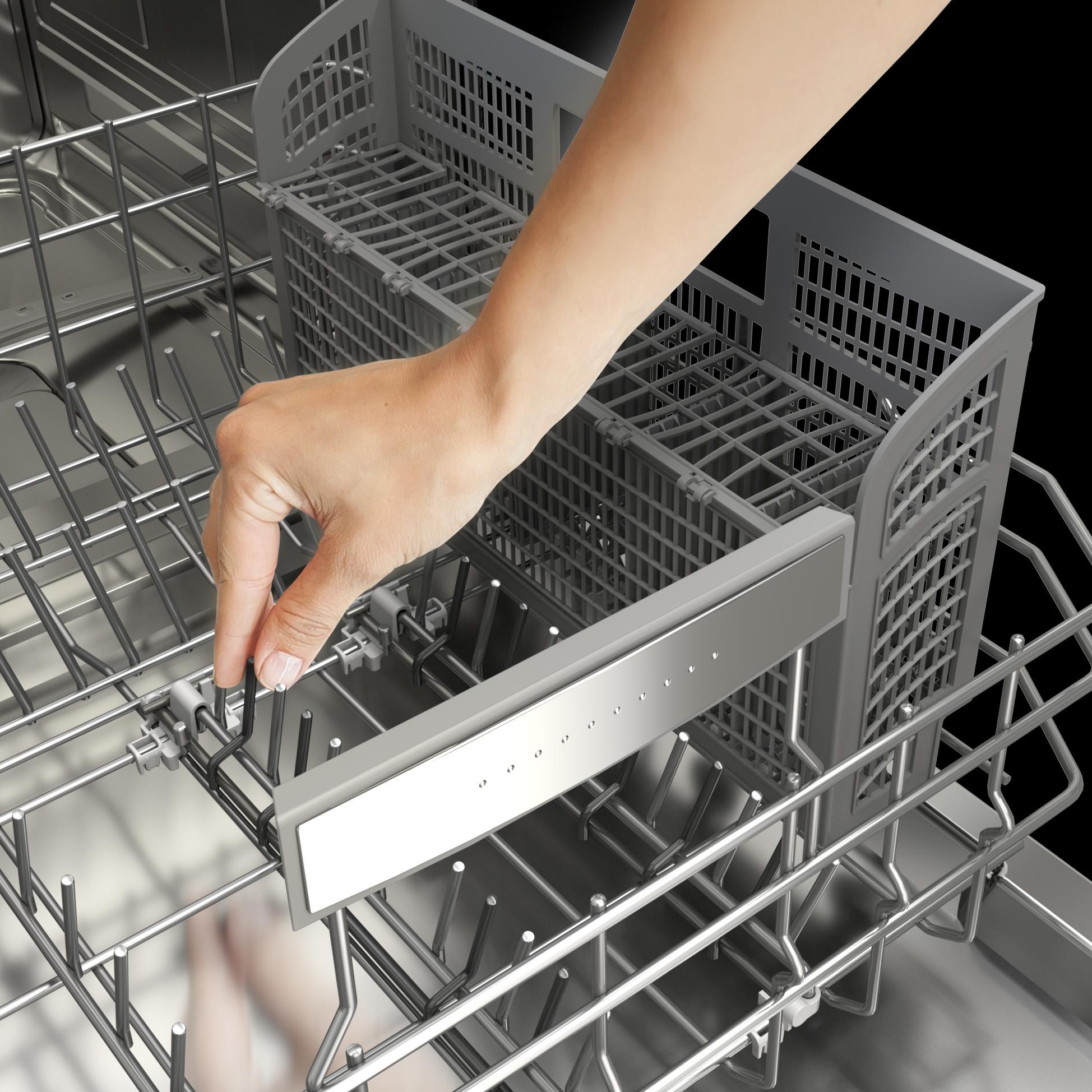

| Fold-Down Tines | Yes |
| Cup Shelves | Yes |
| Stemware Holder | Yes |
| Tall Tub | Yes |
| Tub Material | Stainless Steel |
| Concealed / Hidden Heating Element | Yes |
| Interior Light | No |
| Control Panel Type | Top control, fully integrated |

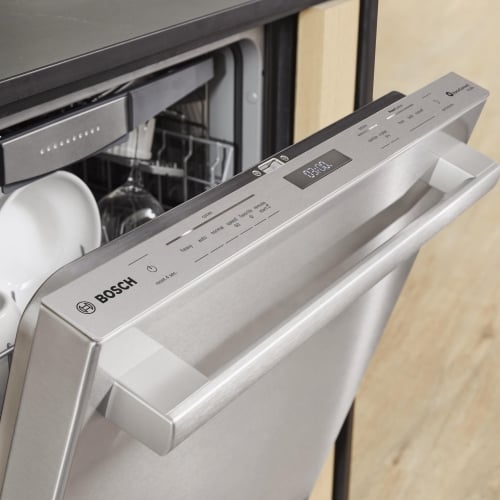

| Control Type | Electronic, touch sensor / push-button |
| Display | Yes (digital countdown indicator) |
| Program Status Indication | Info Light in door handle / end-of-program audible signal |
| Delay Start | Yes, up to 24 hours |

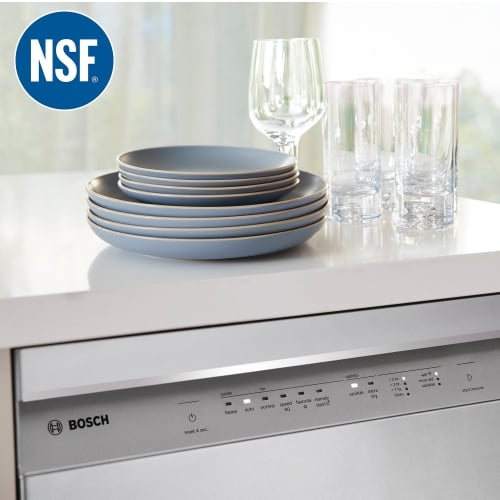

| NSF Certified Rinse / Sanitize | Yes (sanitize / HygienePlus option) |
| High Temperature Wash | Yes |
| Quick / Speed Wash | Yes, Speed 60 / Quick L |
| Heavy Duty / Intensive Wash | Yes |
| Sensor Clean / Auto Program | Yes (Auto program) |
| China / Crystal Setting | Yes (via appropriate program/option) |
| Half Load Option | No dedicated half-load; targeted ZoneControl instead |
| Number of Wash Levels | 5 |
| Number of Spray Arms | 2 main spray arms plus additional spray features |
| Rinse Aid Dispenser | Yes |
| Water Filtration | Not specified as separate filter system |
| Hard Food Disposer | No (European-style filtration) |
| Child Lock | No dedicated child lock |
| Wi‑Fi / Connectivity | Yes, Wi‑Fi with Home Connect |
| Smart Home Compatibility | Works with Amazon Alexa, Google Assistant, SmartThings (via Home Connect) |
| Remote Monitoring & Control | Yes (app-controlled, remote diagnostics) |
| Smart Cycle / Additional Cycles via App | Yes |
| Power Rating (Watts) | 1440 W |
| Current (Amps) | 12 A |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Power Cord Length | 67 inches (170 cm) |
| Plug Type | NEMA 5-15P |
| Drain Hose Length | Approx. 78 3/4 – 79 inches (200 cm) |
| Depth with Door Open 90° (mm) | Approx. 1231 mm |
| Built-In / Free-Standing | Built-in |
| Installation Type | Built-under, fully integrated |
| Removable Top | No |
| Panel Ready | No (door decor panel not possible) |
| Variable Hinge | No |
| Adjustable Plinth | No |
| Door Panel Type | Solid stainless steel |

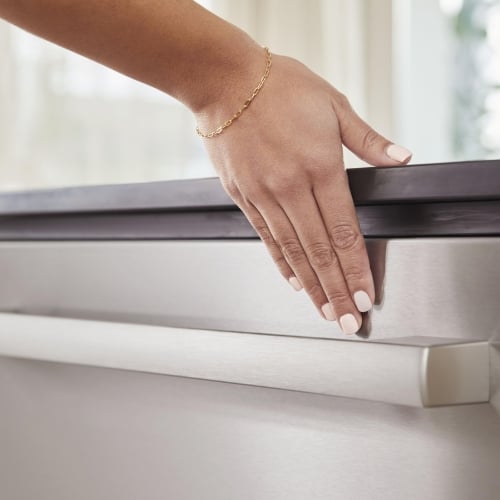

| Fingerprint Resistant Finish | Yes (anti-fingerprint stainless) |
| Leak Sensor / Safety Device | Single Water Protection 24h / leak protection |
| End of Cycle Signal | Audible signal |
| Single Basket Washing | No dedicated single-basket mode |
| ADA Compliant | No |
| Approved for Outdoor Use | No |
| UPC | 825225965909 |
| EAN | 0825225965909 / 4242005311668 |
| Manufacturer Warranty (Parts) | 1 year limited |
| Manufacturer Warranty (Labor) | 1 year limited |
| Optional Accessories | SGZ1010UC (drain hose extension), SMZ4000UC, SMZ5000, SMZ5002UC (anti-tarnish cassette), SMZPCJB1UC (junction box power cord kit), SMZ3IN1UC, SMZSH002UC, SMZEPCC1UC |
