Manufacturer's Warranty: 1 year
Canadian model: SHV9PCM3N
Canadian UPC: 825225965008
EAN: 4242005277056



| Specification | Value |
|---|---|
| Product Type | 24" Panel Ready Built-In Dishwasher |
| Collection / Series | Bosch Benchmark |
| Capacity | 16 place settings |
| Width | 23 9/16 in (23.56 in / 598 mm) |
| Height | 33 7/8 in (33.88 in / 860 mm) |
| Depth | 23.06 in (approx. 585 mm cabinet depth) |
| Overall Appliance Dimensions (HxWxD) | 860 x 598 x 585 mm |
| Appliance Fit Width | 24 in (60 cm) |
| Cutout Width | 24–24.25 in (approx. 61–61.6 cm) |
| Cutout Height | 33 7/8 in (33.88 in / 860 mm) |
| Cutout Depth | 24 in (609.6 mm) |
| Net Weight | 101 lb (45.7 kg) |
| Panel Ready | Yes (custom cabinet panel required) |
| Door Panel Type | Full-integrated, custom panel |
| Tub Material | Stainless steel |

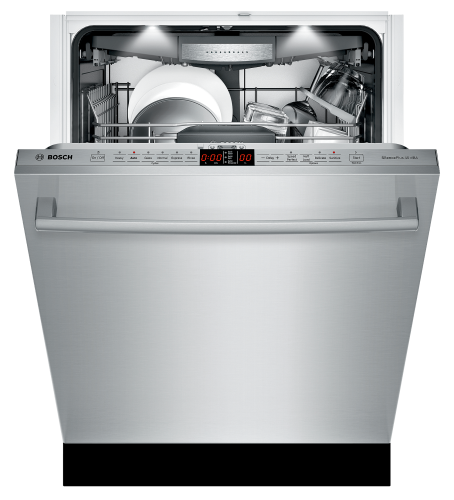

| Interior Light | Yes |

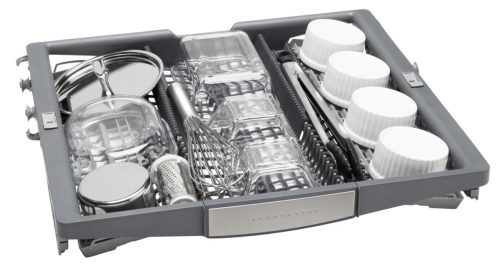

| Third Rack | Smart Load 3rd Rack / VarioDrawer Pro |
| Rack Adjustability | RackMatic (upper rack, 9 positions) |
| Drying System | CrystalDry with Zeolite, inherent heat |
| Wash System | PrecisionWash with PowerControl |
| Number of Wash Cycles | 5 cycles + 4 additional via Home Connect |
| Number of Options | 4 options + 4 additional via Home Connect |
| Example Program List | Intensive (Heavy), Auto, Economy (Normal), Quick L, Custom/Favorite |
| Cycle Options (examples) | HygienePlus (Sanitize), Remote Start, CrystalDry / Zeo Dry, additional options via app |
| Sound Level | 39 dBA |
| Sound Rating Range | Quietest |
| Leak Protection | 24/7 AquaStop / 24/7 Overflow Protection System |
| Water Softener | Yes (integrated) |
| Sanitize Option | Yes (NSF-certified sanitize option) |
| Home Connect (Wi‑Fi) | Yes, Wi‑Fi enabled; remote monitoring and control |
| Home Connect Extra Features | Additional cycles & options, Remote Start, status monitoring |
| Control Type | Top control touchpad with LCD display |
| Display | Yes (time remaining, status indicators) |
| TimeLight | Yes (cycle time/progress projected on floor) |
| Handle | Handle not included (uses cabinet panel handle) |
| Child Lock | No dedicated child lock button suspension |
| Place Settings (EU 2017/1369) | 16 |
| Water Usage Per Cycle (typical) | Approx. 3.2 gal (12.1 L) on standard cycle |
| Water Consumption – Program Range | Approx. 2.4–6.4 gal depending on program |
| Total Annual Water Consumption | Approx. 688 gal |
| Maximum Inlet Water Temperature | 60 °C |
| Energy Star | Yes (ENERGY STAR certified) |
| Energy Efficiency Class | Tier 1 |
| Estimated Annual Energy Consumption | Approx. 239 kWh |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Amperage | 12 A |
| Connected Load | 1,440 W |
| Power Cord Length | 67 in (170 cm) |
| Outlet Hose Length | Approx. 79 in |
| Plug Type | NEMA 5‑15P |
| Construction Type | Built-in, full-integrated |
| Removable Top | No |
| Adjustable Plinth / Toe Kick | No (uses cabinet toe kick) |
| Weight of Furniture Front (Min–Max) | 3–10 kg |
| Color / Finish | Panel ready (custom cabinet finish) |
| Fingerprint Resistant Finish | No (finish depends on custom panel) |
| Status Indicators | End-of-program audible signal, internal time-remaining indicator, TimeLight projection |
| Dishwasher Features (selected) | Flexible 3rd rack, EasyGlide Plus rack system, leak sensor, sensor wash, smart connectivity, custom panel ready |
