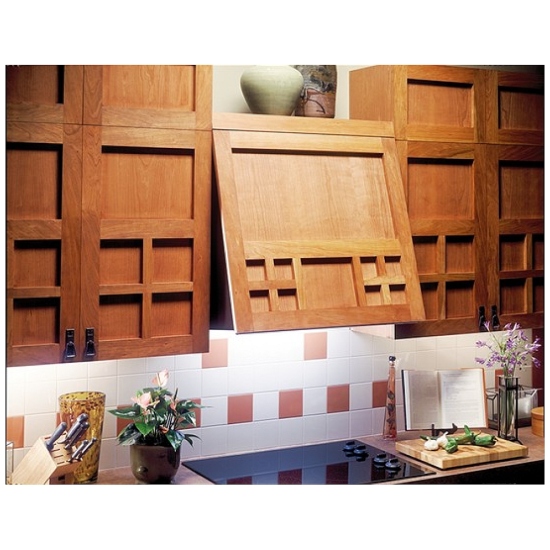

The Hideaway virtually hides from sight creating a seamless integration of cabinets and ventilation. Quiet and powerful, the Hideaway turns on simply by pulling it out.
- The Hideaway offers the combination of clean cabinet lines, effective ventilation and over-the-range storage
- Accommodates 30" wide by 24" to 30" high face frame cabinets
- Powerful, quiet 360 CFM/4.5 Sone (vertical or horizontal discharge) performance (HVI Certified)
- Blower and light automatically turn on when hood is pulled out
- Exclusive Heat Sentry detects excessive heat and turns on blower to high speed
- Fluorescent cooktop lighting (lamps sold separately)
- Designed for ducted (vertical or horizontal) installations. Includes 3-1/4" x 10" damper adapter. Requires Rough-In Kit Model #113123 for installation - purchased separately
- Accommodates 30" wide by 24" to 30" high face frame cabinets.
- Designed for ducted (vertical or horizontal) installations. Includes 3-1/4" x 10" damper adapter. (Requires Rough-In Kit Model #113123 for installation - purchased separately.)
- Exclusive Heat Sentry (TM) detects excessive heat and turns on blower to high speed.
- Fluorescent cooktop lighting (lamps sold separately).
- Blower and light automatically turn on when hood is pulled out.
- Powerful, quiet 360 CFM/4.5 Sone (vertical or horizontal discharge) performance (HVI Certified).
- The Hideaway offers the combination of clean cabinet lines, effective ventilation and over-the-range storage.
Manufacturer's Warranty: 1 year
Canadian model: 113023
| Accessories Mandatory | Yes |
| Accessories Optional | Yes |
| Accommodates Ceiling Height | N/A |
| ADA Compliant | No |
| Blower Air Mover Type | Dual Centrifugal Blower |
| Blower Included | Yes |
| Boost Mode | No |
| CFM (Airflow) | 360 |
| Color/Finish Product | Black |
| Control Feature Filter Reminder | No |
| Damper Included | Yes |
| Delay Shut Off | No |
| Digital Clock | No |
| Dishwasher Safe Filters | Yes |
| Duct Connector Size | 3-1/4" x 10" |
| ENERGY STAR® qualified | No |
| Filter Included | No |
| Filter Type | Aluminum |
| Flue Accommodates ceilings up to xx ft | N/A |
| Heat Sentry | Yes |
| HVI Certified | Yes |
| Light Bulb Quantity | 1 |
| Light Bulbs Included | No |
| Lighting Function | One-level |
| Lighting Type | Includes Nightlight 24" Fluorescent |
| Max Sones/100 CFM | 1.3 |
| Minimum Height Above Cook Top | 18" |
| Mounting System | Wall |
| Mounting Type | Wall |
| Non-Stick Coated | No |
| Product Depth (inches) | 11" - 13" |
| Product Height (inches) | 24" - 30" |
| Product Width (inches) | 30" |
| Rated Amps | 3.7 |
| Remote Control | No |
| Sones Certified Horizontal High | N/A |
| Sones Certified Horizontal Low | N/A |
| Sones Certified Vertical 7" Round High | N/A |
| Sones Certified Vertical 7" Round Low | N/A |
| Sones Certified Vertical High | 4.5 |
| Sones Certified Vertical Low | N/A |
| Switch Control Settings | Variable |
| Switch Style | Rotary Dial |
| Timer | No |
| UL Status | Yes |
| Voltage | 120 |
| Height: | 34 in. |
| Width: | 29 7/8 in. |
| Depth: | 11 in. |
| Duct Size: | 3-1/4 x 10 in |
| Appearance | |
|---|---|
| Style: | Slide Out |
| Mounting: | Wall Mounted |
| Features | |
| Blower: | Internal |
| Cooktop Light: | Fluorescent |
| Dishwasher Safe Filters: | No |
| Fan Speeds: | Self Regulating |
| Hidden Controls: | Yes |
| Technical Details | |
| Volts: | 120 |
| Amps: | 10 |
| CFM: | 360 |
Installation Guide (113023-installation-guide-canada.pdf)
