Broan

EW4830SS

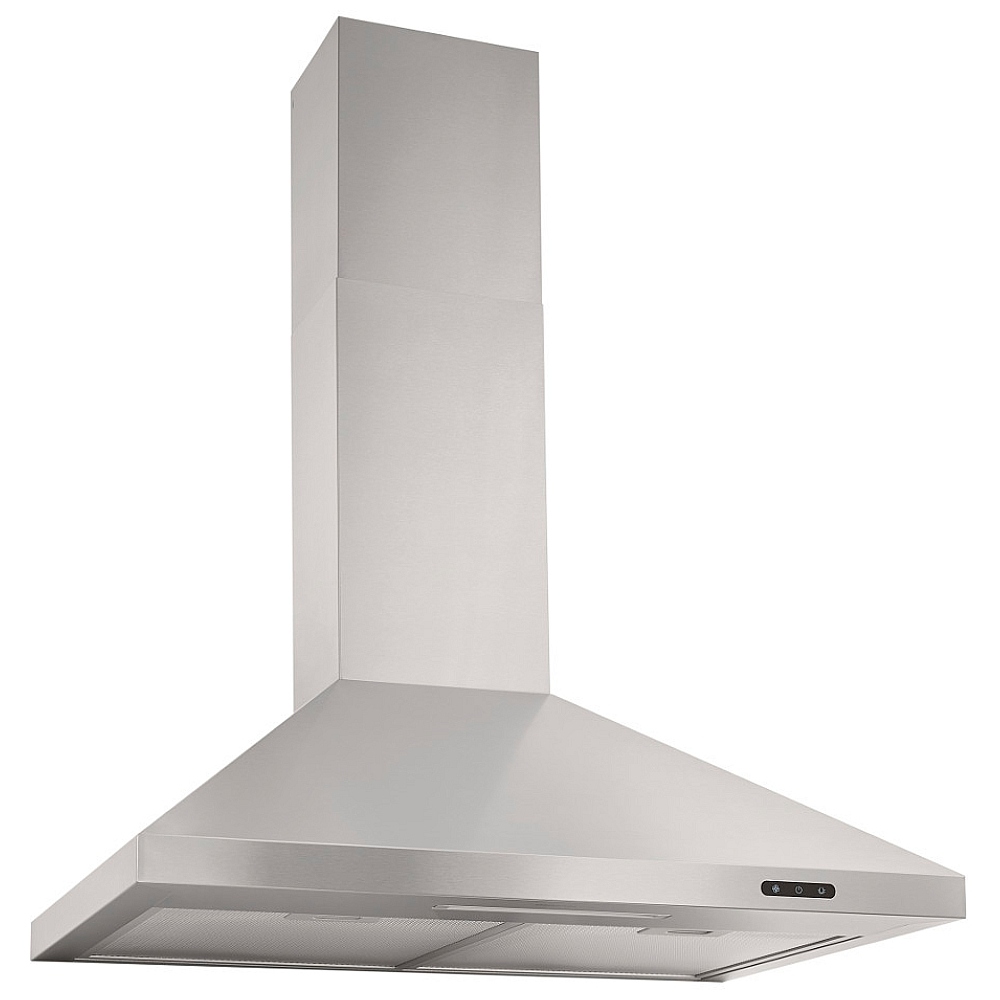

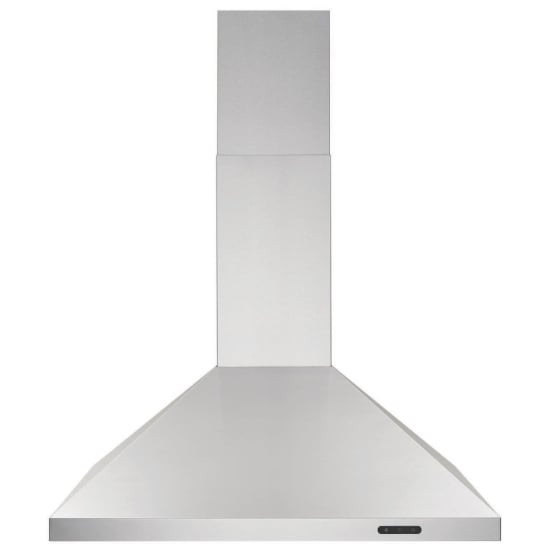

• Broan® Elite EW48 Series design – premium Broan® Elite EW48 Series pyramidal chimney style adds a high‑end, European look to the kitchen while matching other stainless steel appliances.

• Quiet 460 MAX Blower CFM performance – powerful internal blower delivers up to 460 MAX CFM to quickly capture smoke, steam and odors for a cleaner kitchen environment.

• Best‑in‑class low noise levels – operates at about 6.5–7.5 sones on high and only 1.5 sones at normal speed, providing strong ventilation with reduced fan noise for more comfortable conversations while cooking.

• HVI certified performance – independently tested and certified by the Home Ventilating Institute (HVI) so published airflow and sound ratings are reliable and code‑friendly.

• Tap‑touch capacitive controls – sleek, flat capacitive touch panel with three fan speeds offers precise control and wipes clean easily with no protruding buttons.

• Three‑speed blower settings – low, medium and high fan speeds let you match ventilation power to light simmering, everyday cooking or heavy frying.

• Bright 2‑level LED lighting – integrated LED module with two brightness levels provides focused task lighting over the cooktop and softer illumination when desired.

• Energy‑efficient 7W LED module – long‑life LED lighting (around 25,000 hours) reduces bulb changes and energy use compared with traditional halogen lights.

• Approx. 600‑lumen light output – high‑output LED module delivers about 600 lumens of neutral 3000K light to clearly illuminate pots, pans and food.

• 10‑minute delay‑off function – programmable delay keeps the fan running for about 10 minutes after cooking to clear lingering smoke and odors, then automatically shuts off.

• Convertible ducted / non‑ducted installation – supports traditional ducted venting to the outdoors or optional recirculating (ductless) installation when exterior venting isn’t possible.

• Optional non‑duct kit available – compatible with optional recirculation kit (model ARKEW48, sold separately) that includes a charcoal filter for indoor exhaust applications.

• Optional airflow reducer – can be paired with an optional 300 CFM reducer (model ARP64, sold separately) to help meet local building codes or make‑up air requirements.

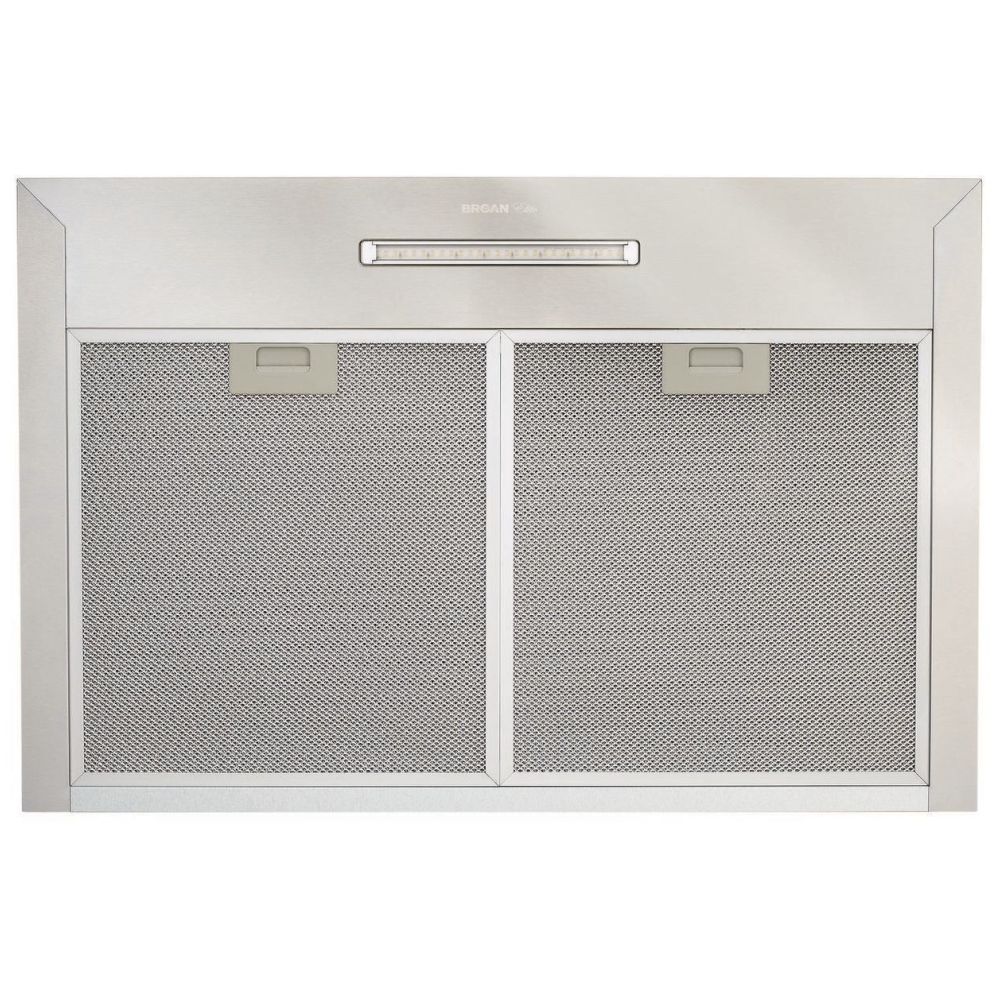

• Dishwasher‑safe aluminum filters – deluxe multi‑layer aluminum grease filters capture airborne grease and can be cleaned easily in a standard dishwasher.

• Quick‑release filter latches – spring‑style latches allow fast, tool‑free removal and reinstallation of filters for routine cleaning and maintenance.

• Wall‑mounted chimney configuration – designed for wall installation over a 30‑inch cooktop or range, creating a focal point while maximizing headroom.

• Telescopic flue for 8'–9' ceilings – adjustable chimney sections accommodate standard 8‑ to 9‑foot ceiling heights without additional parts.

• Optional flue extensions for tall ceilings – compatible with extension kits (such as model AEEW48SS, sold separately) to fit 9‑ to 10‑foot ceilings in open‑plan kitchens.

• Recommended 24"–30" mounting height – designed to be installed with the hood bottom 24 to 30 inches above the cooking surface for optimal capture efficiency and safety.

• 6" round vertical duct connection – standard 6‑inch round top outlet simplifies connection to common rigid or flexible ducting for vertical vent runs.

• Convertible ventilation type – supports both fully ducted operation for maximum odor removal and non‑ducted recirculation with charcoal filters where venting outside is not feasible.

• Three‑speed, 400 CFM rated operation – typical operating rating around 400 CFM on high provides strong everyday ventilation while balancing noise and energy use.

• Aluminum mesh filter construction – lightweight yet durable aluminum filter frames resist corrosion and are easy to handle during cleaning.

• LED module included in the box – ships with the required LED light module so no separate bulb purchase is needed at installation.

• Includes damper and installation hardware – backdraft damper, mounting bracket and basic hardware are supplied to streamline professional or DIY installation.

• Stainless steel finish – brushed stainless steel exterior resists fingerprints better than polished surfaces and coordinates with most modern kitchen appliances.

• Pyramidal canopy design – flared canopy shape helps funnel rising smoke and steam toward the filters for improved capture efficiency.

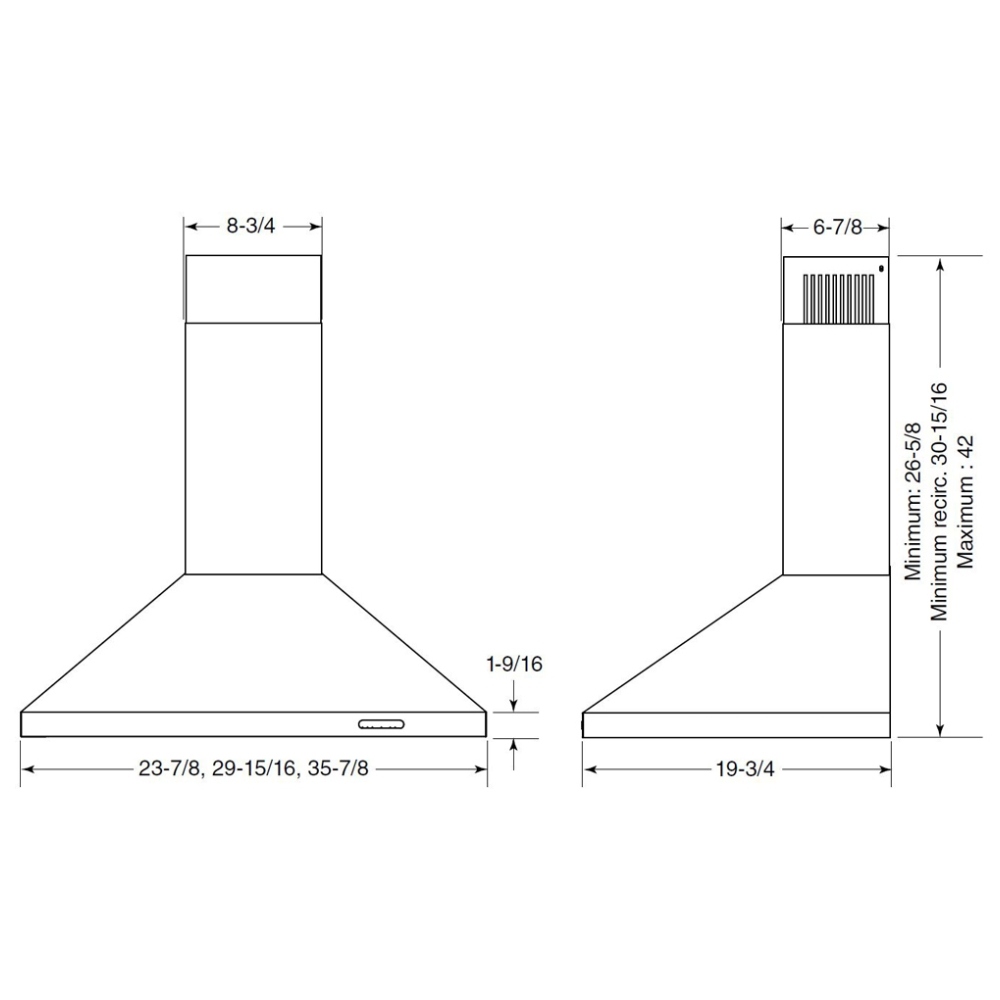

• Approx. 30" width (29.94") – sized to match standard 30‑inch ranges and cooktops, providing full coverage of the cooking surface.

• 19.75" depth – extended depth helps overlap the front burners for better capture of steam and cooking fumes from front pots and pans.

• Overall height up to about 42" – tall chimney section visually fills the space between the hood and ceiling for a built‑in, custom look.

• 1.6‑amp, 120‑volt operation – standard household electrical requirements simplify wiring and compatibility with typical U.S. and Canadian kitchens.

• UL listed safety certification – tested to meet recognized electrical and safety standards for residential range hoods.

• 1‑year limited warranty – manufacturer warranty coverage provides added confidence and support after installation.

• Broan‑NuTone brand reliability – produced by Broan‑NuTone, a leading North American ventilation manufacturer known for range hoods, bath fans and indoor air quality products.
