Broan

LB30SS

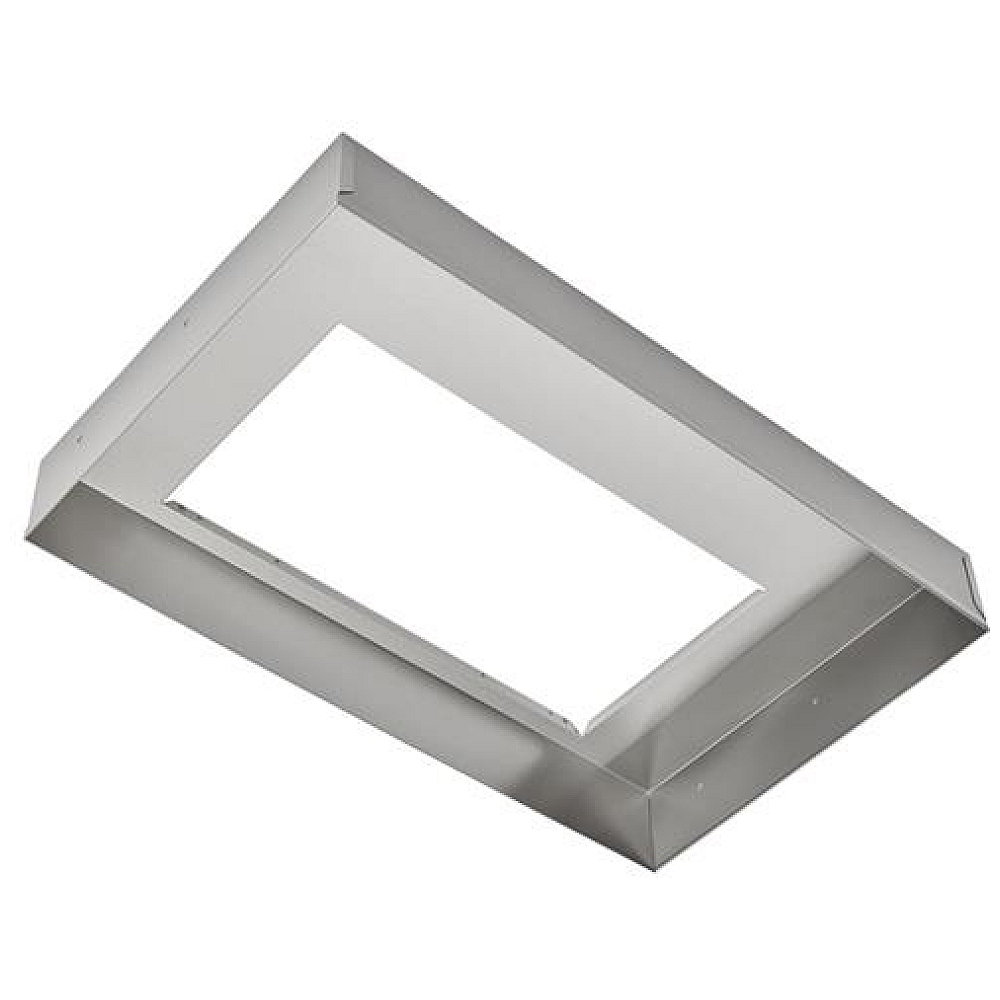

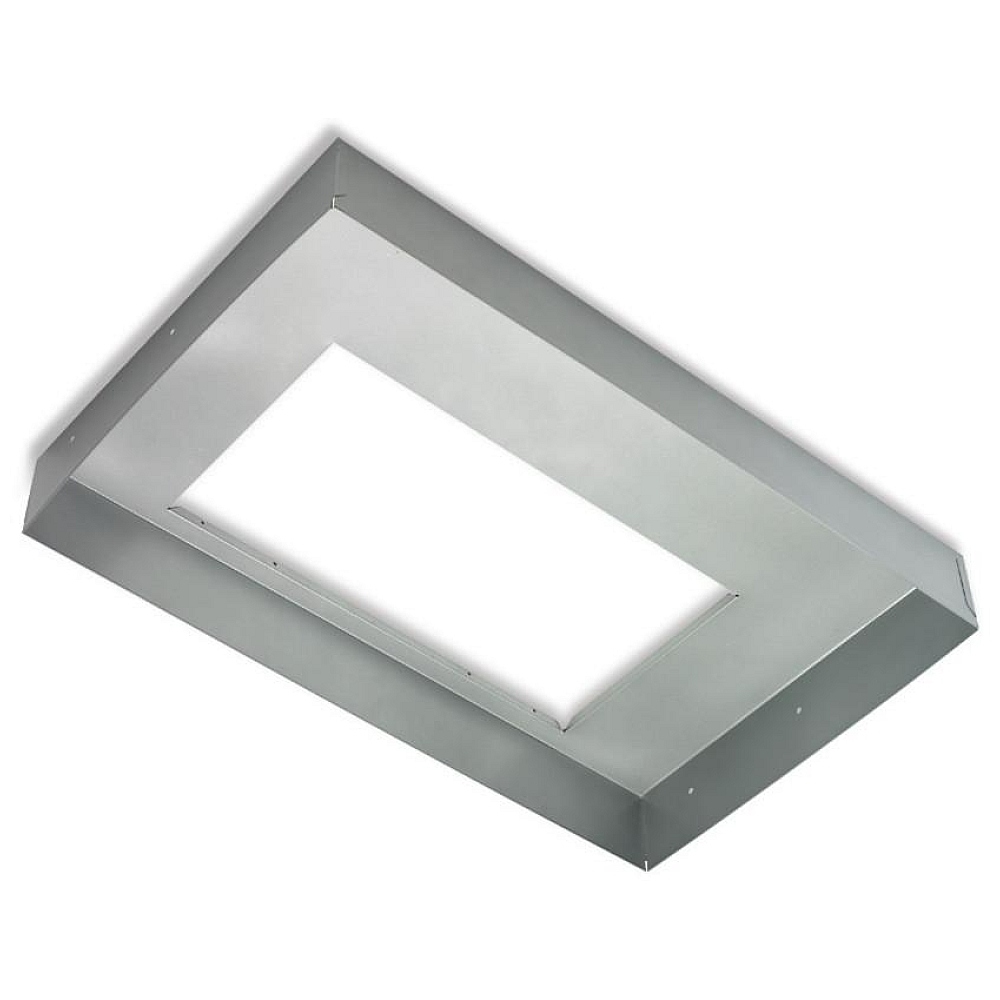

• Broan® 30-Inch Power Pack Box Liner – purpose-built liner designed to integrate with Broan® PM series range hood power packs for a clean, factory-style installation in custom wood hoods.

• Compatible with Broan® PM Series Power Packs – fits Broan models PM300SS, PM400SS, PMA400SS, PM400SSV, PM600SSV, PM250 and PM390 to ensure proper alignment, capture area and performance.

• Stainless Steel Finish – durable stainless steel surface resists heat, grease and discoloration while complementing most kitchen appliance finishes.

• Easy‑clean stainless surface – smooth metal finish wipes clean quickly, helping remove grease splatters and cooking residue with minimal effort.

• 30" custom hood application – sized for use in 30-inch wide custom wood range hoods, providing a finished interior around the power pack.

• Cabinet and wood hood protection – forms a metal barrier that shields surrounding cabinetry and wood hood surfaces from heat, steam, grease and smoke.

• 4" capture depth design – 4-inch deep box profile helps improve smoke and odor capture by extending the metal surface closer to the cooking area.

• Hemmed safety edges – folded, hemmed edges conceal raw metal and reduce sharp edges for a more attractive, safer and more finished appearance.

• Pre‑drilled mounting holes – factory-drilled holes simplify installation, allowing faster, more accurate mounting of the liner and power pack.

• Box-shaped liner construction – rigid box form adds structural support for the power pack and helps maintain alignment inside the custom hood.

• Designed for under‑cabinet / custom hood use – intended to be installed inside a custom-built wood hood or cabinet enclosure above the cooktop.

• Helps optimize ventilation performance – correctly positions the compatible Broan power pack over the cooking surface for effective smoke and odor removal (up to 300 CFM when paired with select modules).

• Supports integrated lighting from power pack – accommodates the built‑in lights of the compatible Broan PM power modules to illuminate the cooktop area.

• Standardized liner dimensions – approximately 28-7/16" wide x 17-1/4" deep x 4" high to fit typical 30" custom hood openings while leaving room for trim.

• Mesh filter–ready interior – interior space is sized to accept the mesh filters supplied with the compatible Broan PM power packs for effective grease capture.

• Indoor residential use – engineered for standard indoor kitchen environments rather than outdoor or commercial applications.

• Neutral, modern styling – simple stainless design blends with a wide range of cabinet styles, from traditional wood hoods to contemporary custom designs.

• Lightweight steel construction – steel body keeps weight manageable for installers while still providing strength and rigidity.

• Single-piece liner design – one-piece construction minimizes seams and gaps, helping contain grease and simplify cleaning.

• Compatible with common duct configurations (via power pack) – works with the duct sizes and orientations supported by the selected Broan PM power module, allowing flexibility in vent routing.

• Ideal for remodels and new builds – suitable for upgrading an existing custom hood or specifying in new kitchen construction for a more professional finish.
