Dacor

DRZ18980LAP/DA

DRZ18980LAP

• SteelCool™ Interior with 3DLighting™ – fully wrapped stainless-steel interior with integrated LED lighting that showcases contents while helping maintain consistent, even temperatures.

• Push-To-Open™ Door Assist – gently opens the column door with a light push for easy access, ideal for handleless or integrated kitchen designs.

• PreciseCooling™ Technology – advanced digital inverter and compressor system minimizes temperature fluctuations for best‑in‑class food preservation and flavor retention.

• ENERGY STAR® qualified efficiency – meets strict energy‑efficiency standards to help reduce power consumption and operating costs.

• SpaceMax extra‑large capacity design – high‑performance insulation maximizes interior storage volume without increasing the external footprint.

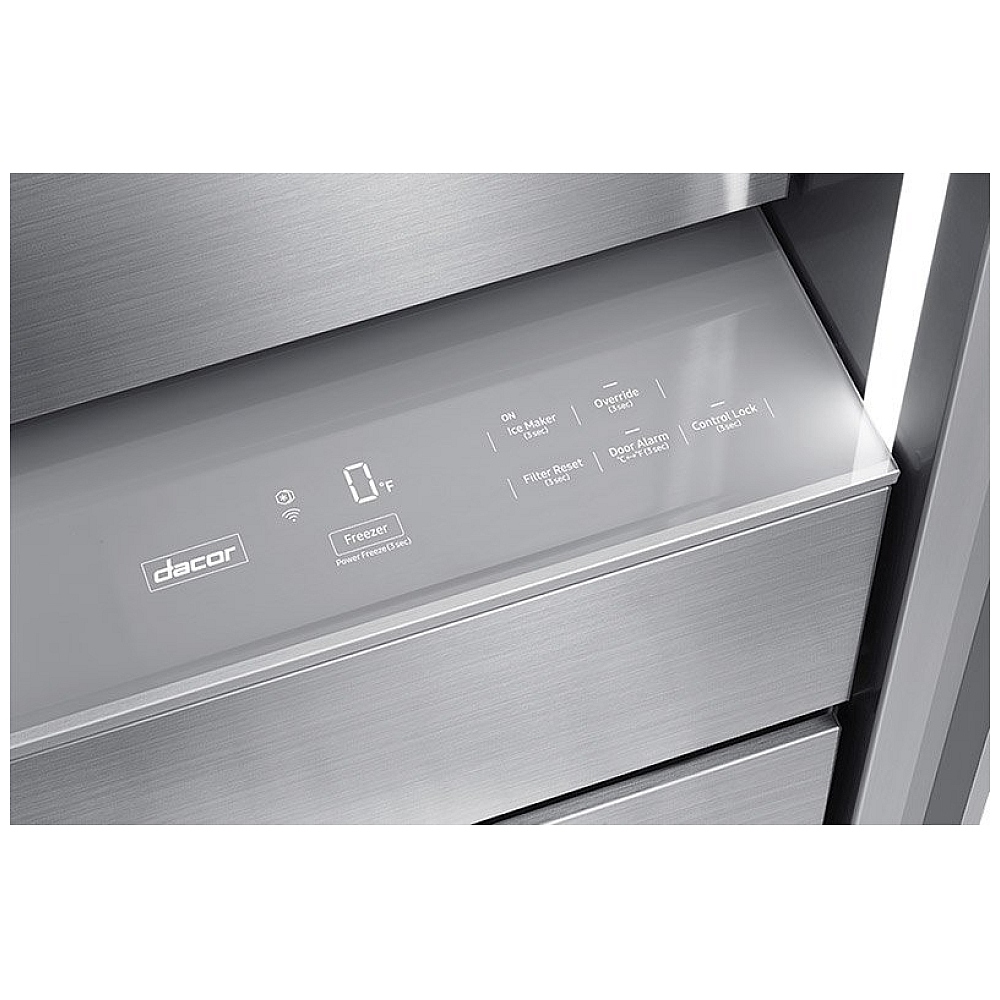

• Hidden Touch Control Panel – waist‑high, touch‑activated controls appear only when needed, preserving a clean, uncluttered interior look.

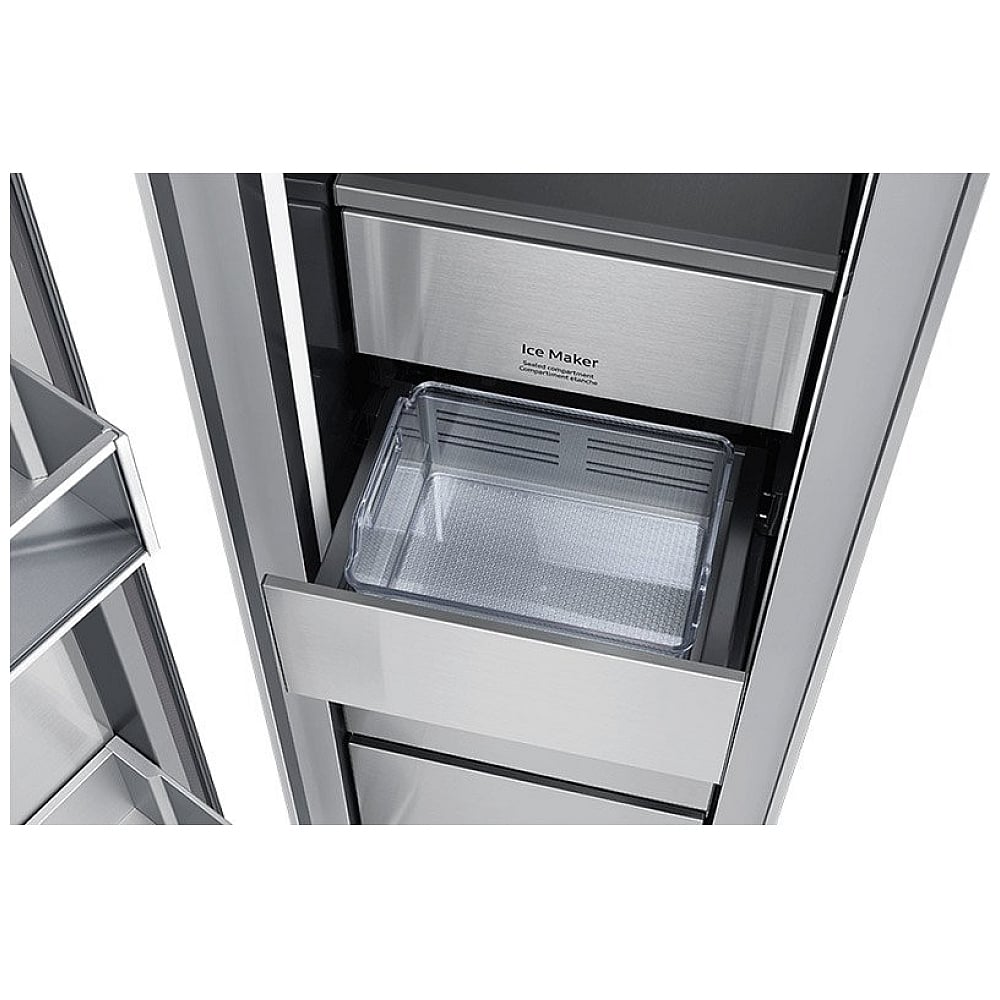

• Hidden icemaker – built‑in ice maker tucked neatly inside the freezer provides a steady supply of crescent‑shaped ice without sacrificing shelf space.

• True flush, panel‑ready integration – accepts custom cabinet panels and installs flush in a 25"‑deep cabinet for a seamless, built‑in appearance.

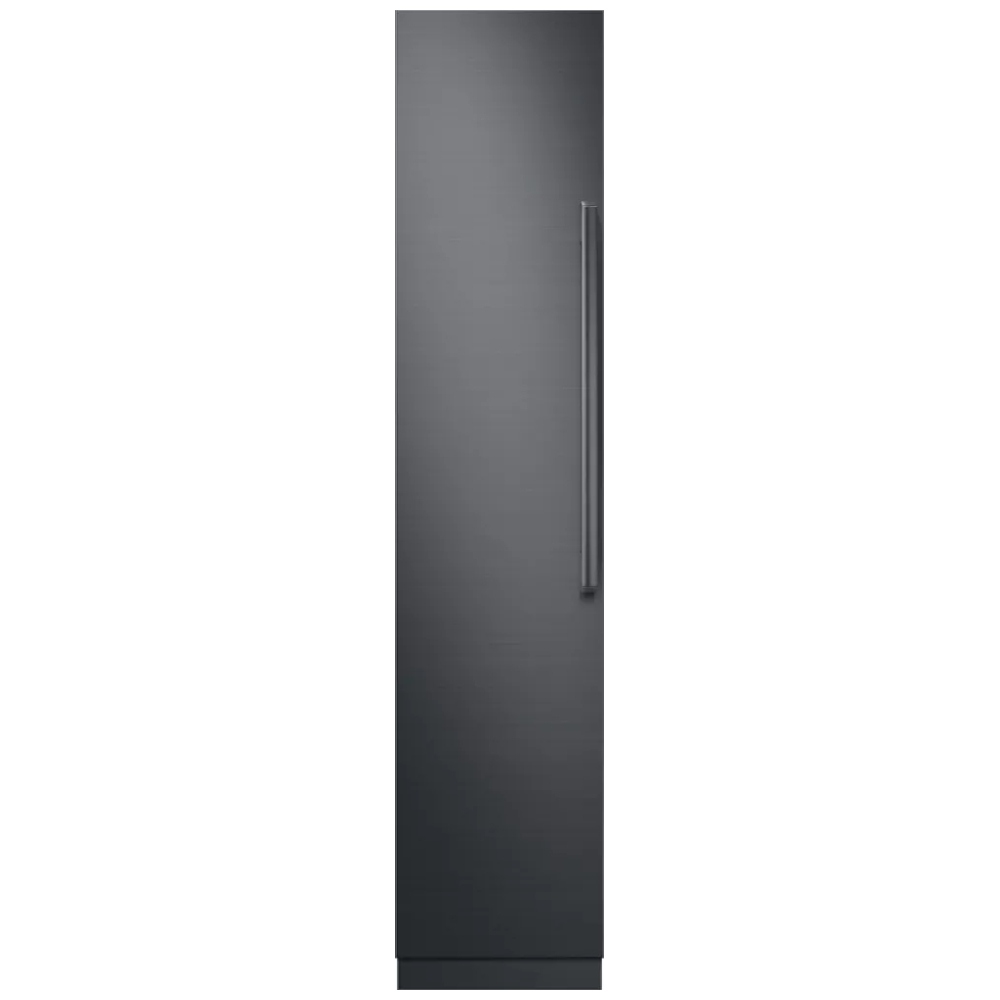

• Luxury material selection – premium stainless‑steel interior with glass and metal door bins, plus optional Graphite or Silver Stainless steel panel kits for a high‑end aesthetic.

• 9.5 cu. ft. interior capacity – column design offers generous vertical freezer storage while fitting into compact 18"‑wide spaces.

• Full‑height door design – tall, uninterrupted door surface enhances the integrated look and provides easy access to the entire interior.

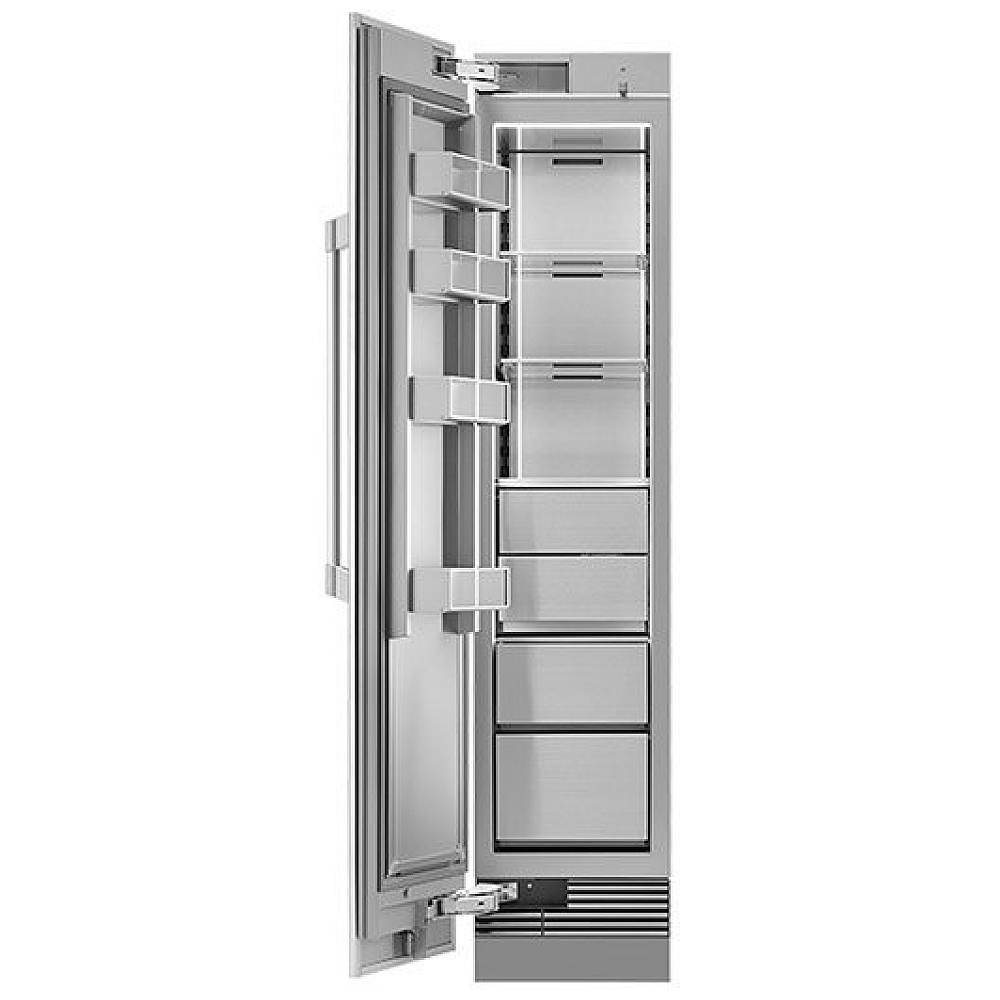

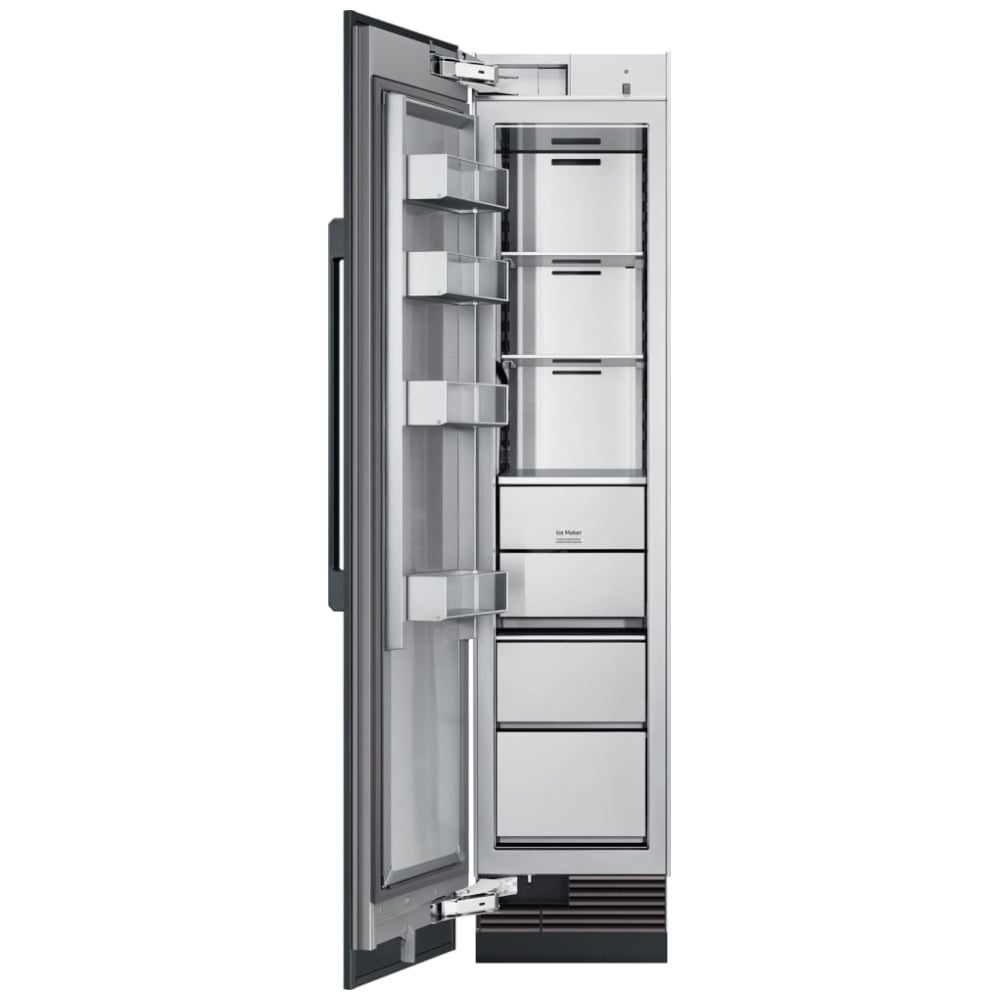

• Tempered glass spill‑proof shelves – three full‑width shelves with metal trim contain spills and support heavy items without sagging.

• Full‑extension freezer drawers – two stainless‑steel wrapped drawers glide fully out, allowing you to see and reach items at the back with the door at a 90° opening.

• Four door bins for flexible organization – multiple door compartments keep smaller or frequently used frozen items neatly arranged and easy to grab.

• Power Freeze function – rapidly lowers the freezer temperature to quickly freeze fresh foods and help preserve texture and nutrients.

• Wide freezer temperature range – adjustable from 5°F to -8°F (-15°C to -23°C) to accommodate long‑term storage or specialty frozen items.

• Tight temperature control – maintains internal temperature within approximately ±0.9°F (±0.5°C) for stable, reliable freezing conditions.

• Dedicated compressor and evaporator – independent cooling system for the freezer column maintains dry conditions, reducing freezer burn and odor transfer.

• R600a refrigerant system – uses a modern, more efficient refrigerant that is designed to be less harmful to the environment than older formulations.

• LED interior lighting – bright, energy‑efficient lighting illuminates every corner so you can quickly find items, even on higher or lower shelves.

• Panel‑ready flexibility – ships ready for custom wood panels or can be paired with optional Dacor stainless‑steel panel kits to match other appliances.

• Left‑hinged door configuration – factory‑set left hinge orientation (DRZ18980LAP) supports specific kitchen layouts and column pairings.

• Column pairing options – compatible with Dacor column pairing kits to create side‑by‑side freezer/refrigerator or multi‑column configurations.

• Adjustable shelving system – repositionable shelves and bins allow you to customize the interior for tall boxes, bulk items, or flat trays.

• In‑door storage – door bins provide additional space for smaller frozen goods, helping free up shelf and drawer capacity.

• Frost‑free operation – automatic defrost system prevents ice buildup, eliminating the need for manual defrosting.

• Child Lock function – allows controls to be locked to prevent unintended changes or operation by children.

• Power‑on indicator light – visual confirmation that the freezer is operating, useful at a glance in integrated installations.

• Adjustable leveling legs – allow precise leveling of the unit for proper door sealing and optimal performance, even on uneven floors.

• 83 3/8" built‑in height – tall cabinet height aligns with standard high‑end built‑in refrigeration and surrounding cabinetry.

• 17 3/4" cabinet width – slim column footprint fits narrow spaces or multi‑column custom layouts.

• 25" overall depth – designed to sit flush with standard 25" cabinet depths for a smooth, integrated profile.

• 115V, 60Hz, 15A electrical requirement – standard household electrical connection simplifies installation.

• Annual energy consumption around 465 kWh – engineered for efficient year‑round operation in premium kitchens.
