Manufacturer's Warranty: 1 year
UPC: 057112992754
EAN: 0057112992754
Product Line | Gas Cooktop |
Power Type | NG |
Size | 36" |
Installation Type | Drop-In |
Factory | Rayong |
Color | Stainless Steel |
Cooktop | |
Cooking Surface Type | Gas |
Grate Material | Cast Iron |
Grate Quantity | 3 |
Grate Style | Continuous |
Sealed Burners | Yes |
Cooktop Performance | |
Right Front Element Burner | 12000 BTU |
Right Rear Element Burner | 5000 BTU |
Left Front Element Burner | 9500 BTU |
Left Rear Element Burner | 9500 BTU |

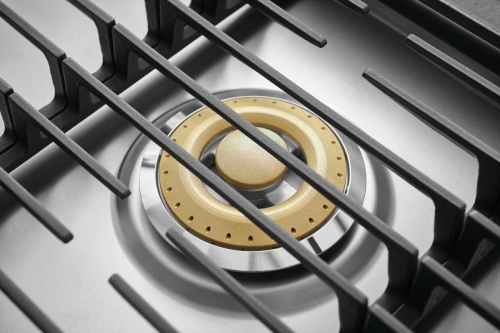

Center Element Burner | 20000 BTU |
Dimensions and Volume | |
Height | 2 219/500" |
Width | 36" |
Depth | 21" |
Cutout Height | 7 1/2" |
Minimum Cutout Width | 33 7/8" |
Minimum Cutout Depth | 19" |
Maximum Cutout Width | 35 5/8" |
Maximum Cutout Depth | 20" |
Electrical Specifications | |
Voltage Rating | 120 V |
Installation | |
Gas Supply Connection Location | Right Center |
LP Conversion Kit Included | Yes |
General Specifications | |
Product Weight | 44.65 lbs |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Certifications and Approvals | |
ADA Compliant | Yes |
CSA Listed | Yes |
RoHS | Yes |
