MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).
















Manufacturer's Warranty: 1 year
Canadian model: EDSR1832AP
Canadian UPC: 012505116766
EAN: 0012505116766
| Specification | Value |
|---|---|
| Brand | Electrolux |
| Model | EDSR1832AP |
| Product Type | Built-In Dishwasher (Panel Ready / Fully Integrated) |
| Nominal Width Class | 18 inches |
| Place Setting Capacity | 8 Place Settings |
| Number of Wash Cycles | 6 |
| Wash Cycles Included | China Crystal; Energy Saver; Heavy; Normal; Quick; Rinse Only |
| Sound Level | 49 dBA |
| Minimum Height | 32 12/25 inches |
| Width | 17 16/25 inches |
| Depth | 21 7/10 inches |
| Depth (Door Open) | 45 5/16 inches |

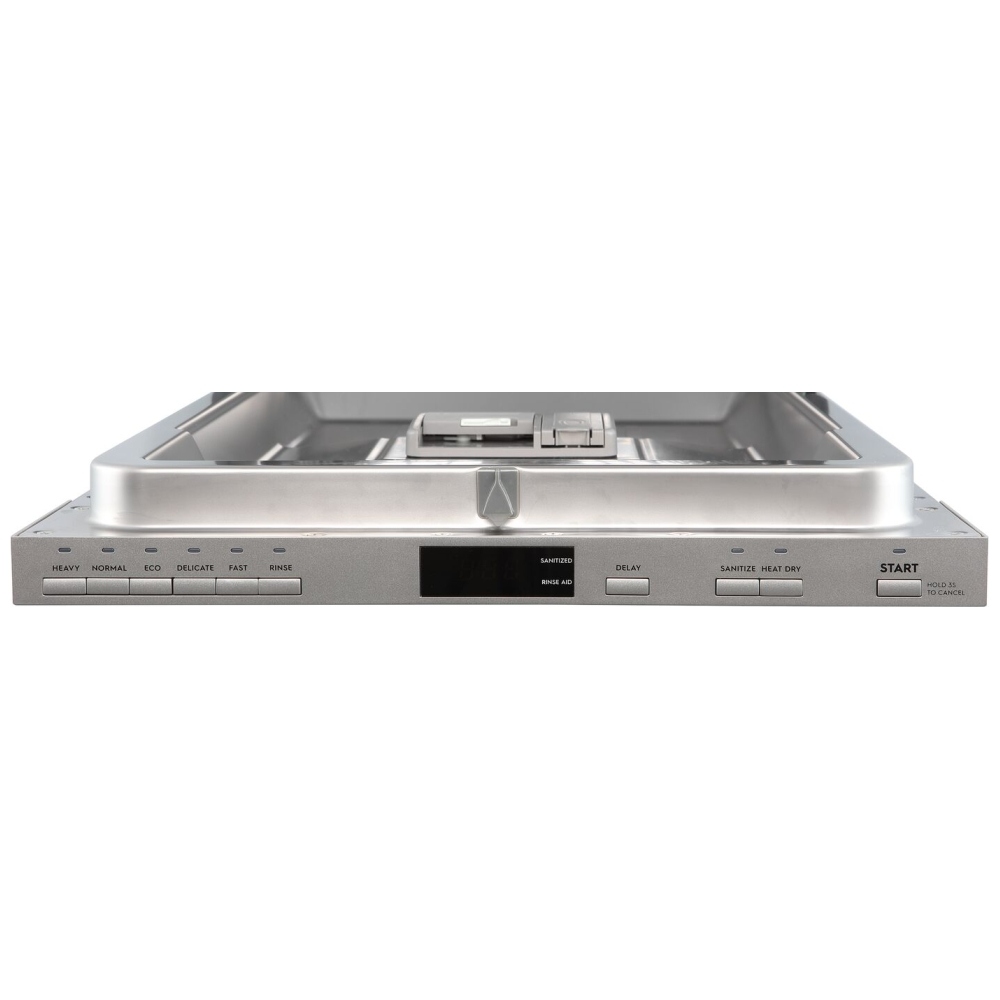

| Control Location | Top |
| Digital Display | Yes |
| Delay Start | 1–12 Hours |
| Rinse Aid Indicator | Yes |
| Detergent Dispenser | Yes |
| Rinse Aid Dispenser | Yes |
| Smart Soil Sensor | Yes |
| Wash Levels | 4 |
| Wash System | Direct Feed |
| Lower Spray Arm | Bi-Beam |
| Middle Spray Arm | Bi-Beam |
| Tub Material | Stainless Steel |
| Tub Color | Stainless Steel |
| Tub Design | Tall Tub |
| Filter Material | Stainless Steel |
| Filter Trap | Removable |
| Upper Rack - Cup Shelf | Yes |
| Rack Type | Standard |
| Rack Coating | Nylon |
| Number of Silverware Baskets | 1 |
| Number of Silverware Basket Lids | 1 |
| Door Type | StayPut |

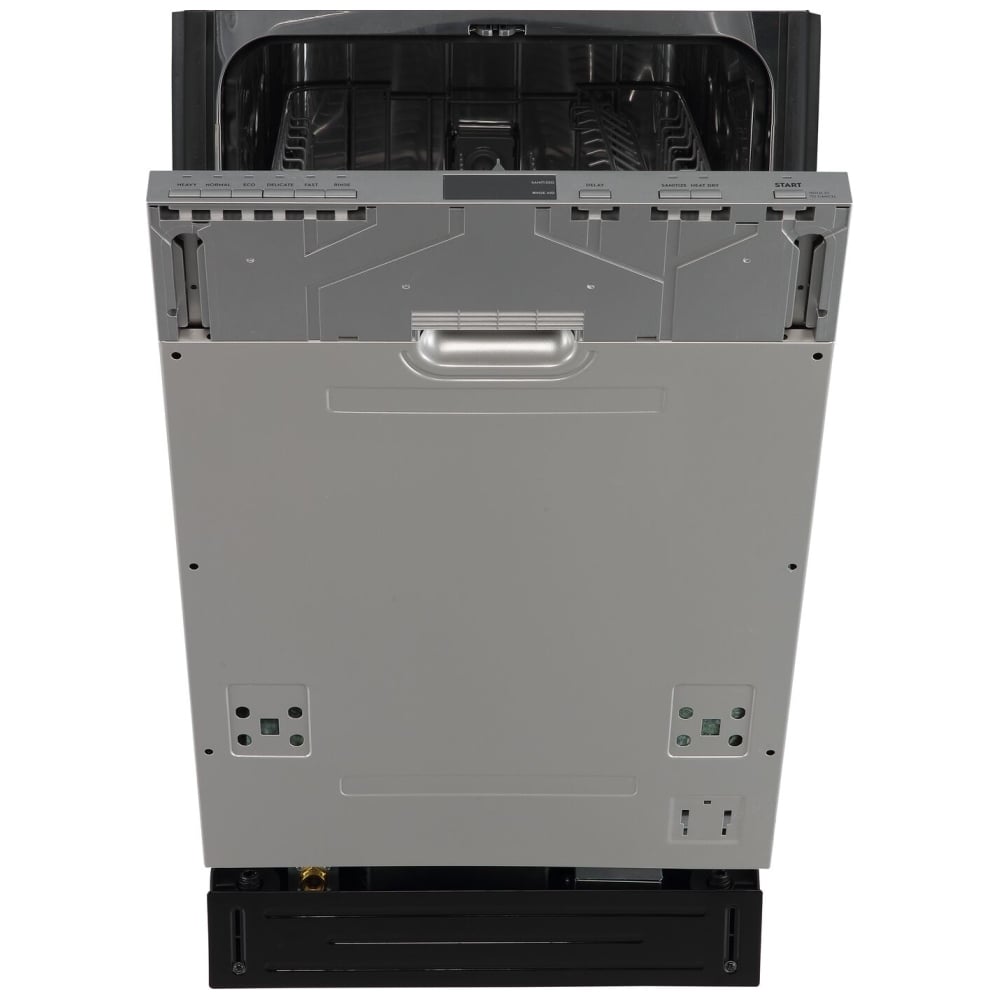

| Panel Ready | Yes |
| Panel (Custom) - Maximum Height | 28 7/20 inches |
| Panel (Custom) - Width | 17 7/25 inches |
| Panel (Custom) - Minimum Thickness | 7/10 inches |
| Panel (Custom) - Minimum Weight | 7.7 lbs |
| Panel (Custom) - Maximum Weight | 11 lbs |
| Installation - Connection Location | Right Bottom |
| Installation - Water Inlet Location | Left Bottom Front |
| Number of Leveling Legs | 4 |
| Electrical - Voltage Rating | 120 V |
| Electrical - Amps @ 120 Volts | 6.67 Amps |
| ENERGY STAR Certified | Yes |
| CEE Tier | Tier 1 |
| Annual Energy (kWh/year) | 240 kWh |
| Water Use (gallons/cycle) | 3.1 gal/cycle |
| Drying Method | Heated Dry |
| Soil-Sensing Capability | Yes |
| Connected / Smart Home Capable | No |
| NSF Certified | Yes |
| Meets ASSE 1006 Requirements | Yes |
| cUL Listed | Yes |
| ETL Listed | Yes |
| UL Listed ADA Compliant |
Yes No |
| Warranty - Parts | 1 Year |
| Warranty - Labor | 1 Year |
| Prop 65 Label | Yes |
