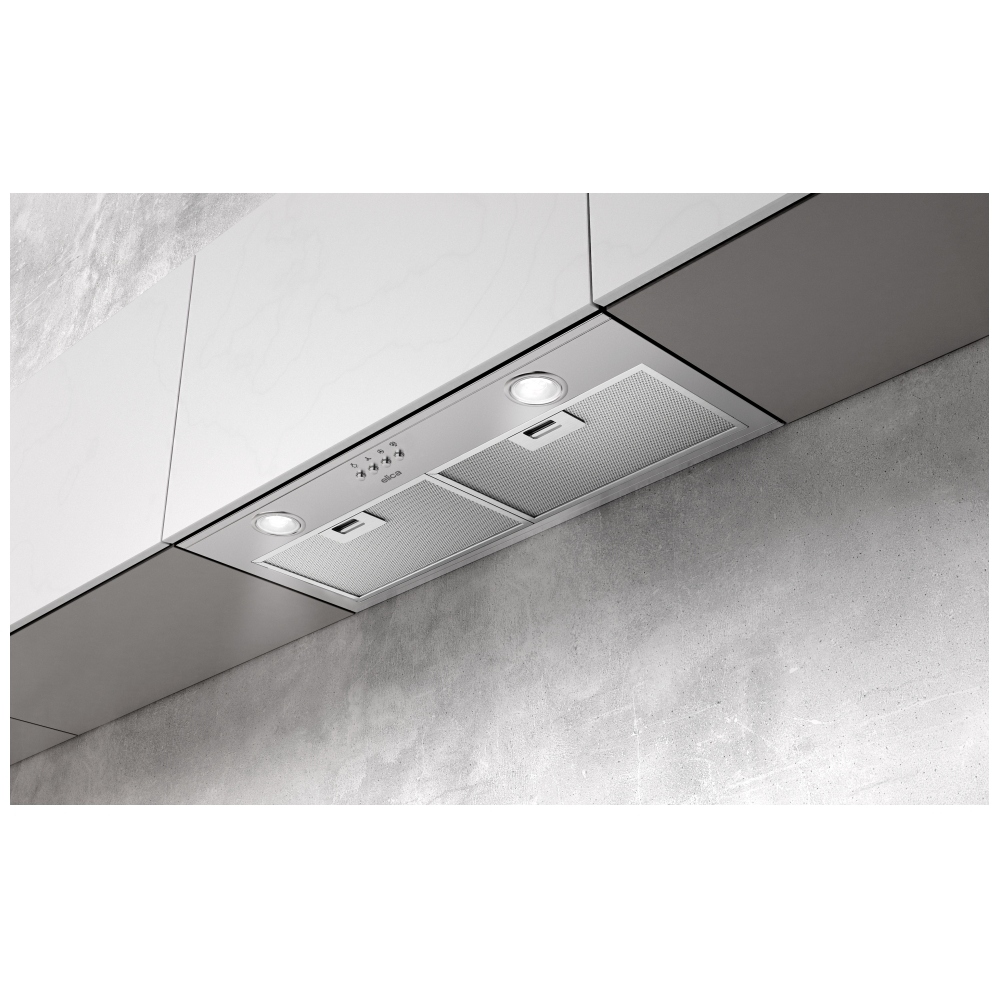

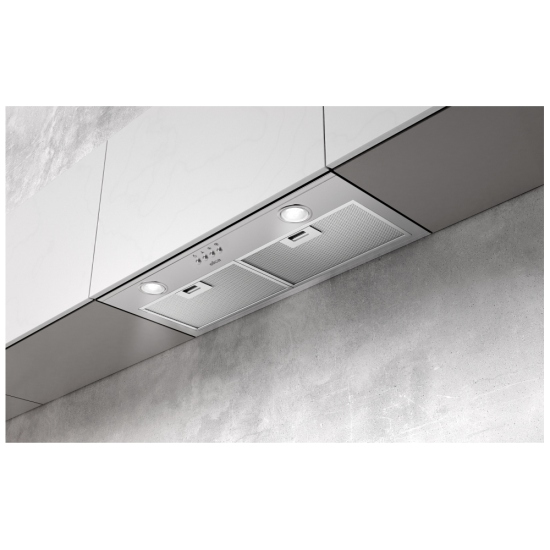

Asti 300 is specifically created to be mounted discreetly inside cabinetry, with a perfect fit for 12" deep cabinetry and a 28" width, it is an excellent choice for kitchens with limited space or where the range hood needs to remain out of view. With a 300 CFM blower, Asti is capable of meeting most cooking needs. Its convenient mechanical push button controls operate the 3-speed blower and LED lighting, while its dishwasher-safe anodized aluminum mesh filters, ensure effortless maintenance. Asti is designed for both standard ducted and recirculating installations, now with a snap system that make it safer and easier to install.
3x layer mesh
Led light
Super easy installation
Rear outlet installation
3x layer mesh
Led light
Super easy installation
Rear outlet installation
Manufacturer's Warranty: 2 years
Canadian model: EAS328S1
Canadian UPC: 190603005547
EAN: 0190603005547
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| SHIPPING WEIGHT (kg) | 12.80 |
| NET WEIGHT (kg) | 9.20 |
| CARTON LENGHT (mm) | 837.00 |
| CARTON HEIGHT (mm) | 426.00 |
| CARTON WIDTH (mm) | 389.00 |
| VOLUMEN (M3) | 0.14 |
| SHIPPING WEIGHT (lb) | 28.22 |
| NET WEIGHT (lb) | 20.28 |
| CARTON LENGHT | 32.95 |
| CARTON HEIGHT | 16.77 |
| CARTON WIDTH | 15.31 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | 3x layer mesh Led light Super easy installation Top or rear outlet |
| WIDTH (IN) | 28" |
| WIDTH (CM) | 72.00 |
| AIRFLOW (M3/H) | 0.00 |
| CFM (MAX) | 300.00 |
| db (min) | 36.00 |
| db (max) | 48.00 |
| SONES | 1.7 - 4 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top or Rear |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 15-20 A |
| HERTZ | 60.00 |
| WATTS | 260.00 |
| LIGHTING | LED 2 x 6.5 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 6.50 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | Dishwasher-Safe, Anodized Aluminum Mesh Filter |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Aluminum Mesh |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Mechanical Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Power Cord |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | NA |
| DIMENSIONS (CM) | 72 x 27 x 24 |
| DIMENSIONS (INCH) | 28 1/4" x 10 3/4 x 9 1/2 |
| ADJUSTABLE HEIGHT | NO |
| Minimum Overall Height - Top to Bottom | 9 1/2" |
| Maximum Overall Height - Top to Bottom | 14 9/16" |
| Overall Height - Top to Bottom | 9 1/2" |
| Overall Width - Side to Side2 | 28 1/4" |
| Overall Depth - Front to Back | 10 3/4" |
| Hood Height | 9 1/2" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | NA |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | NA |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | NA |
| Chimney Depth - Front to Back | NA |
| Chimney Height - Top to Bottom | NA |
| RECIRCULATION KIT NUMBER | KIT02770 |
| CHIMNEY EXTENTION NUMBER | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| CFM REDUCTION KIT | - |
| BACKSPLASS KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT | - |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | KIT02773/KIT02774 |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
Specification Sheet (EAS328S1_specification-sheet.pdf)
