- Professional grade, heavy gauge stainless steel baffle filters are the perfect choice for those with top chef dreams. Designed for high airflow cooking, the S shape design traps volumes of grease (for a cleaner kitchen), which is collected in trays for easy removal and cleaning.
- A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (>158 degrees) and will automatically adjusts the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level.
- An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
- Special features and very high performances for models with aspiration capacity between 600 and 1200 CFM's, and noise level between 65 and 75 db(A) at maximum speed. The Ideal complement of PRO ranges.
- Elica Professional grade hoods feature heavy gauge stainless steel Seamless construction that delivers refined elegance and reflects the superior quality and Italian craftsmanship invested into each range hood.
Manufacturer's Warranty: 2 years
UPC: 190603001952
UPC: 190603001952
EAN: 0190603001952
Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
SHIPPING WEIGHT (kg) | 26.20 |
NET WEIGHT (kg) | 17.60 |
CARTON LENGHT (mm) | 851.00 |
CARTON HEIGHT (mm) | 698.00 |
CARTON WIDTH (mm) | 381.00 |
VOLUMEN (M3) | 0.20 |
SHIPPING WEIGHT | 57.76 |
NET WEIGHT | 38.80 |
CARTON LENGHT | 33.50 |
CARTON HEIGHT | 27.48 |
CARTON WIDTH | 15.00 |
COUNTRY OF MANUFACTURE | MX |
QTY PACKAGE | 1.00 |
INTENDED APPROVED USE | Residential use |
Finish | Stainless Steel |
Color | inox |
Type of Ventilation | Vented |
HOODS FEATURES | Hush system,Heat guard,Grease collectors,Professional performance,Seamless look |
WIDTH (IN) | 30" |
WIDTH (CM) | 76.00 |
AIRFLOW (M3/H) | 1020.00 |
CFM (MAX) | 600.00 |
db (min) | 36.00 |
db (max) | 56.00 |
SONES | 1.7 - 7.0 |
EXHAUST VERSION | Convertible with Kit |
EXHAUST SIZE | Rectangular 10 x 3 1/4" |
DUCT SHAPE | Rectangular |

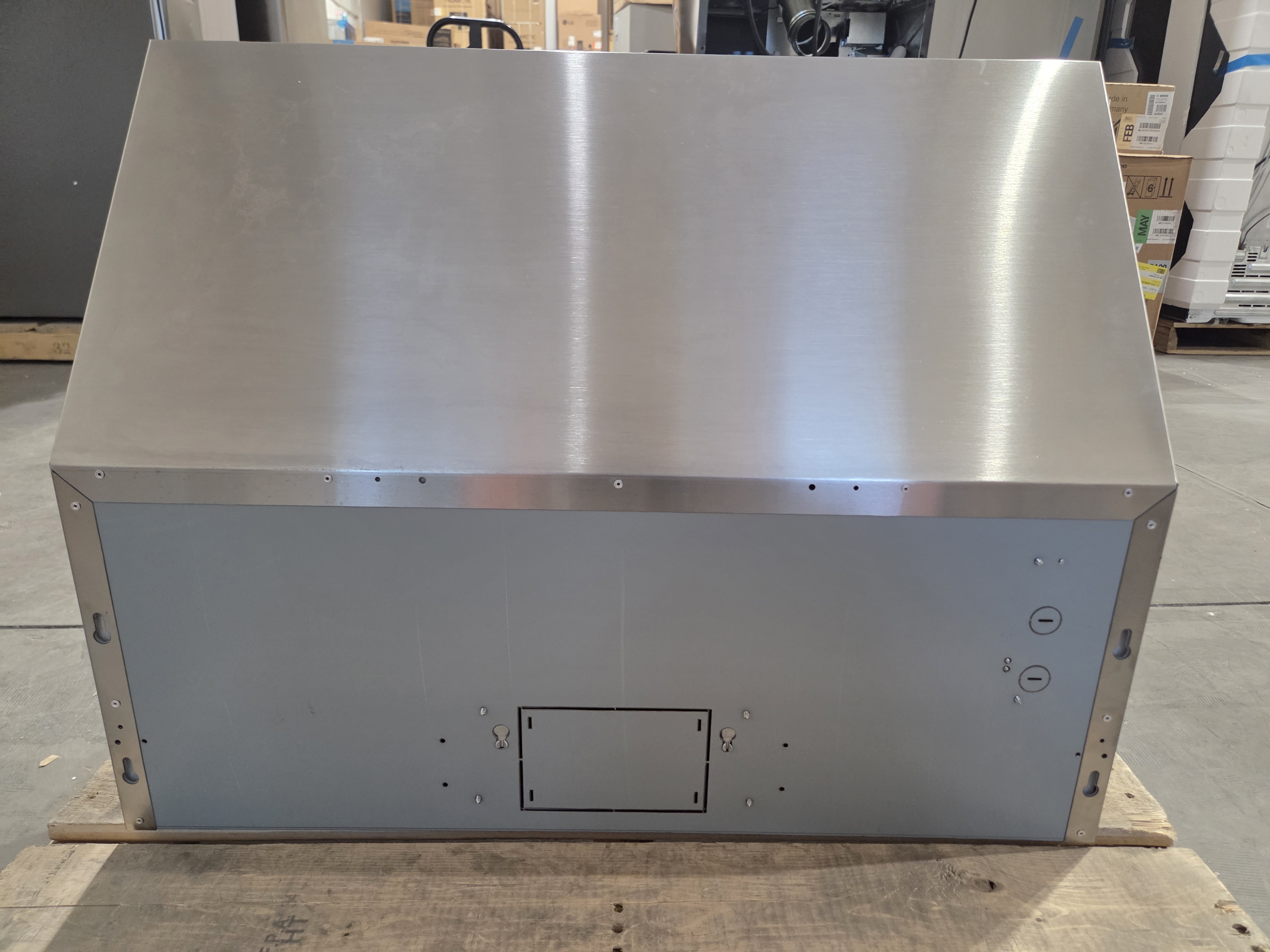

EXHAUST LOCATION | Top or Rear |
RECTANGULAR DUCTH HEIGHT | 10" |
RECTANGULAR DUCT WIDTH | 3.25 |
Round duct diameter | NA |
ELECTRIC (VOLTS) | 120 V/60 Hz |
AMPERAGE | 4.1 A |
HERTZ | 60.00 |
WATTS | 457.00 |
LIGHTING | Premium LED 2 x 6.5 ww 3000 KK |
BULB TYPE | LED |
BULB INCLUDED | YES |
NUMBER OF LIGHTS | 2.00 |
BULB WATTS | 6.50 |
KELVINS | 3000.00 |
GREASE FILTER TYPE | Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter |
DISHWASHERSAFE FILTER | YES |
FILTER MATERIAL | Stainless Steel |

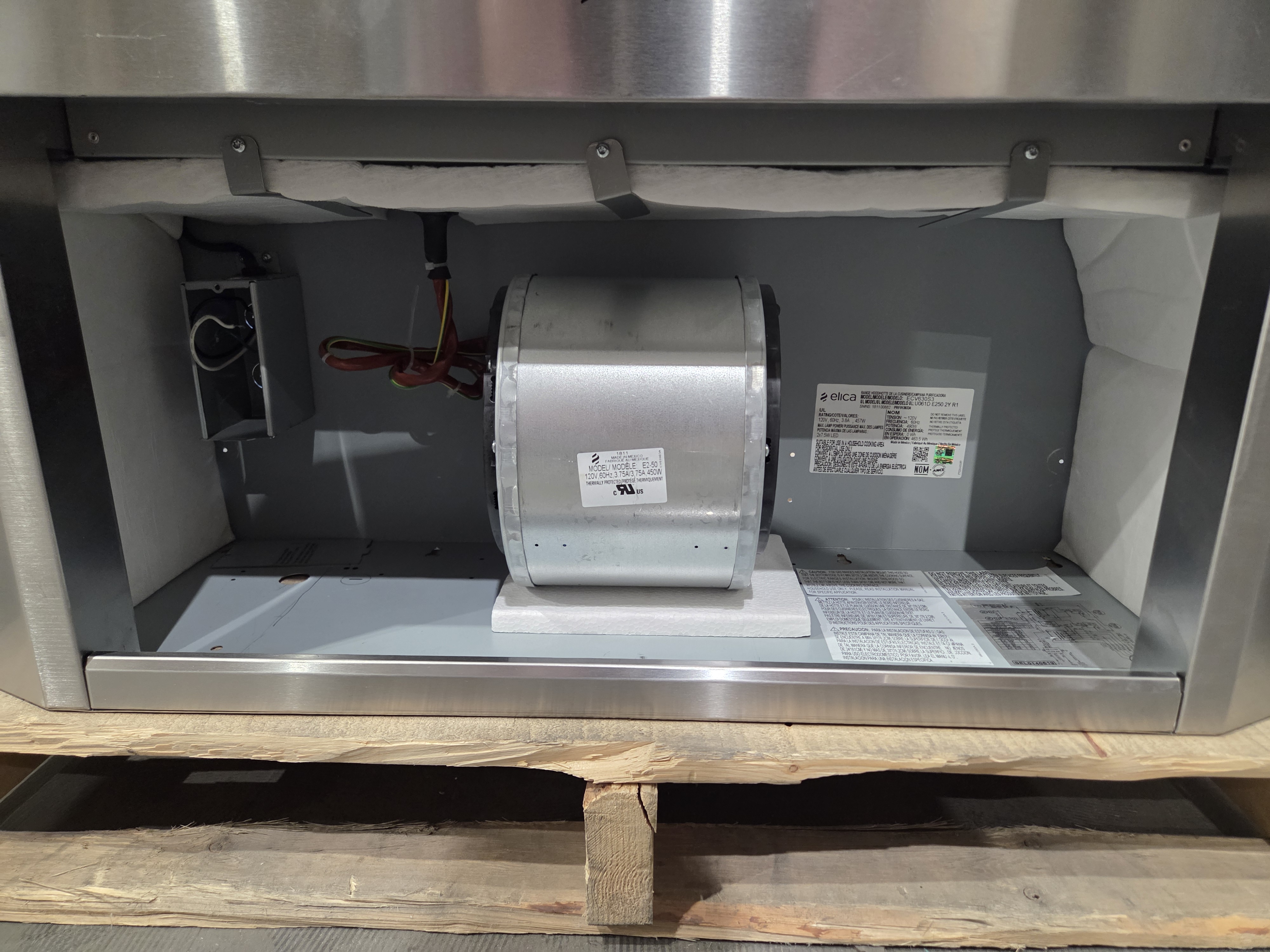

BLOWER TYPE | Interior Unit |

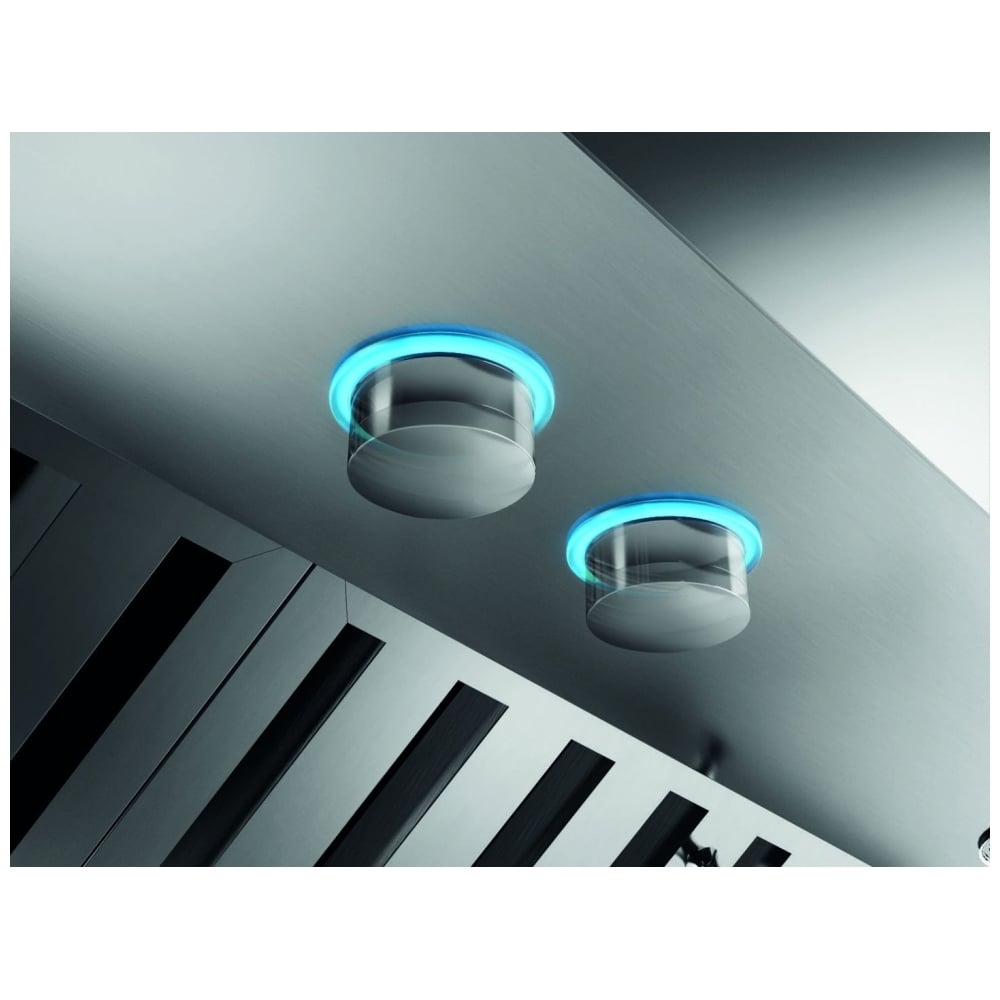

CONTROL TYPE | Fully Retractable Rotating Knobs w/ Blue Backlighting |
SPEED CONTROL | YES |
NUMBER OF SPEEDS | 4.00 |
REMOTE CONTROL | NO |
POWER SOURCE | Hardwired |
OUTDOOR USE | NO |
SMUDGE RESISTANT | NO |
RECIRCULATION KIT NEEDED | YES |
CFM REDUCTION | Yes w/kit |
DIMENSIONS | 76 x 58 x 28 |
DIMENSIONSinches | 30" x 23" x 11 1/16" |
ADJUSTABLE HEIGHT | NO |
Minimum Overall Height - Top to Bottom | 11 1/16" |
Maximum Overall Height - Top to Bottom | 11 1/16" |
Overall Height - Top to Bottom | 11 1/16" |
Overall Width - Side to Side2 | 30" |
Overall Depth - Front to Back | 23" |
Hood Height | 11 1/16" |
Minimum Compatible Ceiling Height | NA |
Maximum Compatible Ceiling Height | NA |
Minimum Height Above Cooktop (ELECTRIC) | = 24 |
Minimum Height Above Cooktop (GAS) | = 30 |
Maximum Height Above Cooktop | 36" |
Chimney Width - Side to Side | NA |
Chimney Depth - Front to Back | NA |
Chimney Height - Top to Bottom | NA |
RECIRCULATION KIT NUMBER | KIT02770 |
CHIMNEY EXTENSION NUMBER | KIT02159/KIT02160 |
TELESCOPIC DUCT COVER | - |
DUCT TRANSITION | - |
TRANSITION REDUCER KIT | - |
BACKDRAFT DAMPER | - |
NON RETURN VALVE | - |
UPGRADE FILTER | - |
CFM REDUCTION KIT | KIT0185097 |
BACKSPLASH KIT | KIT0142864 |
INTERNAL BLOWER | - |
INLINE BLOWER | KIT0154387 |
EXTERNAL BLOWER | KIT0153054 |
INLINE BLOWER SHELL KIT | KIT0205342 |
EXTERNAL BLOWER SHELL KIT | - |
HEAT LAMPS | - |
SPACER/LINER | - |
WALL MOUNT BRACKET | - |
HIGH CEILING EXTENSION KIT | - |
REMOTE CONTROL KIT | - |
cUL listed | YES |
UL listed | YES |
AHAM verified | YES |
TITLE 24 | YES |
Prop65Disclosure | YES |
ENERGY STAR | NO |
WIFI CAPABLE | NO |
COMERCIAL USE APPROVED | NO |
ADA COMPLIANT | NO |
APP CAPABLE | NO |
VENTILATION DIRECTION | HORIZONTAL |
SMART COMPATIBLE | NO |
FITLER INDICATOR LIGHT | NO |
HEAT SENSOR | YES |
CHAROCAL FILTER | YES |
CERTIFICADO NOM | NA |
Selected Model | |
Color | Stainless Steel |

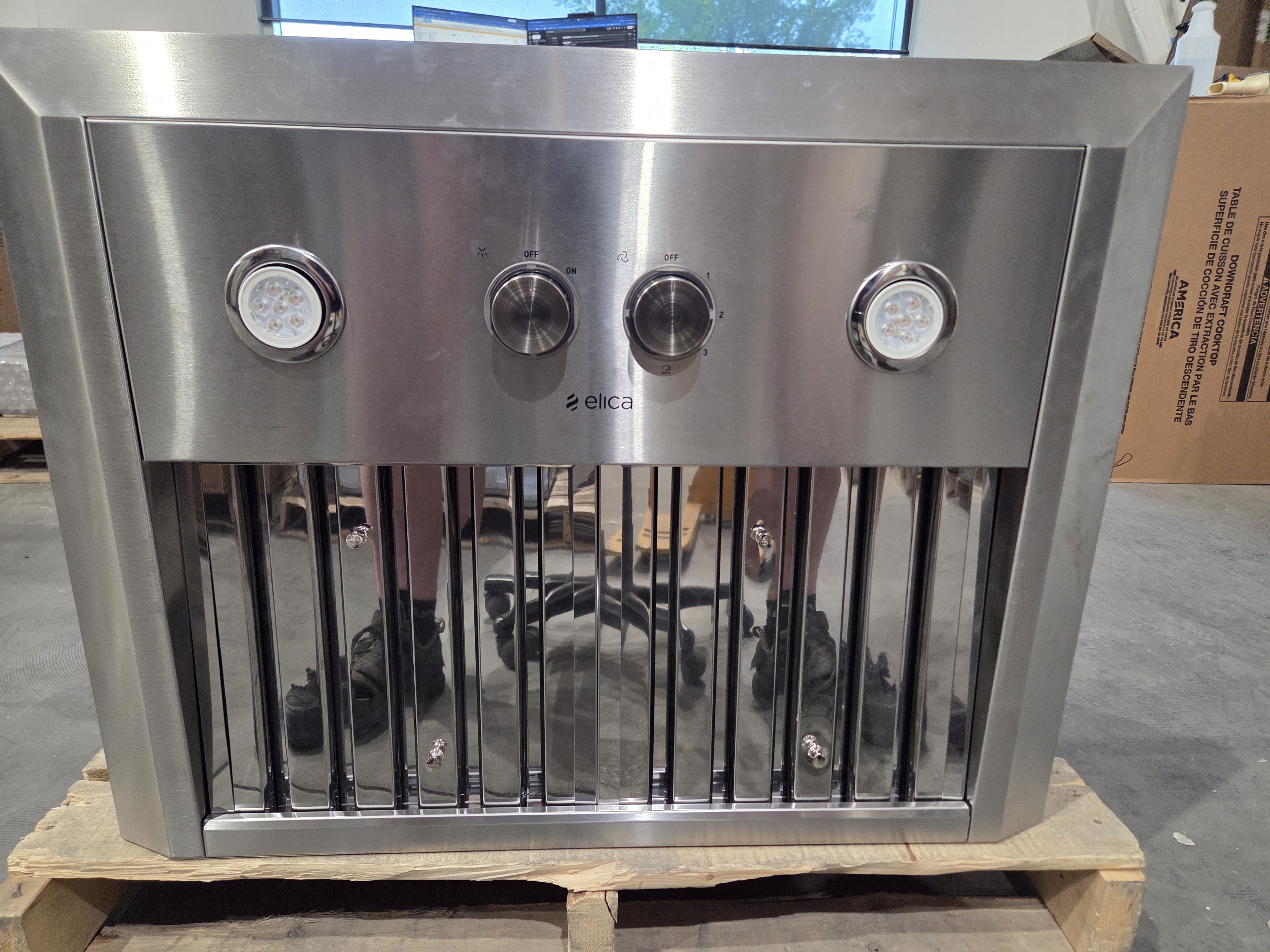

Model number | ECV630S3 |
Dimensions | |
Dimensions | 30'' (L) X 23'' (P) X 11 1/32'' (H) |
Exterior Appearence | |
Stainless Steel grade | 430 |
Features | |

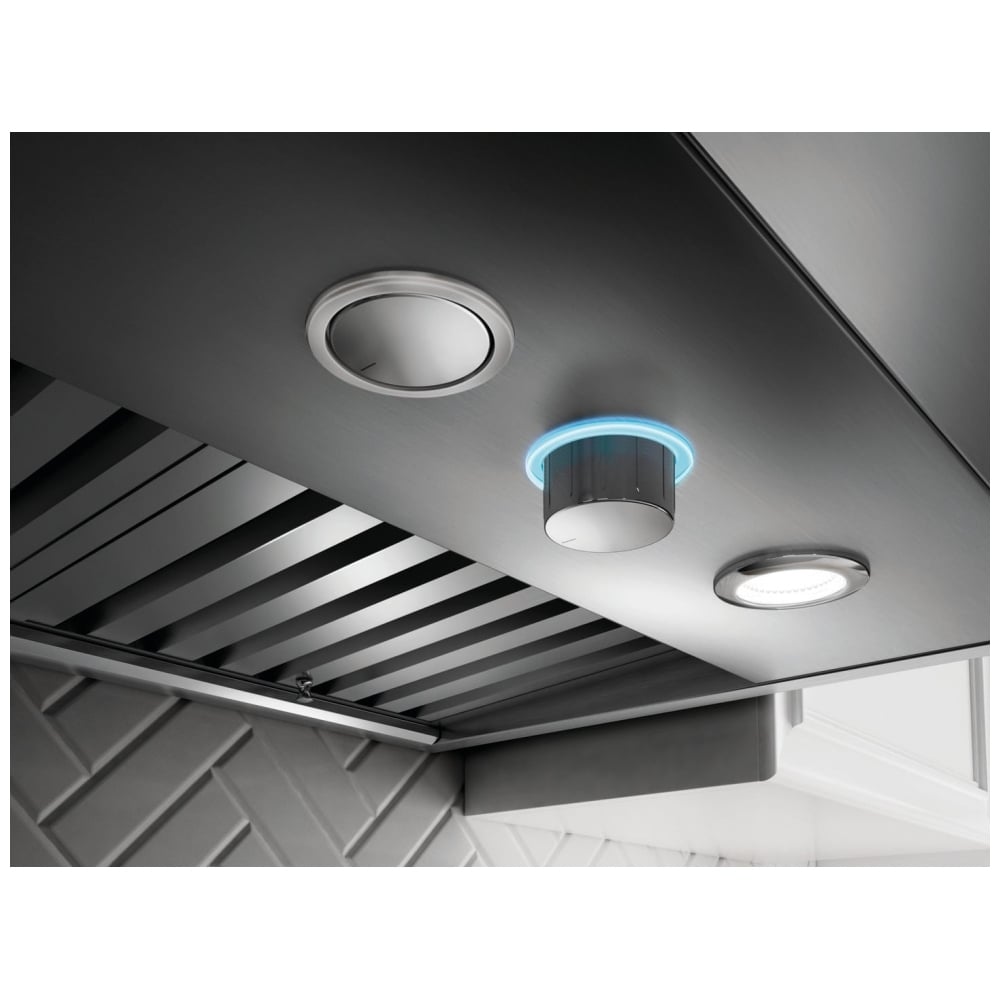

Controls | Fully recessing stainless rotating knobs with illumination |
Illumination | 2 2.5W Premium LED lamps, 1 intensity (bulbs included) |
Blower Type | 4-speed, 600 CFM |
Blower Performance | Speed 1, 170 CFM, 1.6 Sones Speed 2, 280 CFM, 4.0 Sones Speed 3, 440 CFM, 7.0 Sones Speed 4, 600 CFM, 8.6 Sones |
Filter Type | 2 Stainless Steel Baffle Filters |
Ducting | Ducted Installation Only |
Duct transition | 3¼’’ X 10’’ (Top or Rear) | Back Draft Damper Included |
Special features | Hush Silence System |
Electrical Requirements | |
Electrical requirements | 120V-60 HZ / 550 Watt at 4.6 Amps |
Accessories (optionnal) | |
6'' Tall Chimney Extension Kit | KIT02159 (30'' hood) |
12'' Tall Chimney Extension Kit | KIT02160 (30'' Hood) |
Back Splash | EXXBSK30 | Stainless Steel Back Splash with Shelfs for 30'' Hood KIT0142864 (Blacksplash and warm racks Stainless Steel 30'' hood) |
Warranty | |
Complete 2 years warranty | Entire Appliance; In-Home; Parts & Labour |
