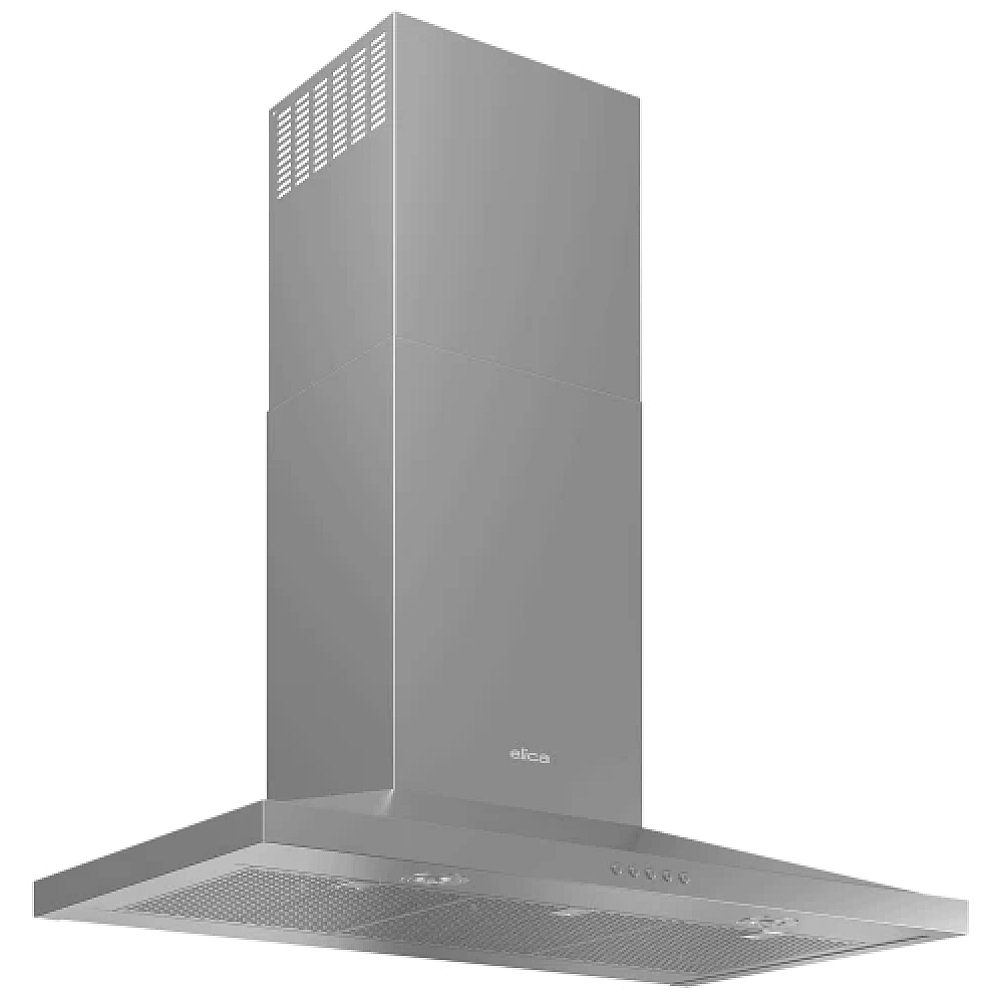

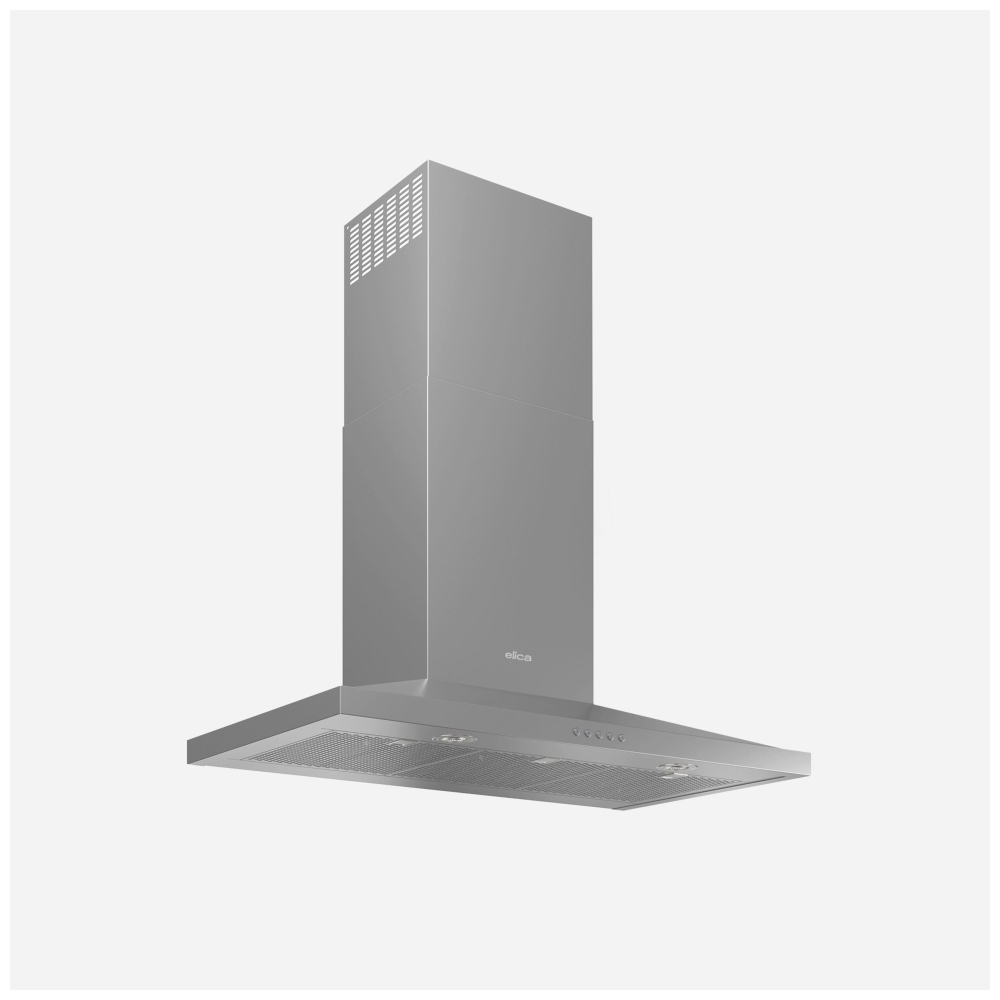

This stylish, Italian-designed range hood keeps your kitchen fresh and free from smoke, grease, moisture, and odors. It features a powerful 400 CFM blower, electronic push buttons with a white backlight for convenience and safety, dishwasher-safe anodized stainless steel mesh filters for easy maintenance, and LED lighting to set the perfect mood.
Manufacturer's Warranty: 2 years
Canadian model: ELV430SS
Canadian UPC: 190603006605
EAN: 0190603006605
| Warranty | 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com |
| Fracci n arancelaria | 8414600100.00 |
| SHIPPING WEIGHT (kg) | 21.20 |
| NET WEIGHT (kg) | 17.00 |
| CARTON LENGHT (mm) | 870.00 |
| CARTON HEIGHT (mm) | 673.00 |
| CARTON WIDTH (mm) | 458.00 |
| VOLUMEN (M3) | 0.27 |
| SHIPPING WEIGHT (lb) | 46.74 |
| NET WEIGHT (lb) | 37.48 |
| CARTON LENGHT | 34.25 |
| CARTON HEIGHT | 26.50 |
| CARTON WIDTH | 18.03 |
| COUNTRY OF MANUFACTURE | MX |
| QTY PACKAGE | 1.00 |
| INTENDED APPROVED USE | Residential use |
| Finish | Stainless Steel |
| Material | Stainless Steel |
| Color | inox |
| Type of Ventilation | Convertible |
| HOODS FEATURES | Led light |
| WIDTH (IN) | 30" |
| WIDTH (CM) | 76.00 |
| AIRFLOW (M3/H) | 680.00 |
| CFM (MAX) | 400.00 |
| db (min) | 20.00 |
| db (max) | 54.00 |
| SONES | 0.6 - 6.1 |
| EXHAUST VERSION | Convertible with Kit |
| EXHAUST SIZE | Round 6" |
| DUCT SHAPE | Round |
| EXHAUST LOCATION | Top Only |
| RECTANGULAR DUCTH HEIGHT | NA |
| RECTANGULAR DUCT WIDTH | NA |
| Round duct diameter | 6" |
| ELECTRIC (VOLTS) | 120.00 |
| AMPERAGE | 15-20 A |
| HERTZ | 60.00 |
| WATTS | 265.00 |
| LIGHTING | LED 2 x 2.1 ww 4000 KK |
| BULB TYPE | LED |
| BULB INCLUDED | YES |
| NUMBER OF LIGHTS | 2.00 |
| BULB WATTS | 2.10 |
| KELVINS | 4000.00 |
| GREASE FILTER TYPE | DishwasherSafe, Anodized Stainless Steel Mesh |
| DISHWASHERSAFE FILTER | YES |
| FILTER MATERIAL | Stainless Steel |
| BLOWER TYPE | Interior Unit |
| CONTROL TYPE | Backlit Electronic Push Button |
| SPEED CONTROL | YES |
| NUMBER OF SPEEDS | 3.00 |
| REMOTE CONTROL | NO |
| POWER SOURCE | Junction Box |
| OUTDOOR USE | NO |
| SMUDGE RESISTANT | NO |
| PANEL READY | NO |
| RECIRCULATION KIT NEEDED | YES |
| CFM REDUCTION | Yes w/kit |
| DIMENSIONS (CM) | 76 x 50 x 62 |
| DIMENSIONS (INCH) | 30"x 19 11/16"x 24 5/8" |
| ADJUSTABLE HEIGHT | YES |
| Overall Height - Top to Bottom | 24 5/8"-42 1/2" |
| Overall Width - Side to Side2 | 30" |
| Overall Depth - Front to Back | 19 11/16" |
| Hood Height | 5" |
| Min - Max Compatible Ceiling Height (Cover electronic cooking) | 6'11" |
| Min - Max Compatible Ceiling Height ( Cover gas cooking) | 8'11" |
| Minimum Height Above Cooktop (ELECTRIC) | 24 |
| Minimum Height Above Cooktop (GAS) | 30 |
| Maximum Height Above Cooktop | 36" |
| Chimney Width - Side to Side | 13 1/16" |
| Chimney Depth - Front to Back | 10 5/8" |
| Chimney Height - Top to Bottom | 40 15/16" |
| RECIRCULATION KIT | NA |
| Long Life Recirculating Carbon Filter | NA |
| Recirculation (400 CFM) 2 round carbon filters | NA |
| Recirculation (400 CFM) Contains 6 deflector & 3 carbon filters | KIT0102875 |
| Recirculation (600 CFM) Contains 6 deflector, 3 flat carbon filters & clips | NA |
| Recirculation (600 CFM) Contains 6 deflector & 2 carbon filters | NA |
| Recirculation (600 CFM) 2 round carbon filters | NA |
| Recirculation (600 CFM) 4 round carbon filters | NA |
| Recirculation (600 CFM) 6 round carbon filters | NA |
| Recirculation (600 CFM) 6 round Deflector | NA |
| Recirculation (1200 CFM) 4 round deflector | NA |
| Recirculation (1200 CFM) 4 round carbon filters | NA |
| Recirculation (1200 CFM) (8 round deflector) | NA |
| Long Chimney Ext/Chimney extension | NA |
| Chimney extension Can reach 8 8 - 12 4 (ducted), 9 0 -12 8 (recirculating) | NA |
| Chimney extension Can reach 7 9 - 10 9 (ducted), 8 1 -11 1 (recirculating) | NA |
| Chimney extension Reaches ceiling heights 8 5 -12 1 (ducted), 9 1 -12 5 (recirculating) | KIT02785 |
| Chimney extension Reaches ceiling heights 7 5 -10 3 (ducted), 8 2 -10 11 (recirculating) | KIT01935 |
| Long Chimney Extension(6 ) | NA |
| Long Chimney Extension(11 ) | NA |
| Long Chimney Extension(12 ) | NA |
| Long Chimney Extension(13 ) | NA |
| Long Chimney Extension (6 with grates) | NA |
| TELESCOPIC DUCT COVER | - |
| DUCT TRANSITION | - |
| TRANSITION REDUCER KIT 10 round down to 8 round - attaches to 10 round transition | - |
| BACKDRAFT DAMPER | - |
| NON RETURN VALVE | - |
| UPGRADE FILTER | - |
| RECIRCULATION DUCT COVERS | NA |
| RECIRCULATION DEFLECTOR | NA |
| RECIRCULATION FILTERS | NA |
| CFM REDUCTION KIT | KIT0175561 |
| BACKSPLASH KIT | - |
| INTERNAL BLOWER | - |
| INLINE BLOWER | - |
| EXTERNAL BLOWER | - |
| INLINE BLOWER SHELL KIT (600 CFM) | - |
| INLINE BLOWER SHELL KIT (1200 CFM) | NA |
| EXTERNAL BLOWER SHELL KIT | - |
| HEAT LAMPS | - |
| SPACER/LINER | - |
| Hood Liner for 30 | NA |
| Hood Liner for 36 | NA |
| Hood Liner for 48" | NA |
| WALL MOUNT BRACKET | - |
| HIGH CEILING EXTENSION KIT | - |
| REMOTE CONTROL KIT | - |
| Duct cover extension 6 | NA |
| Duct cover extension 18 | NA |
| ELECTRONIC CFM | NA |
| REDUCTION BYPASS | NA |
| ETL | YES |
| UL listed | YES |
| AHAM verified | YES |
| TITLE 24 | YES |
| Prop65 Disclosure | YES |
| ENERGY STAR | NO |
| WIFI CAPABLE | NO |
| COMERCIAL USE APPROVED | NO |
| ADA COMPLIANT | NO |
| APP CAPABLE | NO |
| VENTILATION DIRECTION | HORIZONTAL |
| SMART COMPATIBLE | NO |
| FITLER INDICATOR LIGHT | NO |
| HEAT SENSOR | NO |
| CHAROCAL FILTER | YES |
| NOM CERTIFICATION | NA |
Installation Instruction (ELV430SS_installation-instruction.pdf)
