Elica EVL430S2
Not available for sale at CAS.
Step up to Elica ELV430SS for an extra $68
AEF7Y2
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Bundle & Save - Additional In Store Discounts - UP TO 35% OFF
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $37.84 for 18 months
Ratings & Reviews
AEF7Y2
Region Availability:
Not Available
When will I get this?

Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $37.84 for 18 months
Description & Features

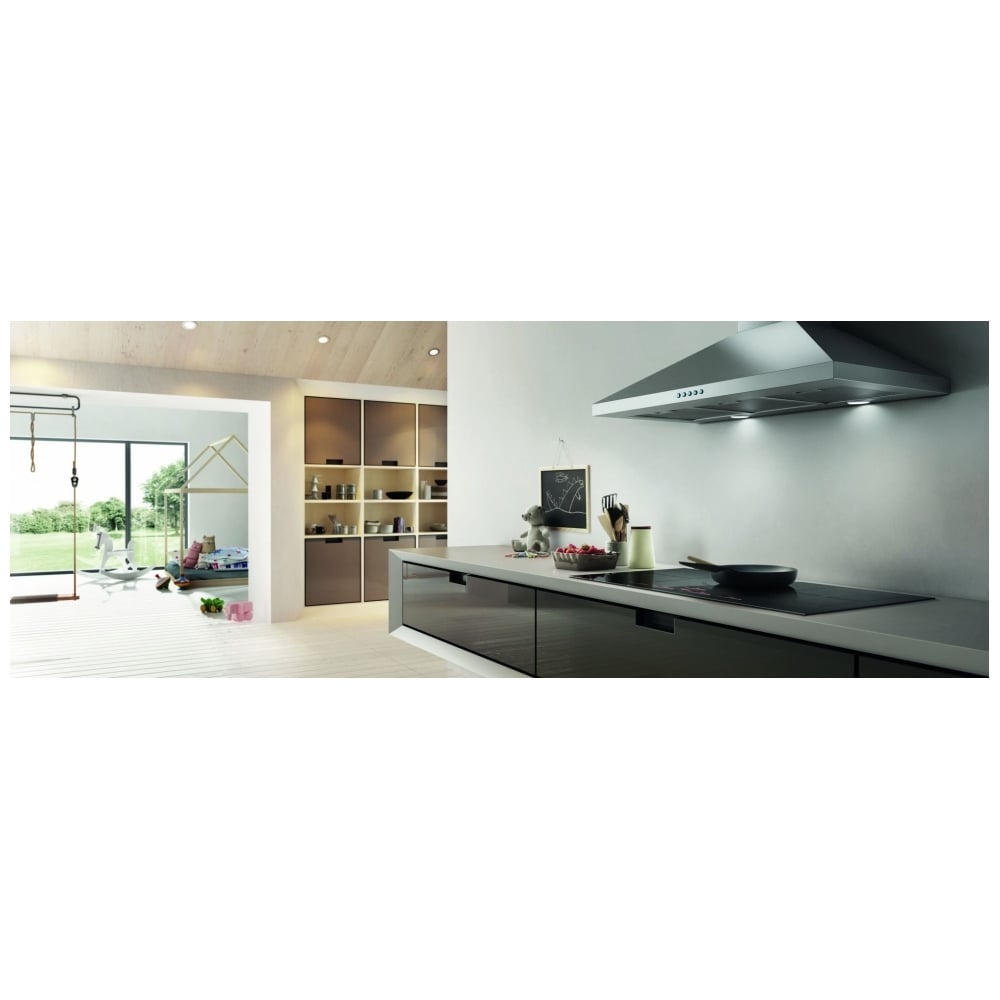

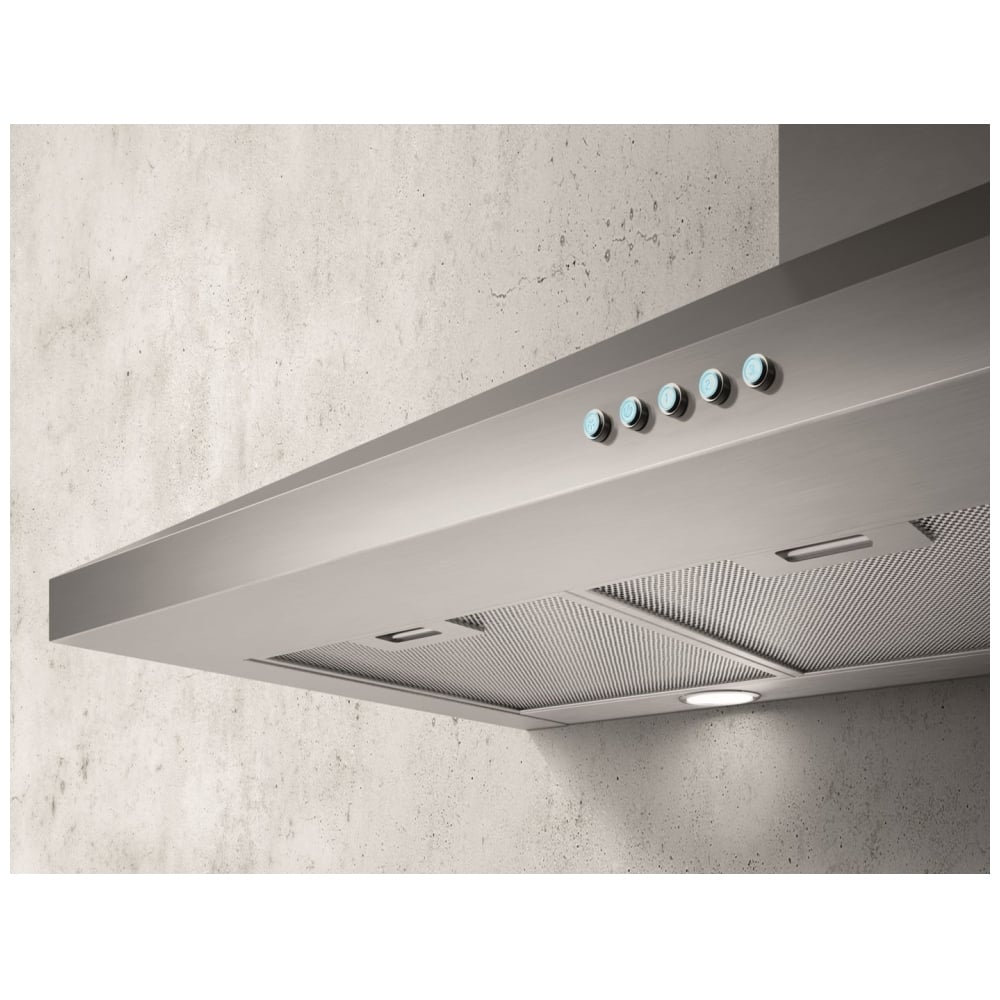

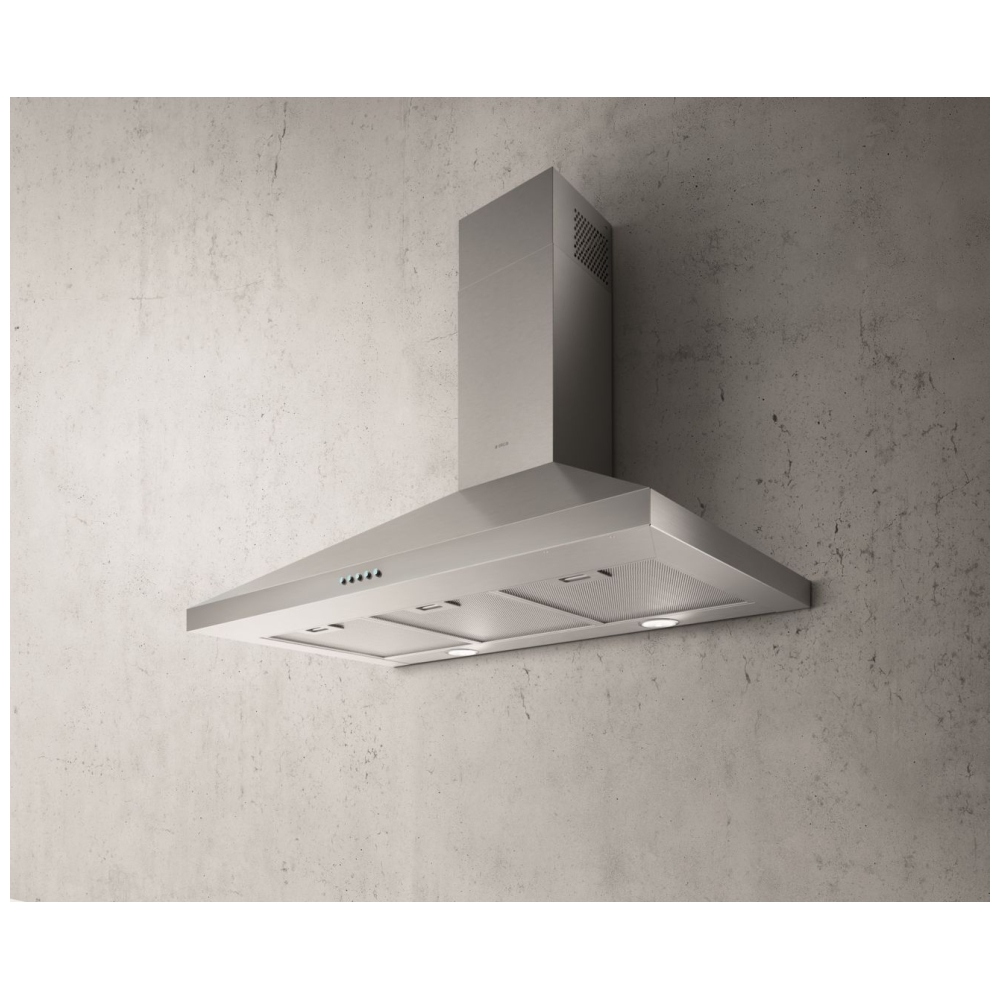

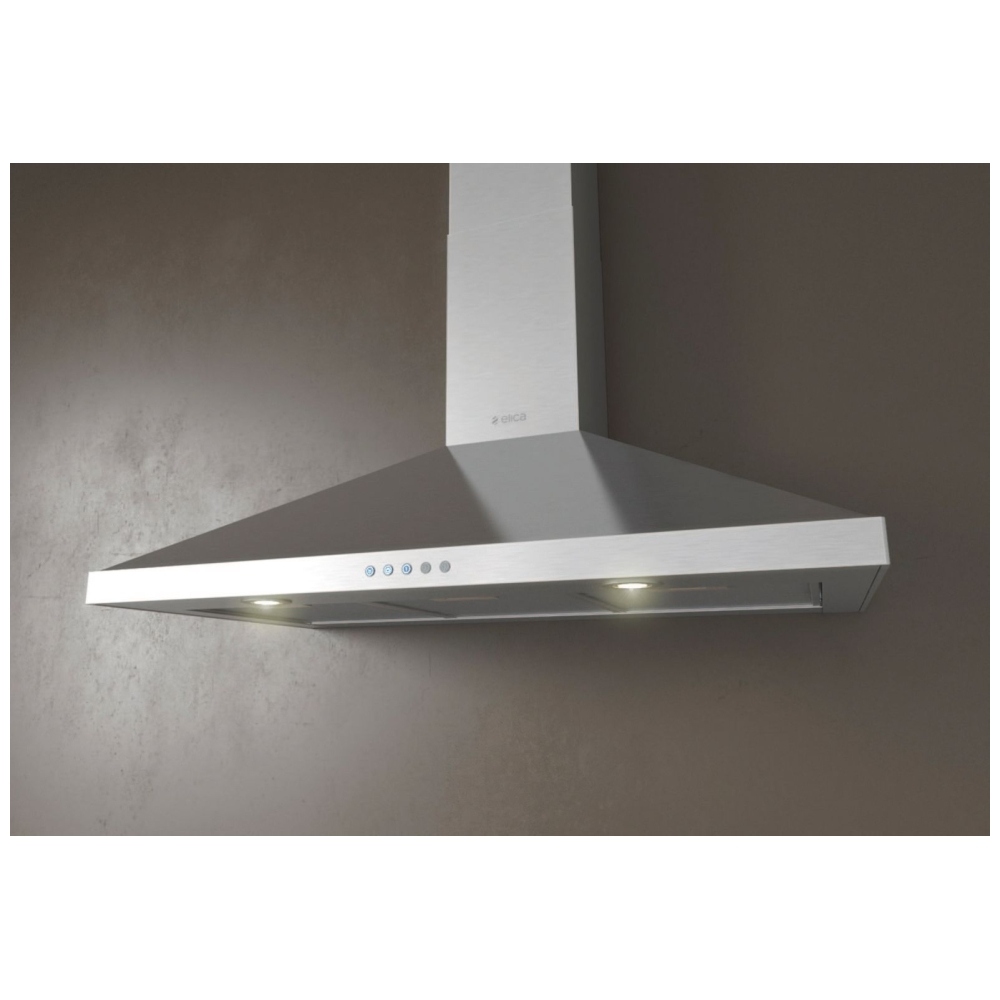

Volterra, with its pyramid shaped angles and stainless-steel finish, makes a striking visual statement to any kitchen. Available in 24 width, Volterra features backlit push button controls, LED lighting and 3-speed blower. It also features a telescopic chimney for up to 9 2 ceilings. Designed for standard ducted installation Volterra can also be installed as a recirculating system using the kit available as an accessory.
  • 3X Layer Mesh Filter
  • Elica aluminum mesh filters are a step above competition, featuring triple layered, anodized aluminum that is woven into a highly dense mesh. The thick mesh captures more grease, anodization helps resist staining and provides durability to repeated cleanings in the dishwasher.
  • LED Light
  • LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.

Manufacturer's Warranty: 2 years

Canadian model: EVL430S2

Canadian UPC: 190603001891

EAN: 0190603001891

Specs
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 16.80
NET WEIGHT (kg) 12.20
CARTON LENGHT (mm) 877.00
CARTON HEIGHT (mm) 675.00
CARTON WIDTH (mm) 369.00
VOLUMEN (M3) 0.22
SHIPPING WEIGHT (lb) 37.04
NET WEIGHT (lb) 26.90
CARTON LENGHT 34.53
CARTON HEIGHT 26.57
CARTON WIDTH 14.53
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Material Stainless Steel
Color inox
Type of Ventilation Convertible
HOODS FEATURES 3x layer mesh, Led light
WIDTH (IN) 30"
WIDTH (CM) 69.00
AIRFLOW (M3/H) 680.00
CFM (MAX) 400.00
db (min) 14.70
db (max) 51.00
SONES 0.4 - 5.0
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Round 6"
DUCT SHAPE Round
EXHAUST LOCATION Top Only
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 6"
ELECTRIC (VOLTS) 120.00
AMPERAGE 2.2 A
HERTZ 60.00
WATTS 265.00
LIGHTING LED 2 x 2.1 ww 3000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 2.00
BULB WATTS 2.10
KELVINS 3000.00
GREASE FILTER TYPE Dishwasher-Safe, Anodized Aluminum Mesh Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Aluminum Mesh
BLOWER TYPE Interior Unit
CONTROL TYPE Backlit Electronic Push Button
SPEED CONTROL YES
NUMBER OF SPEEDS 3.00
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
PANEL READY NO
RECIRCULATION KIT NEEDED YES
CFM REDUCTION Yes w/kit
DIMENSIONS (CM) 76 x 50 x 72
DIMENSIONS (INCH) 30" x 19 11/16" x 28 3/8"
ADJUSTABLE HEIGHT YES
Minimum Overall Height - Top to Bottom 28 3/8"
Maximum Overall Height - Top to Bottom 42 1/8"
Overall Height - Top to Bottom 28 3/8"-42 1/8"
Overall Width - Side to Side2 30"
Overall Depth - Front to Back 19 5/8"
Hood Height 10 1/4"
Min - Max Compatible Ceiling Height (Cover electronic cooking) 7'5"
Min - Max Compatible Ceiling Height ( Cover gas cooking) 9'6"
Minimum Height Above Cooktop (ELECTRIC) 24
Minimum Height Above Cooktop (GAS) 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side 8 3/16"
Chimney Depth - Front to Back 7 3/16"
Chimney Height - Top to Bottom 31 7/
RECIRCULATION KIT NUMBER KIT02766
CHIMNEY EXTENTION NUMBER KIT02762
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER GF04YB
CFM REDUCTION KIT KIT0175561
BACKSPLASS KIT -
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT -
EXTERNAL BLOWER SHELL KIT -
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
ETL YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65 Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR NO
CHAROCAL FILTER YES
Selected Model
Color Stainless Steel
Model number EVL430S2
Dimensions
Dimensions 30'' (W) X 19 5/8'' (D) X 10 ¼'' (H)
Exterior Appearence
Stainless Steel grade 430
Features
Controls Soft Touch, illuminated
Illumination 2, 2.1W LED light, 1 intensity (bulbs included)
Blower Type 400 CFM, 3- speed
Blower Performance Speed 1, 160 CFM, 1.5 Sones
Speed 2, 280 CFM, 3.1 Sones
Speed 3, 400 CFM, 5.9 Sones
Filter Type Dishwasher-Safe, Anodized Aluminium Mesh
Ducting Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Duct transition 6” Round with Back Draft Damper (top)
Chimney (ducted out) For ceiling height 7'5'' to 9'1''
Chimney (recirculating) For Ceiling height 7'5'' to 9'6''
Electrical Requirements
Electrical requirements 120V-60 HZ / 300 Watt at 2.5 Amps
Accessories (optionnal)
Extension Chimney Kit (ducted out) KIT02762 | For celling heights 8'5'' to 11'3'' (with appropriate accessories)
Extension Chimney Kit (recirculating) KIT02762 | For celling heights 8'6'' to 11'7'' (with appropriate accessories)
Recirculating Kit KIT02766 (For 30'' &36'' includes 6 deflectors and 2 carbon filters)
CRS CFM Reduction (< 300 CFM) KIT02748
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour
