Elica EMD530S3
Elica Ventilation 2024 Line Up Elica Ventilation 2024 Line Up
Step down to Elica EBL430S2 and save $440
40LOEL
MSRP Price
$1,279
8% off
-$100
Online Price
$1,179
Multi-Offer Combo Deal!
Buy this item and make your picks during checkout!
Redeem more than one choice and watch the savings grow!* 🛈  Cannot be combined with other promotions.
Take Free Old Appliance Removal!
Take $50 off another item!
* Each purchased product on the order which bears this offer can have its Multi-Offer max. savings allowance redeemed towards one (1) or more offers, however, allowance amounts and leftover allowance balances from multiple purchased products on the same order cannot be merged for use towards any single offer redemption.  Certain other items on the order may disqualify the order from a "Free Delivery" offer redemption.  May not be combined with any other promotion.
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $65.50 for 18 months
 Add to Cart
Call Local Showroom
Visit a Showroom
Similar Colours and Options
EMD530SS
EMD530SS
Stainless Steel
$489.00 CAD
40LOEL
Region Availability:
🛈 *1 WEEK
When will I get this?

 Add to Cart
Why Buy This at CAS?
Free In Home Delivery*
Cash-back
Up to 2% cash-back when paying by Visa® or Mastercard®!*
2 years manufacturer warranty included
Custom Advanced Installation Services
Reserve & Pick Up
Interior Designer Discounts
Flexiti Financing as low as $65.50 for 18 months
Description & Features

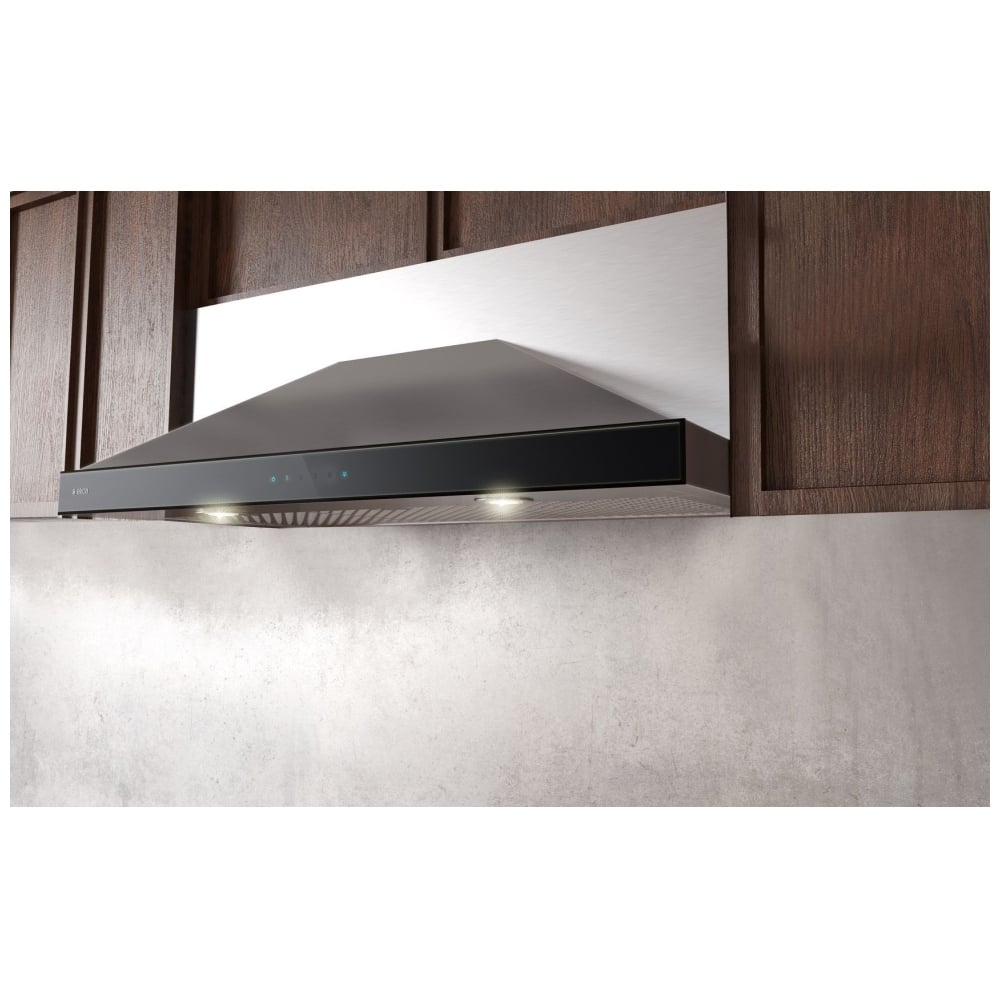

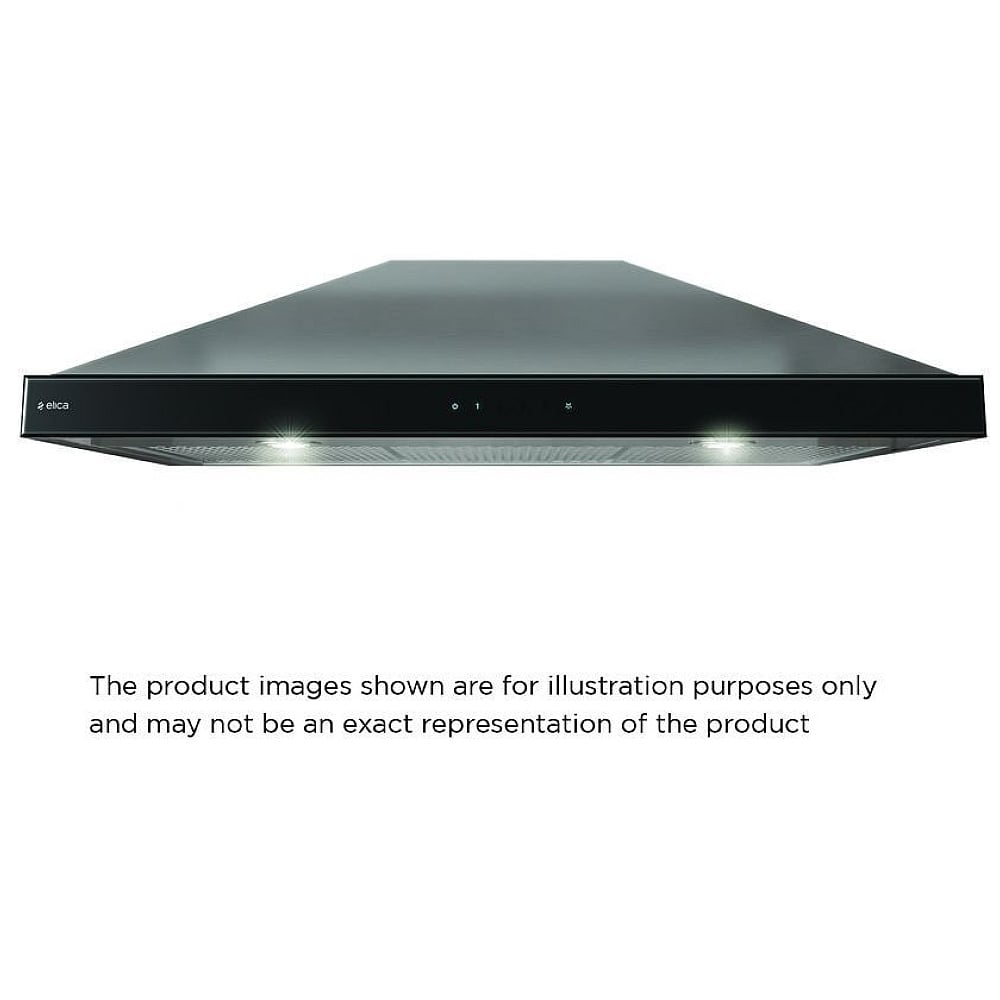

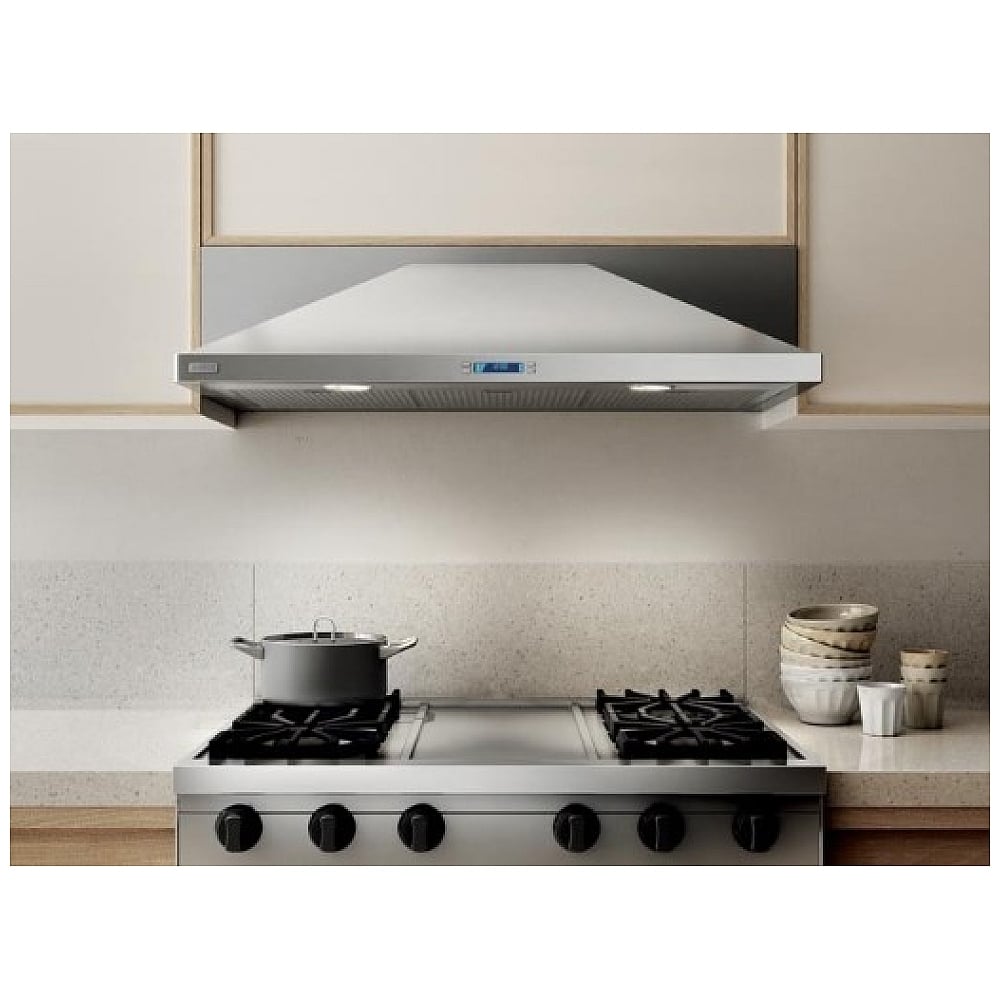

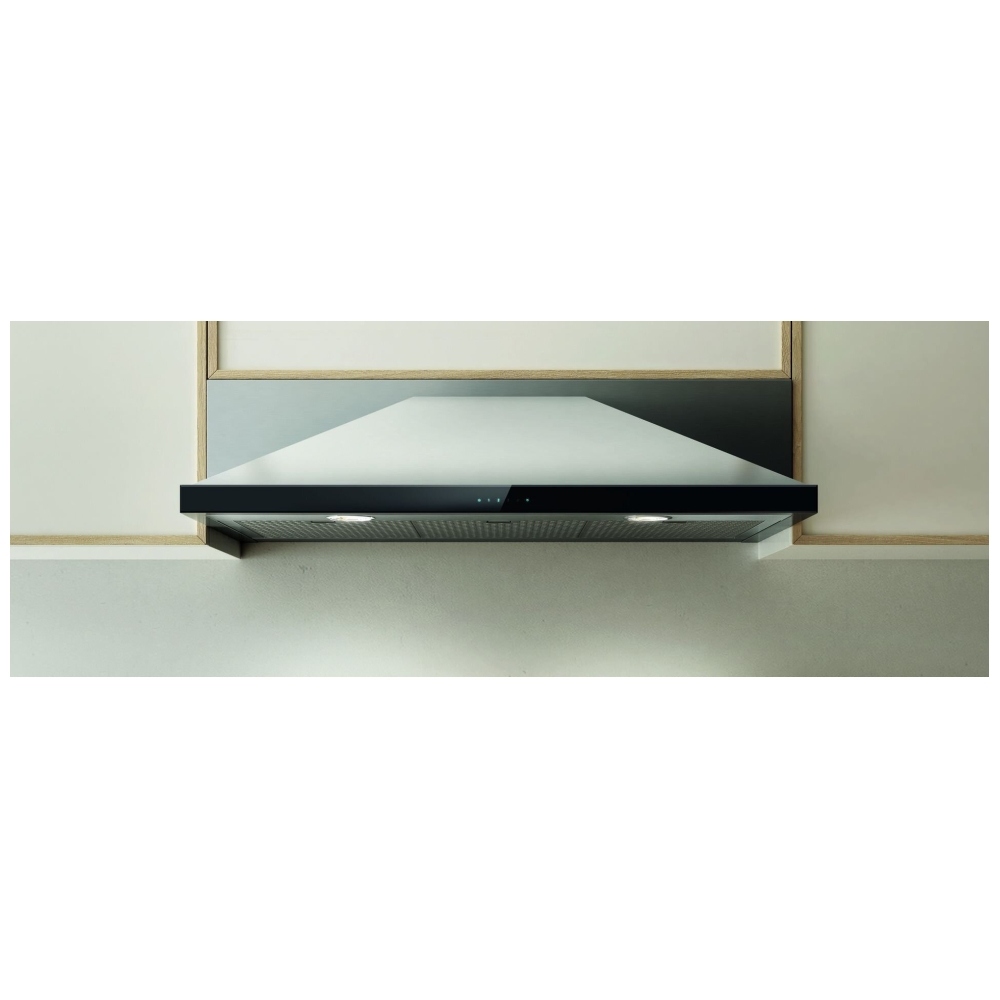

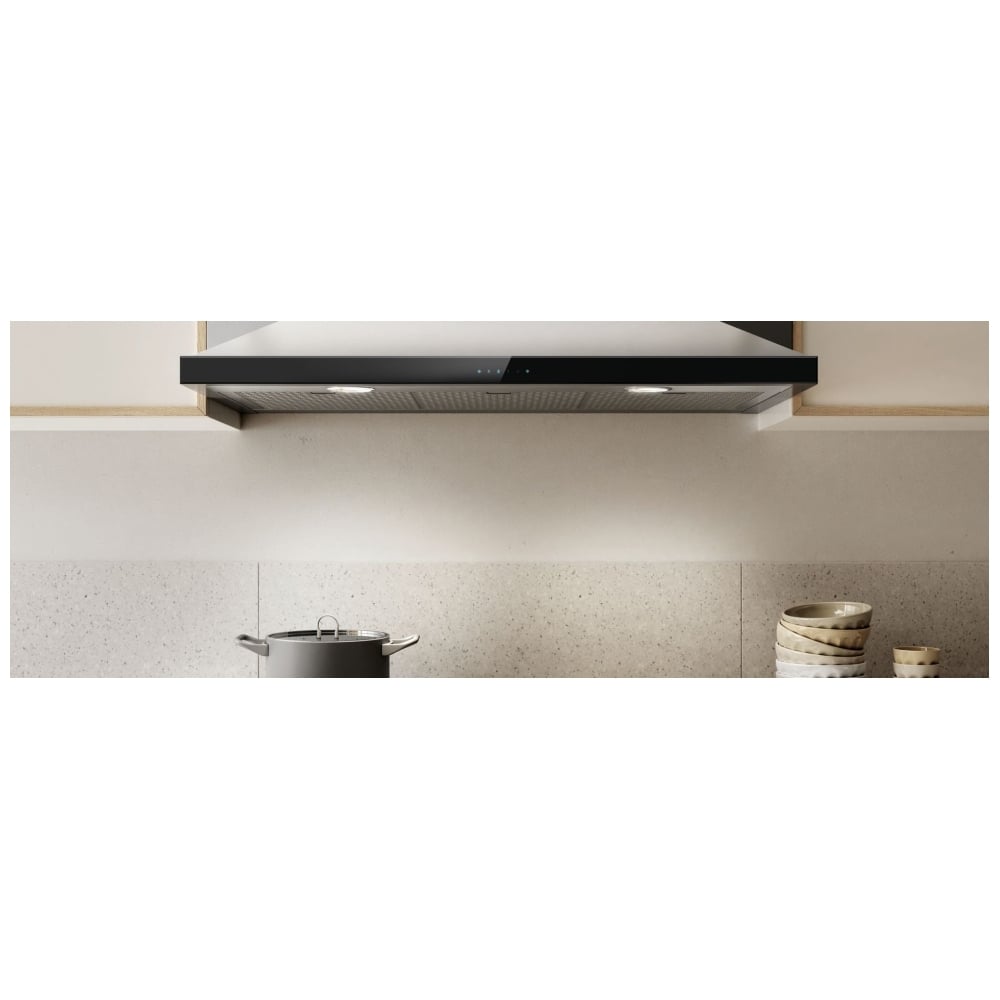

Modena off ers a classic designer chimney appearance for under-cabinet installations, with a striking 9" high pyramid shape. Modena also provides high-end features not commonly found in under-cabinet hoods, including a 600 CFM blower, dimmable LED lighting, stainless steel micro hole filters, and easy-to-use glass capacitive touch controls for convenience and safety. Available in 30" and 36" widths, and designed for standard ducted installation, Modena can also be installed as a recirculating system using the optional kit. Its design versatility suits almost any kitchen.
  • Dim Light
  • The light in the kitchen, as in any room, is a key design feature for improving the home living experience. Achieving the right intensity becomes fundamental in creating the desired atmosphere. Which is why Elica has designed the Dim light function which allows you to adjust the intensity of your extraction hood light with a simple control. Maximum light for the best visibility on the worktop or dimmed when relaxing.
  • CFM Reduction
  • CFM Reduction System (CRS), is an exclusive feature to Elica hoods, which enables the user to reduce directly in the glass touch control the maximum blower CFM, to meet local code requirements.
  • Hush System
  • An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
  • LED Light
  • LED lighting is undoubtedly the smartest solution in terms of energy saving. Expected life time of over 20.000 hours, represents the most remarkable advantage of LED light bulbs.
  • Touch Control
  • Enjoy the modern design and convenience of multi-function electronic touch controls, which are discreetly hidden behind sleek black glass, and will illuminate a soft blue when activated.

Manufacturer's Warranty: 2 years

UPC: 190603002133

UPC: 190603002133

EAN: 0190603002133

Specs
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 19.90
NET WEIGHT (kg) 15.00
CARTON LENGHT (mm) 849.00
CARTON HEIGHT (mm) 618.00
CARTON WIDTH (mm) 349.00
VOLUMEN (M3) 0.20
SHIPPING WEIGHT 43.87
NET WEIGHT 33.07
CARTON LENGHT 33.43
CARTON HEIGHT 24.33
CARTON WIDTH 13.74
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel + Black Glass
Color inox + glass
Type of Ventilation Convertible
HOODS FEATURES Led light,Dim light,Top performance,CFM reduction system,Touch controls,Hush system
WIDTH (IN) 30"
WIDTH (CM) 76.00
AIRFLOW (M3/H) 1020.00
CFM (MAX) 600.00
db (min) 32.00
db (max) 55.00
SONES 1.3 - 6.8
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Rectangular 10 x3 1/4" or round 6" (sold separately)
DUCT SHAPE Rectangular or round (sold separately)
EXHAUST LOCATION Top or Rear
RECTANGULAR DUCTH HEIGHT 10"
RECTANGULAR DUCT WIDTH 3.25
Round duct diameter 6"
ELECTRIC (VOLTS) 120 V/60 Hz
AMPERAGE 3.8 A
HERTZ 60.00
WATTS 445.00
LIGHTING Premium Dimmable LED 2 x 2.1 ww 4000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 2.00
BULB WATTS 2.10
KELVINS 4000.00
GREASE FILTER TYPE Dishwasher-Safe, Stainless Steel Microhole Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Stainless Steel
BLOWER TYPE Interior Unit
CONTROL TYPE Multi-function Electronic with black glass touch display
SPEED CONTROL YES
NUMBER OF SPEEDS 3 + booster
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
RECIRCULATION KIT NEEDED YES
CFM REDUCTION Yes
DIMENSIONS 76 x 50 x 25
DIMENSIONSinches 30" x 19 5/8" x 9 3/4"
ADJUSTABLE HEIGHT NO
Minimum Overall Height - Top to Bottom 9 3/4"
Maximum Overall Height - Top to Bottom 9 3/4"
Overall Height - Top to Bottom 9 3/4"
Overall Width - Side to Side2 30"
Overall Depth - Front to Back 19 5/8"
Hood Height 9 3/4"
Minimum Compatible Ceiling Height NA
Maximum Compatible Ceiling Height NA
Minimum Height Above Cooktop (ELECTRIC) = 24
Minimum Height Above Cooktop (GAS) = 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side NA
Chimney Depth - Front to Back NA
Chimney Height - Top to Bottom NA
RECIRCULATION KIT NUMBER KIT02667
CHIMNEY EXTENSION NUMBER NA
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT -
BACKSPLASH KIT -
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT -
EXTERNAL BLOWER SHELL KIT -
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
cUL listed YES
UL listed YES
AHAM verified YES
TITLE 24 YES
Prop65Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR NO
CHAROCAL FILTER YES
CERTIFICADO NOM NA
Selected Model
Color Stainless Steel
Model number EMD530S3
Dimensions
Dimensions 30'' (W) X 20'' (D) X 9'' (H)
Exterior Appearence
Stainless Steel grade 430
Features
Controls Multi-Function Electronic Touch Controls with LCD display
Illumination 2, 2.5W Premium LED lamps, Infinitely dimmable (bulbs included)
Blower Type 520 CFM, 4- speed
CRS CFM Reduction (< 300 CFM) Included Function
Blower Performance Speed 1, 170 CFM, 1.3 Sones
Speed 2, 280 CFM, 2.7 Sones
Speed 3, 430 CFM, 4.9 Sones
Speed 4, 520 CFM, 7.3 Sones
Filter Type Dishwasher-Safe, Stainless Steel Micro Hole Filters (X2)
Ducting Ducted or Recirculating Installation (Recirculating Kit Sold Separately)
Duct transition 3¼’’ X 10’’ (Top or Rear) | Back Draft Damper Included
Special features Hush Silence System
Electrical Requirements
Electrical requirements 120V-60 HZ / 550 Watt at 4.6 Amps
Accessories (optionnal)
Recirculating Kit KIT02667
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour
