ETR134S1 has transitioned from 10 inch to 8 inch ducting
Elica ETR134S1
Elica Ventilation 2024 Line Up Elica Ventilation 2024 Line Up
4HASDG
MSRP Price
$1,939
21% off
-$410
Recent Price
9%
$1,679
Regular Price
$1,679
Price Match Discount
-$150.00
Online Price
$1,529
Promo
*** SHOWROOM FLOOR MODEL IN-STORE PURCHASE ONLY
Additional in-store discounts
 Add to Cart
Call Local Showroom
4HASDG
Region Availability:
In Stock
When will I get this?

Description & Features

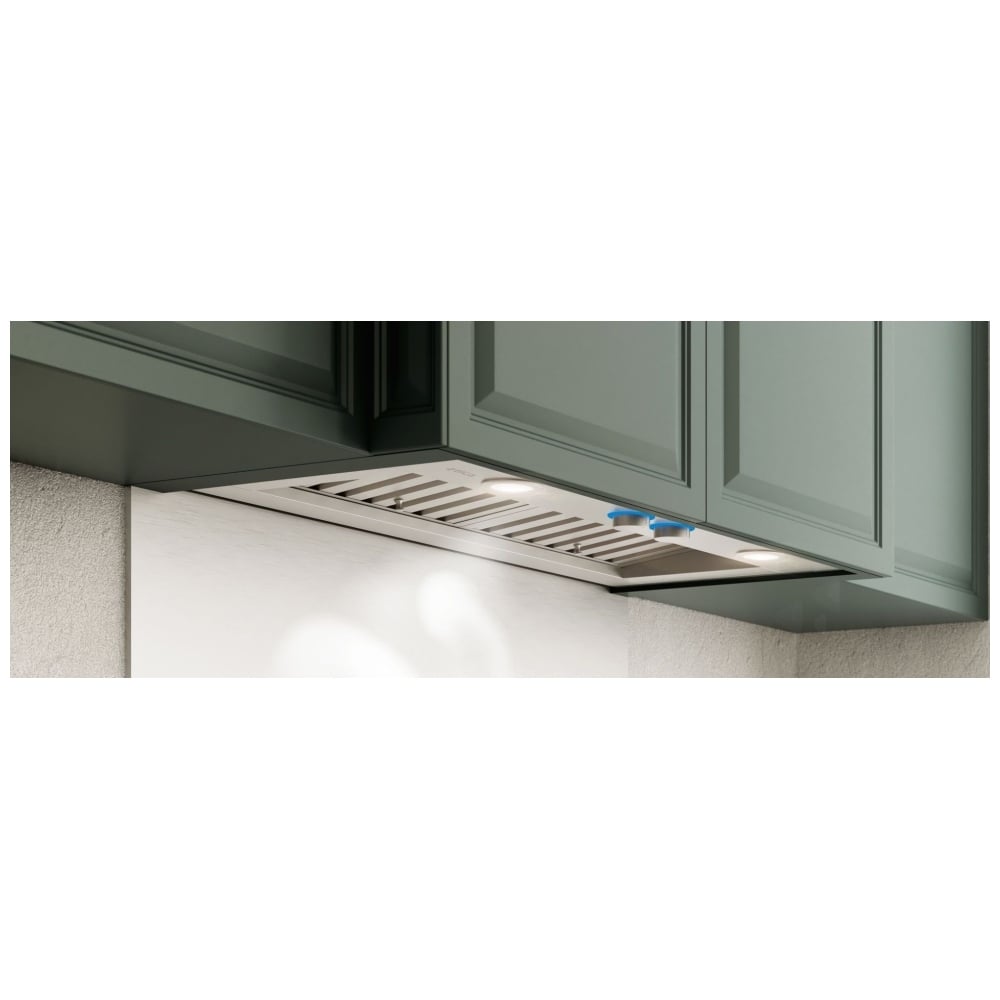

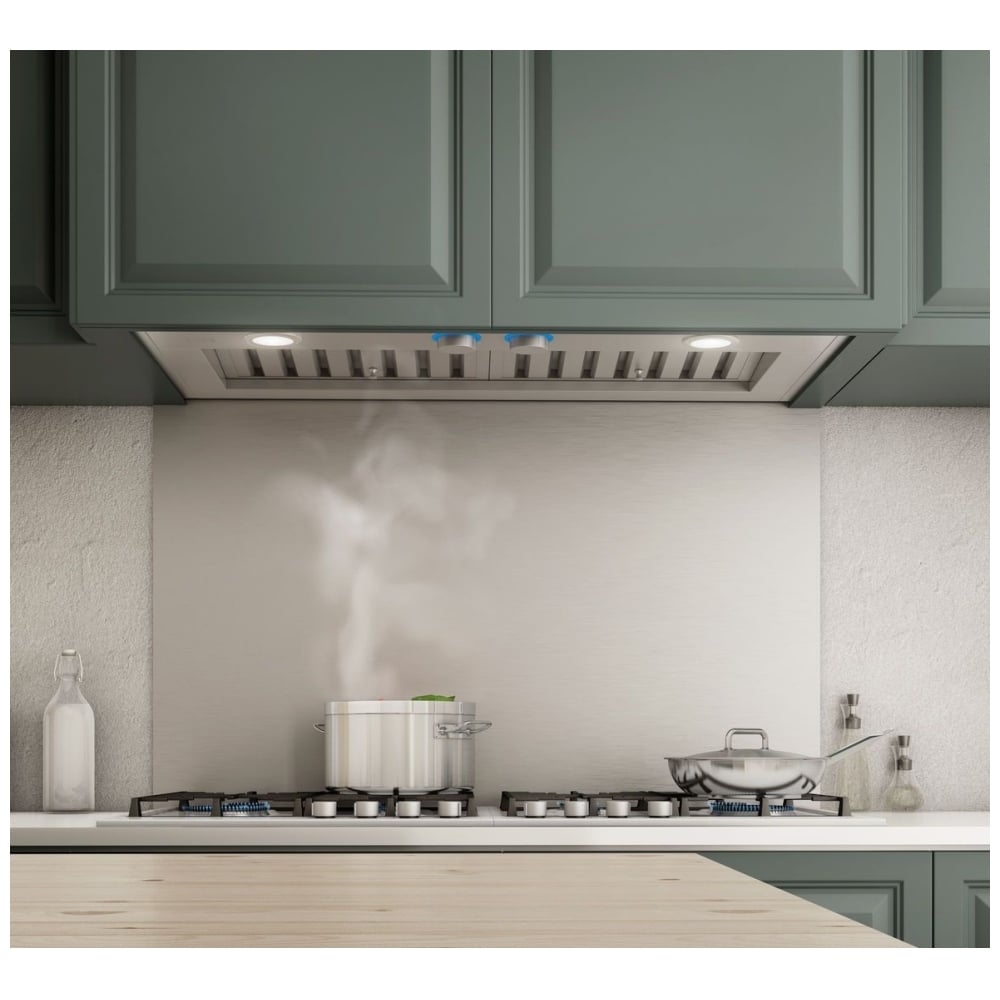

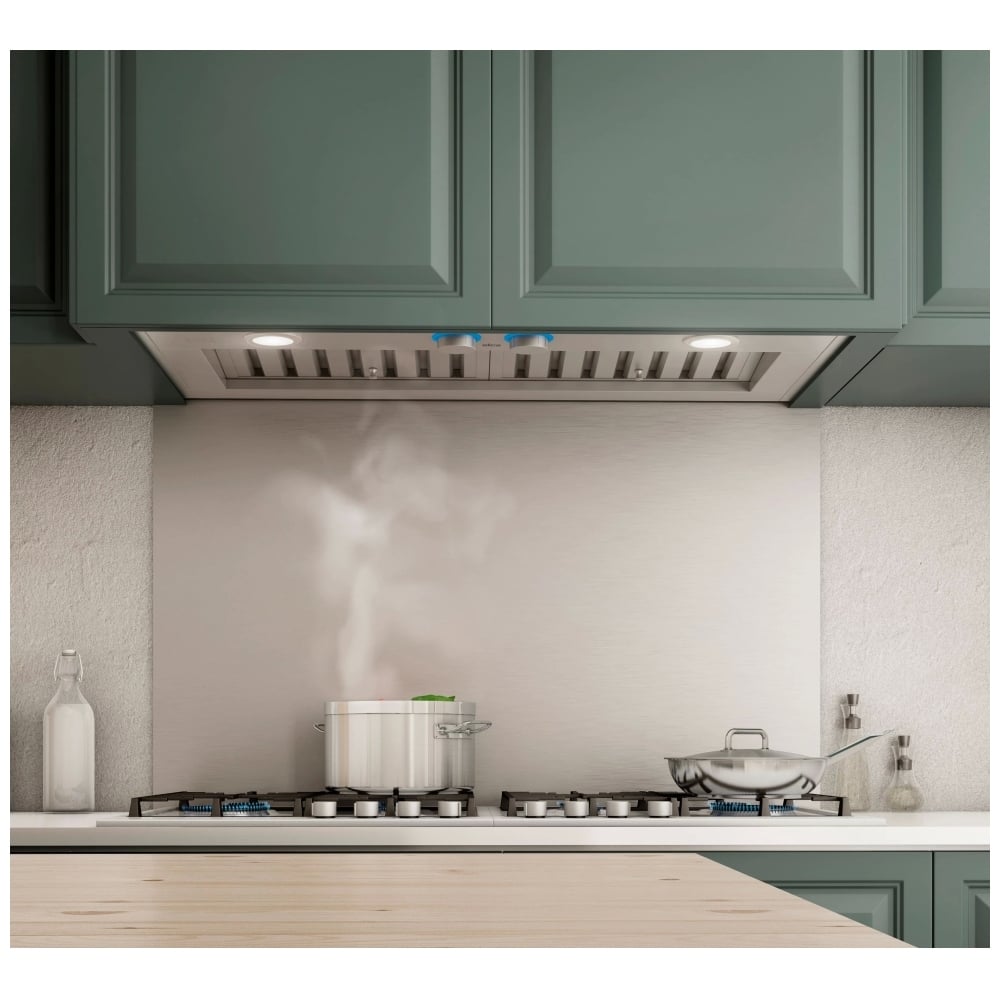

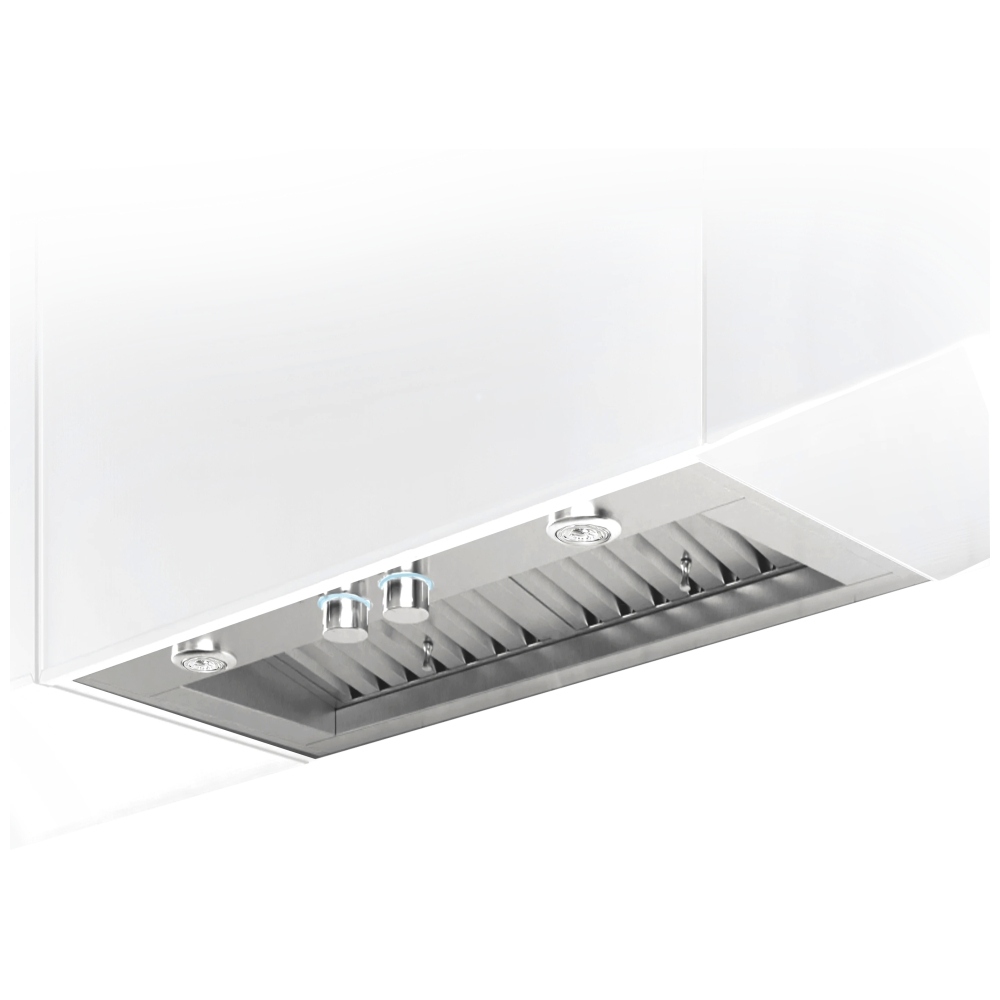

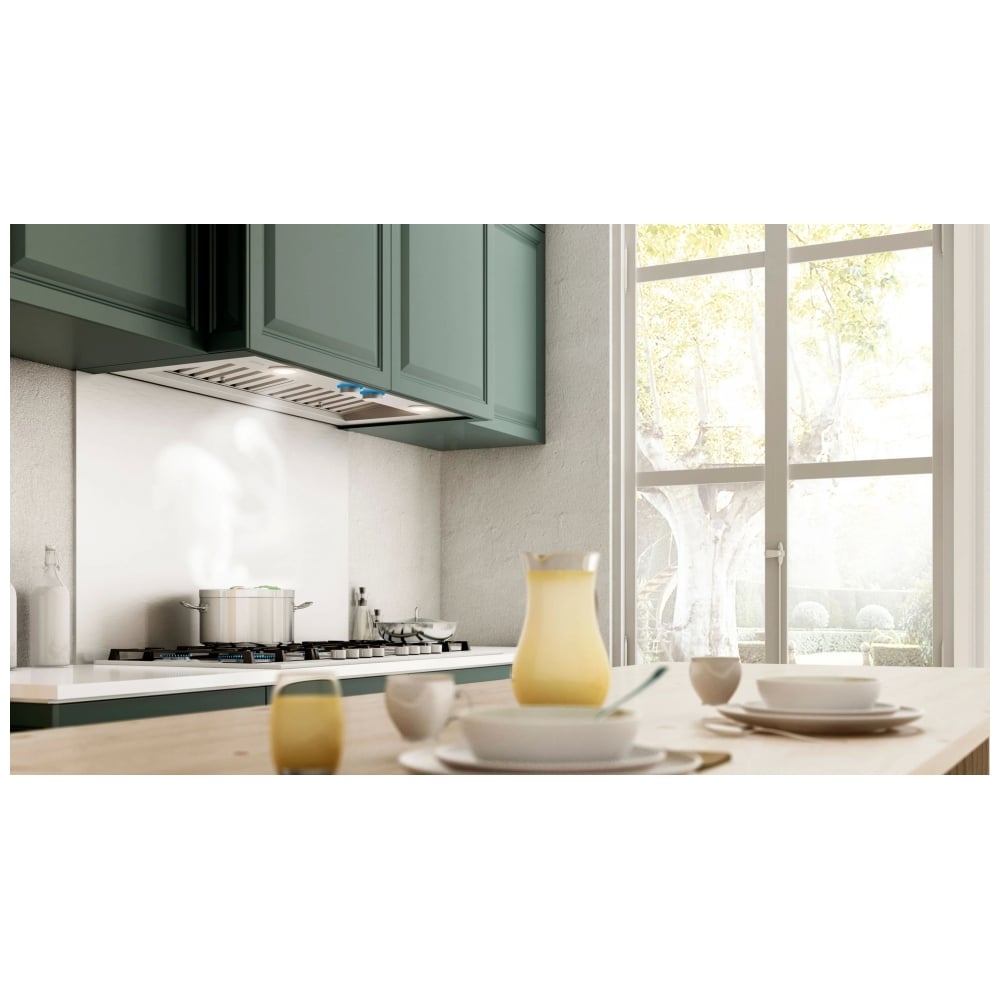

Introducing the Elica ETR134S1 Cabinet Insert - the perfect solution for homeowners who want professional grade performance without sacrificing style. With its sleek and discreet design, this cabinet insert is mounted inside the cabinetry, making it virtually invisible. And with a 1200 CFM blower, it provides extraordinary ventilating power to keep your kitchen free of smoke and odors.

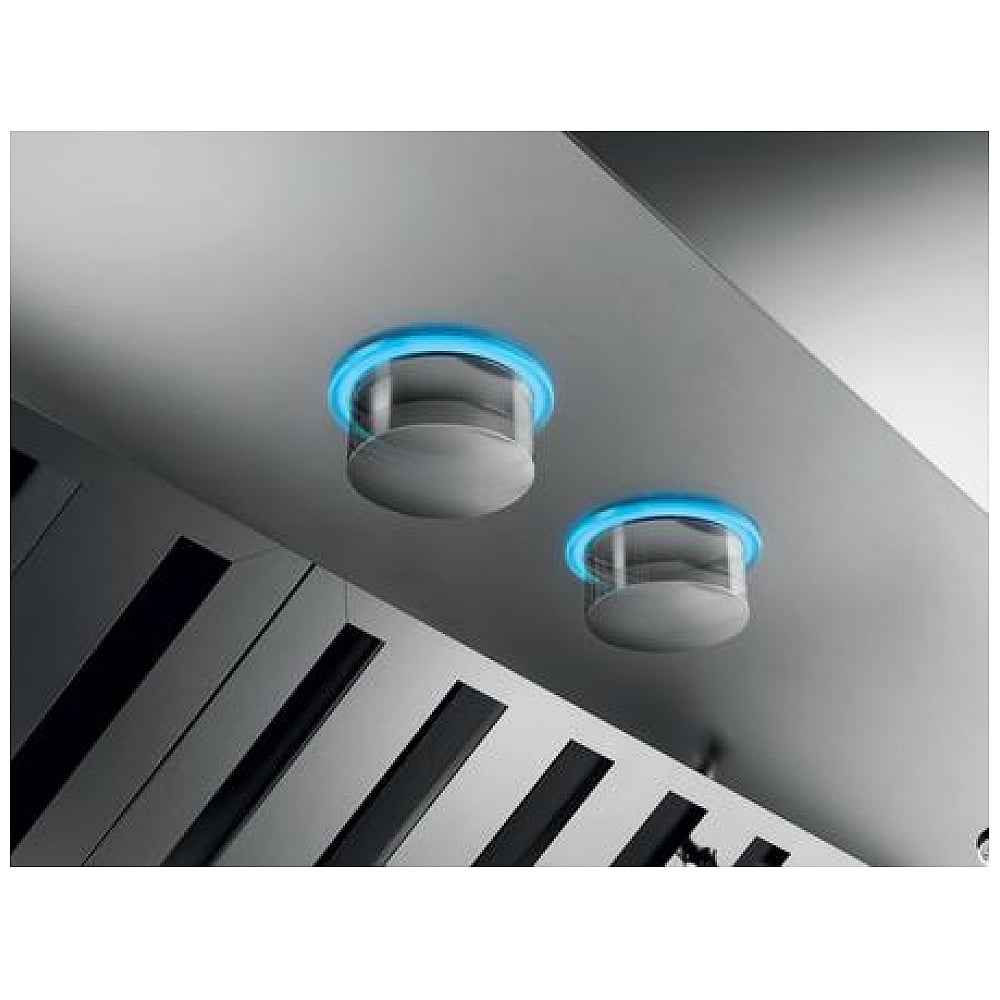

What sets the Elica ETR134S1 apart is its All-In-One design, which eliminates the need to purchase a separate Stainless Liner. And with its hidden metallic in/out knob controls, operating the 4-speed blower and LED lighting is easy and convenient.

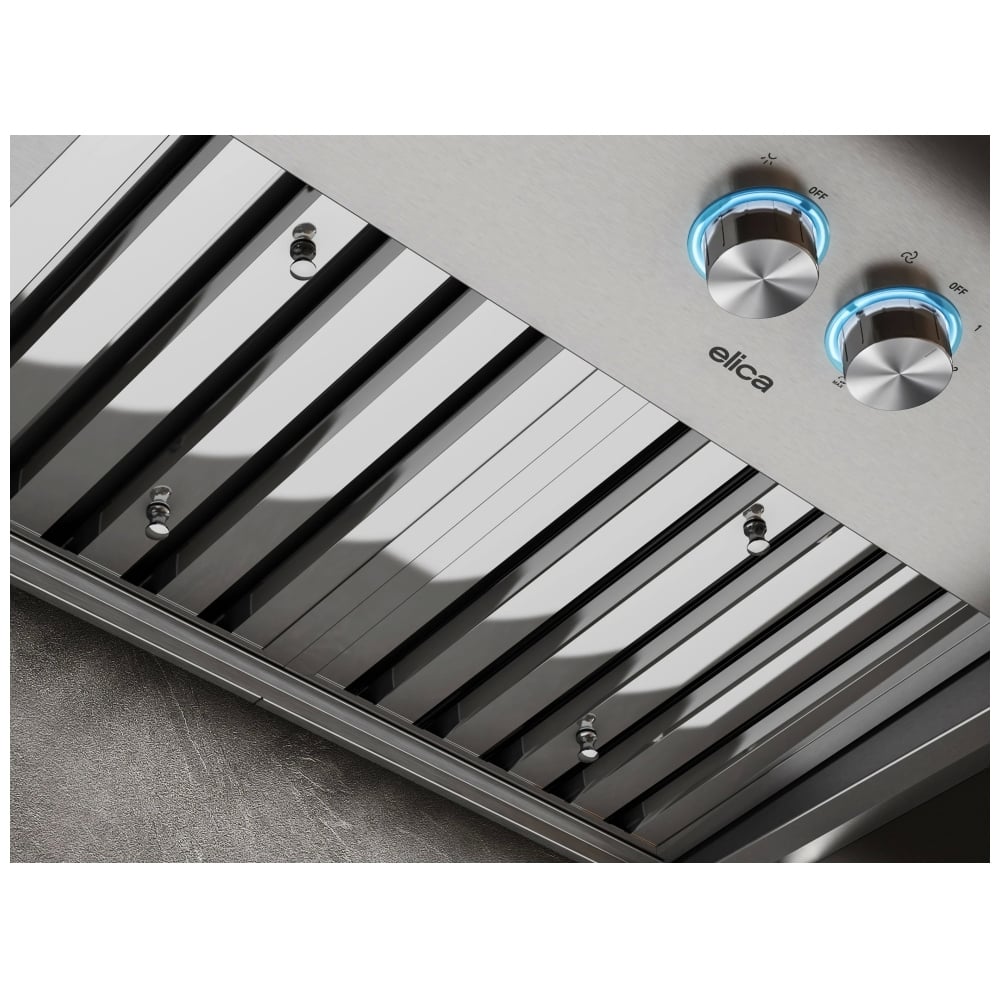

One of the key features of this cabinet insert is its patented Angled Baffle Filters, which capture a higher percentage of contaminants and hold larger volumes of grease than traditional baffle filters. And with its dishwasher safe filters, cleaning is a breeze.

But that's not all - the Elica ETR134S1 also features a Grease Collector and Heat Guard, which further enhance its performance and safety. And with its Hush System, this cabinet insert operates quietly, making it perfect for open concept kitchens.

The LED lighting is also replaceable, ensuring that your kitchen is always well lit. And with its professional performance, this cabinet insert is perfect for serious home chefs who demand the best. Upgrade your kitchen with the Elica ETR134S1 Cabinet Insert and experience the ultimate in ventilation technology.



Trento provides professional grade performance, while being discreetly mounted inside the cabinetry. It is available with a 600 CFM or 1200 CFM blower for extraordinary ventilating power. Plus, the All-In-One design avoids the need to purchase a stainless liner. Hidden metallic in/out knob controls operate the 4-speed blower and LED lighting. A cleaner kitchen is ensured by Elica's patented angled baffle filters, which capture a higher percentage of contaminants and hold larger volumes of grease than traditional baffle filters. *Damp-location approved

  • Grease Collector
  • Professional grade, heavy gauge stainless steel baffle filters are the perfect choice for those with top chef dreams. Designed for high airflow cooking, the S shape design traps volumes of grease (for a cleaner kitchen), which is collected in trays for easy removal and cleaning.
  • Heat Guard
  • A safety feature that protects the hood and cabinetry from excessive heat, by sensing extreme temperatures (>158 degrees) and will automatically adjusts the blower speed to HIGH. Blower speed will automatically adjust back once temperatures drop to a safe level.
  • Hush System
  • An exclusive sound deadening technology that effectively reduces sound levels up to 35%, compared to typical range hoods.
  • LED Replaceable
  • High quality LED lighting usually requires a skilled technician to replace lamps. Avoid this expense with Elica s new LED lamps that enable typical homeowners to replace in seconds.
  • Professional Performance
  • Special features and very high performances for models with aspiration capacity between 600 and 1200 CFM's, and noise level between 65 and 75 db(A) at maximum speed. The Ideal complement of PRO ranges.
  • Seamless Look
  • Elica Professional grade hoods feature heavy gauge stainless steel Seamless construction that delivers refined elegance and reflects the superior quality and Italian craftsmanship invested into each range hood.

Manufacturer's Warranty: 2 years

UPC: 190603002027

EAN: 0190603002027

Specs
Warranty 3 Year Parts and In-Home Labor Warranty. Third year awarded after product registration on www.elica.com
SHIPPING WEIGHT (kg) 31.70
NET WEIGHT (kg) 22.70
CARTON LENGHT (mm) 1050.00
CARTON HEIGHT (mm) 421.00
CARTON WIDTH (mm) 699.00
VOLUMEN (M3) 0.30
SHIPPING WEIGHT 69.89
NET WEIGHT 50.04
CARTON LENGHT 41.34
CARTON HEIGHT 16.57
CARTON WIDTH 27.52
COUNTRY OF MANUFACTURE MX
QTY PACKAGE 1.00
INTENDED APPROVED USE Residential use
Finish Stainless Steel
Color inox
Type of Ventilation Vented
HOODS FEATURES Hush system,Heat guard,Grease collectors,Professional performance,Seamless look
WIDTH (IN) 34
WIDTH (CM) 86.00
AIRFLOW (M3/H) 2040.00
CFM (MAX) 1200.00
db (min) 36.00
db (max) 59.00
SONES 1.7 - 8.5
EXHAUST VERSION Convertible with Kit
EXHAUST SIZE Round 8"
DUCT SHAPE Round
EXHAUST LOCATION Top Only
RECTANGULAR DUCTH HEIGHT NA
RECTANGULAR DUCT WIDTH NA
Round duct diameter 10"
ELECTRIC (VOLTS) 120 V/60 Hz
AMPERAGE 7.6 A
HERTZ 60.00
WATTS 913.00
LIGHTING LED 4 x 6.5 ww 3000 KK
BULB TYPE LED
BULB INCLUDED YES
NUMBER OF LIGHTS 2.00
BULB WATTS 6.50
KELVINS 3000.00
GREASE FILTER TYPE Dishwasher-Safe, Professional Stainless Steel Angled Baffle Filter
DISHWASHERSAFE FILTER YES
FILTER MATERIAL Stainless Steel
BLOWER TYPE Interior Unit
CONTROL TYPE Fully Retractable Rotating Knobs w/ Blue Backlighting
SPEED CONTROL YES
NUMBER OF SPEEDS 4.00
REMOTE CONTROL NO
POWER SOURCE Hardwired
OUTDOOR USE NO
SMUDGE RESISTANT NO
RECIRCULATION KIT NEEDED NO
CFM REDUCTION Yes w/kit
DIMENSIONS 88 x 46 x 28
DIMENSIONSinches 34 1/2 x 18" x 11 7/8
ADJUSTABLE HEIGHT NO
Minimum Overall Height - Top to Bottom 11 7/8"
Maximum Overall Height - Top to Bottom 17 /16
Overall Height - Top to Bottom 11 7/8"
Overall Width - Side to Side2 11 7/8"
Overall Depth - Front to Back 18"
Hood Height 11 7/8"
Minimum Compatible Ceiling Height NA
Maximum Compatible Ceiling Height NA
Minimum Height Above Cooktop (ELECTRIC) = 24
Minimum Height Above Cooktop (GAS) = 30
Maximum Height Above Cooktop 36"
Chimney Width - Side to Side NA
Chimney Depth - Front to Back NA
Chimney Height - Top to Bottom NA
RECIRCULATION KIT NUMBER KIT0192765+KIT0192763
CHIMNEY EXTENSION NUMBER NA
TELESCOPIC DUCT COVER -
DUCT TRANSITION -
TRANSITION REDUCER KIT -
BACKDRAFT DAMPER -
NON RETURN VALVE -
UPGRADE FILTER -
CFM REDUCTION KIT KIT0185099
BACKSPLASH KIT -
INTERNAL BLOWER -
INLINE BLOWER -
EXTERNAL BLOWER -
INLINE BLOWER SHELL KIT KIT0179549
EXTERNAL BLOWER SHELL KIT KIT0179547
HEAT LAMPS -
SPACER/LINER -
WALL MOUNT BRACKET -
HIGH CEILING EXTENSION KIT -
REMOTE CONTROL KIT -
cUL listed YES
UL listed YES
AHAM verified NO
TITLE 24 NO
Prop65Disclosure YES
ENERGY STAR NO
WIFI CAPABLE NO
COMERCIAL USE APPROVED NO
ADA COMPLIANT NO
APP CAPABLE NO
VENTILATION DIRECTION HORIZONTAL
SMART COMPATIBLE NO
FITLER INDICATOR LIGHT NO
HEAT SENSOR YES
CHAROCAL FILTER NO
CERTIFICADO NOM NA

Selected Model
Color Stainless Steel
Model number ETR134S1

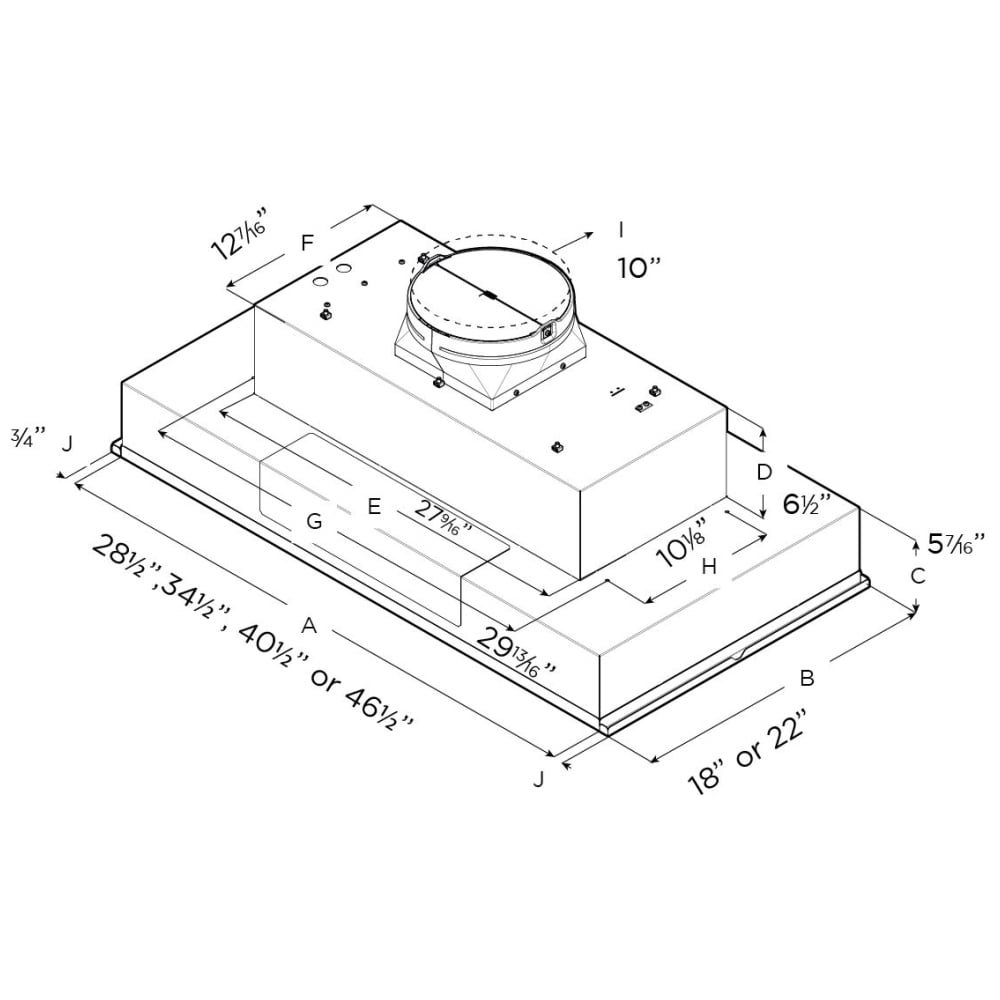

Dimensions
Dimensions 34 1/2'' (W) x 18'' (D) x 11 1/2'' (H)
Features
Controls Fully recessing stainless rotating knobs with illumination
Illumination 2 2.5W Premium LED lamps, 1 intensity (bulbs included)
Blower Type 4-speed, 1200 CFM
Blower Performance Speed 1, 380 CFM 2.05 sones
Speed 2, 660 CFM 4.2 Sones
Speed 3, 950 CFM 5.9 Sones
Speed 4, 1200 PCM 7.5 Sones
Filter Type 2 Stainless Steel Baffle Filters
Ducting Ducted Installation Only
Duct transition 10‘‘ Round (Top) | Back Draft Damper included
Special features Hush Silence System
Electrical Requirements
Electrical requirements 120V-60 HZ / 260 Watt at 4.6 Amps
Accessories (optionnal)
External Blower Kit KIT0153054 (1200 CFM compatible 8'' & 10'' duct transition)
Inline blower kit KIT0154387 (1200 CFM compatible 8'' &10'' duct transition)
Warranty
Complete 2 years warranty Entire Appliance; In-Home; Parts & Labour
