Manufacturer's Warranty: 2 years
Canadian model: FRHUC5255-30
Canadian UPC: 686136952255
EAN: 0686136952255
| Specification | Value |
|---|---|
| Brand | Forno |
| Model | FRHUC5255-30 |
| Series | Bari |
| Collection | Espresso |

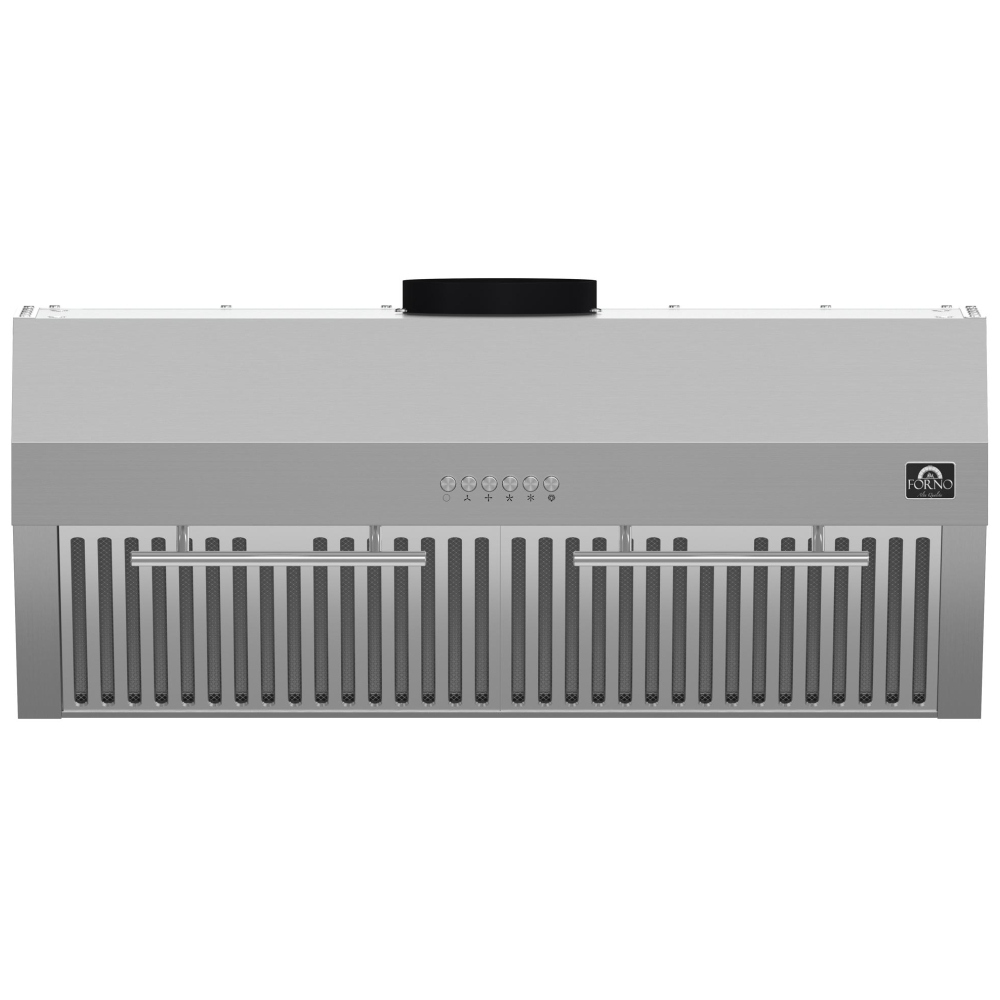

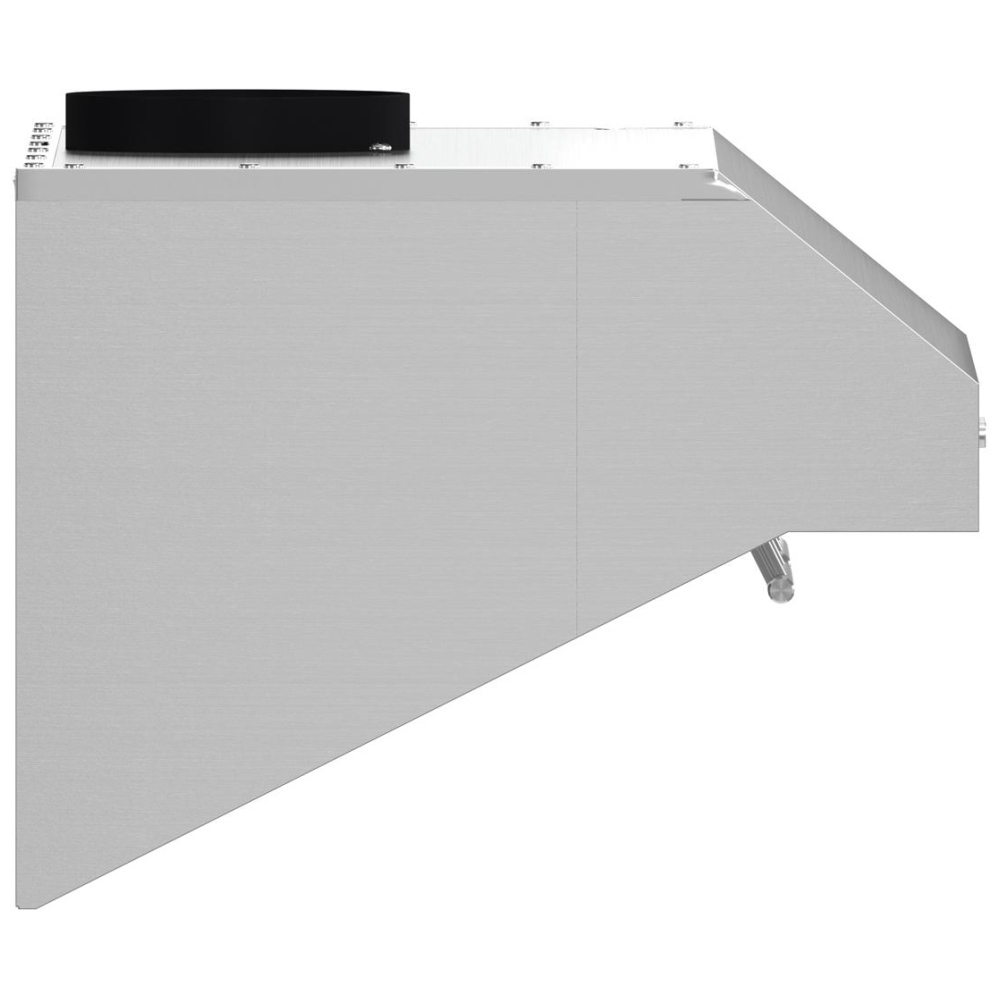

| Product Type | Under Cabinet Range Hood |
| Installation Type | Under Cabinet |
| Ventilation Type | Ducted |
| Exhaust Vent Location | Roof / Wall |
| Air Discharge Direction | Vertically Upward |

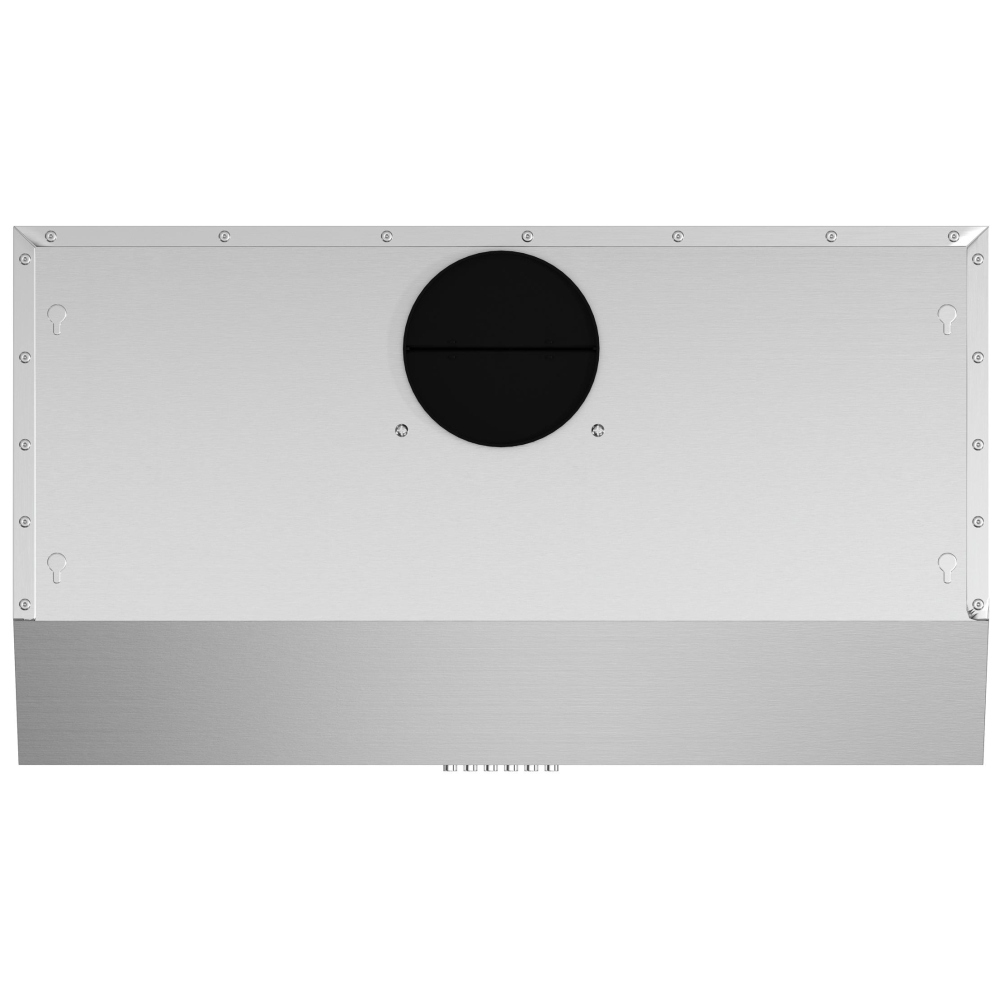

| Duct Shape | Round |
| Duct Size | 6 inches |
| Damper Included | Yes |

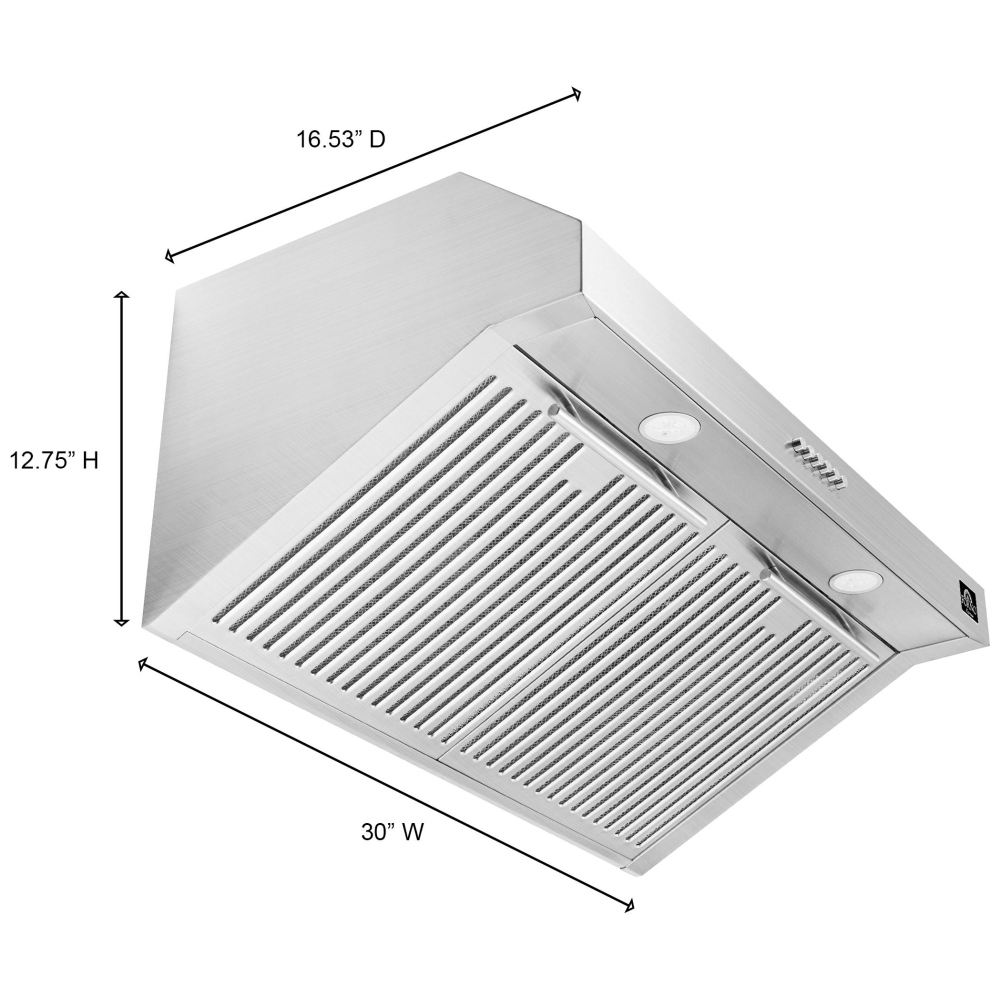

| Width | 30 inches |
| Depth | 16 1/2 inches |
| Height | 12 3/4 inches |
| Cutout Width | 29 4/5 inches |
| Cutout Depth | 12 inches |
| Cutout Height | 12 3/4 inches |
| Overall Weight | 21.18 lbs |
| Shipping Width | 33 43/50 inches |
| Shipping Depth | 16 37/50 inches |
| Shipping Height | 21 33/50 inches |
| Shipping Weight | 28.4 lbs |
| Maximum Air Flow | 400 CFM |
| Minimum Air Flow | 220 CFM |
| Air Flow Speed 1 | 370 |
| Air Flow Speed 2 | 518 |
| Air Flow Speed 3 | 588 |
| Air Flow Speed 4 | 672 |
| Fan Speeds | 4 |
| CFM Speed 1 | 220 CFM |
| CFM Speed 2 | 305 CFM |
| CFM Speed 3 | 346 CFM |
| CFM Speed 4 | 400 CFM |
| RPM Speed 1 | 900 RPM |
| RPM Speed 2 | 1310 RPM |
| RPM Speed 3 | 1450 RPM |
| RPM Speed 4 | 1650 RPM |
| Noise Level Speed 1 | 54.6 dB |
| Noise Level Speed 2 | 61.8 dB |
| Noise Level Speed 3 | 64.1 dB |
| Noise Level Speed 4 | 66.6 dB |
| Minimum Noise Level | 54.6 dB |
| Maximum Noise Level | 66.6 dB |
| Minimum Sones | 6.3 sones |
| Maximum Sones | 14.5 sones |

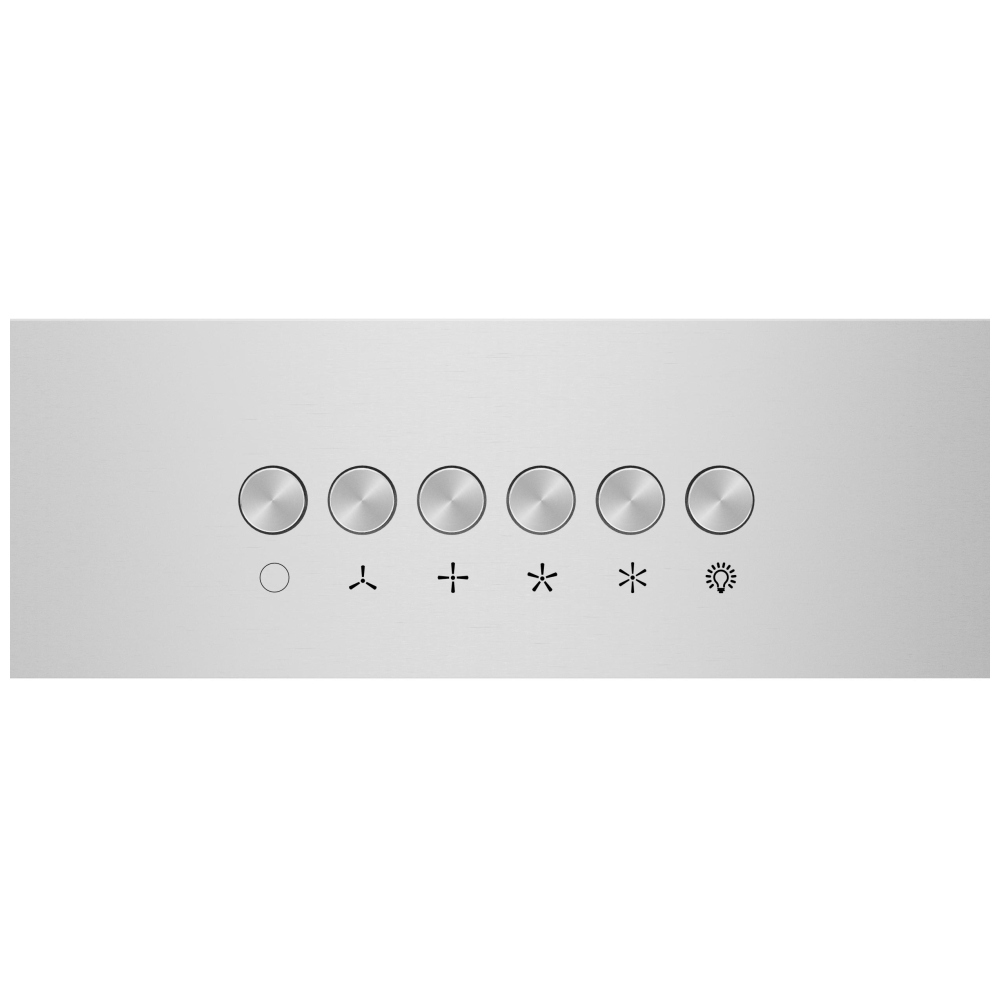

| Control Type | Push Button |
| Power Source | Electric |
| Voltage | 120 V |
| Frequency | 60 Hz |
| Running Amperage | 2.6 A |
| Circuit Breaker Amperage | 15 A |
| Motor Power | 60 Watts |

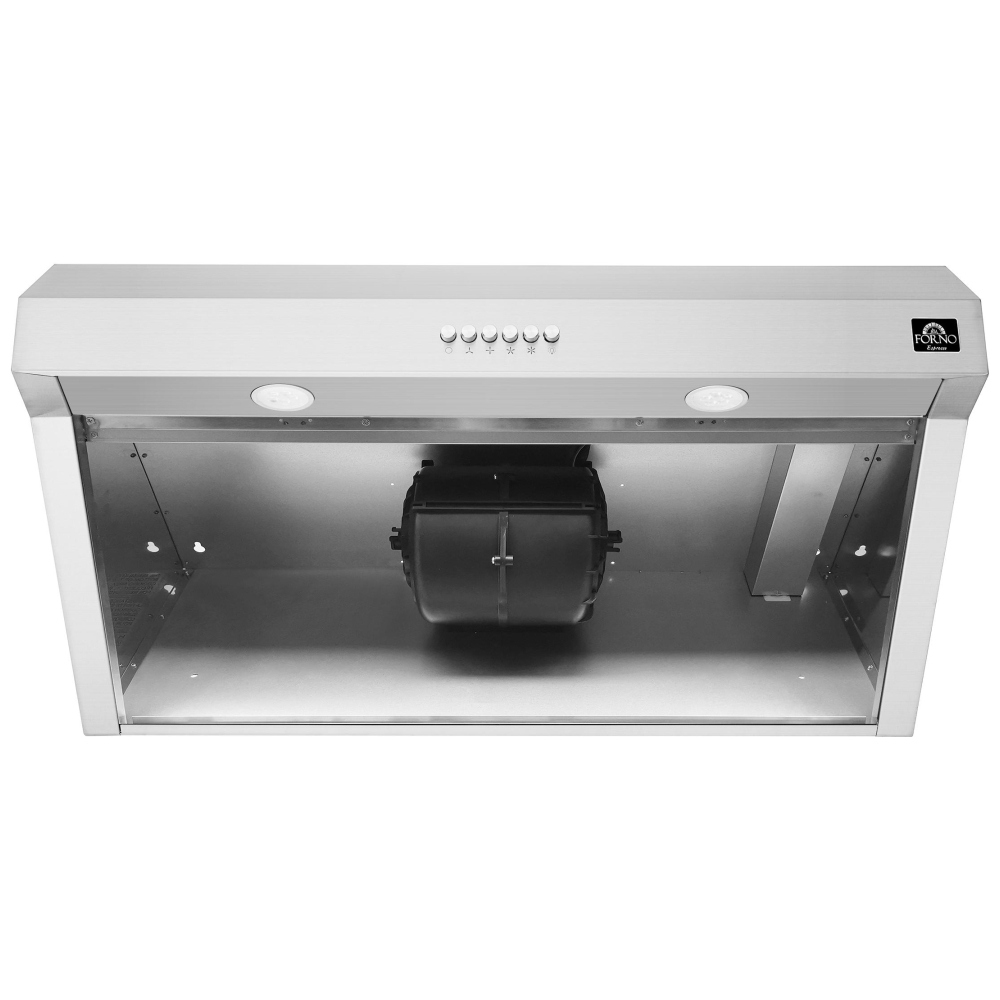

| Number of Motors | 1 |
| Blower Material | PVC |
| Number of Lights | 2 |
| Light Type | LED |
| Bulb Type | GU10 |
| Bulb Wattage | 5 Watts |
| Total Light Wattage | 10 Watts |
| Number of Light Settings | 1 |
| Filters Included | 2 |

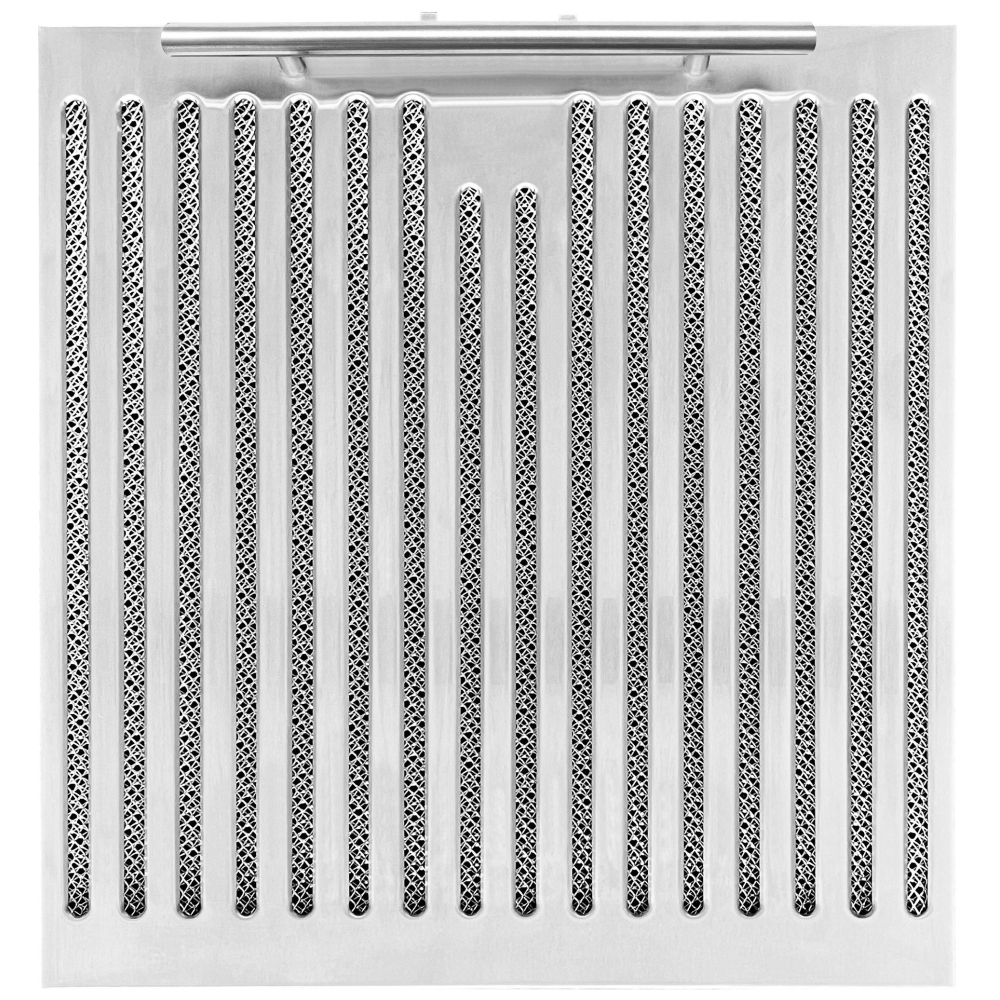

| Filter Type | Hybrid Baffle / Commercial Hybrid Filters |
| Dishwasher Safe Filters | Yes |
| Removable Filters | Yes |
| Charcoal Filters | No |
| Range Hood Shape | Rectangle |
| Primary Material | Stainless Steel |
| Color | Stainless Steel |
| Hardware Finish | Stainless Steel |
| Fingerprint Resistant | No |
| Included Handle Finishes | Stainless Steel and Antique Brass |
| ADA Compliant | No |
| Smart Compatible | No |
| Smart Features | None |
| Energy Star Certified | No |
| Safety Listing | cETL |
| Certification File Number | 3099763 |
| Country of Origin | China |
| Minimum Mounting Height Above Cooktop | 18 inches |
| Maximum Mounting Height Above Cooktop | 25 inches |
| Maximum Installation Height Above Cooktop | 28 inches |
| Maximum Duct Run | 35 feet |
| Recommended Straight Vent Between Elbows | 18 inches minimum |
| Maximum Number of 90° Elbows | 3 |
| 45° Elbow Equivalent Length | 3 feet |
| 90° Elbow Equivalent Length | 5 feet |
| 90° Flat Elbow Equivalent Length | 12 feet |
| Straight Duct Equivalent Length | 9 feet |
| Wall Cap Equivalent Length | 0 feet |
| Automatic Shut-Off | No |
| Clean Filter Alert | No |
| Heat Sensors | No |
| Heating Lamp Included | No |
| Remote Control | No |
| Reversible Blower | No |
| Adjustable Height | No |
| Chimney Included | No |
| Chimney Extension Kit | No |
| Chimney Short Kit | No |
| Backsplash Included | No |
| Commercial Warranty | No |
| Warranty | 2 Years Parts and Labor |
| UPC | 686136952255 |
