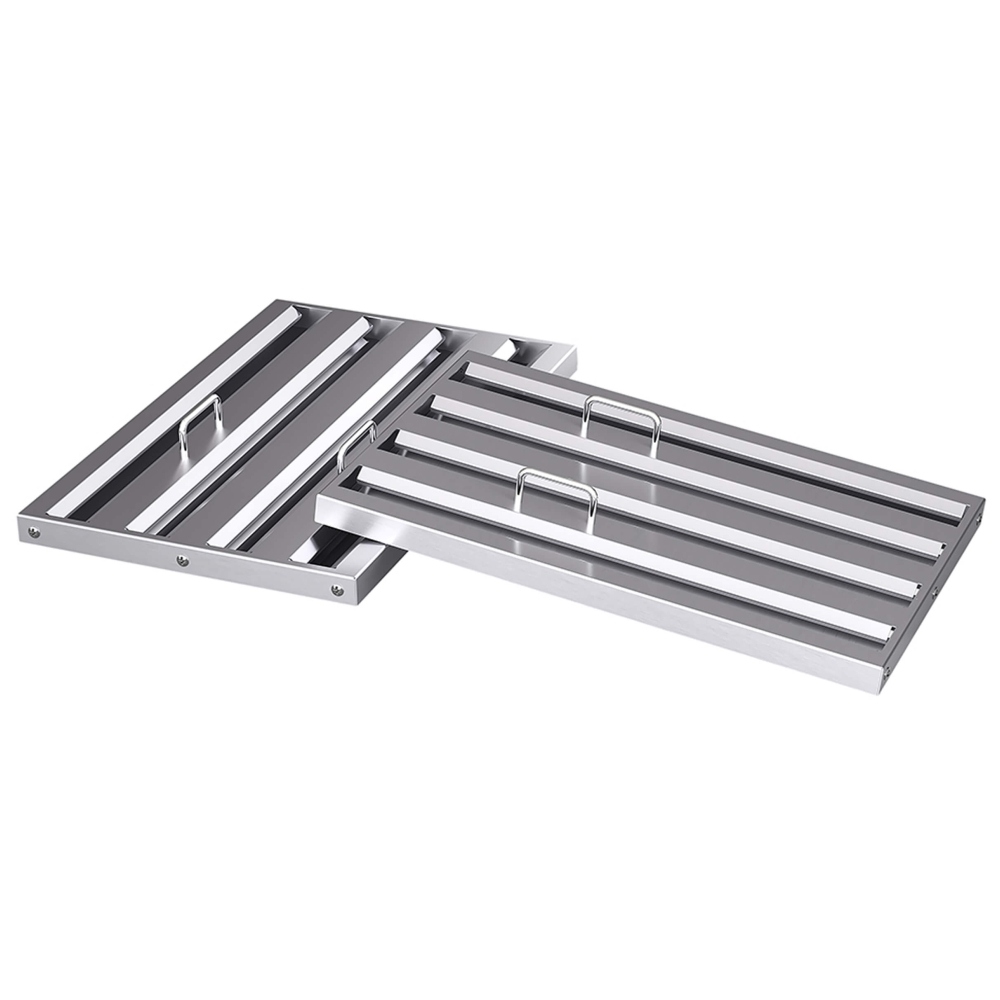

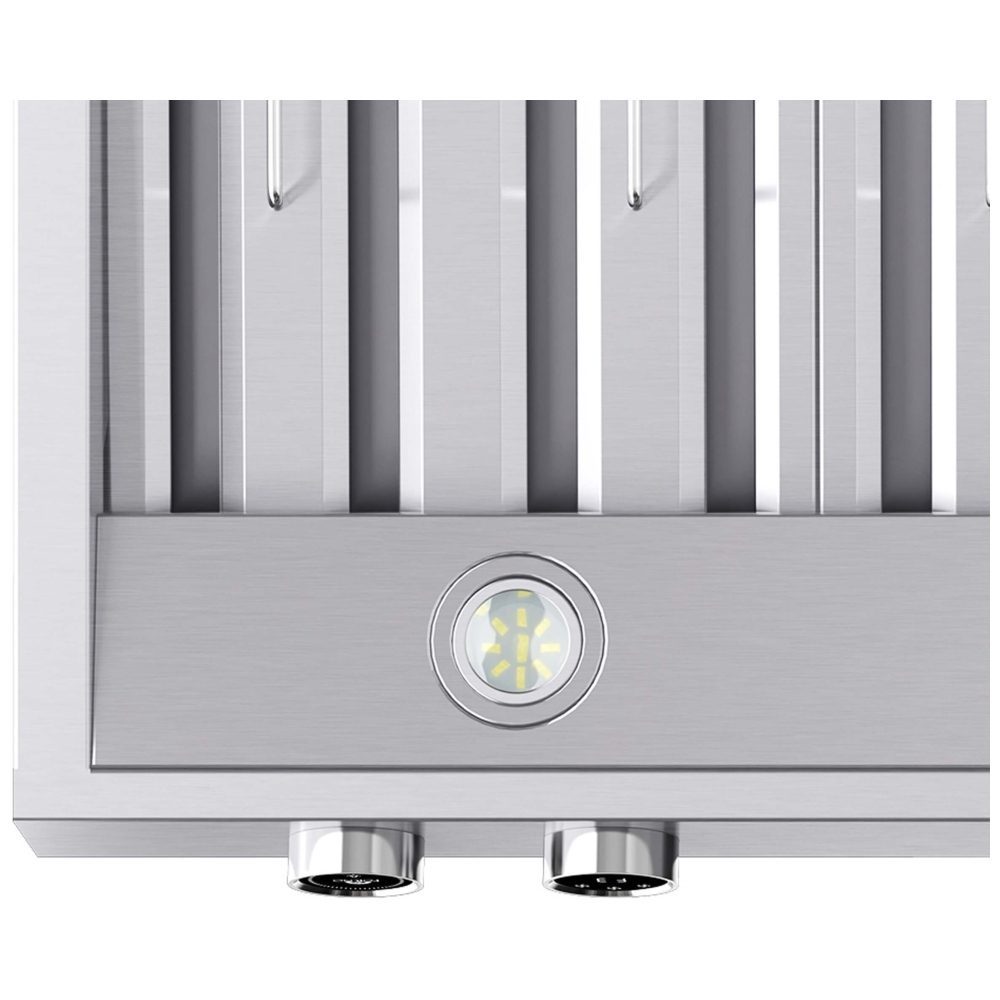

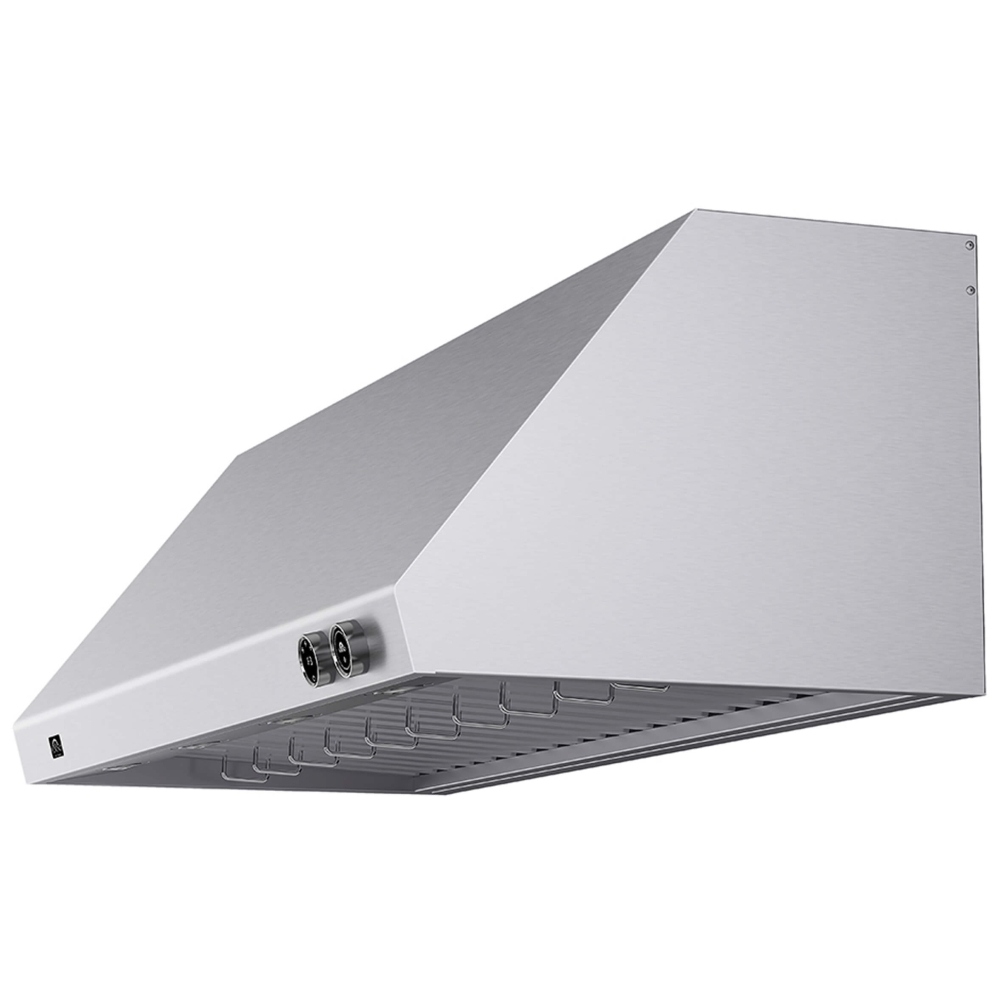

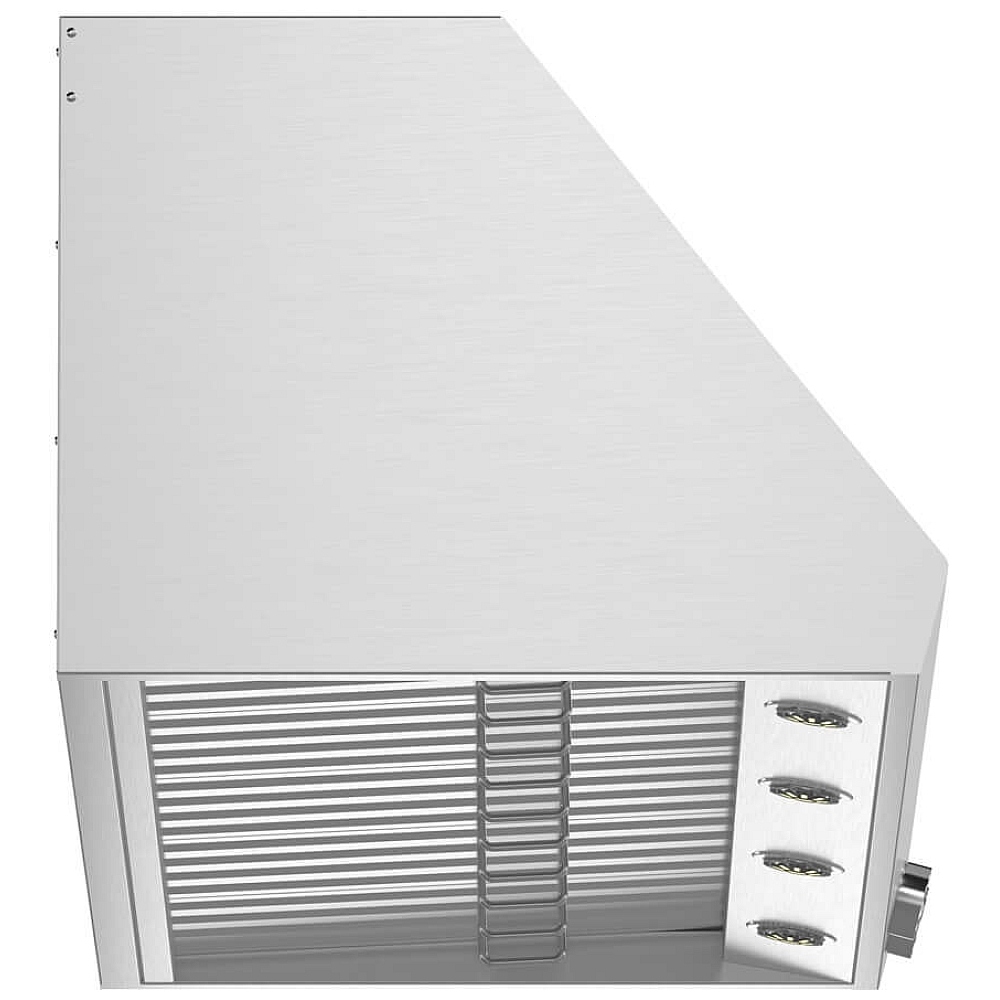

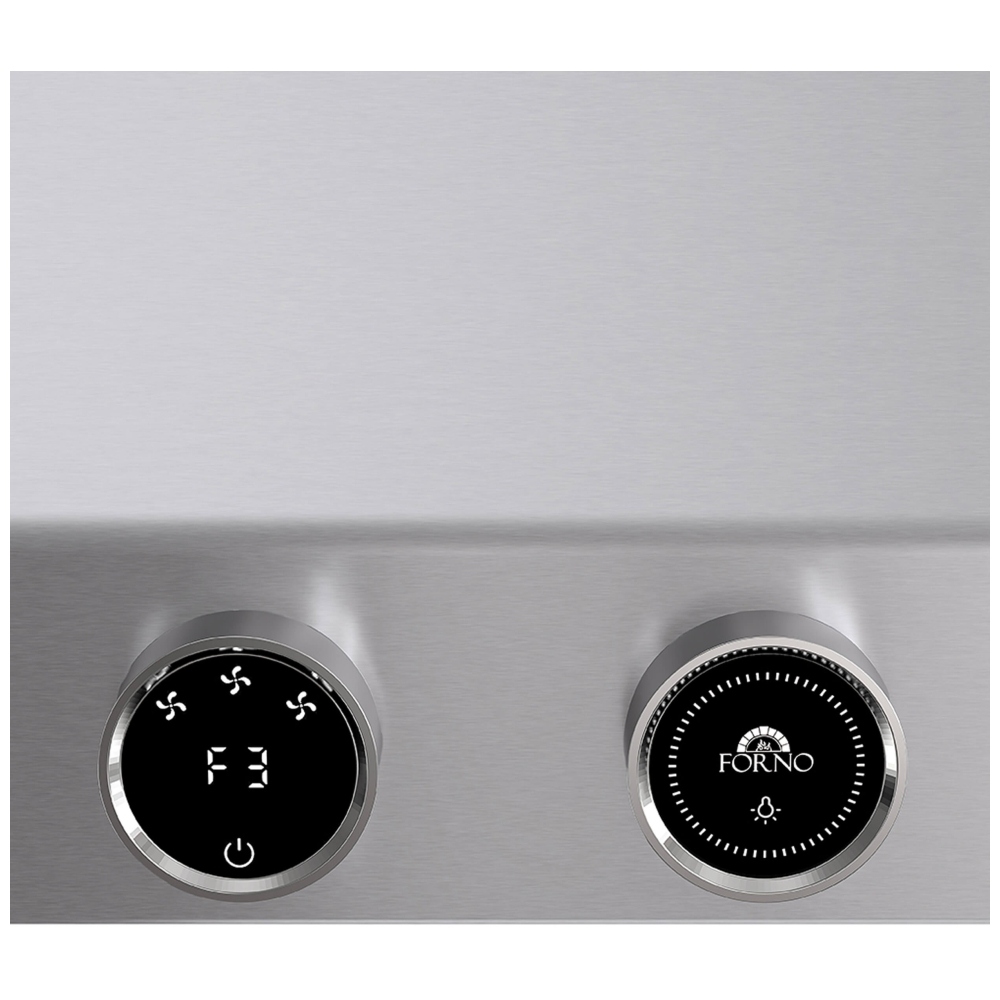

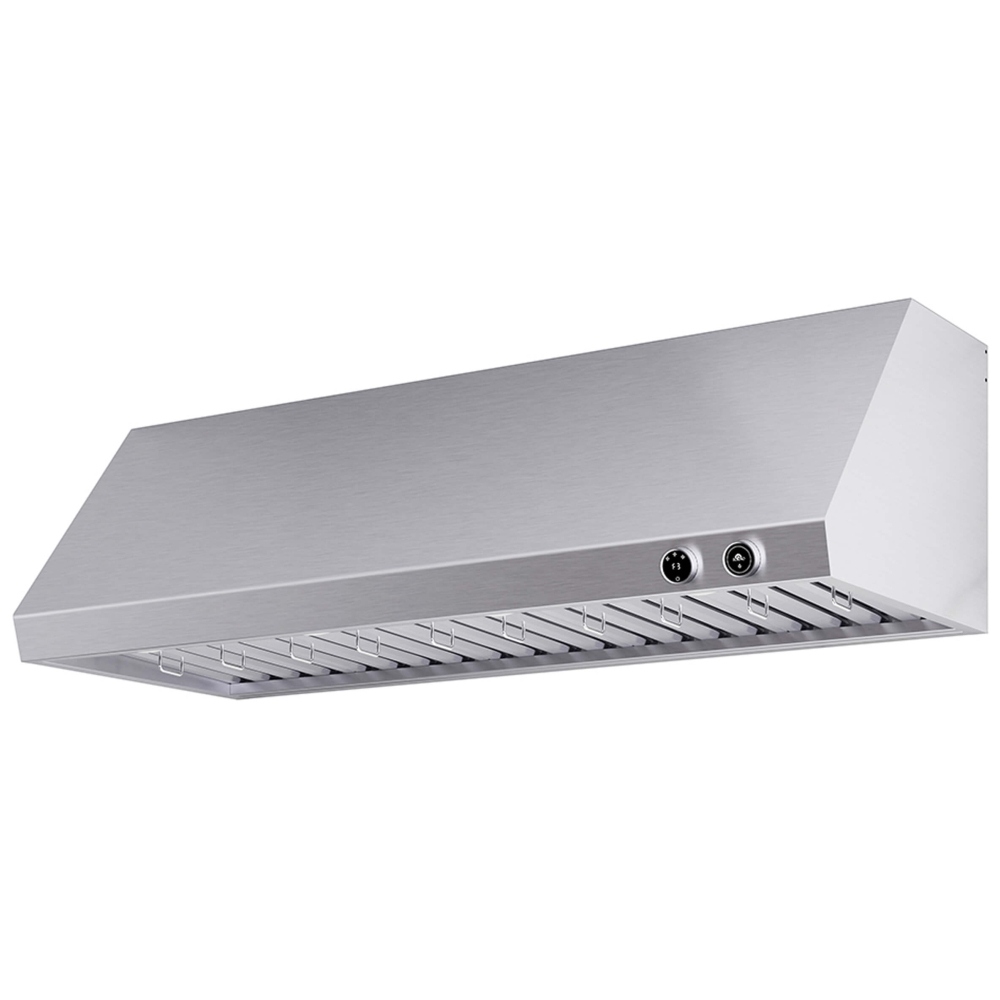

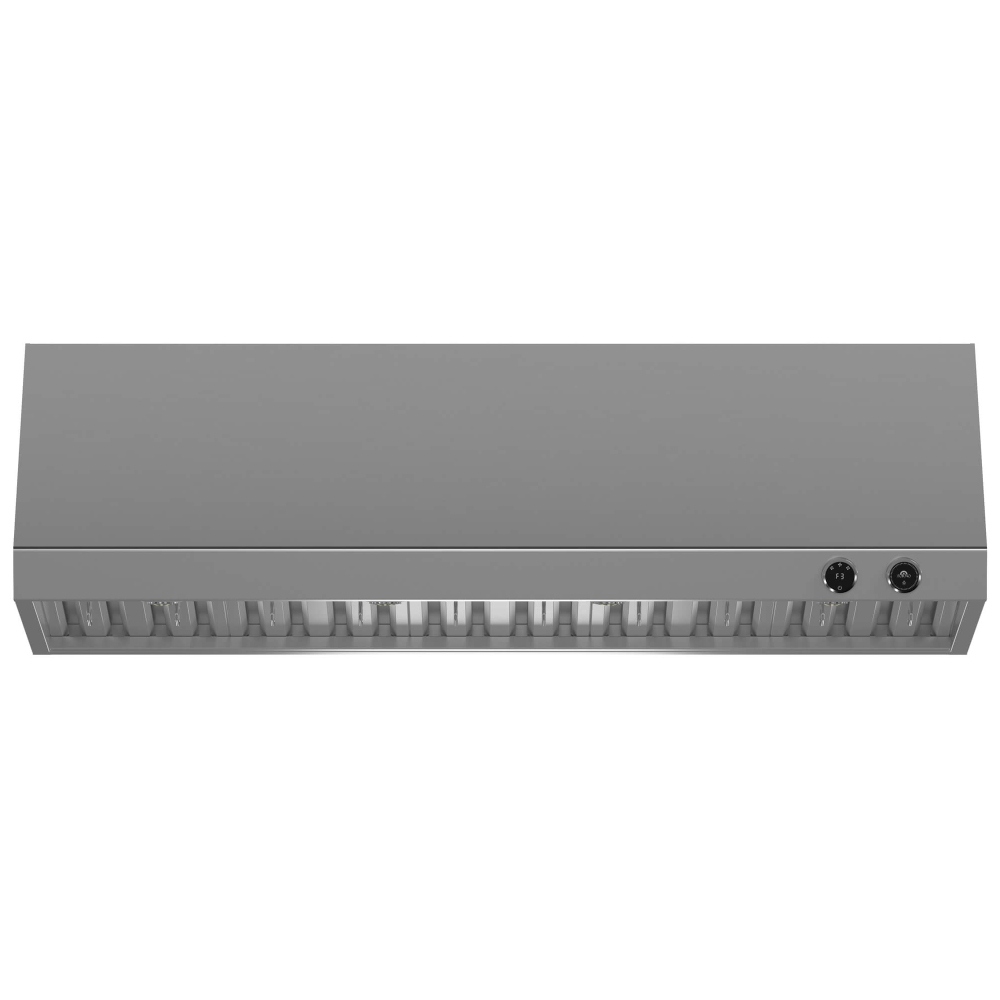

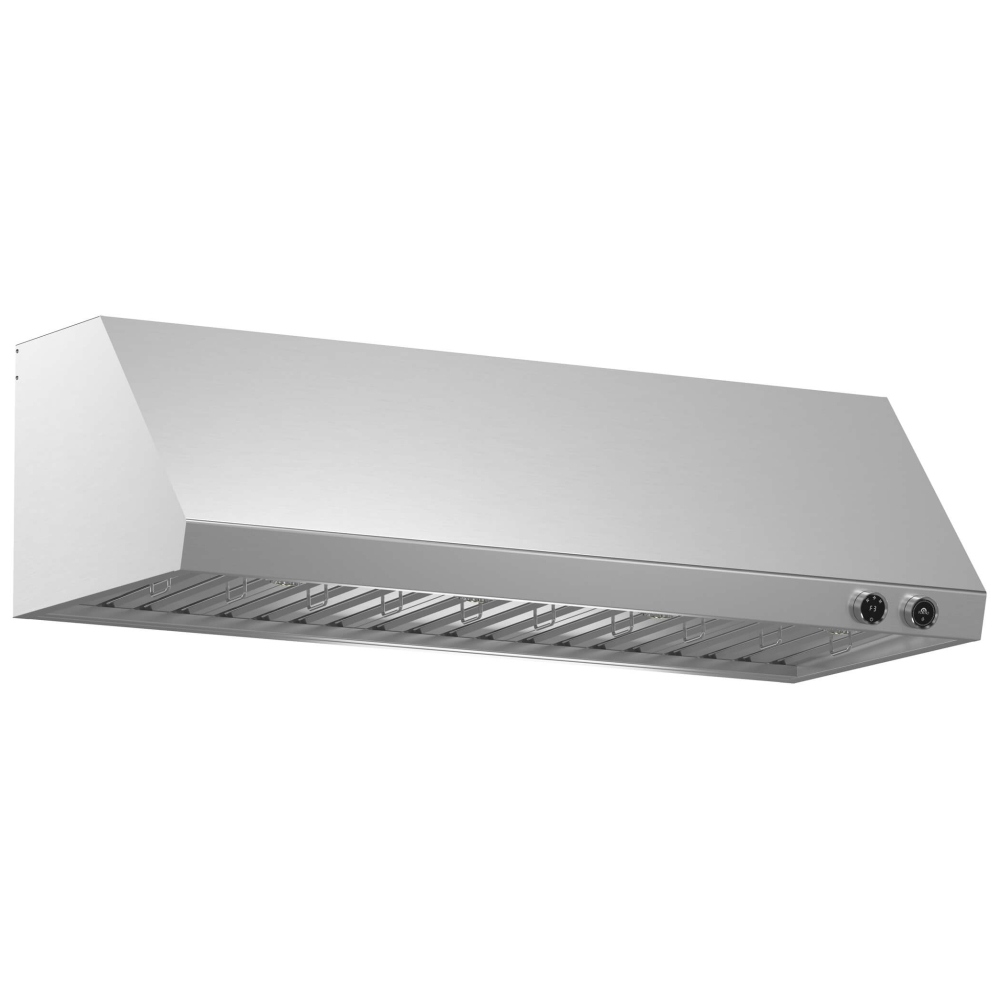

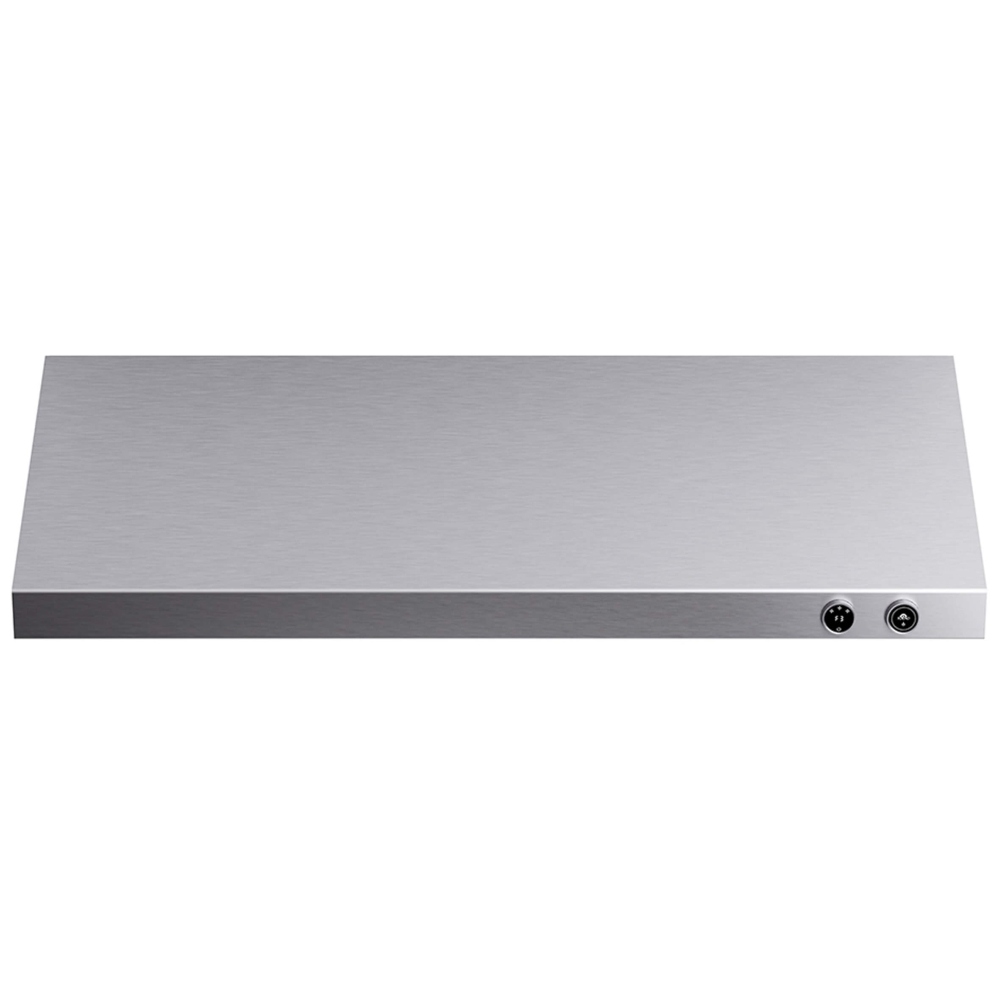

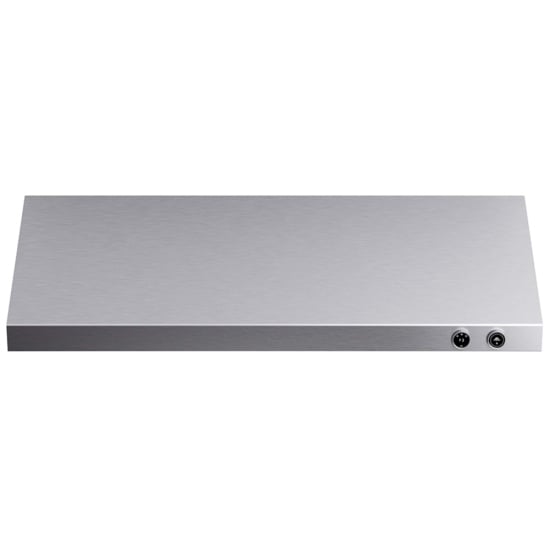

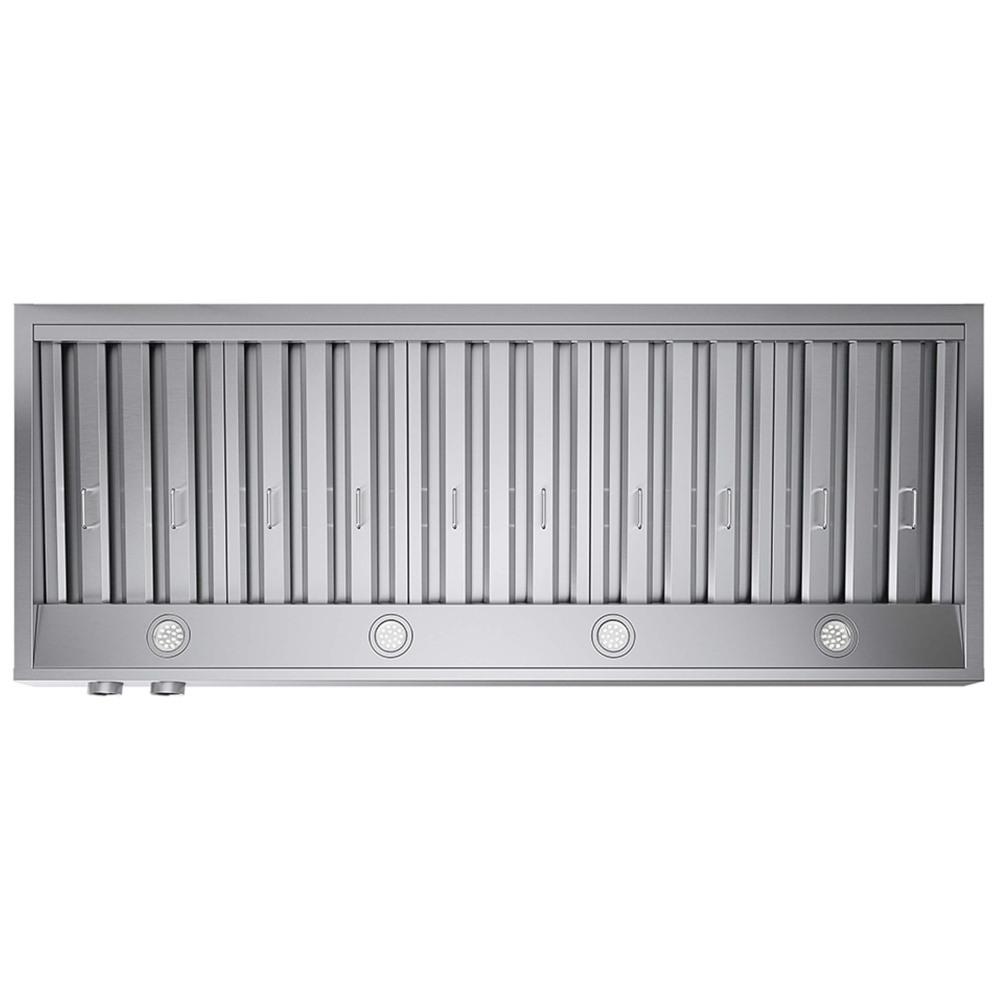

The Forno Biagio 60" Wall-Mounted Range Hood combines efficient smoke and odor removal with a modern stainless steel finish. Its 1200 CFM motor ensures strong yet quiet performance, while heavy-duty, dishwasher-safe baffle filters trap grease for easy cleaning. Designed for 60" cooktops, it features a 3-speed fan, intuitive knob controls, and dimmable LED lighting for a well-lit, customized cooking experience. The power-off delay clears lingering steam, and its versatile installation allows for wall-mounted or under-cabinet setups.
Manufacturer's Warranty: 2 years
Canadian model: FRHWM5009-60
Canadian UPC: 686136950855
EAN: 0686136950855
| Brand Name | FORNO |
| Collection Name | Alta Qualita |
| Product UPC | 686136950855 |
| Serie's Name | Biagio |
| ADA Compliant | No |
| Adjustable Height | No |
| Air Discharge Direction | Vertically Upward |
| Air Flow Speed 1 | 1190 |
| Air Flow Speed 2 | 1530 |
| Air Flow Speed 3 | 2040 |
| Air Flow Speed 4 | 0 |
| Backsplash Dimensions W x H (inch) | N/A |
| Backsplash Included | No |
| Blower Material | Metal |
| Bulb Type | GU10 |
| Bulb Wattage | 2.50 |
| CEE Tier Qualified | Not Rated |
| CFM speed 1 | 700 |
| CFM speed 2 | 900 |
| CFM speed 3 | 1200 |
| CFM speed 4 | 0 |
| Carton Weight Box 1 (lbs) | 155.00 |
| Carton includes a Export Pallet | Yes |
| Certificate of Conformity (GCC) | No |
| Charcoal Filters | No |
| Chimney Extension Kit | No |
| Chimney Short Kit | No |
| Circuit Breaker Amperage (A) | 15 |
| Clean Filter Alert | No |
| Clock | No |
| Color/Finish | Stainless Steel |
| Commercial Warranty | No |
| Control Location | Front |
| Crown Molding | No |
| Cutout dimensions W x D x H (inch) | 60 x 11.97 x 18 |
| Damper | Yes |
| Damper Size | 8 |
| Damper Type | 8-in Round |
| Decibel Speed 1 (dB) | 56.00 |
| Decibel Speed 2 (dB) | 61.00 |
| Decibel Speed 3 (dB) | 67.00 |
| Decibel Speed 4 (dB) | 0.00 |
| Digital Display | Yes |
| Dimmable Lighting | Yes |
| Dishwasher Safe Filters | Yes |
| Display Type | LED |
| Duct Type | 8-in Round |
| Duct length (inch) | 59.50 |
| ENERGY STAR Unique ID | 0 |
| Energy Policy Act 1992 Compliant | Yes |
| Energy Star Certified | No |
| Exhaust Vent Location | Top |
| File/Certification Number | 4002621 |
| Filter Material | Stainless Steel |
| Filter Type | Baffle |
| Fingerprint-Resistant | No |
| Hardware Finish | Stainless Steel |
| Heat Sensors | No |
| Heating Lamp Included | No |
| Heating Lamp Maximum Wattage | 0 |
| Heating Lamp Type | N/A |
| Heating Lamp Wattage | 0.00 |
| ISTA 6A | Yes |
| Installation Kit | Yes |
| Installation Type | Undercabinet,Wall Mounted |
| Light(s) Control | Knob activated |
| Lighting Color | White |
| Market | CANADA,USA |
| Maximum CFM | 1200 |
| Maximum Decibel (dB) | 67.00 |
| Maximum Sones | 10.00 |
| Minimum CFM | 700 |
| Minimum Decibel (dB) | 56.00 |
| Minimum Height from Cooktop | 25.00 |
| Minimum Sones | 4.00 |
| Model Number | FRHWM5009-60 |
| Motor(s) Power (Watts) | 80 |
| Needs to be shipped on a pallet | No |
| Number of Blower(s) | 2 |
| Number of Box | 1 |
| Number of Heating Lamp | 0 |
| Number of Lights | 4 |
| Number of exhaust Vent | 2 |
| Power Cord Included | Yes |
| Power Cord Length (ft) | 4.00 |
| Power Cord Location | Top |
| Power off Function | Yes |
| Power off Information | 5 minutes |
| Primary Material | Steel |
| Product Description (more detailed) <= 100 characters | Forno Biagio 60" Wall Mounted Range Hood Stainless Steel, 1200 CFM, Knob Control, Baffle Filter |
| Product Description (more detailed) > 100 characters | Forno Biagio 60" Wall Mounted Range Hood Stainless Steel, 1200 CFM, Knob Control, Baffle Filter |
| Product Dimensions W x D x H (inches) | 59.8 x 24 x 18 |
| Product Name (Short & Sweet) < 36 Characters | Biagio 60" Range Hood |
| Product Overall Weight (lbs) | 113.00 |
| RPM Speed 1 | 500 |
| RPM Speed 2 | 630 |
| RPM Speed 3 | 800 |
| RPM Speed 4 | 0 |
| Range Hood Shape | Rectangle |
| Rangehood Chimney | No |
| Rated Power (W) | 380 |
| Remote Control | No |
| Removable Grease Filter | Yes |
| Reversible Blower | No |
| Running Amperage (A) | 4 |
| Sabbath Mode | No |
| Shipping Depth Box 1 (with pallet) | 64 |
| Shipping Height Box 1 (Height carton + 6-inch of the pallet) | 39 |
| Shipping Method | LTL |
| Shipping Weight Box 1 (Carton Weight + 35 lbs) | 190 |
| Shipping Width Box 1 (with pallet) | 40 |
| Smudge Resistant | Yes |
| Sones Speed 1 | 4.00 |
| Sones Speed 2 | 6.00 |
| Sones Speed 3 | 10.00 |
| Sones Speed 4 | 0.00 |
| Speed Control | 3 |
| Speed Control Type | Knob |
| Star-K Certified | Not Rated |
| TAA Compliant | No |
| Title 20 - California Regulation | Yes |
| UPLR Compliant | Yes |
| Vent Fan | Yes |
| Vent Location | Top |
| Vent Style | External |
| Vent Type | Ducted |
| Volts | 120 |
| Warming Shelves Dimensions W x D x H (inch) | N/A |
| Warming selve included | No |
| Warranty Script (English) | Experience peace of mind with FORNO products, each backed by a 2-year warranty covering labor and parts, ensuring satisfaction and confidence in the reliability of our high-quality appliances. |
| Warranty Type | Limited |
| Warranty on Labor | 2 Years |
| Warranty on Parts | 2 Years |
| Wi-Fi Compatibility | No |
| label | Forno Biagio 60-Inch Wall Mounted Range Hood, Stainless Steel, Heavy Duty |
