Frigidaire

FCWM3030AS

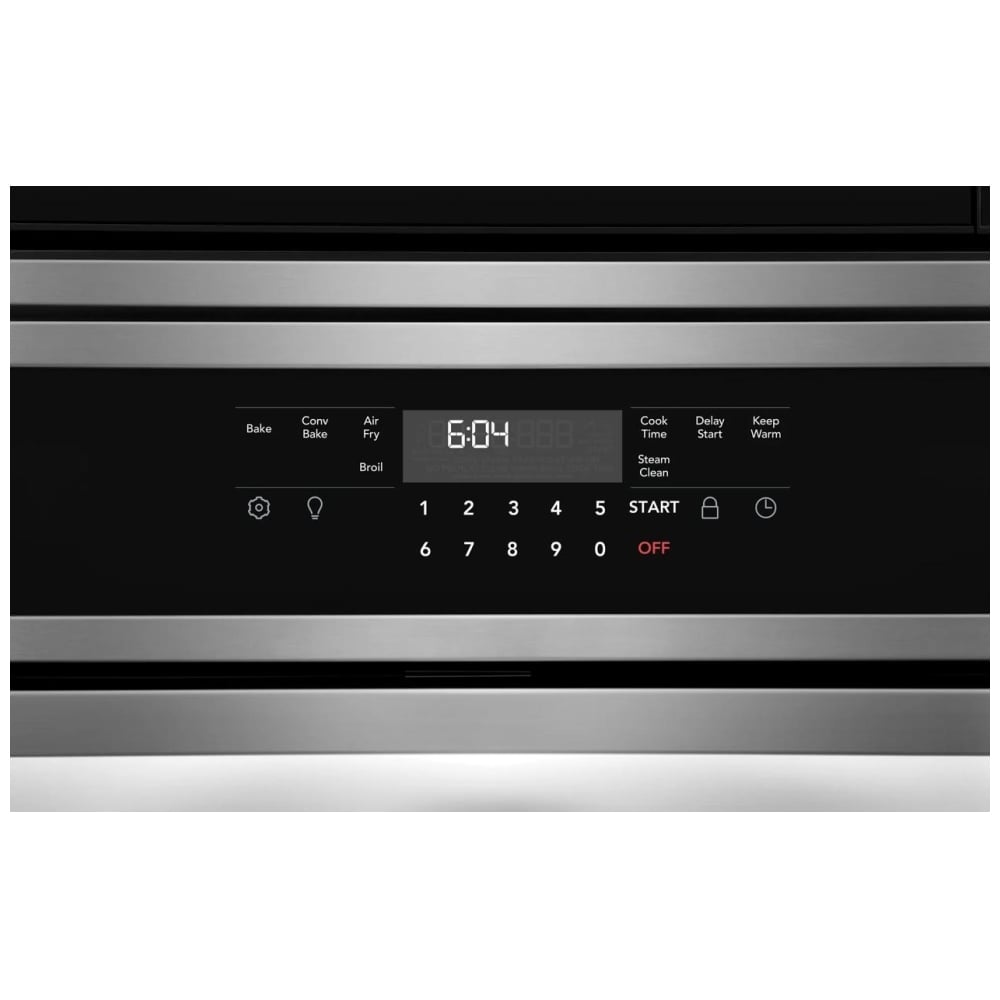

Cooking Controls

• Air Fry: Yes

• Bake: Yes

• Bake Time: Yes

• Broil: Yes

• Cancel: Yes

• Clock: Yes

• Convection Bake: Yes

• Cook Time: Yes

• Delay Start: Yes

• Kitchen Timer: Yes

• Light: Yes

• Off: Yes

• Oven Light: Yes

• Preheat: Yes

• Start: Yes

• Steam Clean: Yes

• Temperature Display: Yes

• Timer On / Off: Yes

Oven

• Bake Element: 2600 Watts

• Bake Element Pass: 4

• Bake Element Type: Hidden

• Broil Element: 4000 Watts

• Broil Element Pass: 6

• Cleaning System: Yes

• Convection: Yes

• Convection Type: Fan

• Number of Convection Fans: 1

• Number of Rack Positions: 6

• Oven Interior Color: Midnight Black

• Oven Light Quantity: 1

• Oven Light Type: Halogen

• Oven Light Watts: 40 Watts

• Rack Position Type: Embossed

• Rack Type 1: Flat

• Rack Type 1 Quantity: 2



Controls

• Control Lock: Yes

• Sabbath Mode: Yes

Cooking Controls Function

• Change between Continuous Bake Setting or 12-Hour Energy Saving Feature: Yes

• Program Fahrenheit or Celsius: Yes

• Silent Control Panel: Yes

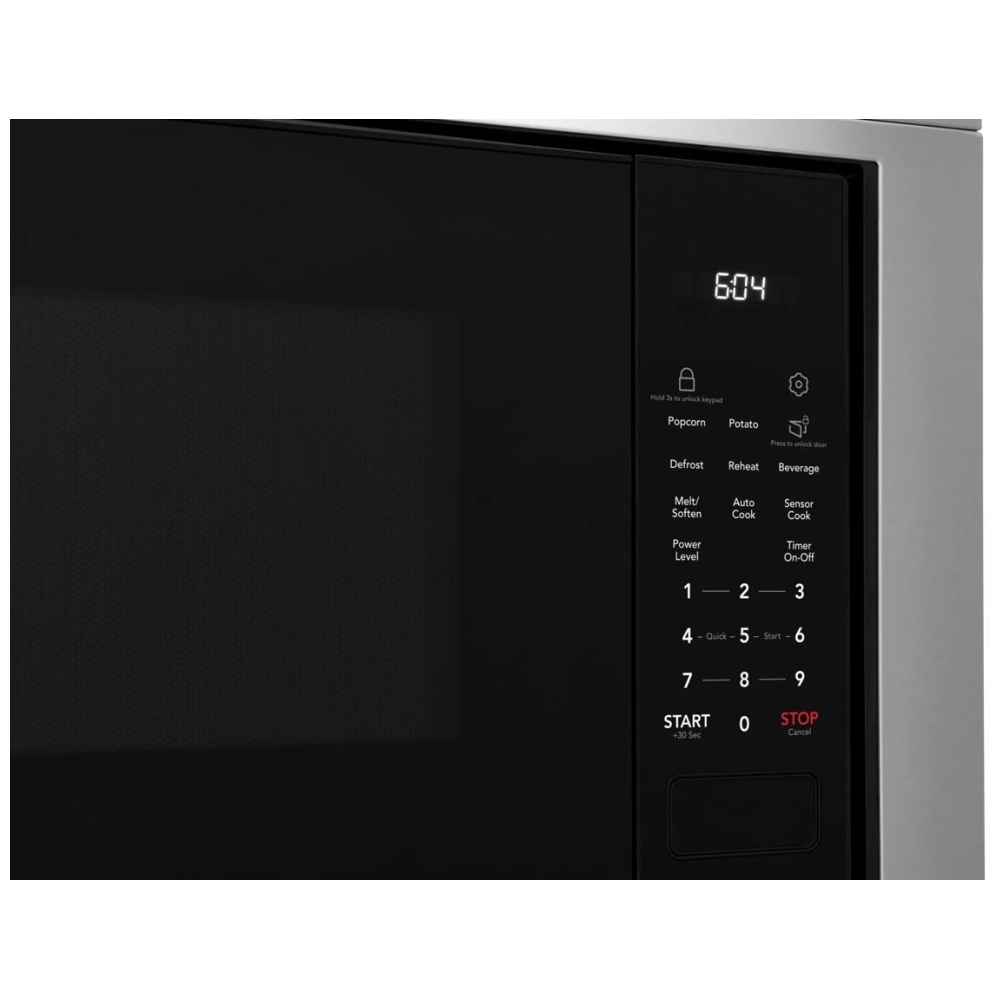

Microwave Cooking

• Microwave Cooking Power: 1100 Watts

• Auto Cook: Yes

• Beverage: Yes

• Defrost: Yes

• Melt / Soften: Yes

• Popcorn: Yes

• Potato: Yes

• Reheat: Yes

• Sensor Cooking: Yes

• Veggies: Yes

Microwave Control Features

• + 30 Seconds: Yes

Internal Specifications

• Interior Color: White

• Interior Light Quantity: 1

• Interior Light Type: Halogen

• Interior Light Wattage: 25 Watts

• Rack: Yes

• Turntable Diameter: 13 1/2"

• Turntable Material: Glass

Electrical Specifications

• Amps @ 240 Volts: 40 Amps

• Minimum Circuit Required: 40 Amps

• Voltage Rating: 240 V

General Specifications

• Frigidaire Fit Promise: Yes

• Annual Energy: 255 kWh

• Prop 65 Label: Yes

• Warranty - Labor: 1 Year

• Warranty - Parts: 1 Year

• AB-1200 Information available at: frigidaire.com/en/ab1200

Display

• Display Interface Color: White

• Display Light Color: White

• Display Type: Membrane

Dimensions and Volume

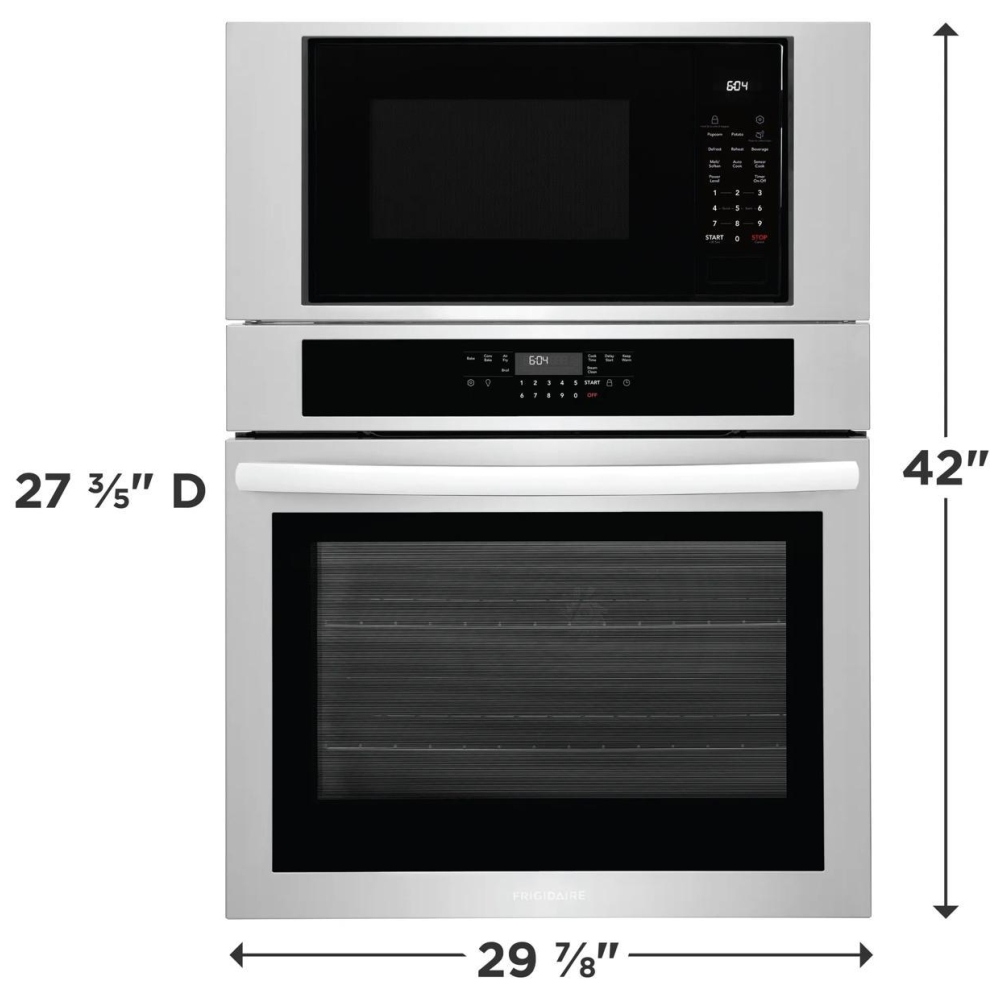

• Height: 42"

• Width: 29 7/8"

• Depth: 25 3/16"

• Depth With Door 90° Open: 48 3/16"

• Depth With Handle: 27 3/5"

• Oven Interior Height: 18 1/8"

• Oven Interior Width: 25 1/5"

• Oven Interior Depth: 19 7/8"

• Microwave Interior Height: 10 1/2"

• Microwave Interior Width: 17 3/8"

• Minimum Cutout Height: 41 1/4"

• Minimum Cutout Width: 28 1/2"

• Maximum Cutout Height: 42 1/8"

• Maximum Cutout Width: 28 3/4"

• Microwave Capacity: 1.6 Cu. Ft.

• Oven Capacity: 5.3 Cu. Ft.

Installation

• Power Supply Connection Location: Top Left

Safety Certifications and Approvals

• CSA Listed: Yes

• RoHS: Yes

• UL Listed: Yes
