MAP Price Explanation
Many appliance manufacturers mandate retailers to list product prices at minimum advertised prices (MAP Price).

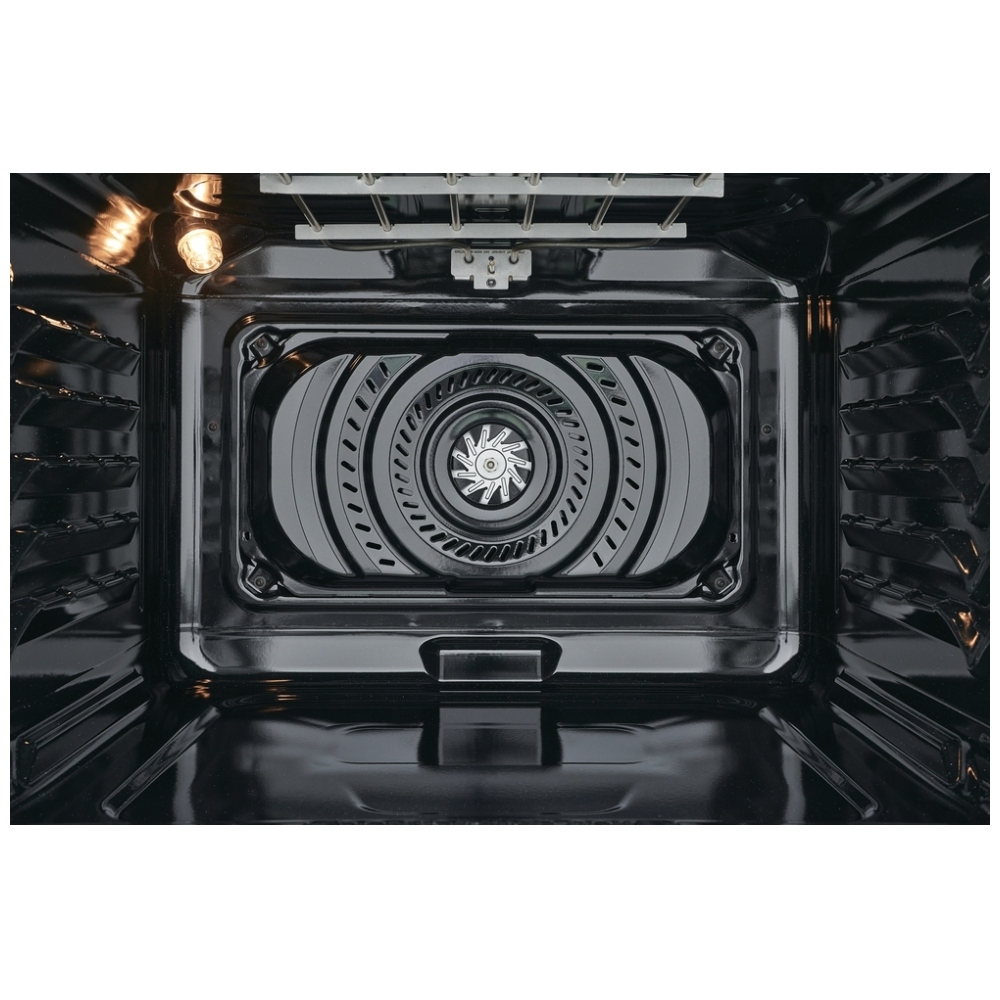

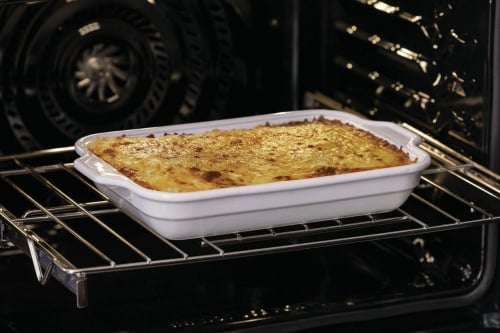

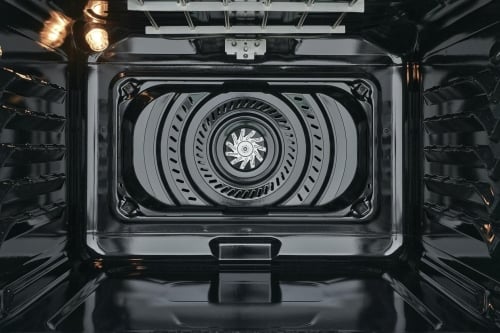

- Get faster, more even multi-rack baking results with Fan Convection.
- Self clean options available in convenient 2, 3 and 4-hour cycles.

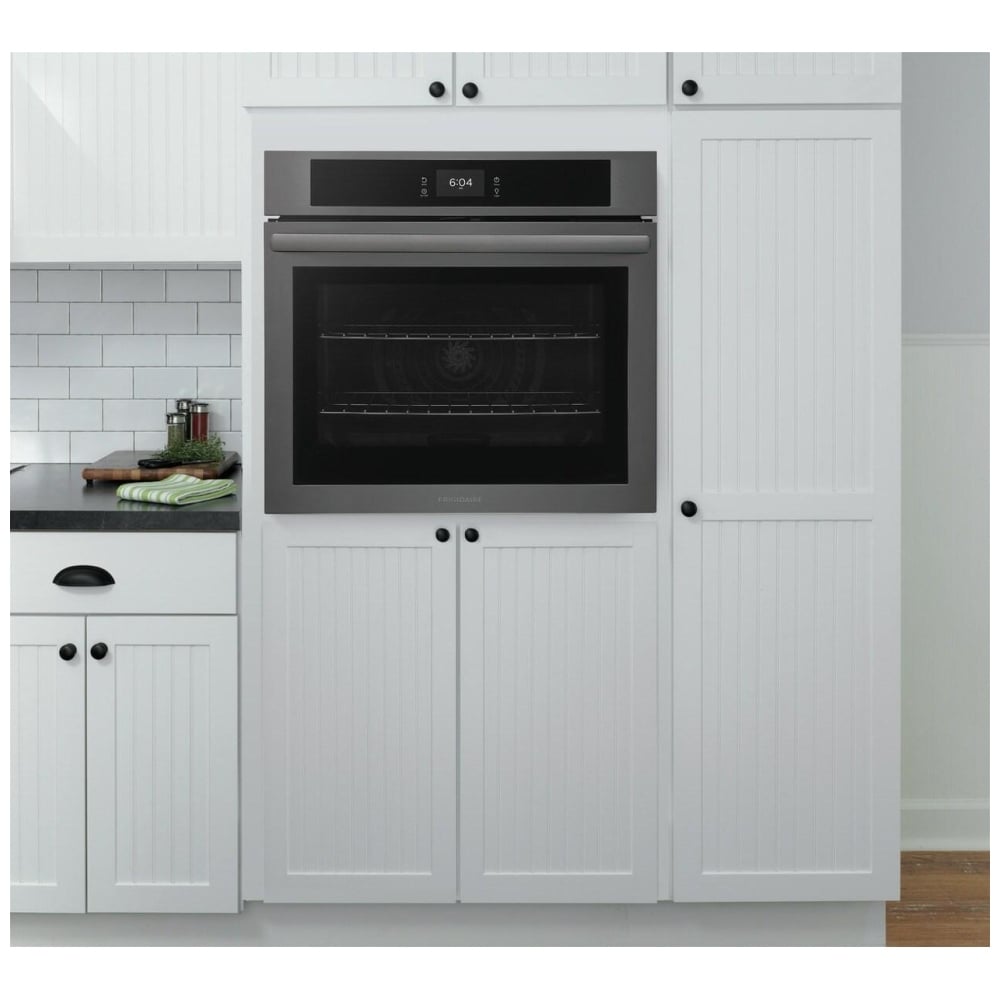

- We promise that your new 30" Frigidaire® single wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.

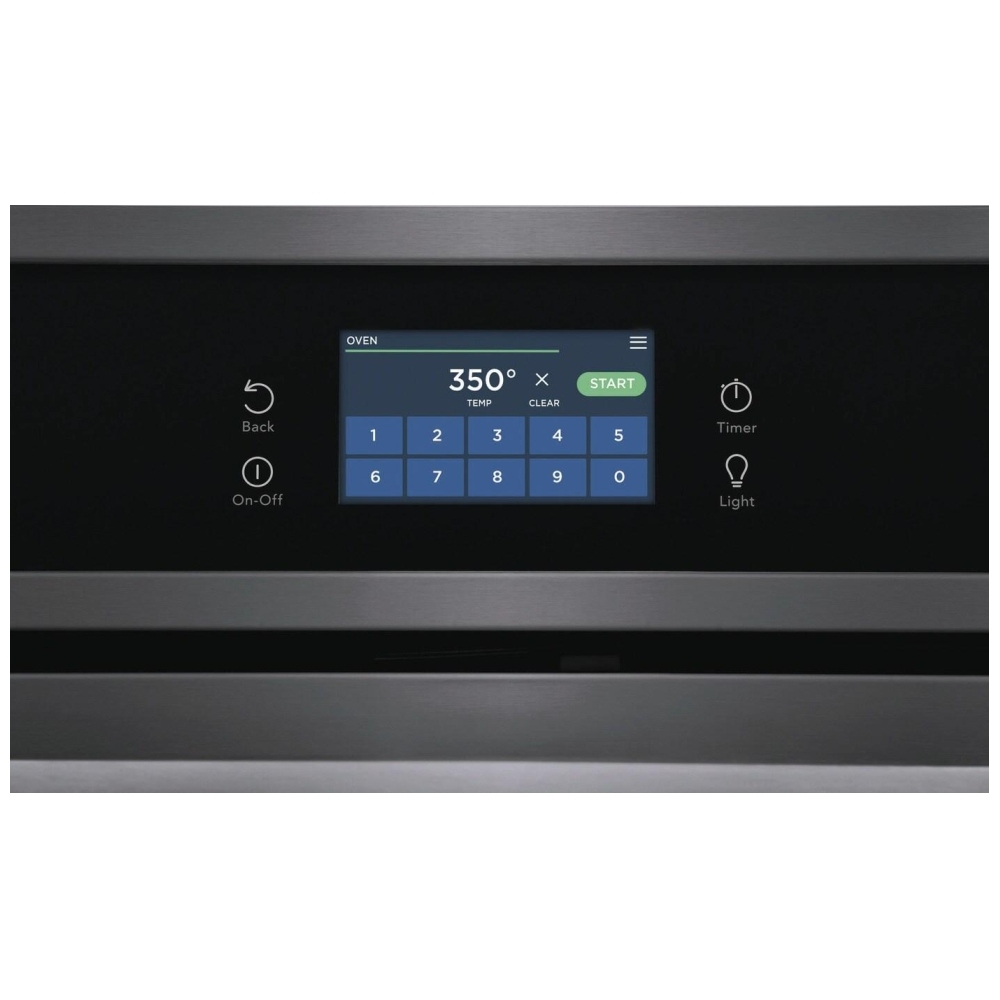

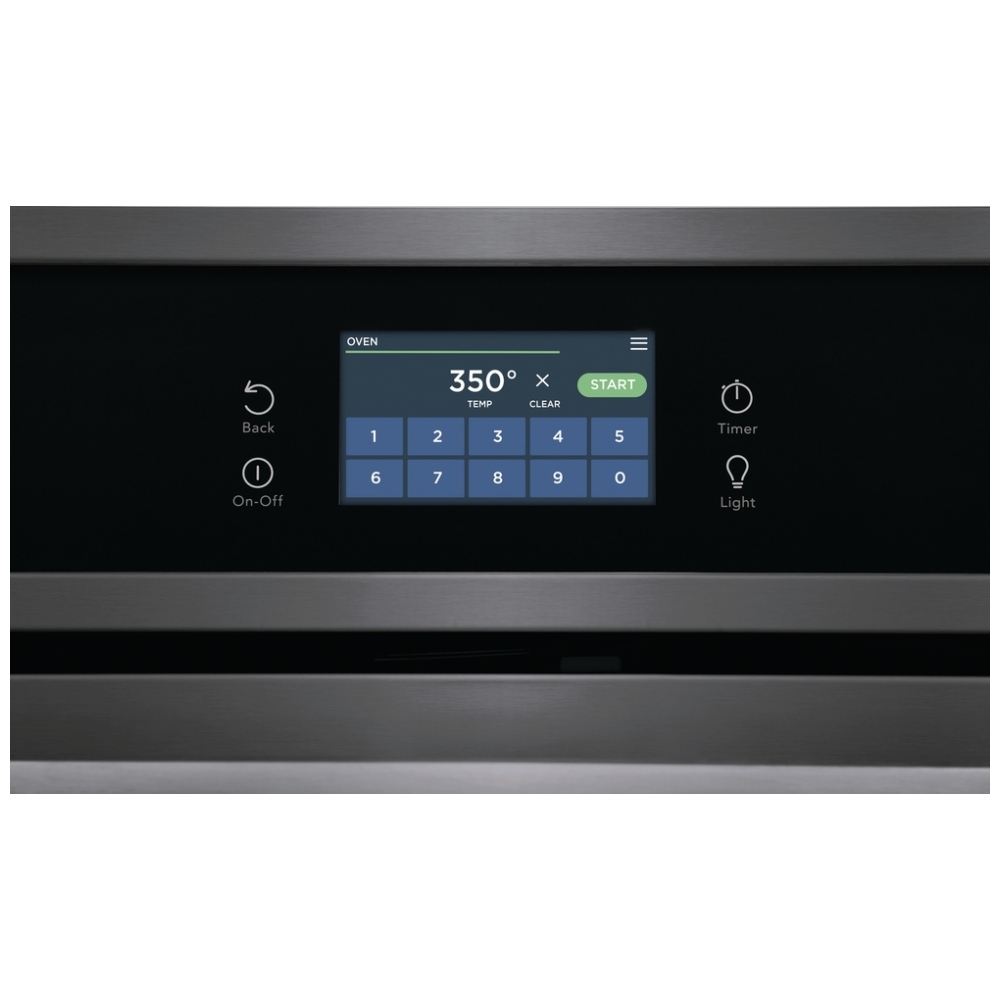

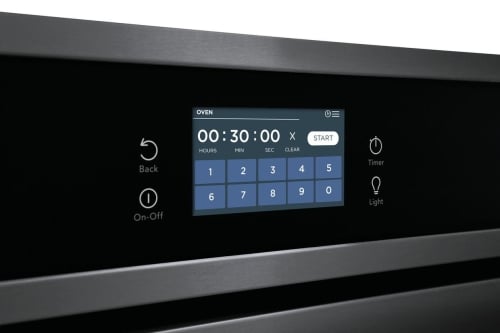

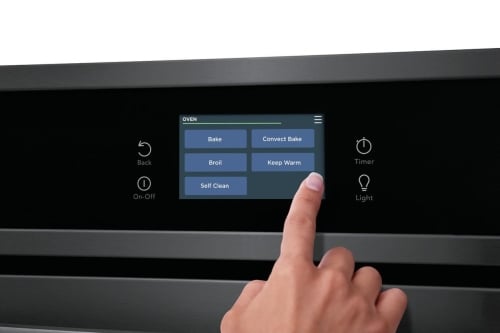

- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

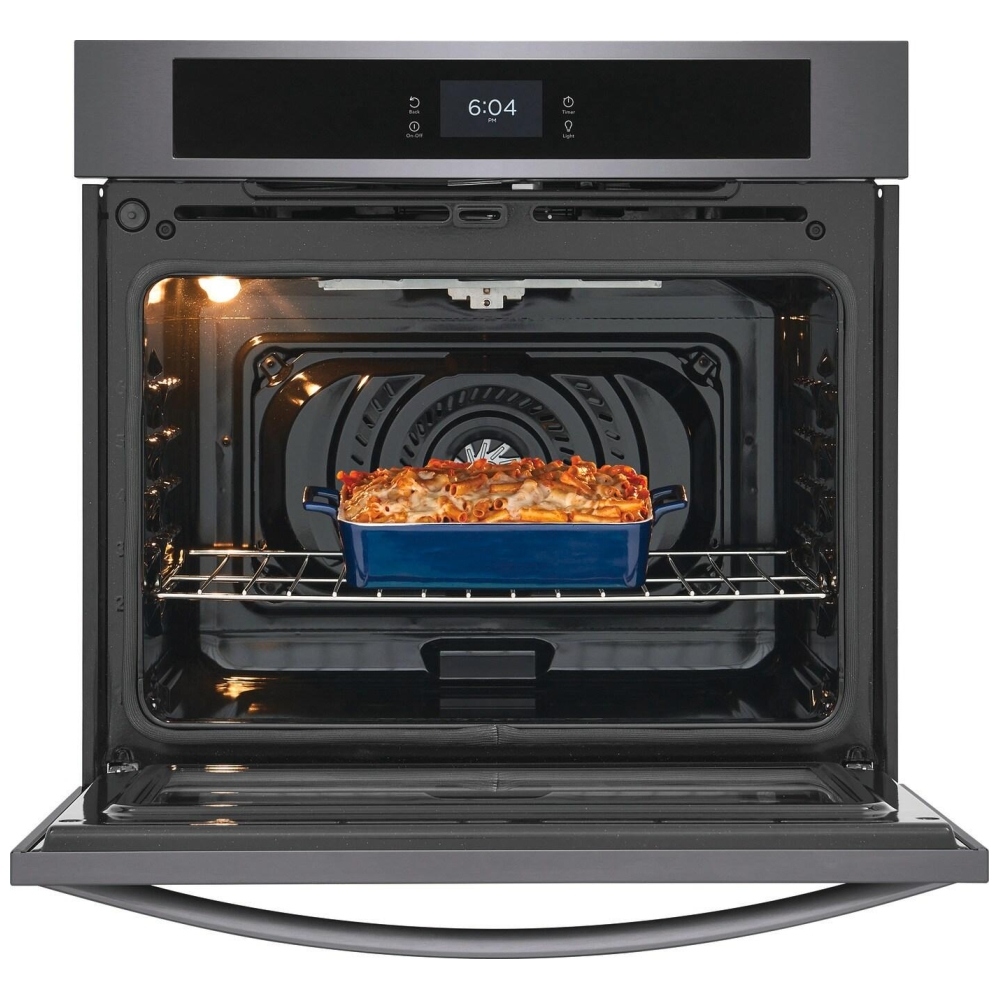

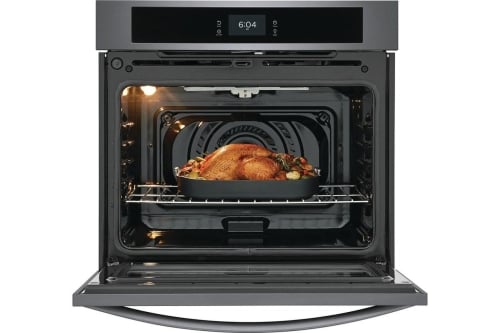

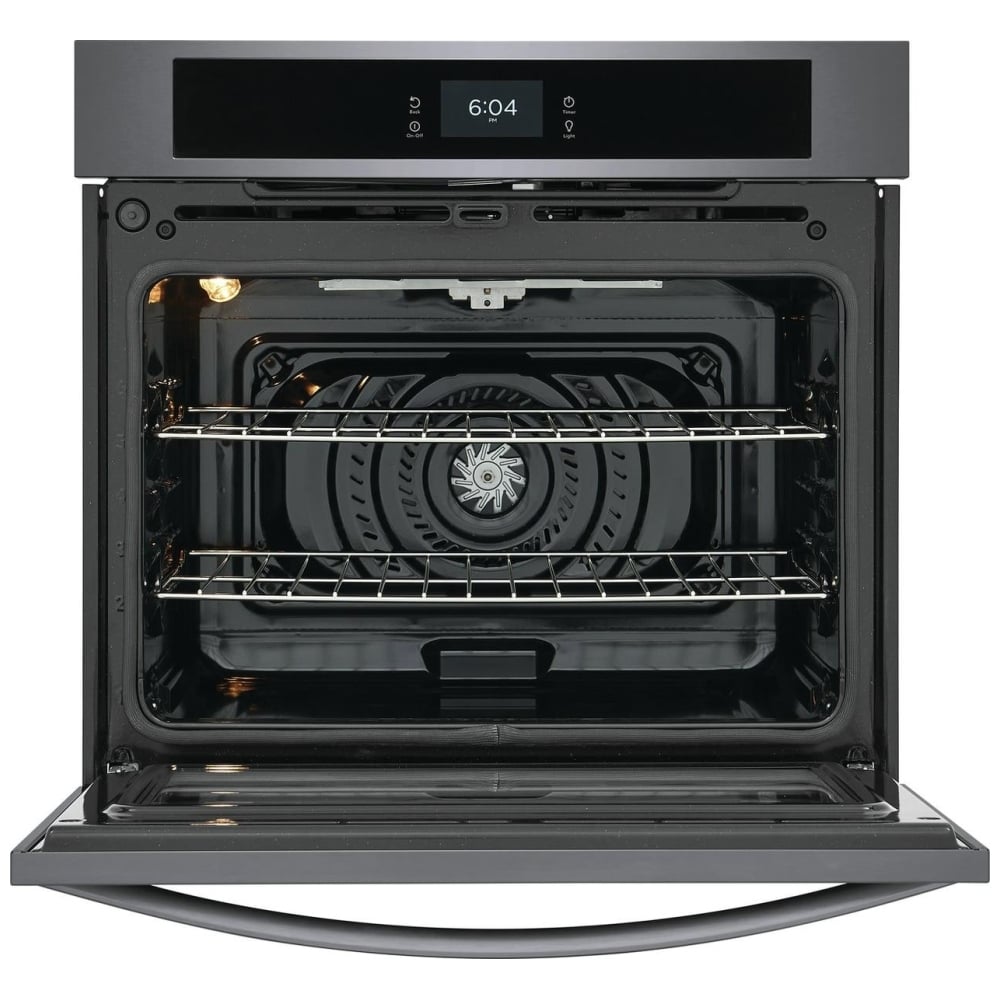

- Cook more at once with our extra large, 5.3 cu. ft. capacity oven.
- Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
- Allows you to program the amount of time you want your oven to cook and then turn off.
- Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
Manufacturer's Warranty: 1 year
Canadian model: FCWS3027AD
Canadian UPC: 012505515002
EAN: 0012505515002
| Product Line | Single Wall Oven |
| Power Type | Electric 240v |
| Size | 30" |
| Installation Type | Built-In |
| Factory | Springfield |
| Color | Black Stainless Steel |
| Cooking Controls | |
| Bake | Yes |
| Bake Time | Yes |
| Broil | Yes |
| Cancel | Yes |
| Clock | Yes |
| Convection Bake | Yes |
| Cook Time | Yes |
| Delay Start | Yes |
| Keep Warm | Yes |
| Kitchen Timer | Yes |
| Light | Yes |
| Off | Yes |
| Oven Light | Yes |
| Preheat | Yes |
| Self Clean | Yes |
| Start | Yes |
| Temperature Display | Yes |
| Timer On / Off | Yes |
| Cooking Controls Function | |
| Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
| Program Fahrenheit or Celsius | Yes |
| Silent Control Panel | Yes |
| Oven | |
| Bake Element | 2500 Watts |
| Bake Element Pass | 8 |
| Bake Element Type | Hidden |
| Broil Element | 4000 Watts |
| Broil Element Pass | 6 |
| Broil System | Yes |
| Cleaning System | Yes |
| Convection | Yes |
| Convection Type | Fan |
| Number of Convection Fans | 1 |

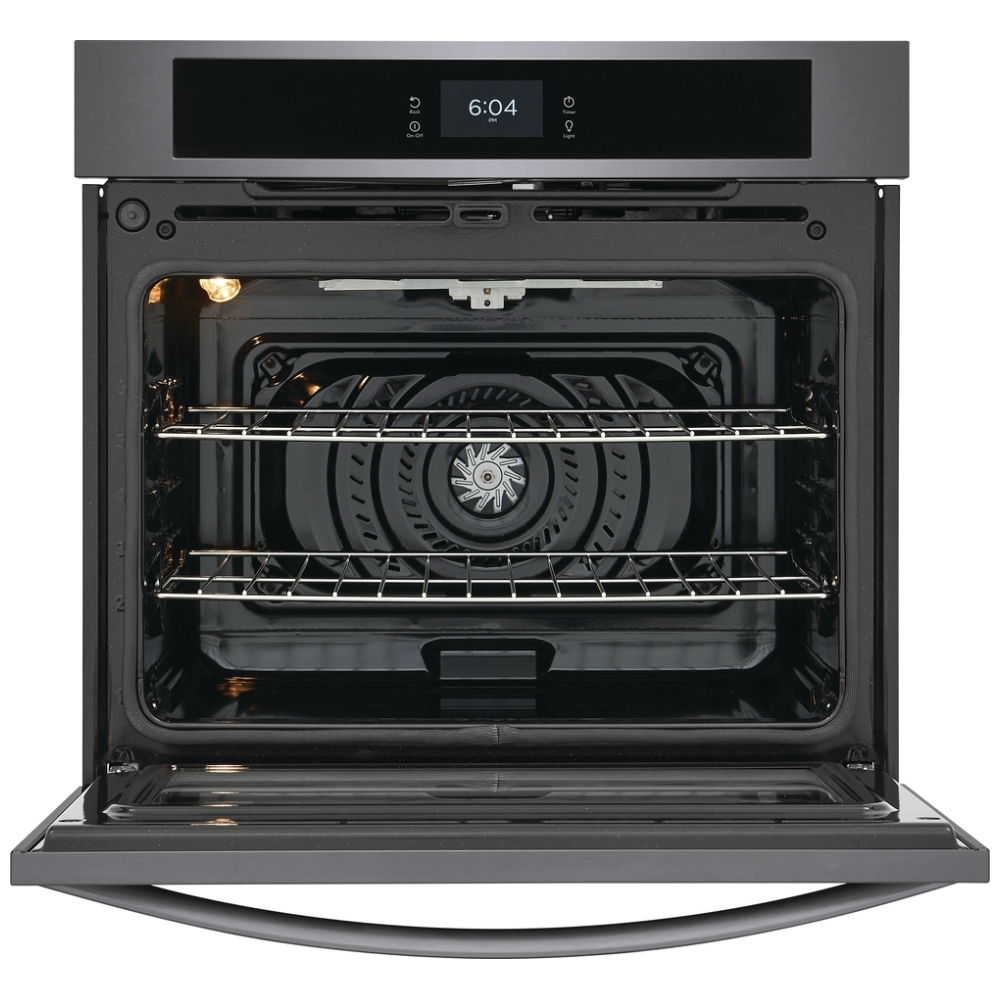

| Number of Rack Positions | 6 |
| Oven Interior Color | Midnight Black |
| Oven Light Quantity | 1 |
| Oven Light Type | Halogen |
| Oven Light Watts | 40 Watts |
| Rack Position Type | Embossed |
| Rack Type 1 | Flat |
| Rack Type 1 Quantity | 2 |
| Controls | |
| Control Lock | Yes |
| Sabbath Mode | Yes |
| Display | |
| Display Interface Color | White |
| Display Light Color | White |
| Display Type | Capacitive Touch |
| Exterior | |
| Handle Color | Black Stainless Steel |
| Dimensions and Volume | |
| Height | 28" |
| Width | 29 7/8" |
| Depth | 25 3/16" |
| Depth With Door 90° Open | 48 3/16" |
| Depth With Handle | 27 3/5" |
| Oven Interior Height | 18 1/8" |
| Oven Interior Width | 25 1/5" |
| Oven Interior Depth | 19 7/8" |
| Minimum Cutout Height | 26 3/4" |
| Minimum Cutout Width | 28 1/2" |
| Maximum Cutout Height | 28" |
| Maximum Cutout Width | 29" |
| Oven Capacity | 5.3 Cu. Ft. |
| Electrical Specifications | |
| Amps @ 240 Volts | 20 Amps |
| Connected Load @ 240V | 3.7 kW |
| Minimum Circuit Required | 20 Amps |
| Voltage Rating | 240 V |
| General Specifications | |
| Frigidaire Fit Promise | Yes |
| Product Weight | 130 lbs |
| Prop 65 Label | Yes |
| Warranty - Labor | 1 Year |
| Warranty - Parts | 1 Year |
| AB-1200 | Information available at frigidaire.com/en/ab1200 |
| Installation | |
| Power Supply Connection Location | Top Left |
| Certifications and Approvals | |
| ADA Compliant | Yes |
| CSA Listed | Yes |
| RoHS | Yes |
| UL Listed | Yes |
| Accessories | |
| Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT |
