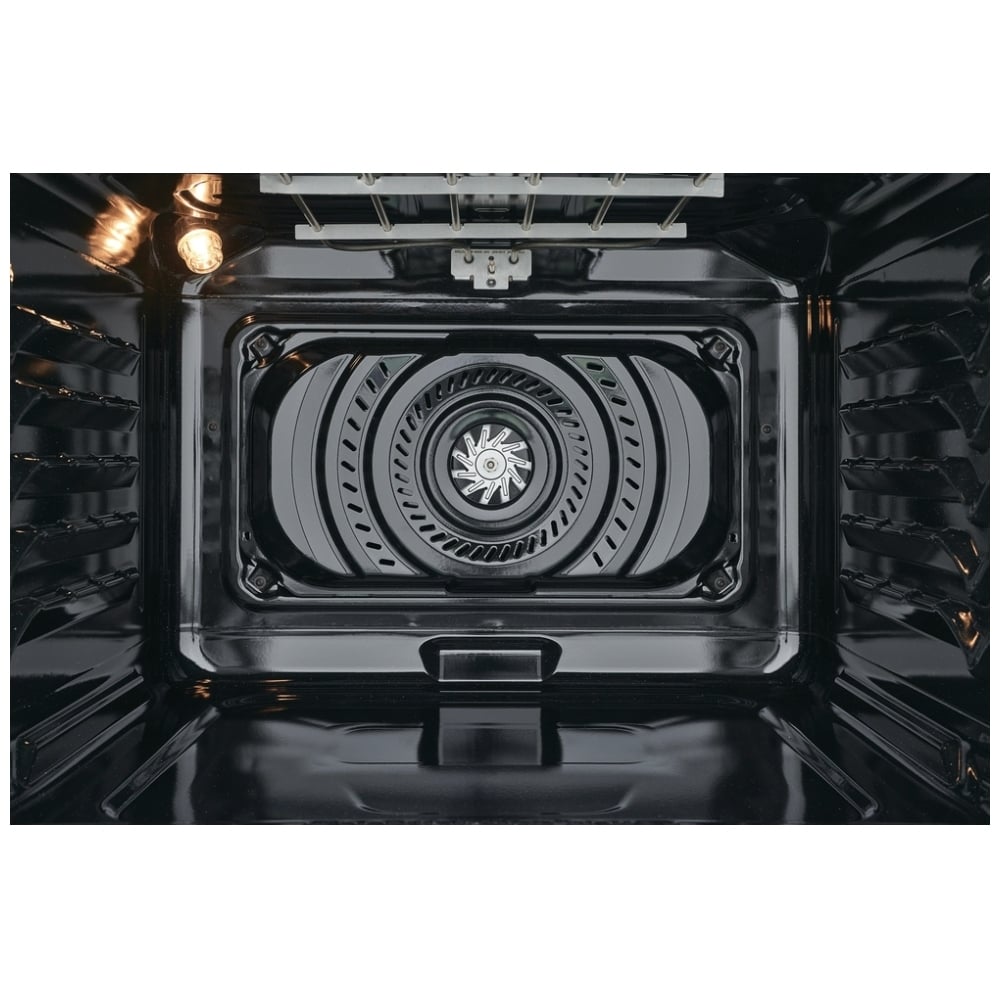

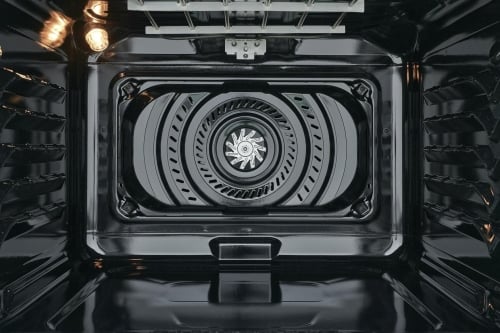

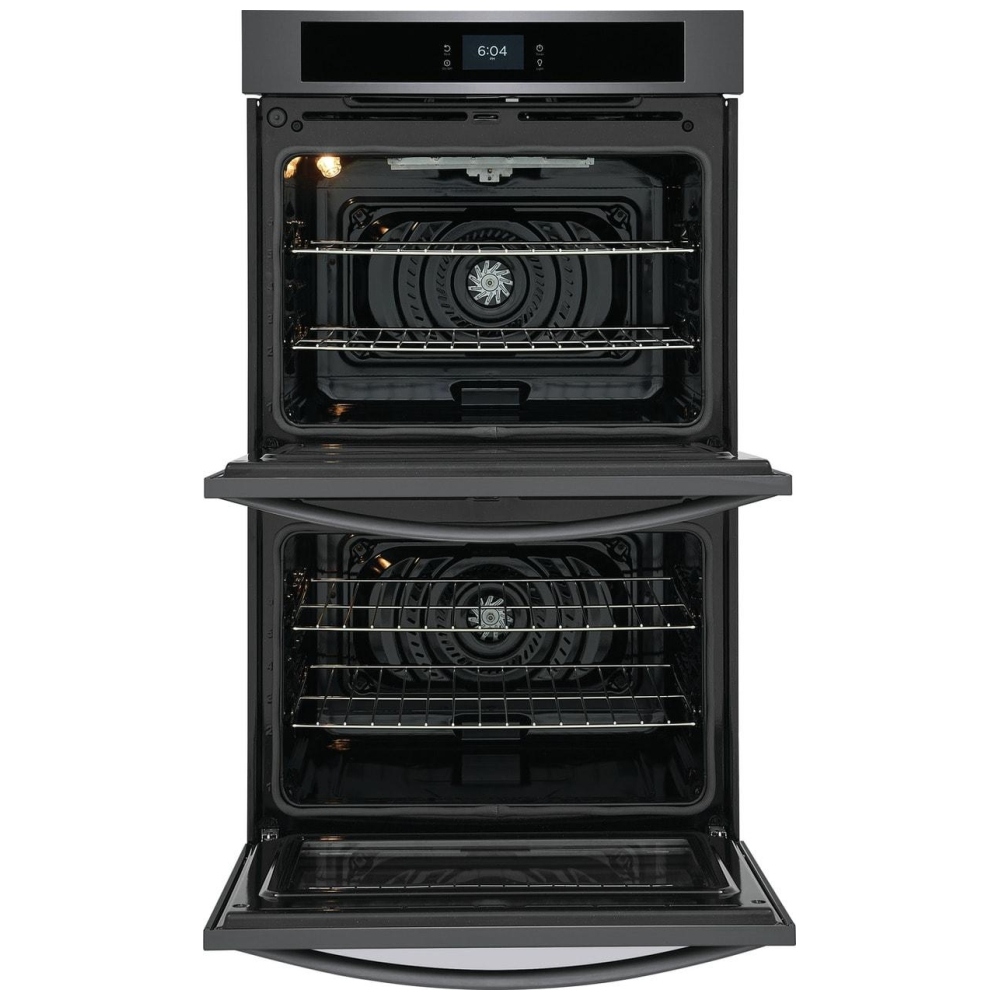

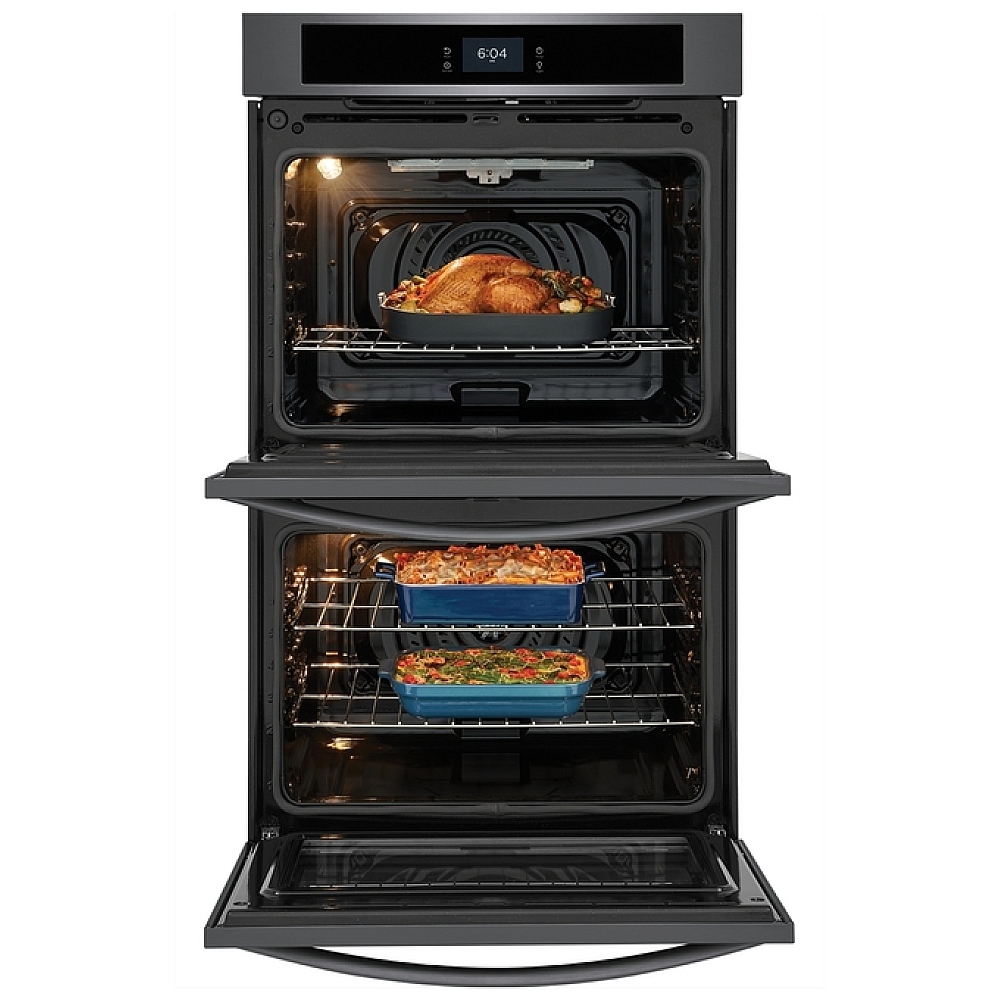

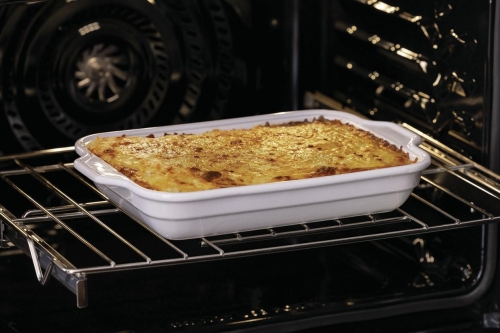

- Get faster, more even multi-rack baking results with Fan Convection - in both ovens!
- Self clean options available in convenient 2, 3 and 4-hour cycles.

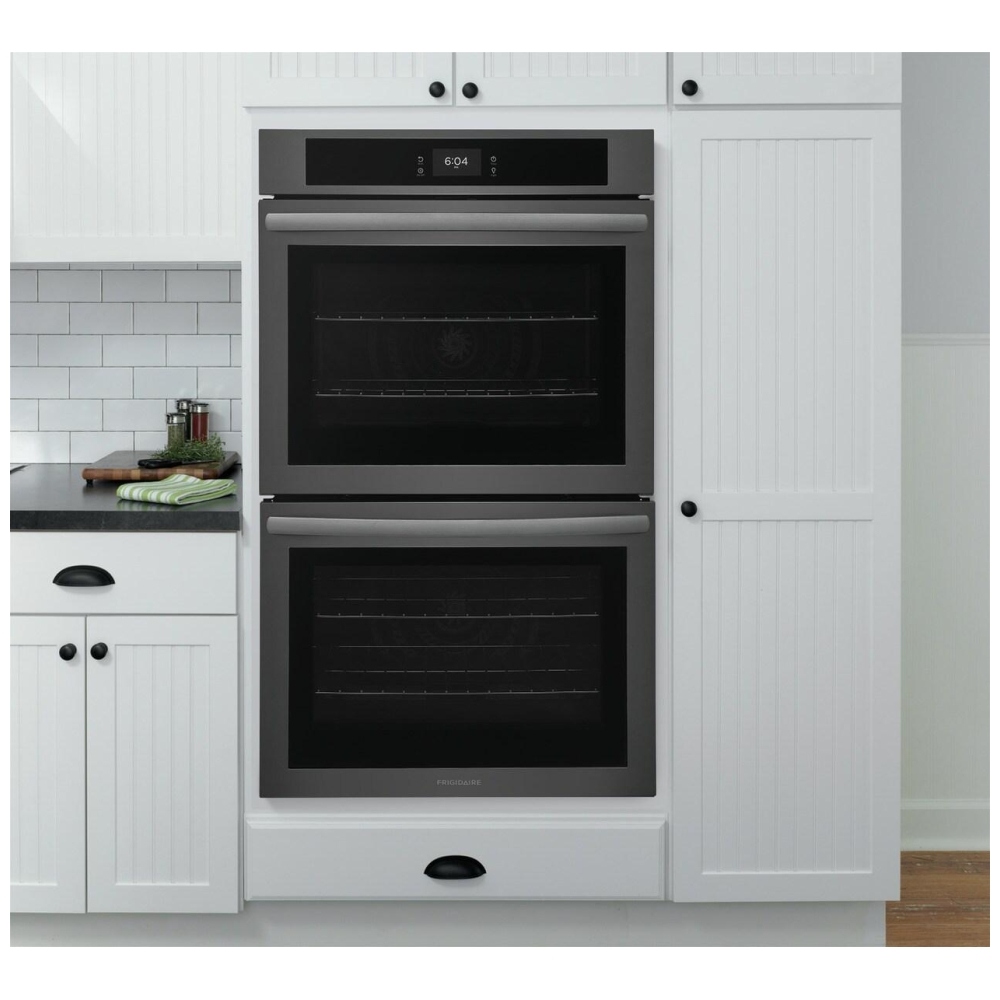

- We promise that your new 30" Frigidaire® double wall oven will fit your existing cabinet cutout of the same width and configuration, or we will reimburse you up to $300 for cabinet modification costs. * Up to three hundred dollars via mail-in rebate. See https://www.frigidairefitpromise.com for additional information.

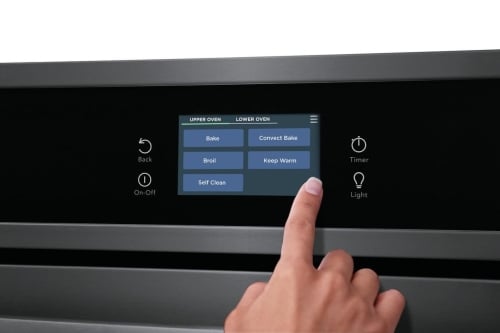

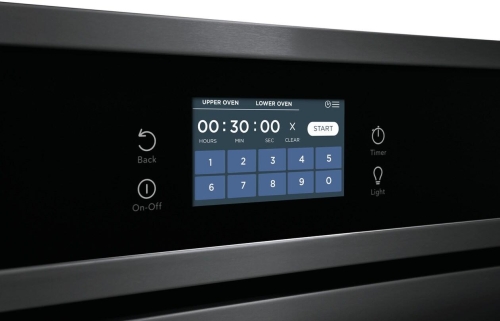

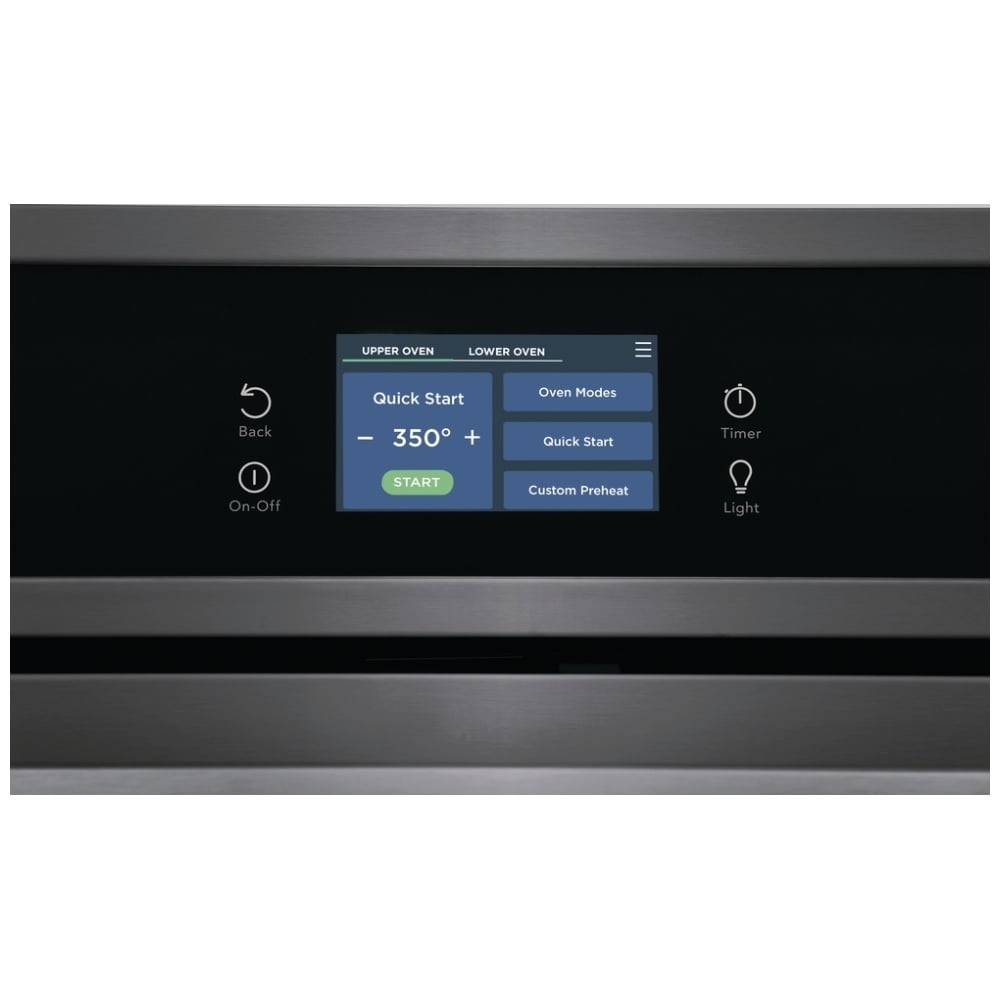

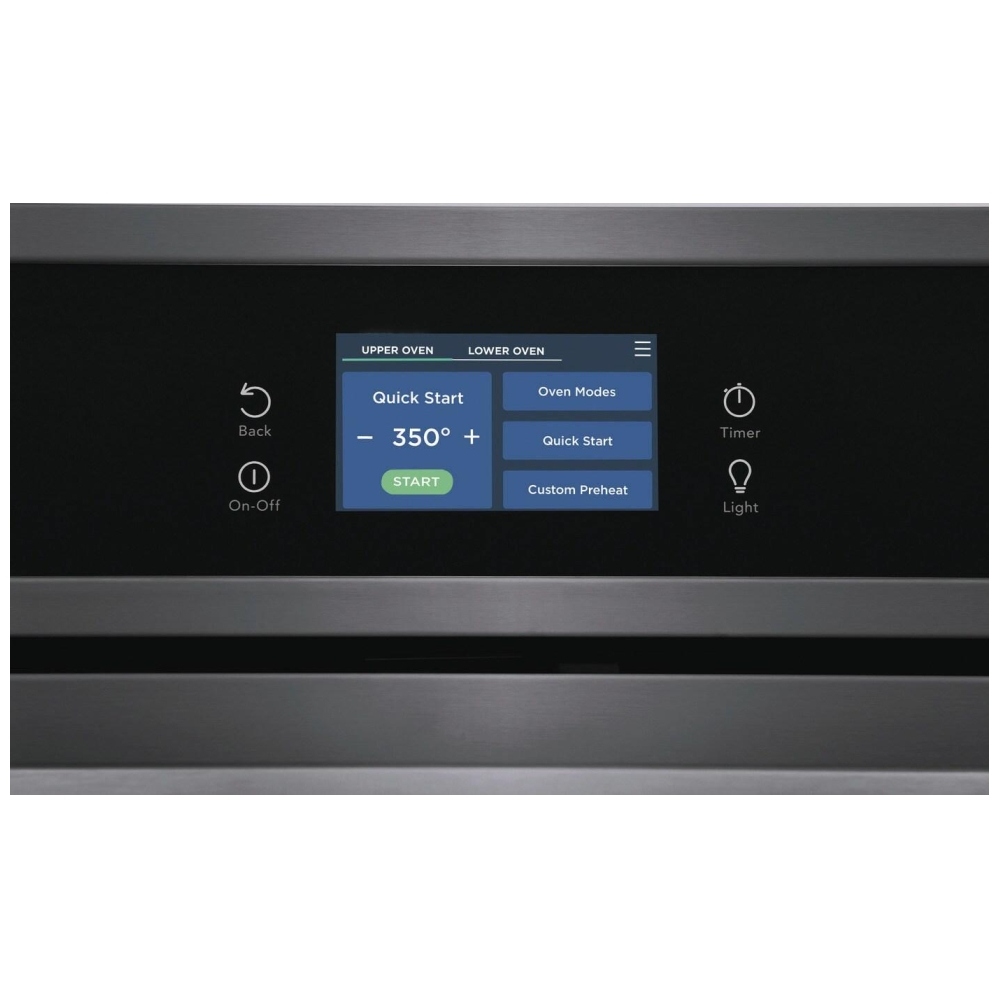

- Features a responsive 4.3 inch, full color, capacitive touch digital control panel.

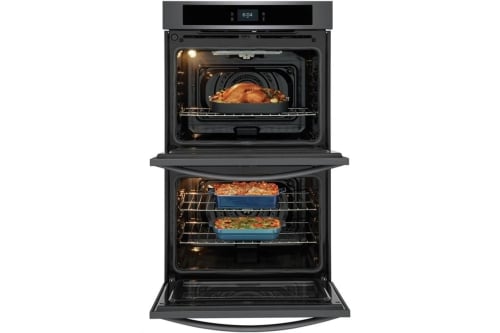

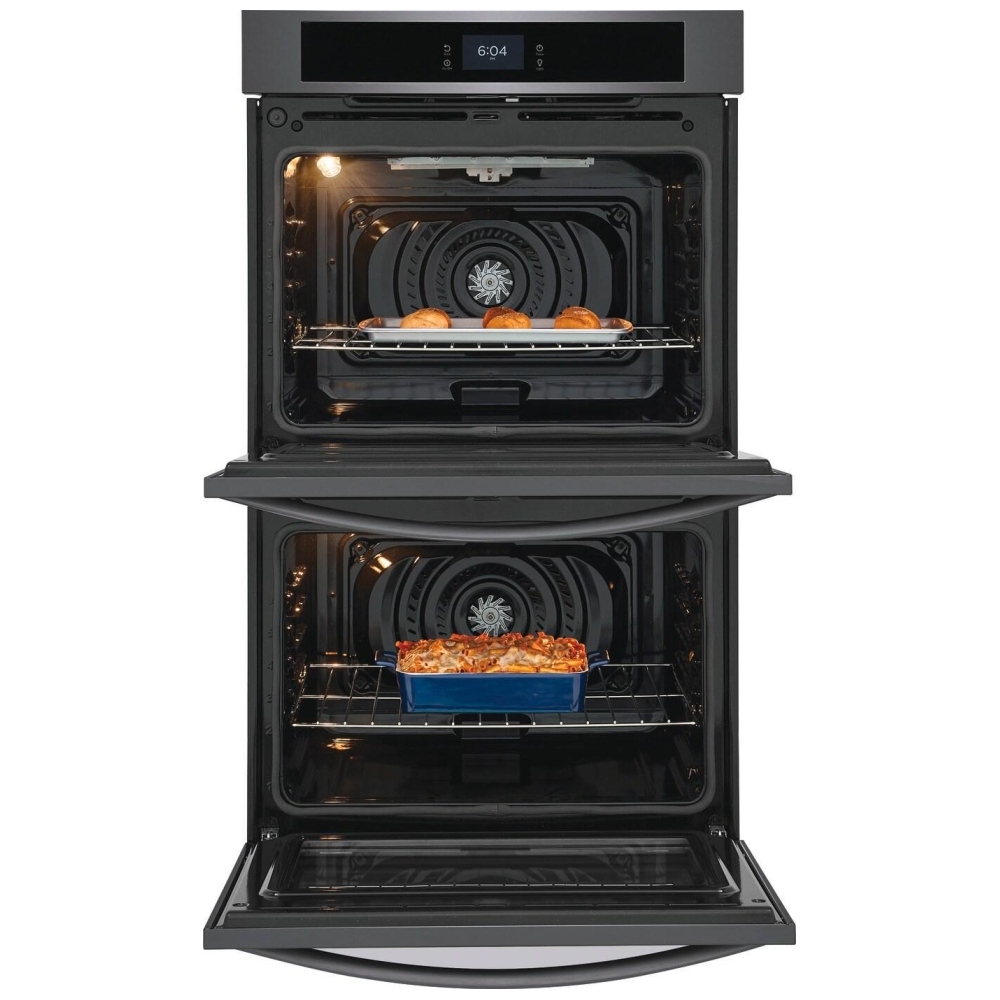

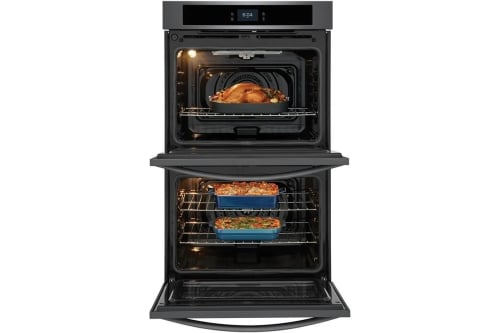

- Cook more at once with a combined 10.6 cu.ft. of oven capacity.
- Allows you to choose the specific broil temperature you want, ranging anywhere between 400 - 550 degrees.
- Allows you to program the amount of time you want your oven to cook and then turn off.
- Meals stay warm and are ready to serve when you are, using the Keep Warm setting.
UPC: 012505514920
Product Line | Double Wall Oven |
Power Type | Electric 240v |
Size | 30" |
Installation Type | Built-In |
Factory | Springfield |
Color | Black Stainless Steel |
Cooking Controls | |
Bake | Yes |
Bake Time | Yes |
Broil | Yes |
Cancel | Yes |
Clock | Yes |
Convection Bake | Yes |
Cook Time | Yes |
Delay Start | Yes |
Keep Warm | Yes |
Kitchen Timer | Yes |
Light | Yes |
Off | Yes |
Oven Light | Yes |
Preheat | Yes |
Self Clean | Yes |
Start | Yes |
Temperature Display | Yes |
Timer On / Off | Yes |
Cooking Controls Function | |
Change between Continuous Bake Setting or 12-Hour Energy Saving Feature | Yes |
Program Fahrenheit or Celsius | Yes |
Silent Control Panel | Yes |
Oven | |
Bake Element | 2500 Watts |
Bake Element Pass | 8 |
Bake Element Type | Hidden |
Broil Element | 4000 Watts |
Broil Element Pass | 6 |
Broil System | Yes |
Cleaning System | Yes |
Convection | Yes |
Convection Type | Fan |
Number of Convection Fans | 1 |

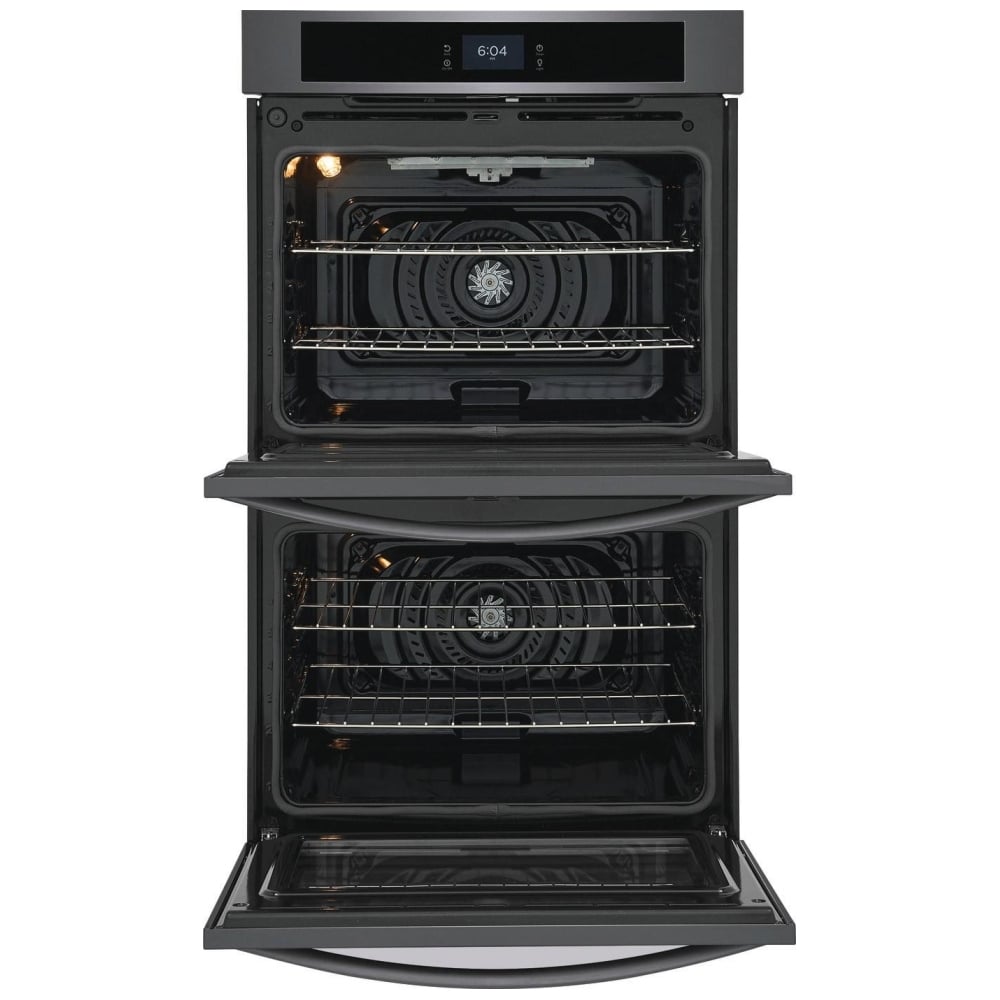

Number of Rack Positions | 6 |
Oven Interior Color | Midnight Black |
Oven Light Quantity | 1 |
Oven Light Type | Halogen |
Oven Light Watts | 40 Watts |
Rack Position Type | Embossed |
Rack Type 1 | Flat |
Rack Type 1 Quantity | 4 |
Controls | |
Control Lock | Yes |
Sabbath Mode | Yes |
Display | |
Display Interface Color | White |
Display Light Color | White |
Display Type | Capacitive Touch |
Exterior | |
Handle Color | Black Stainless Steel |
Dimensions and Volume | |
Height | 50 3/4" |
Width | 29 7/8" |
Depth | 25 3/16" |
Depth With Door 90° Open | 48 3/16" |
Depth With Handle | 27 3/5" |
Lower Oven Interior Height | 18 1/8" |
Lower Oven Interior Width | 25 1/5" |
Lower Oven Interior Depth | 19 7/8" |
Upper Oven Interior Height | 18 1/8" |
Upper Oven Interior Width | 25 1/5" |
Upper Oven Interior Depth | 19 7/8" |
Minimum Cutout Height | 48 7/8" |
Minimum Cutout Width | 28 1/2" |
Maximum Cutout Height | 50 1/4" |
Maximum Cutout Width | 29" |
Oven Lower Capacity | 5.3 Cu. Ft. |
Oven Upper Capacity | 5.3 Cu. Ft. |
Total Capacity | 10.6 Cu. Ft. |
Electrical Specifications | |
Amps @ 240 Volts | 40 Amps |
Connected Load @ 240V | 7.4 kW |
Minimum Circuit Required | 40 Amps |
Voltage Rating | 240 V |
General Specifications | |
Frigidaire Fit Promise | Yes |
Product Weight | 215 lbs |
AB-1200 | Information available at frigidaire.com/en/ab1200 |
Prop 65 Label | Yes |
Warranty - Labor | 1 Year |
Warranty - Parts | 1 Year |
Installation | |
Power Supply Connection Location | Top Left |
Safety Certifications and Approvals | |
CSA Listed | Yes |
UL Listed | Yes |
RoHS | Yes |
Accessories | |
Optional Trim Kit Part Number | WOMC3TRIMSS, WOMC3TRIMDSS, WOMC3TRIMBLK, WOMC3TRIMWHT |
