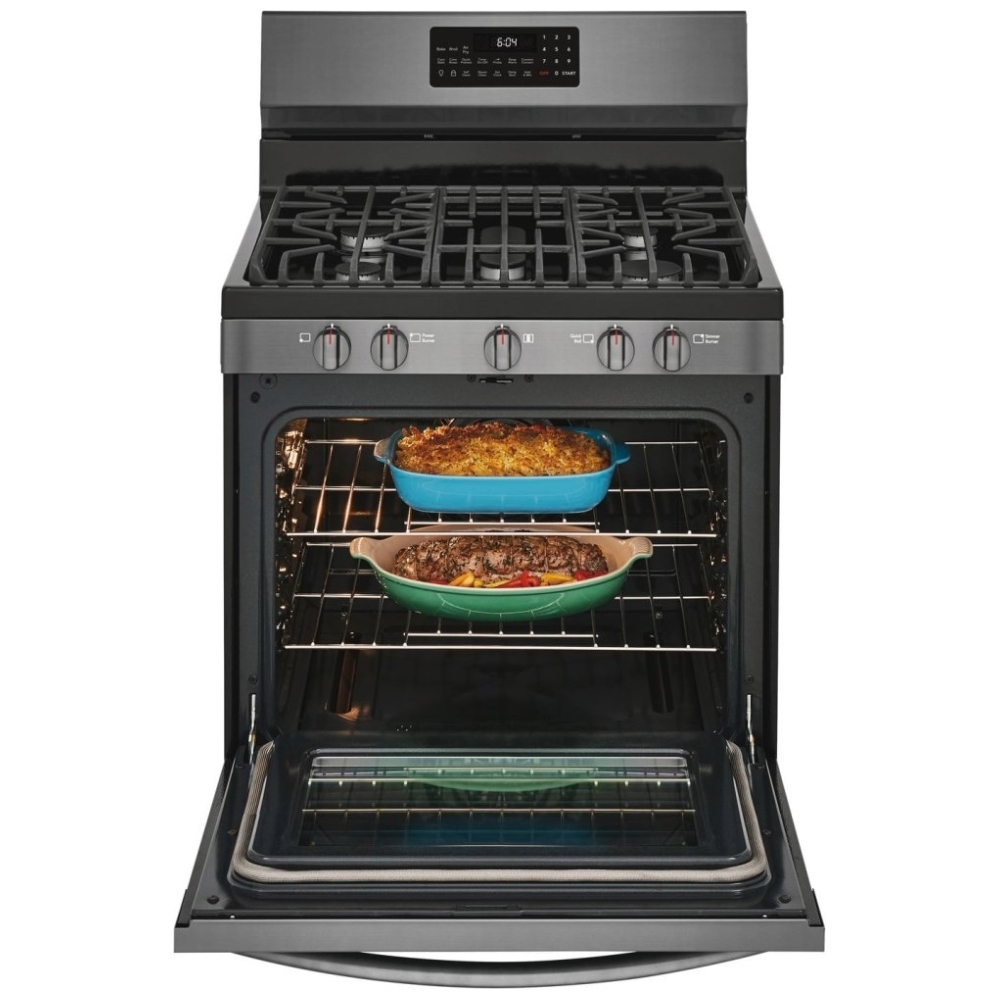

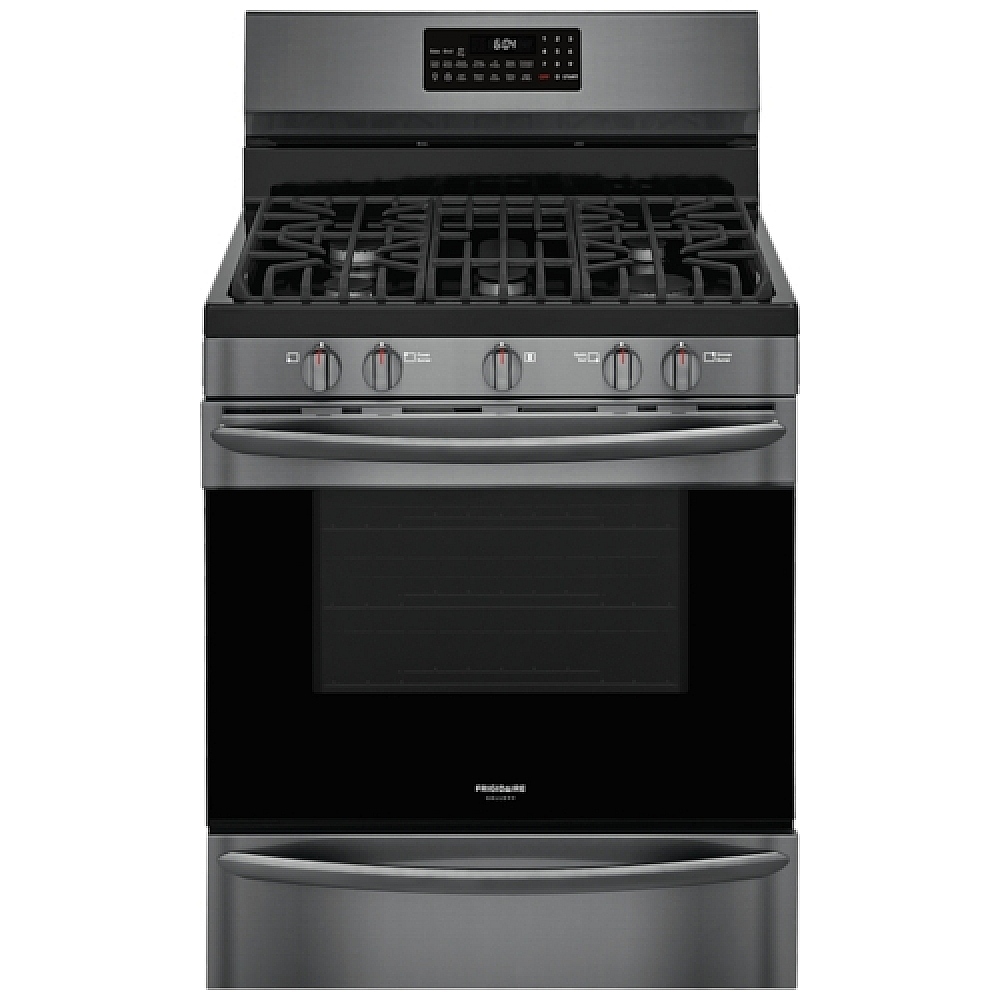

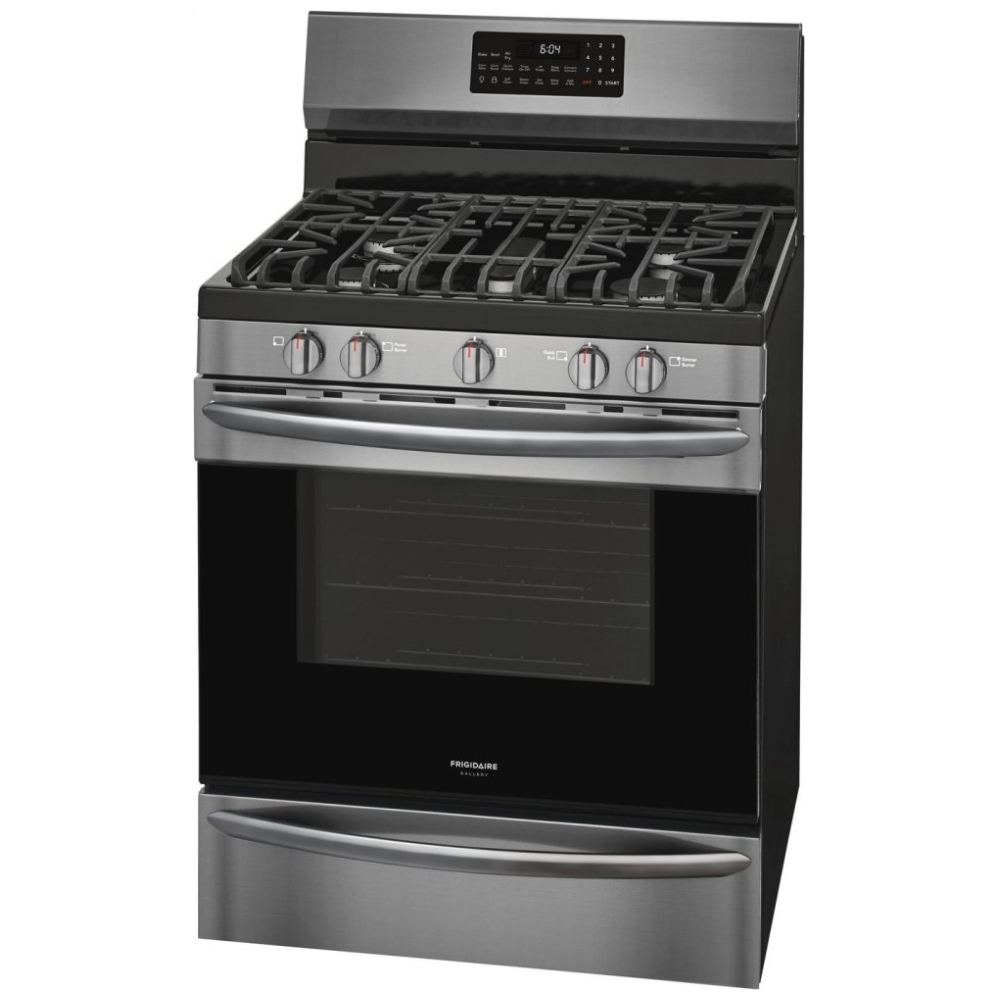

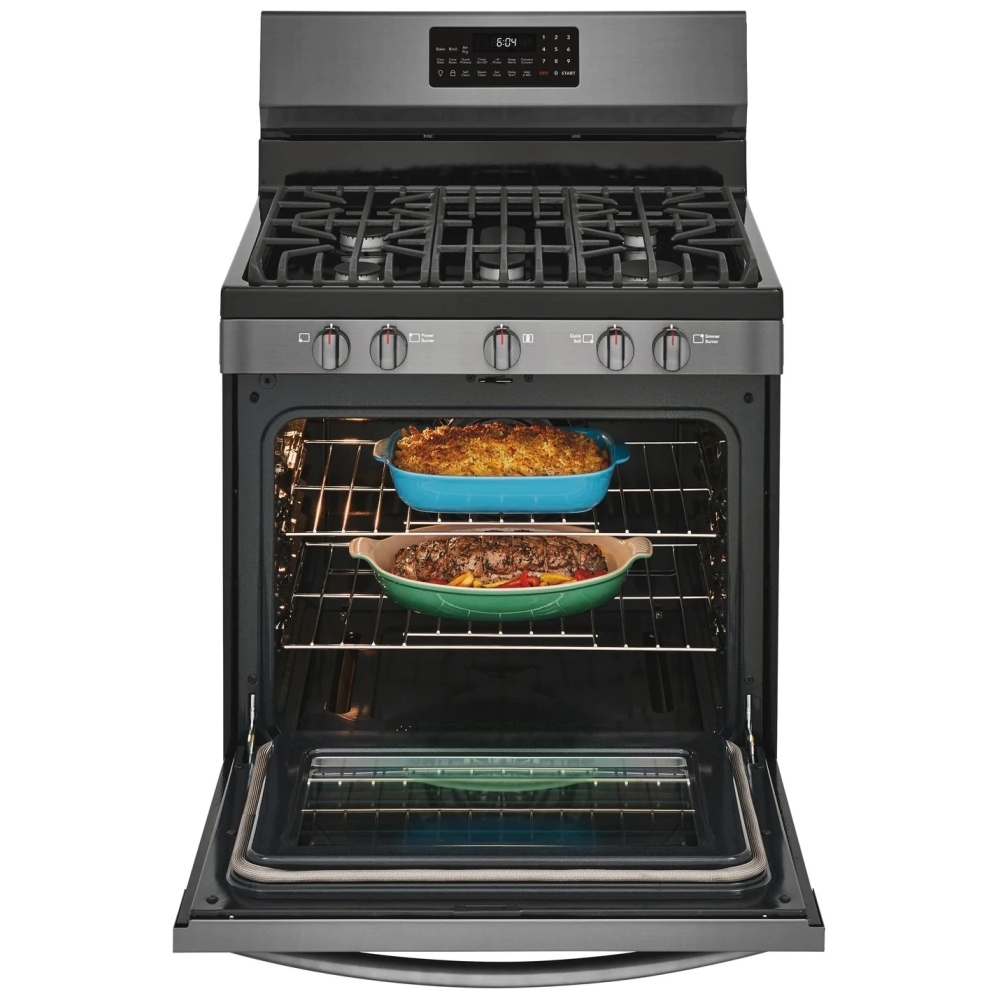

GCRG3060AD Frigidaire Gallery Gas Range 30 inch Canada Parts

The Frigidaire Gallery 30" Gas Range with Air Fry is packed with time-saving features like Air Fry, True Convection, a powerful 18k BTU Quick Boil Burner and a convenient 30-minute Steam Clean.

Air Fry

Make healthier and delicious meals for your entire family - right in your oven.

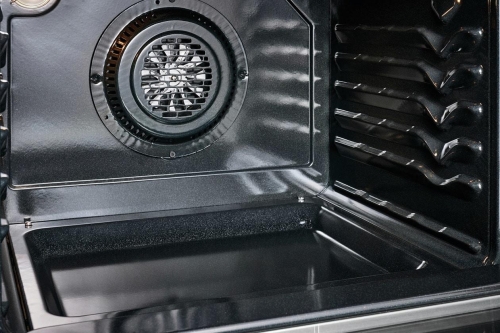

True Convection

Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.

Quick Boil Burner

Get meals on the table faster with our powerful 18,000 BTU burner.

30-Minute Steam Clean

A 30-minute light oven cleaning that's chemical-free, odor-free, and fast.

Quick Preheat

Start baking in just a few minutes with Quick Preheat * Based on single rack cooking performance, not set temperature, using Quick Preheat.

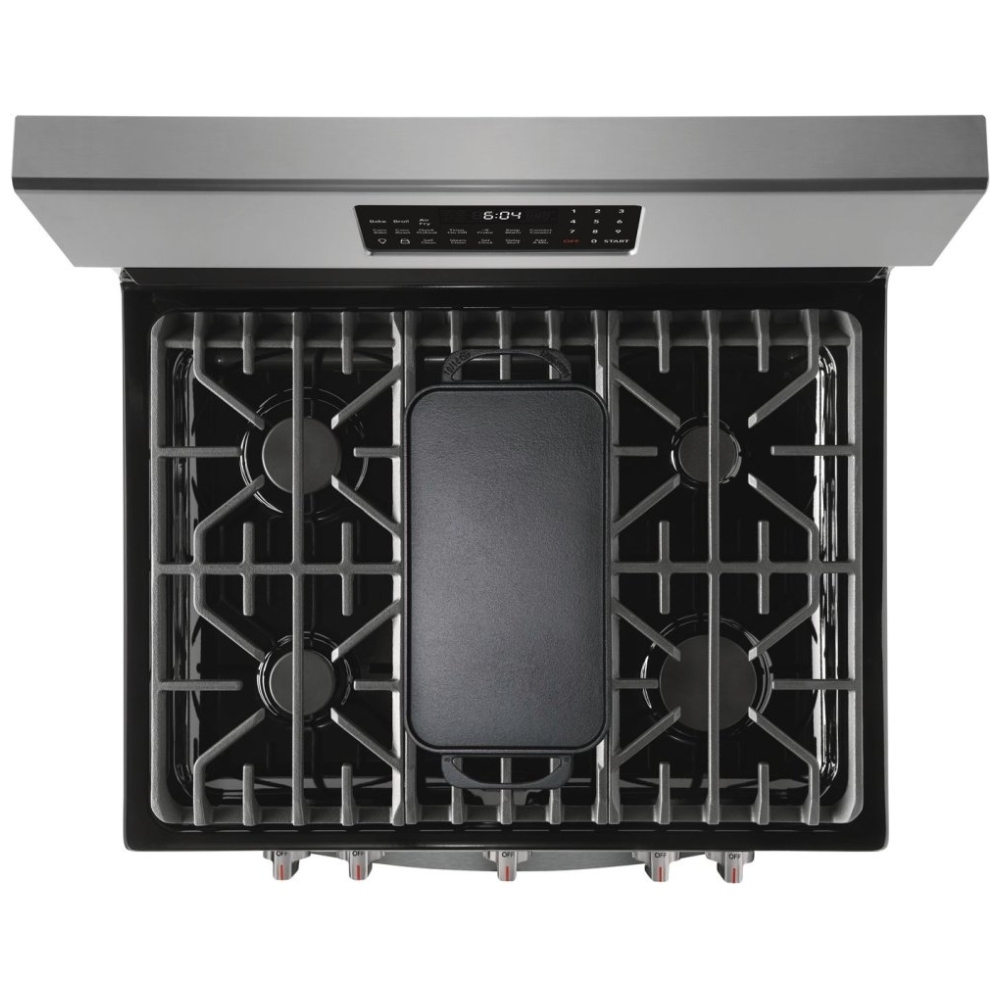

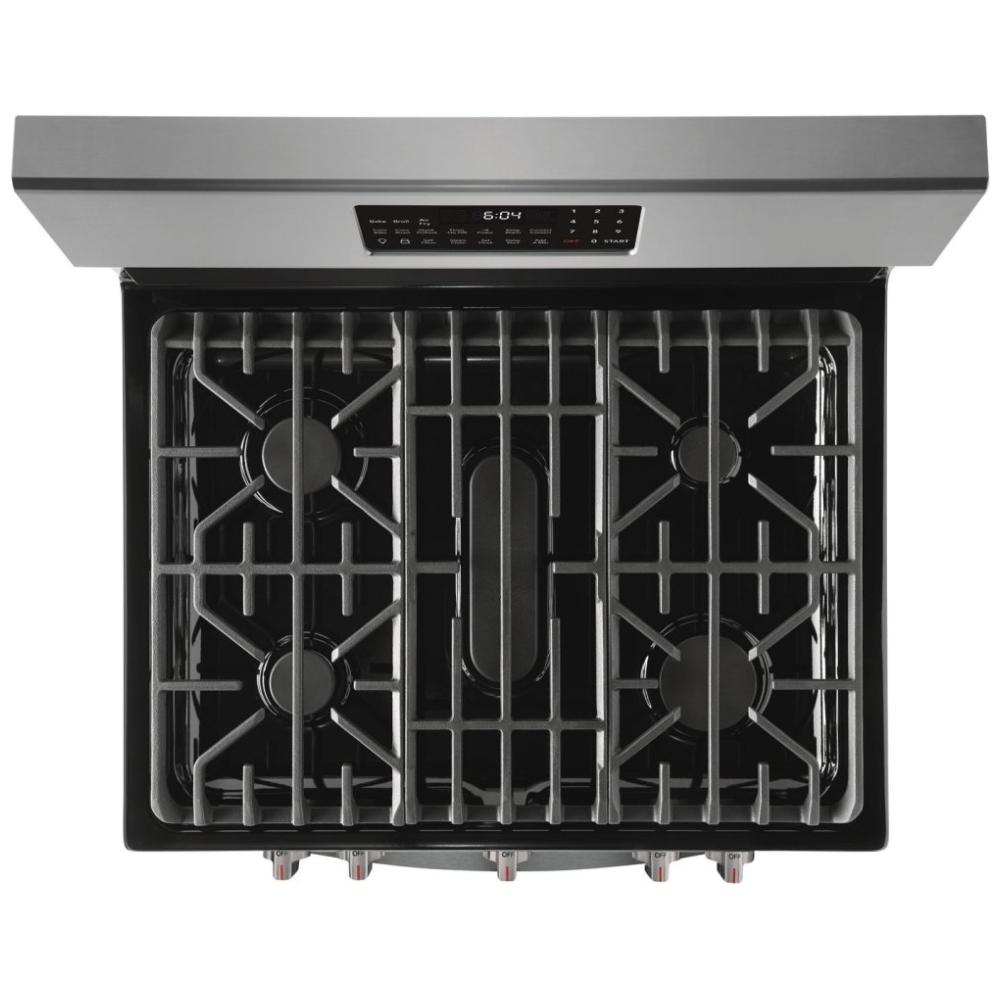

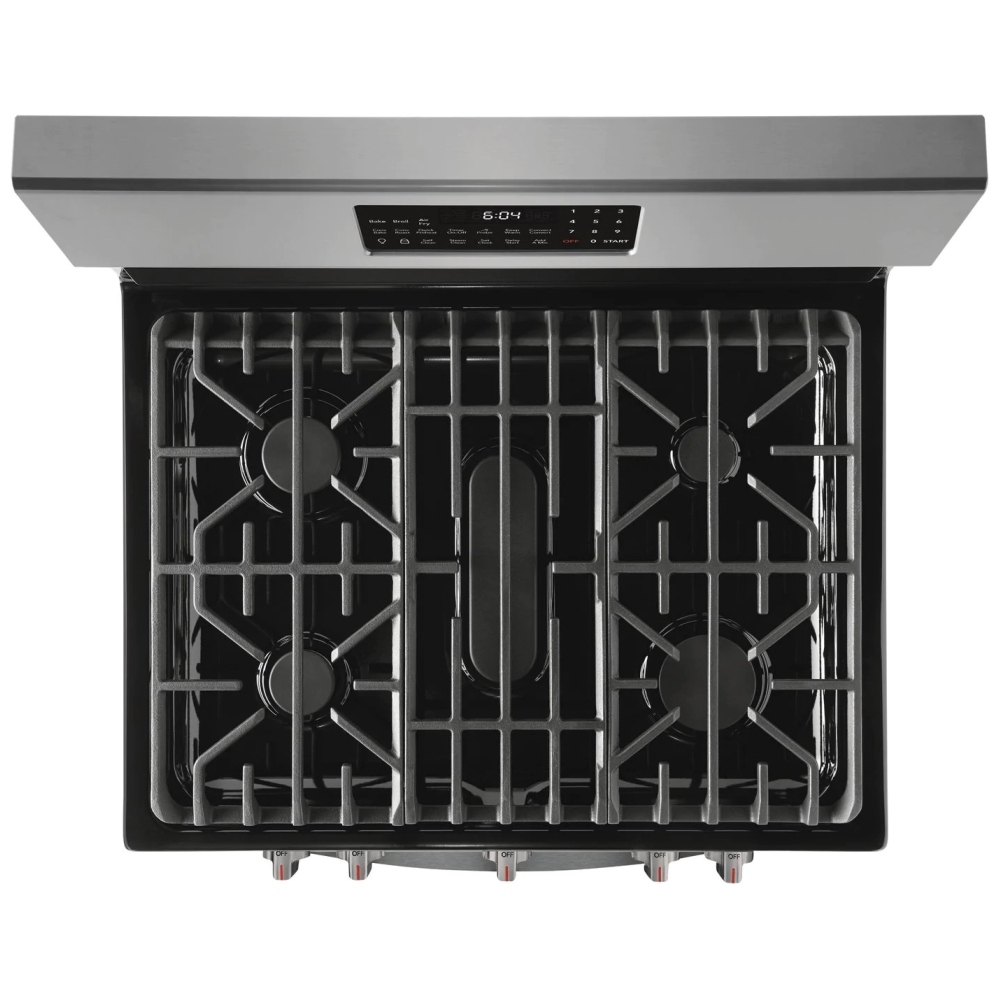

Five Burner Cooktop

Get the ultimate cooking flexibility. This powerful gas cooktop that has five burners designed to handle all of your cooking needs.

One-Touch Self Clean

Your oven cleans itself - so you don't have to. Self clean options available in 2, 3 and 4-hour cycles.

Smudge-Proof® Black Stainless Steel

Resists fingerprints and cleans easily.

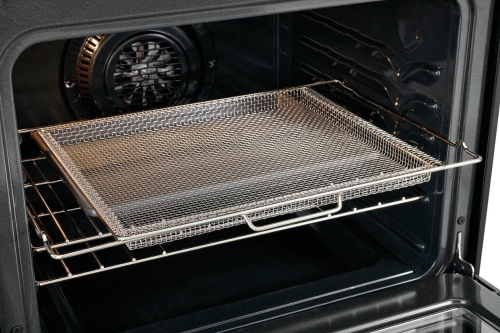

ReadyCook™ Air Fry Tray-Sold separately

Optional ReadyCook™ Air Fry Tray allows you to achieve perfectly crispy and delicious results. * ReadyCook™ Air Fry Tray is not required to use Air Fry.

Manufacturer's Warranty: 1 year

UPC: 012505514173

EAN: 0012505514173

Air Fry
GCRG3060AD - Air Fry
Make healthier and delicious meals for your entire family - right in your oven.

True Convection
GCRG3060AD - True Convection
Get faster, more even multi-rack baking with a powerful convection fan and third heating element that evenly circulates hot air throughout the oven.

Quick Boil Burner
GCRG3060AD - Quick Boil Burner
Get meals on the table faster with our powerful 18,000 BTU burner.

30-Minute Steam Clean
GCRG3060AD - 30-Minute Steam Clean
A 30-minute light oven cleaning that's chemical-free, odor-free, and fast.

Quick Preheat
GCRG3060AD - Quick Preheat
Start baking in just a few minutes with Quick Preheat * Based on single rack cooking performance, not set temperature, using Quick Preheat.

Smudge-Proof® Black Stainless Steel
GCRG3060AD - Smudge-Proof® Black Stainless Steel
Resists fingerprints and cleans easily.

ReadyCook™ Air Fry Tray-Sold separately
GCRG3060AD - ReadyCook™ Air Fry Tray-Sold separately
Optional ReadyCook™ Air Fry Tray allows you to achieve perfectly crispy and delicious results. * ReadyCook™ Air Fry Tray is not required to use Air Fry.

Specs

Product Line	Gas Range
Power Type	NG
Size	30"
Installation Type	Free-Standing
Factory	Springfield
Color	Black Stainless Steel
Cooktop
Cooking Surface Type	Gas
Grate Material	Cast Iron
Grate Quantity	3
Grate Style	Continuous
Griddle Included	Yes
Cooktop Performance
Right Front Element Burner	18000 BTU
Right Rear Element Burner	5000 BTU
Left Front Element Burner	9500 BTU
Left Rear Element Burner	14000 BTU
Center Element Burner	10000 BTU

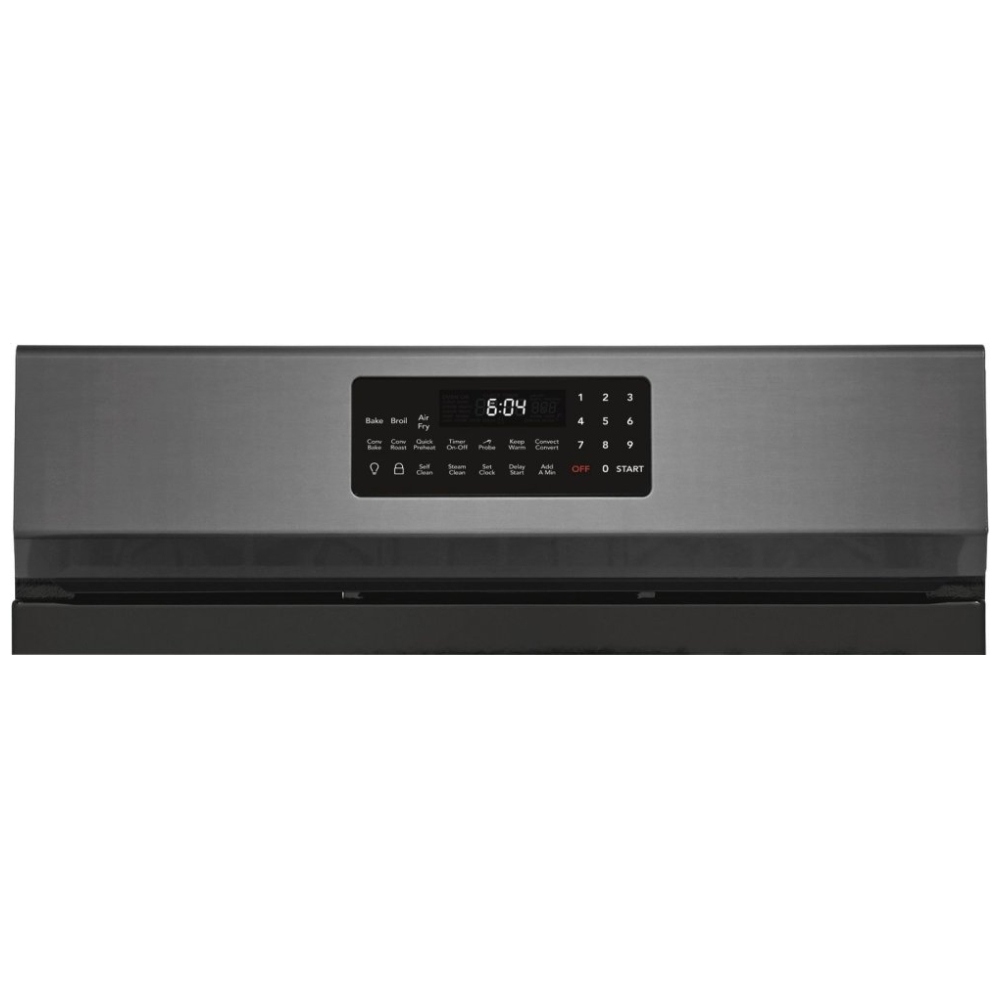

Cooking Controls
Add A Min	Yes
Air Fry	Yes
Bake	Yes
Broil	Yes
Cancel	Yes
Clock	Yes
Convection Bake	Yes
Convection Convert	Yes
Convection Roast	Yes
Delay Clean	Yes
Delay Start	Yes
Door Lock	Yes
Fast Preheat	Yes
Keep Warm	Yes
Kitchen Timer	Yes
Off	Yes
Preheat	Yes
Probe	Yes
Self Clean	Yes
Steam Clean	Yes
Temperature Display	Yes
Oven
Bake Element	18000 BTU
Bake System	Yes
Broil System	Yes
Convection Element	900 Watts

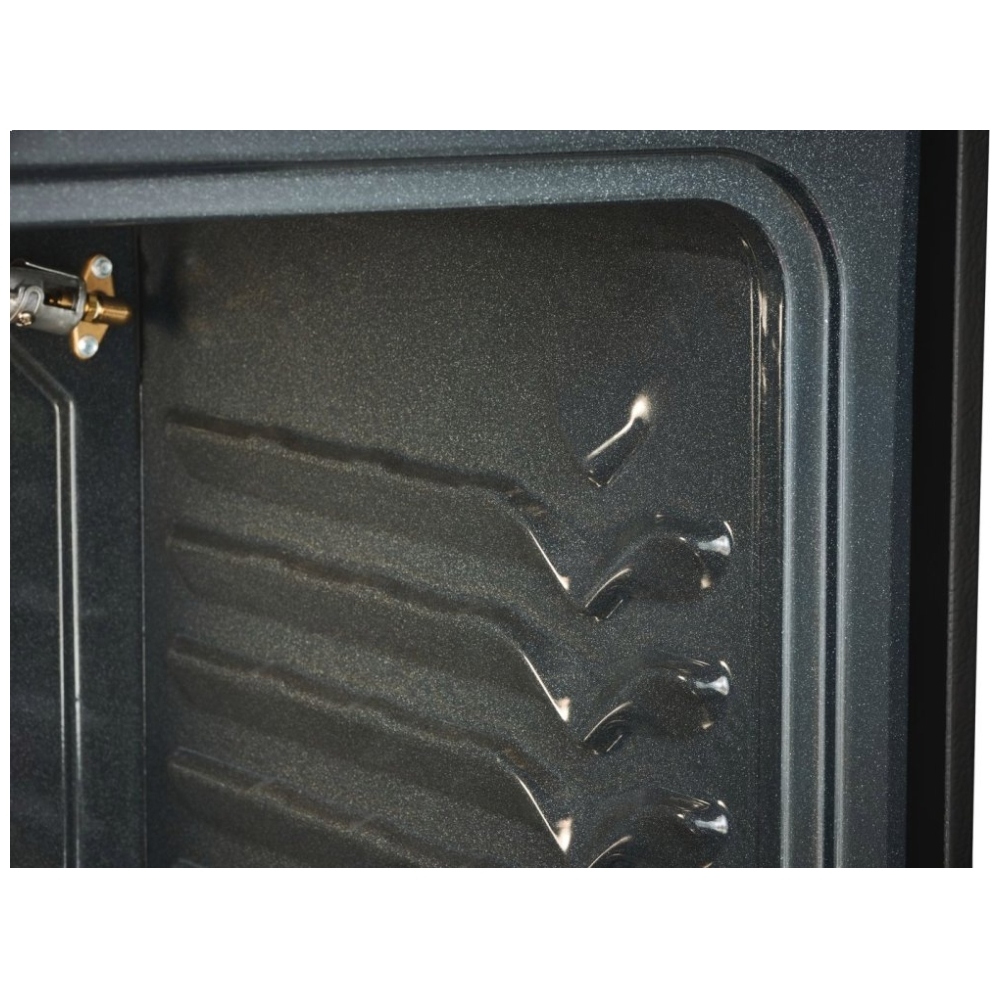

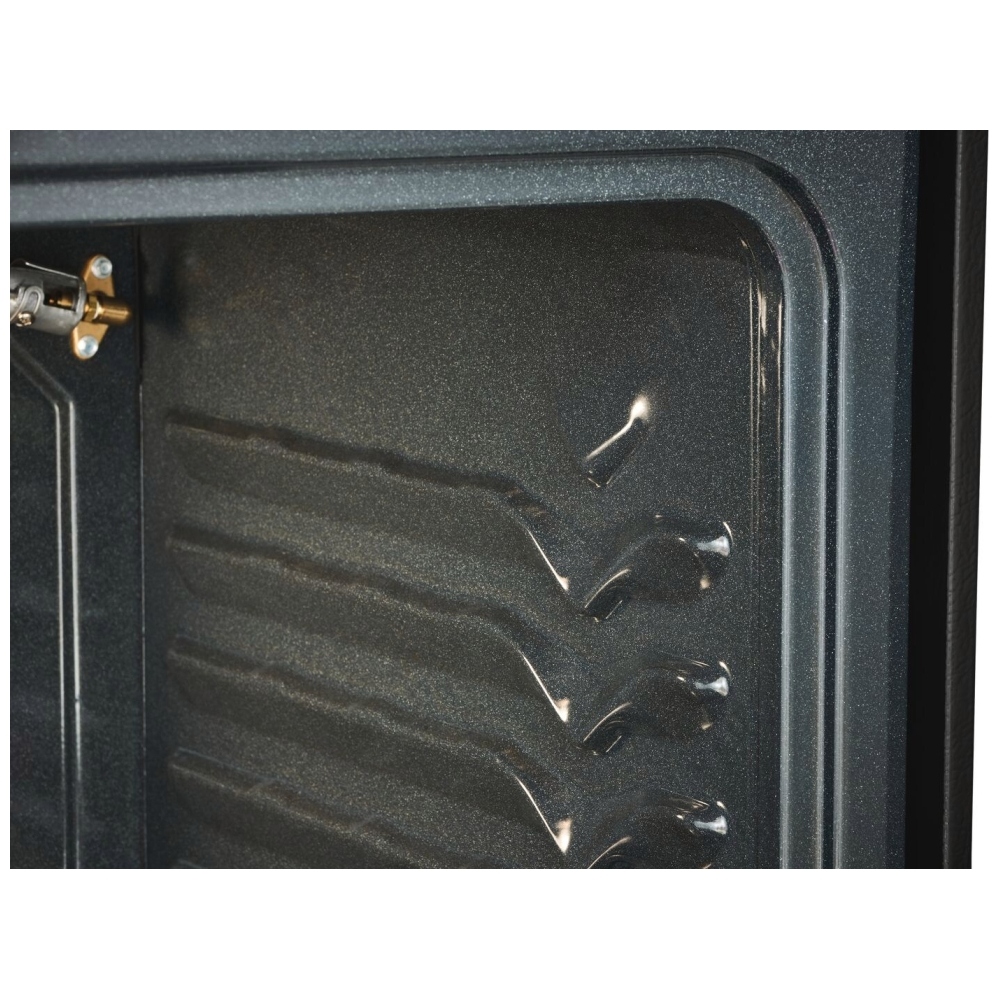

Number of Rack Positions	6
Rack Position Type	Nickel Ladder
Rack Type 1 Quantity	3
Window Type	Extra Large Visual
Drawer
Drawer Type	Storage
Display
Control Location	Rear
Display Interface Color	White
Display Type	Membrane
Exterior
Cooktop Finish	Color Coordinated
Drawer Finish	Color Coordinated
Exterior Finish	Smudge-Proof® Black Stainless Steel
Handle Color	Color Coordinated
Knob Color	Color Coordinated
Dimensions and Volume
Height	48 1/2"
Width	30"
Depth	25 3/4"
Depth With Door 90° Open	46 5/8"
Depth With Handle	29 1/4"
Oven Interior Height	18 5/8"
Oven Interior Width	24 3/8"
Oven Interior Depth	19 1/8"
Oven Capacity	5 Cu. Ft.
Electrical Specifications
Minimum Circuit Required	12 Amps
Voltage Rating	120 V
Installation
Adjustable Leveling Legs	Yes
General Specifications
Product Weight	204.25 lbs
Prop 65 Label	Yes
Warranty - Labor	1 Year
Warranty - Parts	1 Year
AB-1200	Information available at frigidaire.com/en/ab1200
Safety Certifications and Approvals
CSA Listed	Yes
Star-K Certification	Yes

Accessories

Probe: Included

Griddle: Included

Cooking Controls

Star-K® Certification: Yes

Display Type: Membrane

Bake: Yes

Air Fry: Yes

Delay Clean: Yes

Timer: Yes

Convection Roast: Yes

Convection Bake: Yes

Door Lock: Yes

Preheat: Integrated with Bake

Broil: Yes

Keep Warm: Yes

Fast Preheat: Yes

Add-a-Minute: Yes

Probe: Yes

Convection Conversion: Yes

Temperature Display: Yes

Cancel: Yes

Electrical Specifications

Voltage Rating: 120V 60Hz

Minimum Circuit Required (Amps): 5A

Oven

Broil: 13500 BTU

Baking System: Even Baking Technology

Broil System: Variable (400°F to 550°F)

Oven 1 Interior Width: 24-3/8"

Bake: 18000 BTU

Oven 1 Rack Positions: 6 Positions

Oven 1 Interior Depth: 19-1/8"

Oven 1 Interior Height: 18-5/8"

Oven 1 Interior Color: Slate Blue

Oven 1 Window: Extra-Large Visualite®

Oven 1 Convection System: 900 Watts True Convection

Oven 1 Rack Configuration: 3 Heavy Duty Handle Racks

Cooktop

Knob Color: Color-Coordinated

Right Front: 18000 BTU

Center: Oval 10000 BTU

Grate Color: Black Matte

Right Rear: 5000 BTU

Electronic Ignition: Yes

Cooking Surface: Color-Coordinated Porcelain

Left Front: 9500 BTU

Left Rear: 14000 BTU

Grates: 3 Continuous Grates

Grate Material: Cast Iron

General Specifications

Adjustable Leveling Legs: 4 Adjustable

Prop 65 Label: Yes

Drawer

Drawer Functionality: Storage

Exterior

Drawer Finish: Color-Coordinated

Cabinet Color: Color-Coordinated

Cooktop Finish: Color-Coordinated Porcelain

Handle Color: Color-Coordinated

Certifications & Approvals

Agency Approval: CSA Certified

CSA Certified: Yes

Capacities

Total Capacity: 5.0 Cubic Feet

Controls

Clock: Yes

Delay Start: Yes

Auto Shut-Off: Yes

Display Type: Digital (White LED)

Dimensions: Exterior

Depth: 25-3/4"

Width: 30"

Height: 35-7/8" to 36-1/8"

Depth (with Door 90° Open): 46-5/8""

Depth Including Handle: 29-1/4"

Manuals

Frigidaire / Electrolux Ranges 2024

Complete Owner's Guide (English) (GCRG3060AD-complete-owners-guide-english-1.pdf)

Wiring Diagram (English) (GCRG3060AD-wiring-diagram-english-1.pdf)

Installation Instructions (English) (GCRG3060AD-installation-instructions-english-1.pdf)

Product Specifications Sheet (English) (GCRG3060AD-product-specifications-sheet-english-1.pdf)
