Manufacturer's Warranty: 1 year
Canadian model: GDT670SMVES
Similar to USA model: GDT670SMVES
Canadian UPC: 084691914419
EAN: 0084691914419
| Specification | Value |
|---|---|

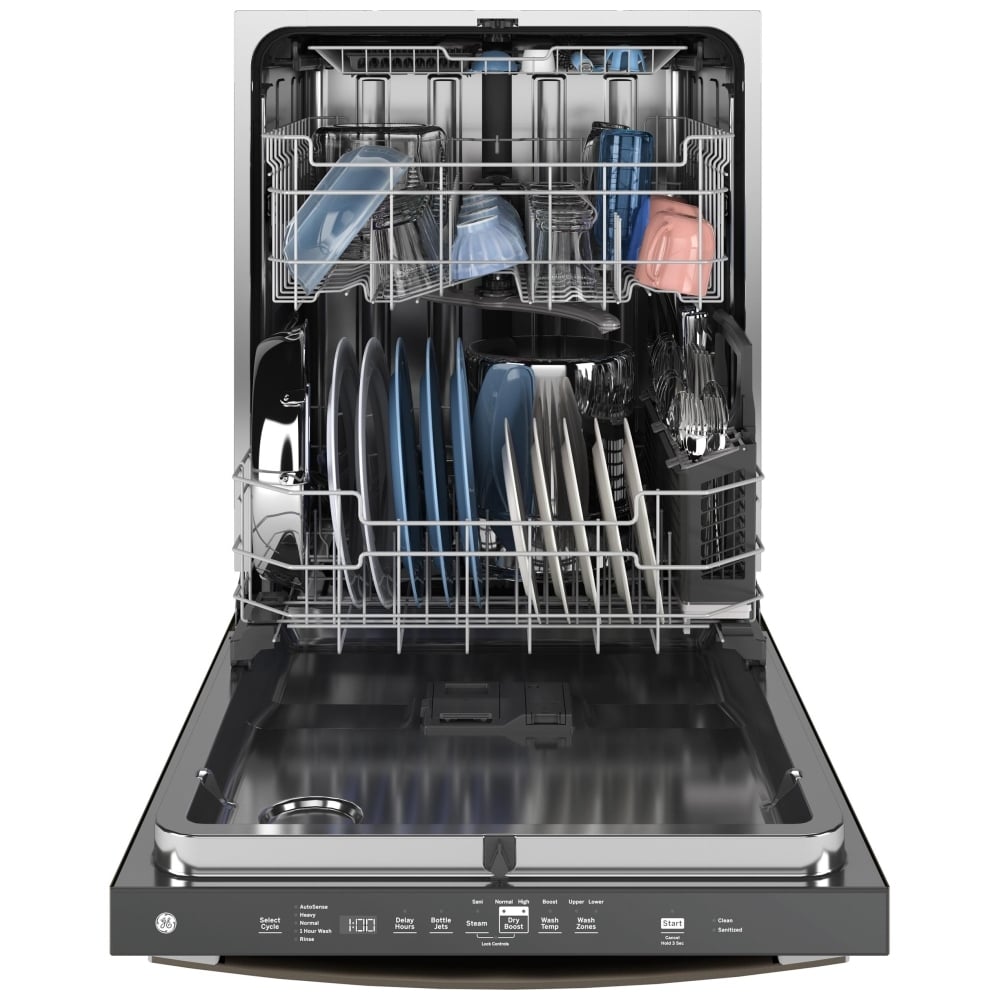

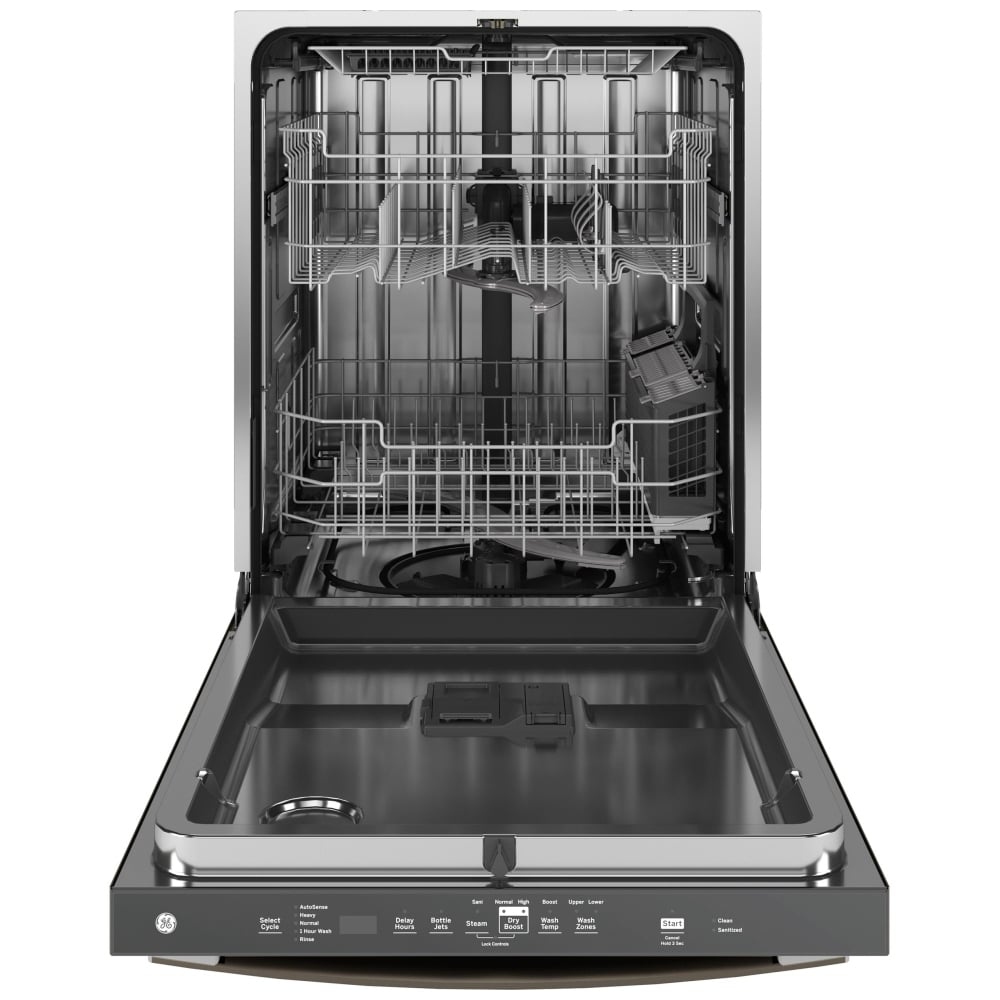

| Type | Built-In Dishwasher |
| Style | Top Control / Fully Integrated Controls |
| Exterior Style | Traditional |

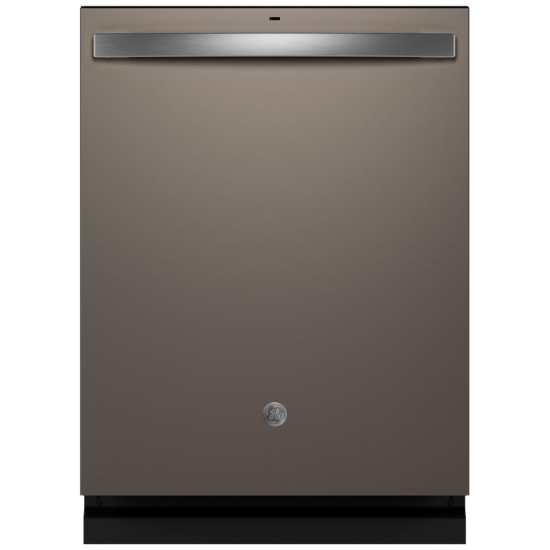

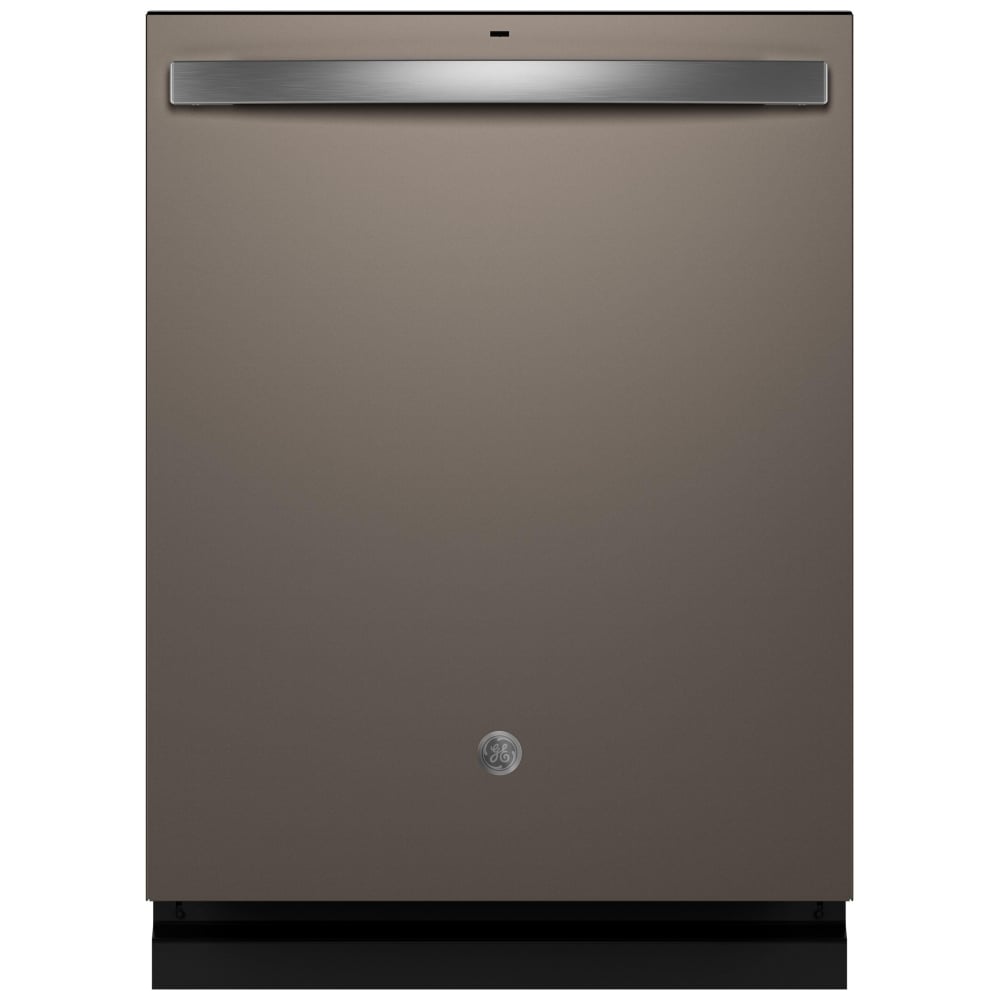

| Model | GDT670SMVES |
| Color / Finish | Fingerprint Resistant Slate |
| Handle Type | Towel Bar / Rounded Handle |
| Handle Color | Stainless Steel |
| Door Style | Long Door with Top Controls |
| Door Appearance | Full-length door |
| Control Panel Color | Storm Gray |
| Tub Type | Tall Tub |
| Tub Material | Stainless Steel |
| Door Liner | Stainless Steel |

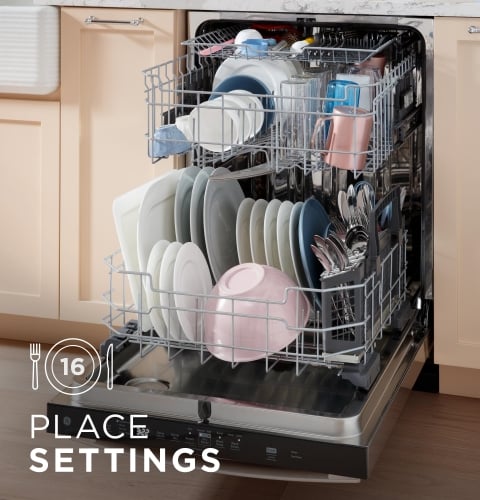

| Number of Place Settings | 16 |
| Number of Cycles | 5 |
| Dishwasher Cycles | 1 Hour Wash; Auto Sense; Heavy Wash; Normal Wash; Rinse |
| Dishwasher Options | Bottle Jets; Child Lock; Delay Start 1–12 Hr; Dry Boost™ (High); Dry Boost™ (Normal); Sabbath Mode; Start/Cancel; Steam + Sani (NSF 184); Wash TempBoost; Wash Zone Lower Only; Wash Zone Upper Only |
| Control Type | Capacitive Touch |

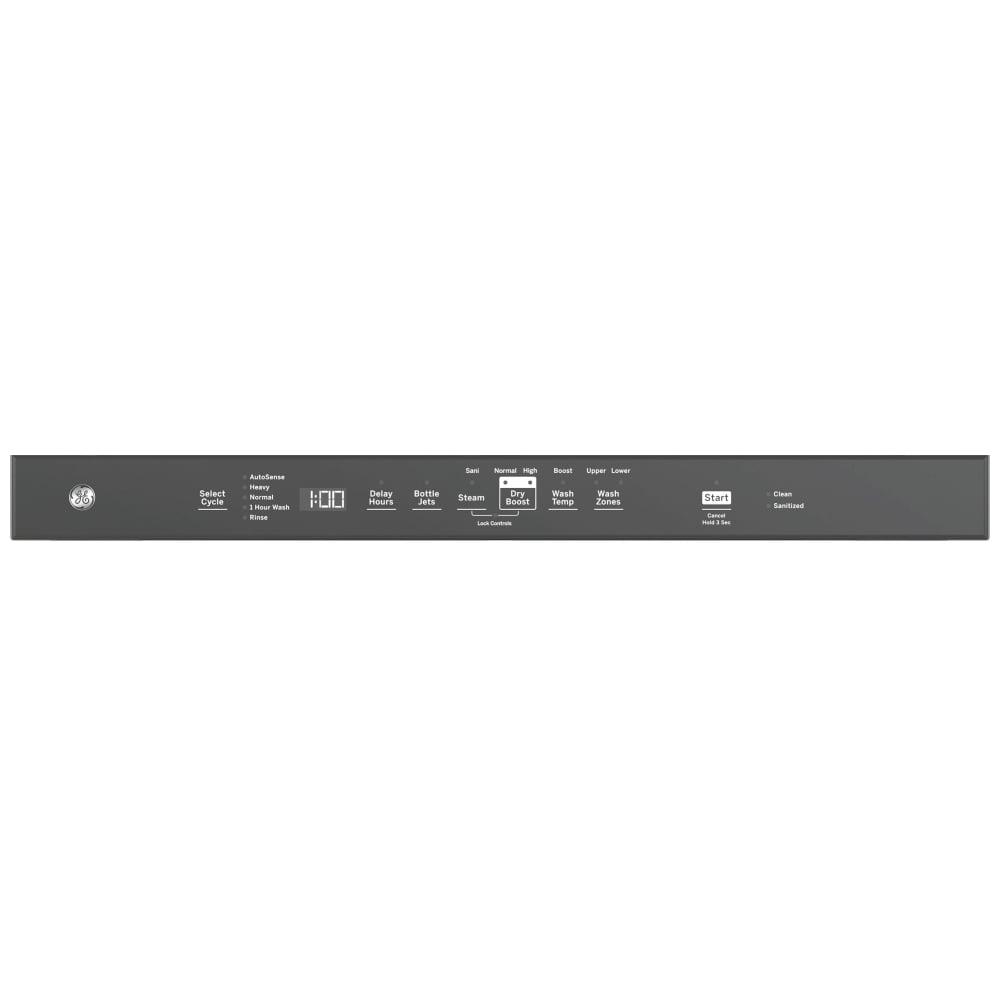

| Dishwasher Control Features | “Clean” Light; “Sanitized” Light; Cycle Progress Indicators; 3-Digit Display Cycle Countdown; Bi-Color LED Status Light on Door; Audible End-of-Cycle Signal; Control Lock; Last Cycle Memory |

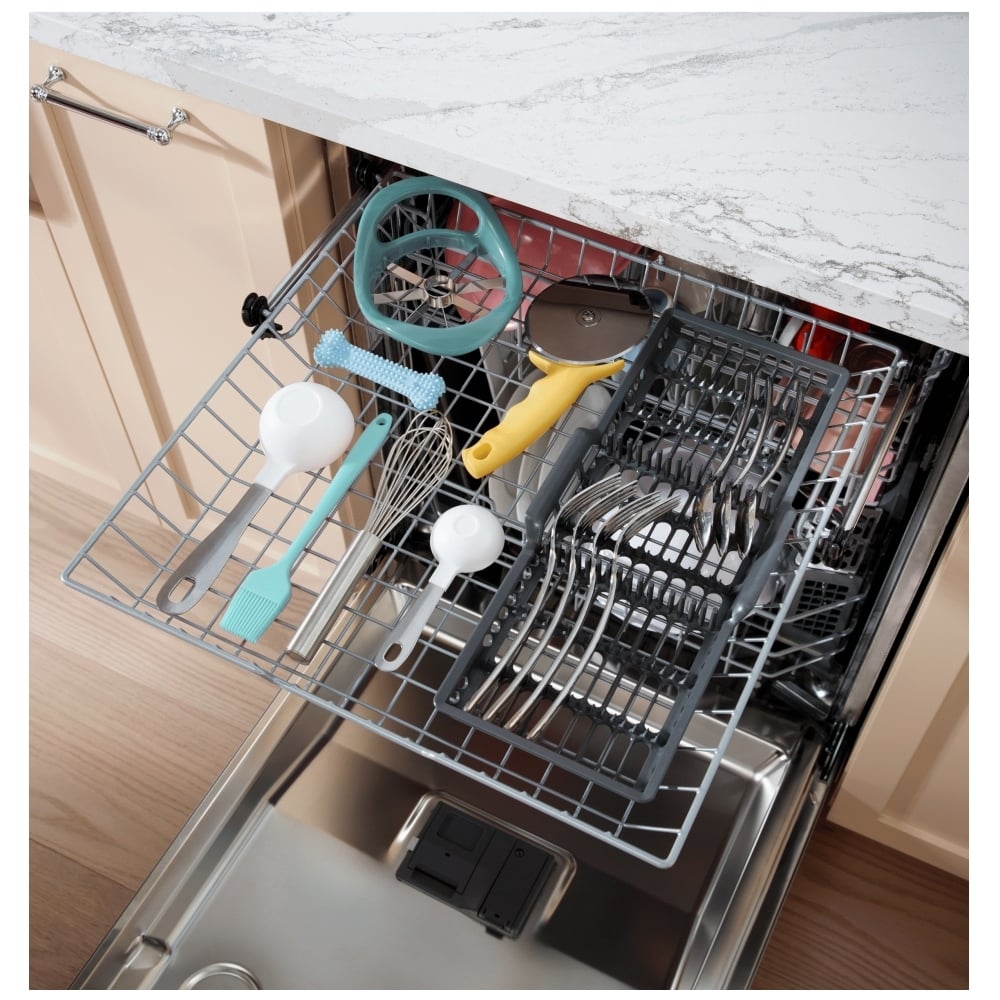

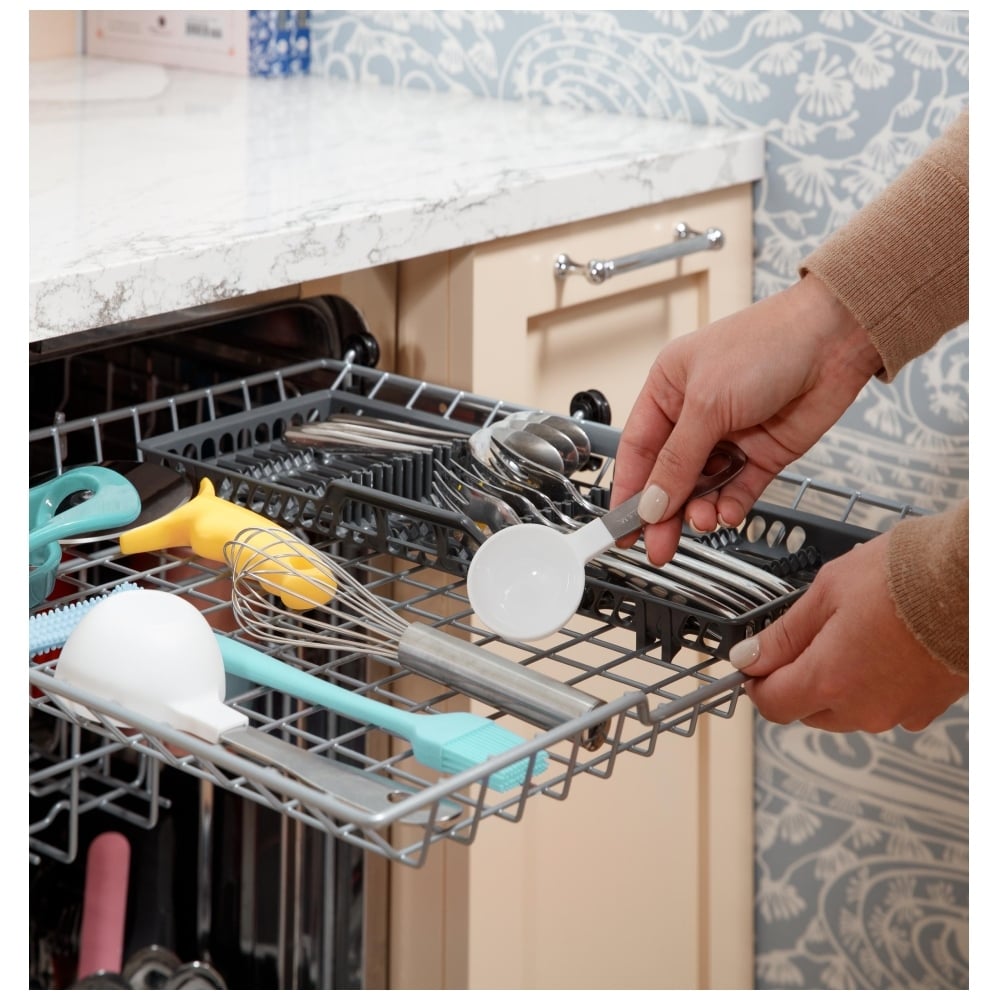

| Cutlery / Third Rack | Third Rack with Removable Silverware Caddy; One-piece removable 3rd rack |
| Lower Rack | Ball-Tip Tines |

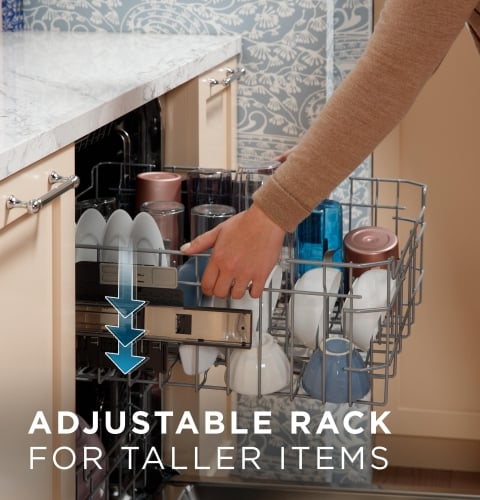

| Upper Rack | Ball-Tip Tines; Premium Height Adjustable; Smooth-Glide Upper Rack |
| Rack Features (General) | 1-Piece Silverware Basket with 3 Cell Covers; Third Rack + Caddy; Upper Rack Adjustable; Upper Rack Ball-Tip Tines; Upper Rack Smooth Glide; Lower Rack Ball-Tip Tines |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Additional Protection | Active Flood Protect |
| Sensor | Clean Sensor |

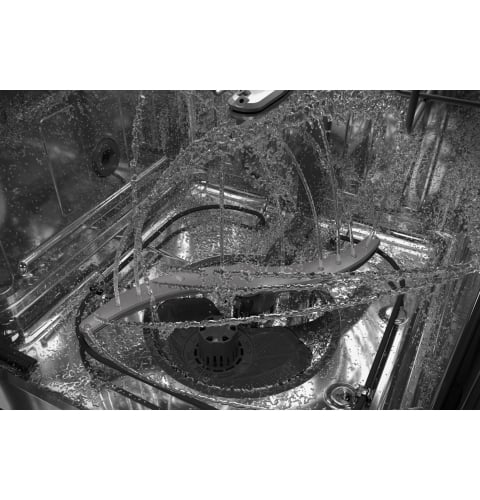

| Wash System | 3-Level, 600 Series |
| Leveling System | 4 Leveling Legs |
| OU Certified | No |
| Latch | Pull with Handle |
| Number of Options | 11 |
| Energy Star | Yes (ENERGY STAR® Certified) |
| Energy Consumption | 240 kWh/year |
| Dishwasher Sound Rating | Quiet (40–49 dB) |
| Noise Level | 45 dBA |
| Wi-Fi Enabled | No |
| Sabbath Mode | Yes |
| Showroom Power Mode | Yes |
| Install Type | Built-In |
| Installation Features | Built-Up Floor Capable; Flush Cabinet Installation; Side or Top Mount Install Brackets Included |
| ADA Compliant | No |
| Door Insulation | Insulation; Mastic |
| Outer Wrap | Bitumen; Full-wrap Blanket |
| Quiet Package | 45 dBA; Quiet Water Valve; Sealed Toe Kick; Tub Collar Trim |
| Motor Type | Variable Speed |
| Height (Overall) | 34 in |
| Height (Bottom to Top) | 33.38 in (rounded listing) |
| Height w/ Legs Retracted (Minimum) | 33.375 in |
| Height w/ Legs Extended (Maximum) | 34.625 in |
| Width | 23.75 in |
| Cabinet Width | 24 in |
| Cutout Width | 24 in |
| Overall Depth (Without Handle) | 24 in |
| Overall Depth (With Handle) | 25.6 in |
| Depth (Front to Back) | 25.6 in |
| Depth with Door Open | 27.5 in |
| Cutout Depth | 24 in |
| Height x Width x Depth (Product) | Approx. 34 H x 23.75 W x 24 D in |
| Net Weight | 99 lb |
| Approximate Shipping Weight | 112 lb |
| Power Connection | Optional cord kit (GPFCORD – WX09X70910, WX09X70911) |
| Electrical Requirements | 120 V; 60 Hz; 6.6 A |
| Volts / Hertz / Amps | 120 V; 60 Hz; 6.6 A |
| Hertz | 60 Hz |
| Watts (Total) | 936 W |
| Calrod Heater Watts | 800 / 500 W |
| Energy Star Compliant | Yes |
| Tall Tub Design | Yes |
| NSF Certified Rinse | Yes (Steam + Sani, NSF 184) |

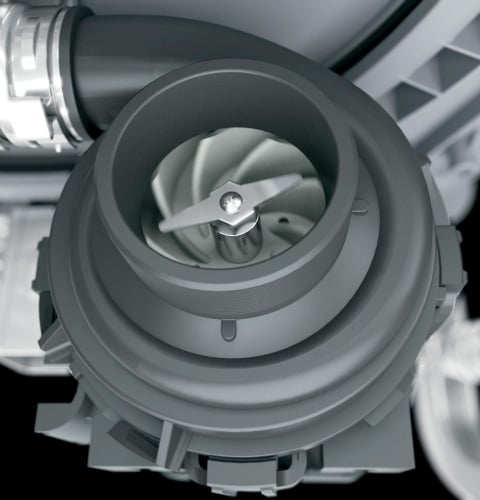

| Hard Food Disposer | Yes (Piranha Hard Food Disposer) |
| Rinse Aid Dispenser | Yes |
| Automatic Moisture Sensing | Yes (via sensors / Auto Sense) |
| Delay Start | 1–12 Hours |
| Adjustable Racks | Yes (Premium Height Adjustable Upper Rack) |
| Key Features | Dry Boost™ Technology; Third Rack with Removable Silverware Caddy; Deep Clean Silverware Jets; 4 Bottle Wash Jets; Steam + Sani |
| Drying System | Dry Boost™ Technology (enhanced heated dry) |

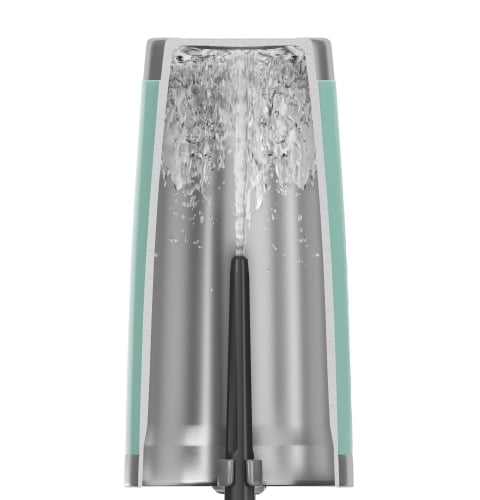

| Bottle Wash Jets | 4 Bottle Wash Jets |
| Deep Clean Silverware Jets | Yes (40 deep-cleaning silverware jets) |

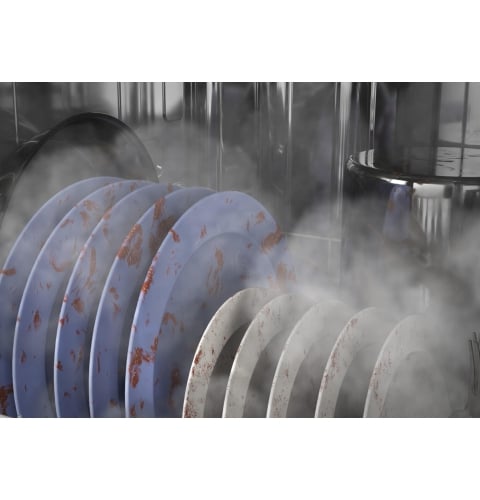

| Steam + Sani | Yes; Certified to NSF Standard 184 |
| Active Flood Protection | Active Flood Protect system |
| Indicator Lights | Status indicators; “Clean” and “Sanitized” lights; LED countdown |
| LED Display | 3-Digit LED Display with Countdown |
| Delay Start Feature | Yes (1–12 Hour Delay) |
| Child Lock | Yes (Control Lock) |
| Leveling Legs | 4 Leveling Legs |
| Leveling Range | Approx. 33.375 in to 34.625 in height |
| Labor Warranty | Limited 1-year entire appliance |
| Parts Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
