Hauslane

WM-530WHT-30B

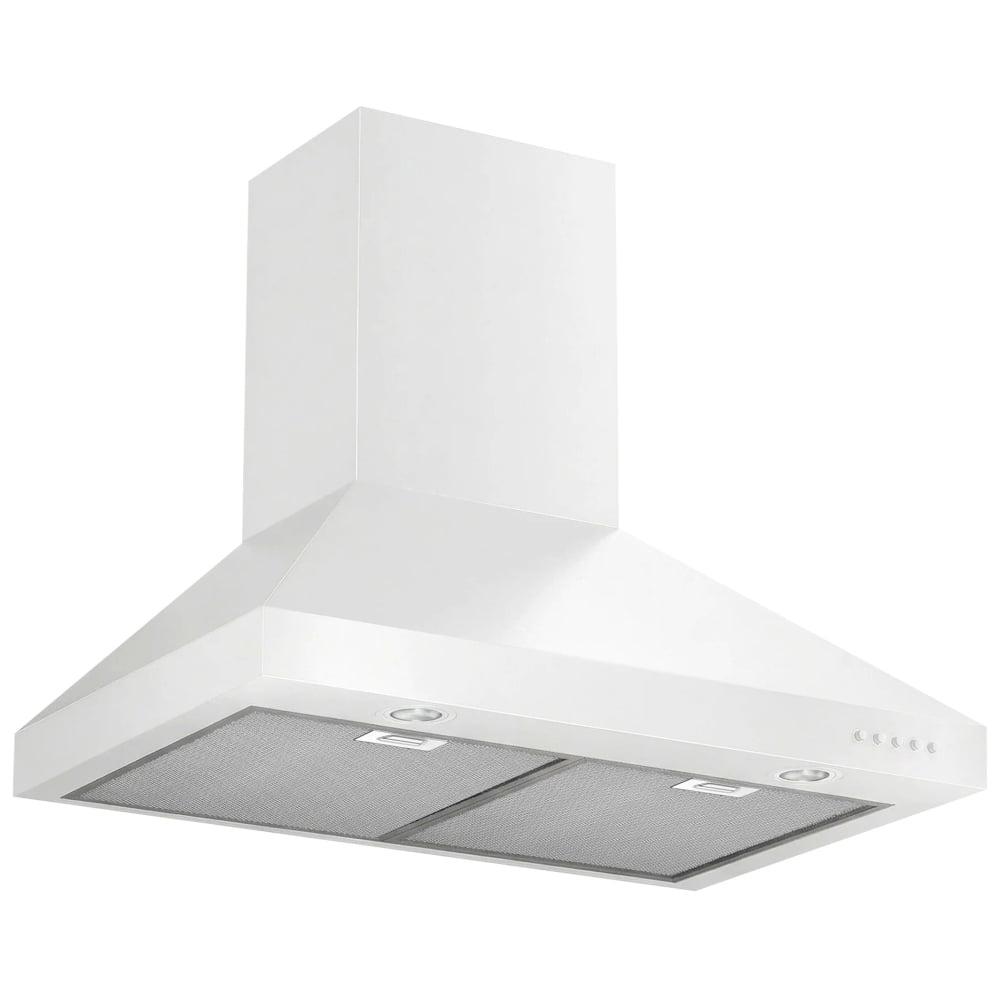

• Hauslane® WM-530 Base design – signature Hauslane wall-mounted canopy hood engineered for strong everyday kitchen ventilation performance.
• Chef Series styling – professional-inspired pyramid canopy profile that upgrades the look of both modern and traditional kitchens.

• Convertible venting (ducted or ductless) – installs with a 6" round duct for outside venting or as a recirculating/ductless hood with optional charcoal filters to suit different kitchen layouts.
• Up to 350 CFM airflow – provides strong suction to capture steam, smoke, and odors from everyday frying, boiling, and sautéing.
• 3-speed fan control – low, medium, and high settings let you balance ventilation power and noise level based on what you’re cooking.
• Quiet operation (as low as 1.5 sones) – keeps noise to a comfortable level so you can converse while cooking.
• Top venting with 6" round outlet – standard-size duct connection simplifies installation and improves exhaust efficiency.
• Convertible ventilation type – supports both vented-to-outside and recirculating configurations for maximum installation flexibility.

• Matte white stainless steel finish – durable, easy-to-clean metal body with a contemporary matte white color that coordinates with light cabinetry and appliances.
• 30" wall-mounted canopy width – sized to fit most 30" cooktops and ranges while providing full coverage over the cooking surface.
• Pyramid range hood shape – angled canopy design helps funnel rising smoke and steam directly into the filters and fan.
• Adjustable chimney height (approx. 30"–45") – telescoping chimney accommodates a range of ceiling heights for a custom built-in look.
• Extended chimney option for tall ceilings – compatible with an optional extension kit to fit kitchens with ceilings up to about 10 feet.

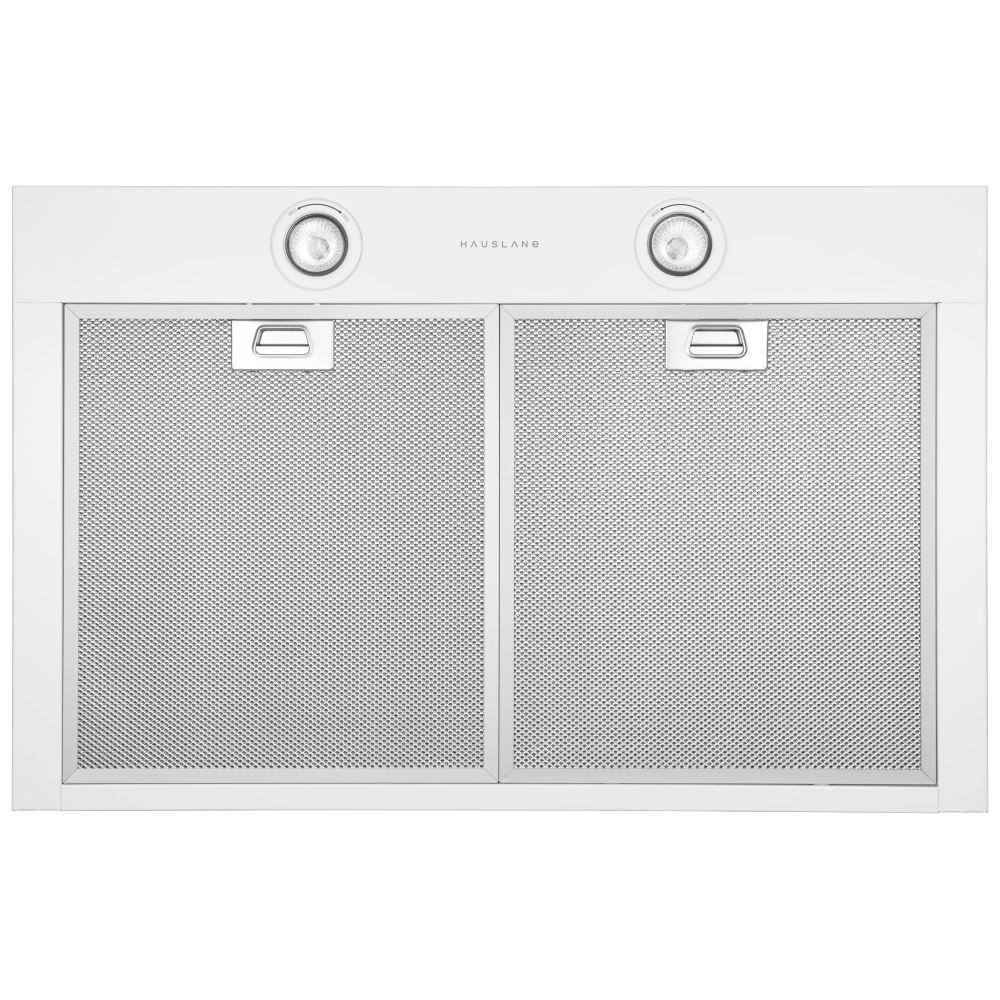

• Aluminum mesh grease filters – multi-layer metal filters capture grease particles from cooking fumes to protect the motor and ductwork.
• Removable, washable filters – aluminum mesh filters can be taken out and cleaned to maintain suction performance and reduce operating costs.
• Charcoal filter capable – accepts charcoal filters (sold separately) to absorb odors when used in ductless/recirculating installations.

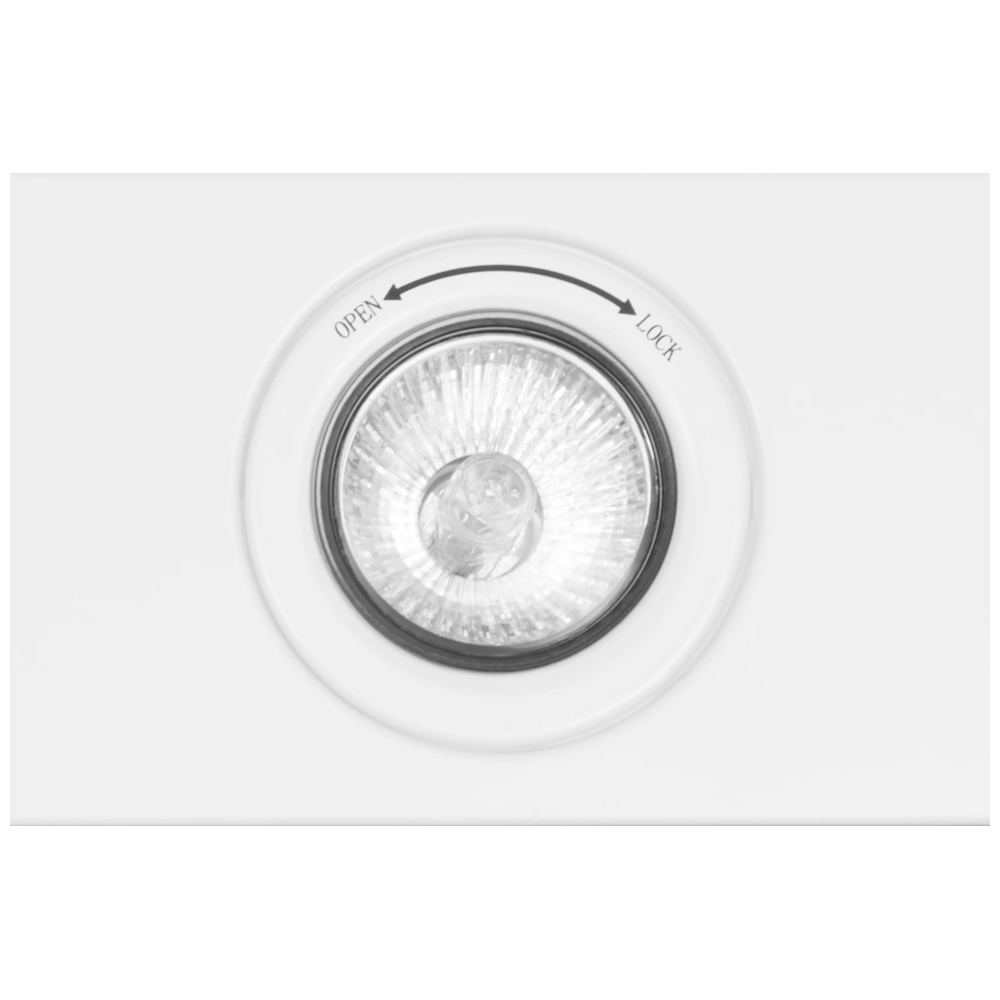

• Dual halogen work lights – two halogen bulbs brighten the cooktop so you can clearly see food color and doneness.
• Warm light color (approx. 2700–3000K) – soft, warm-toned lighting creates a comfortable ambiance and blends with most kitchen lighting schemes.
• Single-level light control – simple on/off lighting makes it easy to illuminate the cooking area when needed.

• Mechanical push-button controls – reliable, long-lasting buttons for fan speeds and lighting that are easy to understand and operate.
• Simple front control layout – front-mounted controls provide quick access without reaching over hot pots and pans.

• Single high-efficiency motor – compact motor design delivers strong suction while keeping energy consumption moderate.
• Approx. 142W total power draw – efficient electrical usage helps limit operating costs during daily cooking.
• 120V plug-in connection – standard household voltage and plug-in design simplify electrical installation.
• ETL safety listing – independently tested to meet recognized safety standards for household appliances.

• Indoor-use wall-mounted range hood – designed specifically for indoor residential kitchens to remove airborne grease and odors.
• Very quiet sound rating (approx. 43–50 dB on low) – low decibel level on lower speeds supports open-concept living spaces.
• 29.38" W x 19" D coverage – depth and width are optimized to capture rising fumes from standard-depth ranges.

• Includes complete mounting hardware – ships with upper and lower chimney covers, chimney bracket, and 6" round exhaust adapter for a straightforward installation.
• Damper included – built-in damper in the adapter helps prevent backdrafts and outside air from entering the kitchen.

• 2-year limited warranty – provides manufacturer coverage on parts and labor for added purchase confidence.
• Lifetime motor warranty (where applicable) – long-term coverage on the motor underscores durability and reliability.

• Ideal for everyday home cooking – sized and powered for typical family meals, including boiling, steaming, pan-frying, and light stir-frying.
• Helps reduce grease buildup in the kitchen – continuous capture of airborne grease particles helps keep cabinets, walls, and ceilings cleaner over time.
• Improves indoor air quality – removes smoke, steam, and odors to create a more comfortable cooking environment.
• Enhances kitchen resale appeal – modern matte white chimney hood design can increase perceived value and style of the kitchen.
