3 Layer basket
3 Spray arms + Vortex Wash
48 dB(A)
6 Program(Normal wash/Pots & Pans-heavy/Energy saver-light/Quick wash/Rinse/China crystal)
6 Options(Air exchange , Steam Wash, Vortex wash, heating dry, Sanitize, Hi Temp)
Manufacturer's Warranty: 2 years
Canadian model: HDW63314SS
Canadian UPC: 810088364204
EAN: 0810088364204
Similar to HUI66360XCUS
| Specification | Details |
|---|---|
| Model Number | HDW63314SS |
| Product Type | Built-in 24" dishwasher (slot-in) |
| Dishwasher Type | Built-In Standard |
| Control Panel Style | Top control / hidden control |

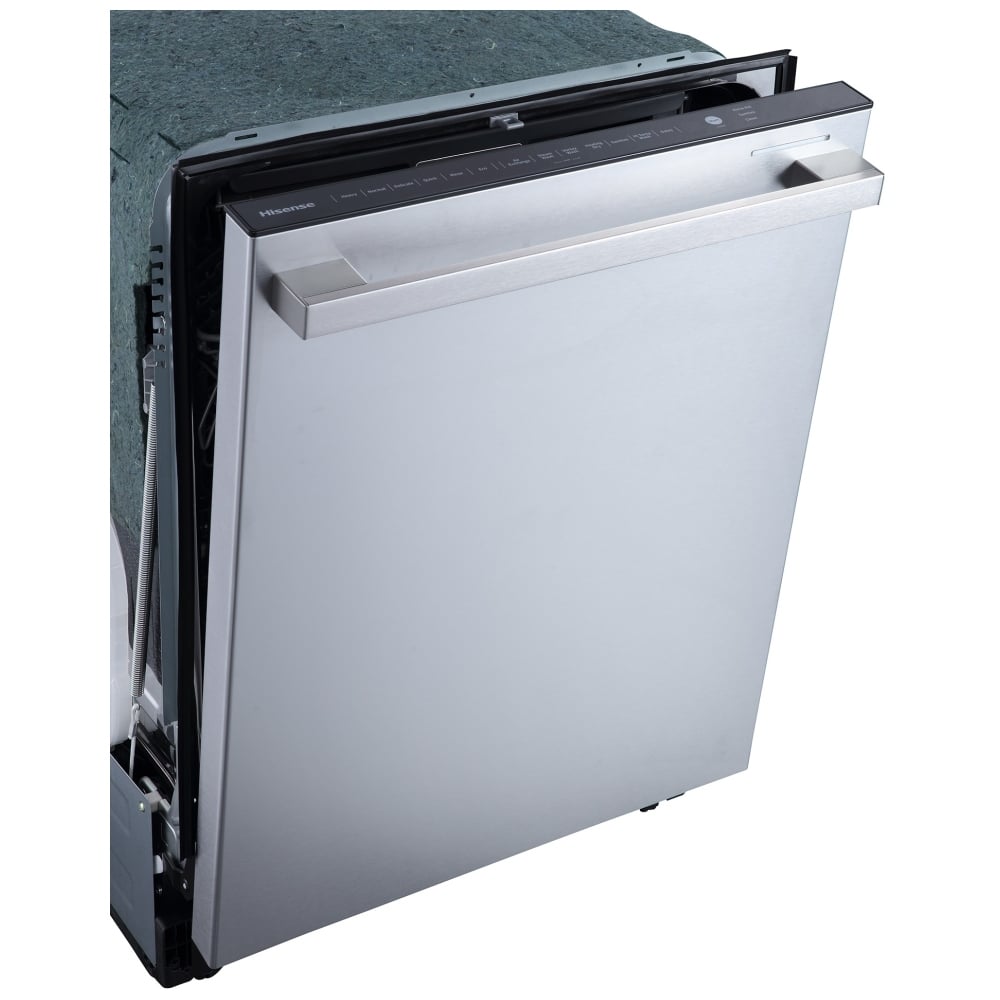

| Handle Type | Bar handle (metal) |
| Finish / Colour | Stainless Steel (Inox) |

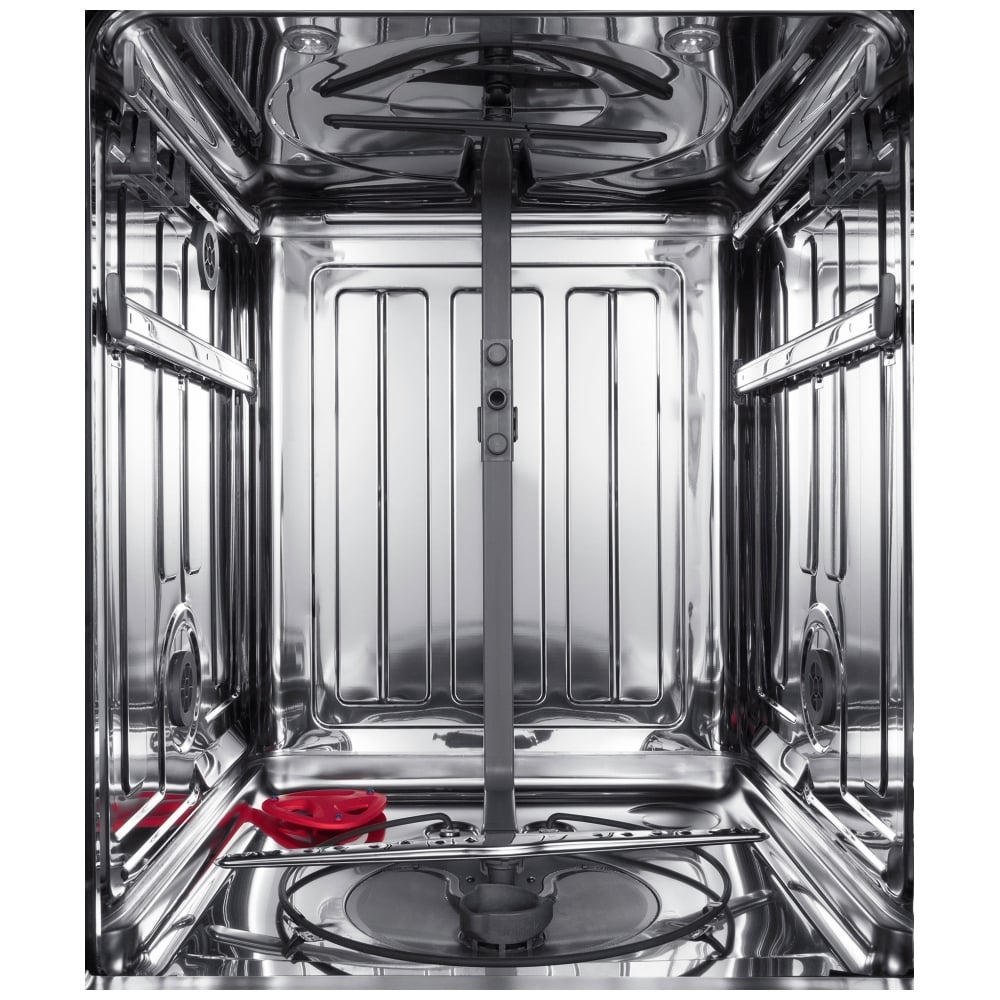

| Interior Finish | Stainless Steel tub |
| Energy Class | ENERGY STAR (V7.0) |
| Energy Consumption | 240 kWh/year (English Hisense Canada spec) |
| Energy Consumption (Alt.) | 199 kWh/year (French Hisense Canada spec) |
| Water Consumption per Cycle | Approx. 3.2 gal / 13 L per cycle |
| Place Settings | 14 place settings |
| Noise Level | 48 dB(A) |
| Sound Level Category | Very quiet (43–50 dB) |
| Width | 23.73 inches (60.27 cm) |
| Class Width | 24 inches |
| Height | 33.74 inches (85.7 cm) |
| Depth (cabinet / box) | 22.73 inches (57.73 cm) |
| Depth (including handle / overall) | 26.5 inches (approx. 67.3 cm) |
| Approx. Retail Dimensions (some retailers) | Width: 23.9 in; Height: 33.7 in; Depth: 26.5 in |
| Net Weight | Approx. 68 lb (30.8 kg) |
| Shipping Weight | Approx. 96.6 lb (43.8 kg) |
| Shipping Dimensions (W x H x D) | 25.2 in x 36.6 in x 26.18 in (640 mm x 930 mm x 665 mm) |
| Door Type | Full Stainless Steel door |
| Door Frame | Metal handle / pocket-handle style frame (per Canadian variants) |
| Control Panel Type | Plastic |
| Control Panel Colour | Black |
| Control Panel Inlay | Black PC |

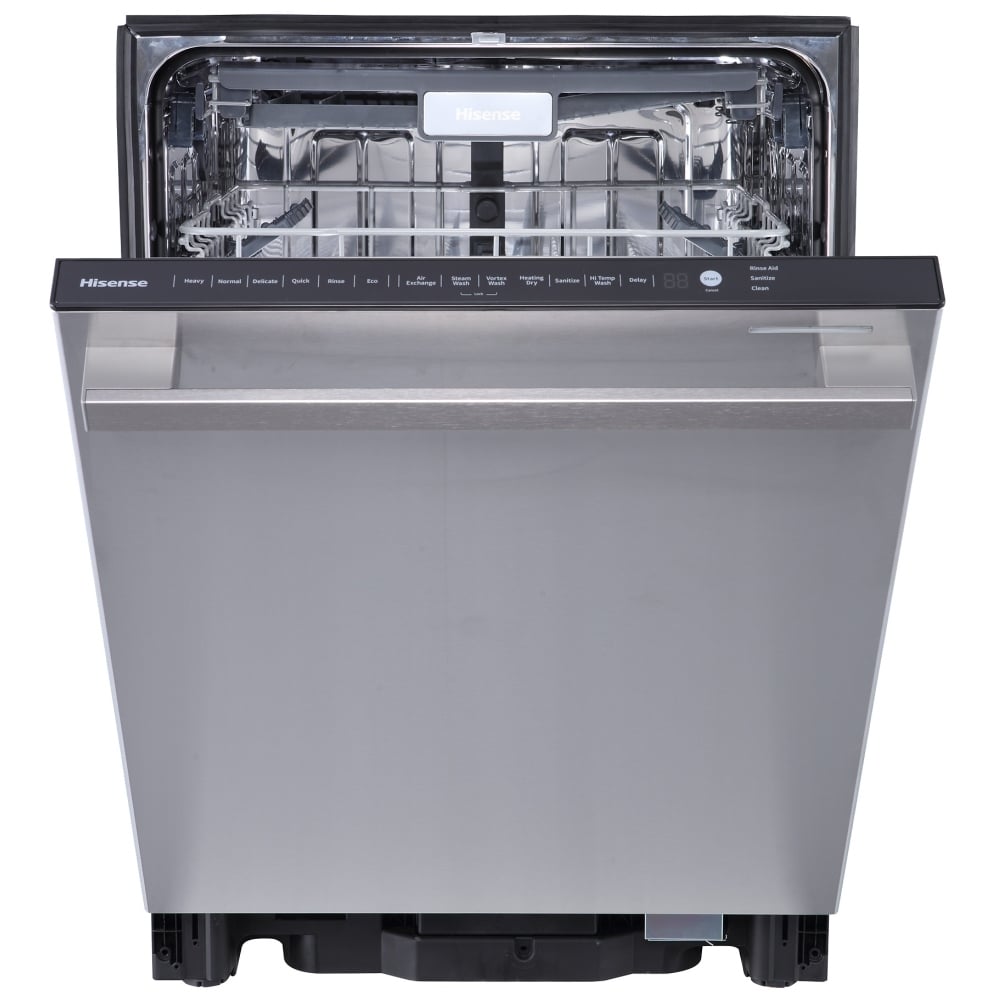

| Buttons / Controls | Touch control, same colour as control panel |
| Number of Touch Buttons | 10 |
| Program Selection | Touch, with LED white display |
| Number of Wash Temperatures | 5 |
| Wash Temperatures | 35°C / 45°C / 55°C / 65°C / 70°C |
| Number of Wash Cycles | 6 |
| Typical Cycles (retailers) | Normal, Heavy, Energy Saver/Eco, Quick (60 min), Rinse, China/Gentle |
| Rinse and Hold | Yes |
| Heavy / Pots & Pans Cycle | Yes |
| Gentle / China Cycle | Yes |
| Quick Wash Cycle | Yes (approx. 60 minutes) |
| Quick Rinse Cycle | Yes |
| Sanitize Option (NSF) | Yes |
| Delay Start | Yes, up to 24 hours |
| Multitab Option | Yes (UI menu) |
| Steam Wash | Yes (steam option for heavily soiled items) |

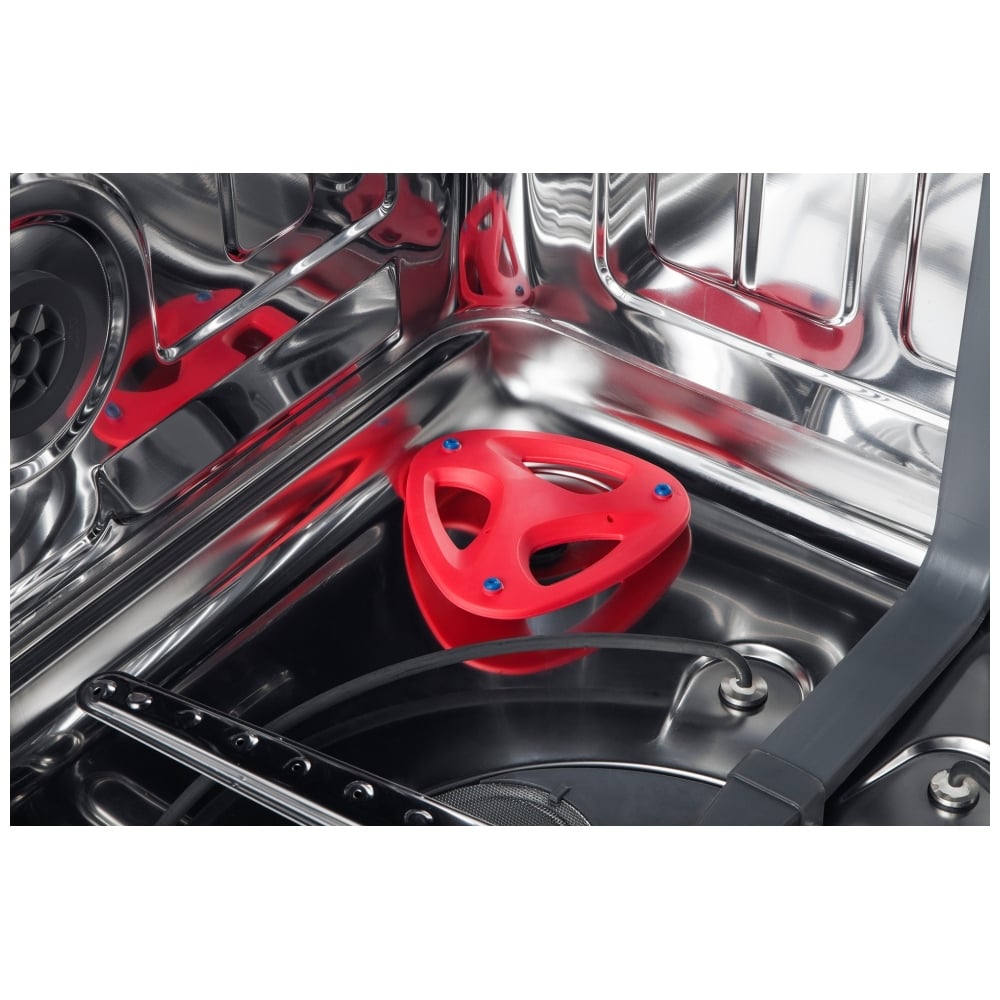

| Vortex Wash | Yes (high-pressure rotating nozzles for pots and pans) |
| Air Exchange | Yes (refreshes interior air every 6 hours between cycles) |
| Heated Dry / Heat Dry | Yes (uses concealed heating element) |
| Drying System | Total Dry with automatic door open at end of cycle |
| Automatic Door Open | Yes |
| Self-Cleaning Program | Yes |
| Self-Cleaning Filter | Yes (European-style filtration system) |
| Hard Food Disposer | No (soft food filtration only) |
| Water Filtration | Yes (Inox filter) |

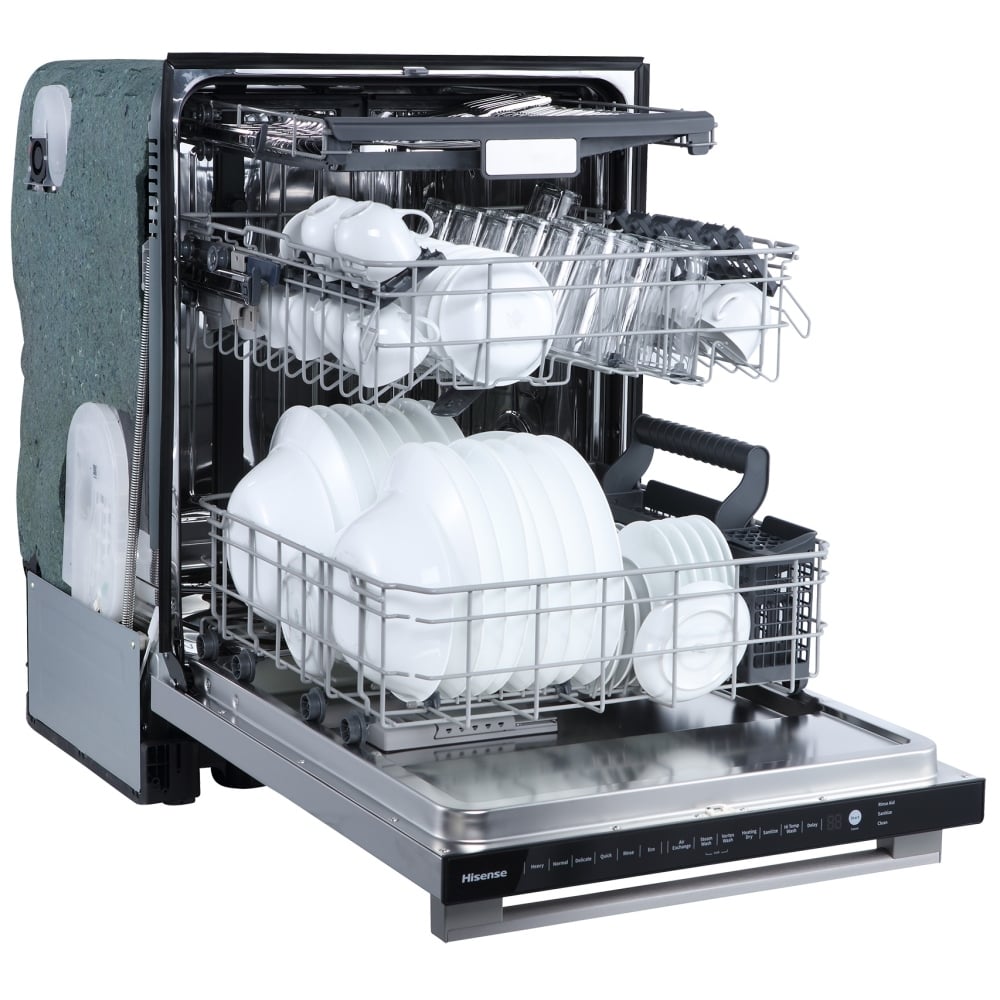

| Number of Racks | 3 racks |
| Third Rack | Yes (adjustable / sliding 3rd rack) |
| Rack Material | Nylon-coated racks |
| Upper Rack Features | Adjustable rack; flexible cup holders (1x); glass holders; allows taller items on middle rack |
| Lower Rack Features | Adjustable tines / tongs for different sized items |
| Foldable Plate Holders (Upper / Bottom) | 0 / 0 (per Hisense spec) |
| Cutlery Basket | Yes, removable cutlery basket |
| Knife Holder | 1 x small knife holder |
| Silverware Basket Covers | Yes |
| Third Rack Type | Culinary rack / side-sliding 3rd rack |
| Lower Spray Arm | Plastic |
| Top Spray Arm | Plastic |
| Top Sprayer / Shower | No separate top shower |
| Number of Wash Levels | Multi-level (3 wash arms; retailers list 6 wash levels) |
| Wash System Type | Direct feed |
| Water Diverter Valve | Yes (DualZone) |
| Heating Element | Concealed |
| Water Sensor | Yes |
| Water Supply | Hot / Cold connection |
| Steam Protection | Yes |
| Child Lock | Yes |
| Cycle Status Light | No dedicated floor status light (some models use operating LED on panel) |
| Interior Light | No |
| Advanced Sensor Wash | No dedicated sensor wash cycle (standard water sensor present) |
| Hi-Temp Wash Option | Yes |
| NSF Certified Sanitization | Yes (sanitize button) |
| Air Dry Option | Yes (via Total Dry / door opening and air exchange) |
| Electrical Supply | 120 V / 60 Hz |
| Plug Type | Standard (some installs via hard-wire junction box) |
| App / Wi‑Fi Connectivity | No (no Wi‑Fi, no voice assistant integration) |
| Smart Home Compatibility | Not compatible with Alexa, Google Assistant, or other ecosystems |
| Adjustable Feet | Yes (front-adjustable; approx. 0–30 mm range) |
| Maximum / Minimum Height | Approx. 33.7 in (fixed in most retailer listings; XXL 86 cm body height) |
| Tub Height | Standard tub height |
| Fingerprint Resistant | Yes (stainless finish marketed as easy to clean) |
| Safety Listing | CSA safety listing (Canada) |
| Country of Origin | China |
| Included Accessories | Drain hose (fill hose often sold separately) |
| Warranty (Canada) | 2 years parts and labour |
| UPC (English Hisense Canada / many retailers) | 810088364204 |
| UPC (French Hisense Canada listing) | 3838782650949 |
